USER MANUAL FD 61.1 (CH)HA HOTPOINT ARISTON

Operating Instructions Contents Installation, 13-14 Positioning Electrical connections Data plate Description of the appliance, 15 Overall view Control panel Start-up and use, 16 Starting the oven How to use the timer Analogue programmer, 17 Setting the time Starting the oven Programming your cooking Cooking modes, 18-19 Cooking modes Practical cooking advice Cooking advice table Precautions and tips, 20 General safety Disposal Respecting and conserving the environment Assistance Maintenance and care, 21 Switching the appliance off Cleaning the appliance Cleaning the oven door Replacing the light bulb Sliding Rack Kit assembly OVEN FZ 61.1 /HA FZ 61.1 IX /HA FZ 612.2 /HA FZ 612.1 IX /HA FZ 65.1 /HA FZ 65.1 IX /HA F 60.1 /HA F 60.1 IX /HA FQ 61.1 /HA FQ 61.1 IX /HA FZ 62 C.1 /HA FZ 62 C.1 IX /HA FZ 65 C.1 /HA FZ 65 C.1 IX /HA FD 61.1 /HA XF 695.1/HA FZ 612 C.1 IX /HA FZ 612 C.1 /HA F 627 C.1 IX /HA F 627 C.1 /HA FZ 657 C.1 IX /HA FZ 657 C.1 /HA Italiano, 1 Français, 22 Espanol, 32 Portuges, 42 English,12 IT FR ES PT

595 mm. 595 mm. 24 mm. 545 mm. 5 mm. 567 mm. 23 mm. 575-585 mm. 45 mm.560 mm.547 mm. min. Installation 560 mm. 45 mm. ! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning ! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard. see Precautions and tips

! The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property. Fitting the appliance Use the appropriate cabinet to ensure that the appliance functions properly.

• The panels adjacent to the oven must be made of heat-resistant material.

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

• To install the oven under the counter ( see diagram

and in a kitchen unit, the cabinet must have the following dimensions: ! The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation. Ventilation To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm ( see diagrams

Centring and fastening Position the 4 tabs on the side of the oven according to the 4 holes of the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: thickness of 20 mm: take off the removable part of the tab

thickness of 18 mm: use the first groove, which has already been set in the factory ( see diagram

thickness of 16 mm: use the second groove ( see diagram

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.14

DATA PLATE Dimensions width cm 43.5 height cm 32 depth cm 41.5 Vol ume lt. 58 Dimensions of models with removable racks width cm 37.5 height cm 32 depth cm 41.5 Volume of models with removable racks lt. 50 Electrical connecti ons vol tage: 220-230V~ or 220-240V~ 50/60 Hz or 50Hz (see data plate) maximum power absorbed 2800W ENERGY LABEL Directive 200 2/40/EC on t he label of el ectric ovens. Norm EN 50304 Energy consumption for Natural convection – heating mode: Traditional mode Declared energy consumption for Forced convection Class – heating mode: Baking This appli ance conforms to the following European Economic Community directives: -2006/95/EEC of 12/12/06 (Low Voltag e) and subsequent amendments; - 2004/108/EEC of 15/ 12/04 (Electromagnetic Compatibility) and sub sequent amendments; - 93/68/EEC of 22/07/93 and sub sequent amendments. - 2002 /96/ EC a nd su bsequent amendments. Electrical connections ! Ovens equipped with a three-pole power supplycable are designed to operate with alternating currentat the voltage and frequency indicated on the dataplate located on the appliance ( see below

Fitting the power supply cable1. Open the terminalboard by inserting ascrewdriver into the sidetabs of the cover. Usethe screwdriver as alever by pushing it downto open the cover ( see diagram

2. Install the powersupply cable byloosening the cableclamp screw and thethree wire contactscrews L-N-. Connectthe wires to thecorresponding terminals:the Blue wire to theterminal marked (N), theBrown wire to theterminal marked (L) andthe Yellow/Green wire tothe terminal marked

3. Secure the cable byfastening the clamp screw.4. Close the cover of the terminal board.Connecting the supply cable to the mainsInstall a standardised plug corresponding to the loadindicated on the data plate ( see side

The appliance must be directly connected to the mainsusing an omnipolar circuit-breaker with a minimum contactopening of 3 mm installed between the appliance and themains, suitable for the load indicated and complying withcurrent electrical regulations (the earthing wire must not beinterrupted by the circuit-breaker). The supply cable mustnot come into contact with surfaces with temperatureshigher than 50°C.! The installer must ensure that the correct electricalconnection has been made and that it is compliant withsafety regulations.Before connecting to the power supply, make sure that:• The appliance is earthed and the plug is compliantwith the law.• The socket can withstand the maximum power of theappliance, which is indicated on the data plate ( see below

• The voltage must be in the range between thevalues indicated on the data plate ( see below

• The socket is compatible with the plug of theappliance. If the socket is incompatible with theplug, ask an authorised technician to replace it. Donot use extension cords or multiple sockets.! Once the appliance has been installed, the powersupply cable and the electrical socket must be easilyaccessible.! The cable must not be bent or compressed.! The cable must be checked regularly and replacedby authorised technicians only ( see Assistance

! The manufacturer declines any liability should! The manufacturer declines any liability should! The manufacturer declines any liability should! The manufacturer declines any liability should! The manufacturer declines any liability shouldthese safety measures not be observed.these safety measures not be observed.these safety measures not be observed.these safety measures not be observed.these safety measures not be observed.15

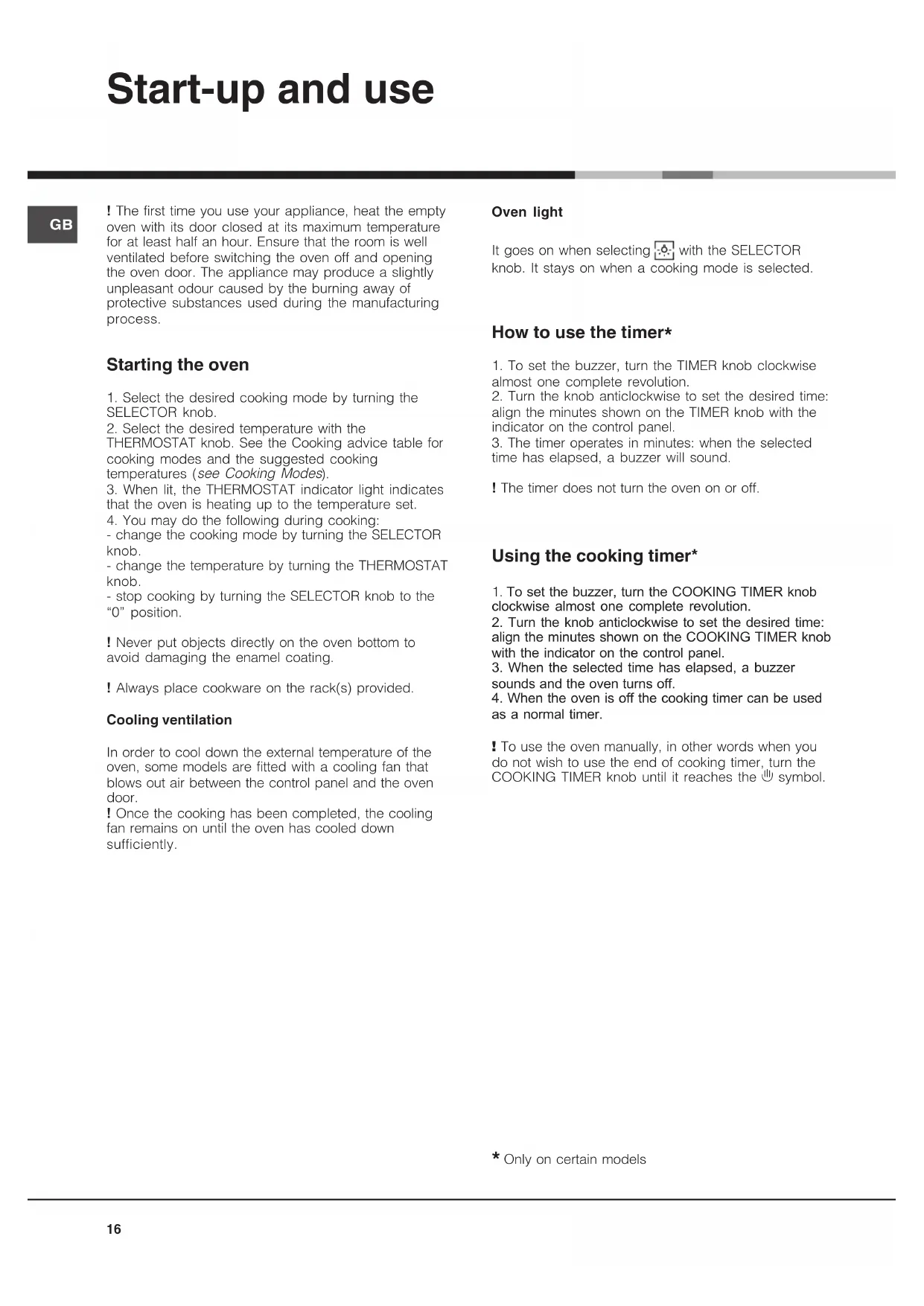

Start-up and use ! The first time you use your appliance, heat the emptyoven with its door closed at its maximum temperaturefor at least half an hour. Ensure that the room is wellventilated before switching the oven off and openingthe oven door. The appliance may produce a slightlyunpleasant odour caused by the burning away ofprotective substances used during the manufacturingprocess. Starting the oven 1. Select the desired cooking mode by turning theSELECTOR knob.2. Select the desired temperature with theTHERMOSTAT knob. See the Cooking advice table forcooking modes and the suggested cookingtemperatures ( see Cooking Modes

3. When lit, the THERMOSTAT indicator light indicatesthat the oven is heating up to the temperature set.4. You may do the following during cooking:- change the cooking mode by turning the SELECTORknob.- change the temperature by turning the THERMOSTATknob.- stop cooking by turning the SELECTOR knob to the“0” position.! Never put objects directly on the oven bottom toavoid damaging the enamel coating.! Always place cookware on the rack(s) provided.Cooling ventilationIn order to cool down the external temperature of theoven, some models are fitted with a cooling fan thatblows out air between the control panel and the ovendoor.! Once the cooking has been completed, the coolingfan remains on until the oven has cooled downsufficiently.Oven lightIt goes on when selecting with the SELECTORknob. It stays on when a cooking mode is selected. How to use the timer

1. To set the buzzer, turn the TIMER knob clockwisealmost one complete revolution.2. Turn the knob anticlockwise to set the desired time:align the minutes shown on the TIMER knob with theindicator on the control panel.3. The timer operates in minutes: when the selectedtime has elapsed, a buzzer will sound.! The timer does not turn the oven on or off. Using the cooking timer* 1. To set the buzzer, turn the COOKING TIMER knobclockwise almost one complete revolution.2. Turn the knob anticlockwise to set the desired time:align the minutes shown on the COOKING TIMER knobwith the indicator on the control panel.3. When the selected time has elapsed, a buzzersounds and the oven turns off.4. When the oven is off the cooking timer can be usedas a normal timer.! To use the oven manually, in other words when youdo not wish to use the end of cooking timer, turn theCOOKING TIMER knob until it reaches the symbol. Only on certain models17

Analogue programmer Setting the time Press the PROGRAMMER knob and turn it anticlockwise to set the correct time. ! The clock can only be set if the oven is connected to the mains. In case of a power failure, the PROGRAMMER will stop: the correct time will have to be reset. Starting the oven

1. Turn the PROGRAMMER knob anticlockwise until

the “” symbol is displayed.

2. Pull the PROGRAMMER knob and turn it

anticlockwise until the knob marker lines up with the current time. A click will indicate the end of the programming phase.

3. Select the desired cooking mode using the

to the “0” position. Programming your cooking Programming instant cooking time

1. Turn the PROGRAMMER knob anticlockwise until

the desired cooking time is displayed.

2. Pull the PROGRAMMER knob and turn it

anticlockwise until the knob marker lines up with the current time. A click will indicate the end of the programming phase.

3. Select the desired cooking mode using the

SELECTOR knob. The oven comes on immediately and stays on for the entire duration of the set cooking time.

4. When the selected time has elapsed, a buzzer will

sound and the oven will turn off.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme stops automatically at 10:15 a.m. Programming a delayed cooking time

1. Turn the PROGRAMMER knob anticlockwise until

the desired cooking time is displayed.

2. Pull the PROGRAMMER knob and turn it

anticlockwise until the knob marker lines up with the desired cooking start time.

3. Select the desired cooking mode using the

SELECTOR knob. The oven will come on at the set cooking start time and will stay on for the entire duration of the set cooking time.

4. When the selected time has elapsed, a buzzer will

sound and the oven will turn off.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed and the start time is set to 11:00. The programme starts automatically at 11:00 and ends at 12:15. ! To cancel programming, turn the PROGRAMMER knob anticlockwise until the symbol “” is displayed.18

Cooking modes Cooking modes ! A temperature value can be set for all cooking modes between 60°C and Max, except for

• BARBECUE (recommended: set only to MAX power level);

• GRATIN (recommended: do not exceed 200°C). TRADITIONAL OVEN mode Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only: if more than one rack is used, the heat will be distributed unevenly. MULTI-COOKING mode All the heating elements (top, bottom and circular), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time. BARBECUE mode The top heating element and the rotisserie (where present) come on. The high and direct temperature of the grill is recommended for food that requires high surface temperature. Always cook in this mode with the oven door closed. GRATIN mode The top heating element as well as the fan and the rotisserie (where present) come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed. PIZZA mode The bottom and circular heating elements, as well as the fan, will come on. This combination heats the oven rapidly by producing a considerable amount of heat, particularly from the bottom element. If you use more than one rack simultaneously, switch the position of the dishes halfway through the cooking process. BAKING mode The rear heating element and the fan come on, guaranteeing the distribution of heat delicately and uniformly throughout the oven. This mode is ideal for baking and cooking temperature sensitive foods such as cakes that need to rise and to prepare certain tartlets on 3 shelves simultaneously. The Rotisserie (only available on certain models) To operate the rotisserie

see diagram ) proceed as follows:

1. Place the dripping pan in position 1.

2. Place the rotisserie support in position 3 and insert

the spit in the hole provided on the back panel of the oven.

3. Start the rotisserie using the knob to select MODE

or . Practical cooking advice ! Do not place racks in position 1 and 5 during fan- assisted cooking. Excessive direct heat can burn temperature sensitive foods. ! In the BARBECUE and GRATIN cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTI-COOKING

• Use position 2 and 4, placing the food that requires more heat on 2.

• Place the dripping pan on the bottom and the rack on top. BARBECUE

• Insert the rack in position 3 or 4. Place the food in the centre of the rack.

• We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on.19

• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).

• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process. Cooking modes Foods Weight (in kg) Rack position Pre-heating time (min) Recommended temperature Cooking time (minutes) Convection Oven Duck Roast veal or beefPork roastBiscuits (short pastry)Tarts

65-7570-7570-8015-2030-35 Multi-cooking Pizza (on 2 racks)Lasagne Lamb Roast chicken + potatoesMackerelPlum cakeCream puffs (on 2 racks)Biscuits (on 2 racks)Sponge cake (on 1 rack)Sponge cake (on 2 racks)Savoury pies

2 and 42 and 4 2 and 4

55-6030-35 Gratin With rotisserie (where present)Veal on the spitLamb on the spitChicken on the spit +potatoes (roasted)

15-2025-3060-70 Baking Mode TartsFruit cakesPlum cakeSponge cakeStuffed pancakes (on 2 racks)Small cakes (on 2 racks)Cheese puffs (on 2 racks)Cream puffs (on 3 racks)Biscuits (on 3 racks)Meringues (on 3 racks)

2 and 42 and 42 and 41 and 3 and 51 and 3 and 51 and 3 and 5

Precautions and tips ! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• When handling the appliance, always use the handles provided on the sides of the oven.

• Do not touch the appliance with bare feet or with wet or moist hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

• When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away.

• Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven.

• The openings used for ventilation and dispersion of heat must never be covered.

• Always grip the oven door handle in the centre: the ends may be hot.

• Always use oven gloves to place cookware in the oven or when removing it.

• Do not use aluminium foil to line the bottom of the oven.

• Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire.

• Always make sure the knobs are in the “”/“ position when the appliance is not in use.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.

• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre ( see Assistance

• Do not rest heavy objects on the open oven door.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• Do not let children play with the appliance. Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance.

• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment

• By using the appliance in the hours between late afternoon and early morning, you can help reduce the work load placed on electrical companies.

• Always keep the oven door closed when using the BARBECUE and GRATIN modes: to attain best results and to save energy (approximately 10%).

• Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse. Assistance Communicating:

• appliance model (Mod.)

• serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging.21

Maintenance and care Switching the appliance off Disconnect your appliance from the electricity supplybefore carrying out any work on it. Cleaning the appliance

• The stainless-steel or enamel-coated external parts aswell as the rubber seals may be cleaned using asponge that has been soaked in lukewarm water andneutral soap. If these stains are difficult to remove,use only specialised products. After cleaning, rinseand dry thoroughly. Do not use abrasive powders orcorrosive substances.• Ideally, the inside of the oven should be cleaned aftereach use, when it is still lukewarm. Use hot water anddetergent, rinse and dry with a soft cloth. Do not useabrasive products.• All accessories - with the exception of the slidingracks - can be washed like everyday crockery, andare even dishwasher safe.• Never use steam cleaners or pressure cleaners on theappliance. Cleaning the oven door Clean the glass part of the oven door using a spongeand a non-abrasive cleaning product, then drythoroughly with a soft cloth. Do not use rough abrasivematerial or sharp metal scrapers as these could scratchthe surface and cause the glass to crack. To clean morethoroughly, you can remove the oven door.1. Open the oven door fully (see diagram

2. Lift up and turn the small levers located on the twohinges (see diagram

3. Grip the door on the twoexternal sides and close itapproximately half way. Unlockthe door by pressing on theclamps

F, then pull the doortowards you lifting it out of itsseat (see diagram To replace the door, reverse thissequence.Inspecting the sealsCheck the door seals around the oven periodically. Ifthe seals are damaged, please contact your nearestAfter-sales Service Centre (see Assistance). Werecommend not using the oven until the seals havebeen replaced. Replacing the light bulb To replace the oven light bulb:1. Remove the glass cover of the lamp-holder.2. Remove thelight bulb andreplace it with asimilar one:Wattage 25 W, capE 14.3. Replace theglass cover ( see diagram

Sliding Rack Kit assembly To assemble the sliding racks:1. Loosen the twoscrews A (see diagram If the oven is fitted withself-cleaning panels,these will have to betemporarilydisassembled.2. Replace the screws A with the screws and spacers(B + C) supplied with the kit.3. Tighten the new screws B and the correspondingspacers C, fitting the self-cleaning panels on again.4. Secure the two jointsD of the guide rail in theholes provided on theoven walls ( see diagram). The holes forthe left guide rail aresituated at the top, whilethe holes for the right oneare at the bottom.5. Finally, fit the guide rail on the spacer C.6. Do not place the sliding racks in position 5.
