Product Type	Flashlight / Lantern
Brand	HQ
Model	TORCHLCAMP03
Material	Aluminium
Dimensions (L × W × H)	104 × 37 × 27 mm
Power Supply	1 LR6 AA battery (1.5 V)
Lighting Type	0.5 W LED + side LEDs
Water Resistance	IPx6 (resistant to water jets)
Battery Life	0.5 W LED: 6 h, side LEDs: 10 h
Main Functions	Main lighting (touch conductive panel), side lighting (lantern), on/off switch
Battery Replacement	Turn base to 'OPEN', insert AA battery (+) facing down, close to 'LOCK'
Usage Precautions	Do not point beam into eyes, remove batteries if not used for extended period
Maintenance and Cleaning	Clean with a dry cloth, do not use solvents
Safety	Do not open yourself, disconnect if problem occurs, do not expose to water/humidity
Warranty	No warranty in case of modification or incorrect use
General Information	Design and features subject to change without notice

Frequently Asked Questions - TORCHLCAMP03 HQ

How to turn on the flashlight?

Press the On/Off button to turn on the flashlight. Then touch the power conductive panel to activate the 0.5 W LED. If you do not touch the panel, the side LEDs turn on automatically (lantern mode).

How to replace the battery?

Turn the lamp base to the OPEN position. Insert an AA (LR6) battery with the + sign facing down. Close by turning to LOCK. Wait 10 seconds before touching the conductive panel.

What does IPx6 rating mean?

The IPx6 rating means the lamp is protected against powerful water jets. It can be used in rain but should not be submerged.

Why do you need to touch the power conductive panel?

The conductive panel activates the main 0.5 W LED. If you do not touch it, the lamp switches to lantern mode with side LEDs. This system allows you to choose between directional beam and ambient lighting.

How to use the lamp in lantern mode?

Turn on the lamp with the On/Off button. Without touching the conductive panel, the side LEDs light up. You can then place or hang the lamp for 360° lighting.

What to do if the lamp no longer turns on?

First check the battery: replace it if it is used up. Make sure the base is properly locked on LOCK. If the problem persists, contact a qualified technician.

Can I leave the lamp unused for a long time?

It is recommended to remove the battery if you do not use the lamp for a long period to avoid battery leaks that could damage the device.

How to clean the lamp?

Use a dry cloth to clean the exterior. Never use solvents or abrasive products that could scratch or damage the coating.

What are the safety precautions?

Never point the beam directly into a person's eyes. In case of impact or fall, the device may be damaged. Do not open the lamp yourself; entrust repairs to a qualified technician.

Where to find the full manual?

The full manual is available for free download in PDF format on the website notice-facile.com. You can also request a translation in another language.

USER MANUAL TORCHLCAMP03 HQ

MANUAL DE USO (p. 10)

LINTERNA DE ALUMINIO A LED CON

ALUMINIUM LED FICKLAMPA MED

SMARTKANSLA

NAVOD KPOUZITI (s. 17)

HLINIKOVA DOTYKOVA LED SVITILNA

MANUAL DE UTILIZARE (p. 18)

LANTERNÄ DIN ALUMINIU CU LEDURI Şİ

COMANDA INTELIGENTA

ERXEIPIAIO XPHSEH (eA.20)

LED ΦAKOΣ AAOYMINIOY ME EEEYINH

A0H

BRUGERVEJLEDNING (p. 22)

ALUMINUM LED-LYGTE MED

SMART TOUCH

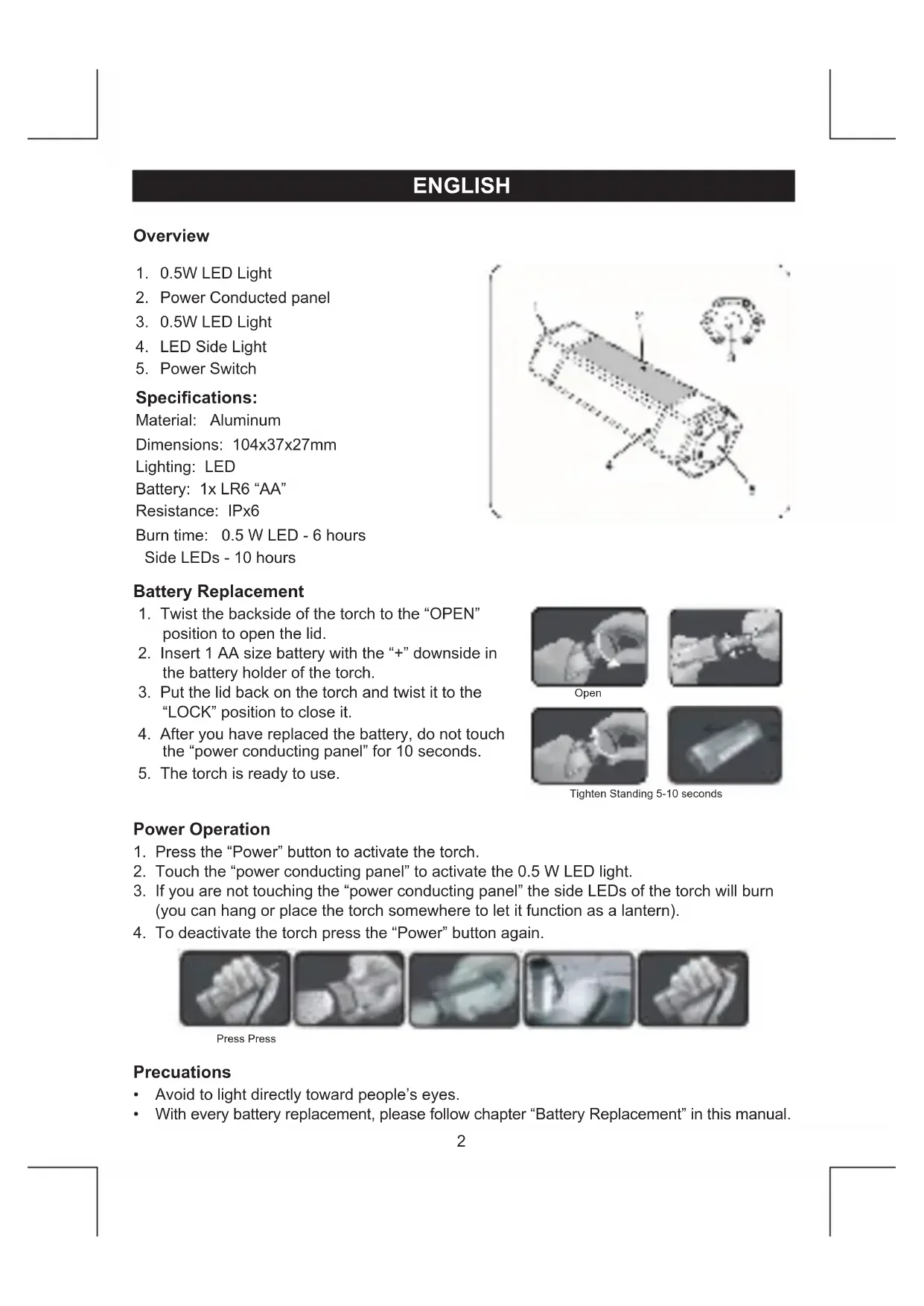

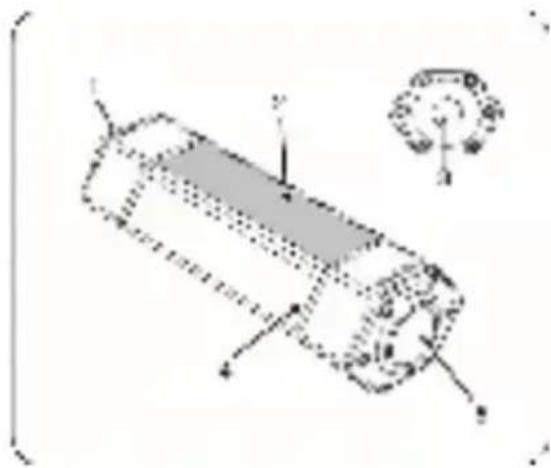

1. 0.5W LED Light
2. Power Conducted panel
3. 0.5W LED Light
4. LED Side Light
5. Power Switch

Specifications:

Material: Aluminum

Dimensions: 104 × 37 × 27 mm

Lighting:LED

Battery: 1x LR6 "AA"

Resistance: IPx6

Burn time: 0.5 W LED - 6 hours

Side LEDs - 10 hours

Battery Replacement

1. Twist the backside of the torch to the "OPEN" position to open the lid.
2. Insert 1 AA size battery with the "+" downside in the battery holder of the torch.
3. Put the lid back on the torch and twist it to the "LOCK" position to close it.
4. After you have replaced the battery, do not touch the "power conducting panel" for 10 seconds.
5. The torch is ready to use.

Open

Tighten Standing 5-10 seconds

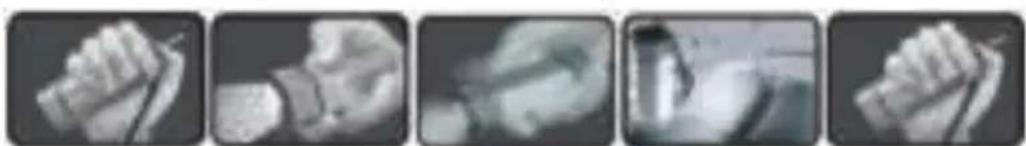

Power Operation

1. Press the "Power" button to activate the torch.
2. Touch the "power conducting panel" to activate the 0.5 W LED light.
3. If you are not touching the "power conducting panel" the side LEDs of the torch will burn (you can hang or place the torch somewhere to let it function as a lantern).
4. To deactivate the torch press the "Power" button again.

Press Press

Precuations

• Avoid to light directly toward people's eyes.

• With every battery replacement, please follow chapter "Battery Replacement" in this manual.

• Static shock or falling on the ground may cause damage to this product and/or irregular lighting.

• When not using this product for a longer period take the battery out to prevent leakage.

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a

problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

DEUTSCH

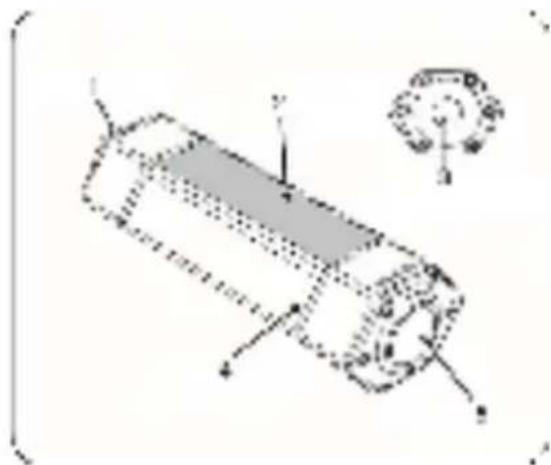

Überblick

Akkumulator: 1x LR6,AA"

Ellenallas: IPx6

Vilagitasi ido: 0,5 W LED - 6 ora

Oldalso LED-ek - 10 ora

Akkumulatorcsere

1. 0.5W LED-lys
2. Strømforende panel
3. 0.5W LED-lys
4. LED sidelys
5. Pä/Av-bryter

Spesifikasjoner:

Materialer: Aluminum

Dimensjoner: 104× 37× 27mm

Lys:LED

Batteri: 1x LR6 "AA"

Motstand: IPx6

Brennetid: 0.5 W LED - 6 timer

Sidelys - 10 timer

Bytte av batteri
