USER MANUAL DF03-003 DJI

DJI Focus Pro Grip User Guide

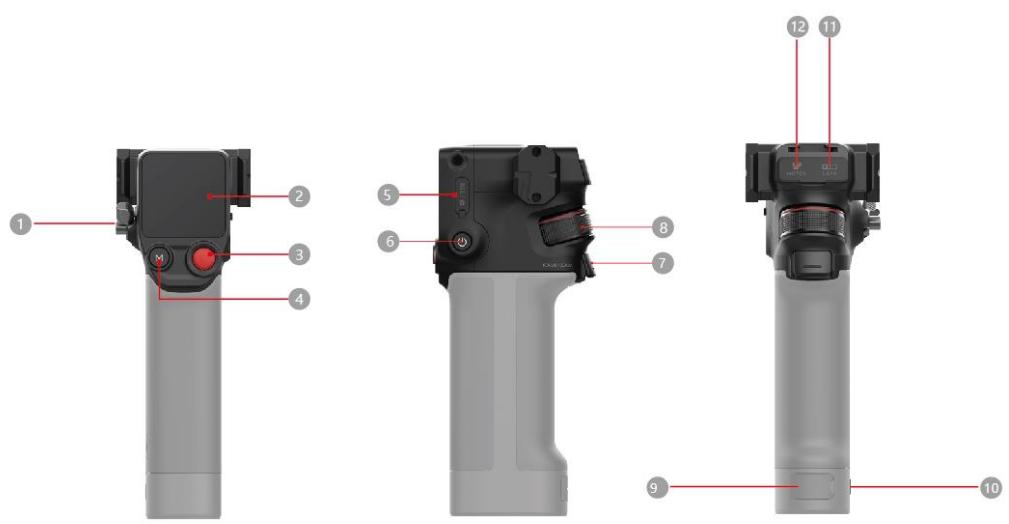

Button Features

Technical diagram of a DAX2023 handheld device with numbered parts labeled for identification.

1. Grip Lever/Safety Button

Toggle to remove the batter grip.

1. Touchscreen

Tap to access gimbal functions and settings.

1. Camera Control Button

Press half to focus, press once to start/stop recording, press and hold to take photos.

1. M Button

Press once to lock the screen.

1. RSS Camera Control Port (USB-C)

For connecting to the camera.

1. Power Button

Press and hold to power on/off.

1. Trigger

Press once to lock or unlock the subject in Auto mode.

1. Front Dial

Rotate to follow focus or zoom in/out.

1. Charging Port (USB-C)

For charging.

1. Battery Level Button

Press once to check battery level.

1. LiDAR Port (USB-C)

For connecting LiDAR.

12. Motor Port (USB-C)

For connecting motor.

Linking

Slide down on the touchscreen and tap for linking.

Specifications

Model	DF03-003
Operating Frequency	2402-2480MHz
Mode	BLE< 8dBm (EIRP) (CE)

FCC Compliance Notice

Supplier's Declaration of Conformity

Product name: DJI Focus Pro Grip

Model Number: DF03-003

Responsible Party: DJI Research LLC

Responsible Party Address: 17301 Edwards Road, Cerritos, CA 90703

Website: www.dji.com

We, DJI Research LLC, being the responsible party, declares that the above mentioned model was tested to demonstrate complying with all applicable FCC rules and regulations.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Information

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISED Compliance Notice

CAN ICES-003 (B) / NMB-003(B)

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is

subject to the following two conditions: (1) This device may not cause interference.(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the RSS-102.

NCC Compliance Notice

EU Compliance Statement: SZ DJI Osmo Technology Co., Ltd. hereby declares that this device (DJI Focus Pro Grip) is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU.

A copy of the EU Declaration of Conformity is available online at www.dji.com/euro-compliance

EU contact address: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany

GB Compliance Statement: SZ DJI Osmo Technology Co., Ltd. hereby declares that this device (DJI Focus Pro Grip) is in compliance with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017.

A copy of the GB Declaration of Conformity is available online at www.dji.com/euro-compliance

Environmentally friendly disposal

Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances.

To view the full compliance information, slide down from the top of the screen, tap the settings icon, and scroll through to select Compliance Info.
