CLEDP3815CD1 - LED Lamp GE - Free user manual and instructions

Brand	GE
Model	CLEDP3815CD1
Product Type	LED Lamp
Power	15 W
Luminous Flux	1500 lumens
Color Temperature	3000 K (warm white)
Power Supply	220–240 V, 50/60 Hz
Lifespan	25,000 hours
Beam Angle	120°
Color Rendering Index (CRI)	> 80
Energy Efficiency Class	A+
Dimensions (L x W x H)	120 mm x 60 mm x 60 mm
Weight	150 g
Dimmer Compatibility	No
Base Type	E27
Main Features	LED lighting, instant start, mercury-free
Maintenance and Cleaning	Unplug before cleaning, wipe with a soft dry cloth
Safety	Do not look directly at the light source; maintain a distance of 20 cm
Spare Parts and Repairability	Not repairable, replace entire unit
General Information	Compliant with CE, RoHS standards

Frequently Asked Questions - CLEDP3815CD1 GE

How to install this LED lamp?

Screw the lamp into a standard E27 socket. Ensure the power is off before installation. Do not touch the LED surface with fingers.

What is the lifespan of this lamp?

The lifespan is estimated at 25,000 hours, or about 22 years at 3 hours of use per day.

Can I use this lamp with a dimmer?

No, this lamp is not compatible with dimmers. Use it only with a standard switch.

How to clean the lamp?

Unplug the lamp and wait for it to cool down. Wipe it with a soft dry cloth. Do not use chemicals.

What is the color temperature?

This lamp emits warm white light at 3000 K, ideal for a cozy ambiance.

Does this lamp contain mercury?

No, LED lamps are mercury-free, unlike compact fluorescent lamps. They are more environmentally friendly.

What to do if the lamp does not turn on?

Check that the lamp is screwed in properly, the switch is on, and the fuse or circuit breaker has not tripped. If the problem persists, replace the lamp.

Is this lamp suitable for outdoor use?

This lamp is designed for indoor use only. Do not expose it to moisture or weather.

What is the energy efficiency class?

This lamp is rated A+ on the energy label, ensuring low consumption.

Can I recycle this lamp?

Yes, LED lamps should be recycled at appropriate collection points. Do not dispose of them in household waste.

USER MANUAL CLEDP3815CD1 GE

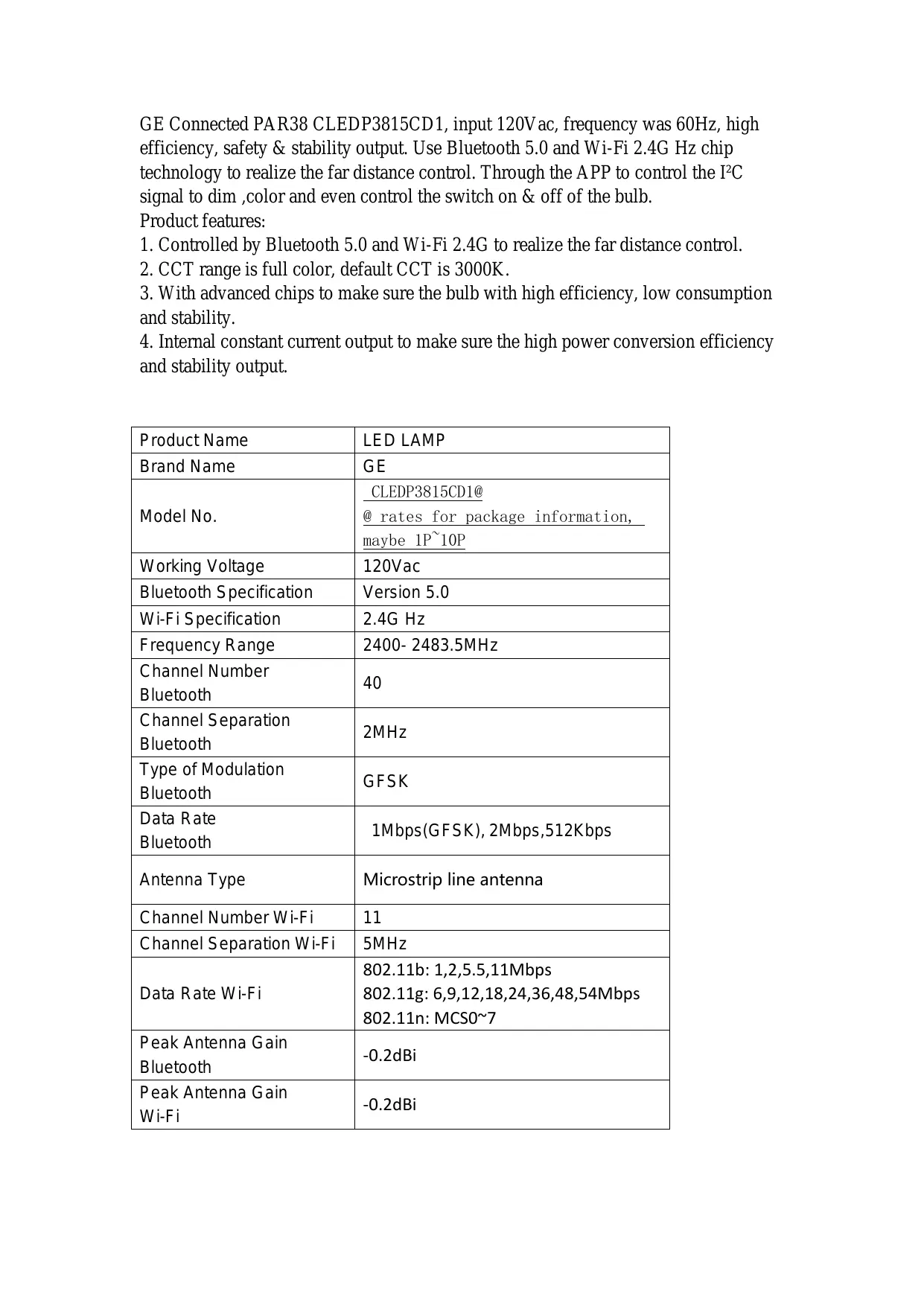

GE Connected PAR38 CLEDP3815CD1, input 120Vac, frequency was 60Hz , high efficiency, safety & stability output. Use Bluetooth 5.0 and Wi-Fi 2.4G Hz chip technology to realize the far distance control. Through the APP to control the I C signal to dim ,color and even control the switch on & off of the bulb.

Product features:

1. Controlled by Bluetooth 5.0 and Wi-Fi 2.4G to realize the far distance control.
2. CCT range is full color, default CCT is 3000K.
3. With advanced chips to make sure the bulb with high efficiency, low consumption and stability.
4. Internal constant current output to make sure the high power conversion efficiency and stability output.

Product Name	LED LAMP
Brand Name	GE
Model No.	CLEDP3815CD1@ @ rates for package information, maybe 1P~10P
Working Voltage	120Vac
Bluetooth Specification	Version 5.0
Wi-Fi Specification	2.4G Hz
Frequency Range	2400- 2483.5MHz
Channel Number	40
Bluetooth
Channel Separation	2MHz
Bluetooth
Type of Modulation	GFSK
Bluetooth
Data Rate	1Mbps(GFSK), 2Mbps,512Kbps
Bluetooth
Antenna Type	Microstrip line antenna
Channel Number Wi-Fi	11
Channel Separation Wi-Fi	5MHz
Data Rate Wi-Fi	802.11b: 1,2,5.5,11Mbps802.11g: 6,9,12,18,24,36,48,54Mbps802.11n: MCS0~7
Peak Antenna Gain	-0.2dBi
Bluetooth
Peak Antenna Gain	-0.2dBi
Wi-Fi

For additional help, regulatory and safety Information, please go to:

Federal Communications Commission (FCC) Interference Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  -Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20~cm between the radiator and your body.

CAUTION:

• DO NOT USE WITH STANDARD DIMMERS, SEE INSTRUCTIONS
  -NOT FOR USE IN TOTALLY ENCLOSED LUMINAIRES
  -SUITABLE FOR DAMP LOCATIONS
  -THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXITS

Only use the control provided with or specified by these instructions to control this lamp. This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

IC Interference Statement:

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
