USER MANUAL MPA100BT BEHRINGER

EUROPORT MPA100BT/MPA30BT

All-in-One Portable 100/30-Watt Speaker with Wireless Microphone, Bluetooth* Connectivity and Battery Operation

2 EUROPORT MPA100BT/MPA30BT

EN) Important Safety Instructions EE vUçu.

ATTENTION RISQUE D'ÉLECTROCUTION ! NE PAS OUVRIR ! Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with Y4°TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual. Caution Toreduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel. Caution Toreduce the risk of fire or electric shock, do not expose this appliance to rain and moisture, The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Donot block any ventilation openings. Install in accordance With the manufacturer's instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus {including amplifiers) that produce heat. NPHBWPRE

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. À polarized plug has two blades with one wider than the other. À grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. Ifthe provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories specified by

12. Use only with the

cart, stand, tripod, bracket, or table specified by the e manufacturer, or sold with the apparatus. When à cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during Lightning storms or

when unused for Long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. The apparatus shall be connected to à MAINS socket

outlet with a protective earthing connection.

16. Where the MAINS plug or an appliance coupler is

used as the disconnect device, the disconnect device shall remain readily operable.

17. Correct disposal of this

product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national D law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.

18. Do not install in à confined space, such as à book

case or similar unit.

19. Do not place naked flame sources, such as lighted

candles, on the apparatus.

20. Please keep the environmental aspects of battery

disposal in mind. Batteries must be disposed-of at à battery collection point.

21. Use this apparatus in tropical and/or

moderate climates. LEGAL DISCLAIMER MUSIC Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA and COOLAUDIO are trademarks or registered trademarks of MUSIC Tribe Global Brands Ltd. © MUSIC Tribe Global Brands Ltd. 2018 All rights reserved. LIMITED WARRANTY For the applicable warranty terms and conditions and additional information regarding MUSIC Tribe's Limited Warranty, please see complete details online at musictri.be/warranty.

4 EUROPORT MPA100BT/MPA30BT

6 EUROPORT MPA100BT/MPA30BT

8 EUROPORT MPA100BT/MPA30BT

10 EUROPORT MPA100BT/MPA30BT

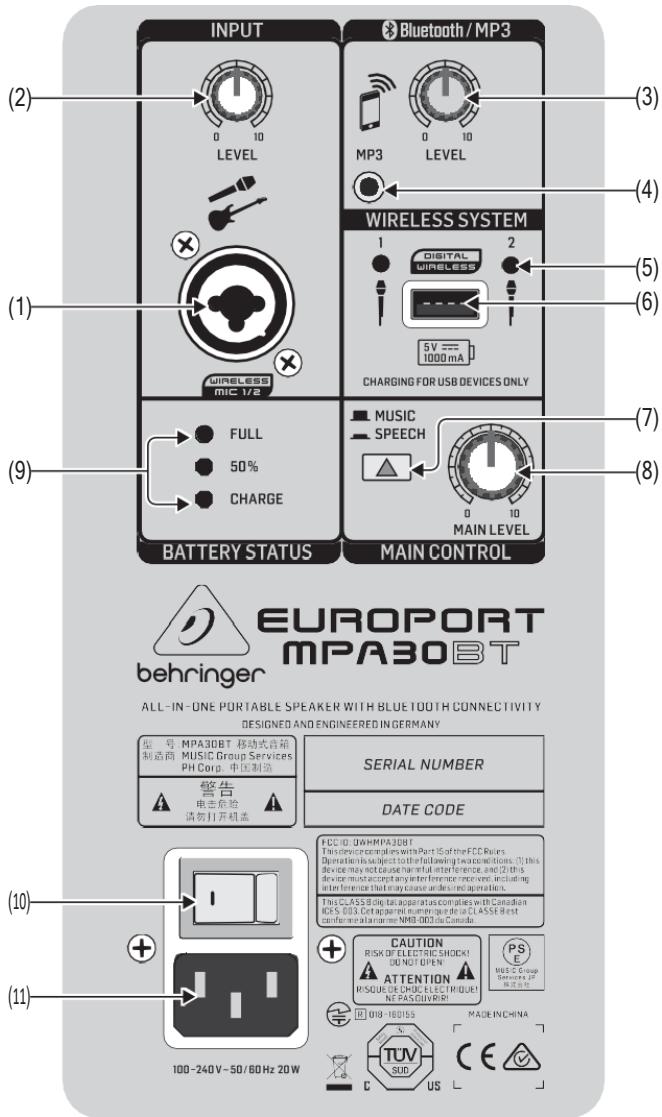

EUROPORT MPA100BT/MPA30BT Controls

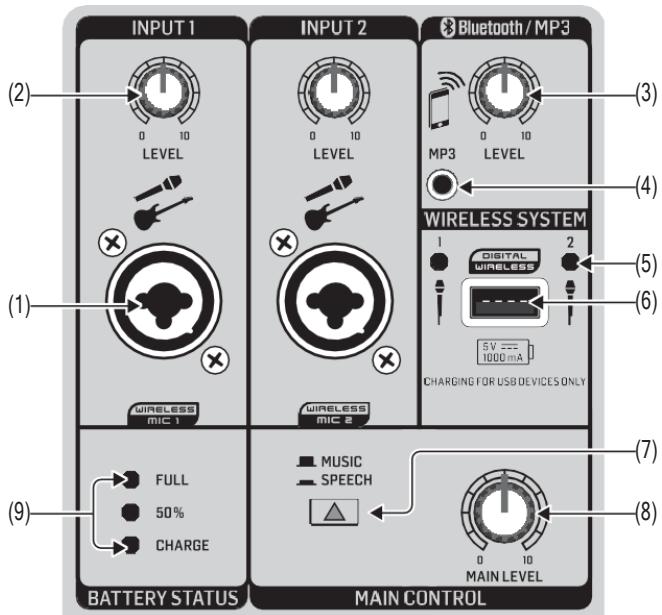

INST/MIC IN combo jacks accept in put signals over XLR balanced, "TRS balanced,or %" TS unbalanced connectors. Connecting the wireless microphone system disables the combination jacks. INPUT LEVEL knobs control the gain for either the INST/MIC IN jacks or the wireless microphones. BLUETOOTH/MP3 LEVEL knob controls the overall volume for audio streamed into the unit via Bluetooth. MP3 audio jack accepts audio from phone or media player using a 18" (3.5 mm) plug. WIRELESS SYSTEM LEDs indicate wireless microphone signal input. Connecting the wireless microphones system disables the INST/MIC IN combination jacks. WIRELESS SYSTEM USB input accepts the BEHRINGER wireless microphone receiver. MUSIC/SPEECH switch optimizes equalization for speech when pressed inward and latched. During music playback, the button should be left in the un-latched, outward position for optimum music equalization. MAIN LEVEL knob controls the overall volume. BATTERY LEVEL LEDS monitor the overall amount of remaining battery life when the unit is unplugged from an outlet. The CHARGE LED lights up when the unit is plugged into a wall outlet . (Red, yellow and green LED lit >75%; Red and Yellow LED lit =50%; Red LED only <25%, needs CHARGE.) POWER switch turns the unit off and on. POWER SOURCE jack accepts the included IEC cable. NOTE: The connection range between speaker and Bluetooth streaming device may decrease if Bluetooth streaming and wireless microphones are used simultaneously. Quick Start Guide 11 Charging the battery The MPA3OBT/MPATOOBT ships with a rechargeable, internal battery that can power continuous audio playback for up to 20 hours. We recommend that you fully charge the battery before your first use. To charge the battery for the first time, follow this procedure: (1)

Set the POWER switch to the “OFF” position. Connect the unit to an AC power outlet. The CHARGE LED will light to indicate the battery is charging. Keep the unit plugged into AC power until the red, yellow and green LEDs light to indicate the battery has been fully charged. NOTE: The MPA30BT/MPAOOBT uses a sealed lead-acid gel battery, and the battery will slowly self-discharge when the MPA3OBT/MPA1OOBT is not in use. Before storing the MPA3OBT/MPA10OBT for an extended period, fully charge the battery before storage, and then charge again every 3 months. NOTE: The lead-acid battery needs to be recharged every 3 months for continued operation. Please replace the battery if the MPA3OBT/ MPA00BT operating time noticeably decreases, even after a full charge cycle.

12 EUROPORT MPA100BT/MPA30BT

14 EUROPORT MPA100BT/MPA30BT

16 EUROPORT MPA100BT/MPA30BT

(EN) Step 3: Getting started

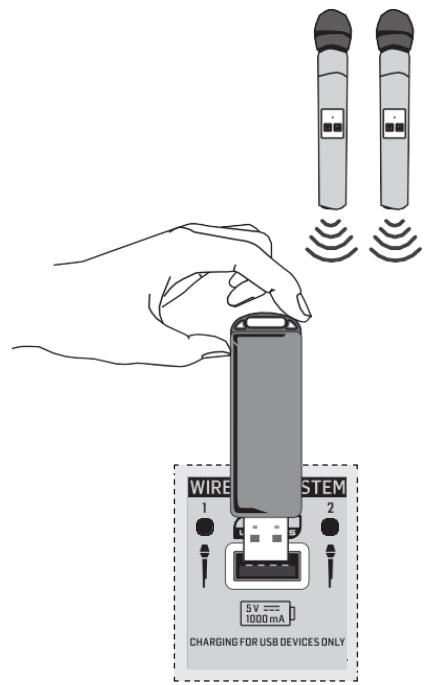

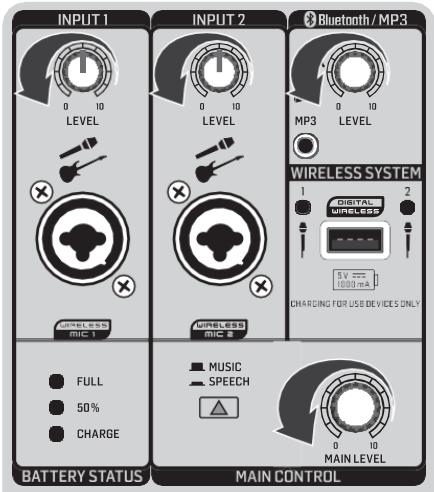

EUROPORT MPA100BT/MPA30BT Getting started Connect the MPA3OBT/MPAOOBT to à power outlet by using the included IEC power cable. Turn all LEVEL knobs and the [2] MAIN LEVEL knob down to the full counter-clockwise setting. Connect all analog microphone, instrument, and/or RCA cables to their respective input jacks. MAIN CONTRO! Power up the MPA30BT/MPA100BT by O pressing the POWER switch to the “on” position. If you are using BEHRINGER wireless microphones, plug the wireless dongle into the WIRELESS SYSTEM USB input. The WIRELESS SYSTEM LEDs will Light up when the wireless microphones become active. To pair à Bluetooth device with Ô the MPA4OBT/MPA4OBT-PRO, follow these steps: Open Bluetooth in your mobile phone, MP3 player or other Bluetooth equipment to pair and connect. In our Bluetooth device, enter the PIN code: 0000 (Bluetooth version 2.0 and above will not require aPIN code). If your Bluetooth device does not receive a connection request, press and hold the Bluetooth button until it flashes quickly, and then re-scan for devices on your mobile phone or mp3 player.

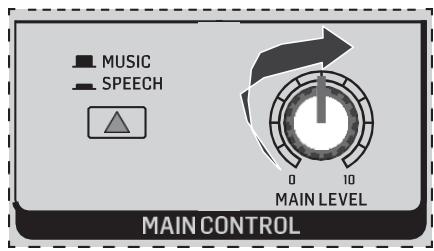

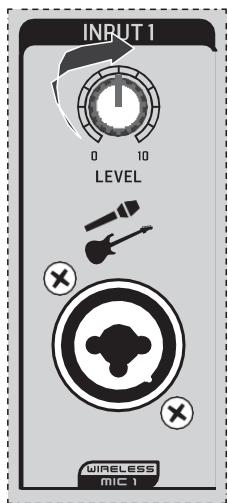

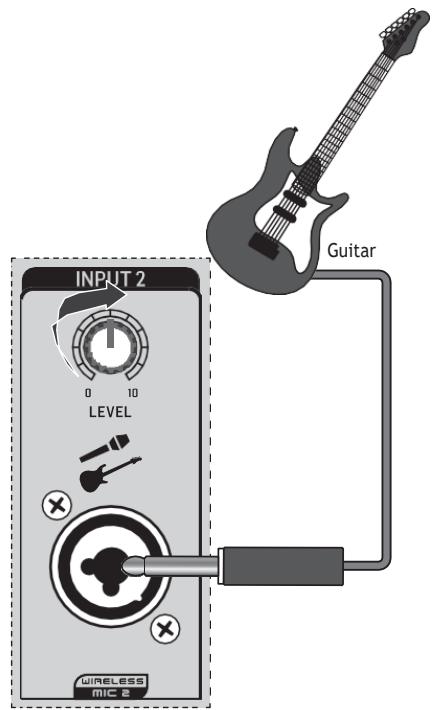

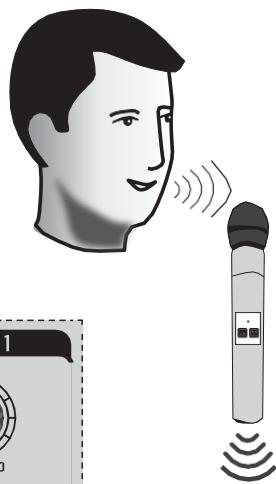

While playing music from your Bluetooth device, turn the BLUETOOTH/MP3 LEVEL knob to about the 50% position. Slowly rotate the MAIN LEVEL knob clockwise until you achieve à comfortable listening Level. JL MUSIC = SPEECH While speaking into each microphone, O slowly rotate the INPUT LEVEL knob clockwise until you find a clean, clear sound. If à microphone signal sounds distorted, rotate the LEVEL knob slowly counter-clockwise until the sound cleans up. If you have an instrument plugged into F0) an INPUT channel, play the instrument and slowly rotate that channel's LEVEL knob clockwise until you find an acceptable level. Balance all of the audio channels against (11) each other by adjusting each channels respective LEVEL knob until you find an acceptable mix. Make final adjustments to the MAIN LEVEL knob.

18 EUROPORT MPA100BT/MPA30BT

20 EUROPORT MPA100BT/MPA30BT

22 EUROPORT MPA100BT/MPA30BT

24 EUROPORT MPA100BT/MPA30BT

26 EUROPORT MPA100BT/MPA30BT

Specifications Amplifier Maximum output power Speaker Size Woofer 6" Tiweeter 0.75" Loudspeaker System Data Frequency response 70 Hz to 18 kHz (+3 dB) 65 Hz to 18 kHz (+3 dB) Music / speech Switchable Audio Inputs Input type 1x XLR / 4° TRS combo jacks (servo-balanced) 2x XLR / "TRS combo jacks (servo-balanced) Input impedance (XLR) 2 kQ, balanced / 10 kQ, unbalanced 2 KO, balanced / 21 KO, unbalanced Input impedance (4° TRS) M0, unbalanced Max. input level Level Controls -17 dBu balanced / 9 dBu unbalanced -10 dBu balanced / 16 dBu unbalanced Input trim -=t0 +35 dB Bluetooth / NP3 level control -»t0 +6 dB Main Level control -= to +10 dB Wireless System USB dongle (not included) not included USB socket accepts signals from ULM300USB Signal indicator LED 2 (green) Bluëtouta / 492" Channel number 79 Version Bluetooth spec 3.0 compliant Output Class 2 type output power Compatibility Supports A2DP 1.2 profiles Built-in rechargeable battery 12VDC / 2600 mAh 12VDC / 8000 mAh Charging time Appr. 4-6 hours Appr. 6-8 hours Battery operating time up to 20 hours up to 20 hours AC Power Supply Mains voltage (use) 100-240 V, 50/60 Hz Power consumption @ 18 max power 20W I 5W Mains connection Standard IEC receptacle Dimensions (H x W x D) 323 x 221 x 208 mm (12.7 x 8.7 x 8.2) 373x241 x 229 mm (14.7 x9.5x 9.0") Weight 4.9kg (10.7 lbs) | 8.5kg (18.71bs)

1. Register online, Please register your new

MUSIC Tribe equipment right after you purchase it by visiting behringer.com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and efficiently. Also, read the terms and conditions of our warranty, if applicable.

2. Malfunction. Should your MUSIC Tribe

Authorized Reseller not be located in your vicinity, you may contact the MUSIC Tribe Authorized Fulfiller for your country listed under “Support” at behringer.com. Should your country not be listed, please check if your problem can be dealt with by our “Online Support” which may also be found under “Support” at behringer.com. Alternatively, please submit an online warranty claim at behringer.com BEFORE returning the product.

3. Power Connections. Before plugging the

unit into à power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and rating without exception.

EUROPORT MPA30BT/MPA100BT

Responsible Party Name: MUSIC Tribe Commercial NV Inc. Address: 5270 Procyon Street Las Vegas, NV 89118 USA Phone Number: [phone]

EUROPORT MPA30BT/MPA100BT

FCC ID: QWHMPA100BTV2 / FCC ID: QWHMPA30BT complies with the FCC rules as mentioned in the following paragraph: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in à particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:w e_ Reorient or relocate the receiving antenna. «Increase the separation between the equipment and receiver. #_ Connect the equipment into an outlet on à circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: {t) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Caution! The MUSIC Tribe is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. FCCRF Radiation Exposure Statement: {t) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. (2) This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

This product conforms with essential requirements of RE Directive 2014/53/EU, LV Directive 2014/35/EU, RoHS Directive 2011/65/EU and WEEE Directive 2012/19/EU .

30 EUROPORT MPA100BT/MPA30BT
