CX100 ComXpert - équipement de test radio VIAVI - Free user manual and instructions

USER MANUAL CX100 ComXpert VIAVI

The following table contains a record of this manual's revision history.

Table -1 Revision History

Doc Version Date Accepted By Rev 001 August 22, 2023 Lance Woods Rev 002 August 21, 2023 Robert Facha

22144015 August 2023

CX100 ComXpert Operation Manual

This page intentionally left blank.

Rev 002 CX100 ComXpert Operation Manual 22144015 R-2 August 2023

22144015 August 2023

Every effort was made to ensure that the information in this manual was accurate at the time of release. However, information is subject to change without notice, and VIAVI reserves the right to provide an addendum to this manual with information not available at the time that this manual was created.

Copyright/Trademarks

© Copyright 2023 VIAVI Solutions, Inc. All rights reserved. No part of this guide may be reproduced or transmitted, electronically or otherwise, without written permission of the publisher. VIAVI Solutions and the VIAVI logo are trademarks of VIAVI Solutions Inc. (VIAVP).

All other trademarks and registered trademarks are the property of their respective owners.

Patented as described at www.viavisolutions.com/patents

Reproduction and distribution of this guide is authorized for US Government purposes only.

Terms and conditions

Specifications, terms, and conditions are subject to change without notice. The provision of hardware, services, and/or software are subject to VIAV!'s standard terms and conditions, available at www.viavisolutions.com/en/terms-and-conditions

Declaration of Conformity

VIAVI recommends keeping a copy of the Declaration of Conformity that shipped with the unit with the test set at all times.

Warranty Information

Warranty information for this product is available on the VIAVI website at https:/Awww.viavisolutions.com/en-us/warranty-information

Low Voltage Directive Compliance

This product was tested and conforms to the Low Voltage Directive, 73/23/EEC as amended by 93/68/EEC.

CX100 ComXpert Operation Manual Rev 002 i

The GITEKI Mark can be found on the meter in the “System -> File Browser -> Documents” folder.

Federal Communications Commission (FCC) Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmiul interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment was tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmiul interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

The authority to operate this equipment is conditioned by the requirements that no modifications be made to the equipment unless the changes or modifications are expressly approved by VIAVI.

To comply with FCC RF Exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.

This transmitter must not be co-located in conjunction with any other antenna or transmitter.

CX100 ComXpert Operation Manual 22144015 August 2023

22144015 August 2023

Industry Canada Requirements

This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause interference; and, 2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1) l'appareil ne doit pas produire de brouillage; et, 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

EU WEEE and Battery Directives

This product, and the batteries used to power the product, should not be disposed of as unsorted municipal waste and should be collected separately and disposed of according to your national regulations.

VIAVI has established a take-back processes in compliance with the EU Waste Electrical and Electronic Equipment (WEEE) Directive, 2012/19/EU, and the EU Battery Directive, 2006/66/EC.

Instructions for returning waste equipment and batteries to VIAVI can be found in the WEÉEE section of VIAV/'s Standards and Policies web page

If you have questions concerning disposal of your equipment or batteries, contact the VIAVIWEEE Program Management team at Global.weee@viavisolutions.com

EU REACH Article 33 of EU REACH regulation (EC) No 1907/2006 requires article suppliers to provide information if a listed Substances of Very High Concern (SVHC) is present in an article above a certain threshold.

For information on the presence of REACH SVHCSs in VIAVI products, see the Hazardous Substance Control section of VIAV/'s Standards and Policies web page

EU CE Marking Directives (LV, EMC, RoHS, RE)

This product conforms with all applicable CE marking directives. Please see EU Declaration of Conformity for details.

EMC Directive Compliance

This product was tested and conforms to the EMC Directive, 2014/30/EU for electromagnetic compatibility.

CX100 ComXpert Operation Manual Rev 002 iii

UK Declaration of Conformity

This product conforms with all applicable UKCA marking directives. Please request UK Declaration of Conformity for further details.

China RoHS Materials Declaration

The China RoHS Materials Declaration is shipped with the product when required.

California Proposition 65

California Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act of 1986, was enacted in November 1986 with the aim of protecting individuals in the state of California and the state's drinking water and environment from excessive exposure to chemicals known to the state to cause cancer, birth defects or other reproductive harm.

For the VIAVI position statement on the use of Proposition 65 chemicals in VIAVI products, see the Hazardous Substance Control section of VIAV/'s Standards and

AB 7/1 o 7712 dRSAE AUSTIN E (AFS #SSA7ITH) gt EE ASIE 0] #8 ÆoôHI7| EH di, 7F9l9] ASIN ABèE AS 2402

Class À Equipment (Industrial Broadcasting & Communications Equipment). &tLICH.

This equipment is Industrial (Class A) electromagnetic wave suitability equipment and seller or user should take notice ofit, and this equipment is to be used in the places except for home.

Ordering Information

This manual is a product of the VIAVI Technical Publications Department, issued as part of the CX100 ComXpert Handheld Radio Test Set. The PDF format of this manual is available and distributed with new equipment on a CD-ROM.

+ The part number associated with the PDF form of this publication is 22144015 + The material number associated with the CD-ROM is 22144014

Rev 002 CX100 ComXpert Operation Manual 22144015 iv August 2023

Contact the Technical Assistance Center (TAC) for technical support or with any questions regarding this or other VIAVI products.

+ __ Phone: 1-844-GO-VIAVI . Email: Techsupport.Avcomm@viavisolutions.com

For the latest TAC information, go to:

Software Notifications

If software is for use in the performance of a U.S. Government prime contract or subcontract, software is delivered and licensed as “Commercial Computer Software” as defined in DFAR 252.227-7014 (Feb 2014), or as a “Commercial Item” as defined in FAR 2.101(a) or as “Restricted Computer Software” as defined in FAR 52.227-19 (Dec 2007) or any equivalent agency regulation or contract clause. Use, duplication or disclosure of Software is subject to VIAVI Solutions’ standard commercial license terms, and non-DOD Departments and Agencies of the U.S. Government will receive no greater than Restricted Rights as defined in FAR 52.227-19(c)(1-2) (Dec 2007). U.S. Government users will receive no greater than Limited Rights as defined in FAR 52.227-14 (June 1987) or DFAR 252.227-7015 (b)(2) (November 1995), as applicable in any technical data.

Open Source Disclaimer - IMPORTANT READ CAREFULLY The CX100 ComXpert includes third party software licensed under the terms of separate open source software licenses. By using this software you agree to comply with the terms and conditions of the applicable open source software licenses. Software originated by VIAVI is not subject to third party licenses. Terms of the VIAVI Software License different from applicable third party licenses are offered by VIAVI alone.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 v

Software Notifications

This page intentionally left blank.

Rev 002 CX100 ComXpert Operation Manual 22144015 vi August 2023

Symbols and Markings

The following symbols and markings are found on the instrument and in product documentation:

22144015 August 2023

Table 1 Symbols and Markings

This symbol indicates a NOTE that includes important supplemental information or tips related to the main text.

General Hazard Symbol

This symbol represents a general hazard. This symbol may be associated with either a DANGER, WARNING, CAUTION, or ALERT message. See Table 2 for more information.

This symbol indicates a toxic hazard. ltem should only be handled by Qualified Service Personnel. Dispose of item in accordance with local regulations. This symbol may be associated with either a DANGER, WARNING, CAUTION, or ALERT message. See Table 2 for more information.

This symbol indicates an item is sensitive to Electrostatic Discharge (ESD). An item identified as ESD sensitive should only be handled by Qualified Service Personnel. This symbol may be associated with either a DANGER, WARNING, CAUTION, or ALERT message. See Table 2 for more information.

This symbol represents a hot surface. This symbol may be associated with either a DANGER, WARNING, CAUTION, or ALERT message. See Table 2 for more information.

Hazardous Voltage Symbol

This symbol represents hazardous voltages. This symbol may be associated With either a DANGER, WARNING, CAUTION or ALERT message. See Table 2 for more information.

This label indicates item meets the requirements of the applicable European Directives.

This symbol indicates the equipment or battery must not be disposed of in a land-fill site or as municipal waste, and should be disposed of according to national regulations. Symbol may be on the equipment, battery, or packaging.

CX100 ComXpert Operation Manual Rev 002 vi

This operation manual uses the following terms to indicate conditions or activities which are potential safety hazards:

Table 2 Safety Definitions

CAUTION Identifies conditions or activities that, if ignored, can result in equipment or property damage, e.g., Fire

Mise en Garde Identifiez les conditions ou les activités qui, si ignorées, peuvent entraîner des dommages à l'équipement ou aux biens, p. ex. un incendie

WARNING Identifies conditions or activities that, if ignored, can result in personal injury or death

Avertissement Identifiez les conditions ou les activités qui, si ignorées, peuvent entraîner des blessures personnelles voire mortelles

This product is designed and tested to comply with the requirements of IEC/EN61010-1 ‘Safety requirements for electrical equipment for measurement, control and laboratory use’ for Class 1 portable equipment and is for use in a pollution degree 2 environment.

The equipment is designed to operate from MIL-PRF-2800 Class 2.

When moving the equipment from a cold to hot environment, allow the temperature of the equipment to stabilize before it is connected to the supply to avoid condensation forming. The equipment must only be operated within the environmental conditions specified in the performance data.

This product is not approved for use in hazardous atmospheres or medical applications. If the equipment is to be used in a safety-related application, such as avionics or military applications, the suitability of the product must be assessed and approved for use by a competent person.

ï WARNING Operating this device in a manner not specified in accompanying documentation may impair the safety protection built into the device.

Avertissement Utiliser cet appareil de manière non spécifiée dans la documentation

+ The device casing may become hot to the touch during extended periods of continuous usage

+ If bench top operation is not possible, use of temperature resistant gloves is recommended to avoid potential burns

22144015 August 2023

Approved Part Number: 22054882, Power Supply:AC2DC;90-264VAC,; 47-63HZ,12VDC CAUTION

+ Use only the AC Adapter/Charger supplied with the product. Contact VIAVI for approved replacement parts

+ Do notuse the AC Adapter/Charger outdoors or in a wet or damp location

+ Only connect the AC Adapter/Charger to the correct mains voltage indicated on the ratings label

+ __ Do notuse AC Adapter/Charger in temperatures above +40 C (104 F) or at altitude above 3000 meters (9842 ft)

Power Cord Approved Part Number: 22054882, Adapter Cord US/NAmerica

À CAUTION Do not use the power cord if it is damaged or frayed. Replace damaged power cords with cable of the same ratings

Do not position the power cord in a manner that makes it difficult to disconnect from the main voltage

Do not allow anything to rest on the power cord Do not locate the product where persons can walk on or trip over the power cord

Equipment Grounding Protection

This device is intended to be used with a three wire grounding-type plug while charging

Failure to use properly grounded power cord/plug may result in electrical shock to personnel or damage to the device

Do not alter the power cord that is provided with the device

Refer to product labeling and safety documentation for maximum input ratings.

CAUTION Do not overload input connectors. Refer to product Safety and Compliance Specifications or the product data sheet for maximum input ratings.

22144015 August 2023

WARNING The supply filter contains capacitors that may remain charged after the device is disconnected from the power supply. The residual energy is within the approved safety requirements, however, a slight shock may be felt if the plug pins are touched immediately after removal.

Battery Safety Information

Battery Storage, Handling and Disposal

À CAUTION To avoid risk of fire and burns, do not tamper with the battery Do not open, crush or incinerate the battery

Do not use or store the battery in temperatures that exceed the manufacturer's specifications

Follow manufacturer’s instructions for battery storage and use The battery included with the product is only to be used with the CX100

Only replace the battery with the VIAVI approved replacement part. Contact VIAVI for approved replaced parts.

WARNING Some of the components used in this device may include resins and other materials which give off toxic fumes if incinerated. Dispose of such items appropriately.

Certains des composants utilisés dans cet appareil peuvent comprendre des résines et d'autres matériaux qui produisent des émanations toxiques lorsqu'ils sont incinérés. Éliminez adéquatement de tels éléments.

22144015 August 2023

Beryllia (beryllium oxide) is used in the construction of some of the components in this equipment.

This material, when in the form of fine dust or vapor and inhaled into the lungs, can cause a respiratory disease. In its solid form, as used here, it can be handled safely, however, avoid handling conditions which promote dust formation by surface abrasion.

Use care when removing and disposing of these components. Do not put them in the general industrial or domestic waste or dispatch them by post. They should be separately and securely packed and clearly identified to show the nature of the hazard and then disposed of in a safe manner by an authorized toxic waste contractor.

CX100 ComXpert Operation Manual Rev 002 xiii

i CAUTION Some mechanical components within this instrument are manufactured from beryllium copper. Beryllium copper represents no risk in normal use. The material should not be machined, welded or subjected to any process where heat is involved.

Beryllium copper must NOT be disposed of by incineration. Beryllium copper must be disposed of as “special waste” per local regulations.

À A Lithium lon battery is used in this equipment. Lithium is a toxic substance. PA The following warnings concerning Lithium lon Batteries must be observed:

+ Do not crush, incinerate or dispose of in normal waste

+ Do not short circuit or force discharge since this might cause the battery to vent, overheat or explode

À CAUTION This device is ESD sensitive and should only be serviced by Qualified Service Personnel.

Cet appareil est sensible aux décharges électrostatiques et ne doit être réparé que par du personnel de service qualifié.

À CAUTION Do not operate this device with the case/cover open. Removing rear cover exposes the operator to surfaces with excessive heat. Opening the case/cover exposes the operator to electrical hazards which can result in damage to the device.

N'utilisez pas cet appareil avec le boîtier/couvercle ouvert. Le retrait du capot arrière expose l'opérateur à des surfaces soumises à une chaleur excessive. L'ouverture du boîtier/couvercle expose l'opérateur à des risques électriques pouvant endommager l'appareil.

À CAUTION This device does not contain user serviceable parts. Servicing should only be performed by Qualified Service Personnel.

This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this product may not cause harmful interferences, and (2) this product must accept any interferences received, including interference that may cause undesired operation.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmiul interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this product does cause harmiul interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

+ Reorient or relocate the receiving antenna + Increase the separation between the equipment and receiver

+ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

+ Use properly shielded and grounded cables and connectors in order to meet FCC emission limits

CAUTION Signal generators can be a source of Electromagnetic Interference (EMI) to communication receivers. Some transmitted signals can cause disruption and interference to communication services out to a distance of several miles. Users of this equipment should scrutinize any operation that results in radiation of a signal (directly or indirectly) and should take necessary precautions to avoid potential communication interference problems.

1.5.7 USB Connector 1-9 1.5.8 Ethernet Connector 1-10 1.5.9 DC Input Connector 1-10 1.6 LED Indicators 1-12 1.6.1 SyncLED22 1-12 1.6.2 Network LED 1-12 1.6.3 Error LED 1-13 1.6.4 Battery LED ,22 1-13 1.6.5 Charge Status LED 1-13 Getting Started: Setup and Operation 2-1 2.1 Upon Receipt222 2-2 2.1.1 Unpack the Equipment. 2-2 2.1.2 Inspect the Equipment 2-2 2.1.3 Verify Contents 2-3 2.1.4 Prepare for First Time Use 2-4 2.1.5 Verify Operation 2-5 2.2 Powering the Device 2-6 2.2.1 AC Power Operation 2-6 2.2.2 Battery Operation 2-7 2.3 Power On/Off Procedures 2-7 2.3.1 Turning the Device ON 2-7 2.3.2 Turning the Device OFF 2-8 2.4 Device Control and Operation. 2-8 2.4.1 Local Operation 2-8 24.2 Remote Operation 2-8 2.5 UI Navigation, Control and Layout 2-8 2.5.1 Screen Navigation and Control 2-9 2.5.2 Soft-keys 2-10 2.5.3 Selecting Functions and Applications. 2-11 2.5.4 Screen Layout 2-12 2.5.5 System Status UI Indicators. 2-14 System and Utility Function Descriptions.

3.1 Introduction 3.1.1 Accessing System Settings . 3.1.2 Date and Time Panel

3.1.3 Remote Operation Panel

3.1.4 Wireless Personal Area Network (WPAN) Settings Panel

3.1.5 International Settings Panel.

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002

4.3 Configuring 10 MHz Frequency Reference 4.4 Establishing a Network Connection 4.4.1 Establishing an Ethernet Connection 4.4.2 Establishing a WiFi Connection. 4.5 Remotely Operating the Device

4.5.1 Establishing VNC Viewer Connection 4-16 4.5.2 Ending a Remote Operation Session. 4-17 4.6 Establishing a Wireless Personal Area Network (WPAN) Connection. 4-17 4.6.1 Enabling Wireless Personal Area Network (WPAN) Connectivity 4-17

4.6.2 Connecting to a Wireless Personal Area Network (WPAN) Device 4.7 Updating the Device’s Software. Lee Lee Lee . 4.7.1 Software Availability . .

Chapter 5 RF Instrument Function Descriptions 5.1 Overview of the RF Instrument 5.2 RFTest

5.4.4 DTF Test Function 5-64 5.4.5 Cable Database (DB) 5-68 5.5 Autotest Function. 5-71 5.5.1 Autotest Screen Layout 5-71 5.5.2 Autotest Soft-key Panel 5-72 5.5.3 Autotest Controls and Settings 5-73 5.5.4 Automated Self Test. 5-73 5.6 SCA Capability 5-75 5.6.1 Launch SCAAutotest. 5-75 5.6.2 SCA Controls and Settings 5-75 5.7 Settings 5-76 5.7.1 Frequency Reference 5-76

Performing Tests and Measurements 6.1 CX100 Self Test Procedure. 6.1.1 Scope of Test 6.1.2 Equipment Needed 6.1.3 Running Self-test 6.2 FM Transmitter Testing 6.2.1 Scope of Test 6.2.2 UUT Parameters/Characteristics. . 6.2.3 Equipment Needed 6.2.4 Test Setup 6.2.5 Gathering Test Data. 6.3 AM Transmitter Testing 6.3.1 Scope of Test 6.3.2 UUT Parameters/Characteristics. 6.3.3 Equipment Needed 6.3.4 Test Setup 6.3.5 Gather Test Data 6.3.6 Test UUT Power and Frequency 6.3.7 Test UUT Modulation Level and Distortion 6.4 FM Receiver Performance Tests. ... 6.4.1 Scope of Test 6.4.2 UUT Parameters/Characteristics . 6.4.3 Equipment Needed 6.4.4 Test Setup 6.4.5 Configure the CX100 Meters. 6.4.6 Gather Test Data 6.5 AM Receiver Tests 6.5.1 Scope of Test . . Lee 6.5.2 UUT Parameters/Characteristics. .

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002

6.6 Performing VSWR/DTF Testing 6-28 6.6.1 Scope of Test 6-28 6.6.2 UUT Parameters/Characteristics . 6-28 6.6.3 Equipment Needed 6-28 6.6.4 Calibrate the CX100 Before VSWR Testing 6-28 6.6.5 To Perform VSWR Test 6-30

6.7 Performing Distance to Fault (DTF) Tests 6-31 6.7.1 Scope of Test 6-31 6.7.2 UUT Parameters/Characteristics . 6-31 6.7.3 Equipment Needed 6-31 6.7.4 Configuring the Equipment. 6-32

Managing Files and Reports .

7.1 Generating Reports 7.1.1 Custom Report Fields 7-2 7.1.2 Enforcing Report Entry. 7-3 7.1.3 Saving a Report 7-3 7.14 Viewing a Report 7-4

7.2 Managing Files. 7-4 7.2.1 Accessing the File Browser 7-4 7.2.2 Selecting Files or Folders 7-5 7.2.3 Opening Files or Folders 7-5 7.2.4 Copying and Pasting Files or Folders 7-5 7.2.5 Downloading Files via Web Browser 7-6 7.2.6 Uploading Files Using FTP/HTTP 2 7-6

7.3 Viewing the User's Guide on the Device 7-6

Care, Maintenance, and Troubleshooting 8-1

8.1 Recharging the Battery 8.2 Replacing the Battery. 8.3 Storing the Module... 8.4 Shipping Instructions 8.4.1 Return Material Authorization (RMA) . 8.4.2 Tagging the Device 8.4.3 Shipping Containers. 8.4.4 Freight Costs .... 8.4.5 Packing Procedure Lee 8.5 Operator Level Maintenance 8.5.1 Visual Inspections

CX100 ComXpert Operation Manual 22144015 August 2023

Appendix A Appendix B

22144015 August 2023

8.5.2 External Cleaning 8-5 8.5.3 Updating Software 8-6 8.5.4 CX100 ComXpert Self Test Procedure 8-6 8.6 Troubleshooting 8-7 8.6.1 Troubleshooting Symptom Index 8-7 8.6.2 Troubleshooting Procedures 8-8 Specifications A1 RF Generator Specifications A2 Modulation Generator Specifications A.3 Audio Frequency (AF) Function Generator Specifications A-4 A4 RF Receiver Specifications A-5 A.5 Measurement Specifications A-6 A.5.1 RF Power Measurement Specifications. . A-6 A.5.2 RF Counter Specifications. A-6 A.5.3 FM Measurement Specifications A-7 A.5.4 AM Measurement Specifications . A-7 A.5.5 Distortion Measurement Specifications . A-7 A.5.6 SINAD Measurement Specifications A-8 A.5.7 Signal to Noise (SNR) Measurement Specifications . A-8 A.5.8 AF Counter Specifications . A-8 A.6 AF Analyzer Specifications A-9 A.6.1 Frequency Domain Specifications . A-9 A.6.2 Time Domain Specifications A-10 A7 VSWR and DTF Measurement Specifications. A-10 A.8 Audio Filter Specifications A-11 A9 RF Analyzer Specifications A-11 A.10 Spectrum Analyzer Specifications A-12 A.11 Zero-Span Analyzer Specifications A-13 A.12 Connector Specifications. A-13 A.13 Frequency Standard and Timebase Specifications A-15 A.14 Power Specifications . A.15 Hardware Specifications . A.16 Environmental Specifications

A.17 Safety and Compliance Standards

.FM Receiver Test Setup Diagram .

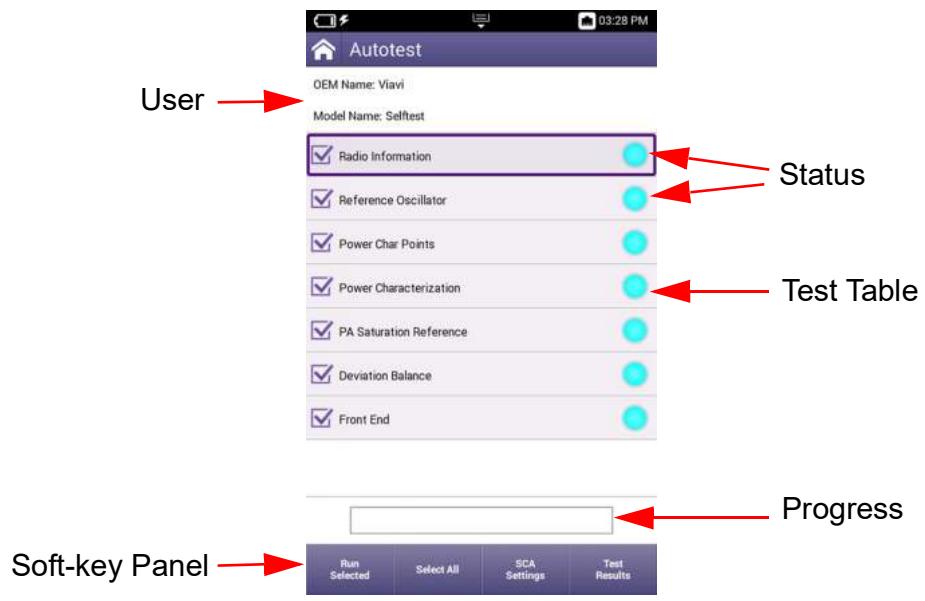

AutoTest Screen Layout and Functions

AM Receiver Test - Setup Diagram

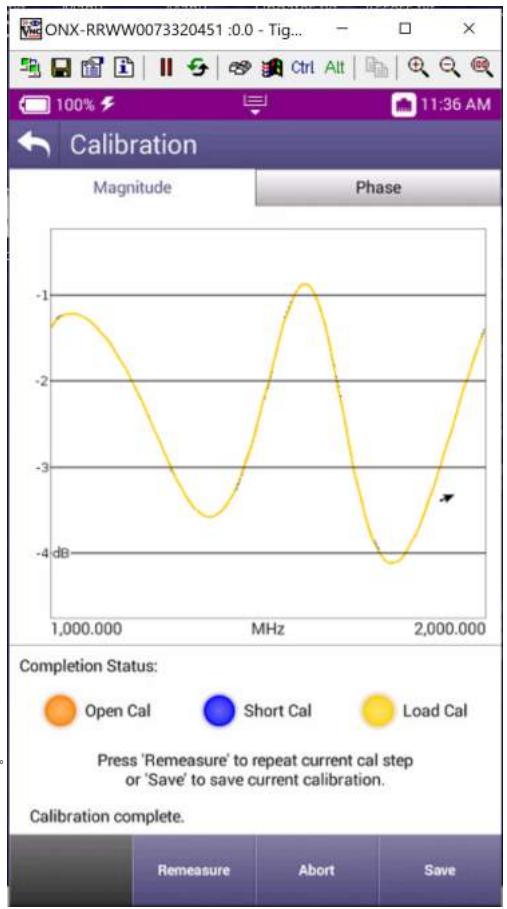

.VSWR Calibration Setup Diagram .Calibration running and complete .VSWR Test Setup Diagram .DTF Test Setup Diagram

.DTF (Distance to Fault) and Calibration 6-33 Return Loss 6-34 .RF Module Removal Process Diagrams B-4 .Separating RF Module and Base. ..…. nues . B-5 Base Unit - RF Module Removed B-5 CX100 RF Module Installation Diagram B-6

.Battery Cover Screw Location .Battery Cables and Release Clip

CX100 ComXpert Operation Manual 22144015 August 2023

Table Table Title Page #

Revision History E-1 Symbols and Markings vil Safety Definitions . Text and Symbol Conventions ...

Standard Items . CX100Accessory Kit #HTBD Types of Soft-keys

System Status UI Indicators

Date and Time Controls and Settings . . ... 3-4 Remote Operation and VNC Controls and Settings 3-5 Wireless Personal Area Network Controls and Settings 3-6 Network Software Update Controls and Settings 3-7 USB Software Update Controls and Settings 3-8 Hardware & Software Revision Data 3-9 Software Options Controls and Settings 3-9

Save Location Settings

Restore Defaults Settings

Table 3-10.... Screen and Power Management Settings Table 3-11.... Network Controls and Settings Table 3-12.... IPv4/IPv6 Dual Stack Network Controls and Settings Table 3-13.... IPv4 Network Controls and Settings ee Table 3-14.... IPv6 Network Controls and Settings. Table 5-1 RF Generator Controls and Settings. Table 5-2 Modulation Generator Controls and Settings Table 5-3 External Modulation Controls and Settings

Table 5-4 RF Receiver Controls and Settings. Table 5-5 AF Generator Controls and Settings .

Table 5-11 .... Digital Meter Equalizer Settings Table 5-12 .... Digital Measurement Filter Settings. . Table 5-13 ....Equalizer Soft-key Panel Table 5-14 RF Power Meter Controls and Settings Table 5-15 .... Constellation Plot Soft-key Panel . Table 5-16 .... Constellation Plot Controls and Settings 5-31 Table 5-17 ....RF Analyzer Soft-keys Table 5-18 RF Analyzer Display Settings . . Table 5-19 ....RF Analyzer Instrument Settings. . . Table 5-20 ....RF Analyzer Marker Controls and Settings 5-39 Table 5-21 ....Marker Data Field Description

Table 5-35 .... Cable DB Controls and Settings . Table 5-36 .... Autotest Soft-keys . Table 5-37 .... Autotest Controls and Settings Table 5-38 .... Frequency Reference Controls/Settings . .

Table 6-1 FM Transmitter Test - UUT Settings .... .

Table 6-2 FM Transmitter Test - RF Receiver Settings . 6-5

Table A-10.... Table A-11... Table A-12... Table A-13.... Table A-14... Table A-15... Table A-16.... Table A-17... Table A-18... Table A-19.... Table A-20 ... Table A-21... Table A-22.... Table A-23 ... Table A-24... Table A-25....

. FM Receiver Test - Meter Settings

. AM Receiver Test - RF Generator Settings . . . . AM Receiver Test - Modulation Generator Settings . AM Receiver Test - Meter Settings

. CX100 VSWR Test Settings . DTF Test - Example Cable Characteristics . . DTF Test Settings

. AF Analyzer Time Domain . . VSWRIDTF Specifications) .

. RF Analyzer Specifications . Spectrum Analyzer Specifications . . ..

CX100 Settings - RF Receiver Settings AM Transmitter Test - AF Function Generator Settings FM Receiver Test - UUT Parameters. . CX100 Settings - RF Generator Settings . FM Receiver Test- Modulation Generator Settings

AM Receiver Test - UUT Parameters .

VSWR Test - Example Cable Characteristics

RF Generator Specifications . Modulation Generators AF Function Generator RF Receiver Specifications RF Power Meter Specifications . RF Counter Specifications FM Measurement Specifications . AM Measurement Specifications. Distortion Meter Specifications . . . SINAD Meter Specifications

Audio In Connector Specifications. . ..

. Audio Out Connector Specifications . Ethernet Connector Specifications

USB Connector Specifications

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002

Table A-26.... DC Input Connector Specifications A-15 Table A-27 .... Frequency Standard 1/0 Table A-28 Power Specification. . Table A-29 .... Battery Specifications

Table A-30 .... Dimensions and Weight Table A-31.... Environmental Specifications Table A-32

Miscellaneous Standards

Battery Replacement Tool Requirements ... RG-115A Cable Values RG-142B Cable Values RG-174 Cable Values . RG-213 Cable Values RG-214 Cable Values RG-223 Cable Values RG-400 Cable Values . RG-55 Cable Values RG-55A Cable Values Table C-10....RG-55B Cable Values Table C-11 RG-58 Cable Values .. Table C-12....RG-58A Cable Values Table C-13....RG-58B Cable Values Table C-14....RG-58C Cable Values Table C-15.... Table C-16.... Table C-17.... Table C-18.... Table C-19.... Table D-1

This preface contains the following product information:

This document contains safety information and instructions for installing and operating the CX100 ComXpert Handheld Radio Test Set.

Type of Manual: Operation Manual

Equipment Name and CX100 ComXpert Handheld Radio Test Set Model Number:

Purpose of Equipment: CX100 ComXpert is used for testing radios and related equipment.

This manual is intended for personnel who are familiar with radio test systems and associated equipment and terminology.

Common Name Official Nomenclature CX100 CX100 ComXpert Handheld Radio Test Set OneExpert OneExpert" Platform

The terms CX100 and device are used throughout this manual to refer to the CX100 ComXpert.

The term OneExpert and OneExpert base are used throughout this manual to refer to the OneExpert" Platform base unit.

This is the operation manual for the CX100 ComXpert Handheld Radio Test Set. This manual contains product safety information, specifications, setup procedures, and detailed descriptions of CX100 functions.

This manual is distributed with new products on a CD-ROM. Check the VIAVI website for availability of this and other product publications.

Rev 002 CX100 ComXpert Operation Manual 22144015 Preface - ii August 2023

Contact the Technical Assistance Center (TAC) for technical support or with any questions

regarding this or another VIAVI products.

+ Phone: 1-844-GO-VIAVI For the latest TAC information, go to:

http://www. viavisolutions.com/en/services-and-support/support/technical-assistance

This guide uses typographical and symbols conventions as described in the following table. Table 1 Text and Symbol Conventions Item(s) Example(s)

Buttons, keys, switches, or connectors on the device (hardware components).

Buttons, links, menus, menu options, tabs, or fields on a Ul (software components).

References to external publications appear in this typeface.

Text that must be entered exactly as shown.

A vertical bar | means “or”: only one

option can appear in a single command.

CX100 ComXpert Operation Manual

Press the On button.

Press the Enter key.

Flip the Power switch to the on position. Click Start.

Click File > Properties.

Click the Properties tab.

Type the name of the probe in the Probe

Name field. See Newton's Telecom Dictionary.

Type a: \set.exe in the dialog box.

This page intentionally left blank.

Rev 002 CX100 ComXpert Operation Manual 22144015 Preface - iv August 2023

Overview of the CX100

This chapter describes CX100 ComXpert controls, connectors, functions and capabilities. This chapter reviews the following topics:

About the CX100 ComXpert

The CX100 ComXpert is a hand-held communications test set that supports bench and

field radio testing. The CX100 provides the capabilities needed to test a variety of radios, as well as commercial radio applications. The CX100 is capable of performing high power measurements, as well as fault finding for antennas, power amplifiers and interconnects.

The CX100 ComXpert is powered by an internal, rechargeable battery that provides up to 3 hours of continuous operation. The CX100 is equipped with a DC input connector that

supports battery charging and use of an AC power adapter for connection to an AC power supply.

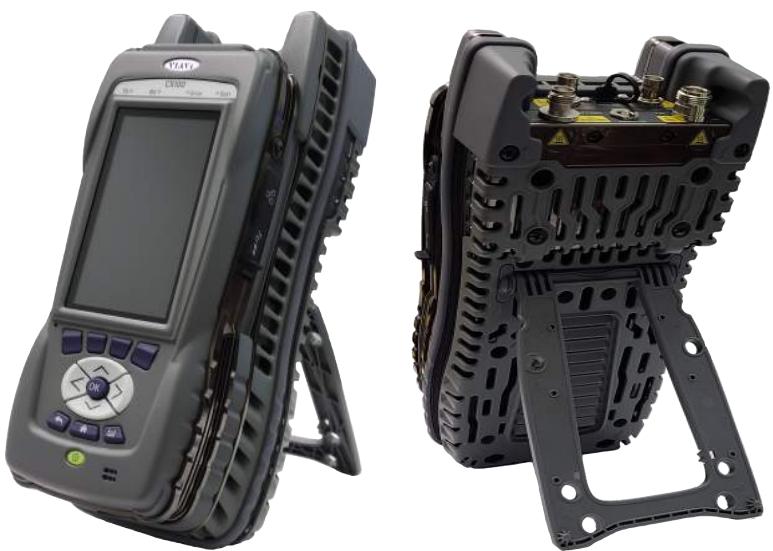

Figure 1-1 CX100 ComXpert Handheld Radio Test Set

The CX100 ComXpert uses the VIAVI OneExpert Platform to support system functions such as network connectivity, power management and software updates. The RF Application Module supports the device's RF test and measurement functions.

The CX100 ComXpert is designed for ease of use, reliability and long service life. The modular platform design allows the base platform to be expanded to incorporate other application modules which may be developed to support continuing industry advancements.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 1 Overview of the C: Device Features and Capab

1.2 Device Features and Capabilities This section identifies key features and capabilities supported by the CX100 ComXpert.

1.2.1 CX100 RF Features and Capabilities

The CX100 provides test and measurement capabilities that can be used to evaluate the transmit and receive performance of a radio system (radio, antenna, base station), locate faults in antennas, power amplifiers and cables. The CX100 supports the following test and measurement capabilities:

22144015 August 2023

1 MHz to 6 GHZ frequency range with up to 100 MHz instantaneous bandwidth

Measurement limit checks, user selectable measurement types (maximum, minimum, live and average) for all meters

Built-in-Test (BIT) and diagnostics for internal validation and testing Capable of receiving and recording RF signals for off-line analysis or playback

RF Spectrum Analyzer supports up to 6 GHZ frequency with 20 MHz instantaneous bandwidth

Asynchronous, swept RF Analyzer

Audio Analyzer supports DC up to 100 kHz with spectral and scope displays. Digital signal analyzer with EVM and constellation measurements Frequency and Amplitude modulation meters

Frequency Counter and Frequency Error meters

RF Power Meter supports 20 W continuous; 200 W with an external attenuator Parametric Distortion and SINAD meters

AM/FM/PM modulation and demodulation

VSWR and DTF measurements

Two internal Audio Frequency (AF) Function Generators

Two internal Modulation Generators; one External Modulation Generator Self-Test and Diagnostics for internal validation and testing

Remote access and operation using VNC viewing application

Dedicated high power RF output port and high power RF input port Dedicated high sensitivity, low power RF input port and low RF output port

Fast tuning speed and wide range of Resolution Bandwidth (RBW) allowing high accuracy analysis

CX100 ComXpert Operation Manual Rev 002

Chapter 1 Overview of the CX100 Principles of Operation

1.2.2 OneExpert Platform and System Features

The OneExpert platform supports the following hardware and system features: + ___ Rechargeable battery supports -3 hours continuous use

+ Capacitative Liquid Crystal Display (LCD) with user adjustable back-light and contrast

+ __ Field upgradeable software and option installation + One Ethernet connector

+ One 3.0 USB connector

+ WiFi and GPS (timing) receivers

+ __ Sleep mode (battery power saving mode)

13 Principles of Operation

The CX100 ComXpert uses the VIAVI OneExpert platform to support system functionality, and the RF Application Module as the basis for RF test and measurement functions.

1.3.1 OneExpert Platform Overview

The VIAVI OneExpert platform base contains a processor, backplane interface, Liquid Crystal Display (LCD), front panel controls, and a rechargeable battery. The base processor is responsible for managing system level functions such as network connectivity, file management and software upgrade procedures. The base processor is also responsible for managing the device's power consumption/power saving functions and the device's battery charging processes.

The LCD and front panel controls provide the user interface for controlling and operating the device. The mechanical components of the OneExpert base provide access to the device’s USB and Ethernet ports as well as the DC Input port. The backplane provides the interface between the OneExpert base unit and RF Application Module.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 1 Overview of the CX100 Front Panel Controls

13.2 RF Application Module

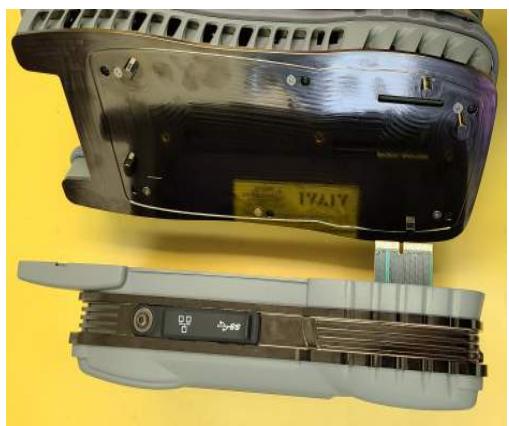

The CX100's RF Application Module supports the device's RF test and measurement functions. The RF Application Module's mechanical housing contains the device’s RF and audio input and output connectors. The RF Application Module contains a PCB Assembly that is responsible for processing and routing signals through the module.

1.3.3 Device Software

The CX100 ships from the factory with the current version of Software (SW) and Firmware (FW) installed on the device. The Hardware & Software Revisions Panel displays the version of the software and firmware installed on the device. See section 3.1.8, “Hardware & Software Revisions Panel”, on page 3-9 for information.

Routine maintenance checks should be performed to ensure the device has been upgraded to the latest production software release. See section 4.7, “Updating the Device’s Software”, on page 4-18 for software upgrade procedures. In the event a software update is needed, CX100 software can be upgraded in the field, and can be updated using a network connection or a USB device. CX100 software also supports field-installed software options.

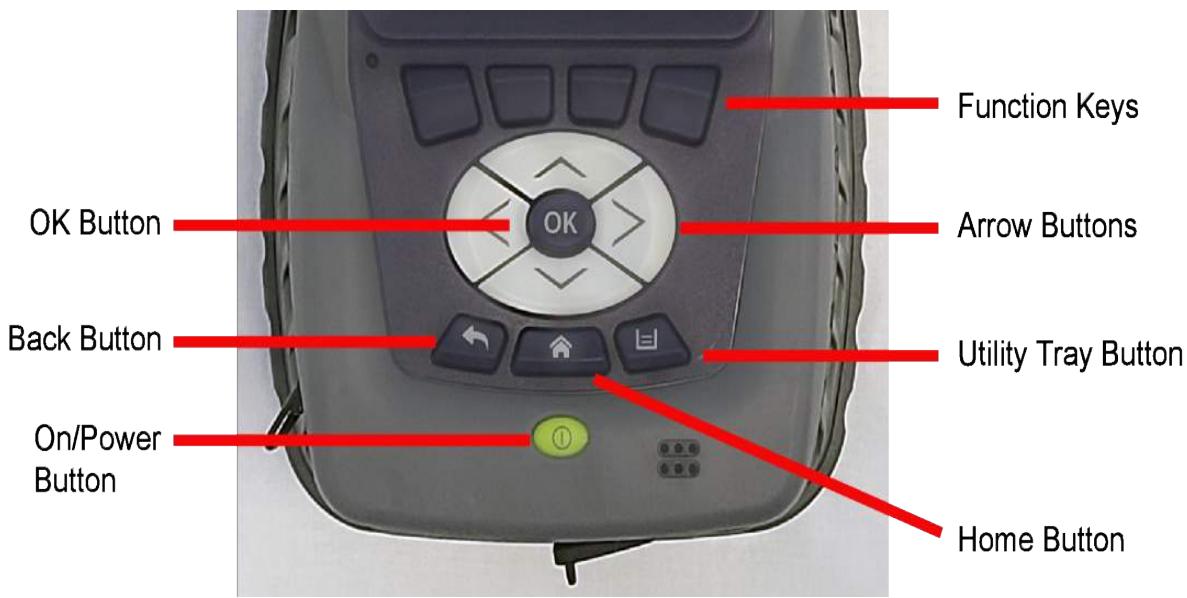

14 Front Panel Controls

Front panel controls and buttons are used to operate and control the device. Many of the functions performed using the front panel buttons are supported using the touchscreen.

OK Button Arrow Buttons Back Button Utility Tray Button On/Power Button Home Button Figure 1-2 CX100 Controls and Buttons 22144015 CX100 ComXpert Operation Manual Rev 002

Chapter 1 Overview of the CX100 Front Panel Controls

1.4.1 LCD The Liquid Crystal Display (LCD) is a capacitive touchscreen that operates similarly to a mobile device. The touchscreen supports gestures such as press to open/select/activate, press and hold, press and drag, swipe sideways and pinch to zoom.

The Function Keys select functions or Ul content associated with each key position. When there are soft-keys located on the Ul above the Function Keys, the soft-keys and corresponding hard key will perform the same function.

The Arrow buttons are used to navigate through menu selections and fields on the Ul.

The OK button is used to accept/confirm a changed setting or to proceed to the next menu. Use the Back button to close a menu or exit a data field without changing the current setting.

The Back button is used to exit a menu or to go back to the previous menu or content. If a data field is selected for editing, selecting the Back button exits the data field, canceling an unconfirmed change.

En Pressing the Home button returns to the device’s main/home screen. The UI Home button performs the same action.

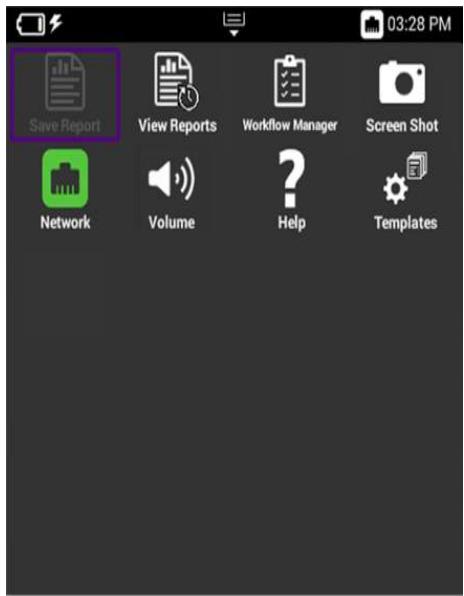

Fu | Pressing the Utility Tray button opens a panel on the Ul that is referred to as the Utility Tray. The Utility Tray contains buttons that access functions to save test reports, turn network or Wireless Personal Area Network (WPAN) functions on or off, or enable/disable remote operation.

Rev 002 CX100 ComXpert Operation Manual 22144015 1-6 August 2023

Chapter 1 Overview of the CX100 CX100 Connectors

E The Utility Tray can also be opened using the Tray soft-key located at the top of the UI.

See section 3.2, “Utility Functions”, on page 3-19 for additional information.

The Power Button is used to turn the device on and off. The device is turned on or off by pressing and holding the button for approximately 3 seconds.

NOTE The CX100 can be configured to emit a beep at power up/power down. See section 4.2.5.2, “Beep at Power Up/Down”, on page 4-7) for information.

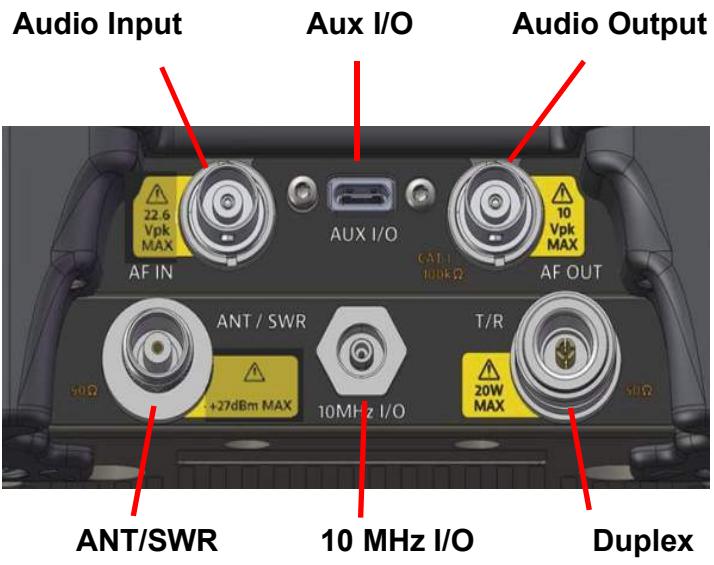

1.5 CX100 Connectors

À CAUTION Do not overload input connectors. Refer to product specifications or the product data sheet for maximum input ratings.

The DUPLEX connector is a combined (duplex) N-type connector. This connector is selectable as the RF Generator output and/or the RF Receiver input connector.

DUPLEX Input Connector

The DUPLEX connector should be selected as the RF Input connector when performing high power measurements.

DUPLEX Output Connector

The DUPLEX connector should be selected as the RF output connector when the lowest level of RF Generator output is needed.

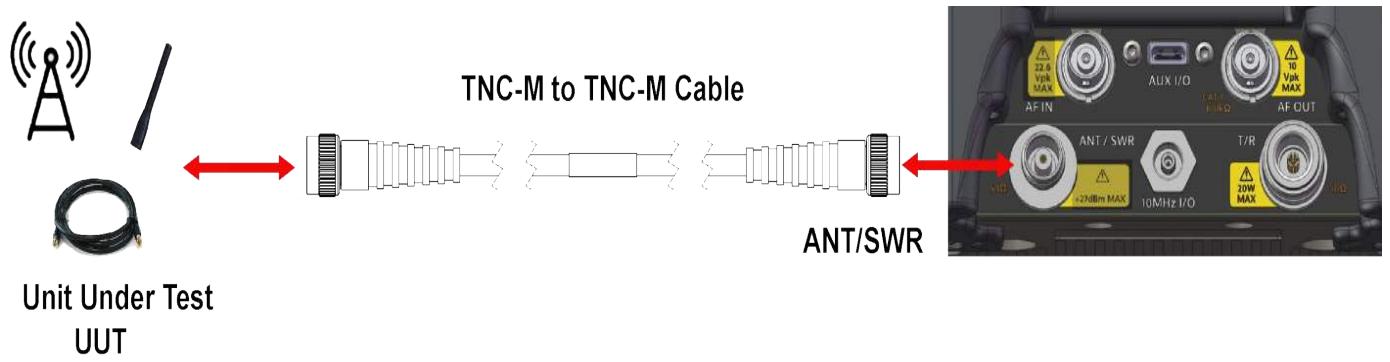

1.5.2 ANT/SWR Connector

The ANT/SWR connector is a TNC connector and is selectable as either an RF Input or RF Output connector.

NOTE The ANT/SWR connector does not support duplex input/output capabilities. When the ANT/SWR connector is selected as the RF output connector, the system disables the connector's receive capabilities.

ANT/SWR as Input Connector

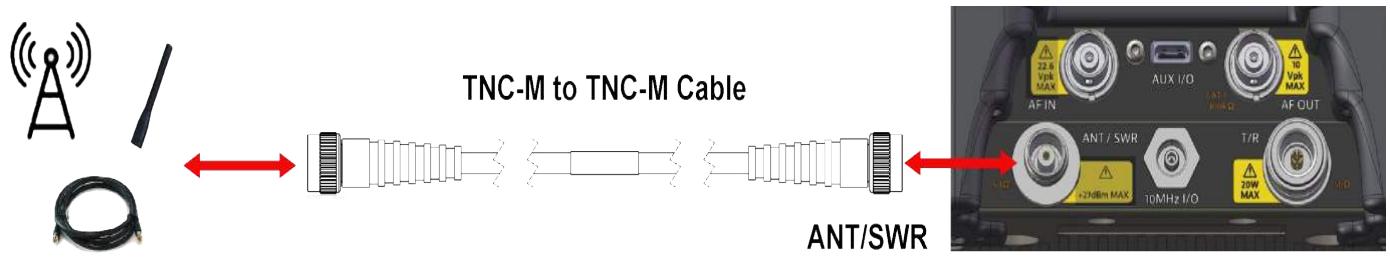

The ANT/SWR connector should be selected as the RF Input connector for the following test conditions:

+ ___ To perform over the air testing using an external antenna.

+ When test parameters require maximum input sensitivity.

+ When measuring low level RF signals.

ANT/SWR as Output Connector

The ANT/SWR connector should be selected as the RF output connector for the following test conditions:

+ To output high power RF signals.

1.5.3 10 MHz Frequency Reference 1/0 Connector

The 10 MHz Frequency Reference 1/0 connector is a SMB connector and is used to connect the CX100 to an external frequency standard, or to output the internal frequency standard from the CX100 to other equipment.

The 10 MHz frequency reference is configured from the Frequency Reference Configuration window. See section 4.3, “Configuring 10 MHz Frequency Reference”, on page 4-9 for setup information.

1.5.4 Audio In Connector

The Audio In connector is a BNC type connector that serves as the RF Instrument’'s primary AF, Digital and external modulation input connector. The Audio In connector is selected on the AF Analyzer panel.

1.5.5 Audio Out Connector

The Audio Out connector is a BNC type connector that serves as the RF Instrument's primary AF generator and digital output connector.

1.5.6 USB-C Type Connector

This connector is reserved for future development.

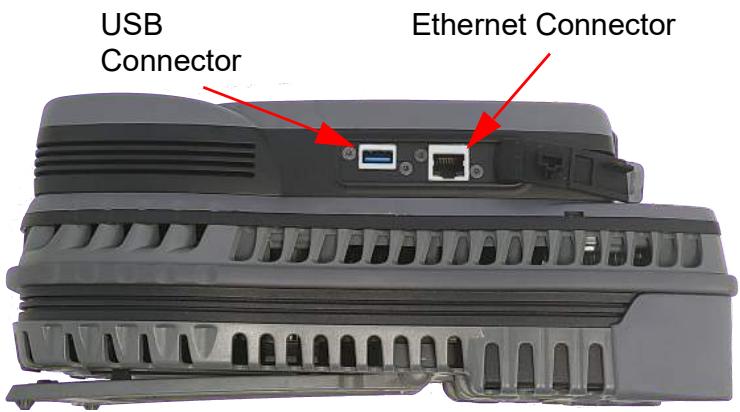

The USB connector is used for transferring test results from the device to a USB drive, for transferring test scripts or digital waveform files to the device, or for performing USB software/firmware upgrade.

USB Ethernet Connector Connector

Figure 1-4 Platform Controls and Connectors

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 1-9

Chapter 1 Overview of the CX100 CX100 Connectors

> NOTE The USB and Ethernet connectors are protected from environmental factors, such as dust, by rubber access covers; these covers should be closed securely when the connectors are not in use.

1.5.8 Ethernet Connector

The Ethernet connector is used to connect the CX100 to a network for the purpose of performing tasks such as file transfer, software updates, and remotely controlling to the device. See Figure 1-4.

See section 4.4.1.1, “Enable Network Connectivity”, on page 4-10 for instructions to connect the device to a network.

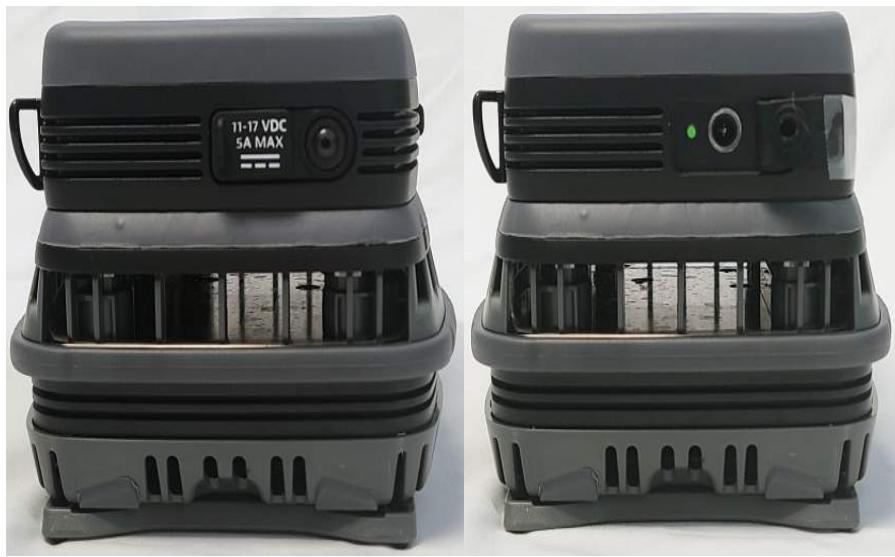

1.5.9 DC Input Connector

The DC Input connector is a +12 VDC connector located on the bottom end ofthe device. This connector is used to connect the CX100 to the AC adapter in order to power the device and to charge the device's internal battery.

The Charge Indicator LED is located next to the DC Input connector. See section 1.6.5, “Charge Status LED”, on page 1-13 for a description of this indicator.

Rev 002 CX100 ComXpert Operation Manual 22144015 1-10 August 2023

Chapter 1 Overview of the CX100 CX100 Connectors

NOTE The DC Input connectoris protected from environmental factors such as dust by rubber access flaps; keep the access flap closed securely when the connector is not in use.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 1-1

Chapter 1 Overview of the CX100 LED Indicators

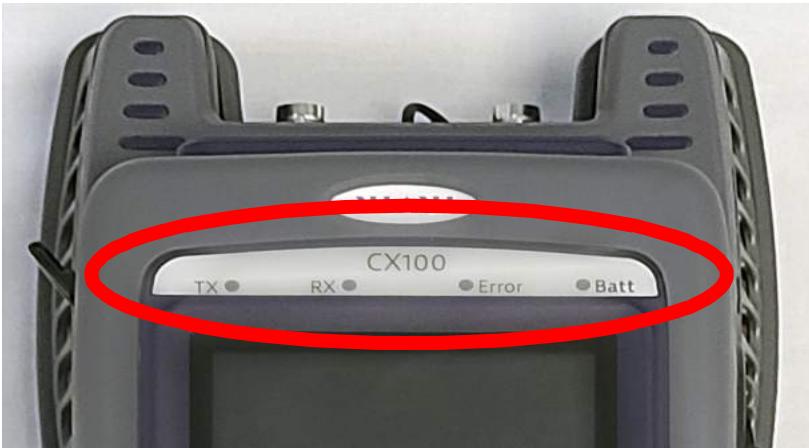

CX100 front panel LED's indicate system activity and status.

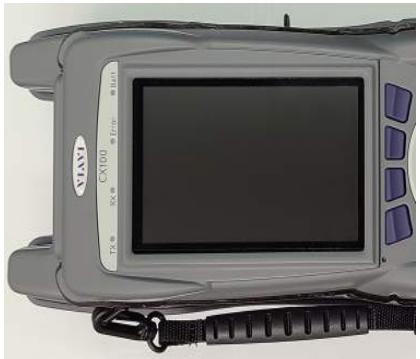

Figure 1-6 CX100 Front Panel LEDs

NOTE The Sync and Network LEDs alternately blink green when in sleep mode (power saving mode).

1.6.1 Sync LED The Sync LED indicates modem synchronization status. + Blinking green indicates that the modems are training.

Solid green indicates that the modems are synchronized and ready for use (reached Showtime).

NOTE The Sync and Network LEDs alternately blink green when in sleep mode (power saving mode).

1.6.2 Network LED The Network LED indicates network connectivity status.

+ Blinking green indicates that the unit is trying to acquire an IP address.

+ __ Solid green indicates when an IP address has been acquired.

+ Blinking amber indicates a timeout; the unit was unable to acquire an IP address.

°___lfthe Network LED is not illuminated, the network is inactive; either the unit is not connected to the network or it is logged off.

Rev 002 CX100 ComXpert Operation Manual 22144015 1-12 August 2023

Chapter 1 Overview of the C: LED Indic:

1.6.3 Error LED The Error LED indicates error and alarm conditions. Solid red indicates error and alarm conditions. The type of errors varies depending on the application. Errors are displayed in the Utility Tray. See section 3.1.22, “Notifications”, on page 3-13 for information.

1.6.4 Battery LED The Battery LED is a multi-colored LED that indicates battery status.

+ Solid green indicates the battery charge is higher than 30% or that an external source is powering the unit.

+ Solid amber indicates the battery charge is getting low; the charge is between 10% and 30%.

+ Solid red indicates the battery charge is critically low, less than 10%. An audible beep occurs 30 seconds before shutdown.

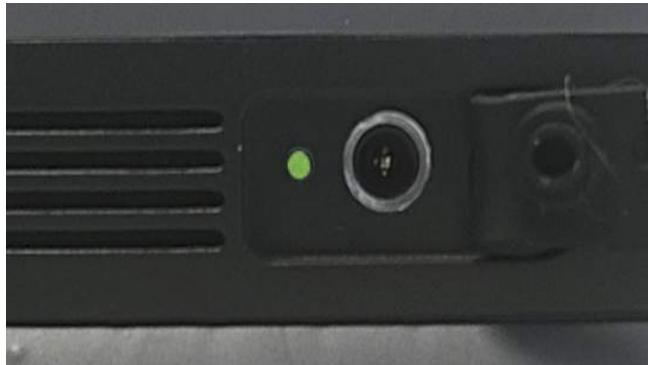

1.6.5 Charge Status LED The Charge Status LED is located on the bottom of the device next to the DC Input connector. The Charge Status LED is a multi-colored LED that indicates the charge status of the device.

Figure 1-7 CX100 Battery LED

+ Solid green indicates charging is complete and the battery is fully charged. + Solid amber indicates the battery is charging. + Slow flashing red indicates the battery charge is critically low, less than 10%.

+ Fast flashing red indicates charging was suspended due to a fault and user intervention is necessary (for example, the wrong charger is attached).

+ __ Solid red indicates charging was suspended due to overheating; no user intervention is necessary. The unit can continue to run; charging resumes when the device temperature drops to within acceptable parameters.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 1-13

Chapter 1 Overview of the CX100 LED Indicators

This page intentionally left blank.

Rev 002 CX100 ComXpert Operation Manual 22144015 1-14 August 2023

Getting Started: Setup and Operation

This chapter contains information to get users started with using the CX100 ComXpert.

This chapter reviews the following information and procedures: + __ Upon Receipt

+ Unpack the Equipment

+ __Inspect the Equipment

+ Prepare for First Time Use

+ __ Powering the Device + __ AC Power Operation

+ Power On/Off Procedures

+. Turning the Device ON

+ Turning the Device OFF

. Device Control and Operation.

+ __ Remote Operation

+ UI Navigation, Control and Layout

+ __ Screen Navigation and Control

+ Selecting Functions and Applications

Chapter 2 Getting Started: Setup and Operation Upon Receipt

The following tasks should be performed when a CX100 is received from the factory: + Unpack the Equipment

+ Inspect the Equipment

+ Prepare for First Time Use

2.1.1 Unpack the Equipment

NOTE D When unpacking the device, use care not to damage the shipping container and packaging materials: materials should be stored for possible future use.

The CX100 battery is a lithium battery that is shipped in special protective packaging. When removing the packaging, use care not to damage the packaging; the protective packaging can be used in the event the battery needs to be shipped.

To Unpack the Device

1. Cut and remove sealing tape from the top of the shipping container. 2. Remove foam inserts and equipment from the shipping container.

3. Remove the CX100 and battery from packing materials. 4.

Store packing material and shipping container for possible future use.

2.1.2 Inspect the Equipment

Inspect the equipment for any damage which may have occurred during shipment. Report any damage to VIAVI (see "Contact Information" on page 1-ii).

Rev 002 CX100 ComXpert Operation Manual 22144015 2-2 August 2023

Chapter 2 Getting Started: Setup and Operation Upon Receipt

2.1.3 Verify Contents

Verify shipment is complete in accordance with packing list. Report any discrepancies to VIAVI.

2.1.3.1 Standard ltems

The following items are included with the CX100 ComXpert:

Table 2-1 Standard Items

Item Description Qty CX100 ComXpert 1 22071316-002 Battery, Lithium lon, 7.3V, 13Ah, OneExpert 1 22054882 Power Supply:AC2DC;90-264VAC; 47-63HZ,12VDC 1 22022754 Adapter Cord US/NAmerica 1 22144013 CX100 ComXpert Quick Start Guide 1 22144014 CX100 ComXpert Operation CD 1 22142165 Mech; HAND STRAP 1

2.1.3.2 Accessory Kits The following are optional accessory items that are available for the CX100 ComXpert.

NOTE Optional accessories may be included as standard items with some system configurations. Refer to the packing list for shipment contents.

Custom accessories (customer specific) are not listed in the following tables.

Table 2-2 CX100Accessory Kit #TBD Item Description Qty 22147149 CHARGER - Vehicular Adapter NATO 1 Plug 9138 Antenna, 2-30 MHz 1 9147 Antenna, 225-512 MHz 1 9151 Antenna, 30-90 MHz 1 22147433 Antenna, 1-6 GHz 1 22147031 CONN, ADPTR TNC-M to BNC-F 1 22144015 CX100 ComXpert Operation Manual Rev 002

Chapter 2 Getting Started: Setup and Operation Upon Receipt

Table 2-2 CX100Accessory Kit #TBD (Continued)

Item Description Qty 38240 Attenuator, 20DB, 50W, DC-6 GHZ 1 22147033 Attenuator, 20DB, 200W, DC-6 GHZ 1 22147032 Connector, Adapter, N-F to N-M 1 23770 Connector, Adapter, N-F to BNC-F 2 20327 Connector, Adapter, N-M to BNC-F 2 23769 Connector, Adapter, N-F to BNC-M 2 23773 Connector, Barrel, N-F to N-F 1 23758 Connector, Adapter, TNC-M to BNC-F 3 22149578 Cable, RF, BNC-M to BNC-M, 48 inches 5 22149490 HANDSET, H-250 1 HST-000-346-00 SOFT CARRYING CASE 1 22145305 HARD CARRYING CASE 1 22144016 Guide, PDF, CX100 Test and 1 Measurements 22144013 Guide, QuickStart, PP, CX100 1 22144014 Manual, Operation, CD, CX100 1 22144015 Manual, Operation, PDF, CX100 1 22149489 CABLE, USB-C to RS-232 1 22149491 CAL KIT, DC- 6 GHz 1 22149488 CABLE, RF, TNC-M to TNC-M, 48 2 inches

2.1.4 Prepare for First Time Use

Perform the following to prepare the CX100 for verifying operation:

+ Install the battery that shipped with the CX100 in the device. See section B.8, “Installing the Battery”, on page B-7 for instructions.

+ __ Remove the protective film from the LCD by pulling up on the tab located at the lower right corner of the film.

Rev 002 CX100 ComXpert Operation Manual 22144015 2-4 August 2023

Chapter 2 Getting Started: Setup and Upo

2.1.5 Verify Operation

NOTE D The following procedure is used to verify that the CX100 is operating properly; the procedure is not intended to verify that the CX100 is operating to specified performance parameters.

When the CX100is received from the factory, perform the following before using the device for the first time:

1. Power on the CX100. See section 2.2, “Powering the Device”, on page 2-6 for instructions.

2. Verify the LEDs located above the display flash on and off in a series of red and green during the boot-up process.

3. When the device is ready for use, verify the Battery LED is illuminated.

NOTE If the Battery LED is red, the battery needs charged (see "To Charge the Battery" on page 2-7).

4. When the display loads, open the RF Instrument menu to access the RF Instrument functions.

Select the AutoTest button.

Select the File Field located at the top of the screen.

Select Self Test from the test list.

Press the Select All Soft-key.

Press the Run Selected Soft-key.

10. Wait while the device performs a series of automated test process. Do not interrupt this process or the self test will fail. Status indicators show when self test is finished.

11. When AutoTest is finished, verify all portions of the test have passed. If any portion of the AutoTest procedure fails, contact VIAVI (see "Contact Information" on page 1-iii).

The CX100 is now ready for use.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 2-5

The CX100 is designed to be powered by an internal battery or by an external AC power supply.

+ Use only the AC Adapter/Charger supplied with the product. Contact VIAVI for approved replacement parts.

+ Do notuse the AC Adapter/Charger outdoors or in a wet or damp location.

+ Only connect the AC Adapter/Charger to the correct mains voltage indicated on the ratings label.

À WARNING Improper grounding of equipment can result in electrical shock. To ensure proper grounding, this device should only be connected to a grounded AC Power Supply.

s'assurer d'une mise à la terre adéquate, cet appareil doit seulement être branché à une alimentation électrique CA mise à la terre.

2.2.1 AC Power Operation

The CX100 can be powered externally using the provided AC Power Adapter to connect the device to a grounded AC power supply. The device automatically initiates recharging the battery when the CX100 is connected to an AC power supply.

To Connect the Device to an AC Power Supply

1. Connect the power cord to the AC Adapter/Charger.

2. Connect the DC connector to the device’s DC Input Connector. See section 1.5.9, “DC Input Connector”, on page 1-10 for information.

3. Connect the power cord to a grounded AC power supply.

Rev 002 CX100 ComXpert Operation Manual 22144015 2-6 August 2023

Chapter 2 Getting Started: Setup and Operation Power On/Off Procedures

The AC Current Icon is displayed at the top of the Ul when the device is connected to Æ| an AC power supply.

2.2.2 Battery Operation

The CX100 is designed to be powered by an internal battery that supports up to 3 hours of continuous operation. The amount of battery operation time remaining is indicated by the Battery LED on the front panel. See section 1.6.4, “Battery LED”, on page 1-13 for information.

The CX100 is designed with a time-out feature which conserves battery power; this feature is referred to as “Battery Saving Mode”. The time-out period is defined on the Screen and Power Settings panel. See section 4.2.5.1, “Battery Saving Mode”, on page 4-7 for information.

To Charge the Battery

1. Connect the device to an AC power supply. 2. Verify the device's Battery LED turns amber to indicate the battery is charging. 3. The Battery LED turns green when the battery is fully charged.

2.3 Power On/Off Procedures

The CX100 is powered on and off using the Power button located on the front panel.

NOTE The CX100 can be configured to emit a beep at power up/power down. See section 4.2.5.2, “Beep at Power Up/Down’”, on page 4-7 for information.

2.3.1 Turning the Device ON

1. Press and release the Power button.

2. Aninitializing indicator is displayed during the boot-up process. Wait while the device completes the boot-up process; this takes several seconds.

3. The Home screen is displayed when the device is ready for use.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 2-7

Chapter 2 Getting Started: Setup and Operation Device Control and Operation

2.3.2 Turning the Device OFF

1. Press and hold the Front Panel Power button for approximately 3 seconds, then release.

2. The device performs a series of power-down processes.

3. When the power down process is finished, the front panel LEDs will no longer be illuminated.

2.4 Device Control and Operation

The CX100 can be operated locally using the device’s LCD touchscreen and front panel controls, or remotely using a VNC (Virtual Network Computing) viewing application.

2.4.1 Local Operation

The OneExpert User Interface (Ul) is designed to be intuitive and easy to use. The Liquid Crystal Display (LCD) is a capacitive touchscreen that operates similarly to a mobile device. The touchscreen supports gestures such as press to open/select/activate, press and hold, press and drag, swipe sideways and pinch to zoom.

2.4.2 Remote Operation

The CX100 can be controlled from a remote location such as a laptop using a VNC viewing application. See the following sections for additional information:

+ See section 4.5, “Remotely Operating the Device”, on page 4-16 for instructions to configure the device for remote operation.

+ See section 3.1.3, “Remote Operation Panel”, on page 3-5 for detailed information about remote operation controls and parameters.

2.5 UI Navigation, Control and Layout

This section describes layout of the CX100 User Interface (Ul) and how to navigate between system and test applications and functions. The CX100 Ul is designed to be intuitive and easy to use. The Liquid Crystal Display (LCD) is a capacitive touchscreen that operates similarly to a mobile device. The touchscreen supports gestures such as press to open/select/activate, press and hold, press and drag, swipe sideways, and pinch to Zoom.

Rev 002 CX100 ComXpert Operation Manual 22144015 2-8 August 2023

Chapter 2 Getting Started: Setup and Operation UI Navigation, Control and Layout

22144015 August 2023

Screens are navigated using the following controls and techniques:

+ Expandable panels are opened and closed by selecting the directional arrow on the right side of the title bar.

+ Arrow buttons are used to move up/down, left/right (see page 1-6).

+ Swipe left/right is used to “flip through” screens on multi-tabbed screens (i.e., VSWRIDTF screen).

+ __ The Back Arrow is used to return to the previously viewed content or to close a running function or application (see page 1-6).

Expanding Function/Application Menus Menus are expanded and collapsed using one of the following methods:

To Expand a Menu + __ Select the triangle on the right side of the menu using the touchscreen. -OR-

+ __ Use the Arrow buttons to highlight the desired function menu, then press the OK button.

The triangle on the right side of the menu points down when a menu is expanded.

NOTE Function and application menu title bars are purple when selected; gray when not selected.

To Select a Menu Item + Open the menu and select the menu item. When a menu item is selected using the touchscreen, the selection is activated upon selection and the menu closes. <or>

+ Use the Arrow buttons to highlight the desired item; press the OK button to confirm. When confirmed, the election is activated and the menu closes.

CX100 ComXpert Operation Manual Rev 002

Chapter 2 Getting Started: Setup and Operation UI Navigation, Control and Layout

2.5.1.4 Entering Text and Numeric Data

Some parameters are defined using text or numeric entry fields (for example, test settings or user information). The process is similar to data entry on a mobile device.

1. Select (or navigate to) the desired parameter to open the data entry field. À data entry box is displayed.

4. Select the Enter/Return button on the keypad, or press the OK button. The data is entered and stored.

Some CX100 screens contain a soft-key panel at the bottom of the display. The soft-keys are used to access test settings or perform actions. The UI contains the following types of soft-keys.

Table 2-3 Types of Soft-keys

Examples Type of Soft-key Description

Action Soft-key identified by a label that implies/defines an Clear/Reset action. When pressed, the system performs the

action associated with the soft-key.

State Soft-key identified by a label that identifies a parameter and a label that identifies the current state of the parameter.

Some State soft-keys also contain a visual indicator to the on/off state of the parameter.

Selection identified by a label that identifies the e rl Soft-key parameter selections. ; Pressing the button selects between

available selections.

Menu Soft-key Menu soft-keys are identified by the up Display arrows on the soft-key. ee When pressed, the soft-key updates to display a menu that contains controls and setting.

Rev 002 CX100 ComXpert Operation Manual 22144015 2-10 August 2023

Chapter 2 Getting Started: Setup and UI Navig

2.5.3 Selecting Functions and Applications

22144015 August 2023

To Open a Function/Application

Select the button from the function or application button from the menu. To Close a Function/Application

+ __ Select the Close button E to close the function or application.

Function and test application buttons change color to indicate whether or not the function is current initialized (actively running) on the device.

Function Off Indicator Indicates the function/application is inactive (turned off).

x Function Running - Not Highlighted

Indicates the function/application is running in the background; focus is not on the application.

+ Selecting the button reopens the function or application. + Pressing the Close button E closes the function or application.

pe Function Running - Highlighted Indicates the function/application is running in the background and you currently have focus on the application.

+ Selecting the button reopens the function or application. + Selecting the Back button x closes the function or application.

CX100 ComXpert Operation Manual Rev 002 2-1

Chapter 2 Getting Started: Setup and Operation UI Navigation, Control and Layout

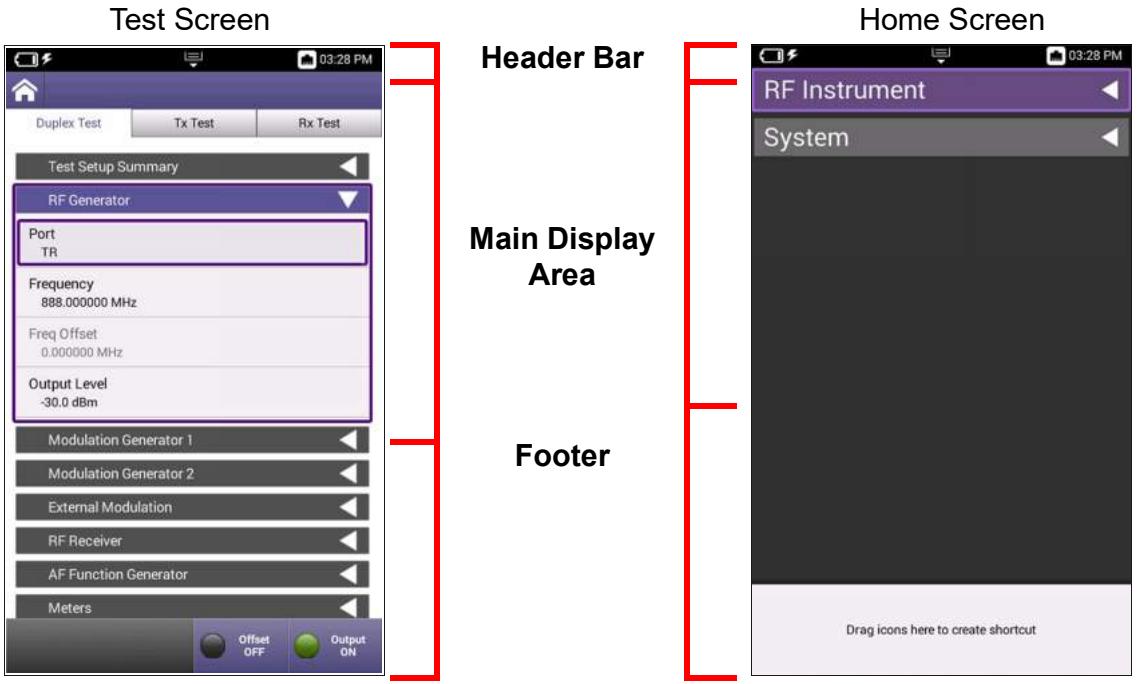

CX100 screen layout and content changes based on factors such as the selected function, user settings and modes of operation. All screens consist of three main areas: a header, a main display area, and a footer section.

Test Screen Home Screen

Header Bar Gr = RF Instrument

Main Display Frequency Area

The header bar displays system status indicators such as battery charge status, WiFi status, and the system clock. The header bar also contains the Utility Tray button which is used to access system device tools and functions.

The main display area contains a variety of components; the content that is displayed is based on the current function and action being performed. The area may contain content such as a list of expandable panels, menus, plot fields, or data tables.

Rev 002 CX100 ComXpert Operation Manual 22144015 2-12 August 2023

Chapter 2 Getting Started: Setup and UI Navig Control and La

When the footer area is present on the screen, the footer area contains either a shortcut area or a soft-key panel.

+ The shortcut area is used to provide quick access to frequently used functions. See section 4.11, “Creating UI Shortcut”, on page 4-21 for information.

+ Soft-key panels contain controls and functions associated with the currently selected test function.

When the CX100 is powered on the Home screen is displayed (see Figure 2-2 on page 2-12). The Home screen contains collapsible menus that expand to provide access to the system and test functions that are available on the device.

When the device is received from the factory, the Home screen lists the standard and optional functions that are available on the device. The content displayed on the Home Screen can be changed from the Home Screen Settings panel. See section 4.2.4.1, “Customizing Home Screen Contents”, on page 4-6 for information.

The Home screen footer area can be used to create short cuts to commonly used functions and applications. See section 4.11, “Creating UI Shortcut”, on page 4-21 for information.

2.5.4.2 Test and System Settings Screens

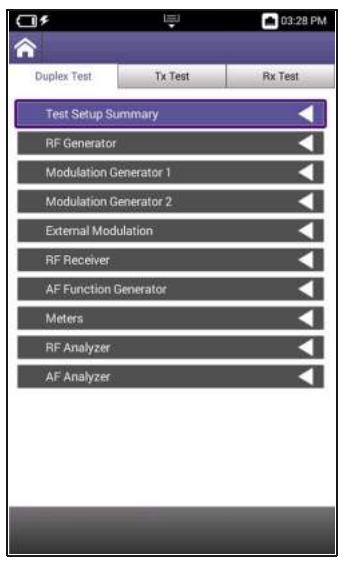

CX100 test screens contain controls, settings and other UI components applicable to the selected test function. The contents of the test screens depends on the selected mode of operation as well as the active test and measurement function. See Figure 2-1 on

page 2-12 for an example.

See Chapter 5 “RF Instrument Function Descriptions” for information about test screens.

See Chapter 3 “System and Utility Function Descriptions” for information about system and utility screens.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 2-13

Chapter 2 Getting Started: Setup and Operation

UI Navigation, Control and Layout

2.5.5 System Status UI Indicators

The following icons are used to indicate status of system functions.

Table 2-4 System Status UI Indicators

The Battery Status Icon displays the charge level of the device’s internal battery. The charge level is also displayed as a percent next to the indicator.

See section 2.2.1, “AC Power Operation”, on page 2-6 for information about the device’s internal battery.

See section 8.1, “Recharging the Battery”, on page 8-2 for battery recharging instructions and relevant safety information.

The AC Power Icon is displayed when the device is connected to an AC power supply.

See See section 2.2.1, “AC Power Operation”, on page 2-6 for safety information and instructions for connecting the device to an AC power supply.

Network Connection Icon

The Network Connection Icon is displayed when the device is connected to an active LAN via one of the device’s Ethernet connectors.

See section 4.4.1.2, “Establishing an Ethernet Connection”, on page 4-10 for instructions for connecting the device to a network via an Ethernet connection.

The WiFi Icon is displayed when the device is connected to a network via WiFi.

See section 4.4.2.2, “Connecting to a WiFi Network”, on page 4-14 for instructions for connecting the device to a network via a WiFi connection.

CX100 ComXpert Operation Manual 22144015 August 2023

System and Utility Function Descriptions

This chapter provides an overview of the device’s system and utility functions. System settings control functions such as date and time, screen and power settings, and software updates. Utility functions are used to configure functions such as network connections and file transfers.

This chapter reviews the following topics:

+ Introduction 222 3-3 + Accessing System Settings. 3-3 + __ Date and Time Panel 3-4 + __ Remote Operation Panel 3-5 +__ Wireless Personal Area Network (WPAN) Settings Panel . 3-6 + __ International Settings Panel . 3-6 + Network Software Update panel... . . 3-7 + __ USB Software Update Panel 3-8 + Hardware & Software Revisions Panel... 3-9

+ __ Software Options Panel + __ Hardware Options Panel. ... + Calibration Screen... + Home Screen Settings . see + Save Location Settings

Chapter 3 System and Utility Function Descriptions

System Network Screen 3-13 Web Browser. 3-17 File Browser. 3-17 USB File Browser 3-18 Utility Functions 44200 3-19 Accessing Utility Functions 3-19 Save Report Button 3-19 View Report2 3-20 Screen Shot 3-20 Network Button 3-20 Wireless Personal Area Network (WPAN)® Button. 3-20 Volume Button 3-20 Help,...44444400 ee 3-20 Tutorial. 2222 3-21 Workflow Manager. 3-21 Templates 3-21

See Chapter 4 “Configuring System Settings” for step by step instructions for configuring CX100 system settings, network connections and user settings.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 3 System and Utility Function Descriptions Introduction

CX100 system settings configure device parameters such as date and time, screen layout and brightness and battery saving mode, network, WiFi and Wireless Personal Area Network (WPAN) access. Utility functions support file management, user setup information and updating the device's software and firmware.

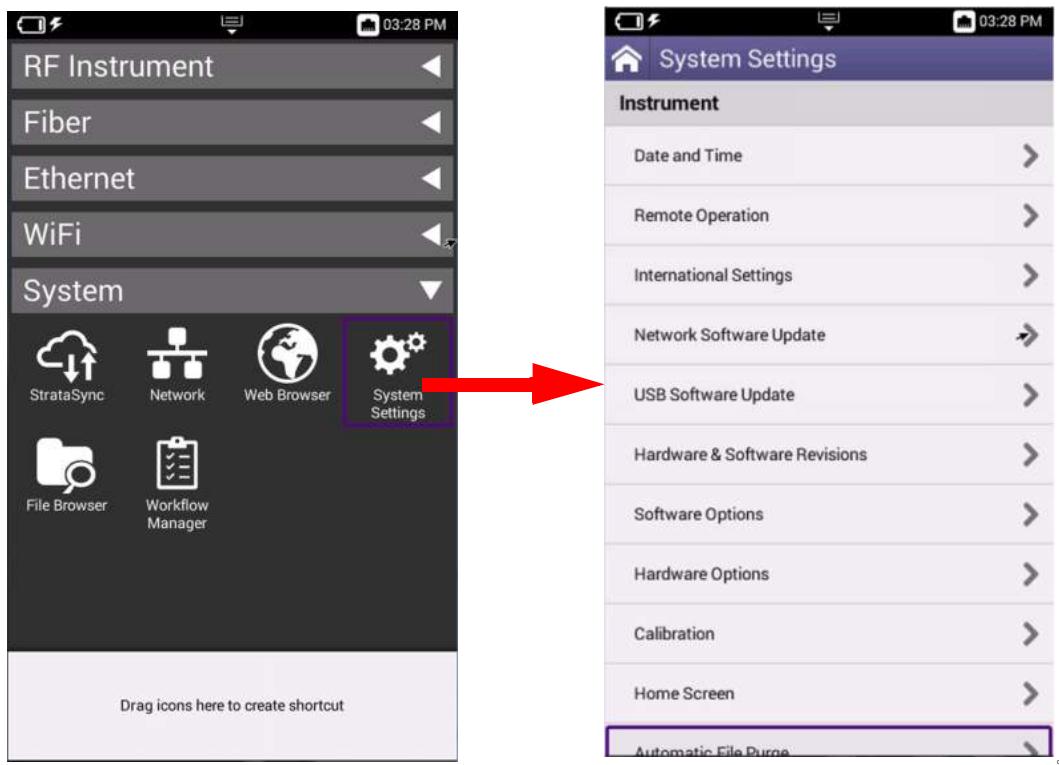

3.1.1 Accessing System Settings

System settings are accessed from the System Menu on the Home screen and from the System Settings menu.

Chapter 3 System and Utility Function Descriptions

3.1.2 Date and Time Panel

The date and time controls and settings are used to configured the device’s internal clock and calendar. The date and time can be configured manually, or configured to synchronize automatically to a central time server.

When Time Synchronization is set to None, the date and time fields update to editable fields. See section 4.2.3, “Setting Date and Time”, on page 4-4 for instructions.

When NTP Synchronization is enabled, Network Time Protocol (NTP) synchronizes the device’s system clock to a central time server. See section 4.2.3.6, “Time Synchronization”, on page 4-5 for instructions.

Table 3-1 Date and Time Controls and Settings

NTP Synchronization State

The CX100's clock can be set manually by selecting this field. When the field is selected, a configuration window opens which is used to set the device’s clock.

The CX100 calendar can be set manually by selecting this field. When the field is selected, a configuration window opens which is used to set the date.

Selecting this field opens a window to select between supported UTC date formats.

Selecting this field opens a window to select between 12 hour or 24 hour time format.

Selecting this field opens a window to adjust the device's clock to reflect a different time zone. The CX100's clock updates automatically to reflect the selected adjustment.

This setting selects whether or not Daylight Savings Time (DST) is used.

This setting selects the method used for time synchronization. See section 4.2.3.6, “Time Synchronization”, on page 4-5.

This setting selects the formatting type used for the Network Time Protocol (NTP) Server IP Address.

This field is the address of the server where the device gets the time, for example O.us.pool.ntp.org.

This field indicates if the device is synchronized with the NTP.

CX100 ComXpert Operation Manual

22144015 August 2023

3.1.3 Remote Operation Panel

22144015 August 2023

Chapter 3 System and Utility Function Descriptions Introduction

Remote operation settings are used to configure the device for remote operation. See section 4.5, “Remotely Operating the Device”, on page 4-16 for step by step instructions for configuring the device for remote operation.

The VNC parameters are used to configure the device for remote access and operation. See section 4.5.1, “Establishing VNC Viewer Connection”, on page 4-16 for instructions to configure the device for remote operation.

Table 3-2 Remote Operation and VNC Controls and Settings

Reserve Ethernet Port for Remote Access

When this check box is selected, files can be downloaded from the CX100 via a web browser. See section 7.2.5, “Downloading Files via Web Browser”, on page 7-6 for instructions.

This tick box must be selected in order to access the device using a remote Ul viewing application.

This field defines a password that will be required when accessing the device remotely using VNC viewing application.

This indicates how many users are remotely connected to the device.

This check box enables simultaneous usage of System Network access and Data Test access on the CX100's Ethernet connectors.

System Network access will use Ethernet 1 Connector; Data Testing will use Ethernet 2 Connector. If this option is not selected, either connector can be used for System Network Access.

CX100 ComXpert Operation Manual Rev 002

Chapter 3 System and Utility Function Descriptions Introduction

3.14 Wireless Personal Area Network (WPAN) Settings Panel

The WPAN Settings panel contains controls that are used to establish and manage a Wireless connection between the CX100 and another compatible device. The WPAN Settings panel remains blank until WPAN capability is enabled and a scan is performed.

Table 3-3 Wireless Personal Area Network Controls and Settings

Control/Setting Description

Enabled Tick Box The tick box enables and disables the CX100's WPAN function.

Device List Displays a list of devices that the CX100 detected on the network that are available for WPAN connection.

Scan for Devices This soft-key scans the network to which the CX100 is

Soft-key connected for WPAN enabled devices.

See section 4.6.1, “Enabling Wireless Personal Area Network (WPAN) Connectivity”, on page 4-17 for information.

3.1.5 International Settings Panel

International Settings panel contains controls and settings that allows the CX100 to be configured to use local settings such as units of measure, local time zone and temperature units. International settings can be defined by selecting a preset country or by configuring the settings manually.

See section 4.2.2, “Configuring International Settings”, on page 4-3 for information.

Rev 002 CX100 ComXpert Operation Manual 22144015 3-6 August 2023

Chapter 3 System and Utility Function Descriptions Introduction

3.1.6 Network Software Update panel

22144015 August 2023

The Network Software Update panel contains the controls and parameters used to update CX100 software when files have been placed in a network location. See section 4.7, “Updating the Device’s Software”, on page 4-18 for step by step instructions for

updating the device's software.

Table 3-4 Network Software Update Controls and Settings

Update URL Username and Password

Force Software Update

The Update URL field defines the URL address from where the device will download the software. This URL should be accessible to the device without security restrictions.

A user name and password can be created to secure the device against undesired updates.

When performing a software update, the device determines if a software load is more current than the software currently installed on the device. lfthe software load is older, or the same version as the software installed on the device, the system determines that there is not a software update available. Selecting the tick box “Force Software Update” causes the device to update software regardiess of version time/date information.

Pressing the Update soft-key starts the software update procedure. An error message is generated if a configuration error (i.e., does not detect software file) prevents the device from updating software.

CX100 ComXpert Operation Manual Rev 002

Chapter 3 System and Utility Function Descriptions

3.1.7 USB Software Update Panel

The USB Software Update panel is used to update the device when files have been placed on a USB Device. See section 4.7.2.1, “USB Update Procedure”, on page 4-18 for instructions.

Table 3-5 USB Software Update Controls and Settings

Force Software Update

When a USB is connected to the device, this field updates to allow the user to select the file on the USB device. This field is disabled until the devices detects a USB device connected to one of the USB connectors.

When performing a software update, the device determines if a software load is more current than the software currently installed on the device. If the software load is older, or the same version as the software installed on the device, the system determines that there is not a software update available. Selecting the tick box “Force Software Update” causes the device to update software regardless of version time/date information.

The Update soft-key is enabled when a USB device is detected.

Pressing the Update soft-key starts the software update procedure. An error message is generated if a configuration error (i.e., does not detect software file) prevents the device from updating software.

CX100 ComXpert Operation Manual 22144015

Chapter 3 System and Utility Function Descriptions Introduction

3.1.8 Hardware & Software Revisions Panel

The Hardware & Software Revisions panel lists identifying information for major hardware components as well as software version for the device. The following data is key product information that may be required when updating or contacting VIAVI for technical

support: Table 3-6 Hardware & Software Revision Data Content Description Base Version of software installed in OneExpert platform. RTS Version of software installed in CX100 RF Application Module. Unit ID Serial number of the OneExpert platform. Assembly ID Serial number of the CX100 RF Application Module. Battery Battery type, serial number, and manufacture date. Information

3.19 Software Options Panel

The Software Options panel lists any available software options that are supported on

the device with the current base unit and application module configuration. This panel is

also used to install or update options on the device. See section 4.8.3, “Installing Options”, on page 4-20 for information.

Table 3-7 Software Options Controls and Settings

Field/Control Description

Options List Identifies software options that can be installed on the device.

Activation Activation status field indicates whether or not the option is enabled or “Upgradeable” (needs to be purchased).

Import from USB This soft-key is enabled when a USB device is connected to

Soft-key the device containing software options which can be

installed on the device.

3.1.10 Hardware Options Panel

The Hardware Options panel lists any hardware options that are available for the current base unit and application module configuration.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 3-9

Chapter 3 System and Utility Function Descriptions Introduction

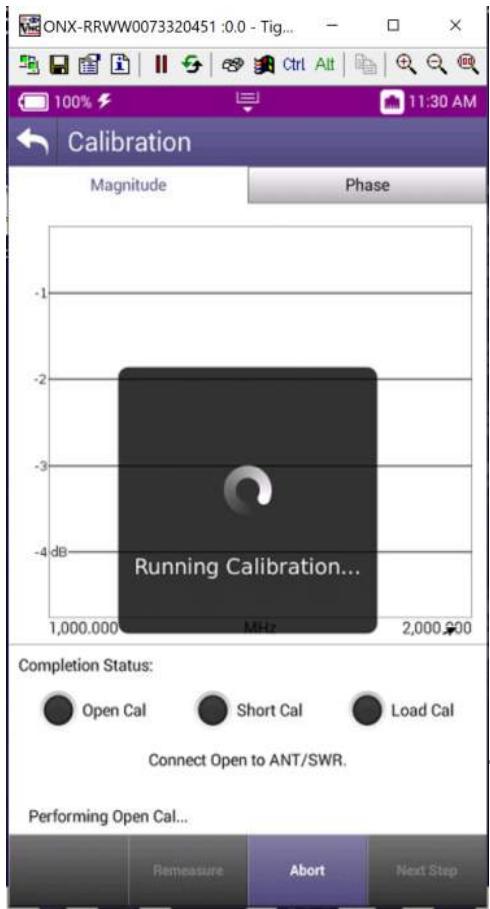

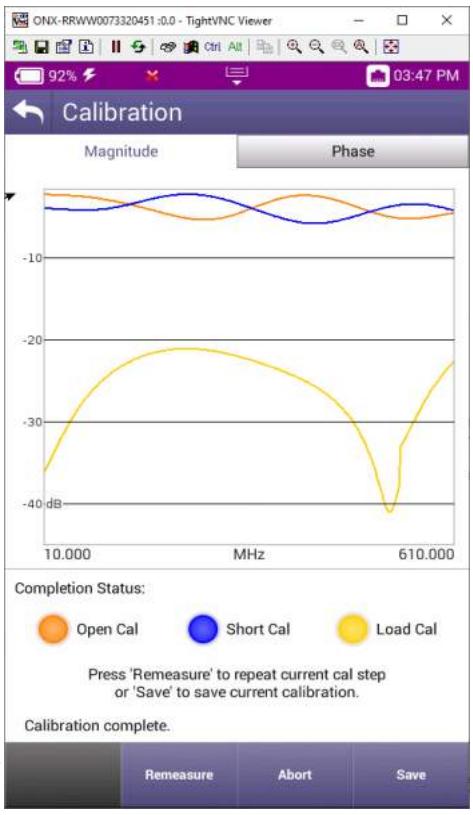

3.1.11 Calibration Screen

The Calibration panel lists the device’s calibration files. Content includes the name of the component for which the calibration file applies and the calibration date and time stamp.

3.1.12 Home Screen Settings

The tick boxes on the Home Screen Settings panel select the functions that are displayed on the CX100 Home Screen. Changes are immediate; the device does not need to be rebooted. See section 4.2.4.1, “Customizing Home Screen Contents”, on page 4-6 for information.

3.1.13 Save Location Settings

The instrument can be configured to automatically save test results, screen captures or other files to a user defined location. The controls and settings on the Save Location panel are used to define the location where the device’s file manager saves the files.

The CX100 can be configured to save test results, screen captures, or other files to the device's file system, a connected USB drive, or both (if applicable).

See section 4.2.7, “Specifying File Save Location”, on page 4-8 for information.

Table 3-8 Save Location Settings

File System When File System is selected, files are saved to the device’s internal storage directory. Files are accessed from the File Browser screen.

USB Device When USB device is selected, files are saved to a USB device that is connected to the device. This selection is only available when a USB device is detected.

Both When Both is selected, files are saved to a USB device and to the device’s internal storage directory. This selection is only available when a USB device is detected.

Rev 002 CX100 ComXpert Operation Manual 22144015 3-10 August 2023

Chapter 3 System and Utility Function Descriptions Introduction

3.1.14 Restore Factory Defaults Settings

Restoring factory defaults resets test application settings and system settings (such as brightness, contrast, and volume) to their factory default settings. See section 4.2.1, “Restore Factory Defaults”, on page 4-2 for information.

Table 3-9 Restore Defaults Settings

Remove All Files Under When this tick box is selected, any user files located in File Browser the File Browser directories will be deleted as part of the restore factory default process.

Clear International When this tick box is selected, international settings will Settings be cleared and reset as part of the restore factory default process.

3.1.15 Power Off Screen

The Power Off panel allows users to power off or reboot the device from a remote location.

NOTE If the device is using DHCP network connection, the network may assign a new IP Address when the device is rebooted.

3.1.16 Template Management Screen

The Template Management function is used in conjunction with StrataSync, which is not yet supported on the CX100.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 3-11

Chapter 3 System and Utility Function Descriptions Introduction

3.1.17 Screen & Power Management

The Screen & Power Management Screen contains settings that adjust the brightness of the LED backlight, the backlight timeout and the battery saver timeout. See section 4.2.5, “Configure Device Power Settings”, on page 4-7 for procedures.

“Idle time” refers to time during which no keys are pressed and no line activity takes place. If the Power Off Delay is set to 5 minutes and a 15 minute test is started, the unit will not power down during the test because there is activity on the line (as a result of the test).

Battery Saving Mode is not applicable when the device is connected to an AC power

supply. Table 3-10 Screen and Power Management Settings Setting Description Backlight This setting adjusts the brightness setting of the LED's backlight. Backlight This setting defines the amount of time the device can remain Timeout idle before the LED's backlight turns off.

Power Off Delay The Power Off Delay setting defines how long the instrument remains idle before the instrument automatically powers itself off when operating on battery power.

3.1.18 Sounds Screen

The Sounds panel contains settings that configure the device to emit a chime when the Power button is pressed to turn the device on or off. See section 4.2.5.2, “Beep at Power Up/Down”, on page 4-7 for information.

The UI Theme panel contains settings that allow users to change the color scheme of the UI. Changes take effect immediately; the device does not need to be rebooted to apply selection.

Rev 002 CX100 ComXpert Operation Manual 22144015 3-12 August 2023

Chapter 3 System and Utility Function Descriptions Introduction

3.1.20 User Information

The User Information panel contains settings used to identify the technician using the device. Information includes the technician’'s name and ID as well as the StrataSync account ID. The information entered on this panel is used when synchronizing with the StrataSync server. See section 4.2.6, “User Information”, on page 4-7 for information

NOTE StrataSync is not currently supported on the CX100. Support is planned for future development.

The Help panel contains VIAVI contact information: phone number; email and website. Help content can also accessed by pressing the Help button located in the Utility Tray.

3.1.22 Notifications

Error messages and user notifications are displayed in the Utility Tray. When more than one notification message is displayed, an individual message can be deleted by dragging the message off the screen. Pressing the Clear All button deletes all notification messages.

3.1.23 System Network Screen

22144015 August 2023

Network connections are used to update the firmware, transfer files, synchronize to the StrataSync server, or control the instrument's user interface remotely. The device supports wired network and intranet, and WiFi connections.

The device supports IPv4, IPV6 and IPv4/IPv6 Dual Stack network modes of operation. The network controls and settings that are displayed on the screen depend on the Network Mode and Address Mode that are selected (Static or DHCP).

The device is designed to auto-detect when it is connected to an active network via one of the CX100 Ethernet connectors.

Accessing System Network Screen

The Network panel contains parameters that are used to configure the device for network access. The Network panel is accessed by selecting the Network button from the System Menu.

CX100 ComXpert Operation Manual Rev 002 3-13

Chapter 3 System and Utility Function Descriptions Intro

3.1.23.2 Network Controls and Settings

This section describes the controls and settings used to configure the device’s network connection. See section 4.4, “Establishing a Network Connection”, on page 4-10 for step by step instructions for configuring the device for network access.

Table 3-11 Network Controls and Settings

Control/Setting Description

Network Mode Selects the method used to assign IP Addresses to the device. + ___IPv4: uses 32-Bit, numeric IP addressing method + ___IPv6: uses 128-Bit, alphanumeric IP addressing method. + ___IPv4 and IPv6: uses both addressing methods

IP Address Mode Selects whether the device connects to the network using a DHCP or Static IP Address.

Dynamic Host Configuration Protocol (DHCP)

The server of the network to which the device is connecting assigns network uplink IP address, netmask, gateway, and DNS.

Static Static mode is used to manually define network IP connections.

NOTE D Improperly configuring a static IP address could cause conflicts on your network server. VIAVI recommends contacting your network administrator before configuring the device to use a static IP address.

IP Address Address assigned to the device. Format is determined by select Network mode.

Netmask Netmask Address assigned to the device determines whether the packets are to be routed to other networks or subnetworks.

Gateway The address for the gateway that is used to route packets that are not on the same subnet.

DNS Server The address of the Domain Name System (DNS) Server.

Network On/Off Enables or disables network connection using defined settings.

Soft-key Network connectivity can also be enabled or disables using the

Network button located in the Utility Tray.

Rev 002 CX100 ComXpert Operation Manual 22144015 3-14 August 2023

Chapter 3 System and Utility Function Descriptions

Introduction 3.1.23.3 IPv4/IPv6 Dual Stack Network Mode Settings Table 3-12 IPv4/IPV6 Dual Stack Network Controls and Settings IPv4 Address Mode Setting DHCP No additional settings. Static See section 3.1.23.4, “IPv4 Network Mode Settings”, on page 3-15. Stateless See section 3.1.23.5, “IPv6 Network Mode Settings”, on page 3-16. 3.1.23.4 IPv4 Network Mode Settings Table 3-13 IPv4 Network Controls and Settings IPv4 Address Mode Setting Static IPv4 Address + __ Enterthe device's IP address (which will be used when accessing the provider network). IPv4 Netmask + __ Enter the netmask address to indicate whether the packets are to be routed to other networks or subnetworks. IPv4 Gateway + __ Enter the address for the gateway that is used to route packets that are not on the same subnet. IPv4 DNS Server + __ Enter the address of the DNS server. Shared Share the IP from another interface (for multi interface mode). 22144015 CX100 ComXpert Operation Manual Rev 002

Chapter 3 System and Utility Function Descriptions

+ ___ Enterthe device’s IPv6 address to access the global network.

+. Manual: Enter the IPv6 Local Address.

+ __ Automatic: Address is populated automatically. IPv6 Subnet Prefix Length

+ Enter the subnet prefix length. IPv6 Gateway

+ __ Enterthe address for the gateway that is used to route packets that are not on the same subnet.

IPv6 DNS Address Mode

+ DHCPV6: no additional settings to specify. + Manual: Enter the IPV6 DNS Server address.

IPv6 DNS Server + __ Enter the address ofthe DNS server.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 3 System and Utility Function Descriptions Introduction

The CX100 web browser works in the same manner as a computer or smart device. When the CX100 is connected to a network, the web browser can be used to perform maintenance procedures such as update software, enable options or access additional product documentation on the VIAVI website.

The Edit and Delete Bookmark soft-keys are used to modify or delete any defined bookmarks.

See section 4.12, “Customizing the Web Browser”, on page 4-22 for information about configuring the Web Browser.

22144015 August 2023

The File Browser is used to navigate and manage contents of the device’s internal directories or contents of a USB device (when one is attached to the device). The File Browser panel is used to copy files to and from the device. See section 7.2, “Managing Files”, on page 7-4 for detailed instructions.

File Options Soft-key

The File Options soft-key accesses controls for copying, editing and transferring files to and from the device.

NOTE Functions such as copy, cut, paste and delete are not available for system files.

Copy, Cut and Paste File Options

Copy, Cut and Paste options allow user created files to be moved from one file location to another within the device's file storage system.

Upload FTP/HTTP The CX100 supports Hyper Text Transfer Protocol (HTTP) and File Transfer Protocol (FTP) for transferring files to and from the device. See section 7.2.6, “Uploading Files Using FTP/HTTP”, on page 7-6 for instructions.

Copy to USB Copy to USB is enabled when the CX100 detects a USB device connection. Selecting this button copies selected file(s) to the attached USB device.

When 2 USB devices are connected to the device, the CX100 defaults to the USB device connected to USB 1 Connector.

CX100 ComXpert Operation Manual Rev 002 3-17

Chapter 3 System and Utility Function Descriptions

Send to Android Device (WPAN)

When the device is connected to an Android device via WPAN®, files can be transferred directly from the CX100 to the Android device.

Show Hidden Files The CX100 allows users to configure files as “hidden” in order to protect important files

from being accidentally deleted. Selecting the Show Hidden Files check box displays all hidden files on the device.

Rename Soft-key Pressing the Rename soft-key opens a pop-up window that allows users to rename a

saved file.testfile.png. The new file name takes effect immediately when entered; no confirmation requested.

Pressing the Delete soft-key deletes the selected file or directory. A prompt will be displayed prior to deleting files to help prevent users from unintentionally deleting files.

Pressing the Open soft-key opens the selected file or directory.

3.1.26 USB File Browser

The USB File Browser button is populated when a USB device is connected to the test set. Pressing the button opens a window which access the contents of the USB device.

Chapter 7 “Managing Files and Reports” for related information.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 3 System and Utility Function Descriptions Utility Function:

3.2 Utility Functions

Utility functions allow the user to perform tasks on the device more conveniently. For example, users can view saved test reports on the device using the View Reports function, or the user can enable a network connection from the Utility Tray instead of navigating through menus to the Network Screen.

3.2.1 Accessing Utility Functions

To Open the Utility Tray 1. Press the Tray button located on the device’s front panel. -OR- 2. Swipe/pull downward on the Tray soft-key located at the top of the UI. See section 1.4.7, “Utility Tray Button”, on page 1-6 for button locations.

Figure 3-2 CX100 Utility Tray - Example

3.2.2 Save Report Button

The Save Report button allows you to create reports based on the configuration settings and test results for the currently active test. See section 7.1.3, “Saving a Report”, on page 7-3 for details.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 3-19

Chapter 3 System and Utility Function Descriptions Utiity Functions

Saved reports can be viewed on the device using the View Report button. See section 7.1.4, “Viewing a Report”, on page 7-4 for details.

NOTE The View Report button is disabled when there are no reports saved on the device.

The CX100 provides users with the ability to capture screen shots of content actively displayed on the UI. This function would be useful for capturing shots of signal traces or constellation plots. See section 4.9, “Capturing a Screen Shot”, on page 4-21 for details.

3.2.5 Network Button

The Network button is used to enable or disable network connectivity. The Network button turns green when network connectivity is enabled. Network connections are configured on the Network Screen. See section 4.4.1, “Establishing an Ethernet Connection”, on page 4-10 for detailed instructions.

3.2.6 Wireless Personal Area Network (WPAN)® Button

The WPAN® button is used to enable or disable WPAN capability. The button turns green when Wireless Personal Area Network is enabled. WPAN connections are configured on the WPAN panel. See section 4.6, “Establishing a Wireless Personal Area Network (WPAN) Connection”, on page 4-17 for detailed instructions.

The Volume button opens a panel that contains settings that control the device’s volume. Changing this setting does not affect the volume of the power button chime setting. See section 3.1.18, “Sounds Screen”, on page 3-12 for information about the power chime.

The Help button opens a panel that contains VIAVI contact information: phone number; email and website. Help content can also accessed by pressing the Help button located in the System Settings menu.

Rev 002 CX100 ComXpert Operation Manual 22144015 3-20 August 2023

Chapter 3 System and Utility Function Descriptions Utility Functions

The Tutorial function is used in conjunction with StrataSync which is not yet supported on the CX100.

3.2.10 Workflow Manager

Workflow Management function is used in conjunction with StrataSync which is not yet supported on the CX100.

The Template function is used in conjunction with StrataSync which is not yet supported on the CX100.1

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 3-21

Chapter 3 System and Utility Function Descriptions Utility Functions

This page intentionally left blank.

Rev 002 CX100 ComXpert Operation Manual 22144015 3-22 August 2023

Configuring System Settings

This chapter provides step by step instructions for performing the following: + __ Locating Device’s Unit ID . . + Configuring Device Settings. + Configuring 10 MHz Frequency Reference . . + Establishing a Network Connection + __ Remotely Operating the Device

+ __ Establishing a Wireless Personal Area Network (WPAN) Connection . + __ Updating the Device's Software + __ Hardware/Software Versions and Options... . Lee + Capturing a Screen Shot + Enabling Password Protection. + Creating Ul Shortcut + Customizing the Web Browser.

See Chapter 3 “System and Utility Function Descriptions” for detailed descriptions of the system settings and parameters.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 4-1

Chapter 4 Configuring System Settings Locating Device's Unit ID

41 Locating Device’s Unit ID The CX100's unit identifier (ID) is located on the Hardware & Software Revisions panel. See section 4.8.1, “Viewing Hardware/Software Revision Information”, on page 4-20 for information. The Unit ID number matches the unit serial number on the product's label.

42 Configuring Device Settings

This section provides instructions for configuring the device’s system settings. See Chapter 3 “System and Utility Function Descriptions” for detailed descriptions of the functions.

42.1 Restore Factory Defaults The following procedure describes how to reset the CX100 to factory default settings.

NOTE D Restoring factory defaults resets test application settings and system settings (such as remote and VNC settings, brightness, contrast, and volume), and powers down the unit.

To Restore Factory Default Settings

1. Navigate to the Restore Factory Settings panel (System Settings > Restore Factory Defaults).

2. At prompt, select any additional action(s) to be performed. Press the OK button to continue.

4. Press the Reboot button to acknowledge the information in the prompt and to restore the device to factory default settings.

5. Reboot the device to activate the default settings.

Rev 002 CX100 ComXpert Operation Manual 22144015 4-2 August 2023

Navigate to the International Settings panel (Systems Settings > International Settings).

Select the Country button to open the preset country list. Select the desired preset country from the list. When a preset country is selected, the system automatically configures the remaining International Settings to selections appropriate for the selected country.

A user prompt window is displayed notifying the user that the device must be rebooted to apply the settings. Select the OK button to continue.

Reboot the device (turn off the power, then turn it back on).

The international settings are configured and the user interface is localized.

To Manually Configure International Settings

22144015 August 2023

Navigate to the International Settings panel (Systems Settings > International Settings).

if desired, select a preset country that has settings closest to desired settings.

The system will display a user prompt window indicating the device must be rebooted in order for the new settings to be applied.

Press the OK button to continue.

Change additional settings as desired, selecting the OK button at each prompt to continue configuring settings.

Press the Back function key to exit the menu.

When all settings have been configured as desired, reboot the device to apply all changes.

CX100 ComXpert Operation Manual Rev 002

Chapter 4 Configuring System Settings Configuring Device Settings

4.2.3 Setting Date and Time

The CX100 contains an internal clock that can be set to provide accurate time stamps for test results.

NOTE Time Synchronization must be set to None in order to edit Time and Date settings.

42.31 To Set the Time To Set the Device's Clock

1. Navigate to the Date and Time panel (System Settings > Date and Time). 2. Select the Time button.

3. Adjust the dials to select the hour, minutes, and AM or PM.

4. Press the OK button to apply the selected time.

42.32 Setthe Date To Set the Device's Calendar

Navigate to the Date and Time panel (System Settings > Date and Time). Select the Date button. Use the arrows to set the month and year.

Select the day on the calendar.

Press the Set button to apply the selected date.

4.2.3.3 Select Date Format To Select the Date Format 1. Navigate to the Date and Time panel (System Settings > Date and Time).

2. Select the Date Format button.

4.2.3.4 Select Time Format

To Select the Time Format 1. Navigate to the Date and Time panel (System Settings > Date and Time). 2. Select the Time Format button.

3. Select 12 Hour or 24 Hour. Change is applied at time of selection.

4.2.3.5 Select Time Zone To Select the Time Zone 1. Navigate to the Date and Time panel (System Settings > Date and Time).

2. Select the Time Zone button.

3. Select the desired time zone.

NOTE If Daylight Savings Time (DST) is used in your area, select the DST Used check box to enable DST. À check mark indicates DST is enabled.

4.2.3.6 Time Synchronization

1. Navigate to the Date and Time panel (System Settings > Date and Time). 2. Select the desired setting for Time Synchronization (None or NTP).

3. IfNTPis selected, specify the following NTP Parameters: + NTP Server Address type (IPv4 Address, IPv6 Address, DNS Name)

+ ___ NTP Server (the address of the server where the device gets the time, for example O.us.pool.ntp.org)

4. The NTP Synchronization State button indicates if the device has synchronized with the NTP server.

5. The date and time are set. Press the Back button to exit the menu.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 4-5

The CX100 UI can be configured according to user preferences and requirements.

To Change Home Screen Content

Navigate to the Home Screen Settings panel (Systems Settings > Home Screen).

Enable or disable the functions you want listed on the device’s Home screen. Changes are immediate, does not require device reboot.

Press the Back Arrow to return to the System Settings panel. Press the Home button to return to the Home screen.

The new Home screen settings will be saved and applied for future use.

Configure Backlight Brightness

To Change Brightness of LCD Display

Navigate to the Screen & Power Management panel (System Settings > Screen & Power Management button).

Select the Backlight button.

Use the +/- buttons or the vertical slider to adjust the brightness to the desired setting.

Press the OK button to apply new setting.

NOTE Use the back arrow to exit without applying a new value.

Configure Backlight Timeout

Select the amount of time to wait before the backlight dims. The new setting is applied when selected.

To Set the Power Off Delay

1. Navigate to the Screen & Power Management panel (System Settings > Screen & Power Management button).

Select the Power Off Delay button.

3. Select the amount of idle time to wait before the device automatically powers itself off. The new setting is applied when selected.

4.2.5.2 Beep at Power Up/Down

To Power Up/Down Beep 1. Open the Sound Settings panel. Select the Play Chime on Power Up/Down tick box.

3. Select the Power Up/Down Chime Volume field to adjust volume of the chime to the desired volume.

4. Press the OK button to confirm.

NOTE Change takes effect immediately; the device does not need to be rebooted to apply the

4.2.6 User Information

The User Information menu allows users to enter operator information such as the technician’s name and ID.

The CX100 can be configured to save test results, screen captures, or other files to the device's file system, a connected USB drive, or both (if applicable).

To Specify Location for Saved Files

Navigate to the Save Location panel (System Settings > Save Location button). Select the location to which files should be saved.

+ Both (when applicable)

Press the Back button to exit the menu. Files will be saved to the location (and/or device) specified.

4.2.8 Setting the Volume

The device’s volume is adjusted selecting the Volume button from the Utility Tray.

To Adjust Volume Settings

Open the Utility Tray. Select the Volume button. Use the +/- buttons or the vertical slider to adjust the volume to the desired setting.

Press the OK button to apply new setting. Use the Back arrow to exit without applying a new value.

Press the Back button to exit the menu. The volume is set on the device.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 4 Configuring System Settings Configuring 10 MHZ Fi y Reference

22144015 August 2023

To Configure CX100 to Use External 10 MHz Frequency Reference

® n 8 © ND Connect a valid 10 MHz frequency reference to the CX100 10 MHz Frequency Reference 1/0 connector.

Open the RF Instrument Menu.

Select the Freq Reference button.

Select External from the configuration window.

Press the OK button to confirm and close the configuration window.

To Configure CX100 as a 10 MHz Frequency Reference Source

NO ® © 8 © ND Connect a 10 MHZ frequency reference cable to the CX100 10 MHz Frequency Reference 1/0 connector.

Connect the other end to external device. Power on the CX100.

Open the RF Instrument Menu.

Select the Freq Reference button.

Select Internal from the configuration window.

Press OK button to confirm and close the configuration window.

CX100 ComXpert Operation Manual Rev 002

Chapter 4 Configuring System Settings Establishing a Network Connection

4.4 Establishing a Network Connection

441 Establishing an Ethernet Connection

NOTE When the device is configured for DHCP mode, network information is likely to change when the device is connected, then reconnected to a network. If your procedure requires a known IP, configure the device for Static IP network mode of operation.

Wireless Personal Area Network (WPAN) and WiFi interfaces cannot be ON at the same time.

Enable Network Connectivity

Network connectivity must be enabled in order to establish a connection to an Ethernet or WiFi network.

Open the Utility Tray. Selectthe Network button.

. The button turns green when network connectivity is enabled.

Establishing anEthernet Connection

To Establish an Ethernet Connection to the Device

D ON ® an 8 w N Enable network connectivity on the CX100. See section 4.4.1.1, “Enable Network Connectivity”, on page 4-10 for information.

Connect one end of the ethernet cable to one of the CX100's Ethernet connectors. Connect the other end of the ethernet cable to an active LAN.

Navigate to the Network panel (System Settings > Network).

Select the Ethernet button at the bottom of the screen.

9. Additional settings are required based on the selected Network Mode of operation. See one of the appropriate sections to configure the device's IP settings to match the

+ See section 4.4.2, “Establishing a WiFi Connection”, on page 4-13.

+ See section 4.4.1.2.2, “IPv4 Network Mode Settings”, on page 4-11. + See section 4.4.1.2.3, “IPv6 Network Mode Settings”, on page 4-12.

44.1.2.1 IPv4/IPV6 Dual Stack Network Mode Settings

IP Dual Stack Address Modes Setting

DHCP No additional settings

Static See section 4.4.1.2.2, “IPv4 Network Mode Settings”, on page 4-11.

Stateless See section 4.4.1.2.3, “IPv6 Network

Mode Settings”, on page 4-12

When all settings have been configured, select the Network On/Off soft-key to enable network connectivity. The device establishes an Ethernet connection to the LAN.

441.22 IPv4 Network Mode Settings

IPv4 Address Mode Setting

DHCP No additional settings.

+ Enterthe device's IP address (which will be used when accessing the provider network).

+ Enterthe netmask address to indicate whether the packets are to be routed to other networks or subnetworks.

+ __ Enterthe address for the gateway thatis used to route packets that are not on the same subnet.

IPv4 DNS Server + __ Enterthe address ofthe DNS server.

Share the IP from another interface (for multi interface mode).

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002 4-11

When all settings have been configured, select the Network On/Off soft-key to enable network connectivity. The device establishes an Ethernet connection to the LAN.

+ Enterthe address of the DNS server.

Static IPv6 Global Address

+ Enterthe device’s IPv6 address to access the global network.

+. Manual: Enter the IPv6 Local Address.

+ __ Automatic: Address is populated automatically. IPv6 Subnet Prefix Length

+ __ Enter the subnet prefix length.

+ __ Enterthe address for the gateway thatis used to route packets that are not on the same subnet.

IPv6 DNS Address Mode + DHCPV6: no additional settings to specify. + Manual: Enter the IPV6 DNS Server address.

IPv6 DNS Server + __ Enter the address ofthe DNS server.

When all settings have been configured, select the Network ON/Off soft-key to enable network connectivity. The device establishes an ethernet connection to the LAN.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 4 Configuring System Settings Esta Network Connection

4.4.2 Establishing a WiFi Connection

22144015 August 2023

The WiFi option allows the device to be connection to a wireless network to export reports, screen shots, or job tickets (using FTP), or update the device’s firmware.

NOTE The CX100 supports 2.4 GHz and 5 GHZ WiFi.

Adding a WiFi Network Profile

The CX100 can save up to 32 WiFi network profiles. If an access point does not broadcast a Service Set Identifier (SSID), a WiFi profile can be created manually. The device will save the profile, then automatically authenticate and establish a connection to the network when the following conditions are met:

+ Network connectivity is enabled. + __ The networks access point is in range.

+ __ The networkis determined to provide the best available access point (based on signal strength and/or encryption supported).

NOTE The CX100 automatically saves a WiFi network profile after successfully connecting to the WiFi network.

To Add a WiFi Network Profile

1. Enable network connectivity on the CX100. See section 4.4.1.1, “Enable Network Connectivity”, on page 4-10 for information.

2. Navigate to the Network panel (System button > Network button). The System Network menu appears.

3. Select the WiFi button located on the soft-key panel. The device immediately scans for WiFi networks and lists each network as an item.

4. Select Add Network. The Add WiFi Network controls and settings are displayed. Specify the following settings:

Setting Value SSID The SSID (Service Set Identifier) of the WiFi network. Password The password required to authenticate to the network.

A password is not required if Key Management is set to None.

CX100 ComXpert Operation Manual Rev 002 4-13

Chapter 4 Configuring System Settings

Establishing a Network Conn

Key Select the Wi-Fi Protected Access (WPA) key management. Management

Network Select the Network Mode.

Additional settings are required based on the selected Network Mode of operation. See the appropriate section to complete network configuration:

See section 4.4.1.2.3, “IPv6 Network Mode Settings”, on page 4-12.

6. Return to the System Network panel. The network profile just created now appears

4.4.2.2 Connecting to a WiFi Network

The CX100 can be connected to any compatible WiFi network within range of the device for which you have authorized access (and a password for authentication).

To Connect to a WiFi Network

1. Enable network connectivity on the CX100. See section 4.4.1.1, “Enable Network Connectivity”, on page 4-10 for information.

2. Navigate to the Network panel (System button > Network button).

Select the WiFi button located on the soft-key panel.

4. The device automatically scans for WiFi networks and lists each network with the

CX100 ComXpert Operation Manual 22144015 August 2023

22144015 August 2023

A lock Indicates authentication is required to connect to a network. Saved, In Range Indicates that a profile for the network has been saved

on the device, device is in range of the network and a connection can be established to the device.

Saved, Out of Range Indicates that a profile for the network has been saved on the device, but the network is out of range and therefore, a connection cannot be established.

Incompatible Indicates that a connection cannot be established to a network. Connected Indicates that the device has established a connection

The device automatically connects to the network determined to provide the best available access point (based on signal strength and/or encryption supported).

To Connect to a Different WiFi network

1. Select the SSID of the WiFi network.

2. Configure the advanced settings (profile settings), forget a saved network, or connect to the network. 3. Select the Connect button.

+ Messages appear briefly indicating that the device is performing a four-way handshake, then authenticating to the network.

+ The status of the connection (Network Up) and details concerning the connection (IP address, netmask, gateway, and DNS server) appear at the top right of the menu.

The device is connected to the WiFi network.

CX100 ComXpert Operation Manual Rev 002 4-15

Chapter 4 Configuring System Settings

Remotely Operating the Device

4.5 Remotely Operatingthe Device

The CX100 remote operation controls and settings allows users to access the CX100 from a computer (desktop or laptop) using a virtual network connection (VNC).

Establishing a VNC connection with the CX100 requires the following:

+ AVNC viewing application must be installed on the computer. + CX100 and computer must be connected to the same network. + IP address of the CX100.

4.5.1 Establishing VNC Viewer Connection

To View the Device UI Remotely

1. Configure the CX100 for network access. See section 4.4.1, “Establishing an Ethernet Connection”, on page 4-10 for information.

2. Enable VNC capability:

Select the Enable VNC Server check box. Define a VNC password (recommended).

Select the Back button to return to previous content.

Launch the VNC viewing application on the computer.

4. Enter the CX100's IP address in the VNC viewer’s server address field. Select the OK button to continue.

A password entry box appears.

Enter the VNC password (found on the Remote Operation menu) and select the OK button. The CX100 user interface appears in the VNC viewer.

VNC Viewer Connection Failure

If the VNC viewing applications fails to connect to the CX100 and the message “Failed to connect to server” appears, the VNC viewer was not able to communicate with the CX100.

+ Verify the IP Address is correct.

+ Fromthe computer, ping the CX100 IP address to verify the network link is working. If the link is not working, restart the CX100 and repeat step 3 through step 6.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 4 Configuring System Settings Establishing a Wireless Personal Area Network (WPAN) Connection

4.5.2 Ending a Remote Operation Session

To end a remote operation session, close the VNC viewing window on the PC/ laptop.

4.6 Establishinga Wireless Personal Area Network (WPAN) Connection

The WPAN® option allows communication with a paired mobile device or SmartiD+.

4.6.1 EnablingWireless Personal Area Network (WPAN) Connectivity

D WPAN functionality must be enabled on the device before a WPAN connection can be established.

To Enable WPAN Connectivity

1. Navigate to the WPAN panel (System Settings > WPAN button). 2. Select the tick box to enable WPAN.

3. WPAN connectivity is enabled.

NOTE: Wireless Personal Area Network (WPAN) and WiFi interfaces cannot be ON at the same time.

4.6.2 Connecting to a Wireless Personal Area Network (WPAN) Device

22144015 August 2023

The CX100 can be connected to any WPAN device (for which you have authorized access) that is within range of the device.

To Establish a WPAN Connection

1. Enable WPAN on the CX100.

2. Select Scan for devices button. The CX100 scans for WPAN devices; located devices are listed on the menu.

3. Select the device from the menu that you wish to connect to:

+ ___lfthe CX100 successfully authenticates to the device, a message appears indicating that pairing was successful.

+ ___lfthe CX100 does not successfully authenticate to the device, a message appears indicating that pairing failed.

4. lfpairing was successful, the CX100 can be used with the paired device.

CX100 ComXpert Operation Manual Rev 002 4-17

Chapter 4 Configuring System Settings Updating the Device's Software

4.7 Updating the Device’s Software

4.7.1 Software Availability

Refer to the CX100 product support Web page or contact VIAVI to verify your CX100 contains the most recent software version available.

Software can be downloaded from the product's web page directly to the test set via a network update or the software can be copied to a USB device and updated using the USB update procedure.

Add link to CX100 web page when available.

4.7.2 Methods of Updating Software

CX100 firmware can be upgraded in the field using one of the following methods: + Wired network or intranet connection

+ CD-ROM (see note below)

NOTE Due to security concerns, some customers are not permitted to download software from a public web site. In such cases, software updates are available via CD

distribution. Contact Customer Support for information about the availability of software updates in CD format.

USB Update Procedure

NOTE Disconnect Ethernet cable connections before proceeding with this procedure.

To Update the Device - Software Source - USB Device

1. Navigate to the VIAVI product support Web page and download software to a USB device.

2. Connect the CX100 to an AC power supply ensure an uninterrupted supply of power during the update. See section 2.2.1, “AC Power Operation”, on page 2-6 for information.

CX100 ComXpert Operation Manual 22144015 August 2023

22144015 August 2023

Chapter 4 Configuring System Settings Updai Device's So

3. Connect the USB device to one of the CX100’s USB connectors. The device will auto-detect the USB drive.

NOTE If performing a CD-ROM update, connect the USB to CD-ROM device to one of the CX100’s USB connectors and insert the software CD in the CD-ROM device.

4. Navigate to the USB Software Update panel (System Settings > USB Software Update).

5. Select the desired firmware file on the USB drive.

6. Select the Force Software Update check box.

7. Press the Update button to start the upgrade. At prompt, press Update button again to confirm.

Network Update Procedure

To Update the Device - Software Source - Network Directory

1. Connect the CX100 to an AC power supply to ensure an uninterrupted supply of power during the update. See section 2.2.1, “AC Power Operation”, on page 2-6 for information.

2. Establish a network connection. See section 4.4, “Establishing a Network Connection”, on page 4-10 for information.

3. Navigate to the Network Software Update panel (System Settings > Network Software Update).

4. Select Update URL and enter URL from which to download the software (i.e., VIAVI website, internal FTP to which software has been uploaded).

5. Enter user credentials (User name and Password). Select the Update soft-key.

CX100 ComXpert Operation Manual Rev 002 4-19

Chapter 4 Configuring System Settings Hardware/Software Versions and Options

4.8 Hardware/Software Versions and Options

4.8.1 Viewing Hardware/Software Revision Information

To View Hardware Revision Information

2. Select the Hardware/Software Revisions button. The revisions of the internal components and the software versions is displayed.

To View Hardware or Software Revision Information

2. Select the Software Options button or Hardware Options button. A list of available options appears with the status for each option. + Enabled: option has been enabled on the device. + Upgradeable: option has not yet been purchased/enabled on the device.

4.8.3 Installing Options

This section contains instructions for installing options on the device. To Install Options from USB

1. Before installing options, upgrade the device to the latest firmware. See section 4.7, “Updating the Device's Software”, on page 4-18 for information.

2. Copy the option file to a USB device. 3. Connect the USB device to one of the CX100's USB connectors.

NOTE If performing a CD update, connect the USB to CD-ROM device to one of the CX100's USB connectors and insert software CD in the CD-ROM.

Navigate to the Software Options panel (System Settings > Software Options). Select the Import from USB soft-key.

Select the desired firmware file on the USB drive.

Press the Update button to start the upgrade. At prompt, confirm the update.

Reboot the device. The option is installed.

Rev 002 CX100 ComXpert Operation Manual 22144015 4-20 August 2023

Chapter 4 Configuring System Settings Capturing a Screen Shot

49 Capturing a Screen Shot To capture an image of the current screen. To Capture a Screen Shot 1. Access the Utility Tray and then select the Screen Shot button. 2. Enter a name for the screen shot. 3. The PNG file is saved to the internal file manager. To Capture the Utility Tray or a Popup Menu

To capture a screen shot of only the Utility Tray, or to capture a popup menu, press and hold the Utility Tray button for 5 seconds.

4.10 Enabling Password Protection

To Turn on Password Protection

1. Navigate to the System Settings menu.

2. Selectthe Password Protection button.

3. Select the Allow editing and Enable Password Protection as necessary. 4.

4.11 Creating UI Shortcut

1. Navigate to Home screen.

To Create a Home Page

Open the CX100 Web Browser and navigate to the web page that is going to be used as the home page.

Press the field located below the Home Page text on the Web Browser Configuration window. If a home page has not yet been created, this field will be labeled “Not set.”

Confirm the page URL is correct and if desired, modify the bookmark title.

Press the OK button to confirm and create the bookmark.

nm 8 ® N Open the CX100 Web Browser and navigate to the web page for which the bookmark will be created.

Press the Bookmarks soft-key. Press the Add Bookmark soft-key. Confirm the page URL is correct and if desired, modify the bookmark title.

Press the OK button to confirm and create the bookmark.

CX100 ComXpert Operation Manual 22144015 August 2023

RF Instrument Function Descriptions

This chapter provides an overview of the CX100 RF Instrument functions. This chapter reviews the following functions:

+ _ Overview ofthe RF Instrument 5-2 +. RFTest 5-3 + Spectrum Analyzer 5-50 +. VSWR/DTF 4.44440 40e eee 5-59 + Autotest Function. 5-71 +. SCA Capability2. 5-75 + Settings 2. 5-76

See Chapter 6 “Performing Tests and Measurements” for step by step instructions for configuring basic test functions and for performing test and measurements.

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002 5-1

Chapter 5 RF Instrument Function Descriptions Overview of the RF Ir

5.1 Overview of the RF Instrument

The RF Instrument Application contains the following test and measurement functions:

RF Test provides the functions necessary to evaluate performance

CE parameters such as a radio’s transmit power or receive sensitivity. RF Test RF Test supports three modes of operation: Duplex Test, Tx Test and Rx Test. Each mode of operation provides the generate and/or receive functions necessary to support the capabilities supported in the selected mode of operation.

See section 5.2, “RF Test”, on page 5-3 for a description of this function.

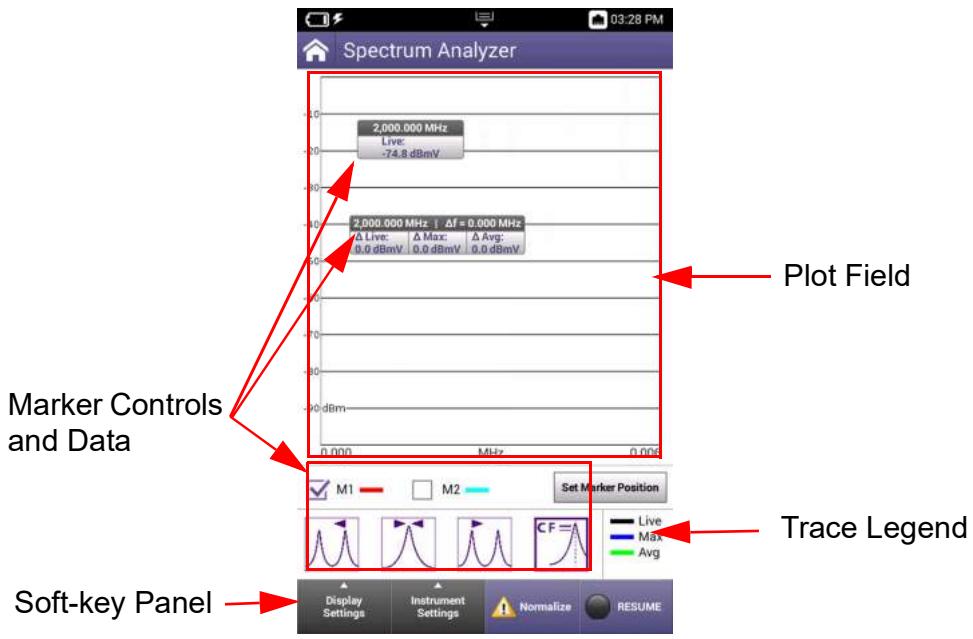

Spectrum Analyzer Function

The Spectrum Analyzer provides the functions necessary to measure various performance characteristics of an applied (incoming) signal across the full frequency range of the CX100. The Spectrum Analyzer can be used to evaluate performance parameters such as power, harmonics, spurious, sidebands and phase noise of a DUT.

See section 5.3, “Spectrum Analyzer”, on page 5-50 for a description of this function.

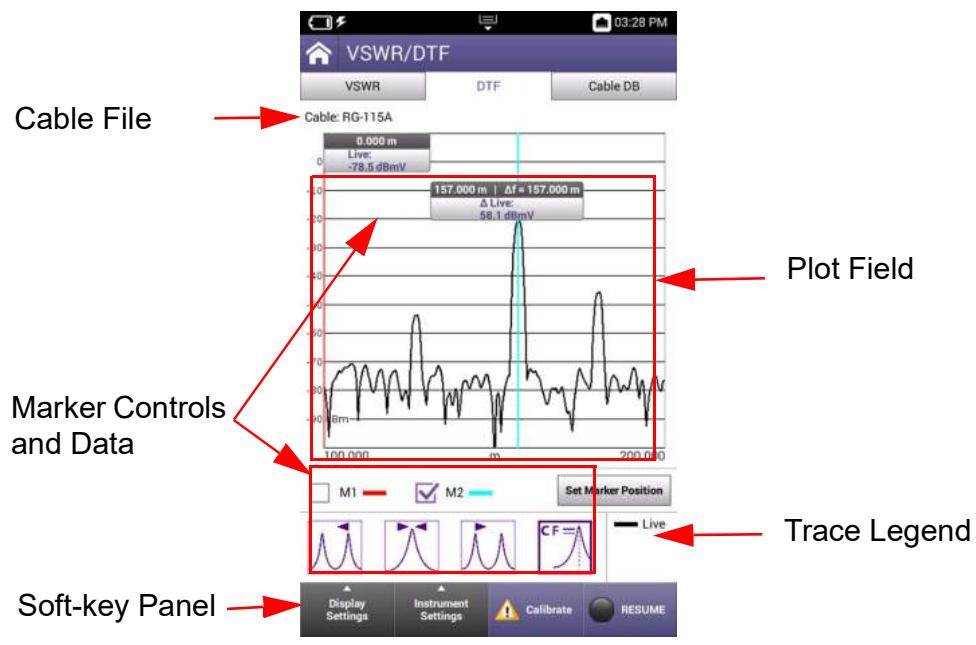

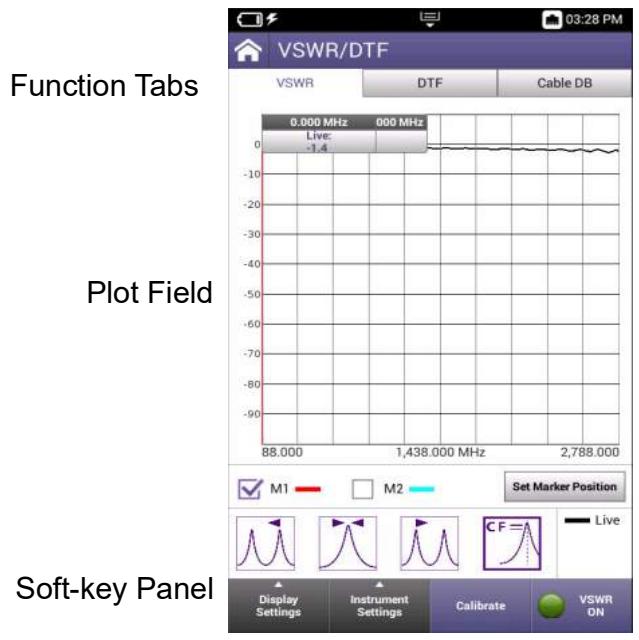

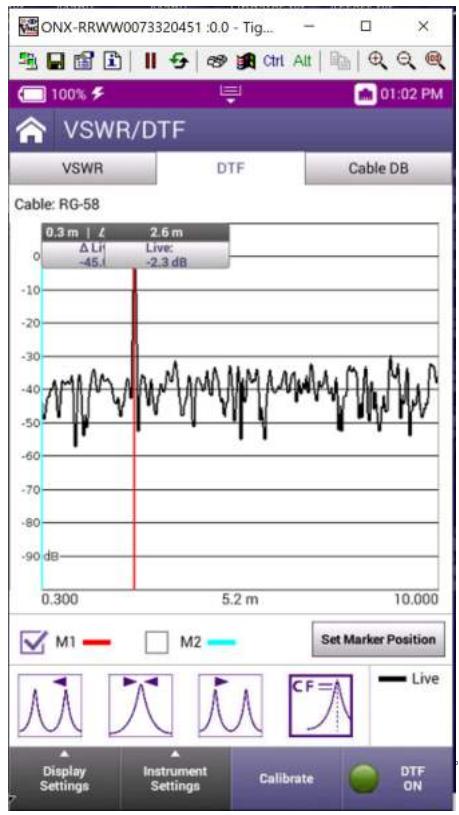

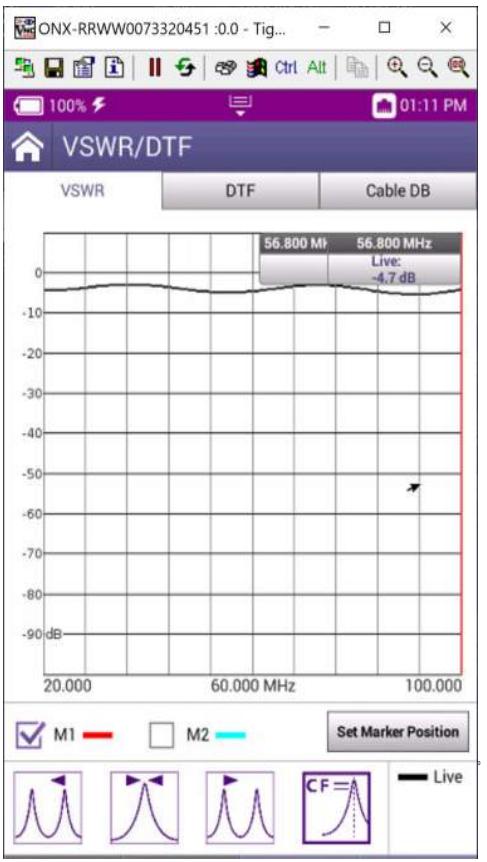

The VSWR/DTF application provides the functions necessary to isolate and troubleshoot cable and network issues or failures.

See section 5.4, “VSWR/DTF”, on page 5-59 for a description of this function.

Autotest provides an interface to load and run automated test scripts. Users can review data while a test is in progress and save test results for later evaluation. Autotest also allows the user to enable an SCA (Software Communications Architecture) interface on the device.

See section 5.5, “Autotest Function”, on page 5-71 for a description of this function.

(RF Instrument) Settings

Instrument functions. See section 5.7, “Settings”, on page 5-76 for a

T! The Settings button accesses controls and settings that are specific to RF description of these controls and settings.

RF Test contains a variety of generator and receiver functions which can be used to evaluate the performance of a device under test (DUT). The availability of the functions is determined by the selected test mode of operation. The tabs located at the top of the RF Test screen are used to select the mode of operation. Figure 5-1 shows the default view of each of the RF Test mode screens.

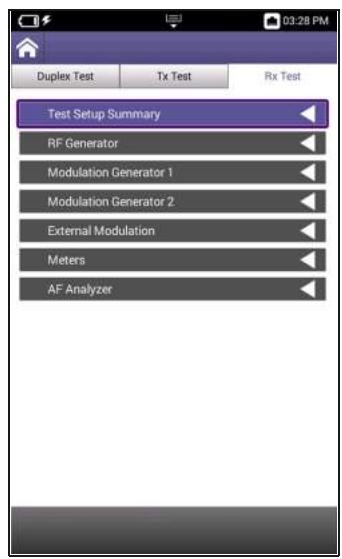

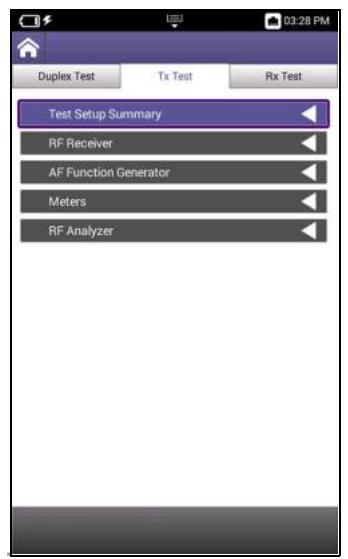

Figure 5-1 RF Test Mode Menus

5.2.1 RF Test Modes of Operation

Each RF Test mode supports functions specific to the selected mode of operation. For example, Rx Test Mode contains parameters necessary to test the receive performance of the DUT. Figure 5-1 provides a visual reference to the functions supported in each mode of operation.

Duplex Test mode supports full duplex capabilities, providing simultaneous access to both RF Generator and RF Receiver functions. Duplex mode would typically be used to test radios that are capable of duplex operation.

Tx (Transmit) Test mode provides access to the instrument’'s RF Receiver functions. Tx Test Mode could be used to evaluate radios that are only capable of transmit operation.

Rx (Receive) Test mode provides access to the instrument’s RF Generator functions. Rx Test mode could be used to evaluate radios that are only capable of receive operation.

Chapter 5 RF Instrument Function Descriptions REF Test

5.2.2 Test Setup Summary Panel

The Test Setup Summary panel displays data for generator and receiver functions that are currently active (turned ON). The panel provides quick reference to generator and receiver settings as well as meter readings.

The Test Setup Summary panel is ideal for monitoring a test without jumping back and forth between function panels.

RF Generator 180.000000 Mhz, 80. dm TR Mod 1: FM, 10000 Mt, 60000 kit, Sine

RF Receiver 80.000000 Ms, 10. dm 00 8, TR Demod FM, 230 kit, Low Pass, 14 2,0 ps

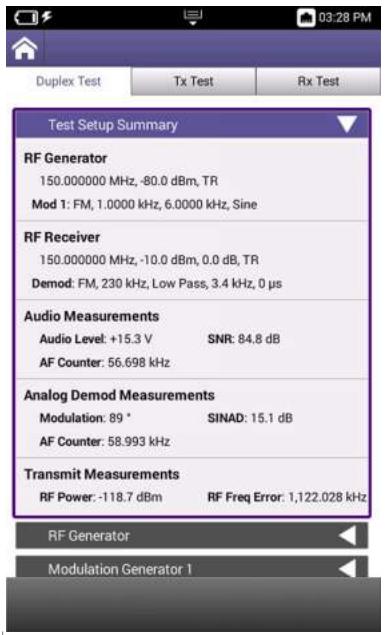

Figure 5-2 RF Test Setup Summary Panel

NOTE The Test Setup Summary panel does not display information for plot or analyzer functions.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-4 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

The CX100 RF Generator provides users with a signal source with known parameters. The RF Generator can be used to evaluate the receive performance of the Device Under Test (DUT). The CX100's internal modulation generators can be used in conjunction with the

RF Generator to output modulated signals.

5.2.3.1 RF Generator Controls and Settings

The following controls and settings are used to configure the characteristics of the generated RF signal:

Table 5-1 RF Generator Controls and Settings

Control/Setting Description

Port This menu selects the RF Generator output connector.

+ The DUPLEX connector should be selected as the RF output connector when the lowest level of RF Generator output is needed.

+ __ The ANT/SWR connector should be selected as the RF output connector to output high power REF signals.

NOTE When the ANT/SWR connector is selected as the RF output connector, the system disables the connector's receive capabilities.

Frequency This field defines the frequency of the RF Generator signal. The RF Generator Frequency should be set to a value appropriate for the test being performed and to the receive frequency range of the DUT.

Frequency Offset Frequency Offset is only supported in Duplex Test Mode.

Field The Frequency Offset field defines the amount by which the RF Generator frequency is shifted when the signal is produced. A frequency offset may be applied to an RF signal to reduce possible interference with other transmitters, or to remove phase noise when performing certain types of measurements. The Frequency Offset field is disabled when the Offset soft-key is set to OFF. When the Offset soft-key is set to ON the following occurs:

+__ The Frequency Offset field updates to an editable field. + __ The Frequency field updates to a ready only field.

When a frequency offset value is entered, the RF Generator Frequency field updates to show the RF Generator frequency with the offset applied.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-5

Chapter 5 RF Instrument Function Descriptions

Table 5-1 RF Generator Controls and Settings (Continued)

Control/Setting Description

Output Level This field defines the output level of the RF Generator. The RF Generator Output Level field should be set to a value appropriate for the receive capabilities of the DUT.

ATTENTION The output level of the RF Generator should not exceed the approved rating for the input port selected on the receiver.

Offset Soft-key The Offset soft-key is an on/off toggle soft-key that is used to apply an offset value to the generator frequency. See the Frequency Offset Field description for information.

Output Soft-key The Output soft-key turns the RF Generator on and off.

5.2.3.2 Configuring the RF Generator

The RF Generator should be configured according to the capabilities of the receiver. Refer to the receiver's input ratings to ensure the output level of the RF Generator does not exceed the operational capabilities of the receiver.

Configure RF Generator Parameters

1. Open the RF Generator panel.

2. Define the RF Generator Frequency. 3. Define the RF Generator Level. Apply an RF Frequency Offset

4. Setthe Freq Offset soft-key to ON.

5. Define the RF Generator Frequency Offset value.

6. The RF Generator Frequency field updates to display the frequency with the offset applied (e.g. 3,001.00 MHz).

NOTE Frequency Offset field is only supported in Duplex Test mode of operation.

To Output the RF Signal

7. Change the RF Gen soft-key to ON. 8. The CX100 is now generating an RF signal.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

5.2.4 Modulation Generator

22144015 August 2023

The CX100 supports two internal modulation generators which utilize the instrument's RF generator to output modulated signals. The modulation generators function independently from one another, making the CX100 capable of supporting the simultaneous output of two different modulation types. For example, Modulation Generator 1 can be configured to output an AM signal, while Modulation Generator 2 can be configured to output an FM

NOTE The CX100 only supports one modulation generator when Digital is selected as the Modulation Type. When Digital Modulation is selected as the modulation type on one of the modulation generators, the fields and controls on the other modulation generator

Modulation Generator Controls and Settings

The following controls and settings are used to configure the characteristics of the outgoing modulated signal that is applied to the carrier frequency (RF generator signal).

Table 5-2 Modulation Generator Controls and Settings

The (Modulation) Type menu selects the type of modulation to be applied to the generated signal. The parameters that must be configured to produce a modulated signal are based on the type of modulation selected.

+ __ None: No parameters

. FM: Deviation, Rate, Waveform + __ AM: Rate, Depth, Waveform

+ __ AM USB/LSB: Rate, Waveform + Digital: File Selection

AM or FM Rate defines the rate at which the waveform is varied (modulated) when applied to the carrier frequency.

AM Depth defines the a percent by which the modulated waveform varies from the carrier amplitude.

FM Deviation defines the frequency by which the modulated waveform varies from the carrier frequency.

Waveform selects the shape of the modulated waveform that is being applied to the carrier frequency.

CX100 ComXpert Operation Manual Rev 002

Chapter 5 RF Instrument Function Descriptions

Table 5-2 Modulation Generator Controls and Settings (Continued)

Control/Setting Description

File Selection The File Selection field is enabled when Digital modulation type is selected. The field is used to select a pre-recorded digital modulation file which is applied to the carrier frequency.

Mod “x” On/Off The Mod 1 and Mod 2 soft-key turns the corresponding Soft-key modulation generator on and off. Each modulation generator is controlled independently from the other.

The CX100 supports the use of an external modulation source for some modulation types (i.e., AM, FM). The instrument must be properly configured to receive a valid incoming audio signal in order to use external modulation.

Configuring the Modulation Generator This section provides instructions to configure the CX100 to output a modulated signal.

Configure RF Generator 1. Open the RF Generator panel.

2. Define the RF Generator Frequency to which the modulated signal will be applied.

3. Setthe RF Generator Level to the desired value.

Configure Modulation Characteristics

4. Turn Mod Gen 1 or Mod Gen 2 soft-key ON.

To Output the RF Signal

5. Select the RF Generator panel. 6. Turnthe RF Gen soft-key to ON.

7. The CX100 is now generating a modulated signal.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

5.2.4.3 External Modulation Generator Controls and Settings

The following controls and settings are used to configure the characteristics of the external modulated signal that is being received by the CX100:

Table 5-3 External Modulation Controls and Settings

Control/Setting Description

Modulation Type The external modulation parameters that must be configured depend on the type of modulation selected.

+ None: No parameters + __ AM: Rate (%), Coupling + ___ FM: Deviation (kHz), Coupling

Rate (AM) Defines the rate at which the waveform is varied (modulated) when applied to the carrier frequency.

Deviation (FM) FM Deviation defines the frequency by which the modulated waveform varies from the carrier frequency.

Coupling Coupling selects how any unwanted AC/DC components are filtered from the received signal. AC Coupling

AC coupling filters the DC signal component out of a signal that contains both AC and DC components. The DC component of a signal acts as a voltage offset so removing the component may increase the resolution of signal measurements.

DC Coupling DC coupling does not filter components from the signal; both AC and DC signal components are therefore present in the signal. DC coupling is typically used when any offset voltage present is <+100 mV or if the DC content of the signal is

important. Mod Ext On/Off The Mod Ext soft-key turns the external modulation generator Soft-key on and off. 22144015 CX100 ComXpert Operation Manual Rev 002

Chapter 5 RF Instrument Function Descriptions

The RF Receiver controls and settings are used to determine how the instrument processes an incoming signal. In order to obtain accurate test and measurement results, RF Receiver parameters must be set according to the known characteristics of the incoming signal.

The RF Receiver Port, Frequency, Reference Level and External Attenuator parameters apply to all types of incoming signals. There are additional parameters that must be configured depending on the type of modulation that has been applied to the incoming signal. The modulation type that is selected from the RF Receiver Demodulation Type menu enables the parameters applicable to each modulation type.

Input Overload Caution

CAUTION Do not overload input connectors. Refer to product labeling or product specifications for maximum input ratings.

RF Receiver Controls and Settings

The following controls and settings are used to configure the CX100 RF Receiver. The RF Receiver should be configured according to the expected characteristics of the incoming signal.

Table 5-4 RF Receiver Controls and Settings

Control/Setting Description

Port The RF Receiver Port menu selects the input connector at which the incoming signal is being received. This setting should be selected according to the properties of the incoming signal and the requirements of the test being performed.

ANT/SWR ANT/SWR should be selected for performing high sensitivity, low power measurements. When ANT/SWR is selected, the RF Receiver's pre-amplifier is available. See section , “PreAmp On/Off Soft-key”, on page 5-13 for information.

DUPLEX DUPLEX should be selected for receiving high power signals.

See “Input Overload Caution” on page 5-10.

PA If the test involves a high power incoming signal that exceeds the input ratings of the RF Receiver input connectors, use an external attenuator (see “External Attenuator” description below).

CX100 ComXpert Operation Manual 22144015 August 2023

22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Table 5-4 RF Receiver Controls and Settings (Continued)

D The RF Receiver Frequency should be set to match the frequency being transmitted by the DUT.

The External Attenuation field makes adjustments in signal processing to account for the use of an attenuator pad or adapter. The External Attenuator field should be set to a value appropriate to the attenuator pad or adapter being used.

Reference Level defines the signal level in relation to the RF Input of the incoming signal; the field should be set according to the expected power level of the incoming signal.

The Demodulation Type selects the type of modulation that has been applied to the incoming signal, providing controls and parameters necessary to separate the data from the carrier signal. The demodulation controls and parameters that are available are determined by the following:

+ The type of signal that is being demodulated

+ __ The type of AF Filter that is selected to process the incoming signal

+ __ The selected filter characteristics (when applicable) + __ The De-Emphasis setting (when applicable) IF BW menu selects the IF detection bandwidth. Select the IF

bandwidth appropriate for the characteristics of the incoming signal.

A lower bandwidth reduces the interference caused by powerful narrow-band transmitters, therefore, select the lowest bandwidth possible to suit the characteristics of the incoming signal.

CX100 ComXpert Operation Manual Rev 002 5-11

Chapter 5 RF Instrument Function Descriptions REF Test

Table 5-4 RF Receiver Controls and Settings (Continued)

Control/Setting Description

AF Filters The parameters that are available for configuring AF Filters depends on the type of filter selected.

When Low Pass is selected, the Audio Low Pass and De-Emphasis parameters are enabled.

When High Pass is selected, the Audio High Pass and De-Emphasis parameters are enabled.

When Band Pass is selected, the Low Pass Corner Frequency, High Pass Corner Frequency, and De-Emphasis parameters are enabled.

When Psophometric is selected, the Psophometric (Weight) and De-Emphasis parameters are enabled.

Audio Low Pass Alow-pass filter (LPF) passes signals with a frequency lower than a selected cutoff frequency. The Audio Low Pass filter selects the highest frequency that is allowed to pass through the AF filter; frequencies above the selected frequency are cut off.

Audio High Pass Ahigh-pass filter (HPF) passes signals with a frequency higher than a selected cutoff frequency. The Audio High Pass filter selects the lowest frequency that is allowed to pass through the AF filter, frequencies below the selected frequency are cut off.

Audio Band Pass Audio Band Pass enables the low pass and high pass corner frequency fields which allow the user to define a frequency band to allow signals within a certain frequency band to pass, while blocking signals with frequencies on the outside of the band.

Low Pass Corner Frequency

The Low Pass Corner Frequency defines the lower end of the frequency band filter. Any signal that is detected that falls below this frequency is filtered out of the incoming signal.

High Pass Corner Frequency

The High Pass Corner Frequency defines the upper end of the frequency band filter. Any signal that is detected that is above this frequency is filtered out of the incoming signal.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-12 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Table 5-4 RF Receiver Controls and Settings (Continued)

PreAmp On/Off Soft-key

Psophometric filters are typically used when measuring the residual noise in audio equipment. The Psophometric filter is included in the signal path to emphasize the audible parts of the signal and attenuate signal components that contribute less to perception of loudness. CCITT and C-message (C-MSG) weighting filters are bandpass filters used to measure audio-frequency noise on telephone circuits.

The C-MSG is used for voice, audio, and telecommunication applications in the U.S.

CCITT The CCITT filter is used for international telephone circuits.

The De-Emphasis filter attenuates signal components by the amount by which they have been amplified (PreAmp is turned ON). In some cases, the combined use of the pre-amp and de-emphasis filter may improve signal to noise ratio of an incoming signal.

When the Autotune soft-key is pressed, the CX100 sets the RF Receiver Frequency to the strongest signal detected at the active RF Input connector.

The RF Receiver's pre-amplifier is available for use when the RF Receiver Port is set to ANT/SWR. This soft-key determines whether or not the pre-amplifier is included (ON) in the input signal path.

The pre-amplifier (PreAmp) is typically used to boost weak incoming signals to eliminate noise and produce a clean signal that is strong enough to be processed.

5.2.5.2 Configuring the RF Receiver

22144015 August 2023

To Configure the RF Receiver

Open the RF Receiver panel.

Connect the incoming RF Signal to the RF Receiver Port appropriate for the characteristics of the incoming signal.

Select the RF Receiver Port selected in step 2.

Set the RF Frequency to the frequency of the incoming signal.

Set the RF Frequency Reference Level to the power level of the generator/radio.

Set the RF Receiver Demodulation Type to the modulation type of the incoming

5.2.6 AF Function Generator

The CX100 contains two audio function (AF) generators that are capable of supporting the simultaneous output of two signals of different frequencies, shape and power.

The Settings soft-key opens a configuration menu that accesses controls and settings that are used to configure the parameters of the generated audio signal. See Table 5-5, “AF Generator Controls and Settings,” on page 5-14 for a description of these settings.

5.2.6.1 AF Generator Controls and Settings

The following controls and settings are used to configure the characteristics of the generated audio signal:

Table 5-5 AF Generator Controls and Settings

Controls/Settings Description

Frequency This field defines the frequency of the outgoing waveform. Each function generator can be configured to produce a waveform at a different frequency.

Level Type Level Type selects the manner in which the level is calculated and applied to the outgoing signal.

VPP Peak to Peak Voltage (VPP) is measured from the top of the waveform to the bottom of the waveform. Vpp is typically used when working with instantaneous voltages.

Root mean squared voltage (Vrms) is a calculation of Vpp that yields the equivalent DC voltage that would deliver the same energy to the load.

Vrms is typically used when there is a requirement to calculate average power in an AC circuit.

Level The Level field defines to output level of the signal in either Vpp or Vrms as selected in the Level Type field.

Waveform The Waveform field selects the type of waveform to be generated by the function generator.

Encode Type Encoding is accessed from the Settings soft-key. Encoding Type selects the protocol standard that is used to format that data that is included in the generated signal. Contact VIAVI for information about support for different types of signal encoding.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-14 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Table 5-5 AF Generator Controls and Settings (Continued)

Controls/Settings Description

Coupling Coupling is accessed from the Settings soft-key. Coupling selects how unwanted AC/DC signal components are filtered from the received signal.

AC coupling filters the DC signal component out of a signal that contains both AC and DC components. The DC component of a signal acts as a voltage offset so removing the component may increase the resolution of signal measurements.

DC coupling does not filter components from the signal; both AC and DC signal components are therefore present in the signal. DC coupling is typically used when any offset voltage present is <+100 mV or if the DC content of the signal is important.

Settings Soft-key The Settings soft-key opens a menu that accesses the following controls and settings (described above):

+ Coupling AF Gen “x” The AF Gen 1 and AF Gen 2 soft-keys turn the corresponding Soft-key AF Generator on and off.

To Configure the CX100 AF Function Generator:

Open the AF Function Generator panel.

Set Coupling to desired setting.

Set Frequency for AF Generator 1 and or 2.

Select Level Type for AF Generator 1 and or 2.

Set Level for AF Generator 1 and/or 2.

Select Sine for AF Generator 1 and or 2 Waveform.

Enable to AF Generator(s) being used.

AF signal is now being generated at the Audio Out connector.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-15

Chapter 5 RF Instrument Function Descriptions

5.2.7 RF Test Meters

The Meters panel displays measurement data for the device Under Test (DUT). The types of meters that are active on the Meters panel depend on the following selections:

+ ___RF Test mode that is selected.

+ Modulation type selected from the RF Receiver Demodulation Type menu. See section , “Demodulation Type”, on page 5-11 for information.

+ ___ User selections such as the type of noise measurement, or the type of power measurement to be performed.

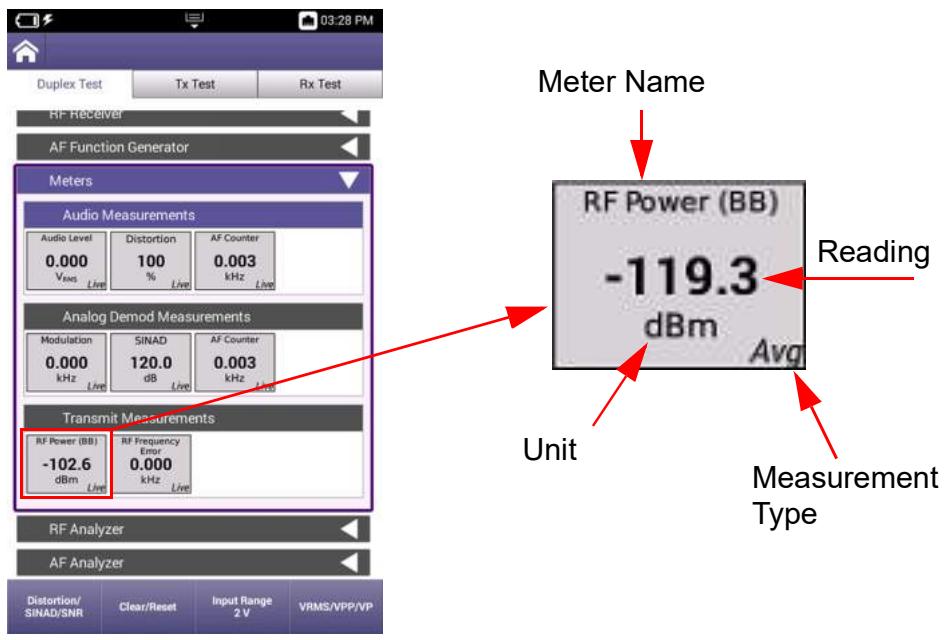

5.2.7.1 Meter Panel Layout The Meters panel is a drop-down panel that contains meter “blocks” that are grouped according to meter type. Each meter is displayed under the appropriate meter heading as a separate block; each meter block contains the following information (Figure 5-3): + Meter Name: displayed top, center of the meter block + Meter reading: displayed centered in the middle of the meter block + UOM: unit of measurement (UOM) is displayed centered below the meter reading + Measurement type: displayed in the lower right corner of the meter block + __ Offset Applied Indicator: displayed on the power measurement meters when external attenuation is applied. Meter Name RF Power (BB) Reading Measurement Type Figure 5-3 Meter “Block” Content Diagram Rev 002 CX100 ComXpert Operation Manual 22144015

The contents of the Meter soft-key panel is determined by the selected meter group. To activate a soft-key panel, select the group title bar (e.g. Audio Measurements or Transmit Measurements). The contents of the soft-key panel will update to display soft-keys that support functions applicable to the selected meter group.

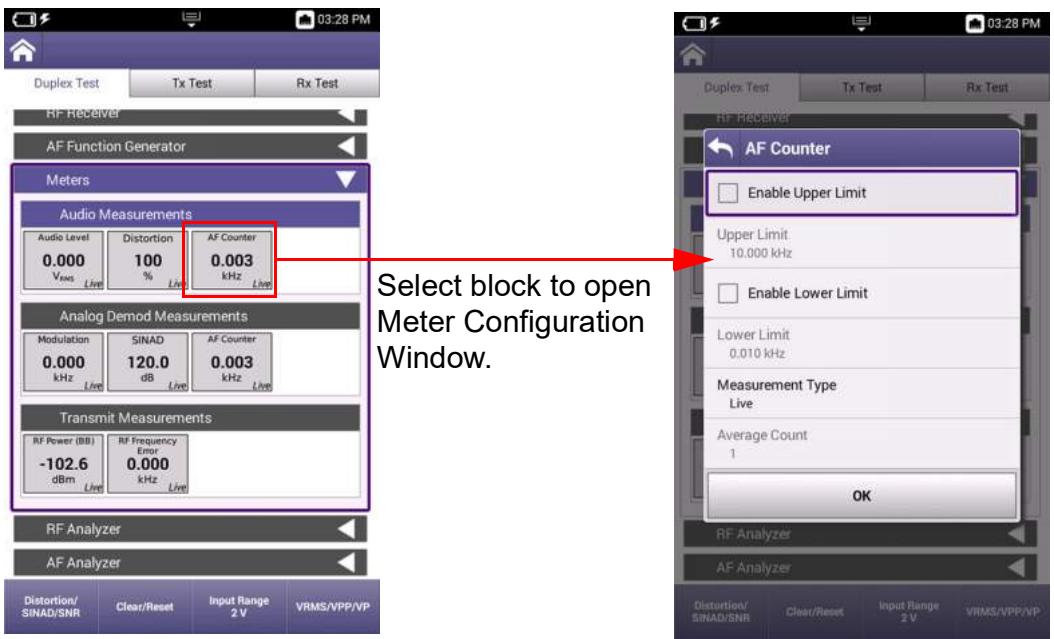

5.2.7.3 Meter Configuration Window

Each meter requires specific controls and settings necessary to configure how measurements are performed and how the results are displayed on the UI. These controls and settings are located in meter configuration windows. Meter configuration windows are opened by pressing and holding a meter block.

Select block to open LC] noble Loner Limit Meter Configuration Window.

Figure 5-4 Opening Meter Configuration Window

The contents of meter configuration windows varies according to the settings required to perform each measurement. This section describes meter limits and measurement type

settings, which are supported in some capacity on each meter. Other meter parameters

are described in the following sections:

+ 5.2.7.4 Audio Measurements see see . 5-20 + 5.2.7.5 Analog Demod Measurements 5-21 + 5.2.7.6 Digital Demod Measurements 5-23 + _ 5.2.7.7 Transmit Measurements. 5-29 22144015 CX100 ComXpert Operation Manual Rev 002

Chapter 5 RF Instrument Function Descriptions

Meter limits are used to define pass/fail criteria for measurements. CX100 meters support upper and lower limits as appropriate for the measurement. When limits are enabled for a meter, CX100 meters provide a visual indicator of pass/fail status: the background color of the meter block changes to indicate reading status as described below in Table 5-6.

Table 5-6 Meter Limit Status Indicators

Distortion Example 1 33 Red background and fail icon x] indicate the following condition: % …. + Above Upper Limit Live AF Counter Example 2 53.055 Green background and pass icon © indicate the following F conditions:

@ kHz 9 tive + Below upper limit

+ Above lower limit + Within upper and lower limit(s)

5.2.7.3.1.B Modulation Example 3 77.809

fx] kHz + Below lower limit

Blue background and fail icon [x] indicate the following condition:

The Upper Limit field sets a maximum acceptable reading for a specific measurement. The upper limit value must be greater than the value defined in the lower limit field, even when the lower limit is not enabled.

When a measurement exceeds the enabled upper limit value, the measurement block turns red and the [x] fail icon is displayed (Example 1).

When readings are under a defined Upper Limit, or within enabled upper and lower limits, the measurement block turns green and the LV] pass icon is displayed (Example 2).

The Lower Limit field sets a minimum acceptable reading for a specific measurement. The lower limit value must be lower than the value defined in the upper limit field, even when the upper limit is not enabled.

When a measurement falls below the enabled lower limit value, the measurement block turns blue and the [x] fail icon is displayed (Example 3).

When readings are above a defined lower limit, or within enabled upper and lower limits, the measurement block turns green and the pass icon is displayed (Example 2).

CX100 ComXpert Operation Manual 22144015 August 2023

22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Meter Measurement Types

Each meter supports live, maximum, minimum and average measurements. À small text indicator is located on each meter block which indicates the measurement type being displayed on the meter.

When Live is selected, the meter displays the measured value of the signal at that given point in time. The meter updates continuously as long as the device is receiving an incoming signal.

Max Measurement When Max is selected, the meters displays the highest reading detected at

that point in time.The meter updates when/if a reading is detected that is higher than the currently displayed measurement.

When Min is selected, the meters displays the lowest reading detected at that point in time. The meter updates when/if a reading is detected that is lower than the currently displayed measurement.

When Average is selected, a field is enabled which is used to define the number of readings acquired to calculate the average measurement. The meter reading updates each time the defined number of measurements has been processed.

Chapter 5 RF Instrument Function Descriptions REF Test

Audio measurements are supported in Duplex Test and Rx Test modes of operation. The CX100 contains the following Audio meters:

The Audio Level meter indicates the signal voltage or power of the received audio signal. The measurement is used to evaluate the power performance of the transmit device.

Offset Applied Indicator An offset indicator is displayed on the Audio Level meter measurement meters when external attenuation is applied.

(Audio) Distortion Meter

The Distortion meter is used to detect and isolate any frequencies that are causing distortion on the incoming audio signal. The Distortion meter displays the difference between the incoming audio signal in relation to the transmitted signal. The differences detected are a result of extraneous signals present in the audio signal (i.e., noise, external signals).

SINAD measurements are typically used to determine receiver sensitivity, but they can also be used to determine how a transmit signal is degraded by noise and distortion. The SINAD Meter displays the ratio Signal + Noise + Distortion divided by the sum of Noise + Distortion, the result of which is displayed in dB.

Signal to Noise (SNR) measurements compare the level of a desired signal to the level of background noise. SNR is defined as the ratio of signal power to the noise power.

The AF Counter measures the number of oscillations present in the received audio signal. The AF Counter is used to perform tasks such as measuring the frequency of a carrier signal or measuring the frequency accuracy of the incoming signal.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-20 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

5.2.7.4.1 Audio Meter Controls and Settings

The audio meters supports user selectable measurement types which are described in section 5.2.7.3.2, on page 5-19 and upper and lower limits which are described in section 5.2.7.3.1, on page 5-18. The audio meters also contain the follow controls and settings:

Table 5-7 Audio Meter Controls and Settings

Control/Setting Description

“Noise Meter” This soft-key selects the type of noise measurement to be

Soft-key performed, Distortion or SINAD. The noise meter displayed in the Meter panel is selected using this soft-key.

Clear/Reset Clears meter readings, resets the measurement meter, then

Soft-key resumes data acquisition.

Input Range This toggle key switches between Audio Level Input Range.

Level Units This toggle key switches the Audio Level meter between

Soft-Key Vrms, VPP and VP units of measurement.

5.2.7.5 Analog Demod Measurements

Analog demodulation measurements are supported in Duplex Test and Tx Test modes of operation. The CX100 contains the following analog demodulation meters:

Amplitude Modulation (AM) Meter

The AM meter displays the percentage by which the amplitude of the incoming signal varies from the amplitude of the transmitted signal. The AM meter is displayed when the RF Receiver Demodulation Type is set to AM (see “Demodulation Type" on page 5-11).

Frequency Modulation (FM) Meter

The FM meter displays the frequency by which the frequency of the incoming signal varies from the frequency of the transmitted signal. The FM meter is displayed when the RF Receiver Demodulation Type is set to FM (see “Demodulation Type" on page 5-11).

(Demod) Distortion Meter

The Distortion meter is used to detect and isolate any frequencies that are causing distortion on the incoming RF signal. The Distortion meter displays the difference between the incoming signal in relation to the transmitted signal. The differences detected are a result of extraneous signals present in the RF signal (i.e., noise, external signals).

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-21

Chapter 5 RF Instrument Function Descriptions

RE Test (Demod) SINAD Meter SINAD measurements are typically used to determine receiver sensitivity, but they can also be used to determine how a transmit signal is degraded by noise and distortion. The SINAD meter displays the ratio Signal + Noise + Distortion divided by the sum of Noise + Distortion, the result of which is displayed in dB. (Demod) SNR Meter Signal to Noise (SNR) measurements compare the level of a desired signal to the level of background noise. SNR is defined as the ratio of signal power to the noise power. AF Counter The AF Counter measures the number of oscillations present in the received signal. The AF Counter is used to perform tasks such as measuring the frequency of a carrier signal or measuring the frequency accuracy of the incoming signal. 5.2.7.5.1 Analog Demod Meter Controls and Settings Demod meters supports user selectable measurement types which are described in section 5.2.7.3.2, on page 5-19 and upper and lower limits which are described in section 5.2.7.3.1, on page 5-18. Demod meters also contain the following controls and settings: Table 5-8 Demod Meter Controls and Settings Control/Setting Description “Noise Meter” This soft-key selects the type of noise measurement to be Soft-key performed, Distortion or SINAD. The noise meter displayed in the Meter panel is selected using this soft-key. Clear/Reset Pressing this soft-key clears meter readings, resets the Soft-key measurement meter, then resumes data acquisition. Rev 002 CX100 ComXpert Operation Manual 22144015

22144015 August 2023

Chapter 5 RF Instrument Function Descriptions REF Test

Digital Demod Measurements

The CX100 contains a Vector Signal Analyzer (VSA) that processes and demodulates digital data, which is then sent to the device’s Digital Demod meters. The Digital Demod meters are used to identify any impairments in the digital signal that may have been introduced by the analog parts of the digital transmitter. More common impairments that negatively impact the performance of a digital modulator are timing drift, frequency offset and amplitude imbalance.

The CX100's VSA estimates certain values in relation to the impairments in the received signal. In order to estimate the impairments, the VSA uses a perfect received signal, called a reference signal, and compares the reference signal to the actual received signal, called the measured signal. Figure 5-5 on page 5-24 shows a high level block diagram of the VSA's main components.

CX100 ComXpert Operation Manual Rev 002 5-23

Chapter 5 RF Instrument Function Descriptions

LES u ebers k uorunsa |__| Gunoeu luSuBINSEeN ones | pags ms _,] ruuus Lezenba VSA | eouciaey ! TONEUNSS fouenbei4 [l esie0g rusis sens |] 1edden poeq se4 |) eus à | uonesueduos) uoyoejeq rubis PSV2L0D eouaejoy IoquAs 51809 2ezjenba auawounseon [NS | fouenboiy rœuôs [Penre>y 9 i I 5 uoneunsa [ \, i î RUE 85100 | Ü ! UOEUNS3 Jeuñls laueieg eus POST

22144015 August 2023

CX100 ComXpert Operation Manual

Chapter 5 RF Instrument Function Descriptions RF Test

5.2.7.6.1 Digital Demod Meters

The Digital meters are available in Duplex Test and Tx Test Mode when the RF Receiver Demodulation Type is set to Digital (see "Demodulation Type" on page 5-11). The CX100 supports the following digital meters:

(Digital) Power The (Digital) Power meter is used to evaluate the transmit performance of a digital transmitter.

Error Vector Magnitude (EVM)

Error Vector Magnitude (EVM) is a measure of modulation quality and error performance of a wireless communication systems. The is used to evaluate the performance of a digital transmitter or receiver for the evaluation of software-defined radios (SDRSs).

Frequency Offset is used to evaluate the frequency accuracy of the signal. The meter indicates the difference between the DUT transmitted signal and the defined RF frequency.

5.2.7.6.2 Digital Meter Controls and Settings

The Digital meters support user selectable measurement types which are described in section 5.2.7.3.2, on page 5-19 and upper and lower limits which are described in section 5.2.7.3.1, on page 5-18. The Digital meters also contain the following controls and settings:

Table 5-9 Digital Meter General Settings

Control/Setting Description

Center Frequency The Center Frequency field is a read only field that indicates the RF Receiver Frequency setting. This value should be set to the expected frequency of the received signal.

See Table 5-4, “RF Receiver Controls and Settings,” on page 5-10 for information.

Reference Level The Reference Level field is a read only field that indicates the RF Receiver Reference Level setting. This value should be set to the expected power level of the transmitter. See Table 5-4, “RF Receiver Controls and Settings,” on page 5-10 for information.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-25

Chapter 5 RF Instrument Function Descriptions

Table 5-9 Digital Meter General Settings (Continued)

Control/Setting Description

Coarse Search The Coarse Search Frequency setting determines

Frequency whether or not the digital receiver searches for the received signal if the signal is not present at the defined Center Frequency.

When this is enabled, the coarse frequency estimation block of the VSA computes a rough estimation of the frequency offset of the received signal and searches for the signal within the estimated offset range.

Table 5-10 Digital Meter Modulation Settings

Control/Setting Description

Modulation Type This menu selects the digital modulation type of the signal being analyzed.

Modulation Order This field defines the number of possible symbols in the constellation of the modulation.

Symbol Rate This field defines the number of symbols per second of the received signal.

Oversampling This field defines the number of samples per symbol to analyze the signal.

Number of Symbols This field defines the number of symbols used to calculate the parameters in each block of data.

Table 5-11 Digital Meter Equalizer Settings

Control/Setting Description

Gain The equalizer gain is used to adjust the coefficients of the equalizer filter.

Equalizer Length This field defines the length in number of taps of the equalizer filter.

Equalizer Plot This field defines the number of points of the spectrum plot

Length of the channel estimated by the equalizer.

5.2.7.6.3 Digital Filter Types

The CX100 Digital Demod filters are used to limit bandwidth and reduce inter-symbol interference (IS). The CX100's digital demodulator produces a measured signal and a reference signal. The measured signal is the signal that results from demodulating the waveform; the reference signal is the signal that results from demodulating a signal that contains no errors.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

The Digital Filter should be configured based on how the radio/radio system under test performs filtering. Filtering will be performed at the transmitter, at the receiver, or distributed between the transmitter and the receiver.

The Reference Filter is the combined response of the transmit and measurement filter. This filter is applied to the reference signal.

The Measurement Filter is the shaping filter in the receiver that is applied before demodulation. For some filters, this filter reduces the inter-symbol interference (ISI). For other filters, this filter reduces energy from other signals.

The following settings are available for the digital filters:

Table 5-12 Digital Measurement Filter Settings

Control/Setting Description

Type The Digital meters support the following meter types: Reference Filter

+ __ No Filter: No filter is included in the receive path.

+ __ Raised Cosine: Should be used in systems which perform all the filtering in the transmitter.

Measurement Filter + __ No Filter: No filter is included in the receive path.

+ __ Square Root Raised Cosine: Should be used to test systems that perform partial filtering in the transmitter and partially filtering in the receiver.

Roll-off Factor Defines the amount of bandwidth allowed in relation to the selected filter.

Filter Length Defines the length of the measurement or reference filter.

5.2.7.6.4 Digital Equalizer Filter

The equalizer is a complex linear Finite Impulse Response (FIR) filter that compensates the channel; the number of “taps” is flexible. The FIR filter is estimated by the Channel Estimation block of the VSA (see Figure 5-5 on page 5-24).

The Equalize soft-key is used to include the FIR filter in the receive path. When the Equalizer soft-key is pressed, the UI updates to display another set of soft-keys, referred to as the Equalizer soft-key panel, which control the states of the equalization filter. The contents of the Digital Equalizer soft-key panel change based on the state of the equalizer. For example, Freeze Equalizer and Reset Equalizer are not enabled until the equalizer is ON (in learning state) and when Equalizer Learn is pressed, the soft-key updates to a status key.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-27

Chapter 5 RF Instrument Function Descriptions REF Test

Table 5-13 Equalizer Soft-key Panel

CX100 ComXpert Operation Manual

When the Learning soft-key is selected, the following actions occur:

+ __ The equalizer learning process is initiated. + __ The soft key panel reverts to the Digital Demod

Measurements soft-key panel.

+ The status line on the Equalizer soft-key updates to show

In the Learning State, the options are to freeze, reset or stop the equalizer process.

When the Freeze soft-key is pressed, the following actions occur:

+ __ The equalizer filter applies the last taps values that were

estimated in the learning state.

+ __ The soft key panel reverts to the Digital Demod

Measurements soft-key panel.

+ The status line on the Equalizer soft-key updates to show

Equalizer Frozen. Actions available from this state are Learn, Reset or Off.

When the Reset soft-key is pressed, the following actions occur:

+ __ The equalizer filter is set to an impulse response and then

goes to the previous state.

+ __ The soft key panel reverts to the Digital Demod

Measurements soft-key panel.

+ The status line on the Equalizer soft-key updates to show

Equalizer Learning. Actions available from this state are Freeze, Reset or Off.

When set to OFF, the equalizer filter is bypassed.

The only action available from the OFF state is Learning; all other soft-keys are disabled until the Equalizer Learn soft-key is selected.

22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

5.2.7.7 Transmit Measurements

Transmit measurements are used to evaluate the performance of the DUT transmitter. These meters are available in Duplex Test and Tx Test Mode. The CX100 supports the following transmit measurements:

5.2.7.7.4 RF Frequency Error

The RF Frequency Error meter measures the frequency error of the received signal in relation to the defined RF Receiver Frequency; this meter is used to evaluate the

accuracy of the DUT transmitter. The CX100's RF Receiver Frequency must be set

to the expected transmit frequency of the UUT in order to obtain valid RF Frequency Error measurements.

The RF Frequency Error meter supports user selectable measurement types which are described in section 5.2.7.3.2, on page 5-19 and lower limits which are described in section 5.2.7.3.1, on page 5-18.

5.2.7.7.2 RF Power Meter

The RF Power meter is used to evaluate the RF transmit performance of a DUT, most commonly to determine if the DUT's output power is meeting specification.

The RF Power meter supports user selectable measurement types which are described in section 5.2.7.3.2, on page 5-19 and lower limits which are described in section 5.2.7.3.1, on page 5-18. The RF Power meter also contains the following controls and settings: y

Table 5-14 RF Power Meter Controls and Settings

Control/Setting Description

Receiver This field is used to compensate for the use of an external External attenuator for high power transmitters. RF Power meter Attenuator readings are compensated by the defined external attenuation value. This value should be defined as a negative value only. Normalize When the Normalize soft-key is pressed, the system zeroes Soft-key out the RF Receiver signal path, removing any residual power

from the RF path which eliminates the system's frequency response error.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-29

Chapter 5 RF Instrument Function Descriptions

The RF Power meter uses the following status indicators:

Offset Applied Indicator

An offset indicator is displayed on the RF Power meter when external attenuation is applied. RF Offsets are applied on the RF Generator panel (see "“Offset Soft-key" on page 5-6).

An Attention indicator is displayed on the Normalize soft-key when PTT normalize needs to be performed. When this condition occurs, Normalize should be performed to ensure accurate measurements.

5.2.8 Digital Plots Panel

The Digital Plots panel is used to evaluate the quality of the received digital signal. The Digital Plots panel is enabled when the RF Receiver Demodulation Type is set to receive digital signals (see "Demodulation Type" on page 5-11). The instrument supports a variety of digital plots which are dependent on the characteristics of the digital signal.

The 1Q Domain, Constellation Plot displays the constellation points of the digital signal. This plot is used for evaluating signal distortion and noise.

The Display Settings soft-key opens a menu that contains controls and settings that affect display layout and manage how traces are displayed on plot field. See section 5.2.8.1.2, “Constellation Plot Controls and Settings”, on page 5-31 for a description of these settings. Read-only digital meter fields are displayed above the plot field for reference purposes; the meters are configured on the Meters panel (see section 5.2.7.6, on page 5-23).

5.2.8.1.1 Constellation Plot Soft-key Panel

The Constellation Plot soft-key panel contains the following controls:

Table 5-15 Constellation Plot Soft-key Panel

Control/Setting Description

Display Settings The Display Settings soft-key opens a menu that contains

Soft-key controls and settings that affect display layout and manage how traces are displayed on plot field. See section 5.2.8.1.2, “Constellation Plot Controls and Settings”, on page 5-31 for a description of these settings.

Clear/Reset Clears captured trace data from the plot field and resets Soft-key measurement meters that are located above the plot field, then resumes data acquisition.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Table 5-15 Constellation Plot Soft-key Panel (Continued)

Control/Setting Description

Pause/Resume When the signal plot is displayed on the UI, the signal trace is

Soft-key active by default. Pressing the Pause soft-key temporarily halts data updates to the UI. When this occurs, the soft-key updates to the Resume soft-key. When the signal plot is paused, data that is being acquired is stored in the system's data acquisition buffer, when the Resume soft-key is pressed, the data being stored in the buffer is released and sent to the UI.

5.2.8.1.2 Constellation Plot Controls and Settings

The following settings are used to configure how the trace is displayed on the plot field:

Table 5-16 Constellation Plot Controls and Settings

Control/Setting Description

Type Type is accessed from the Display Settings soft-key. The Type menu selects the measurement plot that will be displayed on the screen. The contents of this menu are determined by the type of digital signal that is selected on the RF Receiver panel.

Persistence The Persistence field is accessed from the Display Settings soft-key. The persistence setting specifies how many trace plots are shown simultaneously on the display field. The selectable range is 1 to 10. Selecting 1 means that only one burst or time slot is displayed on the display field. Selecting 10 means the last 10 bursts or time slots are displayed simultaneously on the display field.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-31

Chapter 5 RF Instrument Function Descriptions

The RF Analyzer is used to evaluate the receive performance of the device under test (DUT). The RF Analyzer is an asynchronous, swept analyzer that displays the spectrum of the RF signal received by the test set over a 5 MHz bandwidth. The source of the signal is from the DUT, and the signal is routed through the test set's receiver chain, therefore the RF Analyzer is dependent on the receiver for receive settings such as connector selection, attenuation and center frequency.

NOTE The RF Analyzer is not available when the RF Receiver Demodulation Type is set to receive digital signals (see "Demodulation Type" on page 5-11).

RF Analyzer Panel Layout

The RF Analyzer panel consists of the following areas or groups of controls and settings:

Marker Controls and Data Fields

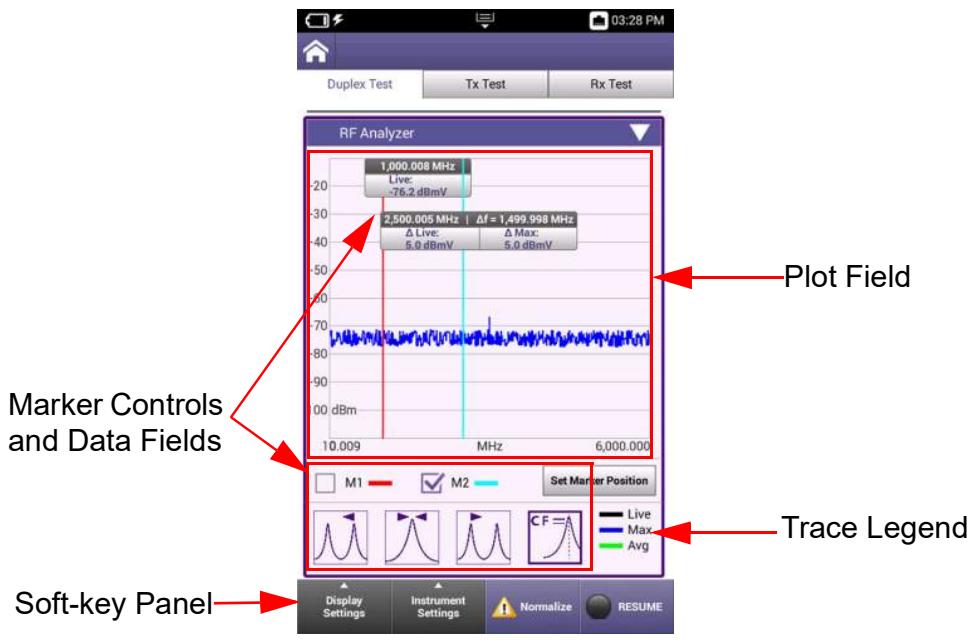

Figure 5-6 RF Analyzer Panel Layout

The plot field displays a visual representation of the received signal. Controls and settings are available that allow the user to adjust settings such as plot scale, modes of operation and the types of traces being displayed on the plot.

See section 5.2.9.3, “RF Analyzer Display Settings”, on page 5-34 and

section 5.2.9.4, on page 5-36 describe the controls and settings that are supported on the RF Analyzer.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Marker Controls and Data Fields

The RF Analyzer contains a variety of marker functions, controls and settings that allow the user to create custom test scenarios. See section 5.2.9.5, “RF Analyzer Marker Controls”, on page 5-39 for a description of Marker controls and settings.

The trace legend indicates the trace types that are currently active and the color of the line used to represent each trace type. The types of traces that are displayed on the plot field are selected using the Active Trace button located in the Display

Soft-key Panel The soft-key panel contains controls and settings that are used to configure the RF Analyzer. See section 5.2.9.2, “RF Analyzer Soft-key Panel”, on page 5-33 for a description of RF Analyzer soft-keys.

5.2.9.2 RF Analyzer Soft-key Panel

The RF Analyzer soft-key panel contains the following controls:

Table 5-17 RF Analyzer Soft-keys

Soft-key Description

Display Settings The Display Settings soft-key opens a menu that contains

Soft-key controls and settings manage how traces are displayed on the plot field.

See section 5.2.9.3, “RF Analyzer Display Settings”, on page 5-34 for a description of these settings.

Instrument The Instrument Settings soft-key opens a menu that contains Settings Soft-key controls and settings that define how the RF Analyzer receives and processes an incoming signal. See section 5.2.9.4, “RF Analyzer Instrument Settings”, on page 5-36 for a description of these settings.

Normalize The Normalize soft-key opens a settings window that contains

Soft-key controls and settings which are used to zero out the RF Analyzer signal path, removing any residual power from the RF path which eliminates the system's frequency response error.

Spot Frequency The Spot Frequency field defines the frequency to be zeroed out. Pressing the Run Normalize soft-key initiates the process.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-33

Chapter 5 RF Instrument Function Descriptions

Table 5-17 RF Analyzer Soft-keys (Continued)

Pause/Resume Soft-key

An attention indicator is displayed on the Normalize soft-key when the system detects residual power on the signal path. When this condition occurs, Normalize should be performed to ensure accurate measurements.

When the RF Analyzer is displayed on the UI, the signal trace is active by default. Pressing the Pause soft-key temporarily halts data updates to the UI. When this occurs the soft-key updates to the Resume soft-key.

When the Analyzer is paused, data that is being acquired is stored in the system's data acquisition buffer, when the Resume soft-key is pressed, the data being stored in the buffer is released and sent to the UI.

5.2.9.3 RF Analyzer Display Settings

The Display Settings soft-key opens a menu that contains controls and settings that manage how traces are displayed on plot fields.

The Active Trace button opens a window that selects the type of trace(s) to be displayed on the plot field. Multiple traces can be selected at any given time on each plot.

+ Max: displays highest signal received

+ __ Min: displays lowest signal received

+ ___ Live: displays live signal trace

+ Average: displays an averaged signal trace; average is

defined by the Average Field.

The Average field is enabled when Average is selected as the active trace. The Average field defines the number of traces to be used to calculate an average signal trace.

CX100 ComXpert Operation Manual 22144015

Chapter 5 RF Instrument Function Descriptions RF Test

Table 5-18 RF Analyzer Display Settings (Continued)

When the Capture Trace button is pressed, a trace is “held” on the display. When more than one trace is active on a plot, only one of the active traces will be captured. When multiple trace types are enabled, traces are captured in the following priority: +. MAX Priority 1 +. MIN Priority 2 + ___ Average Priority 3 + __ Live Priority 4

For example, if Average and Live traces are enabled, the Average trace is captured. 1f Max and Average traces are enabled, the Max trace is captured.

When the Capture Trace button is pressed, the Clear Trace

button is enabled which is used to remove a captured trace from the plot field.

The Clear Trace button is active when a the Captured Trace button has been pressed and a trace is captured on the plot field. Pressing the Clear Trace button removes the captured trace from the plot field.

Pressing the Save Trace button displays a window that is used to enter a name for saving a file. The file will be saved to a user defined location. See section 4.2.7, “Specifying File Save Location”, on page 4-8.

The Save Trace function saves x,y data in .csv file format. The Recall Trace button displays a file selection box which

allows user to recall a stored trace. The stored trace file can be recalled from the device or from a USB device.

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002 5-35

Chapter 5 RF Instrument Function Descriptions REF Test

5.2.9.4 RF Analyzer Instrument Settings

The Instrument Settings menu accesses the controls and settings that define how the RF Analyzer receives and processes an incoming signal.

Table 5-19 RF Analyzer Instrument Settings

Control/Setting Description

Port The Port menu selects the input connector that is used for analyzing incoming signals.

ANT/SWR The ANT/SWR connector should be selected to perform over the air testing using an external antenna or when test parameters require maximum input sensitivity. This connector should be used when analyzing low level RF signals.

DUPLEX The DUPLEX connector is a combined (Duplexed) connector that provides an RF generator output connection and an RF receiver input connection. This connector should be used when analyzing high power RF signals.

Coupling The Coupling menu accesses settings that define the Resolution Bandwidth (RBW) and acquisition time that the Analyzer uses to filter the signal. Acquisition time is used in combination with the RBW setting to improve frequency resolution. Acquisition time and RBW bandpass filter should be inversely proportional to one another. Making the acquisition time longer, while keeping the sampling rate the same, results in the ability to use a narrower RBW. Resolution Bandwidth (RBW)

RBW filters are the bandpass filters in the IF path that determine the RF noise floor and how close two signals can be and still be viewed separately on the analyzer.

A narrower RBW setting more clearly displays close signals as separate signals, however, a narrower bandwidth setting results in a longer sweep time.

An RBW setting that is too wide causes signals that are close together to appear as one signal.

Auto Mode: system sets RBW to a filter appropriate to the characteristics identified in the received signal

Manual Mode: allows the user to manually define the RBW.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-36 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Table 5-19 RF Analyzer Instrument Settings (Continued)

Control/Setting Description

Coupling (cont) Acquisition Time

Acquisition Time field defines the length of time that samples are acquired from the time domain.

Auto Mode: system sets Acquisition time to a value appropriate to the characteristics identified in the received signal as well as the RBW setting.

Manual Mode: allows the user to manually define acquisition time.

Reference Level The Reference Level field defines the top value on the plot field’s vertical scale. Reference Level can be set to any value Within the specified range, but should be set to a value above the expected power level of the incoming signal in order to view the full signal waveform.

Frequency Mode Frequency Mode selects the method used to define the span of the analyzer plot field. Parameters update according to the type of mode selected.

Full Span Frequency Mode

When Full Span is selected, the span defaults to the instrument's full frequency range. The Ul updates to display the Start and Stop frequencies as read-only data fields.

Center/Span Frequency Mode

Center/Span Frequency mode of operation specifies the center frequency value as well as the frequency span setting.

When Center/Span is selected, the Ul displays a Center Frequency and Span setting. Center/Span mode uses the sweep Center Frequency value and Span setting to define the frequency span.

Start/Stop Frequency Mode

Start-Stop frequency mode of operation defines the sweep start and sweep end frequencies of the swept measurement range.

When Start/Stop is selected, the UI displays a Start Frequency and Stop Frequency fields. The sweep start and sweep stop frequencies define the frequency span.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-37

Chapter 5 RF Instrument Function Descriptions REF Test

Table 5-19 RF Analyzer Instrument Settings (Continued)

Control/Setting Description

Frequency Mode (cont)

Zero Span Frequency Mode

In Zero Span mode the Analyzer does not perform a frequency sweep: it detects the power level at the set frequency. The trace shows detected power against time. When operating in Zero-Span mode, marker position is specified in time.

Amplitude Amplitude settings affect how the plot field’s vertical scaling and how the signal appears when displayed on the plot field.

The RF Analyzer uses logarithmic scaling to display the signal amplitude on the analyzer vertical axis. Differences in signal amplitudes are compressed because low amplitude signals are amplified and high amplitude are compressed. This allows signal with widely varying amplitudes to be displayed on the same plot. Log scale is used to view both low amplitude and high amplitude frequencies with same clarity.

Selects the dB division between the vertical scaling on the plot field.

Detector Type The RF Analyzer uses detectors in order to accurately map the correct signal power to the correct frequency point on the display.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-38 August 2023

Chapter 5 RF Instrument Function Descriptions REF Test

The RF Analyzer supports two markers, referred to as Marker 1 and Marker 2. When the RF Analyzer is first opened, Marker 2 will be displayed on the plot field on top of Marker 1: Marker 1 tick box will be selected. Figure 5-7 identifies the RF Analyzer marker controls.

a T2 nm ” Marker 2 12 Data Box 4 EEE Marker Position ja Indicator Line m Marker M Selection Tick oo dem 1000 M 6000 Sets Marker Marker > æ Position Navigation Ce. Buttons

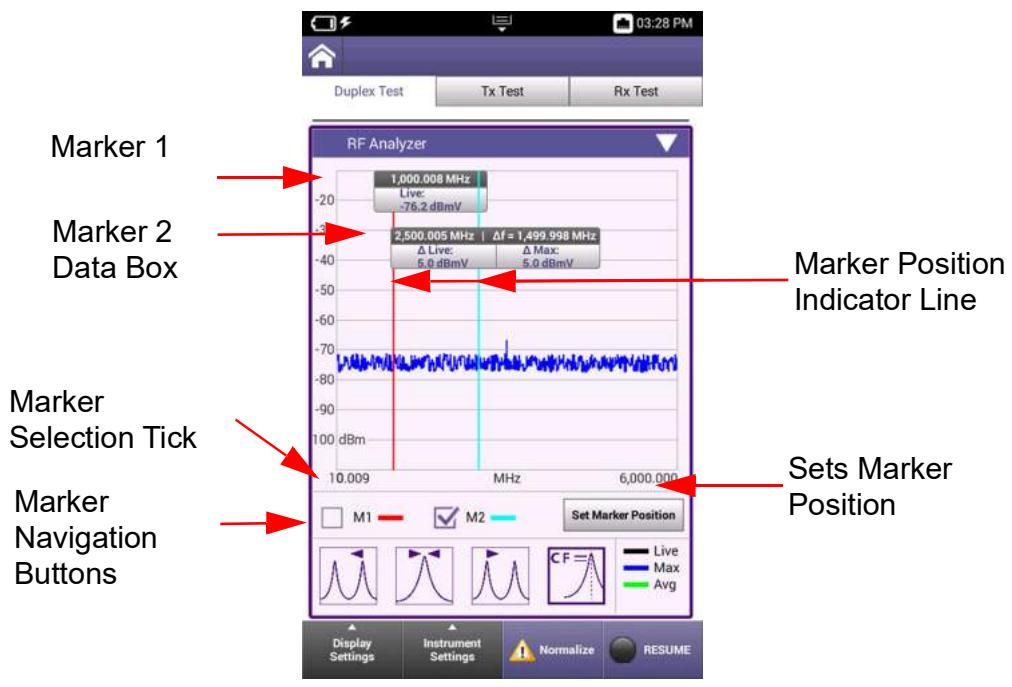

Figure 5-7 RF Analyzer Marker Controls

Table 5-20 RF Analyzer Marker Controls and Settings

Marker Indicator Line

CX100 ComXpert Operation Manual

The M1 and M2 tick boxes are used to select a marker. The tick box that is selected specifies the marker to which any settings or configuration changes are applied.

Pressing the Set Marker Position button displays a window that is used to define a specific frequency at which to place the selected marker.

Markers are attached to a vertical line which provides a visual indicator of the marker's position on the plot field. The Marker Indicator Line is locked to the marker, and moves whenever the marker is repositioned on the plot field.

The Marker Indicator Line can also be used to move the marker on the plot field. See section 5.2.9.7, “Setting Marker Position”, on page 5-41.

Chapter 5 RF Instrument Function Descriptions REF Test

Table 5-20 RF Analyzer Marker Controls and Settings (Continued)

Pressing one of the Marker Navigation buttons moves the selected marker as described below.

< Marker Left to Peak

AA When pressed, the selected marker is moved left to the next peak on the signal.

A When pressed, the selected marker is moved to the highest peak on

JA Marker Right to Peak

EF When pressed, the selected marker is moved right to the next peak on the signal.

Marker Set CF CN When pressed, the signal's center frequency is set to the selected marker's position.

Markers are displayed when the RF Analyzer is opened, but data is not displayed until the trace is enabled. Marker 1 and Marker 2 Data Boxes display the following information:

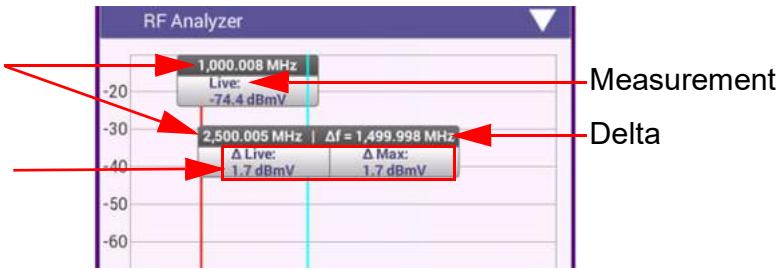

Marker Position — -Measurement -Delta Marker —— Figure 5-8 Identifying Marker Data Fields Table 5-21 Marker Data Field Description Data Field Description

Indicates the frequency at which the marker is positioned on the plot field.

Indicates the power level of the signal at the marker position.

Indicates the difference between Marker 1 and Marker 2 position.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Table 5-21 Marker Data Field Description (Continued)

Data Field Description Measurement Marker 1 only displays Live trace data; Marker 2 displays Live Type trace data, as well as Max and Min trace data when these

measurement types traces are enabled.

5.2.9.7 Setting Marker Position Marker position can be defined using one of the following methods:

Using the Set Marker Position Button 1. Select the marker tick box for the marker that you want to move. Press the Set Marker Position button.

3. When the parameter field is displayed, enter the frequency where the marker is to be placed on the plot field.

4. Select the OK button to apply the change.

Drag and Drop Marker to Position 1. Select the marker tick box for the marker that you want to move. Press and hold the Marker Indicator Line for the marker.

3. When the Marker Indicator Line appears fuzzy as shown in Figure 5-9, drag the line to the desired position on the plot field.

4. Release the Indicator Line when the marker is at the desired position.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-41

Chapter 5 RF Instrument Function Descriptions

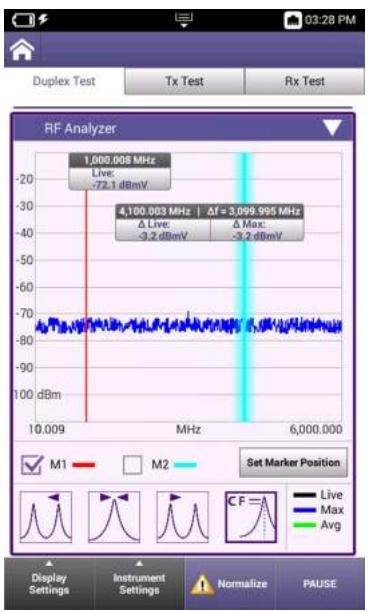

RE Test AA LA] JU LA Figure 5-9 Marker Indicator Line - Drag and Drop Using the Marker Reading Window 1. Select the marker tick box for the marker that you want to move. 2. Press and hold the marker’'s Marker Data Box. When parameter field is displayed, enter the frequency where the marker is to be placed on the plot field. 4. Select the OK button to apply the change. Marker Navigation Buttons 1. Select the marker tick box for the marker that you want to move. 2. Press the desired Marker Navigation button. See section , “Marker Navigation Buttons”, on page 5-40 for information about marker navigation buttons. Rev 002 CX100 ComXpert Operation Manual 22144015

22144015 August 2023

The AF Analyzer provides users with the ability to examine a signal in either the time domain or frequency domain.

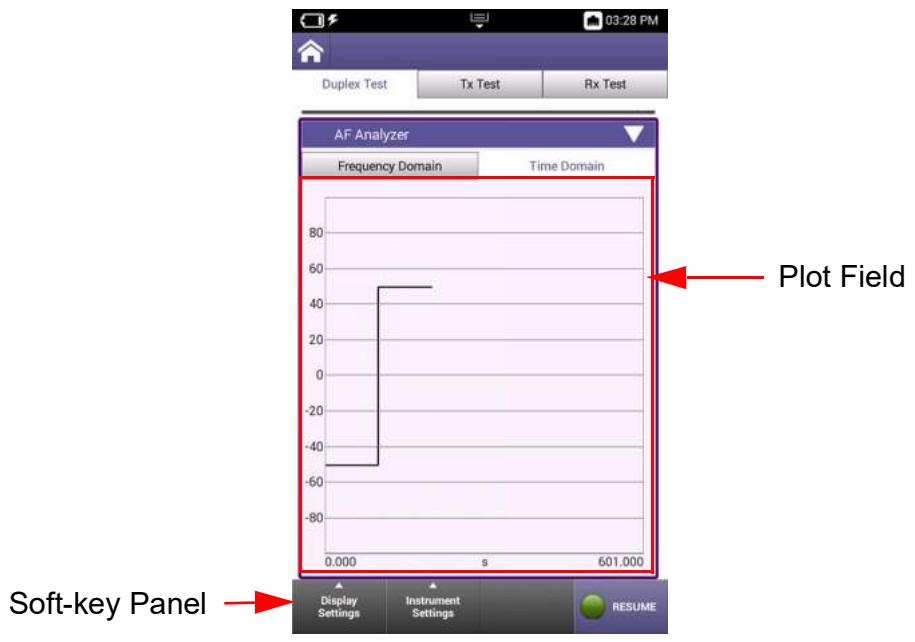

The Time Domain plot represents how the signal changes over time; the Frequency Domain plot represents the signal within each frequency band over a given frequency span. The AF Analyzer is used to evaluate a variety of aspects of audio signals such as level, frequency response, noise and distortion.

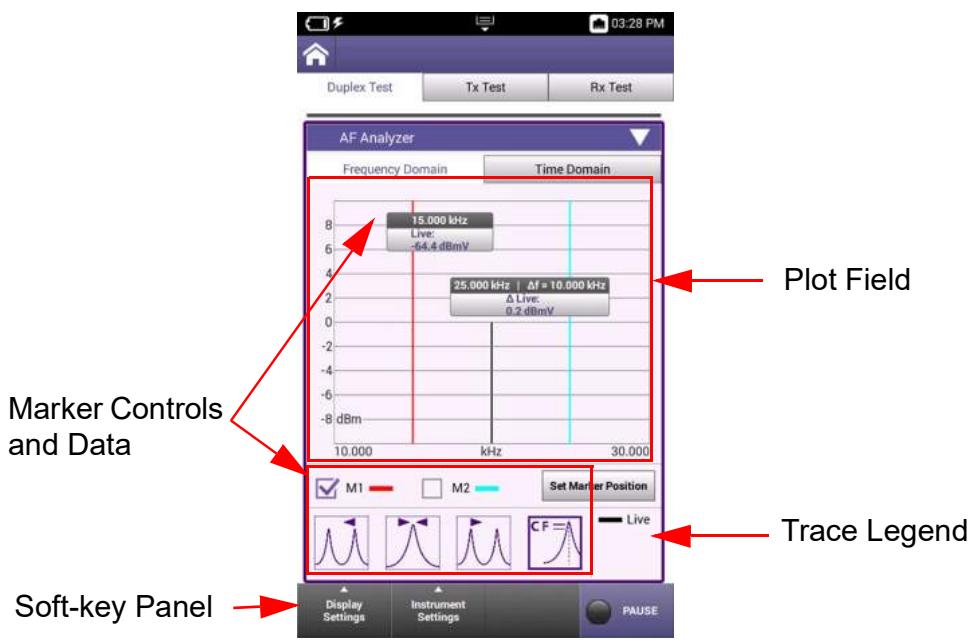

AF Analyzer Frequency Domain Tab

The AF Analyzer Frequency Domain tab consists of the following areas or groups of controls and settings:

and Data 16500 Hi EE Wu [in (smart)

The plot field displays a visual representation of the received signal. Controls and settings are available that allow the user to adjust settings such as plot scale, modes of operation and the types of traces being displayed on the plot.

See section 5.2.10.1.2, “AF Analyzer Frequency Domain Instrument Settings”, on page 5-45 for a description of the controls and settings that are supported on the AF Analyzer.

CX100 ComXpert Operation Manual Rev 002 5-43

Chapter 5 RF Instrument Function Descriptions REF Test

Marker Controls and Data Fields

The AF Analyzer contains a variety of marker functions, controls and settings that allow the user to create custom test scenarios. AF Analyzer markers operate in the same manner as the RF Analyzer markers. See section 5.2.9.5, “RF Analyzer Marker Controls”, on page 5-39 for information about marker controls, navigation and configuration.

The trace legend indicates the trace types that are currently active, and the color of the line used to represent each trace type. The types of traces that are displayed on the plot field are selected using the Active Trace button located in the Displays Settings menu.

The soft-key panel contains controls and settings that are used to configure the AF Analyzer. soft-keys are described below in section 5.2.10.1.1.

5.2.10.1.1 AF Analyzer Frequency Domain Soft-key Panel The AF Analyzer Frequency Domain soft-key panel contains the following controls:

Table 5-22 AF Analyzer Frequency Domain Soft-keys

Soft-key Description

Display Settings The AF Analyzer Frequency Domain Plot uses the same Soft-key display settings found in the AF Analyzer. See section 5.2.9.3, on page 5-34 for a description of these settings.

Instrument The Instrument Settings menu accesses the controls and Settings Soft-key settings that define how the AF Analyzer receives and processes an incoming signal.

See section 5.2.10.1.2, on page 5-45 for a description of these settings.

Pause/Resume Pressing the Pause soft-key temporarily halts data updates to Soft-key the UI. When this occurs, the soft-key updates to the Resume soft-key. Pressing the Resume soft-key restarts measurements.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-44 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

5.2.10.1.2 AF Analyzer Frequency Domain Instrument Settings

The Frequency Domain Instrument Settings menu accesses the controls and settings that define how the AF Analyzer receives and processes an incoming signal.

Table 5-23 Frequency Domain Instrument Settings

Control/Setting Description

Port The AF Analyzer Port menu selects which input port is being used to receive the incoming signal. Audio In

Audio In should be selected to analyze an incoming audio signal.

Demod should be selected to analyze the demodulated portion of an incoming RF signal

Coupling The Coupling menu accesses settings that define the Resolution Bandwidth (RBW) and acquisition time that the Analyzer uses to filter the signal. Resolution Bandwidth (RBW)

RBW filters are the bandpass filters in the IF path that determine the RF Noise floor and how close two signals can be and still be viewed separately on the analyzer.

A narrower RBW setting more clearly displays close signals as separate signals, however, a narrower bandwidth setting results in a longer sweep time.

An RBW setting that is too wide causes signals that are closed together to appear as one signal.

Auto: When Auto is selected, the system sets RBW to a filter appropriate to the characteristics identified in the received signal

Manual: When Manual is selected, the user can manually define the RBW.

Reference Level The Reference Level field sets the top value on the display graph. The Reference Level can be set to any value within the specified range. The Reference Level of the display must be set so that the RF signal level falls within the display area.

Frequency Mode Frequency Mode selects the method used to define the span of the analyzer plot field. Parameters update according to the type of mode selected.

Full Span Frequency Mode When Full Span is selected, the span defaults to the

instrument's full frequency range. The Ul updates to display the start and stop frequencies as read-only data fields.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-45

Chapter 5 RF Instrument Function Descriptions REF Test

Table 5-23 Frequency Domain Instrument Settings (Continued)

Control/Setting Description

Frequency Mode (cont)

Center/Span Frequency Mode

Center/Span Frequency mode of operation specifies the center frequency value as well as the frequency span setting.

When Center/Span is selected, the Ul displays a Center Frequency and Span setting. Center/Span Mode uses the sweep Center Frequency value and span setting to define the frequency span.

The maximum span of the display is 5 MHz, which is equal to the channel width of the instrument’s receiver.

Start/Stop Frequency Mode

Start-Stop Frequency mode of operation defines the sweep start and sweep end frequencies of the swept measurement range.

When Start/Stop is selected, the Ul displays Start Frequency and Stop Frequency fields. The sweep start and sweep stop frequencies define the frequency span.

Amplitude Amplitude settings affect how the plot field’s vertical scaling and how the signal appears when displayed on the plot field. Scale

The AF Analyzer uses logarithmic scaling to display the signal amplitude on the analyzer vertical axis. Differences in signal amplitudes are compressed because low amplitude signals are amplified and high amplitude are compressed. This allows signal with widely varying amplitudes to be displayed on the same plot. Log scale is used to view both low amplitude and high amplitude frequencies with same clarity.

Vertical Scale Selects the dB division between the vertical scaling on the plot field.

Detector Type The AF Analyzer uses detectors to accurately map the correct signal power to the correct frequency point on the display. Future development will support selectable detector types.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-46 August 2023

Chapter 5 RF Instrument Function Descriptions REF Test

AF Analyzer Frequency Domain markers operate in the same manner as the RF Analyzer markers. See section 5.2.9.5, “RF Analyzer Marker Controls”, on page 5-39 for information about marker controls, navigation and configuration.

5.2.10.2 AF Analyzer Time Domain Tab

The AF Analyzer Time Domain tab contains a plot field and soft-key panel.

The plot field displays a visual representation of the received signal. Controls and settings are available that allow the user to adjust settings such as plot scale, modes of operation and the types of traces being displayed on the plot.

See section 5.2.10.2.2, on page 5-48 for a description of the controls and settings that are supported on the AF Analyzer.

The soft-key panel contains controls and settings that are used to configure the AF Analyzer. See section 5.2.10.1.1, on page 5-44 for a description of the AF Analyzer soft-keys.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-47

Chapter 5 RF Instrument Function Descriptions

The AF Analyzer Time Domain soft-key panel contains the following controls:

Pause/Resume Soft-key

The AF Analyzer Time Domain Plot uses the same display settings found in the RF Analyzer. See section 5.2.9.3, “RF Analyzer Display Settings”, on page 5-34 for a description of these settings.

The Instrument Settings menu accesses the controls and settings that define how the AF Analyzer receives and processes an incoming signal. See section 5.2.10.2.2, “AF Analyzer Time Domain Instrument Settings”, on page 5-48 for a description of these settings.

Pressing the Pause soft-key temporarily halts data updates to the UI. When this occurs the soft-key updates to the Resume soft-key. Pressing the Resume soft-key restarts measurements.

5.2.10.2.2 AF Analyzer Time Domain Instrument Settings

The Time Domain Instrument Settings menu accesses the controls and settings that define how the AF Analyzer receives and processes an incoming signal.

The AF Analyzer Port menu selects which input port is being

used to receive the incoming signal.

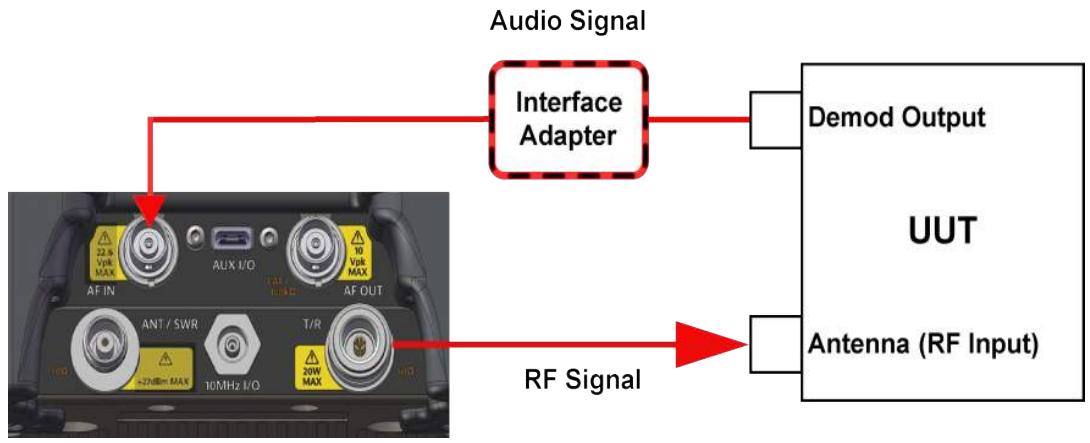

Audio In Audio In should be selected to analyze an incoming audio signal. Audio Filters are selected on the RF Receiver panel (see “AF Filters” on page 5-12).

Demod should be selected to analyze an incoming demodulated RF audio signal.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 5 RF Instrument Function Descriptions RF Test

Table 5-25 AF Analyzer Time Domain Instrument Settings (Continued)

The Coupling menu accesses settings that define the Resolution Bandwidth (RBW) and acquisition time that the Analyzer uses to filter the signal. AC Coupling AC coupling filters the DC signal component out of a signal that contains both AC and DC components. The DC component of a signal acts as a voltage offset so removing the component may increase the resolution of signal measurements.

DC Coupling DC coupling does not filter components from the signal; both AC and DC signal components are therefore present in the signal. DC coupling is typically used when any offset voltage present is <+100 mV or if the DC content of the signal is important.

The Reference Level field defines the top power level line on the plot field's vertical scale. Power levels can be measured at any point on the trace in conjunction with the Horizontal Time/div setting.

The horizontal setting defines the scale and position of the time axis of the display. Unit Unit selects whether the horizontal scale is represented in seconds (s), milliseconds (ms) or microseconds (ls). Time/Div

The horizontal scale selects the amount of time represented by each division (Time/Div) on the plot's horizontal axis.

The vertical scale selects the number of units of measurements per division on the plot's vertical axis.

When Audio In is selected as the input port, the unit of measurement is Volts or milliVolts.

When Demod is selected as the input port, the units will be as follows based on the RF Received Demodulation Type:

+ FMor Digital: Hz + AM: % (percent)

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002 5-49

The Spectrum Analyzer measures various performance characteristics of an applied (incoming) signal across the full frequency range of the CX100. The Spectrum Analyzer can be used to evaluate performance parameters such as power, harmonics, sidebands

and phase noise of a DUT. The Spectrum Analyzer is typically used to measure parameters of known signals, as well as locate the power and frequency of unknown signals.

5.3.2 Spectrum Analyzer Screen Layout

The Spectrum Analyzer screen consists of the following areas or groups of controls and

settings: a = O À Spectrum Analyzer _f@-— Plot Field Marker Controls — and Data Mme Cu ET A AU F1] =is—— Trace Legend X] AA EN = 9 Soft-key Panel Den ee Arme mue Figure 5-12 Spectrum Analyzer Screen Layout Plot Field

The plot field displays a visual representation of the received signal. Controls and settings are available that allow the user to adjust settings such as plot scale, modes of operation and the types of traces being displayed on the plot.

See section 5.3.2.3, on page 5-52 and section 5.3.2.4, on page 5-54 for a description of the controls and settings that are supported on the Spectrum

22144015 August 2023

Chapter 5 RF Instrument Function Descriptions Spel r

Marker Controls and Data Fields

The Spectrum Analyzer contains a variety of marker functions, controls and settings that allow the user to create custom test scenarios. Spectrum Analyzer markers operate in the same manner as the RF Analyzer markers. See section 5.2.9.5, “RF Analyzer Marker Controls”, on page 5-39 for information about marker controls, navigation and configuration.

The trace legend indicates the trace types that are currently active, and the color of the line used to represent each trace type. The types of traces that are displayed on the plot field are selected using the Active Trace button located in the Display

The soft-key panel contains controls and settings that are used to configure the RF Analyzer. See section 5.3.2.2, on page 5-51 for a description of RF Analyzer

Spectrum Analyzer Markers

Spectrum Analyzer markers operate in the same manner as the RF Analyzer markers. See section See section 5.2.9.5, “RF Analyzer Marker Controls”, on page 5-39 for information about marker controls, navigation and configuration.

Spectrum Analyzer Soft-key Panel

The Spectrum Analyzer soft-key panel contains the following controls:

Table 5-26 Spectrum Analyzer Soft-keys

Soft-key Description Display Settings The Display Settings soft-key opens a menu that contains Soft-key controls and settings that affect display layout and manages how traces are displayed on plot fields. See section 5.3.2.3, “Spectrum Analyzer Display Settings”, on page 5-52 for a description of these settings. Instrument The Instrument Settings menu accesses the controls and Settings Soft-key settings that define how the Spectrum Analyzer receives and

processes an incoming signal.

See section 5.3.2.4, “Spectrum Analyzer Instrument Settings”, on page 5-54 for a description of these settings.

CX100 ComXpert Operation Manual Rev 002 5-51

Chapter 5 RF Instrument Function Descriptions Spectrum Analyzer

Table 5-26 Spectrum Analyzer Soft-keys (Continued)

Soft-key Description Normalize The Normalize soft-key opens a settings window that contains Soft-key controls and settings which are used to zero out the Spectrum

Analyzer signal path, removing any residual power from the RF path which eliminates the system's frequency response error. Spot Frequency The Spot Frequency field defines the frequency to be zeroed out. Pressing the Run Normalize soft-key initiates the process.

An attention indicator is displayed on the Normalize soft-key

À, ormaïize when the system detects residual power on the signal path. When this condition occurs, Normalize should be performed to ensure accurate measurements.

Pause/Resume When the Spectrum Analyzer is displayed on the UI, the signal Soft-key trace is active by default. Pressing the Pause soft-key stops data updates to the Ul and the soft-key updates to the Resume soft-key.

Pressing the Resume soft-key displays live trace data.

5.3.2.3 Spectrum Analyzer Display Settings

The Display Settings soft-key opens a menu that contains controls and settings that affect display layout and manages how traces are displayed on plot fields.

Table 5-27 Spectrum Analyzer Display Settings

Control/Setting Description

Rotate Screen The Rotate Screen soft-key switches the Ul between Portrait or Landscape orientation. Changes orientation of plot field on the device (updates remote session when using VNC application to view the Ul).

Orientation is not stored as part of Save Trace settings.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-52 August 2023

Chapter 5 RF Instrument Function Descriptions Spel nalyzer

Table 5-27 Spectrum Analyzer Display Settings (Continued)

The Active Trace button opens a window that selects the type of trace(s) to be displayed on the plot field. Multiple traces can be selected at any given time on each plot.

+ Max: displays highest amplitude received + Min: displays lowest amplitude received + __ Live: displays live signal trace

+ __ Average: displays an averaged signal trace; average is defined by value defined in the Average field.

The UI contains a trace legend which shows the trace types that are currently being displayed on the plot field and the color used to represent the signal on the plot field.

The Average field is enabled when Average is selected as the active trace. The Average field defines the number of traces to be used to calculate an average signal trace.

When the Capture Trace button is pressed, a trace is “held” on the display. When more than one trace is active on a plot, only one of the active traces will be captured. When multiple trace types are enabled, traces are captured in the following priority:

For example, if Average and Live traces are enabled, the Average trace is captured. 1f Max and Average traces are enabled, the Max trace is captured.

When the Capture Trace button is pressed, the Clear Trace

button is enabled which is used to remove a captured trace from the plot field.

The Clear Trace button is active when a the Captured Trace button has been pressed and a trace is captured on the plot field. Pressing the Clear Trace button removes the captured trace from the plot field.

The Save Trace button displays a window that is used to enter a name for saving a file. The file will be saved to the location defined in System Settings. See section 4.2.7, “Specifying File Save Location”, on page 4-8.

The Save Trace function saves x,y data in .csv file format.

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002 5-53

Chapter 5 RF Instrument Function Descriptions Spectrum Analyzer

Table 5-27 Spectrum Analyzer Display Settings (Continued)

Control/Setting Description

Recall Trace The Recall Trace button displays a file selection box which Button allows user to recall a stored trace. The stored trace file can be recalled from the device or from a USB device.

5.3.2.4 Spectrum Analyzer Instrument Settings

The Instrument Settings menu accesses the controls and settings that define how the Spectrum Analyzer receives and processes an incoming signal.

Table 5-28 Spectrum Analyzer Instrument Settings

Control/Setting‘ Description

Port The Spectrum Analyzer Port menu selects the input connector for analyzing incoming signals.

ANT/SWR ANT/SWR should be selected to perform over the air testing using an external antenna or when test parameters require maximum input sensitivity. The ANT/SWR connector should be used when analyzing low level RF signals.

DUPLEX DUPLEX should be used when analyzing high power RF signals. The DUPLEX connector is a combined (Duplexed) connector that provides an RF Gen output connection and an RF Receiver input connection.

Resolution Bandwidth (RBW)

RBW filters are the bandpass filters in the IF path that determine the RF Noise floor and how close two signals can be and still be viewed separately on the analyzer.

A narrower RBW setting more clearly displays close signals as separate signals; a narrower bandwidth setting results in a longer sweep time.

An RBW setting that is too wide causes signals that are close together to appear as one signal.

Auto: system sets RBW to a filter appropriate to the characteristics identified in the received signal

Manual: allows the user to manually define the RBW.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-54 August 2023

Chapter 5 RF Instrument Function Descriptions Spel nalyzer

Table 5-28 Spectrum Analyzer Instrument Settings (Continued)

Control/Setting‘ Description

Video Bandwidth (VBW)

The Analyzer includes a low pass filter, called the video filter, in the signal path following the detector. The video filter reduces high frequency noise on the detected signal and allows low level signals to be identified which would otherwise be buried in the noise.

The bandwidth of the video filter is called the video bandwidth, or VBW. The VBW defines the high frequency cutoff point of the filter. Any frequencies that are above the VBW value are clipped.

VBW helps improve resolution of weak signals in the presence of the noise signal. The narrower the VBW, the less noise there is in the output signal; however, the narrower the bandwidth, the longer the sweep time.

Reference Level The Reference Level field defines the top value on the plot field’s vertical scale. Reference Level can be set to any value Within the specified range, but should be set to a value above the expected power level of the incoming signal in order to view the full signal waveform.

Frequency Mode Frequency Mode selects the method used to define the span of the analyzer plot field. Parameters update according to the type of mode selected.

Full Span Frequency mode

When Full Span is selected, the span defaults to the instrument's full frequency range. The Ul updates to display the Start and Stop frequencies as read-only data fields.

Center/Span Frequency Mode

Center/Span Frequency mode of operation specifies the center frequency value as well as the frequency span setting.

When Center/Span is selected, the Ul displays a Center Frequency and Span setting. Center/Span Mode uses the sweep Center Frequency value and span setting to define the frequency span.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-55

Chapter 5 RF Instrument Function Descriptions Spectrum Analyzer

Table 5-28 Spectrum Analyzer Instrument Settings (Continued)

Frequency Mode (cont)

Start/Stop Frequency Mode

Start-Stop Frequency mode of operation defines the sweep start and sweep end frequencies of the swept measurement range.

When Start/Stop is selected, the Ul displays a Start Frequency and Stop Frequency fields. The start and stop frequencies define the frequency span.

Zero Span Frequency Mode

In Zero Span Mode the Channel Analyzer does not perform a frequency sweep: it detects the power level at the set frequency. The trace shows detected power against time. When operating in Zero-Span Mode, marker position is specified in time.

Amplitude Amplitude settings affect how the plot field’s vertical scaling and Settings how the signal appears when displayed on the plot field. Scale

The Spectrum Analyzer uses logarithmic scaling to display the signal amplitude on the analyzer vertical axis. Differences in signal amplitudes are compressed because low amplitude signals are amplified and high amplitude are compressed. This allows signal with widely varying amplitudes to be displayed on the same plot. Log scale is used to view both low amplitude and high amplitude frequencies with same clarity.

Selects the dB division between the vertical scaling on the plot field.

Detector Type The Spectrum Analyzer uses detectors in order to accurately map the correct signal power to the correct frequency point on the display. The Detector Type selects the type of math that is used to identify specific information in a received signal.

The CX100 Spectrum Analyzer provides the following detector selections:

When Peak is selected, the Spectrum Analyzer displays the maximum value of data sampled within the corresponding time interval for each trace point. Peak would typically be used to measure the peak power of a signal.

Table 5-28 Spectrum Analyzer Instrument Settings (Continued)

When Negative Peak is selected, the Spectrum Analyzer displays the minimum value of data sampled within the corresponding time interval for each trace point. Negative Peak could be used to help identify CW and pulsed signals by comparing positive and negative peak values.

For the Normal detector, if a continuously rising or falling value is detected, the most positive value is returned, otherwise the bucket processor alternates between most positive and most negative peak.

When Sample is selected, the Spectrum Analyzer displays the power level corresponding to the data point of the corresponding time interval. À sample detector provides a sample for each trace point on the plot field; each trace point represents a single sample evenly spaced across the Span of the frequency domain.

A sample detector is effective for measuring noise-like signals or low power continuous wave (CW) signals that are near the Analyzer’s noise floor.

A sample detector can show an inaccurate reading for the amplitude of a CW > signal if the RBW is set too narrow (reading will be too low).

NOTE RMS When RMS is selected, the Spectrum Analyzer displays the average power measurement calculated over the specified number of trace points.

RMS detector would typically be used when performing EMI testing.

The number of trace points is defined by the Number Points field in the Sweep controls and settings (see below).

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002

Chapter 5 RF Instrument Function Descriptions

Table 5-28 Spectrum Analyzer Instrument Settings (Continued)

Sweep time defines how quickly trace data is acquired and updated to the display. This setting must be fast enough to provide quick measurement results, but slow enough to allow the power values at each point to be measured.

This field defines the number of data points that the Spectrum Analyzer gathers during a single measurement sweep. À higher setting results in more accurate measurement, however, a higher number of data points may result in longer acquisition time.

When set to Auto, the instrument optimizes the Sweep Time based on the characteristics of the incoming signal.

When set to Manual, a sweep time setting can be entered using the Sweep Time field.

This field is enabled when Sweep Type is set to Manual. The setting allows the user to manually define the sweep time setting.

When Sweep Type is set to Auto: the field displays the system defined sweep time setting.

This toggle switch selects whether the analyzer performs signal sweeps continuously, or if the analyzer performs a single sweep before being switched off.

In Single sweep mode, the measurement is stopped after a single signal sweep.

In Continuous mode, the analyzer measures continuously, repeating the signal sweep as long as the analyzer is ON.

CX100 ComXpert Operation Manual 22144015

Chapter 5 RF Instrument Function Descriptions VSWR/DTF

The VSWR/DTF test function supports Voltage Standing Wave Ratio (VSWR), Return Loss and Distance to Fault (DTF) measurements, providing the tools necessary to analyze, troubleshoot and characterize cable and antenna systems.

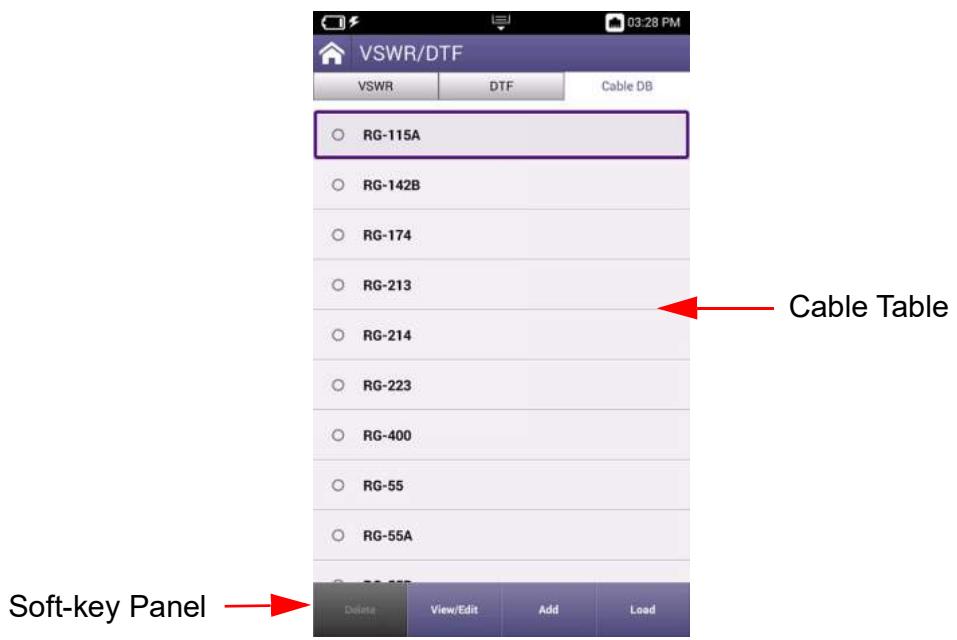

A cable database is provided for DTF testing. The cable database contains a list of standardized cables for quick test setup and also allows the user to add cables for customer test requirements.

5.4.2 VSWRIDTF Screen Layout and Behavior

The VSWR/DTF screen uses a tabbed layout which allows for quick selection between available functions. Test function screens are displayed by selecting the tab at the top of the screen, or by swiping the screen left or right. Screen layout contents are described under each test function.

5.4.3 VSWR Test Function

The VSWR test function provides users with the ability to select VSWR or Return Loss modes for calculating reflection (see “Measurement Mode” on page 5-63).

VSWR Voltage Standing Wave Ratio (VSWR) is a measurement that represents how well an antenna’s impedance is matched to the radio or transmission line to which it is connected.

The smaller the VSWR measurement, the better the antenna and transmission line match, and therefore less loss and better signal strength on the transmission line. The minimum VSWR is 1.0, which means no power is being reflected.

Return loss (RL) is the ratio of the reflected signal to the transmitted signal. A low return loss indicates less signal reflection and better signal strength. A high return loss indicates more signal reflection and less signal strength, indicating an issue along the transmission line.

When Return Loss is selected measurements are displayed in dB.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-59

Chapter 5 RF Instrument Function Descriptions VSWR/DTF

5.4.3. VSWR Screen Layout

The VSWR screen consists of the following areas or groups of controls and settings:

/DTF Function Tabs ox | cavtepe ns | | | Plot Field

Figure 5-13 VSWR Screen Components

The tabs at the top of the screen select the measurement mode or access the cable database controls and settings.

The plot field displays a visual representation of the received signal. Controls and settings are available that allow the user to adjust settings such as plot scale and modes of operation.

See section 5.4.3.3, on page 5-62 and section 5.4.8.4, on page 5-63 for a description of the controls and settings that are supported for VSWR tests.

The soft-key panel contains controls and settings that are used to configure VSWR measurements. See section 5.4.3.2, on page 5-61 for a description of VSWR soft-keys.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-60 August 2023

Chapter 5 RF Instrument Function Descriptions VSWR/DTF

5.4.3.2 VSWR Soft-key Panel

The VSWR soft-key panel contains the following controls:

Table 5-29 VSWR Soft-keys

Soft-key Description

Display Settings The Display Settings soft-key opens a menu that contains Soft-key controls and settings that affect display layout and manages how traces are displayed on plot fields. See section 5.4.3.3, “VSWR Display Settings”, on page 5-62 for a description of these settings.

Instrument The Instrument Settings menu accesses the controls and Settings Soft-key settings that define how VSWR measurements are performed.

See section 5.4.3.4, “VSWR Instrument Settings”, on page 5-63 for a description of these settings.

Calibrate Pressing the Calibrate soft-key opens a window that contains Soft-key radio buttons that select the following:

Internal Calibration

The internal calibration procedure is an automated procedure that utilizes the devices internal Short/Open/Load (SOL).

External Calibration

The external calibration procedure requires use of external equipment and connections. External procedure is a manual procedure that requires the user to configure hardware connections at various stages in the procedure. On-screen instructions are provided at various stages of the calibration procedure which guide the user through the procedure.

An attention symbol is displayed on the Calibrate soft-key

A su | when calibration needs to be performed. When this condition occurs, calibration should be performed to ensure accurate measurements.

Pause/Resume Pressing the Pause soft-key temporarily halts data updates to

Soft-key the UI. When this occurs the soft-key updates to the Resume soft-key. Pressing the Resume soft-key restarts the VSWR measurement.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-61

Chapter 5 RF Instrument Function Descriptions

5.4.3.3 VSWR Display Settings

The Display Settings soft-key opens a menu that contains controls and settings that affect display layout and manages how traces are displayed on plot fields.

The Rotate Screen soft-key switches the Ul between Portrait or Landscape orientation.

Changes orientation of plot field on the device (updates remote session when using VNC application to view the Ul). Orientation is not stored as part of Save Trace settings.

The Active Trace button opens a window that selects the type

of trace(s) to be displayed on the plot field. Multiple traces can be selected at any given time on each plot.

+ Max: displays highest signal received

+ Min: displays lowest signal received

+ ___ Live: displays live signal trace

+ __ Average: displays an averaged signal trace; average is

defined by the value in the Average field.

The Average field is enabled when Average is selected as the active trace. The Average field defines the number of traces to be used to calculate an average signal trace.

When the Capture Trace button is pressed, a trace is “held” on the display. When more than one trace is active on a plot, only one of the active traces will be captured. When multiple trace types are enabled, traces are captured in the following priority:

+. MAX Priority 1 +. MIN Priority 2 + __ Average Priority 3 + Live Priority 4

For example, if Average and Live traces are enabled, the Average Trace is captured. If Max and Average traces are enabled, the Max trace is captured.

When the Capture Trace button is pressed, the Clear Trace button is enabled which is used to remove a captured trace from the plot field.

The Clear Trace button is active when a the Captured Trace button has been pressed and a trace is captured on the plot field. Pressing the Clear Trace button removes the captured trace from the plot field.

CX100 ComXpert Operation Manual 22144015

Chapter 5 RF Instrument Function Descriptions

VSWR/DTF Table 5-30 VSWR Display Settings (Continued)

The Save Trace button displays a window that is used to enter a name for saving a file. The file will be saved to the location defined in System Settings. See section 4.2.7, “Specifying File Save Location”, on page 4-8.

The Save Trace function saves x,y data in .csv file format. The Recall Trace button displays a file selection box which

allows user to recall a stored trace. The stored trace file can be recalled from the device or from a USB device.

5.4.3.4 VSWR Instrument Settings

The Instrument Settings menu accesses the controls and settings that define how VSWR measurements are performed.

Measurement Mode allows the user to perform either VSWR or Return Loss (RL) measurements.

The start and stop frequencies define the span of the plot field. Parameters update according to the type of mode selected. Start Frequency

Defines the lower end of the measurement range. Stop Frequency

Defines the upper end of the measurement range.

Defines the number of data points acquired to perform the measurement.

The Vertical Scale button opens a settings window that allows the user to manually define the vertical scale of the plot field or to use autoscale to allow the system to define the vertical scale according to detected signal characteristics. Autoscale Autoscale sets the top and bottom scale to values appropriate for the detected signal characteristics.

Top of Scale manually defines the upper value of the plot fields vertical scale.

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002 5-63

Chapter 5 RF Instrument Function Descriptions

VSWR/DTF Table 5-31 VSWR Instrument Settings (Continued)

Control/Setting Description

This field is used to manually defines the lower value of the plot fields vertical scale.

5.4.4 DTF Test Function Distance to Fault (DTF) is an analysis that is used to identity signal path degradation in

cables and transmission lines that may be a result of conditions such as poor connections, damaged cables, or faulty antennas.

5.4.4. DTF Tab Layout

The DTF Tab consists of the following areas or groups of controls and settings:

Cable File —Bæ>-cuerns

| 1 Lt Plot Field Marker Controls js Ÿ y

The field located above the plot identifies the cable file being used for performing the DTF test. This is a read only field that displays the name of the cable file that is selected on the Cable DB tab (see section 5.4.5, on page 5-68).

Rev 002 CX100 ComXpert Operation Manual 22144015 5-64 August 2023

Chapter 5 RF Instrument Function Descriptions

The plot field displays a visual representation of the measurement. Controls and settings are available that allow the user to adjust settings such as plot scale and the types of traces being displayed on the plot.

See section 5.4.3.3, on page 5-62 and section 5.4.8.4, on page 5-63 for a description of the controls and settings that are supported for DTF measurements.

Marker Controls and Data Fields

The plot field supports a variety of marker functions, controls and settings that allow the user to create custom test scenarios. DTF markers operate in the same manner as the RF Analyzer markers. See section 5.2.9.5, “RF Analyzer Marker Controls”, on page 5-39 for information about marker controls, navigation and configuration.

The trace legend indicates the trace types that are currently active, and the color of the line used to represent each trace type. The types of traces that are displayed on the plot field are selected using the Active Trace button located in the Display Settings Menu.

Soft-key Panel The soft-key panel contains controls and settings that are used to configure DTF Measurements. See section 5.4.4.2, on page 5-65 for a description of soft-keys that are supported for DTF measurements.

5.4.4.2 DTF Soft-key Panel

The DTF soft-key panel contains the following controls:

Table 5-32 DTF Soft-keys

Soft-keys Description

Display Settings The Display Settings soft-key opens a menu that contains Soft-key controls and settings that affect display layout and manages how traces are displayed on plot fields. DTF test function uses the same display settings that are supported in VSWR test. See section 5.4.3.3, “VSWR Display Settings”, on page 5-62 for information about Display Settings.

Instrument The Instrument Settings menu accesses the controls and Settings Soft-key settings that define how DTF measurements are performed.

See section 5.4.4.3, “DTF Instrument Settings”, on page 5-66 for a description of these settings.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-65

Chapter 5 RF Instrument Function Descriptions

VSWR/DTF Table 5-32 DTF Soft-keys (Continued)

Soft-keys Description Calibrate Calibration should be performed to ensure the accuracy of DTF Soft-key measurements. An attention symbol is displayed on the Calibrate soft-key when the specified frequency values are outside of the calibrated frequency range and therefore a calibration needs to

Pressing the Calibrate soft-key opens a window that contains radio buttons that select the following:

Internal Calibration

The internal calibration procedure is an automated procedure that utilizes the devices internal Short/Open/Load (SOL).

External Calibration

The external calibration procedure requires use of external equipment and connections. External procedure is a manual procedure that requires the user to configure hardware connections at various stages in the procedure. On-screen instructions are provided at various stages of the calibration procedure which guide the user through the procedure.

Pause/Resume Pressing the Pause soft-key temporarily halts data updates to

Soft-key the UI. When this occurs the soft-key updates to the Resume soft-key. Pressing the Resume soft-key restarts the VSWR measurement.

5.4.4.3 DTF Instrument Settings

The Instrument Settings menu accesses the controls and settings that define how distance to fault measurements are performed.

Table 5-33 DTF Instrument Settings

Control/Setting Description

Horizontal Range The horizontal range allows the user to specify the distance unit to use in the measurement. The selection is displayed on horizontal axis.

Distance Distance settings define the parameters used to evaluate the Settings transmission line. Start

The Start field defines the beginning point along the length of the cable which is the lower value of the measurement range.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-66 August 2023

22144015 August 2023

Chapter 5 RF Instrument Function Descriptions

VSWR/DTF Table 5-33 DTF Instrument Settings (Continued)

Control/Setting Description

Distance Settings (cont)

The Stop field defines the end point along the length of the cable which is the upper value of the measurement range.

This Step field specifies the number of points for the measurement.

This menu selects the IF bandwidth used for collecting raw data.

Auto Alias Free Range Alias free distance span is used to prevent aliasing (false signals) that can occur when a fault is outside of the desired span. À larger alias free span makes it less likely for a false signal to occur, but may make the measurement take longer. When Auto Alias Free Range is selected (auto mode), the Stop Setting is multiplied by 2 to calculate the free distance span. When Auto Alias Free Range is not selected (manual mode), DTF measurements use the value in the Alias Free Span field.

Alias Free Span This field is enabled when Auto Alias Free Range is not

selected (manual mode). This field defines the Alias Free Span setting when Auto Alias Free Range is off.

Vertical Scale The Vertical Scale button opens a settings window that allows the user to manually define the vertical scale of the plot field or to use autoscale to allow the system to define the vertical scale according to detected signal characteristics.

Autoscale Autoscale sets the top and bottom scale to values appropriate for the detected signal characteristics.

Top of Scale manually defines the upper value of the plot fields vertical scale.

CX100 ComXpert Operation Manual Rev 002 5-67

Chapter 5 RF Instrument Function Descriptions

VSWR/DTF Table 5-33 DTF Instrument Settings (Continued)

Control/Setting Description

This field is used to manually defines the lower value of the plot fields vertical scale.

5.4.5 Cable Database (DB)

The Cable Database (DB) contains pre-defined cable files that allow the user to quickly select a cable to be used for performing DTF measurements. Users can also create new cable files to meet specific test scenarios and requirements.

5.4.5.1 Cable DB Tab Layout

The Cable DB tab consists of the following main screen components:

The cable table lists the cable configurations that are available for performing distance to fault (DTF) measurements. The table contains pre-defined cable setup files; controls and settings are provided to allow the user to configure custom cables.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-68 August 2023

Chapter 5 RF Instrument Function Descriptions

VSWR/DTF Soft-key Panel The soft-key panel contains controls that are used to manage and configure the cable database. See section 5.4.5.2, on page 5-69 for a description of the soft-keys supported in the Cable Database. 5.4.5.2 Cable DB Soft-key Panel

The Cable Database soft-key panel contains the following soft-keys:

Table 5-34 Cable DB Soft-keys

Soft-key Description

Delete Soft-key Pressing this soft-key deletes the selected cable configuration file. À confirmation dialog box will be generated which requires the user to confirm the deletion.

View/Edit Pressing this soft-key opens a window that displays the Soft-key characteristics of the selected cable configuration file.

When a user-created cable file is opened, the user can edit information as desired.

Pre-configured cable files cannot be edited.

Add Soft-key Pressing this soft-key opens a window that allows the user to create a custom cable configuration file.

Load Soft-key Pressing this soft-key loads the selected cable file.

5.4.5.3 Cable DB Controls and Settings

The following controls and settings are used to manage the cables saved in the cable database:

Table 5-35 Cable DB Controls and Settings

Control/Setting Description

Cable Radio The radio button located to the left of each cable name selects

Buttons the cable for editing, loading, viewing or deletion. Only one cable can be selected at any given time.

Cable Name This field indicates the name of the cable. When editing or adding a cable, the field accepts up to 50 alphanumeric characters.

Velocity This field is the speed (velocity of propagation) at which an

electrical signal is expected to travels through a cable (in comparison to the speed of light). Velocity of propagation is calculated as a percent (%); Velocity (factor) is displayed as a decimal value.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-69

Chapter 5 RF Instrument Function Descriptions

VSWR/DTF Table 5-35 Cable DB Controls and Settings (Continued)

Control/Setting Description

Loss This field defines the power that a cable is expected to lose per every 100 feet traveled.

5.4.5.4 Managing Cable Database

This section provides instructions for viewing, adding, deleting, and modifying the cables information stored in the cable database.

NOTE See Appendix C “DTF Cable DB - Cable Values” for Pre-defined cable parameters. Pre-defined cables cannot be edited or deleted.

5.4.54.1 Viewing Cable Information To View Cable Data 1. Select the cable (radio button). 2. Press the View/Edit soft-key.

Awindow is displayed the shows cable data.

To Edit a User-created Cable File 1. Select the cable (radio button). 2. Press the View/Edit soft-key.

3. Make desired changes.

5.4.54.3 Creating New Cable

To Create a Cable File

1. Press the Add soft-key.

2. Enter a name in the data entry field.

3. Enter the velocity of the cable that is to be tested. 4. Enter the expected loss factor. 5.

Press the Save button to save the file.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-70 August 2023

Chapter 5 RF Instrument Function Descriptions Autotest Function

5.4.54.4 Deleting a Cable

To Delete a User-created Cable File 1. Select the cable (radio button).

2. Press the Delete soft-key.

3. At prompt, confirm deletion.

5.5 Autotest Function

The Autotest function supports radio specific automated test scripts. The Autotest function also provides the interface to load and run the CX100's Automated Self Test procedure.

5.5.1 Autotest Screen Layout

The Autotest screen consists of the following areas:

Figure 5-16 AutoTest Screen Layout and Functions

User Information Fields which identify the user and test information. Test Table

The test table lists the test script information and provides controls and indicators for test selection and test status.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-71

Chapter 5 RF Instrument Function Descriptions Autotest

The soft-key panel contains controls that are used to perform different functions Within AutoTest. See section 5.4.5.2, on page 5-69 for a description of the soft-keys that are supported in Autotest.

5.5.2 Autotest Soft-key Panel

The Autotest soft-key panel contains the following soft-keys:

Table 5-36 Autotest Soft-keys

Soft-key Description

Run Selected When the Run Selected Tests soft-key is pressed, the

Soft-key selected tests are performed.

Select AIl/ When the Select All soft-key is pressed, all tests in the table

Unselect AIl Will be selected. When the Unselect All soft-key is pressed, all tests in the table will be unselected.

Pause Test When the Pause Test soft-key is pressed, the test sequence

Soft-key stops at the end of the test that is currently in progress.

Resume Soft-key Pressing the Resume soft-key starts the test sequence from the point at which the test was paused.

Abort Soft-key Pressing the Abort soft-key displays a user prompt which requires the user to confirm the request to stop the test. When the test is aborted, all data is lost and not retrievable.

Test Results When the Test Results soft-key is pressed, the screen

Soft-key updates to display a scrollable screen with test data. Test results cannot be viewed while a test is in progress; tests must be paused or completed before the soft-key is enabled.

Save Results When the Save Results soft-key is pressed, test results are Soft-key automatically saved in XML format. Test results are also saved in formats that are selected using the Report Formats soft-key

Report Formats Pressing the Report Formats soft-key displays a list of file formats that the user can select and save the test results as.

The supported report formats are: PDF, HTML, JSON, and TXT.

Open Reports Pressing the Open Reports soft-key displays a list of test results from previously run tests. The user can select a file to view. When a file is opened for viewing, other functions are available such as saving the file in a different file format or deleting the test result.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-72 August 2023

Chapter 5 RF Instrument Function Descriptions Autotest Function

Table 5-36 Autotest Soft-keys (Continued)

Delete Results Soft-key

SCA Settings Soft-key

Pressing Delete Results soft-key display a user prompt which requires user to confirm request to delete the results. Deleted results cannot be recovered.

The SCA Settings soft-key accesses controls and parameters that are used to configure the CX100 for operating in an SCA environment. See section 5.6.2, on page 5-75 for information.

5.5.3 Autotest Controls and Settings

5.5.4 Automated Self Test

22144015 August 2023

The following controls and settings are used to control Autotest operation and manage and

review test results:

Table 5-37 Autotest Controls and Settings

The tick boxes are used to select specific tests to be run; pressing the Select All soft-key enables all tick boxes.

The test table lists separate test sequences which may be included in the loaded script/file.

Indicator to the right of the test table color coded as follows to indicate individual test status:

+ ___ Grey: when test is not selected to be included in the test run

+ ___ Light blue: indicates test has been selected and has not yet been completed.

+ __ Green: indicates completed test has passed test criteria . Red: indicates completed test has failed test criteria

The CX100 contains an automated built in test (BIT) called the Self Test. The Self Test procedure evaluates the general functionality of the test set's generate and receive functions, instruments, and switches, to ensure the device is operating properly.

See section 6.1, “CX100 Self Test Procedure”, on page 6-2 for instructions to run the

NOTE Self Test does not verify that the device is operating to performance specifications.

CX100 ComXpert Operation Manual Rev 002 5-73

Chapter 5 RF Instrument Function Descriptions AU

5.5.4.1 Self Test Descriptions

5.5.4.1.1 RF Loop-back Test

The RF Loop-back test performs a series of RF Frequency Error and RF Power measurements at various frequencies to determine if the RF Generator and RF Receiver are functioning properly.

5.5.4.1.2 Analog Modulation/Demodulation Test

The Analog Modulation/Demodulation test uses the CX100 internal modulation generators and RF Receiver to determine if the modulation generators and demodulation meters are functioning properly.

5.5.4.1.3 Audio Loop-back Test

The Audio Loop-back test compares CX100 audio measurements with the CX100's AF Generator settings to determine if the AF Generators and audio meters are functioning properly.

NOTE This test requires an external loop-back connection between the Audio Out and Audio In connector.

5.5.4.1.4 RF Analyzer Test

The RF Analyzer test uses the CX100 RF Generator and RF Receiver to evaluate the RF Analyzer's trace data to determine if the RF Analyzer is functioning properly.

5.5.4.1.5 Digital Modulation/Demodulation Test

The Digital Modulation/Demodulation test uses the CX100 RF Generator and Modulation Generator to play a sample .aiq waveform file of known parameters to determine if digital playback and digital meters are functioning properly.

5.5.4.1.6 Spectrum Analyzer Test

The Spectrum Analyzer test uses the CX100 RF Generator and RF Receiver to evaluate Spectrum Analyzer trace data to ensure the Spectrum Analyzer is functioning properly.

5.5.4.1.7 VSWRIDTF Test

Rev 002 CX100 ComXpert Operation Manual 22144015 5-74 August 2023

Chapter 5 RF Instrument Function Descriptions SCA Capability

The CX100 hosts a Software Communication Architecture (SCA) Core Framework that implements the latest SCA version 4.1 full profile and supports backwards compatibility profile for SCA version 2.2.2. The CX100 offers a version of the Autotest function that has been implemented as a SCA application.

To Launch SCA Autotest 1. Open the AutoTest application.

2. Select SCA Self Test from the Model List menu.

3. The SCA application implements the standard test table interface. From this interface itis possible to use an SCA compliant runtime tool like eCo Inspector to launch the different self tests and obtain results.

5.6.2 SCA Controls and Settings

The SCAAutotest function uses the same controls and settings use in the CX100 AutoTest function.

Control/Setting Description

SCA Settings The SCA Settings soft-key opens a settings window that

soft-key displays the IP address being used by the SCA Core Framework. The IP address is required for connecting an SCA compliant runtime tool like eCo Inspector to launch the different self tests and obtain results.

Domain Manager This field defines the IP Address of the CX100 port to which the IP Address SCA Core Framework is connected.

5.6.2.1 Establish SCA Connection

The following procedure is used to connect the CX100 to an external computer in order to run SCA test scripts on the device.

To Establish an SCA connection 1. Connect the CX100 to the computer on which the SCA tools have been installed.

2. Identify the CX100 port IP address. 3. Press the SCA Settings soft-key. 4. Enter the IP address of the CX100 port.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 5-75

Chapter 5 RF Instrument Function Descriptions Settings

The RF Instrument Settings button accesses device test and measurement settings. These controls and settings are applicable to all RF Instrument test and measurement functions.

5.7.1 Frequency Reference

The 10 MHz Reference Clock button accesses the controls for configuring the internal/external frequency reference. The CX100 can be configured to use the device's internal frequency reference or an external frequency reference as a timing reference.

Table 5-38 Frequency Reference Controls/Settings

Control/Setting Description

Internal Uses the device’s internal frequency reference as a timing source.

Internal w/Ref Out Routes the device’s internal frequency reference to the

Reference Out connector. External Reference Selects an external reference as timing source.

A valid 10 MHz external reference must be connected to the CX100 10 MHz > Frequency Reference 1/0 connector to use the External option.

Rev 002 CX100 ComXpert Operation Manual 22144015 5-76 August 2023

Performing Tests and Measurements

This chapter provides step by step instructions for configuring the CX100 to perform the

following tests: + CX100 Self Test Procedure

+ __ FM Transmitter Testing

+ AM Transmitter Testing + FM Receiver Performance Tests + __ AM Receiver Tests

+ __ Performing VSWR/DTF Testing.

+ Performing Distance to Fault (DTF) Tests

This chapter does not provide instructions for navigating or accessing functions, nor does it contain detailed information about test and measurement functions and settings. Refer

to the following chapters for applicable information:

See Chapter 3 “System and Utility Function Descriptions” for detailed descriptions of the

system utility panels and parameters.

See Chapter 4 “Configuring System Settings” for procedures to configure system settings.

See Chapter 5 “RF Instrument Function Descriptions” for detailed descriptions of the RF

test and measurements panels and parameters.

22144015 CX100 ComXpert Operation Manual August 2023

Chapter 6 Performing Tests and Measurements CX100 Self Test Procedure

6.1 CX100 Self Test Procedure

6.1.1 Scope of Test The following procedure runs the CX100 automated self-test procedure.

NOTE Self Test is intended to verify the device is operating properly; Self Test does not verify that the device is operating to performance specifications.

6.1.2 Equipment Needed

An external audio cable is required for the audio loopback test.

6.1.3 Running Self-test

To Run the Self Test Procedure

Expand RF Instrument tab on the CX100.

Press the AutoTest button to open the AutoTest application. Select Self Test from the test list.

Press the Select AI soft-key.

Press the Run Selected soft-key.

Wait while the device performs a series of automated test process. Do not interrupt this process or the self test will fail.

8. Status indicators show when self test is finished.

Rev 002 CX100 ComXpert Operation Manual 22144015 6-2 August 2023

Chapter 6 Performing Tests and Measurements

6.2 FM Transmitter Testing

FM Transmitter Testing

This test is used to evaluate the following performance characteristics of an FM Transmitter:

Transmitter Frequency Transmitter Distortion

Voice Modulation Level Squelch Tone Frequency Squelch Tone Modulation Level

6.2.2 UUT Parameters/Characteristics

22144015 August 2023

The example in this section assumes the following UUT characteristics and settings; adjust settings according to the operational capabilities of the UUT.

Table 6-1 FM Transmitter Test - UUT Settings

Transmit Modulation FM Maximum Deviation 2.5 kHz Maximum Modulation Frequency 3 kHz

Chapter 6 Performing Tests and Measurements FM Transmitter Testing

6.2.3 Equipment Needed

The following equipment is required to perform the test procedures defined in this section: + CX100 ComXpert

+ Audio cable and MIC/Audio Adapter combination capable of interfacing an audio signal from the CX100 audio output to the transmitter modulation input (typically the microphone input on the transmitter).

+ ___RF Coaxial Cable

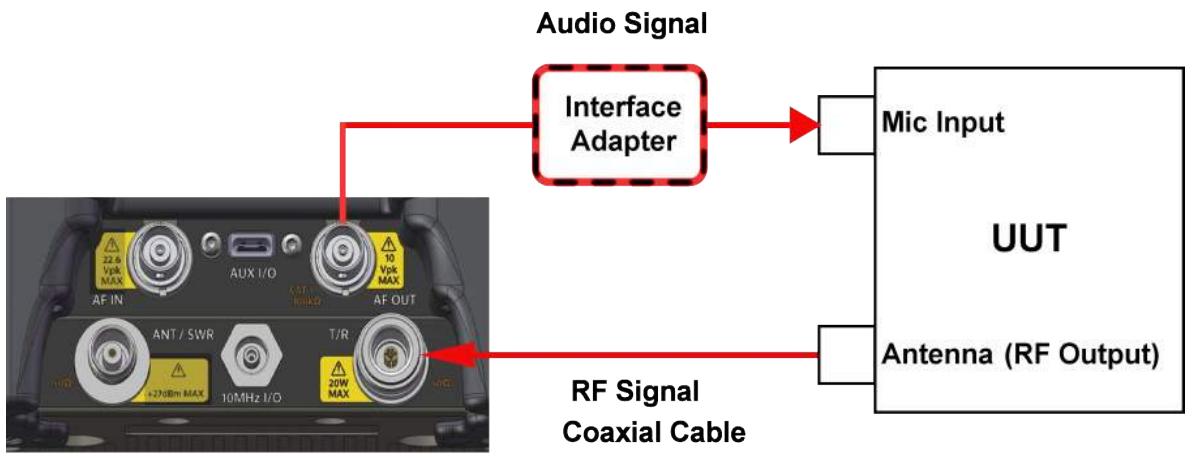

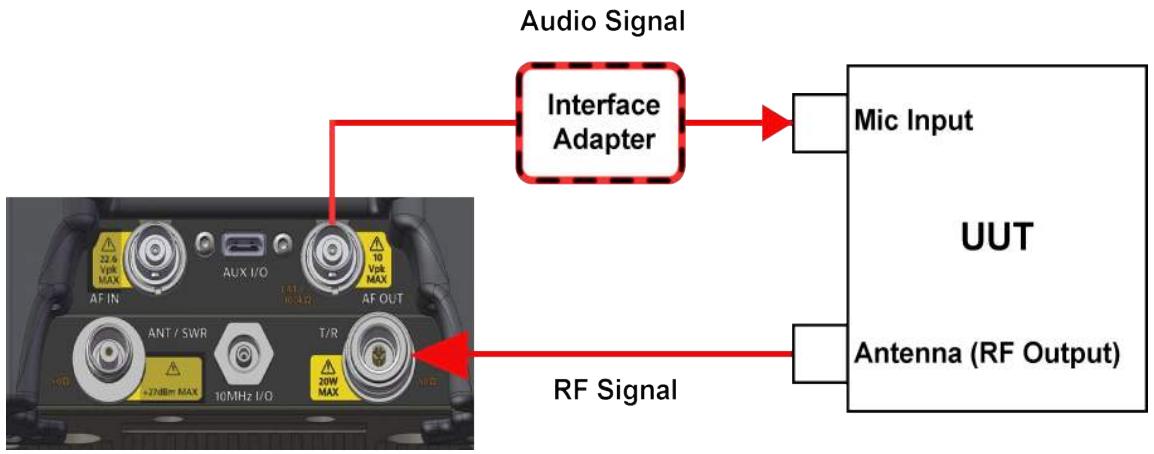

6.2.4.1 Hardware Setup Diagram

Connect the CX100 and UUT as shown in Figure 6-1, then proceed to the next section.

Audio Signal Interface | Adapter > Mic Input a —— UUT Antenna (RF Output) RF Signal

Figure 6-1 FM Transmitter Test Setup Diagram

Rev 002 CX100 ComXpert Operation Manual 22144015 6-4 August 2023

Chapter 6 Performing Tests and Measurements

6.2.4.2 Configure the CX100 Receiver

22144015 August 2023

In this example, the CX100 RF Receiver uses the following settings:

Table 6-2 FM Transmitter Test - RF Receiver Settings

Parameter Setting Rx Port DUPLEX Rx Frequency 151.100000 MHz Rx External Attenuator 0.0 dB Reference level 37.0 dBm Demodulation Type FM IF Bandwidth 12.5 kHz AF Filter Band-Pass Low-Pass Corner Frequency 300 Hz High-Pass Corner Frequency 3 kHz De-Emphasis ous

To Configure the CX100 RF Receiver:

1. Power on the CX100.

2. Launchthe RF Instrument application on the CX100. 3. Select RF Test.

4. Select either Duplex or Tx Test tab.

NOTE If operating in Duplex Mode, verify RF Generator is turned OFF.

Open the RF Receiver panel.

RF Receiver Port: select DUPLEX.

RF Receiver Frequency: set to 151.1 MHz.

RF Receiver External Attenuator: set to 0.0 dB.

NOTE The expected transmit power of the UUT is 5 Watts (37 dBm), which is well below the maximum input power of the CX100 (47 dBm), so no external attenuator is required for

9. RF Receiver Reference Level: set to 37.0 dBm.

CX100 ComXpert Operation Manual

Chapter 6 Performing Tests and Measurements

10. RF Receiver Demodulation Type: select FM. 11. RF Receiver IF Bandwidth: select 12.5 kHz.

NOTE To Calculate Proper Bandwidth

The UUT Transmitter Bandwidth can be determined with Carson’s Rule (Sinusoidal Tone):

2 X [Maximum Deviation + Maximum Audio Frequency]

2 X[3 kHz + 3 kHz] = 12 kHz The formula above provides the value, which in this example is 12 KHz, that is used to determine the proper setting for the CX100 IF Bandwidth. In this example, the closest

CX100 IF Bandwidth greater than 12 kHz is 12.5 KHz IF Bandwidth, therefore, in this example procedure, 12.5 kHz is selected for the CX100 RF Receiver IF Bandwidth.

When the UUT is keyed, it generates a 67 Hz squelch tone. To determine the voice modulation level and distortion, the 67 Hz tone must be filtered out so that only the 1 KHz test tone is received by the CX100 when measuring these parameters.

In this example, a Band Pass filter is selected so that frequencies lower than 300 Hz Will not be received by the CX100 Receiver, and frequencies higher than 3 kHz are also blocked so as not to interfere with the 1 kHz test tone.

Rev 002 CX100 ComXpert Operation Manual 22144015 6-6 August 2023

Chapter 6 Performing Tests and Measurements FM Transmitter Testing

6.2.4.3 Configure the CX100 AF Function Generator

In this example, the CX100 AF Function Generator uses the following settings:

Select the Settings soft-key.

AF Function Generator Coupling: select AC.

AF Function Generator Load Impedance: select HiZ.

AF Generator 1 Frequency: set to 1 kHz (test modulation frequency). AF Generator 1 Level Type: select Vrms.

AF Generator 1 Level: set to 0.02 V.

AF Generator 1 Waveform: select SINE.

Set AF Gen 1 soft-key to OFF.

10. Set AF Gen 2 soft-key to OFF.

© © NN ® ù 8 © ND >=

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 6-7

Chapter 6 Performing Tests and Measurements FMT Testing

6.244 Configure the CX100 Meters

D NOTE This example does not use upper and lower limits to define pass/fail criteria. Pass/fail criteria can be entered as upper and lower limit values in each meter menu for visual feedback of pass/fail status.

1. Open the Meters panel.

2. Use the Analog Demod Measurements > Distortion/SINAD/SNR soft-key to display the Distortion Meter.

Open the RF Power Meter configuration window. 4. Upper and Lower Limit values can be assigned if pass/fail criteria are known.

Power Meter Measurement Type: select Live. NOTE Before proceeding to Step 8, cease transmitting signals to the CX100.

6. Setthe Measurement Type on the following meters to Live: + Modulation + Distortion + AF Counter + ___RF Frequency Error Select RF Analyzer and press the Normalize key.

Press the Run Normalize soft-key to normalize the RF Power Meter.

6.2.5 Gathering Test Data

6.2.5.1 Viewing Test Data Open either the Test Setup Summary panel or the Meters panel.

lf upper and lower limits are being used, recommendation is to view results on the Meters panel instead of the Test Setup Summary panel in order to utilize the color coded pass/fail indicators on meters.

22144015 August 2023

Chapter 6 Performing Tests and Measurements FM Transmitter Testing

Test UUT Power and Frequency

2. Review the RF Power Meter reading along with overall settings. 3. Review the RF Frequency Error reading.

Test UUT Modulation Level and Transmitter Distortion

Open the AF Function Generator panel.

Set AF Gen 1 soft-key to ON.

Open the Test Setup Summary panel.

Key the UUT and hold.

Review the Modulation Meter reading.

Review the Distortion Meter reading along with overall settings. Unkey the UUT.

Test UUT Squelch Tone Modulation Level and Frequency

Open the RF Receiver panel.

Open the Test Setup Summary panel.

Key the UUT and hold.

Review the Modulation Meter reading.

Review the AF Counter reading along with overall settings. Unkey the UUT.

CX100 ComXpert Operation Manual Rev 002

Chapter 6 Performing Tests and Measurements AM Transmitter Testing

6.3 AM Transmitter Testing

This section explains how to configure the CX100 to evaluate the transmit performance of an AM device. The test setup in this section can be used to evaluate the following UUT parameters:

+ AM Transmitter Power

+ AM Transmitter Frequency + Modulation Level

+ Transmitter Distortion

6.3.2 UUT Parameters/Characteristics

The example in this section assumes the following UUT characteristics and settings; adjust settings according to the operational capabilities of the UUT.

6.3.3 Equipment Needed

The following equipment is required to perform the test procedures defined in this section: + CX100 ComXpert

+ Audio cable and MIC/Audio Adapter combination capable of interfacing an audio signal from the CX100 audio output to the transmitter modulation input (typically the microphone input on the transmitter).

+ Two RF Coaxial Cables + 10 dB RF Attenuator

Rev 002 CX100 ComXpert Operation Manual 22144015 6-10 August 2023

Chapter 6 Performing Tests and Measurements AM Transmitter Testing

6.3.4. Hardware Setup Diagram

Connect the CX100 and UUT as shown in Figure 6-2, then proceed to the next section.

Audio Signal Interface i Adapter > Mic Input

UUT Antenna (RF Output)

Figure 6-2 AM Transmitter Test Setup Diagram

6.3.4.2 Configure the CX100 Receiver

In this example, the CX100 RF Receiver uses the following settings:

Table 6-5 CX100 Settings - RF Receiver Settings

Parameter Setting Rx Port DUPLEX Rx Frequency 116.500000 MHz Rx External Attenuator 10.0 dB Reference level 37.0 dBm Demodulation Type AM IF Bandwidth 6.25 kHz AF Filter Band-Pass Low-Pass Corner Frequency 3 kHz High-Pass Corner Frequency 300 kHz De-Emphasis ous

To Configure the CX100 RF Receiver:

1. Power on the CX100. 2. Launchthe RF Instrument application on the CX100.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 6-11

Chapter 6 Performing Tests and Measurements

3. Select RF Test. 4. Select either Duplex or Tx Test tab.

NOTE If operating in Duplex Mode, verify RF Generator is turned OFF.

5. Open the RF Receiver panel.

6. RF Receiver Port: select DUPLEX.

7. _RF Receiver Frequency: set to 116.5 MHz. 8.

RF Receiver Reference Level: set to 37 dBm.

NOTE - Use of External Attenuator

The expected transmit power of the UUT is 50 Watts (47 dBm) which is the maximum input power of the CX100, so an external attenuator is required for this test.

The UUT transmits at 47 dBm through the 10 dB external attenuator, reducing the amplitude received by the CX100 to 37 dBm (5 W'), therefore the Reference Level of the CX100 is set to 37 dBm so that the power measurements factor in external attenuation to reflect the actual power generated by the UUT.

9. RF Receiver Demodulation Type: select AM.

10. RF Receiver IF Bandwidth: select 6.25 kHz.

NOTE - IF Bandwidth Selection

For this test, the UUT will generate AM using a 1 kHz tone, which is a narrow-band signal, so the IF Bandwidth is set to the narrowest setting of 6.25 kHz.

NOTE - AF Filter Selection

The UUT distortion is specified as being measured with a 300 Hz to 3 KHz band pass filter, so the AF Filter field is set to Band Pass to filter.

CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 6 Performing Tests and Measurements AM Transmitter Testing

6.3.4.3 Configure the CX100 AF Function Generator

In this example, the CX100 AF Function Generator uses the following settings:

AF Generator 1 Load Impedance: select 600 Q. AF Generator 1 Frequency: set to 1 kHz.

AF Generator 1 Level Type: select Vrms.

AF Generator 1 Level: set to 0.03 V.

AF Generator 1 Waveform: select Sine.

Set AF Gen 1 soft-key to OFF.

Verify AF Gen 2 soft-key is set to OFF.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 6-13

Chapter 6 Performing Tests and Measurements

6.344 Configure the CX100 Meters

NOTE D This example does not use upper and lower limits to define pass/fail criteria. Pass/fail criteria can be entered as upper and lower limit values in each meter menu for visual feedback of pass/fail status.

1. Open the Meters Configuration Window.

2. Use the Analog Demod Measurements > Distortion/SINAD/SNR soft-key to display the Distortion Meter on the Meters panel.

Open the RF Power Meter configuration window. 4. Upper and Lower Limit values can be assigned if pass/fail criteria are known.

Power Meter Measurement Type: select Live. NOTE Before proceeding to Step 8, cease transmitting signals to the CX100.

6. Setthe Measurement Type on the following meters to Live: + Modulation Meter + Distortion Meter + ___AF Counter Meter + ___RF Frequency Error Meter Select RF Analyzer and press the Normalize key.

Press the Run Normalize soft-key to normalize the RF Power Meter.

Rev 002 CX100 ComXpert Operation Manual 22144015 6-14 August 2023

Chapter 6 Performing Tests and Measurements AM Transmitter Testing

6.3.5 Gather Test Data

6.3.5.1 Viewing Test Data

Open either the Test Setup Summary panel or the Meters panel.

lf upper and lower limits are being used, recommendation is to view results on the Meters panel in order to utilize the color coded pass/fail indicators on meters.

6.3.6 Test UUT Power and Frequency

Review the RF Power Meter reading along with overall settings. Review the RF Frequency Error Meter reading.

6.3.7 Test UUT Modulation Level and Distortion

22144015 August 2023

Open the AF Function Generator panel.

Set AF Gen 1 soft-key to ON.

Open the Test Setup Summary panel.

Key the UUT and hold.

Review the Modulation Meter reading.

Review the Distortion Meter reading along with overall settings Unkey the UUT.

CX100 ComXpert Operation Manual Rev 002 6-15

Chapter 6 Performing Tests and Measurements FM Receiver Performance Tests

6.4 FM Receiver Performance Tests

This test is used to evaluate the following performance characteristics of an FM Receiver: + Radio Receive Sensitivity

6.4.2 UUT Parameters/Characteristics

The example in this section assumes the following UUT characteristics and settings; adjust settings according to the operational capabilities of the UUT.

Table 6-7 FM Receiver Test - UUT Parameters

FM Receiver Narrowband

FM Receiver Frequency 151.1 MHZ Rate Deviation 2.5 kHz

Distortion Less than 1% at 700 mV audio level 12 dB SINAD -118 dBm

Squelch Tone Deviation 350 Hz

Squelch Tone Frequency 67 Hz

6.4.3 Equipment Needed

The following equipment is required to perform the test procedures defined in this section: + CX100 ComXpert

+ Audio cable and MIC/Audio Adapter combination capable of interfacing an audio signal from the UUT demodulated output (typically speaker out signal) to the CX100 audio input connector.

+ ___RF Coaxial Cable

Rev 002 CX100 ComXpert Operation Manual 22144015 6-16 August 2023

Chapter 6 Performing Tests and Measurements FM Receiver Performance Tests

644.1 Hardware Setup Diagram

Connect the CX100 and UUT as shown in Figure 6-3, then proceed to the next section.

Audio Signal pre Demod Output UUT Antenna (RF Input) RF Signal

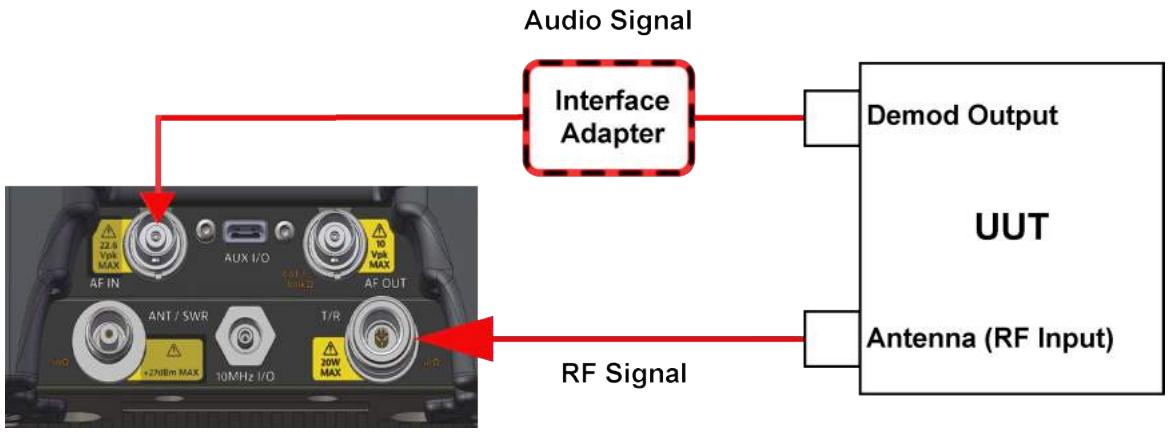

Figure 6-3 FM Receiver Test Setup Diagram

6.4.4.2 Configure the CX100 RF Generator

In this example, the CX100 RF Generator uses the following settings:

Launch the RF Instrument application on the CX100. Select RF Test.

Select either Duplex or Rx Test tab.

Open the RF Generator panel.

RF Generator Frequency: set to 151.1 MHz.

RF Generator Output Level: set to -50 dBm.

Turn on RF Generator.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 6-17

Chapter 6 Performing Tests and À

6.4.4.3 Configure the CX100 Modulation Generators

In this example, the CX100 Modulation Generators use the following settings:

Table 6-9 FM Receiver Test- Modulation Generator Settings

Modulation Generator 1

Type FM Deviation 1.8 kHz Rate 1 kHz Waveform Sine

3. Modulation Generator 1 Deviation: set to 1.8 KHz (60% of 2.5 kHz max deviation rating of radio).

4. Modulation Generator 1 Rate: set to 1.000 kHz.

5. Modulation Generator 1 Waveform: select Sine.

6. Mod 1 soft-key: set to ON.

Chapter 6 Performing Tests and Measurements FM Receiver Performance Tests

13. Open the External Modulation panel. 14. Mod Ext soft-key: set to OFF.

6.4.5 Configure the CX100 Meters

NOTE Meter parameters should be configured according to UUT performance characteristics and test requirements.

In this example, the CX100 Meters are configured as follows:

Table 6-10 FM Receiver Test - Meter Settings

Enable Lower Limit Enabled Lower Limit 12.0 dB Measurement Type Average Average Count 20 Distortion Meter

Use the Audio Measurements > Distortion/SINAD/SNR soft-key to display the SINAD Meter on the Meters panel.

Open the SINAD Meter configuration window. Enable the Lower Limit.

Set the Lower Limit to 12.0 dB.

Select Average from the Measurement Type menu. Set Average Count to 20.

Close the SINAD Meter configuration window.

Use the Audio Measurements > Distortion/SINAD soft-key to display the Distortion Meter.

. Set the Upper Limit to +0.710 V.

. Enable the Lower Limit.

. Set the Lower Limit to +0.690 V.

. Select Live from the Measurement Type menu.

. Close the Audio Level Meter configuration window.

. Set the Audio Level Meter Vrms/Vpp toggle soft-key to Vrms. . Open the AF Counter Meter configuration window.

. Close the AF Counter Meter configuration window.

Chapter 6 Performing Tests and Measurements FM Receiver Performance Tests

6.4.6.1 Viewing Test Data Open either the Test Setup Summary panel or the Meters panel.

lf upper and lower limits are being used, recommendation is to view results on the Meters panel in order to utilize the color coded pass/fail indicators on meters.

6.4.6.2 UUT Audio Level and Distortion Tests

1. Adjust the UUT volume until the Audio Level Meter displays approximately 700 mV and the meter background color is green and the pass © icon is displayed.

2. Verify the Distortion Meter displays less than 1% distortion and the meter background color is green and the pass © icon is displayed.

6.4.6.3 UUT Squelch Tone Function Tests

1. Turn Mod 2 soft-key to OFF.

2. Observe the Audio Level Meter to verify the UUT is quieted, and that the AF Counter does not display 1.000 kHz audio.

Turn Mod 2 soft-key to ON.

Use the Audio Level Meter to verify the UUT is demodulating the CX100 modulation, and that the AF Counter displays 1.000 kHz audio.

6.4.6.4 UUT Receiver Sensitivity Tests

1. Setthe CX100 RF Generator Level to -118.000 dBm.

2. Audio Measurements > Distortion/SINAD soft-key - select SINAD to display the SINAD Meter on the Rx Test Meters panel.

Observe the SINAD Meter and verify its reading is 12 dB or greater, and that the meter background color is green and the pass [/] icon is displayed.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 6-21

Chapter 6 Performing Tests and Measurements AM Receiver Tests

6.5 AM Receiver Tests

This test is used to evaluate the following performance characteristics of an AM Receiver: + Radio Receive Sensitivity

6.5.2 UUT Parameters/Characteristics

The example in this section assumes the following UUT characteristics and settings; adjust settings according to the operational capabilities of the UUT.

Table 6-11 AM Receiver Test - UUT Parameters

AM Receiver Narrowband

AM Receiver Frequency 151.1 MHZ Distortion Less than 1% at 700 mV audio level 12 dB SINAD -118 dBm

6.5.3 Required Equipment

The following equipment is required to perform the test procedures defined in this section: + CX100 ComXpert

+ Audio cable and MIC/Audio Adapter combination capable of interfacing an audio signal from the UUT demodulated output (typically speaker out signal) to the CX100 audio input connector.

+ ___RF Coaxial Cable

Rev 002 CX100 ComXpert Operation Manual 22144015 6-22 August 2023

Chapter 6 Performing Tests and Measurements AM Receiver Tests

6.5.4 Configuring the Equipment

6.5.4.1 Hardware Configuration

Connect the CX100 and UUT as shown in Figure 6-4, then proceed to the next section.

UUT JAntenna (RF Input)

Figure 6-4 AM Receiver Test - Setup Diagram

6.5.4.2 Set Up the CX100 RF Generator

In this example, the CX100 RF Generator uses the following settings:

Table 6-12 AM Receiver Test - RF Generator Settings

RF Generator Frequency 151.100000 MHz Output Level -50 dBm

To Set Up the CX100 RF Generator:

Launch the RF Instrument application on the CX100. Select RF Test.

Select either Duplex or Rx Test tab.

Open the RF Generator panel.

RF Generator Frequency: set to 151.1 MHz.

RF Generator Output Level: set to -50 dBm.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 6-23

Chapter 6 Performing Tests and M AM Receiver Te:

6.5.4.3 Set Up the CX100 Modulation Generators

In this example, the CX100 Modulation Generators use the following settings:

Table 6-13 AM Receiver Test - Modulation Generator Settings

Modulation Generator 1

Mod 1 soft-key: set to ON.

Open the Modulation Generator 2 panel.

Mod 2 soft-key: set to OFF.

Open the External Modulation panel.

10. Mod Ext soft-key: set to OFF.

CX100 ComXpert Operation Manual

22144015 August 2023

Chapter 6 Performing Tests and Measurements AM Receiver Te

6.5.5 Configure CX100 Meters

NOTE Meter parameters should be configured according to UUT performance characteristics and test requirements.

In this example, the CX100 Meters are configured as follows:

Table 6-14 AM Receiver Test - Meter Settings

Enable Lower Limit Enabled Lower Limit 10.0 dB Measurement Type Average Average Count 20 Distortion Meter

Upper Lower Limit Enabled Upper Limit 1% Measurement Type Live

Use the Audio Measurements > Distortion/SINAD soft-key to display the SINAD Meter.

Open the SINAD Meter configuration window. Enable the Lower Limit.

Set the Lower Limit to 12.0 dB.

Select Average from the Measurement Type menu. Set Average Count to 20.

Close the SINAD Meter configuration window.

Use the Audio Measurements > Distortion/SINAD soft-key to display the Distortion Meter.

. Set the Upper Limit to +0.710 V.

. Enable the Lower Limit.

. Set the Lower Limit to +0.690 V.

. Select Live from the Measurement Type menu.

. Close the Audio Level Meter configuration window.

. Set the Audio Level Meter Vrms/Vpp toggle soft-key to Vrms.

Chapter 6 Performing Tests and Measurements AM Receiver Tests

22144015 August 2023

Viewing Test Data Open either the Test Setup Summary panel or the Meters panel. NOTE

lf upper and lower limits are being used, recommendation is to view results on the Meters panel in order to utilize the color coded pass/fail indicators on meters.

Test UUT Audio Level and Distortion

1. Adjust the UUT volume until the Audio Level meter displays reading around 700 mV and the meter background color is green and the pass © icon is displayed.

2. Verify the Distortion meter reading is less than 1% Distortion and that the background color is green and the pass © icon is displayed.

Test UUT Receiver Sensitivity

1. Change the CX100 RF Generator Level to -118.000 dBm.

2. Use the Audio Measurements > Distortion/SINAD soft-key to display the SINAD Meter on the Rx Test Meters panel.

Observe the SINAD Meter and verify its reading is 12 dB or greater, and that the meter background color is green and the pass [/] icon is displayed.

CX100 ComXpert Operation Manual Rev 002 6-27

Chapter 6 Performing Tests and Measurements Performing VSWR/DTF Testing

6.6 Performing VSWR/DTF Testing

This test is used to evaluate how well an antenna's impedance matches the impedance of the radio or transmission line to which it is connected.

6.6.2 UUT Parameters/Characteristics

The example in this section assumes the following UUT characteristics and settings; adjust settings according to the operational capabilities of the UUT.

Table 6-15 VSWR Test - Example Cable Characteristics

Frequency Range 30 to 85 MHz

6.6.3 Equipment Needed

The following equipment is required to perform the procedures defined in this section: + CX100 ComXpert

+ __ Cable to be tested

6.6.4 Calibrate the CX100 Before VSWR Testing

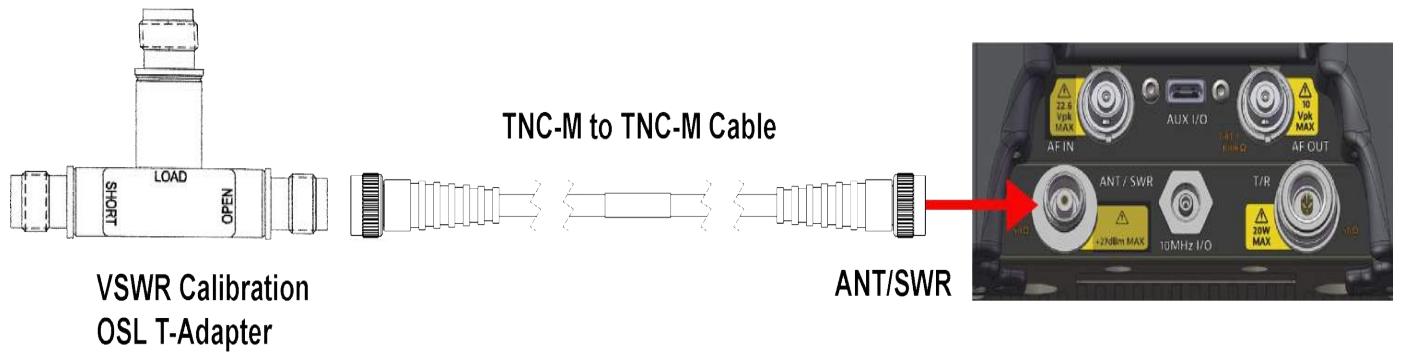

Connect the CX100 and UUT as shown in Figure 6-5, then proceed to the next section.

, | | | TNC-M to TNC-M Cable GE #10 Bi = um 4 VSWR Calibration ANTISWR OSL T-Adapter Figure 6-5 VSWR Calibration Setup Diagram Rev 002 CX100 ComXpert Operation Manual 22144015

Chapter 6 Performing Tests and Measurements Performing VSWR/DTF Testing

6.6.42 Running VSWR Calibration

S © NN ® mn 8 © D >=

Select the Home icon on the CX100.

Select the RF Instrument tab at the top of the application on the CX100 screen. Select VSWRI/DTF.

Select the VSWR tab.

Open the Instrument Settings menu.

Press the Calibrate soft-key.

Select External Standards. Select OK button to confirm.

Follow the instructions on the UI to configure the device for external calibration.

. Press the OK button to run the calibration. See Figure 6-6.

. When external calibration has been completed, the calibration plot should resemble

or'Save to save current calibration.

Periorming Open Cal ‘albration complete.

Figure 6-6 Calibration running and complete

22144015 August 2023

CX100 ComXpert Operation Manual Rev 002 6-29

Chapter 6 Performing Tests and Measurements Performing VSWR/DTF Testing

6.6.5 To Perform VSWR Test

6.6.5.1 Hardware Setup Diagram

Connect the CX100 and UUT as shown in Figure 6-7, then proceed to the next section.

In this example, the CX100 uses the following VSWR settings:

Select the RF Instrument tab at the top of the application on the CX100 screen. Select VSWRI/DTF.

Open the Instrument Settings menu.

Set the Start Frequency to 20 MHz.

Set the Stop Frequency to 100 MHz.

Set measurement mode to VSWR and Press the OK button.

Rev 002 CX100 ComXpert Operation Manual 22144015 6-30 August 2023

Chapter 6 Performing Tests and Measurements Performing Distance to Fault (DTF) Tests

9. Ensure the VSWR soft key is set to VSWR On.

6.6.5.3 Gather Test Data To Gather Test Data

This is used to gather the required Test Data. 1. Observe the VSWR trace. 2. Adjust the markers to display the VSWR measurement at the desired frequency.

3. To observe Return Loss measurement, open the Instrument Settings menu and set the measurement mode to Return Loss.

6.7 Performing Distance to Fault (DTF) Tests

Distance to Fault (DTF) measurements, provides the capability to analyze, troubleshoot and identify signal path degradation in cables and transmission lines. Faults are a result of conditions such as poor connections, damaged cables, or faulty antennas.

This test is used to evaluate the following performance issues: + The distance to fault of a coaxial cable.

6.7.2 UUT Parameters/Characteristics

The example in this section assumes the following UUT characteristics and settings; adjust settings according to the operational capabilities of the UUT.

Table 6-17 DTF Test - Example Cable Characteristics

Parameter Setting Coaxial cable type RG58 Coaxial cable length 20ft

6.7.3 Equipment Needed

The following equipment is required to perform the test procedures defined in this section: + CX100 ComXpert + __ Cable to best tested

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 6-31

Chapter 6 Performing Tests and Measurements Performing Distance to Fault (DTF) Tests

6.7.4 Configuring the Equipment

Hardware Setup Diagram

Connect the CX100 and UUT as shown in Figure 6-8, then proceed to the next section.

ANTISWR Unit Under Test

In this example, the CX100 uses the following DTF settings:

Parameter Setting Start Frequency 20 MHz Stop Frequency 100 MHz Step Frequency 100 (points)

S © NN ® mn 8 © D >=

Launch the RF Instrument application on the CX100.

Select RG-58 cable type.

Select the cable file to be used for the test. Select the DTF tab.

Open the instrument settings menu.

Set measurement mode to Return Loss

Select the distance key.

10. Set the start distance to 1 ft.

CX100 ComXpert Operation Manual

22144015 August 2023

Chapter 6 Performing Tests and Measurements Performing Distance to Fault (DTF) Tests

11. Set the stop distance to 30 ft. 12. Set number of points to 500.

13. Close the instrument settings tab and ensure the DTF enable soft key displays DTF on. See Figure 6-9 and Figure 6-10 for screen examples.

[LA LR D x P À TL 10.000 MHz 610.000 6300 ET] oo || completion status: | Gal ï We Cu Setrarposton | | oc Qc @ toc te Press 'Remeasure to repeat current cal step

‘or Save to save eurrent calibration.

Calibration complete.

Figure 6-9 DTF (Distance to Fault) and Calibration

22144015 August 2023

CX100 ComXpert Operation Manual

Chapter 6 Performing Tests and Measurements Performing Distance to Fault (DTF) Tests

Fonx-reWwW6073320451 0.0-Tig.. — o *x SSD IS AMAR IARRR Cr À VSWR/DTF VSUR r 2 3 n s “ 7 “ s0k 20.000 60.000 MHz 100.000

Mme [JM Figure 6-10 Return Loss

6.7.4.3 Gather Test Data

This is used to gather the required Test Data. 1. Observe DTF trace.

2. See Figure 6-9 for screen example.

Rev 002 CX100 ComXpert Operation Manual 22144015 6-34 August 2023

Managing Files and Reports

This chapter describes how to generate reports and manage file transfer to and from the

CX100. This chapter reviews the following information:

+ __ Generating Reports + Custom Report Fields + Enforcing Report Entry 2 +. Saving a Report

+. Managing Files. + __ Accessing the File Browser + Selecting Files or Folders + Opening Files or Folders + Copying and Pasting Files or Folders + Downloading Files via Web Browser + __ Uploading Files Using FTP/HTTP2

+ Viewing the User's Guide on the Device

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 7-1

Chapter 7 Managing Files and Reports

7.1 GeneratingReports

Test results, configuration settings and graphs can be saved as a report using the Save Report function. The Save Report function creates reports based on the configuration settings and test results for the currently active test.

NOTE The Save Reports button is only enabled when a test is active; the button is disabled unless a test is running.

7.1.1 Custom Report Fields

When a test report is saved, values can be configured for up to five custom “customer” report fields and five custom “technician” report fields. The values that are specified for the fields are included in the generated report output.

NOTE Custom fields are available for selection in associated StrataSync templates.

To Add Custom Report Fields

1. Navigate to the Save Report menu (Utility Tray > Save Report button).

2. Perform one of the following:

+ __ To select and specify values for custom customer fields, select Add Customer Report Fields. The Customer Information menu appears.

+ ___ To select and specify values for custom technician fields, select Add Technician Report Fields. The Technician Information menu appears.

3. Perform the following to create up to five custom customer fields and up to five custom technician fields:

Press the field(s) that you want to include in your report.

The field is selected and displayed on the Customer Information menu with a check mark (indicating that it has been selected for the report).

c Select the field to display a data entry screen. d Enter a value for the field, then press OK.

e The specified value appears directly under the field name on the Customer Information menu.

Chapter 7 Managing Files and Reports G: ting Reports

7.1.2 Enforcing Report Entry

The test set can be configured to require that custom report fields be populated before generating and saving a report.

To Require Report Field Entry 1. Open the System Settings menu. 2. Select the check box next to Enforce Report Field Entry.

3. Press the Back button to save and exit the menu. Entry of values for the custom report fields will be required before a report is saved.

7.1.3 Saving a Report

22144015 August 2023

1. Open the Utility Tray. Select the Save Report button. The Save Report window is displayed.

3. Enter the name of the report. The default file name uses the type of test followed by a three-digit number that increments with each file saved (for example, cablecheck001 or DSLO02).

4. Specify the format (PDF, XML, or HTML).

NOTE VIAVI offers a proprietary XML schema definition file (XSD) available online (referenced in the XML report).

5. To include custom fields in the report, enable, then specify values for the fields.

6. To immediately view the report, select Save and View.

7. To save the report without viewing it, select Save.

The current test results, configuration settings, and, if applicable, graphs and custom report fields are saved as a report. lf“Save and View” was selected, the report output also appears on the UI.

Technician report values will be saved until the values are changed. Custom report fields need to be completed for every test report saved, but you can apply the values specified the last time the report was saved.

CX100 ComXpert Operation Manual Rev 002

Chapter 7 Managing Files and Reports Managing Files 7.1.4 Viewing a Report

Saved reports can be viewed on the device's Ul.

NOTE The View Report button is disabled when there are no reports saved on the device.

1. Open the Utility Tray.

2. Select View Report button. À View Report window appears, showing all of the saved reports.

3. Select a report to view. The report is displayed on the screen.

The CX100 File Browser is used to open, rename, copy, or delete saved result files, screen shots, or other files stored on device, or on a USB flash drive that is connected to device.

NOTE D When copying files to the device, note the available memory on the device’s hard-drive. If the device’s hard-drive is selected as the save location for all test results, and there is insufficient space available on the device's internal hard-drive, the device will not be able to save test data and test data may be lost.

7.2.4 Accessing the File Browser Files are copied to and from the device using the File Browser.

To Open the File Browser

1. Open the Utility Tray. 2. Select the File Browser button.

Rev 002 CX100 ComXpert Operation Manual 22144015 August 2023

Chapter 7 Managing Files and Reports Managing Files

7.2.2 Selecting Files or Folders

To select one or more files or folders

Open the File Browser. See section 7.2.1, “Accessing the File Browser”, on page 7-4.

Use the up and down arrow keys to navigate folders or files.

Perform the one of the following to select a folder:

To select a single file or folder, select the check box to the left of the file or folder.

To select multiple files or folders (for example, to copy multiple files to USB, or upload multiple files using FTP/ HTTP), touch the check box to the left of each folder.

The files or folders are selected.

7.2.3 Opening Files or Folders

Open the File Browser. See section 7.2.1, “Accessing the File Browser”, on page 7-4.

Select a file or folder. See section 7.2.2, “Selecting Files or Folders”, on page 7-5.

Select the Open button. The contents of the folder appear or the file is displayed on the screen.

7.2.4 Copying and Pasting Files or Folders

22144015 August 2023

To Copy Files or Folders

Open the File Browser. See section 7.2.1, “Accessing the File Browser”, on page 7-4.

Select a file or folder. See section 7.2.2, “Selecting Files or Folders”, on page 7-5. Press the File Options system key and perform one of the following:

Select Copy, navigate to another folder or drive.

Press the File Options key, then select Paste.

Select either Copy to USB if you are using File Browser, or Copy to Internal if you are using the USB File Browser.

The file is copied and the File Browser menu appears.

CX100 ComXpert Operation Manual Rev 002

Chapter 7 Managing Files and Reports Viewing the User's Guide on the Device

To Download Files from CX100 via Web Browser

Sn 8 © N Connect the CX100 to a network. See section 4.4, “Establishing a Network Connection”, on page 4-10.

Record the CX100's IP Address.

Navigate to the Remote screen (System Settings > Remote). Select the Enable HTTP File Server check box.

Select a file or folder. See section 7.2.2, “Selecting Files or Folders”, on page 7-5. Select File Options.

Select Upload FTP/HTTP.

The Upload settings appear. Specify the Upload URL, User name, and Password. Select the Apply button to start the upload.

When the upload finishes, a message appears stating that the selected files were uploaded. Press OK to close the dialog window.

7.3 Viewing the User’s Guide on the Device

The CX100 Operation Manual can be viewed in PDF format on the device. The file must be located on a USB memory device or copied to the CX100 using File Manager.

Open the File Browser. See section 7.2.1, “Accessing the File Browser”, on page 7-4.

Navigate to the directory containing the pdf file. Select the file name to open the document.

The PDF reader application launches the document.

CX100 ComXpert Operation Manual 22144015 August 2023

Care, Maintenance, and Troubleshooting

This chapter reviews storage and shipping instructions as well as care and maintenance

procedures for the CX100 ComXpert as well as operator level troubleshooting procedures.

This chapter reviews the following topics:

+ __ Recharging the Battery

+ __ Replacing the Battery.

+ Storing the Module

+ Shipping Instructions + __ Return Material Authorization (RMA) + Tagging the Device. + Shipping Containers .…. + Freight Costs +__ Packing Procedure

+ __ Troubleshooting . + Troubleshooting Symptom Index + __ Troubleshooting Procedures

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 8-1

Chapter 8 Care, Maintenance, and Troubleshooting Recharging the Battery

8.1 Recharging the Battery

The CX100 is designed to be powered by an internal battery or by an external AC power supply. The internal battery supports up to 3 hours of continuous operation, after which time the battery needs recharging.

To recharge the battery

1. Connect the power cord to the AC Adapter/Charger.

2. Connect the DC connector to the device’s DC Input Connector. See section 1.5.9, “DC Input Connector”, on page 1-10 for information.

Connect the power cord to a grounded AC power supply. 4. Verify the device's Battery LED flashes green to indicate the battery is charging. The Battery LED turns and stays green when the battery is fully charged.

( CAUTION Do not use the power cord if it is damaged or frayed. Replace damaged power cords With cable of the same ratings.

Do not position the power cord in a manner that makes it difficult to disconnect from the main voltage.

Do not allow anything to rest on the power cord. Do not locate the product where persons can walk on or trip over the power cord.

8.2 Replacing the Battery

The CX100’s RF Module and internal components are ESD sensitive and can be damaged by disassembling the device in a non-ESD environment. For this reason, the devices battery should only be replaced by qualified service personnel.

See section B.2, “Battery Replacement Information”, on page B-2 for battery replacement instructions.

8.3 Storing the Module

Store the module in a clean, dry place according to product specifications.

8.4 Shipping Instructions

Any device returned to factory for calibration, service or repair must be repackaged and shipped subject to the following conditions:

Rev 002 CX100 ComXpert Operation Manual 22144015 8-2 August 2023

Chapter 8 Care, Maintenance, and Troubleshooting Shipping Instructions

8.41 Return Material Authorization (RMA)

Do not return any products to the factory without prior authorization from VIAVI.

Refer to the following links for relevant information: To request an RMA

https:/Awww.viavisolutions.com/en-us/support/customer-care/return-material-authoriz ation-rma-requesRF Duplexma-request-avionics-radio-test-us

For general shipping information

https:/Awww.viavisolutions.com/en-us/general-shipping-instructions-avionics-radio-te st-rmas

8.4.2 Tagging the Device

All items shipped to VIAVI must be tagged with:

+ Owner's Identification and contact information + Nature of service or repair needed

+ Model Number and Serial Number

+ Return Authorization (RA) Number

8.4.3 Shipping Containers

Devices must be repackaged in original shipping containers using VIAVI packing materials. If original shipping containers and materials are not available, contact VIAVI for shipping instructions. Failure to properly package items being returned for warranty repair voids product warranty.

All freight costs on non-warranty shipments are assumed by the customer. VIAVI recommends that customers obtain freight insurance with the freight carrier when shipping the device. VIAVI is not responsible for cost of repairs for damages that occur during shipment on warranty or non-warranty items.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 8-3

Chapter 8 Care, Maintenance, and Troubleshooting

Packaging CX100 for Shipping

The following procedure is for shipping the CX100 or the OneExpert base.

How to Package the device for Shipping

® nm 8 © D Contact VIAVI to obtain a Return Authorization number, return address and for questions about proper packaging.

Place device between foam inserts.

Place secured device in shipping container. Seal shipping container with tape.

include Return Authorization number on the packaging label.

Packaging Module for Shipping

The following procedure is for shipping the RF Module independently from the base unit.

How to package the Module for shipping

N 9 œ 8 © D Contact VIAVI to obtain a Return Authorization number, return address and for questions about proper packaging.

Place Module in ESD protective packaging. Place packaged Module between foam inserts. Place secured Module in shipping container. Seal shipping container with tape.

include Return Authorization number on the packaging label.

CAUTION Modules are ESD sensitive and should only be installed, removed and/or serviced by Qualified Service Personnel.

Chapter 8 Care, Maintenance, and Troubleshooting Operator Lev

tor Level Maintenance

The following procedures may be performed by the Operator. All other service must be performed by Qualified Service Personnel.

CAUTION This device does not contain user serviceable parts. Servicing should only be performed by Qualified Service Personnel.

Cet appareil ne contient pas de pièces pouvant être entretenues par l'utilisateur. L'entretien doit seulement être effectué par du personnel de service qualifié.

CAUTION Do not operate this device with the case/cover open. Opening the case/cover exposes the operator to electrical hazards which can result in electrical shock or damage to the device.

boîtier/couvercle expose l'utilisateur à des risques électriques qui peuvent entraîner un choc électrique ou des dommages à l'appareil.

8.5.1 Visual Inspections

Visual inspections should be performed periodically depending on operating environment, maintenance and use.

Check for presence and condition of all warning labels and markings and supplied safety information.

Inspect connectors for dirt, dust, corrosion or rust.

Inspect the device and accessories for damage. Do not use if there is damage to the exterior of the unit or power accessories.

8.5.2 External Cleaning

22144015 August 2023

Remove grease, fungus and ground-in dirt from surfaces with soft lint-free cloth dampened (not soaked) with isopropyl alcohol.

Remove dust and dirt from connectors with soft-bristled brush.

When not in use, cover the connectors with suitable dust cover to prevent tarnishing of connector contacts.

CX100 ComXpert Operation Manual Rev 002

Chapter 8 Care, Maintenance, and Troubleshooting Operator Level Maintenance

8.5.3 Updating Software

The device is shipped from the factory with the operating system and firmware installed in the device. Regular checks should be performed to ensure the device contains the most current software, drivers and or firmware.

See section 4.7, “Updating the Device's Software”, on page 4-18 for instructions to update system software.

8.5.4 CX100 ComXpert Self Test Procedure

The CX100 has an automated Built-in-Test (BIT) procedure, referred to as a Self Test, which evaluates system operation to ensure the device is operating properly.

To Run the Self Test Procedure

Launch the AutoTest function (Home > RF Instrument > Autotest button). Select the File Field located at the top of the screen.

Select Self Test from the test list.

if desired, enter name in the Operator field.

Press the Select All soft-key.

Press the Run Selected soft-key.

Wait while the device performs a series of automated test process. Do not interrupt this process of the self test will fail.

8. Status indicators show when self test is finished.

NOTE Self Test is intended to verify the device is operating properly; Self Test does not verify that the device is operating to performance specifications.

Rev 002 CX100 ComXpert Operation Manual 22144015 8-6 August 2023

Chapter 8 Care, Maintenance, and Troubleshooting Troubleshooting

This sections lists Operator Level corrective actions for malfunctions which may occur during normal device operation. This section cannot list all malfunctions that may occur, nor all tests or inspections and corrective actions. Perform tests/inspections and corrective actions in order listed. If a malfunction is not listed, or is not corrected by the listed corrective actions, contact customer support.

8.6.1 Troubleshooting Symptom Index

22144015 August 2023

Description Page Device does not power on when operating on battery power. 8-8 Device does not power on when connected to an AC power 8-8 supply. No receiving a signal at ANT/SWR or DUPLEX connector. 8-9 No generator output at ANT/SWR or DUPLEX Connector. 8-11 No input signal received at Audio In connector. 8-11 No signal output at Audio Out connector. 8-12 No input signal received or trace frozen on the Spectrum 8-12 Analyzer.

CX100 ComXpert Operation Manual Rev 002

Chapter 8 Care, Maintenance, and Troubleshooting Troubleshooting

8.6.2 Troubleshooting Procedures

MALFUNCTION TEST OR INSPECTION CORRECTIVE ACTION Device does not power on when operating on battery power. 1 Is the battery charged? + No, charge battery. If problem persists, proceed to next step. + Yes, proceed to next step. 2 Is battery properly installed and seated in battery chamber? + No, reinstall battery. lf problem persists, proceed to next step. + Yes, contact VIAVI's Technical Assistance Center (TAC).

3 Does the test set power on when connected to an AC Power Supply? + __ No, contact TAC.

+ Yes - probable cause of failure is old or defective battery. Contact TAC.

Device does not power on when connected to an AC power supply.

1 Is the AC Power Adapter/power cord the approved part for the device?

+ No, use approved part. |f problem persists, proceed to next step.

+ Yes, proceed to next step

2 Is AC/DC Power Adapter cord securely connected to device and AC power supply?

+ No, secure AC/DC Power Adapter cord. If problem persists, proceed to next step.

+ Yes, proceed to next step. 3 Is AC/DC Power Adapter connected correct rated power supply?

+ No, connect to correct power supply. If problem persists, proceed to next step.

+ Yes, proceed to next step.

Rev 002 CX100 ComXpert Operation Manual 22144015 8-8 August 2023

Chapter 8 Care, Maintenance,

MALFUNCTION TEST OR INSPECTION CORRECTIVE ACTION If a charged, CX100 lithium battery is available, perform the following:

4 Install battery in the test set. Does the test set power on?

+ Yes, probable cause is failure at AC/DC input connector, contact TAC.

+ __ No, contact TAC. Display touchscreen is unresponsive. 1 Reboot device.

2 If the device is configure for VNC access, determine if the Ul is operable using a VNC viewing application.

No receiving a signal at ANT/SWR or DUPLEX connector.

1 Is test set Receiver Port set to correct input (ANT/SWR or DUPLEX)?

+ No, set Receiver Port to correct input. If problem persists, proceed to next step.

+ Yes, proceed to next step.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 8-9

Chapter 8 Care, Maintenance, and Troubleshooting Trouble

MALFUNCTION TEST OR INSPECTION CORRECTIVE ACTION 2 Is cable properly connected to selected connector (ANT/SWR or DUPLEX)? + No, properly connect cable. If problem persists, proceed to next step. + Yes, proceed to next step. 3 Is test set Receiver Frequency set to expected receive frequency? + No, set Receiver Frequency to correct frequency. If problem persists, proceed to next step. + Yes, proceed to next step. 4 Is test set Receiver Bandwidth set appropriately for input signal type? + No, set Receiver Bandwidth correctly. If problem persists, proceed to next step. + Yes, proceed to next step. 5 Is test set Receiver Reference Level set appropriately for the input signal? + No, set Receiver Reference Level correctly. If problem persists, proceed to next step. + Yes, proceed to next step. 6 Is Frequency Reference set to External? . No, connect a valid external reference. If problem persists, contact TAC. + Yes, verify a valid source is connected to the test set's the 10 MHz Frequency Reference connector. If yes, contact TAC. Rev 002 CX100 ComXpert Operation Manual 22144015

Is correct output connector selected on device (ANT/SWR or DUPLEX)?

+ No, select correct output connector. If problem persists, proceed to next step.

+ Yes, proceed to next step. Is RF Generator output turned ON?

+ No, turn on RF Generator. If problem persists, proceed to next step.

+ Yes, proceed to next step. Is RF Generator Frequency set to correct frequency?

+ No, set RF Generator Frequency to correct frequency. If problem persists, proceed to next step.

+ Yes, proceed to next step. Is RF Generator Level set appropriately for UUT?

+ No, set RF Generator Level to correct setting. If problem persists, contact TAC.

No input signal received at Audio In connector.

22144015 August 2023

Is input cable properly connected to Audio In connector?

+ No, properly connect the cable. If problem persists, proceed to next step.

+ Yes, proceed to next step.

Are Audio In settings appropriate for the characteristics of the incoming audio signal (e.g. Range, Coupling, Input Sensitivity)?

+ No, adjust settings. If problem persists, contact TAC. + Yes, contact TAC.

CX100 ComXpert Operation Manual Rev 002 8-11

Chapter 8 Care, Maintenance, and Troubleshooting

MALFUNCTION TEST OR INSPECTION CORRECTIVE ACTION No signal output at Audio Out connector.

1 Is CX100 AF Generator enabled?

+ No, turn on AF Generator. If problem persists, proceed to next step.

+ Yes, proceed to next step. 2 Is cable properly connected to Audio Output Connector?

+ No, properly connect the cable. If problem persists, proceed to next step.

+ Yes, proceed to next step. 3 Is DUT properly configured to receive signal?

+ No, correct DUT configuration. If problem persists, contact TAC.

+ Yes, contact TAC. No input signal received or trace frozen on the Spectrum Analyzer. 1 Is the Spectrum Analyzer trace turned ON? +. No, turn on trace. If problem persists, proceed to next step. + Yes, proceed to next step.

2 Is input cable properly connected to ANT/SWR or DUPLEX connector?

+ No, properly connect the cable. If problem persists, proceed to next step.

+ Yes, proceed to next step.

3 Is the RF input connector to which the input cable is connected selected as the Spectrum Analyzer signal source?

+ No, select correct input connector. If problem persists, proceed to next step.

+ Yes, proceed to next step.

4 Are RBW and Span settings set to values that provide optimal sweep time?

+ No, adjust settings to obtain optimal sweep time. If problem persists, proceed to next step.

+ Yes, proceed to next step.

Rev 002 CX100 ComXpert Operation Manual 22144015 8-12 August 2023

Chapter 8 Care, Maintenance, and Troubleshooting Troubleshooting

MALFUNCTION TEST OR INSPECTION CORRECTIVE ACTION 5 Review the RF Generator Port selection. 6 Is ANT/SWR selected as the RF Generator output connector?

+ Yes, reconfigure the RF Receiver and RF Generator input/output selections to avoid a configuration conflict.

The ANT/SWR connector does not support duplex input/output capabilities. When the ANT/SWR connector is selected as the RF output connector, the system disables the connector's receive capabilities. If the problem persists, contact TAC.

See section 5.2.5.1, “RF Receiver Controls and Settings”, on page 5-10 for more information about configuring the RF Receiver.

+ __ No, contact TAC.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 8-13

Chapter 8 Care, Maintenance, and Troubleshooting Troubleshooting

This page intentionally left blank.

Rev 002 CX100 ComXpert Operation Manual 22144015 8-14 August 2023

This section contains product safety and compliance specifications for the CX100 ComXpert Handheld Radio Test Set.

+ __RF Generator Specifications + Modulation Generator Specifications

+ Audio Frequency (AF) Function Generator Specifications. A-4 + ___RF Receiver Specifications A-5 + __ Measurement Specifications . A-6 + AF Analyzer Specifications A-9 + ___VSWR and DTF Measurement Specifications. A-10 + Audio Filter Specifications A-11 + ___RF Analyzer Specifications A-11 + Spectrum Analyzer Specifications . A-12 + ___Zero-Span Analyzer Specifications A-13 + __ Connector Specifications. A-13 + __ Frequency Standard and Timebase Specifications . A-15

+ __ Power Specifications + __ Hardware Specifications . + __ Environmental Specifications. + Safety and Compliance Standards

NOTE Product specifications subject to change without notice.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 A-1

Appendix À Specifications RF Generator Specifications

Ai RF Generator Specifications

Table A-1 RF Generator Specifications

Parameter Specification Frequency Range 1.0 MHz to 6.0 GHz Resolution 1 Hz Accuracy See Table A-27, Frequency Standard 1/O on page A-15 Output Level Range DUPLEX: -120 to -30 dBm (CW) ANT/SWR: -100 to 0 dBm (CW/) (leveled/unleveled) Resolution 0.1 dB ACCUracy Duplex: +/- 1dB After normalize Bandwidth VSG 100 MHz VSWR DUPLEX Port <1.2 (1 MHz to 6 GHz) Spectral Purity Phase Noise 500 MHz < -120 dBc/Hz @ 10 kHz offset

1 GHz < - 105 dBc/Hz @ 10 kHz offset 6 GHz < - 100 dBc/Hz @ 10 kHz offset

Parameter Specification

Internal Modulation Specifications

Sources 2 Types None | AM | FM | Digital (Arbitrary Waveform) Waveforms Sine/Square Range Sine Wave 1 Hzto 100 kHz Internal AM Specifications Range 0.1% to 100% Resolution 0.10% Accuracy (internal <+3% of setting from 10% to 90% source) Rate 0 to 100 kHz AM THD <1% Internal FM Specifications Range 0 to 150 kHz Resolution 0.1 Hz Accuracy (Internal <+3% of setting (from 1 KHz to 100 kHz deviation, 20 Hz to Source) 15 kHz rate) Modulation Rate 0 to 100 kHz FM THD <1% Digital (Arb) Specifications Sampling Rate 100 MSPS max Sample Length 16 Bit | and 16 Bit Q Modes Continuous or Burst Memory Depth 1MSP (1/Q) 10 ms @ max sampling rate Bandwidth 100 MHz

Duplex Operation for rate < 25 MSPS full duplex operation permitted

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 A-3

Appendix À Specifications Audio Frequency (AF) Function Generator Specifications

Table A-2 Modulation Generators (Continued)

Parameter Specification

External Modulation Specifications

Port Audio In Frequency range DC to 100 kHz

Coupling AC/DC Level range 2 mV to 20 Vpk

Input Sensitivity (%, Hz) per Volts

A3 Audio Frequency (AF) Function Generator Specifications

Table A-3 AF Function Generator

Impedance <4Q Maximum Output Current 20 mA Frequency Range DC to 100 kHz (+0.5 dB), 20 Hz to 20 kHz (+0.1 dB) Resolution 0.1 Hz ACCUracy timebase + 0.1 Hz Level (Sine) Range 0 to +8 Vpk into 6000, 4 Vpk into 50Q AC Accuracy: 42% (> 200 mV, 20 Hz to 20 kHz), +5% (> 2 mV, 20 Hz to 100 kHz) Distortion THD+N < 60 dB (20 Hz to 20 kHz) AF Composite Signals Sine | Square Rev 002 CX100 ComXpert Operation Manual 22144015

Appendix À Specifications RF Receiver Specifications

A4 RF Receiver Specifications

Table A-4 RF Receiver Specifications

Parameter Specification Frequency Range 1 MHz to 6 GHz VSWR ANT/SWR < 1.8 (1 MHz to 6 GHz) (for ANT/SWR Port) DUPLEX < 1.4 (1 MHz to 6 GHz) Harmonic Response 2nd Harmonic <-30 dB 3rd Harmonic <-50 dB Spurious Response 1 MHz to 1 GHz <-45 dB 1 GHz to 6 GHz <-55 dB DANL (Displayed Average Noise Level) 1000 MHz <-142 dBm (0 dB attenuation), <-160 dBm (preamp) Sensitivity (Analog) 10dB SINAD with -100dBm input 5% BER (Digital) <-113 dBm with preamp Min Input Level -65 dBm (-80 dBm with preamp) Bandwidth 100 MHz (wideband VSA) IF Filters Analog 5 kHz | 8.33 kHz | 10 kHz | 12.5 kHz | 25 kHz | 30 kHz | 100 kHz | 300 kHz Digital 5 kHz | 8.33 kHz | 10 kHz | 12.5 kHz | 25 kHz |

30 kHz | 100 kHz | 300 kHz | up to 100 MHz

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 A-5

Appendix À Specifications Measurement Specifications

A.5.1 RF Power Measurement Specifications

Table A-5 RF Power Meter Specifications

Parameter Specification Frequency Range 1 MHz to 6 GHz Measurement Modes Live | Min | Max | Average Measurement Type Absolute | Relative Measurement Units Watt | dBm Input VSWR < 1.4 on DUPLEX Port Level Range 0.02 mW to 20 Watts continuous Resolution 1% of full scale or 1 mW ACCUracy DUPLEX Port +10% After Normalize

A.5.2 RF Counter Specifications

Table A-6 RF Counter Specifications

Parameter Specification Frequency Range 1 MHz to 6 GHz Resolution 1 Hz Accuracy Same as Frequency Reference Meter Range 0 to 6000 MHz Input Level Range Duplex Port -20 to 43 dBm ANT/SWR Port -60 to +10 dBm

-80 to -20 dBm w/pre-amp and over-the-air)

Rev 002 CX100 ComXpert Operation Manual 22144015 A-6 August 2023

Appendix À Specifications Measurement Specifications

A.5.3 FM Measurement Specifications

Table A-7 FM Measurement Specifications

Parameter Specification

Modes | Average | Live

Measurement Range 0 to 100 kHz

ACCuracy + 1.0% from 1.5 to 3 kHz, at 1 kHz rate

A.5.4 AM Measurement Specifications

Table A-8 AM Measurement Specifications

Parameter Specification Modes | Average | Live Measurement Range 0 to 100% Resolution 1.0%

AF Frequency Range Residual AM

< 1%, 1 to 5 kHz Deviation (50 Hz to 3 kHz Rate) <0.5%, 1.5 to 3 kHz Deviation (1 KHz rate)

20 Hz to 40 kHz <0.1%

A.5.5 Distortion Measurement Specifications

22144015 August 2023

Table A-9 Distortion Meter Specifications

Frequency range Level range Measurement Range Resolution

< 3% of reading + 0.1% Distortion, 1% to 20%

Frequency range Level range Measurement Range Resolution

<1 dB @ 12 dB SINAD A.5.7 Signal to Noise (SNR) Measurement Specifications

Frequency range Level range Measurement Range Resolution

DC to 100 kHz 2mV to 20 Vpk 0 to 63 dB 0.01 dB

<1dB A.5.8 AF Counter Specifications

Table A-12 AF Counter Specifications

Frequency range Level range Resolution

22144015 August 2023

Table A-13 AF Analyzer Frequency Domain

Parameter Frequency Frequency Range DC to 100 kHz FFT Windows Flat Top Level Range 2 mV to 20 Vpk ACCUracy DC +1% of reading (> 200 mV), +2 mV (< 200 mV) AC 42% of reading (200 mV to 2 V, 20 Hz to 20 KHz), +5%

(200 mV to 20V, 20 Hz to 100 kHz)

Input impedance 100 kQ Purity THD+Noise <80 dB (20 Hz to 20 kHz)

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 A-9

Appendix A Specifications VSWR and DTF Measurement Specifications

Table A-14 AF Analyzer Time Domain

A7 VSWR and DTF Measurement Specifications

Filter Selections Lowpass Highpass Psophometric

None| Bandpass| LowPass | Highpass | Psophometric | De-Emphasis

(per Filter Type) 300 Hz to 40 kHz 20Hz to 300Hz CCITT | C-MSG n/a

A9 RF Analyzer Specifications

Table A-17 RF Analyzer Specifications

Parameter Specification Frequency

Range 1 MHz to 6 GHz IF Bandwidth

Range 20MHZz or 100 MHz RBW Bandwidth

Range 30 kHz to 3 MHz

FFT Length 8192 Detector

ACCUracy < 0.8 dB (1 MHz to 1 GHz), < 1.0 dB (1 to 6 GHz)

22144015 August 2023

Table A-18 Spectrum Analyzer Specifications

Parameter Specification Frequency Range 1MHZz to 6 GHZ Span Modes Start/Stop | Center/Span | Zero Span Range Selection Freq Selection, full span and zero span Resolution Bandwidth (RBW) Range 100 Hz to 5 MHz in 1,3,5 sequence Video Bandwidth (BW) Range 100 Hz to 5 MHz in 1,3,5 sequence Sweep Time Range 0.4 ms to 10005 Detector Types Normal Input Signal Range -100 dBm to +43dBm on DUPLEX port Amplitude +/-1dB after normalize Accuracy

Input Related Spurious <-60 dBc (excluding ?Z-IF and other crossovers) Dynamic Average Noise Level (DANL) 1000 MHz <-142 dBm (0 dB attenuation), <-160 dBm (preamp) Display Features

Accuracy Freq Accuracy +50% of RBW Trace Modes Live | Average | Min | Max Markers Quantity 2 Function Marker to Peak, Marker Left/Right to Peak, Center

Frequency (CF) to Marker

Rev 002 CX100 ComXpert Operation Manual 22144015 A-12 August 2023

Appendix À Specifications Zero-Span Analyzer Specifications

Table A-18 Spectrum Analyzer Specifications (Continued)

Parameter Specification

Range DUPLEX: -50 to +50 dBm ANT/SWR: -90 to +10 dBm Resolution 0.1 dB Units dBm Vertical Scale 11215] 10 dB/division

Range 100dB A1 Zero-Span Analyzer Specifications

Table A-19 Zero Span Analyzer Specifications

Parameter Specification Sweep Time Range 24 us to 2005

Table A-20 ANT/SWR Connector Specifications

Table A-21 DUPLEX Connector Specifications

Parameter Specification Connector Type Duplex, Type N Function RF Input/Output connector

+43 dBm (Continuous)

Input Protection Continuous 20 W or until thermal alarm Duty Cycle 30s ON 2min OFF Shutdown alarm sounds (followed by auto shutdown) Table A-22 Audio In Connector Specifications Parameter Specification Connector Type Type BNC, Input connector Function Audio Input Max Input Voltage (AC 20 Vpk mode)

Max Input Power 50 mW Table A-23 Audio Out Connector Specifications

Appendix À Specifications Frequency Standard and Timebase Specifications

Table A-25 USB Connector Specifications

Parameter Specification Connector Type Type A 3.0, USB Connector Function USB 3.0 interface

Table A-26 DC Input Connector Specifications

Parameter Specification Connector Type 12 VDC input connector Function Charge battery, power device

A13 Frequency Standard and Timebase Specifications

22144015 August 2023

Table A-27 Frequency Standard 1/0

Parameter Specification Internal Frequency Standard Output (TCXO) Frequency 10 MHZ (nominal) Output Level 2 Vpp (Nominal) into 50 Q Temperature +0.2 ppm Stability (0 to 50° C) Aging Rate 0.1ppm/year after 1 month continuous use. Warm Up Time Less than 15 min. to + 0.05 ppm External Frequency Input Frequency 10 MHz Input Level 1 to 5 Vpp for Sine waves 3.3/5 V TTL for Square waves Connector SSMB Jack CX100 ComXpert Operation Manual Rev 002

Appendix À Specifications

Power Specifications

A.14 Power Specifications

Table A-28 Power Specification

Parameter Specification Battery Operation >3 hours continuous Charging Time 5 hours

100-240VAC, 1.5A, 50-60 Hz

Operating Temperature Charging Temperature Operating Time Recharging Time

0 to 45 °C (32 to 113 °F) < 85% RH —3 hours

Battery charge is critically low, <10%, -18 minutes

A15 Hardware Specifications

Table A-30 Dimensions and Weight

Parameter Specification Height 12.0 in (30.48 cm) Width 5.7 in (14.48 cm) Depth 5.0 in (12.70 cm) Weight Without Battery 7.5 lbs (3.4 kg) With Battery 8.5 lbs (3.9 kg)

Appendix À Specifications Environmental Specifications

A6 Environmental Specifications

22144015 August 2023

Table A-31 Environmental Specifications

Parameter Specification

Storage Temperature -40 to +71 °C without battery (-20 to +60 °C with battery)

Operating Temperature -10° to +40°C (+14° to +104° F)

Dripproof MIL-PRF-28800F Class 2 Splashproof MIL-PRF-28800F Class 2

Relative humidity 95% RHNC (relative humidity, non-condensing) Altitude 4600 meters (15092 feet) Vibration MIL-PRF-28800F Class 2 Shock, Functional MIL-PRF-28800F Class 2 Bench Handling MIL-PRF-28800F Class 2 Transit Drop MIL-PRF-28800F Class 2 Use Pollution Degree 2 Explosive Atmosphere No Reliability MIL-HDBK-217 or >2500 hours

NOTE Environmental performance tested in accordance with MIL-STD-28800F, Class 2.

CX100 ComXpert Operation Manual Rev 002 A-17

Appendix À Specifications Safety and Compliance Standards

A.17 Safety and Compliance Standards

Table A-32 Miscellaneous Standards

EU Directive 2011/65/EU EU Directive 2014/30/EU EU Directive 2014/35/EU EU Directive 93/68/EEC Rev 002 CX100 ComXpert Operation Manual 22144015 A-18 August 2023

Module and Battery Replacement Procedures

This appendix covers the removal and installation of the CX100 ComXpert RF Module and

battery. These instructions contain the following information:

+ intended Audience. B-2 + __ Battery Replacement Information B-2 + __ Tool Requirements B-2 + Safety Information B-2 + __ Removing the RF Module B-4 + __ Installing the RF Module B-6 + __ Removingthe Battery B-7 + ___Installing the Battery B-7 22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 B-1

Appendix B Module and Battery Replacement Procedures Intended Audience

These instructions are intended for Qualified Service Personnel only.

B.2 Battery Replacement Information

À CAUTION Only replace the battery with the VIAVI approved replacement part. Contact VIAVI for approved replaced parts.

B.3 Tool Requirements

TOOL SIZE Phillips #2 -OR- Flathead screwdriver 1/2”

B.4 Safety Information

B.4.1 ESD Precautions

À CAUTION This device is ESD sensitive and should only be installed, removed and/or serviced by Qualified Service Personnel.

Appendix B Module and Battery Repla

B.4.2 Battery Handling and Disposal

Unpacking the Battery

The CX100 battery is a Lithium lon battery that is shipped in special protective packaging.

When removing the packaging, use care not to damage the packaging; the protective packaging can be used for returning the old battery to VIAVI for disposal.

À A Lithium lon battery is used in this equipment. Lithium is a toxic substance. PA The following warnings concerning Lithium lon Batteries must be observed:

+ Do not crush, incinerate or dispose of in normal waste.

+ Do not short circuit or force discharge since this might cause the battery to vent, overheat or explode.

+ Ne pas court-circuiter ni forcer la décharge car cela pourrait entraîner la ventilation, la surchauffe ou l'explosion de la batterie.

WEEE and Battery Statement

This product, and the batteries used to power the product, should not be disposed of as unsorted municipal waste and should be collected separately and disposed of according to your national regulations.

VIAVI has established a take-back process in compliance with the EU Waste Electrical and Electronic Equipment (WEEE) Directive, 2012/19/EU, and the EU Battery Directive, 2006/66/EC.

Information and instructions for returning waste equipment and batteries to VIAVI can be found on the VIAVI website in the WEEE section of the VIAVI Standards and Policies web page at: https:/www.viavisolutions.com/en-us/corporate/legal/policies-standards#sustain.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 B-3

Appendix B Module and Battery Replacement Procedures Removing the RF Module

B.5 Removing the RF Module

The following procedure provides step by step instructions for removing the RF Application Module from the OneExpert base.

( CAUTION Modules are ESD sensitive and should only be installed, removed and/or serviced by Qualified Service Personnel.

Les modules sont sensibles aux DES et ils doivent seulement être installés, enlevés ou entretenus par du personnel de service qualifié.

To Remove the RF Module

Power down the device. 2. Disconnect any cables and connectors from the device.

Remove 6 screws securing the RF Module to the Base (Figure B-1). The screws are indicated by a battery symbol.

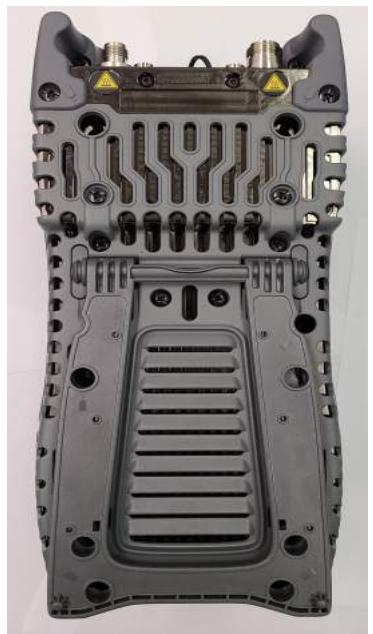

Screw Locations RF Module Remova

Figure B-1 RF Module Removal Process Diagrams

4. Pull module straight off the back of unit to avoid damaging the PCB assembly.

Rev 002 CX100 ComXpert Operation Manual 22144015 B-4 August 2023

Appendix B Module and Battery Replacement Procedures Removing the RF Module

NOTE If module sticks to the Base, insert a screw driver where shown and gently pry until module releases (see Figure B-2).

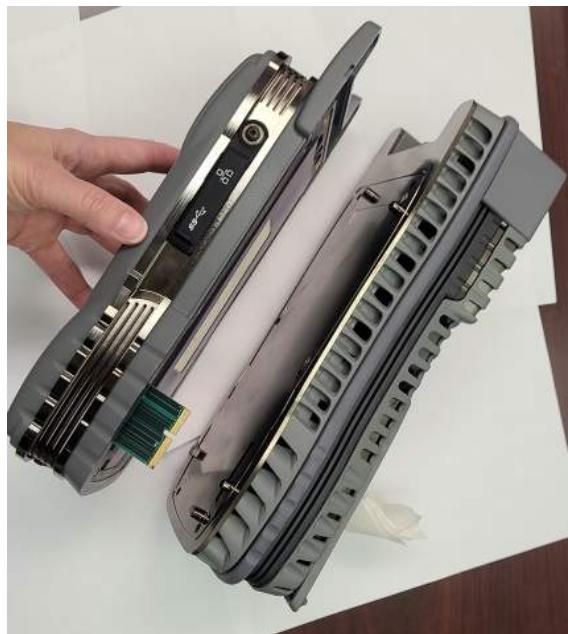

Figure B-2 Separating RF Module and Base

5. Place the OneExpert Base on an ESD work surface with the display side down.

À CAUTION To avoid damaging hardware, do not place pressure against the Base PCB Assemblies.

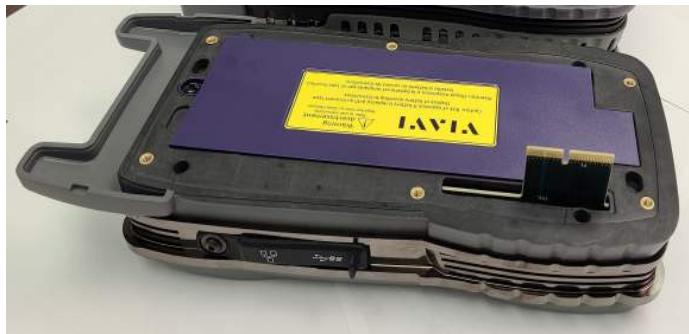

Figure B-3 Base Unit - RF Module Removed

NOTE If the RF Module is being returned to the factory. See section 8.4, “Shipping Instructions”, on page 8-2 for shipping instructions.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 B-5

Appendix B Module and Battery Replacement Procedures Installing the RF Module

B.6 Installing the RF Module

The following procedure provides step by step instructions for installing the RF Application Module on the OneExpert base.

( CAUTION Modules are ESD sensitive and should only be installed, removed and/or serviced by Qualified Service Personnel.

Les modules sont sensibles aux DES et ils doivent seulement être installés, enlevés ou entretenus par du personnel de service qualifié.

How to Install the CX100 RF Module

1. Remove the back cover from the Base.

2. Install the RF Module to the Base by aligning the parts and feeding the backplane connector on the Base through the connector opening of the RF Module. Verify the RF Module is flush on the Base before proceeding.

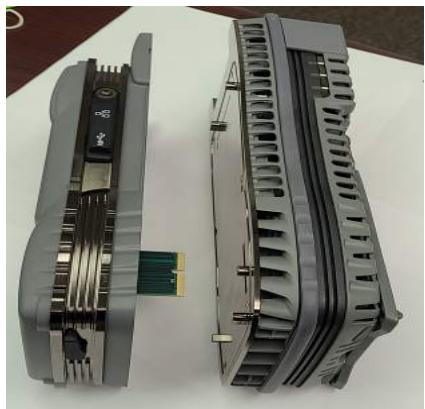

Module and Base Alignment

Figure B-4 CX100 RF Module Installation Diagram 3. Firmly press the RF Module together with the Base.

4. Install 6 screws securing the RF Module to the Base (Figure B-1). Torque screws to 6 in-lbs.

( CAUTION Do not over tighten the screws, doing so may crack the device’s cover.

Rev 002 CX100 ComXpert Operation Manual 22144015 B-6 August 2023

Appendix B Module and Battery Replacement Procedures Removing the Battery

B.7 Removing the Battery

1. Remove the RF Module. See section B.5, “Removing the RF Module”, on page B-4. Loosen the screw that secures the battery cover (Figure B-5).

3. Remove the cover to expose the battery.

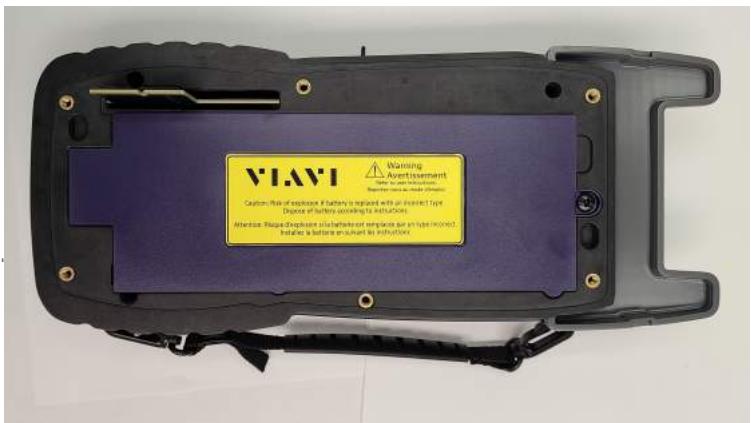

Figure B-5 Battery Cover Screw Location

4. Push tab on battery cable connector clip to release and pull cable away from connector. Remove battery from the device.

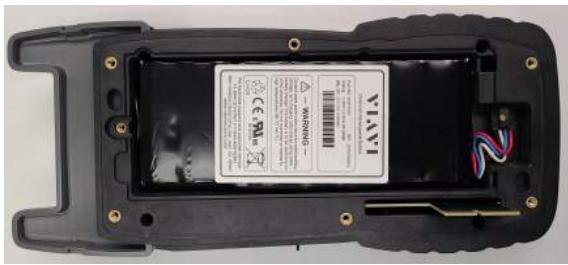

Figure B-6 Battery Cables and Release Clip

B.8 Installing the Battery

1. Insert the new battery in the battery compartment.

À CAUTION When installing the new battery, use care to ensure wires are inside the compartment as shown in Figure B-6. Damage may occur if wires become pinched when installing the cover.

2. Replace Battery Cover. Reinstall the battery door and tighten the screw. Refer to Figure B-5.

22144015 CX100 ComXpert Operation Manual Rev 002 August 2023 B-7

Appendix B Module and Battery Replacement Procedures Installing the Battery

4. The replacement battery is shipped in a partially charged state. The battery should be fully charged before using the device. See section 8.1, “Recharging the Battery”, on page 8-2 for battery recharging instructions.

Rev 002 CX100 ComXpert Operation Manual 22144015 August 2023

DTF Cable DB - Cable Values

This appendix lists the pre-defined cables that are found in the DTF Cable Database (DB) and each cable's parameters.

CX100 ComXpert Operation Manual

22144015 August 2023

22144015 August 2023

Appendix C DTF Cable DB - Cable Values

22144015 August 2023

This appendix shows the keyboard mapping of computer function keys to the corresponding CX100 keypad/buttons. Some of the CX100's buttons and keypads have been mapped to function keys that can be found on a computer keyboard.

Table D-1 shows the keyboard mapping of computer function keys to the corresponding

CX100 keypad/buttons.

Table D-1 Computer to CX100 Keyboard Mapping

Correspond to the device system keys Home

OK Used to navigate menu contents.

22144015 CX100 ComXpert Operation Manual Rev 002

Appendix D Keyboard Mapping

This page intentionally left blank.

Rev 002 CX100 ComXpert Operation Manual 22144015 D-2 August 2023

FM — Frequency Modulation

GUI/UI — Graphic User Interface/User Interface

LRU — Line Replaceable Unit

CX100 ComXpert Operation Manual

22144015 August 2023

22144015 August 2023

RAI/RMA — Return Authorization/Return Material Authorization

Spec — Specifications

SSB — Single Sideband

SWR — Standing Wave Ratio

TAC — Technical Assistance Center for customer support TPS — Test Program Set

T/R — Transmit/Receive for (Duplex Connector)

Part of CD 22144014 August 2023
