USER MANUAL 2.1 DUAL WITH LED WITH VIBRATION X Rocker
21 DUAL WITH LED WITH VIBRATION - ENGLISH
02 L ui : ASS EE " CE 00 1M OPTICAL. gœ TosLINK AUDIO < ] ms mp] CABLE

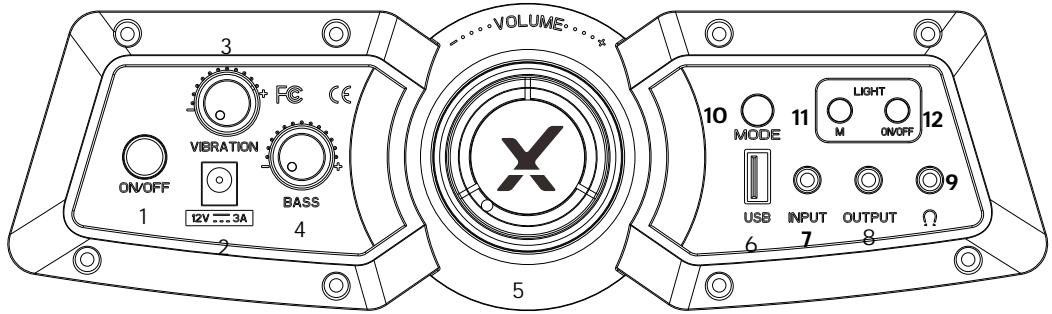

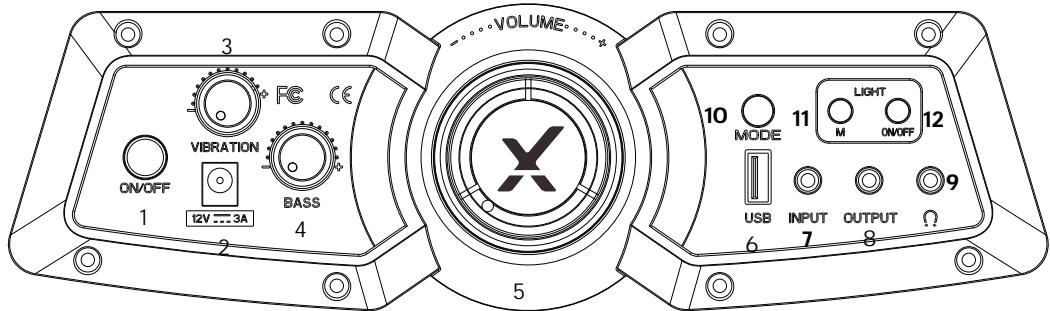

1. Power On/Off Press to toggle chair on/off B5 fée pipe _—
2. Power Input Plug your power supply into this socket _
3. Vibration Rotate dial to adjust intensity of vibration
4.Bass Rotate the dial to adjust the intensity ofbass audio
5. Volume Rotate this dial to adjust the master volume Missing parts?
Contact X Rocker Support: 6.USB Used to charge devices such as mobile phones. (5V/1A Output) 7.Input Plug the 3.5mm cable into here for audio from your TV or your controller (2)
8. Output Alows you to connect multiple chairs for audio XROCKERGAMING.COM
9. Headphone Socket _ | Plug yourheadphones or gaming headset in here to play quietiy. Perfect fornight-time play. XROCKERGAMING.COM/PAGES/SUPPORT
10. Mode Button Use this to switch between wired,Bluetooth or wireless audio
Light mode Button | Press this button to toggle between 19+different color modes WWWXROCKERUK COM
XROCKERUKCOM/PAGES/SUPPORT
12. Light On/Off Press to toggle LED on/off
1. Connect the B1 cable to the bottom of the Switch" via the headphone socket***
2. Connect the other end ofthe B1 cable to the chair via the green input port.
2. Connect the other end ofthe B1 cable to the chair via the green input port.
3. The Xbox" will automatically recognize the connection and pass through to the chair.
4, To increase volume, press the guide button, navigate to the speaker icon and increase the headset volume setting.

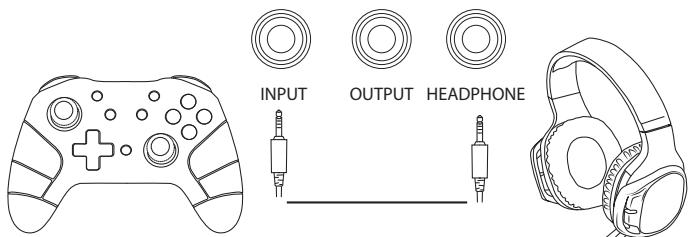

1. Connect the B1 cable to the bottom of the PS4 controller via the headset socket.
2. Connect the other end of the B1 cable to the chair via the green input port.
3. With the PS4 tumed on, go to the main menu (or locate the main menu screen). Press and
hold the PS button on the PS4"! controller until the quick menu appears on screen.
4. In this menu select [Adjust sound and devices].
5. Then select [Output to Headphones].
6. Change the setting from [Chat Only] to [AI Audio].
7. Make sure the volume in the previous menu is set to the maximum.
2. Connect the other end ofthe B1 cable to the chair via the green input port.
3. Press the PlayStation"’ button on the controller once to bring up the control center.
4. Select [Sound] > [Output Device] > [Headset (controller)].
5. Ensure that [Output to Headphones] is correctly set to [AII Audio].
6. You can check this by going to [Settings] > [Sound] > [Audio Output] > [Output to headphones]
- For headset and chat compatibility, you will need to place a CTIA compliant headset into the headphone socket of the X Rocker control panel. Please check with your device manufacturer to ensure that you have a CTIA compliant headset. If you use an OMTP compliant headset, then you may experience issues with chat and audio functionality. ** You may need an Xbox One!“ headset adapter if a headset socket is not available on your controller. These are available separately through any gaming retailer. *#* Voice-Chat compatibility for Switch” may rely on a third-party mobile phone app rather than direct console connection for certain games, please check the game developer's information if you encounter any compatibility issues.

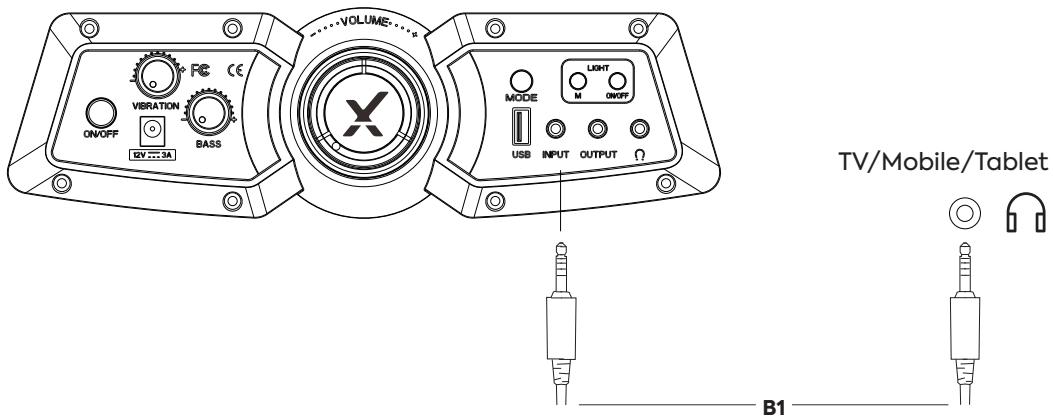

1. Connect the B1 cable to X Rocker control panel INPUT socket.
2. Connect other end of the B1 3.5mm end into the headphone socket of your television*
3. Once connected to your TV, increase volume to 50% of the maximum for the best sound level**

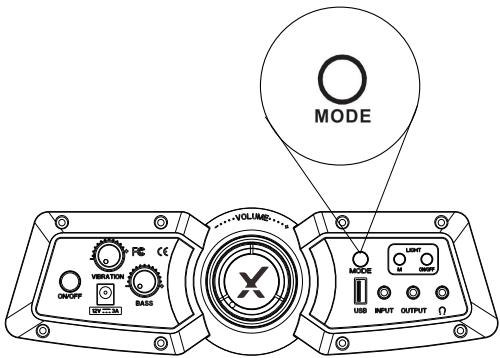

1. Switch the Bluetooth button to the on position “If your TV does not feature a headphone socket then you may need to purchase an additional 2. On the audio output device, go into the Bluetooth settings, turn Bluetooth on ifit is not TOSlink adapter to get connected directly to a console for audio. on already, and search for X ROCKER. Upon finding this, select the X ROCKER option. **Depending on your TV, you may need to increase the headphone volume separately in the TV If a password is required, the four digit code will be ‘0000’ sound settings. OPTICAL CONNECTION GUIDE PS4"*“ AND PS4 PRO" \ (D) J (a) l Mode%:1°2°3 Aux-1-2+3

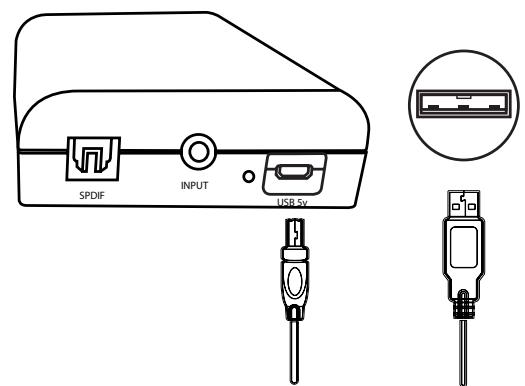

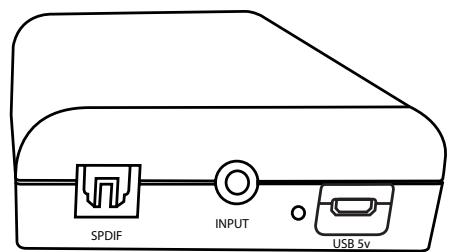

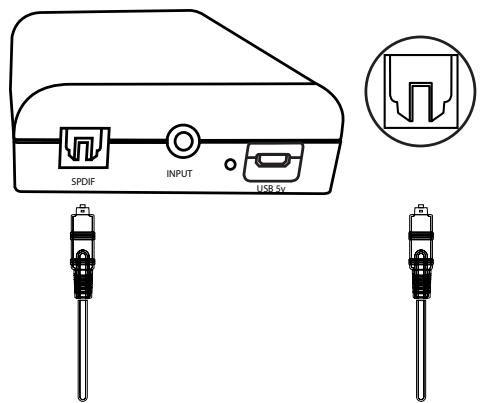

meur Spor 1. Make sure that the PS4" system is switched OFF. Insert the micro-USB cable into the X Rocker DAC converter and the other end into one of the front USB ports on the PS4" system. Remove the clear plastic covers from both ends of the optical cable. Input one end ofthe optical cable into the X Rocker Wireless DAC (Slot titled SPDIF) and the other into the Optical SPDIF connector on the PS4" system. 2. Turn the PS4" system back on. Select one ofthe wireless bands (1,2,3) on the wireless DAC and then switch to the corresponding band on the chair. 3. On the main PS4” menu screen Select (Settings) > [Sound and Screen] > [Audio Output Settings] > [Primary Output Port] Change this to [Digitial Optical]
Control Panel DAC (u:1) Q —w MODE Mode Ÿ° 1°2°3 Aux-1:2:3 1. Make sure that the Xbox One” system is switched OFF. Insert the micro USB cable into the X Rocker DAC converter and the other end into one of the back USB ports on the Xbox One” system. Remove the clear plastic covers from both endés ofthe optical cable. Input one end of the optical cable into the X Rocker Wireless DAC Slot (Iabelled SPDIF) and another into the Optical SPDIF connector on the Xbox One” system. 2. Turn the Xbox One" system back on. Select one of the wireless bands (1,2,3) on the wireless DAC and then switch to the corresponding band on the chair. 3. On the Xbox One" menu screen, Select [Settings] > [General]> [Volume and Audio Output] > [Audio Output] > under [Digital Audio], select [Optical Audio] and set it to [Stereo Uncompressed]

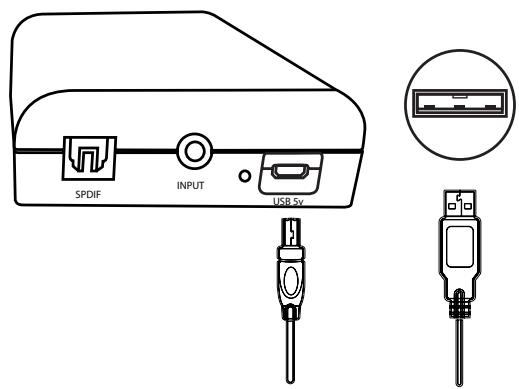

USB CONNECTION FOR PS4 " & PS5
(ce) le T \ te { Mode-1°2°3 Aux-1:2:3 1. Insert the micro USB cable into the X Rocker DAC transmitter and the other end into one ofthe front USB ports on any PS4, PS5.
2. Select one ofthe wireless bands (1,2,3) on the wireless DAC and then switch to the corresponding band on the chair.
4. Select [USB headphones] and change the setting in [Output to headphones] from [Chat audio] to [AI Audio].
Control Panel DAC (:0)
(e) EN LL) Mode-1°2:3 Aux-1-2-3
1. Insert the micro USB cable into the X Rocker DAC converter and the other end into one of the Switch system dock.
2. Select one of the wireless bands (12,3) on the wireless DAC and then switch to the corresponding band on the chair.
TROUBLESHOOTING TIP: NO POWER GOING TO THE CONTROL PANEL + Make sure the power cable is connected correctly. + Make sure that the power source is working correctly. + Withthe chair turned to the ON position, give the power cable a slight wiggle in the port. If any light flickers (or not) please contact support (UK: xrockeruk.com/pages/support). NO SOUND + Connect a mobile phone to the X Rocker using the phone connection guidelines in the manual to test the chair for sound. + Confirmthat the device/system is correctly configured as per previous connection guide. + Make sure that you indeed have a headphone socket on your TV. This will typically be marked with a headphone symbol or “H/P OUT". STEREO SPEAKERS DO NOT PRODUCE SOUND/SOUND IS FAINT + Please make sure the volume of the source device is at a higher level to strengthen the audio signal. THE CABLES CONNECTED TO MY X ROCKER HAVE BEEN BROKEN ACCIDENTALLY + Please contact X Rocker support (details below) regarding this issue. DON'T HAVE A HEADPHONE SOCKET ON YOUR TV? + You may need to purchase a TOSlink adapter. If you are unsure as to which to purchase, please contact X Rocker support (details below) regarding this issue. NEED ADDITIONAL ASSISTANCE? CONTACT X ROCKER SUPPOR LUS WWW.XROCKERGAMING.COM WWW.XROCKERUK.COM XROCKERGAMING.COM/PAGES/SUPPORT XROCKERUK.COM/PAGES/SUPPORT
HEALTH AND SAFETY INFORMATION
+ Forthe first time use and installation of your X Rocker product, please ensure that cables and power supplies are handled by a adult to ensure safe and correct usage. + Make sure to unplug the X Rocker Power supply from the mains socket before cleaning. + Avoid direct contact with liquids. To clean, wipe with a damp cloth. If a spillage occurs, switch offthe X Rocker and wait for the product to dry before reusing. + Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the X Rocker surface material. + Please consult X Rocker Support before unscrewing and disassembling any of the electrical components or undertaking any changes to the chair. If any unauthorized modifications or re- pairs are made before consultation, then this will void your warranty. + To reduce potential trip hazards or entanglement hazards, arrange and secure any cables so that people and pets are not likely to trip over or accidentally pull on them as they move around or walk through the area. + Please be careful when rotating and swiveling the X Rocker when in use. Cables and wires may be pulled or damaged in the process and cause damage to the X Rocker control panel or cabling. + If any of the cables or electrical equipment become damaged in any way, stop using immediately and contact X Rocker for more details on how to replace the component. + Do not stand on the chair at any time or exceed the 120kg weight limit via other means. + Do not lean back on the chair or force the chair to the point in which the pedestal would lift offthe ground as this will potentially cause damage to the product or injury to the user. + X Rocker armrests are designed for support and comfort during gameplay, please do not stand or sit ofthe arms directly. Do not apply weight to the armrests when leaving the chair to ensure long term durability. + Do not use the X Rocker speakers at high volume for any extended period. To avoid hearing damage, use your speaker at a comfortable, moderate volume level. Parents, please monitor your child's usage to avoid long term hearing loss or discomfort. + When not in use, keep cables and power supplies out of reach of children, please also ensure that these are not subject to harsh impacts such as dropping or throwing the components. + Never place any type of candie or naked flame on or near the X Rocker at any time. While X Rocker products are compliant with UK and European fire safety regulations, prolonged exposure to naked flames will result in damage to the product and other safety hazards.
POWER SUPPLY SAFETY INFORMATION
ATTENTION: A. To reduce the risk of fire, electric shock or product damage, do not expose the X Rocker power supply to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed near the power supply. f you spill any liquid into the power supply, it can cause serious damage. Switch it off at the mains immediately. Withdraw the power supply and consult your dealer. B. Always disconnect the power supply from the mains before connecting/disconnecting other devices or moving the X Rocker. C. Only use the supplied cables, power supplies and accessories specified by and manufactured by X Rocker. D.Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires. E.Avoid exposure to direct sunlight and other sources of heat. F.Ensure that cables and power supplies are kept in a safe location, out of the reach of children to avoid any potential hazards that include: dropping, throwing, tripping over, cutting etc. If you en- counter any visible notches or cuts in the power supply or other cables, avoid usingthe product and contact X Rocker Support for more assistance. Power Supply unit trademark: BI Model name: BI36L-120300-AdU Input: AC 100-240V - 50/60Hz 1.2A Output: DC 12V=--= 3.0A NEED ADDITIONAL ASSISTANCE? CONTACT X ROCKER SUPPOR
LUS: XROCKERGAMING.COM/PAGES/SUPPORT XROCKERUK COM/PAGES/SUPPORT
XROCKERUKCOM/PAGES/SUPPORT
XROCKERUK.COM/PAGES/SUPPORT
LUS: WWW.XROCKERGAMING.COM
XROCKERGAMING.COM/PAGES/SUPPORT
88 LFS " rl " FE 00 M OPTICO gg AUDIO TosLINK < [ms pl > CABLE
XROCKERGAMING.COM/PAGES/SUPPORT
XROCKERUKCOM/PAGES/SUPPORT
ER \ | Mode Ÿ°1°2°3 Aux-1-2-3 1. Make sure that the Xbox One”* system is switched OFF. Insert the micro USB cable into the X Rocker DAC converter and the other end into one of the back USB ports on the Xbox One” system. Remove the clear plastic covers from both endés ofthe optical cable. Input one end of the optical cable into the X Rocker Wireless DAC Slot (Iabelled SPDIF) and another into the Optical SPDIF connector on the Xbox One” system. 2. Turn the Xbox One”"* system back on. Select one of the wireless bands (1,2,3) on the wireless DAC and then switch to the corresponding band on the chair. 3. On the Xbox One" menu screen, Select [Settings] > [General]> [Volume and Audio Output] > [Audio Output] > under [Digital Audio], select [Optical Audio] and set it to [Stereo Uncompressed]
