USER MANUAL STEEL PRO MAX BESTWAY

WE SUGGEST NOT TO RETURN

THE PRODUCT TO THE STORE

QUESTIONS? PROBLEMS?

bestwaycorp.com/support Visit Bestway YouTube channel You({i

WE SUGGEST NOT TO RETURN

THE PRODUCT TO THE STORE

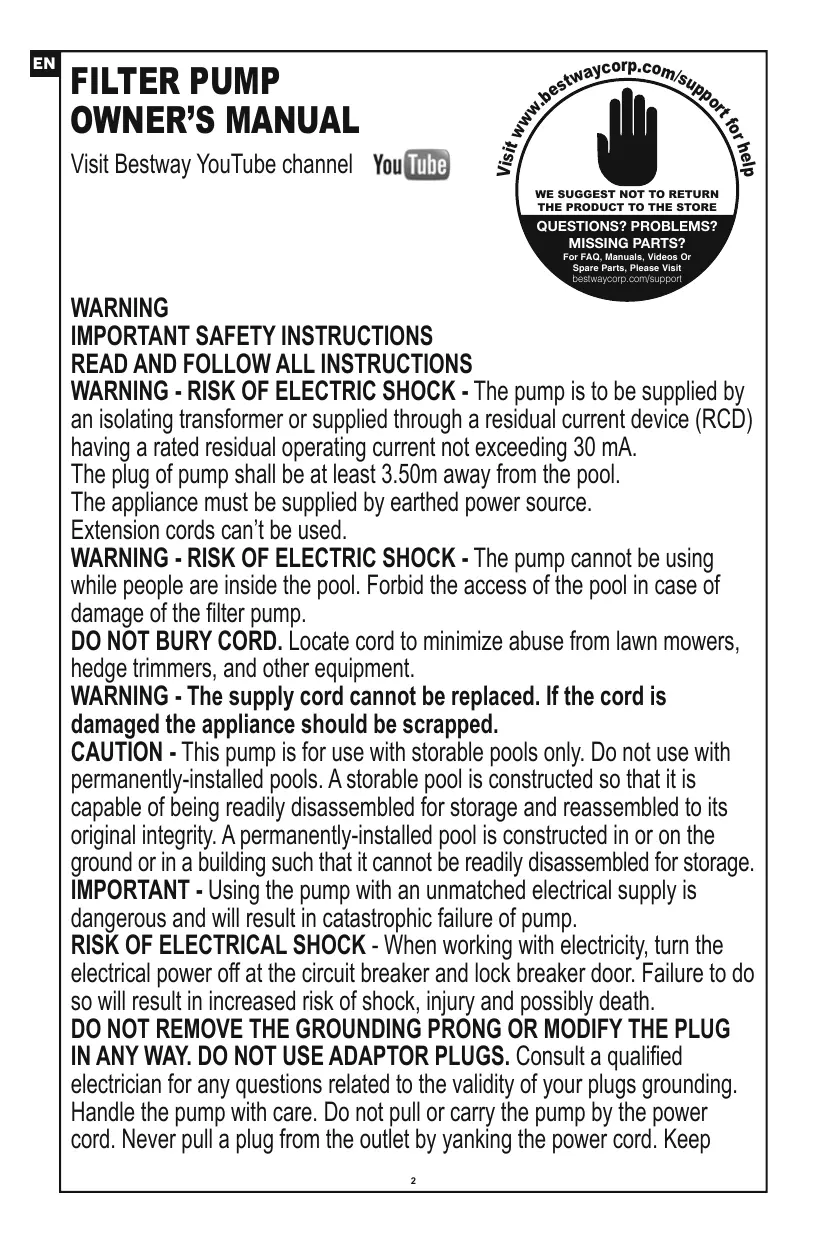

WARNING - RISK OF ELECTRIC SHOCK - The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA. The plug of pump shall be at least 3.50m away from the pool. The appliance must be supplied by earthed power source. Extension cords can't be used. WARNING - RISK OF ELECTRIC SHOCK - The pump cannot be using while people are inside the pool. Forbid the access of the pool in case of damage of the filter pump. DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment. WARNING - The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped. CAUTION - This pump is for use with storable pools only. Do not use with permanently-installed pools. À storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. À permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. IMPORTANT - Using the pump with an unmatched electrical supply is dangerous and will result in catastrophic failure of pump. RISK OF ELECTRICAL SHOCK - When working with electricity, turn the electrical power off at the circuit breaker and lock breaker door. Failure to do so will result in increased risk of shock, injury and possibly death. DO NOT REMOVE THE GROUNDING PRONG OR MODIFY THE PLUG IN ANY WAY. DO NOT USE ADAPTOR PLUGS. Consul a qualified electrician for any questions related to the validity of your plugs grounding. Handle the pump with care. Do not pull or carry the pump by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep

cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the filter pump. WARNING - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market) WARNING - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU) Cleaning and user maintenance must be performed by an adult above 18 years old who is familiar with the risk of electric shock. When the appliance Will be not used for a long time, such as in the winter, the pool set should be disassembled and stored indoor. CAUTION - Read the instruction before using the appliance and installation/reassembly every time. The appliance must be placed more than 2m away from the pool. (For France only). Electric installations should follow national wiring rules. Consult a qualified electrician for any questions. Only the media provided or specified by the manufacturer is to be used with product installation. Itis essential to check that the suction openings are not obstructed. Itis advisable to stop the filtration during maintenance operations on the filration system. Regularly monitor the filter clogging level. Aweekly check is recommended for cleaning. Minimum daily filtration operating time of 8 hours is recommended to ensure clear pool water. Itis essential to change any damaged element or set of elements as soon as possible. Use only parts approved by person responsible for placing the product on the market. Al filters and filter media shall be inspected regularly to ensure that there is not a build-up of detritus thus preventing good filtration. The disposal of any used filter media should also be in accordance with applicable regulations/legislation. In case of doubt on the pump or any circulation devices, contact a qualified

installer, or the manufacturer/importer/distributor. The water circulation installation shall comply with the European as well as national/local regulations, especially when dealing with electrical issues. Any change of valve position, pump size, grille size can cause a change of the flow and the suction velocity can be increased. Mind all the safety requirements and recommendations described in the manual. NOTE: Please examine equipment before use. Notify Bestway at the customer service address listed on this manual for any manufacturing defect or missing parts at the time of purchase. Verify that the equipment components represent the filter pump model that you had intended to purchase. NOTE: Place pump on a solid and level ground. Pay attention to position of pool and pump so adequate ventilation, drainage, and access for cleaning is available. Never place pump in an area that may accumulate water, or in an area where foot traffic will flow around the pool. Itis necessary to have the plug accessible after installation of the pool. NOTE: Atmospheric conditions may affect the performance and life span of your filter pump. Unnecessary wear and tear may occur during periods of cold, heat and exposure to sun. Whenever possible shelter pump from these conditions. Itis important to ensure the factory equipped stopper plugs for the inlet and outlet ports replace the screens before removal or maintenance on the pump is attempted. NOTE: Do not add chemicals in the filter pump. Don't plug or unplug the appliance if hand is wet. Always unplug the appliance: + On raining days + Before cleaning or other maintenance + Leave it unattended on holidays Safekeeping the instruction. For reconstruction the pool set every time, please always refer to the instructions. - Ifinstruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com NOTE: This product is not intended for commercial use. Please read the instruction manual carefully and keep it for future reference. SAVE THESE INSTRUCTIONS.

PEDESTAL FIXING EN60335-2 41 TEST standard requires the filer pump Lo be verialy ed on ground or a carain padestal made of wood or concrele belare use. There should be io holes Omm in diameter on the pedestl, the space between which should be 159mm. Put æ filer pump on the pedestal and fx em Logether by faste he bols and nuts. Al the pedestal paris should ïgh over 18kgs at least prevent ie pump from acaidentalyfaling NOTE: It is imperative to check that the hydraulic connectors are not obturated.

1) Openlunscrew ne Air Purge Valve on the top of the Fier Pump: airs released as water fils the Fier Pump.

2) Wen water comes out of the Air Purge Valve screw closed and wipe away any water.

3) Te star te Fier Pump, Insert the plug into a residual current device (RCD).

IMPORTANT: DO NOT DRY RUN THE FILTER PUMP - Make sure both the pool's Inlet and Outlet valves are fully covered by water before operating the Filter Pump PUMP MAINTENANCE CAUTION: YOU MUST ENSURE THE FILTER PUMP IS

1) Unplug the Filter Pump.

2) Loosen the Hose Clamps on the pool Inlt and Outlet Hoses by unserewing te fy nu counter-clockise.

3) Remove Debris Screens from inside of pool.

4) Replace the Debris Screens with the Stopper Plugs in the pos Inlt and Outet Vaves.

6) Unscrew the Fier Cap Retaner and remove the Fier Cap.

6) Clean the Fier Cartridge with à garden hose, if fiter cartidge remains said or iscolored, is necessary Lo replace it with a new ane. ) Insert the cleaned (or new) Fiter Cartridge: ensure is centared in the Filter Pump.

8) Check hat he Fier Cap Seal in place.

9) Replace ne Fier Cap and screw the Fier Cap Retainer int position.

10) Replace the Stapper Plugs with ine Debrs Screens in he pool Inlt and Outlet Valves.Tighlen the Hose Clamps. Water vl now fou Lo the

1) Follew the PUMP INSTALLATION DIRECTIONS saction Lo prepare the system for use.

IMPORTANT: For sanitary reasons we suggest replacing the Filter Cartridge with a new one every two weeks. Wintorization and long-torm storage

1) Unplug the Filter Pur.

2) Folou the Instructions as previous outined to stop water flowing a the Fier Purp and o remove the Filter Cartridge.
