USER MANUAL CBG6250/1XGG CANDY

Information and Advice

CAUTION: Accessible parts may become hot when used with cooking appliances

Under certain circumstances, electrical appliances may lead to dangerous hazards.

A) There should be adequate ventilation in the room when the cooker hood is used at the same time as appliances using gas or other fuels.
B) Do not check the status of the filters while the cooker hood is operating.
C) Do not touch the light bulb within half an hour after the appliance has been used.
D) Do not light a flame under the cooker hood.
E) Avoid opening the gasometer when there is no pan on the stove, as it is can damage the filters and lead to a fire.
F) Constantly check food which is being fried to avoid overheated oil splashing and becoming a fire hazard.
G) Disconnect the electrical plug prior to any maintenance.
H) Regulations concerning the discharge of air have to be fulfilled.

1) When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4Pa ( 4 × 10^-5 bar).

Information and Advice

CAUTION: Accessible parts may become hot when used with cooking appliances

J) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
K) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they are supervised or given instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.
L) The range hood is intended to be installed over a hob having no more than four hob elements.
M) This appliance is intended for indoor and household use only.
N) When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
O) Please note: Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room.
P) There is a fire risk if cleaning is not carried out in accordance with the instructions.

Information and advice

Check voltage and frequency given on the rating plate located on the inside of the hood.

2

We recommend that after installation the bottom of the hood should be no less than 650mm and no more than 750mm above the stove's heating elements and burners.

Information

The cooker hood must be installed and connected to flues where other appliances are installed and which run off other energy supplied different to electricity (water heaters boiler cookers (range/agas) etc.). The cooker hood must not be installed above cooker with eye-level grills.

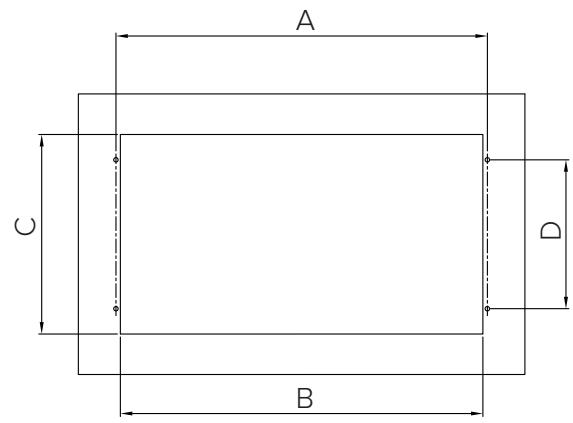

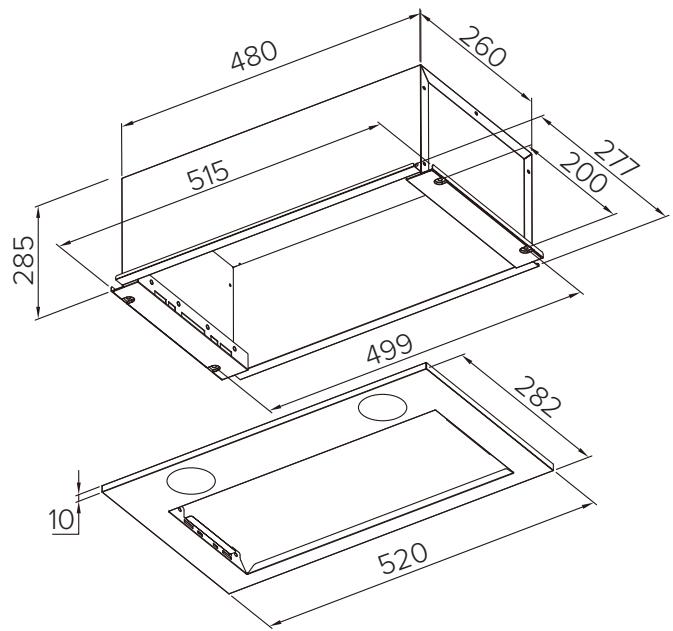

Cooker Hood Dimensions

A	499
B	487
C	268
D	200

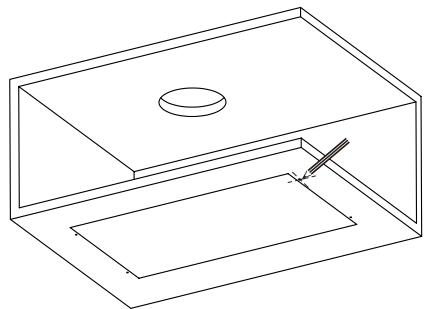

Mark out the dimensions of the cut-out based on your Cooker Hood.

INSTALLATION

5

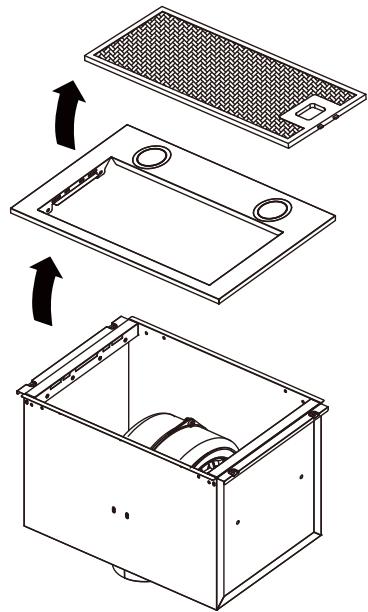

Remove the grease filter, unscrew the 4 screws of the fixed panel and remove it.

6

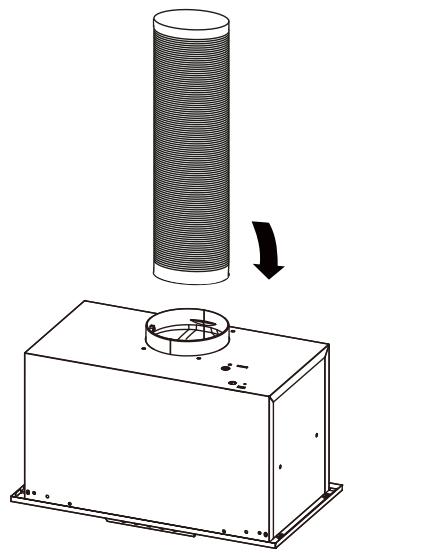

Connect the exhaust pipe to the ducting adaptor and locate on the extractor as indicated.

INSTALLATION

7

8

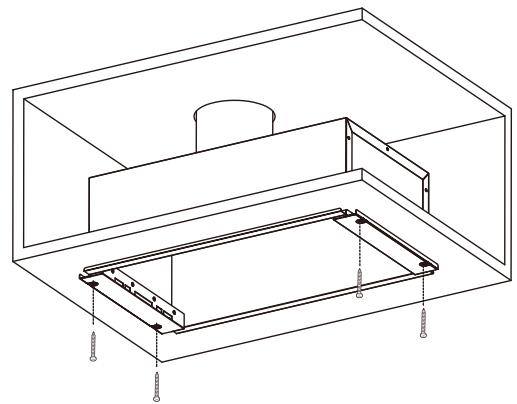

Place the extractor into the cabinet opening and secure it with screws.

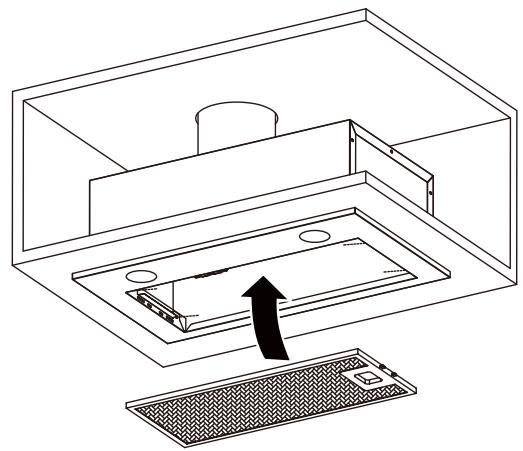

Secure the panel on with the 4 previously removed screws and insert the grease filter.

0

1

2

3

Information

Do not

touch the

light bulb

within half

an hour

after

appliance

use.

The lamp

shall not be

covered

with thermal

insulation or

other

material.

Charcoal filter

11

In re-circulating mode, air is vented back into the kitchen through the opening in the cooker hood.

This method is advised if you are not using your hob intensively. Re-circulated air requires the use of charcoal filters to remove odours.

To ensure the best performance from your cooker hood, the charcoal filter should be replaced every 3-6 months, dependent on use.

To attach a new charcoal filrer, follow the steps below:

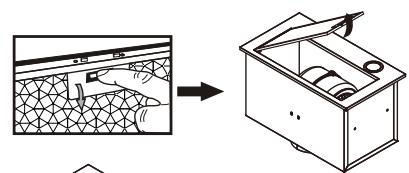

1.Remove the grease filter.
2. Place the charcoal filter on the centre of the motor support.
3. Replace the grease filter.

i

Information

This charcoal filter is non-washable and must be replaced as required.

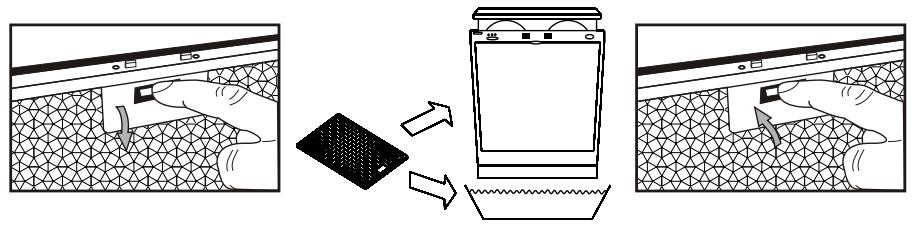

• It is recommendable to clean the metallic filter every three months by carrying out the following instructions:

• Remove the metallic filter from the cooker hood and wash it in a solution of water and neutral liquid detergent, leaving to soak

-Rinse thoroughly with warm water and leave to dry.

• The metallic filter may also be washed in the dishwasher.

The metallic filter may alter in color after several washes.

This is not cause for customer complaint nor replacement of metallic filter.

Information

There is a fire risk if cleaning is not carried out in accordance with the instructions

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.

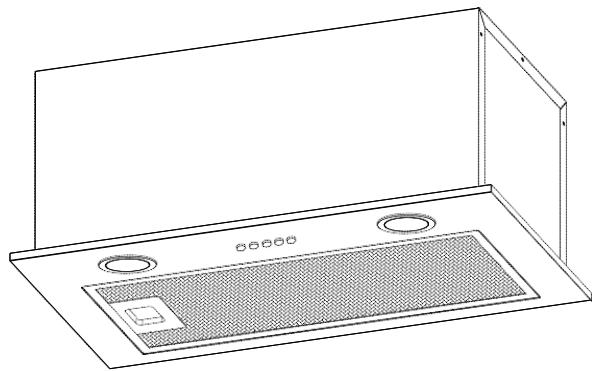

Hotte de cuisine
