HEAT WAVE 2000 W - Radiant panel SUNTEC - Free user manual and instructions

Brand	SUNTEC
Model	HEAT WAVE 2000 W
Product type	Radiant panel
Maximum power	2000 W
Heating levels	2 (1000 W, 2000 W)
Power supply	220-240 V~, 50/60 Hz
Adjustable thermostat	Yes
Casters	Included (mounting with adhesive clips and screws)
Carry handle	Yes, on the edge
Function indicator light	Yes
Use	Indoor, household only
Usage environment	Do not use near water (bathtub, shower, pool)
Safety	Do not cover, do not use extension cord, do not plug into a power strip
Minimum age for unsupervised use	8 years (with supervision and instructions)
Cleaning	Damp, clean cloth, mild detergent, do not immerse
Certification	CE marking, complies with European standards
Warranty	24 months (parts and labor)
Warranty period	24 months from date of purchase
Manufacturer	Suntec Wellness GmbH, Holzstraße 2, 40221 Düsseldorf, Germany
Recycling	Do not dispose of with household waste, take to a recycling center

Frequently Asked Questions - HEAT WAVE 2000 W SUNTEC

How to install the HEAT WAVE 2000 W radiant panel?

Remove the packaging, place the appliance face down on a soft surface. Attach the two adhesive clips to the bottom of the appliance, insert the casters into the openings and secure them with the screws provided. Place the appliance back on its feet. The appliance is then ready for use.

How to set the temperature and heating levels?

Use the thermostat (lower rotary switch) to set the desired temperature: turn clockwise to increase, counterclockwise to decrease. The upper rotary switch allows you to select the heating level: 0 (off), I (1000 W) or II (2000 W). The indicator light comes on when the appliance is operating.

Can I use the appliance in a bathroom or near a water source?

No. It is strictly forbidden to use the appliance near a bathtub, shower or pool. The appliance is exclusively intended for indoor household use in a dry location.

What to do if the appliance does not heat?

First check that the appliance is plugged into a functional 220-240 V~ outlet. Make sure the upper rotary switch is not set to 0 and the thermostat is set high enough. If the indicator light does not come on, contact your dealer or an electrician. Do not attempt to repair the appliance yourself.

How to clean the radiant panel?

Turn off the appliance and unplug it. Wait for it to cool down completely. Clean the housing with a damp, clean cloth, then wipe with a dry cloth. Do not use harsh detergents or chemicals. Never immerse the appliance in water or any other liquid.

Is the appliance safe for children?

Children aged 8 years and over may use the appliance under supervision and after receiving instructions. Children aged 3 to 8 years may only turn the appliance on/off under supervision, but must not plug it in, adjust it, clean it or perform maintenance. Never leave a child under 3 years unattended near the appliance.

Can I use an extension cord or power strip?

No. Do not use an extension cord as it could overheat and cause a fire. Do not plug the appliance into a power strip to avoid overloading the network. Plug it directly into a properly functioning wall outlet.

What is the power consumption of the appliance?

The maximum power is 2000 W. You can choose the heating level I (1000 W) or II (2000 W) according to your needs. The actual consumption depends on the level selected and the duration of use.

How to store the appliance when not used for a long time?

When you do not use the appliance for an extended period, pack it properly and store it in a dry, well-ventilated place. Make sure it is clean and completely cooled down before storing.

What to do in case of a malfunction under warranty?

The warranty is 24 months from the date of purchase. In case of manufacturing defects or material faults, return the complete appliance in its original packaging with proof of purchase to your point of sale. Free replacement or repair will be carried out at our discretion. Damages due to mishandling are not covered.

USER MANUAL HEAT WAVE 2000 W SUNTEC

© 2018 KLIMATRONIC® Heat Wave Style 2000 eco

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40221 DUSSELDORF / GERMANY

KlIMATRONIC®

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Please connect the unit to a grounded electrical outlet (220-240V, 50/60 Hz).
• The heater must not be located below a fixed socket.
• Please operate per the instructions of the manual. Any unrecompensated operation can cause fire, short circuit and personal injuries.
• Unauthorized extension of power cord is not allowed to avoid fire caused by overheating of the extension part.
• To avoid the risk of an electric shock, never insert any objects into the unit or through the guard of the appliance.
• To avoid burns, please do not touch the hot surface of the appliance. If necessary, please grab the plastic

handle at the rear to move the heater.

• The appliance is only intended for indoor use. Do not use it outdoors.
• Please do not use the appliance near bath tubs, showers or swimming pools.
• Please do not use the appliance near gasoline, paint or any other flammable liquids.
• Please do not cover the appliance.
• To avoid current overload, do not share the use of a single socket with other appliances.
• Please do not use the appliance if the power cord is damaged. Please contact your seller directly.
• The appliance should not be operated with automatic power-on programmers, timers, or other similar types of devices.
• For any problems or damage to the equipment, please contact your seller or an electrician. Unauthorized disassembling and replacement of parts are not allowed, and the warranty may no longer be valid.
• If you are not going to use the heater for a while, it is best to pack the appliance properly and store it in a cool, dry place.

Warning: In order to avoid overheating, do not cover the heater.

Installation

• Please take the heater out of the package. Place it upside down on a soft surface.
• Place the two clamps on the bottom of the device (fig. 1), insert the castors into the corresponding openings on the clamps, and fasten them with the screws included in the package (fig. 2).

Fig. 1

Fig. 2

• Please place the heater upright. The unit is now ready for operation.

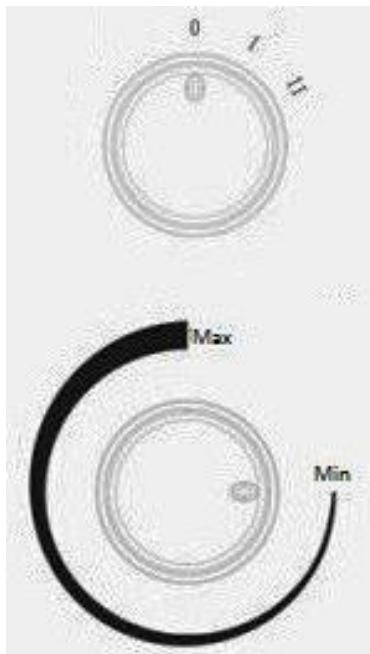

Operation

• Room temperature can be adjusted by using the thermostat.
• Please turn the thermostat knob clockwise to increase the heater temperature or anti-clockwise to decrease it, until you reach the desired temperature.
• Switch the heater to one of the following power settings:

0 = On/Off

I = Heating level I (1000W)

II = Heating level II (2000W)

• The power switch lights up when the device is operating. Do not cover the heater at any time during operation. There is a risk of fire!
• To turn off the heater, turn the power switch to the Off position (0) and turn the thermostat control switch anti-clockwise.

Cleaning

• Please turn off the heater and unplug it from the main socket.
• Please allow the unit to cool down before cleaning.
• Please clean the outside part of the heater with a clean and damp cloth and buff it with a dry cloth afterwards.
• Never use aggressive cleaning agents or chemicals. This can damage the surface of your heater. Only use mild detergents.
• Never disassemble the appliance for cleaning.
• Never rinse or spray the appliance with water.

In case of complaint

• You can claim the device within 24 months from the date of purchase (receipt).
• A free replacement or repair will be excluded if the product has been improperly handled previously.
• Defects in wear parts, consumables, as well as cleaning, maintenance, or replacement of said parts are therefore at the customer's expense.
• If you wish to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For timely and convenient service registration, visit our website www.suntec-wellness.de and learn more.
• Without proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, by replacing the unit.
• Damage to accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage or breakage of plastic parts are always charged.
• The dealer or repair service can perform the repair after the expiration of the warranty at a charge.

Note Concerning Protection of Environment

This product must not be disposed of via normal household waste after its service life, but must be taken to

a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions, or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling, or any other form of recycling old appliances, you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance with the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose of electronic waste through local collection points. The packaging and this manual can be recycled.

EC Declaration of Conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual, all previous versions are superseded.

SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2018/02 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

KLIMATRONIC

© 2018/02 SUNTEC WELLNESS GMBH

0 = Off/On switch I = Heating level I (1000W) II = Heating level II (2000W)

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:
