USER MANUAL MURAL HAUTE PERFORMANCE OFRESH

Wall mounted high velocity mist fan. Ref 077 (500mm)

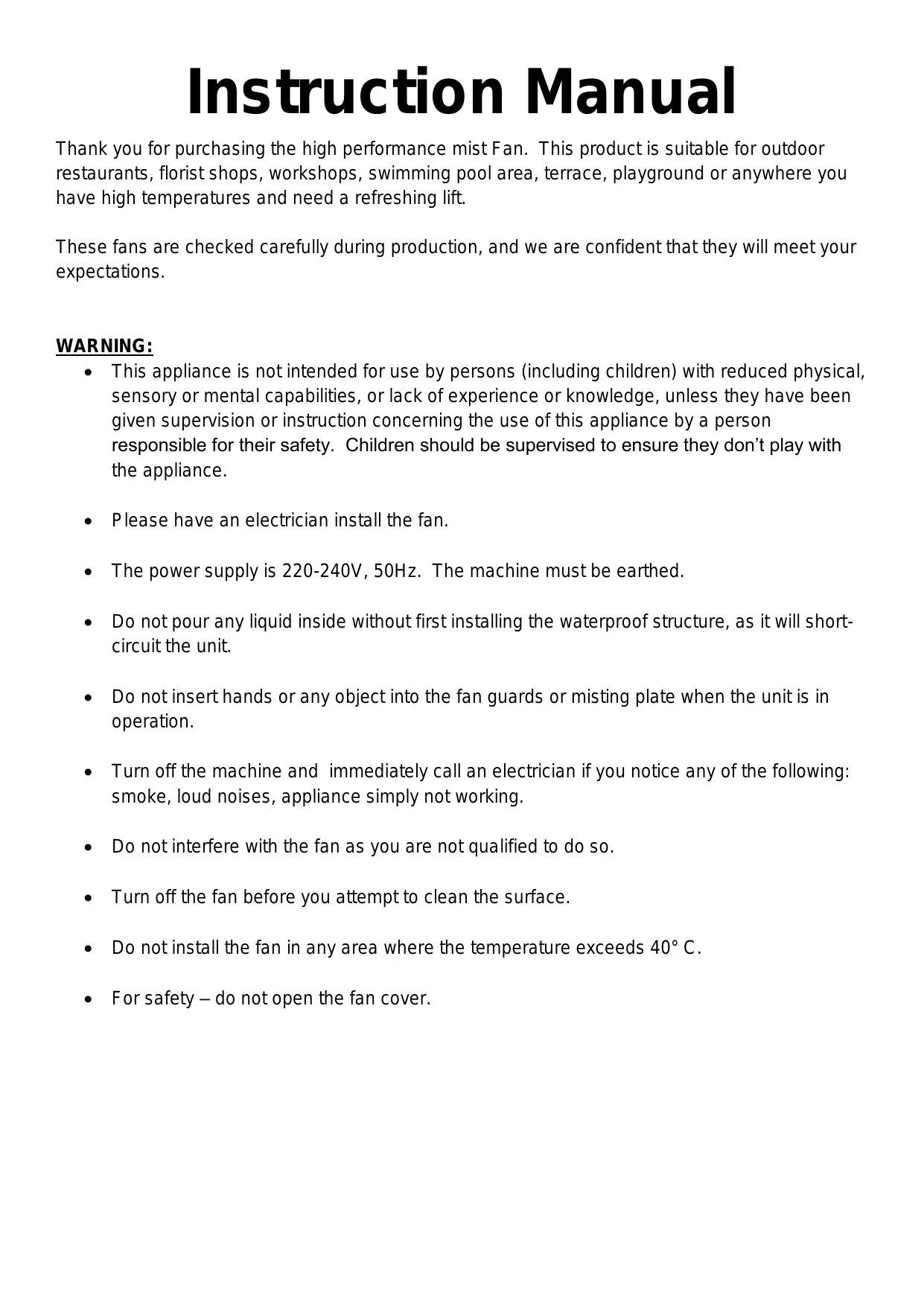

Thank you for purchasing the high performance mist Fan. This product is suitable for outdoor restaurants, florist shops, workshops, swimming pool area, terrace, playground or anywhere you have high temperatures and need a refreshing lift.

These fans are checked carefully during production, and we are confident that they will meet your expectations.

WARNING:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of this appliance by a person responsible for their safety. Children should be supervised to ensure they don't play with the appliance.
• Please have an electrician install the fan.
• The power supply is 220-240V, 50Hz. The machine must be earthed.
• Do not pour any liquid inside without first installing the waterproof structure, as it will short-circuit the unit.
• Do not insert hands or any object into the fan guards or misting plate when the unit is in operation.
• Turn off the machine and immediately call an electrician if you notice any of the following: smoke, loud noises, appliance simply not working.
• Do not interfere with the fan as you are not qualified to do so.
• Turn off the fan before you attempt to clean the surface.
• Do not install the fan in any area where the temperature exceeds 40^ C.
• For safety - do not open the fan cover.

FEATURES:

1. This high performance mist Fan has an Epoxy coating to preserve against corrosion.
2. The misting and blowing is a combination of two different electric motors. High quality bearings keep a stable performance, moderate temperature, low noise and continuous usage.
3. With an advanced misting system, the mist volume can be adjusted. The water pump and float switch will cut out when the water supply has been reduced to the minimum level for operation.

USAGE:

See overleaf for a drawing of the assembly instructions.

• Open the water tank cover, fill the tank with clean water and then close the cover.
• Connect the fan and water pump switches and then connect the power supply. You can also adjust the mist level if required.
  The speed switch reads as follows:

'0' OFF
1 LOW
2' MEDIUM
3 HIGH

• In attachment to setting '2' (medium), you will see a pucker handle. When using it, press the button in the handle to open, then repress the handle.
• To adjust the oscillation, please wait for the blade to stop, and then disconnect the power. Please note: the fan will not oscillate if the adjusting screw is set at the centre hole of the oscillating fixture. See attachment 2.

MAINTENANCE:

• If outside, keep the fan covered with a tarp or plastic bag to protect from dust or rain.
• To ensure the fan has a long lifespan, remember to replace the gearbox oil, bearing oil and other rotary parts approximately once a year (each 2000hours)
• Keep the fan clean, remembering to turn the power off first!
• Clear the pump regularly in order to make it running smoothly. Supply clean water for the water tank and clean the water tank timely
• Clean the fan and seal the whole machine with plastic bag and put it in dry, ventilating place, when it is not used for a long time

WARRANTY AND AFTER SALE SERVICE PROCEDURE:

All our misting systems are guaranteed for 1 year parts and labor. If, during this period, your product starts to malfunction, please follow the return procedure below:

• Before anything else, call customer service at 0951 634 467 (in France) or contact your local dealer
  to determine the cause of the problem and the solution to it or contact your local dealer
• After approval of the technician, pack your misting system in its original packaging.
• Attach the original purchase receipt by circling the date (no photocopies will be accepted)
• Send it to: , 4 allee de l'olivet 07300 Saint Jean de Muzols, FRANCE
• We will repair or replace your misting system and return it to you at our expense at the address mentioned on the package (address in France).
• We will also return receipt, dated and buffered to revalidate the warranty.

If you have any questions or comments, do not hesitate to contact us at [e-mail] 0033951 634 467.

Manuel d'installation / Manuale di Installazione / Manual de Instalacion / Setup Manual

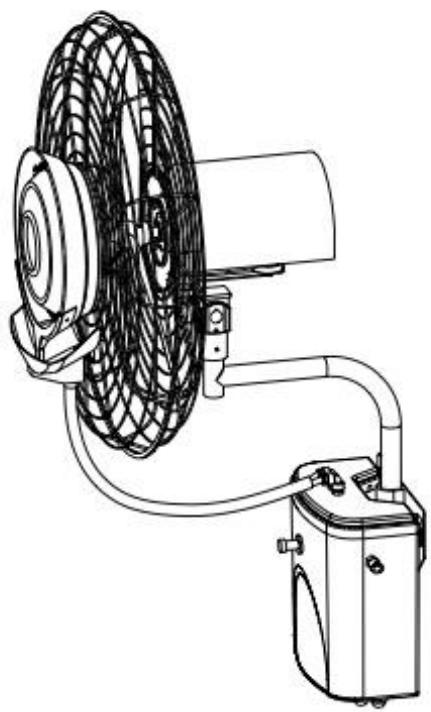

Scheme d'assemblage / Disegno di assieme / Asamblea dibujo / Assembly drawing

Step 1: Fix wall plate on the wall with 2 pcs M10x70 screws, then put support arm into plate fasten screw M8x40 and M8x10

Etape 2:

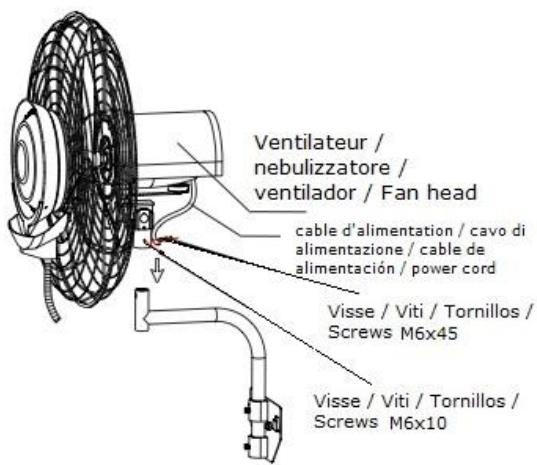

Put fan head into support arm,

fasten M6x45 and M6x10 screw.

fix power cord on support arm

with clip.

Etape 3:

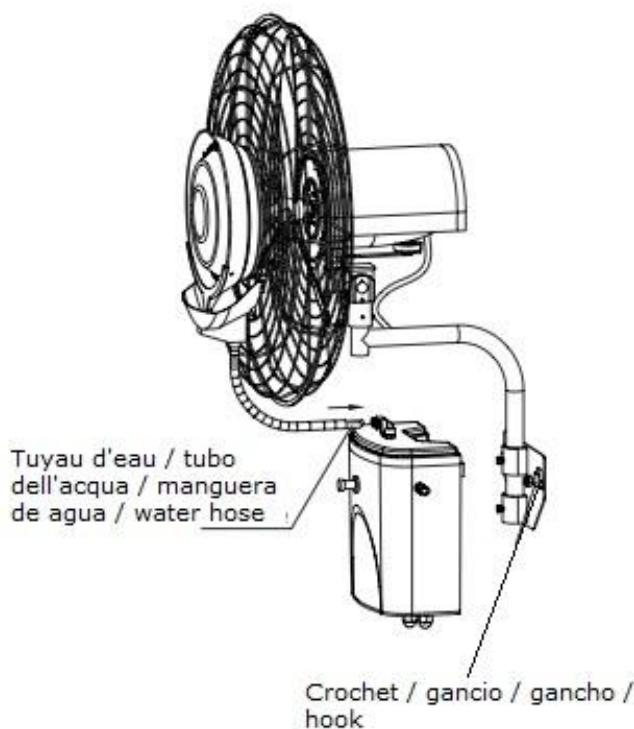

Put water tank in the hook of wall plate, Then connect water hose in proper place.

Etape 4:

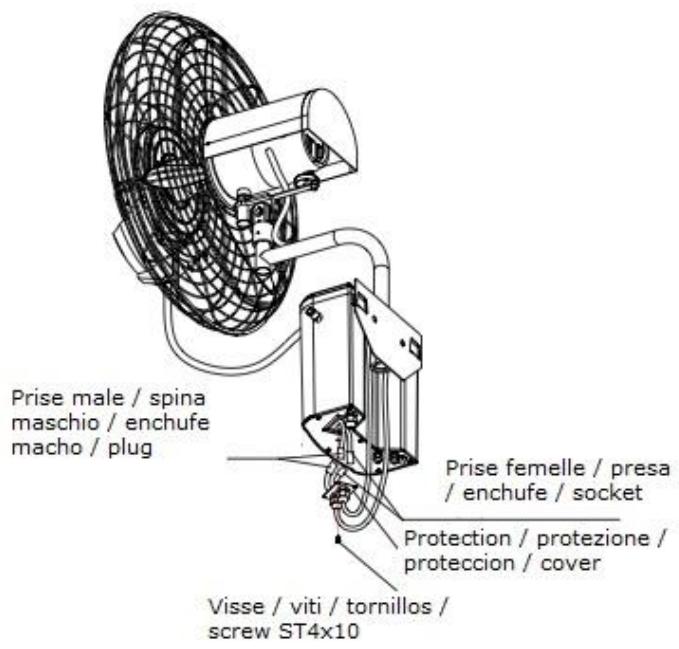

Connect plug and socket well then fix the cover with screw ST4x10

Etape 5:

Connect tap connection with tap, Then put water hose into tap connection. Finally, put the other end of water hose into water hose connection of water tank.

Raccord eau / collegamento acqua / conexión de agua / Waterconnection

Tuyau/Tubo/Tubo/Hose

《Attachment 1》

Hose connection: Push the hose into the water connection

Disconnections of the hose: Press the washer and pull the hose out of the fitting

《Attachment 1》
