USER MANUAL VB-KM842WH VALBERG

Thank you for choosing this VALBERG product.

VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

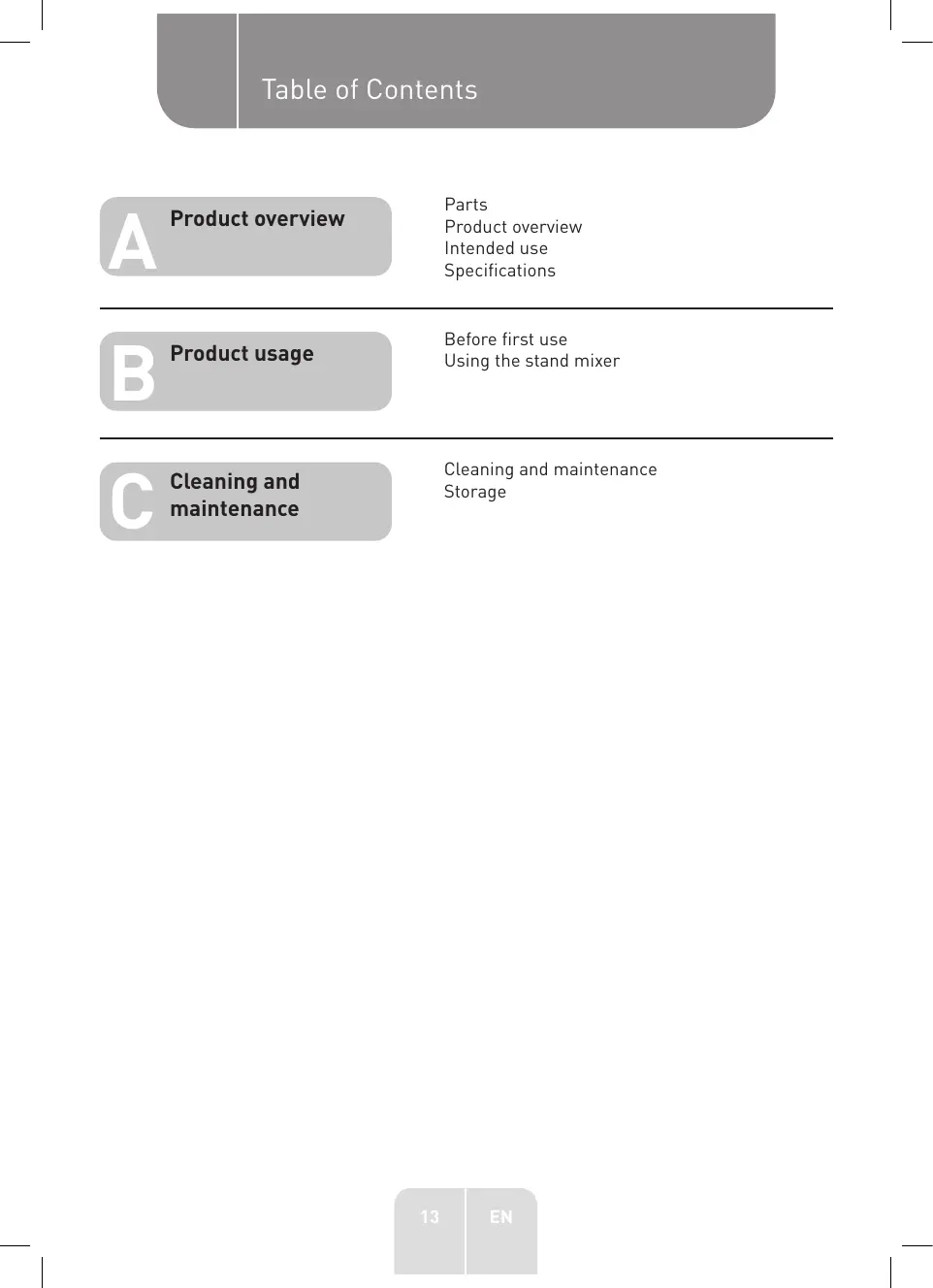

Table of Contents

Parts

Product overview

Intended use

Specifications

Before first use

Using the stand mixer

Cleaning and maintenance

Storage

A Product overview

Before using the unit, carefully read both the Manual and RegulatoryWarnings booklet. Keep these instructions for future reference and pass them onto any new owners of the unit.

Parts

A Base unit
B Mixing bowl
Splash guard with filler opening
D Accessory-connecting head
E Adjustable arm
F Air vent
Arm-locking lever
Speed control knob (P, 0, 1, 2, 3, 4, 5, 6)
Power cable with plug
Suction feet
Whisk
Flat beater
M Dough hook

Product overview

• Unpack and remove all labels from the unit, except the nameplate. Please check that all of the unit's parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

This unit has been designed to mix ingredients and should not be used for any other purpose. The unit is intended exclusively for household use and may not be used for industrial or commercial purposes. Any other use may damage the unit or cause injury.

Specifications

Model:	993023 - VB-KM842WH
Voltage:	220-240 V ~, 50/60 Hz
Power consumption:	800 W
Off mode power:	0.425 W
Maximum continuous use time:	5 minutes
Bowl capacity:	4.2 L
Protection class:	Class II

The device goes into off mode immediately after completing the operation.

Before first use

• Clean the unit before first use ( CLEANING AND MAINTENANCE).
• Place the unit on a stable, flat and non-slip surface.
• The unit may vibrate and move slightly across the worktop during use. Do not place the unit near the edge of a worktop as it could accidentally fall.
• Do not place the unit on a hot surface such as a stove.

Using the stand mixer

WARNING!

• Before assembling the unit or changing the accessories, always set the speed control knob to 0 (Off) and unplug the power cable from the wall socket. Failure to do so could result in serious injury.
• Do not touch moving parts when the unit is in use. There is a risk of injury.
• Only ever use the unit continuously for a maximum of 5 minutes. If you would like to use the unit for a longer period of time, let the unit cool down for 10 minutes between the two cycles. This operation can be repeated for a maximum of 20 cycles.
• Never operate the food processor while it is empty, in order to avoid overheating the motor.

To adjust the arm position, push the arm locking-lever upwards, in the direction of the arrow. Tilt the adjustable arm to the desired angle and make sure it clicks into place.
Place the bowl on the base. Turn the bowl clockwise towards the "lock" symbol, until it clicks into place. Place the ingredients in the bowl. (To remove the bowl at any time, turn it anticlockwise towards the "unlock symbol" and lift it up.)

NOTE: Do not overfill the bowl.

3 Secure the splash guard on top of the bowl. Press the splash guard down to secure it onto the bowl. The filler opening should now be facing the speed control knob. (To remove the splash guard, simply lift it off the bowl.)

NOTE: Always use the splash guard with the bowl to prevent food from splashing out of the bowl.

B Product usage

4 Attach one of the three supplied accessories (flat beater, whisk or dough hook) to the accessory-connecting head. Push upwards to insert the accessory as far as it will go. Then, turn the accessory anticlockwise until it clicks into place. (To remove the accessory, push it up and turn it clockwise until it comes off).
Push the arm-locking lever in the direction of the arrow and tilt the adjustable arm downwards until it clicks into place.
Set the speed control knob to 0. Plug the unit into a mains socket.

NOTE: Plug the power plug into the mains socket, then use the pulse function first (by setting the speed control knob to P) to check whether or not the bowl has been correctly installed.

To start mixing, turn the speed control knob to the desired position (either P for pulse or 1-6 for the desired speed).
- To switch off the unit, turn the speed control knob to 0. Always unplug the unit from the mains socket whenever you have finished using it.

Accessories	Functions	Recommended settings
Whisk	Used to incorporate air into moist preparations, such as egg whites, whipped cream, mayonnaise and butter.	Start by mixing at a low speed, then gradually increase the speed to reduce the risk of food splattering out of the bowl. To whip 18 egg whites into stiff peaks, use the unit at speed 4, then increase it to speed 6 for 4 minutes. To whip 250 ml of cream, use speed 4 for 4 minutes.
Flat beater	For normal to heavy mixtures Use this accessory to prepare cakes, biscuits, pasta, pastries, meatloaf and purées.	Use the unit on a low speed to mix the ingredients. Gradually increase the speed to 6 until the desired result is obtained.

Dough hook

Ideal for mixing and kneading bread, Swiss roll, pizza and brioche doughs.

NOTE: Never use more than 600g of flour. We recommend a flour to water ratio of approx. 5:3.

To mix and knead dough:

1. Level 1 - 30 seconds.
2. Level 2 - 30 seconds.
3. Level 3 - 3 minutes.

NOTE: When mixing the dough, do not exceed level 3 as this could damage the unit.

NOTE:

• Turn the speed control knob to position 1-3 when adding ingredients. Pour any additional ingredients into the bowl via the filler opening.
• Use the pulse function [P] for an easy-to-control power boost. Do not use this function for more than 1 minute to prevent the motor from overheating.
• Never put your hand or fingers into the bowl whilst the unit is in use.
• Do not use this unit to crush ice or prepare hot liquids.
• Do not move the food processor if there are still ingredients in the bowl.

Cleaning and maintenance

WARNING!

• To prevent the risk of electrocution, turn off and unplug the unit from the mains socket before cleaning.
• Allow the unit to cool completely before cleaning it.
• Under no circumstances should you immerse the unit, its power cable or plug in water or any other liquid, as they contain electrical components. Do not rinse them under the tap.
• Never use solvents, chemical or abrasive cleaning agents, wire brushes, sharp objects or scouring pads to clean the unit.

Disassemble the mixer by removing the mixing bowl, splash guard and accessories. Then clean as follows:

Parts	Cleaning method
Arm	Clean with a soft, slightly damp cloth and a small amount of washing-up liquid. Make sure that no liquid enters the inside of the unit. Dry completely.
Base unit
Splash guard with filler opening	Soak in soapy water (washing-up liquid) to soften any food residue.
Mixing bowl	Wash thoroughly.
Whisk	Rinse off with clean water.
Flat beater	Once clean, dry all parts well.
Dough hook
	Note: Do not wash the dough hook, flat beater or splash guard in the dishwasher. The bowl and whisk are dishwasher-safe.

Storage

• Always unplug the unit before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.

Bedankt!

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.
