USER MANUAL SC310ACL GRIS SCHNEIDER

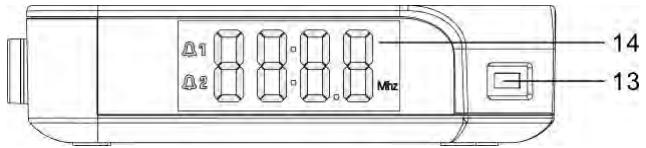

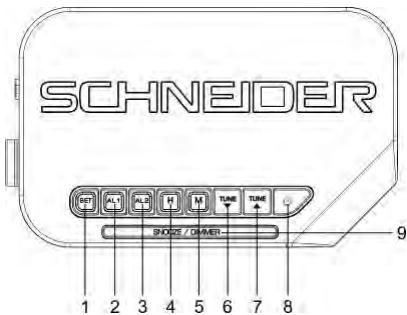

Location of COntrOIS Operations.

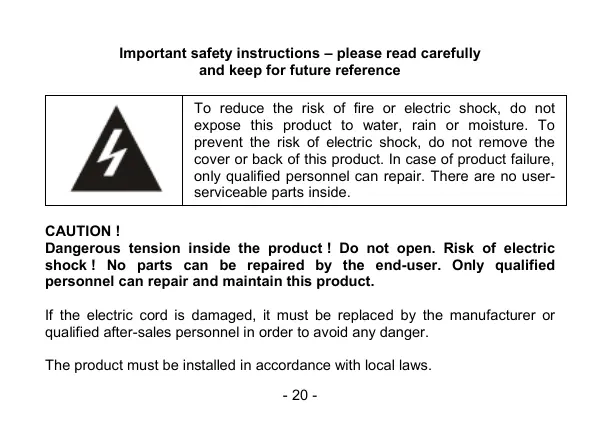

Important safety instructions — please read carefully and keep for future reference

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user- serviceable parts inside.

CAUTION ! Dangerous tension inside the product ! Do not open. Risk of electric shock! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualfied after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws:

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller).

Where to install the product

= Place the product on a straight, rigid and stable place. Do not place the product on a carpet

Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).

Do not place anything undemeath the product (for example, CDs or magazines)

= Place the product in a sufficiently-aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.

= Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

= The apparatus shall not be exposed to dripping or splashing. No object filed with liquids, such as vases, shall be placed on the apparatus.

Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).

No naked flame sources, such as lighted candies, should be placed on the apparatus.

-_ Please unplug the product in case of prolonged non-use.

-_lfthe supply cable is damaged, it must be replaced by the manufacturer or quaïied after-sales personnel to avoid any danger.

This product must be connected to an electrical supply 230V - 50Hz.

= The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable.

Do not use the product with a battery different from the one provided. CAUTION: Explosion risk if the battery is not replaced corectly. Do not attempt to replace the battery with a different battery version.

- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine or fire or any other heat sources.

This product is compliant with directives 2014/35/EU (@brogating the directive 2006/95/EC) and 2014/30/EU (abrogating the directive 2004/108/EC).

= This logo set on the product means hat Îhe recycling of his apparatus comes within the framework of the directive 2012H9/EU of July 4, 2012 concerning the waste on electrical and electronic equipment (WEEE).

- The presence of dangerous substances in the electrical EM 4 electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.

- Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.

- As the end user, your role is of prime importance in the cycles of re- using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.

- You have the obligation to use the selective waste collection systems put in place by your local authorities.

Connecting mains power Connect the AC power cord to the power supply outlet. Your clock radio is ready to work for you

Backup battery installation Your clock radio requires one CR2032 lithium battery (included) to provide backup power to the clock in the event of a temporary power interruption.

Open battery cover located at the back of the unit. À screwdriver (not provided) is necessary in order to protect young children.

Insert one CR2032 lithium battery into the battery compartment with the “+" side facing up.

Close the battery cover.

If AC power is interrupted, the LED display will go off and both the radio and the alarm will stop. The backup battery will keep the time and all settings of your unit Make sure a new CR2032 lithium battery is used.

Note: Do not use old battery for backup, which may lead to abnormal display appears. In case abnormal display appears, please take out the backup battery and then unplug the clock radio.

Settimg time 1. In standby mode, press and hold the SET button, the hour digits flash. 2. Press H button repeatedly to set the current hour.

3. Press M button repeatedly to set the current minute.

4. Press SET button again to confirm the setting.

Hold and press AL1 or ALZ once till the 4 digits flash.

Press H button repeatedly to set Alarm1 or Alarm2 hour.

Press M button repeatediy to set Alarm1 or Alarm2 minute.

Press AL1 or AL2 again to confirm the alarms setting.

Move the AL or AL2 selector to position BUZZ or RADIO to select the alarm tone, the related alarm is turned on, and A1 or A2 icon keep lighting up on the display

Stopping and resetting the alarm to come on the next day When Alarm 1 or 2 is sounding, the related A1 or A2 icon flashes. Press () button once to stop the alarm and reset it to come on the following day. After that Af or A2 icon keep lighting up on the display.

Note : When AL1 or AL2 selector is moved to position BUZZ, press button AL or AL2 can stop the alarm also and reset it to come on the following day.

Cancel the Alarm Move the AL or AL2 selector to position OFF, then the alarm function will be

Snooze operation (default snooze duration is 9 minutes)

When alarm is sounding, press SNOOZE/DIMMER button once, the alarm will be silent and come on again after the defualt snooze duration

Note: if your second alarm activates while the first alarm is sounding or it is in the snooze mode, the second alarm overrides the first alarm (the first alarm is reset to come on the next day).

Using the dimmer Make a long press on the SNOOZE/DIMMER button to adjust the brighiness of the LED display. Operate when the radio is off or the unit is not sounding.

DERNIERS To turn on the radio, press STANDBY button once, the display shows radio frequency in Mhz.

Press TUNE A / Y to tune the radio to a desired station. Press and hold TUNE À / Y to scan and store the radio programs directly.

To adjust the volume, turn the VOLUME knob to the position you want. Press STANDBY button Lo turn off the radio.

D ES Note: For better FM reception, there is a built-in FM antenna wire at the rear of the unit. Move the wire around to obtain the best reception.

Using the preset memory

This clock radio features à total of 20 preset memories of FM stations. These allow you to preset your favorite stations and access them quickly.

1. Turn on the radio and select a radio station you like to memorize.

D Press and hold the SET button until « PO » flashes. Press SET once to store Memory 1

Press TUNE A or Y to select another station you like to memorize. Then press and hold SET until « P01 » flashes. Press TUNE A or Y once, « P02 » appears. Press SET once to store Memory 02

Repeat Step 2 and 3 to preset memories 3 through 20.

To access a preset station at any time, press the SET button once at a time while the radio is on.

To use the sleep timer (Applicable in radio mode) Press the SNOOZE button repeatedly as needed to adjust the sleep timer from 120, 90, 60, 45, 30, 15 or OFF.

When the display changes back to show the time, press SNOOZE button again to show the remaining sleep time.

The radio will play for the programmed sleep time and then shut off automatically.

To turn off the radio before the sleep time has elapsed, press STANDBY button once.

To use the USB port for charging Connect your mobile phone with the USB port by a USB charging cable (not provided) to charge.

1. The USB port is only for USB recharging function, and it cannot support USB player to play music

2. When USB jack is recharging the mobile phone, the maximum current is 500MA. Please choose other device in case of fast recharge.

[TROUBLE SHOOTING If your clock displays irrelevant time or does not function propery, which may be caused by electro-static discharge or other interference, disconnect the AC power (and remove the backup battery). The clock radio will reset to default settings and you need set it again

If abnormal display appears, please take out the backup battery and then unplug the clock radio. Replug the clock radio after 1-2 minutes.

The USB port is only for recharging function, and it cannot support music playback with a USB key.

Power Consumption: 6.6W USB charging Jack: maximum 500mA current
