USER MANUAL MC170CH CABASSE

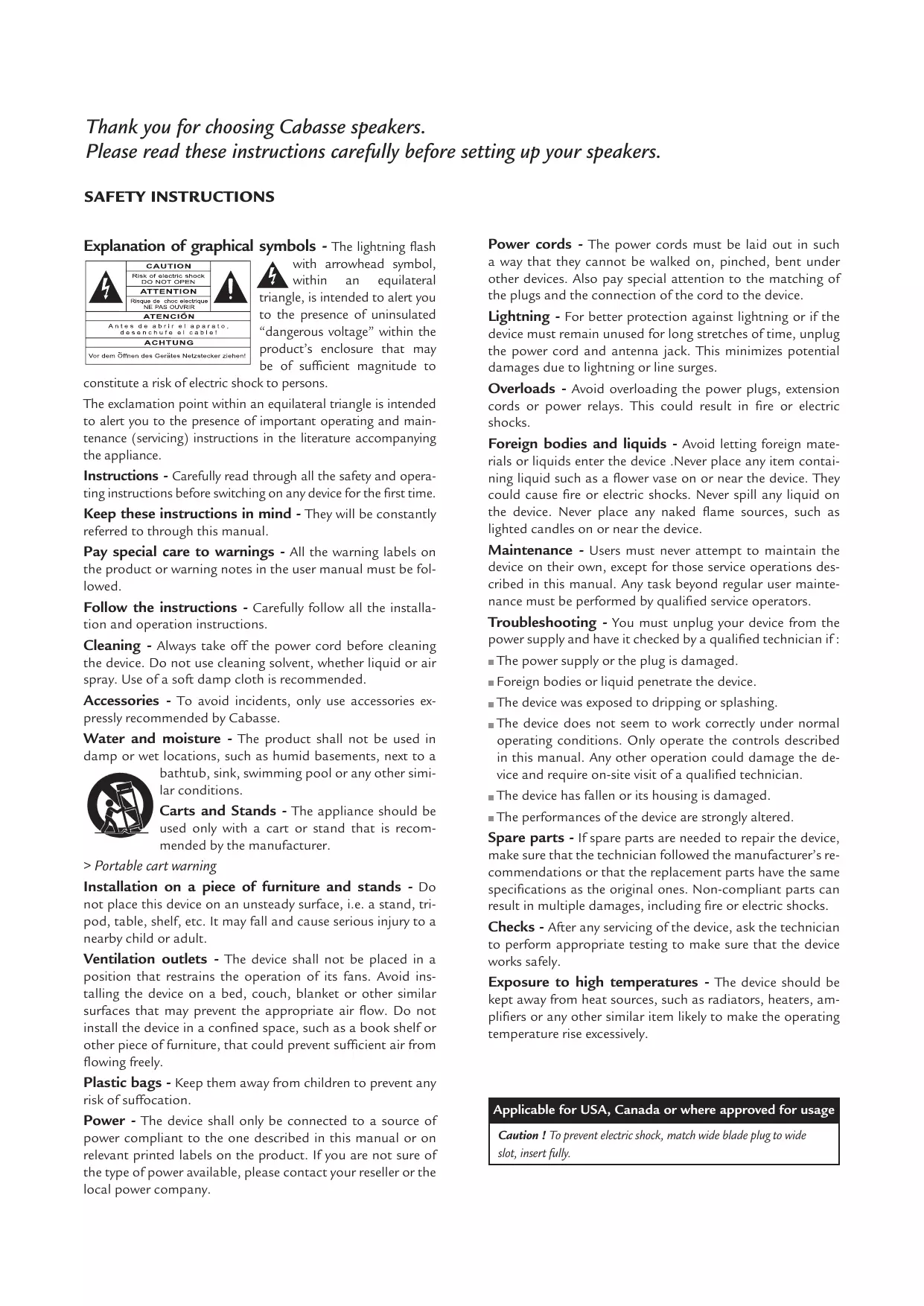

9,7 kg Étant donné l’évolution des techniques mises en oeuvre pour une fiabilité accrue et une recherche constante de qualité optimale, Cabasse se réserve le droit d’apporter toutes modifications aux modèles présentés sur les fiches techniques ou les documents publicitaires. Thank you for choosing Cabasse speakers. Please read these instructions carefully before setting up your speakers. SAFETY INSTRUCTIONS Explanation of graphical symbols - The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Power cords - The power cords must be laid out in such a way that they cannot be walked on, pinched, bent under other devices. Also pay special attention to the matching of the plugs and the connection of the cord to the device. Lightning - For better protection against lightning or if the device must remain unused for long stretches of time, unplug the power cord and antenna jack. This minimizes potential damages due to lightning or line surges. Overloads - Avoid overloading the power plugs, extension cords or power relays. This could result in fire or electric shocks. Foreign bodies and liquids - Avoid letting foreign mate- referred to through this manual. rials or liquids enter the device .Never place any item containing liquid such as a flower vase on or near the device. They could cause fire or electric shocks. Never spill any liquid on the device. Never place any naked flame sources, such as lighted candles on or near the device. Pay special care to warnings - All the warning labels on Maintenance - Users must never attempt to maintain the Instructions - Carefully read through all the safety and operating instructions before switching on any device for the first time. Keep these instructions in mind - They will be constantly the product or warning notes in the user manual must be followed. Follow the instructions - Carefully follow all the installation and operation instructions. Cleaning - Always take off the power cord before cleaning device on their own, except for those service operations described in this manual. Any task beyond regular user maintenance must be performed by qualified service operators. Troubleshooting - You must unplug your device from the power supply and have it checked by a qualified technician if : the device. Do not use cleaning solvent, whether liquid or air spray. Use of a soft damp cloth is recommended. The power supply or the plug is damaged. Accessories - To avoid incidents, only use accessories ex- The device was exposed to dripping or splashing. pressly recommended by Cabasse. Water and moisture - The product shall not be used in damp or wet locations, such as humid basements, next to a bathtub, sink, swimming pool or any other similar conditions. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer. > Portable cart warning Installation on a piece of furniture and stands - Do not place this device on an unsteady surface, i.e. a stand, tripod, table, shelf, etc. It may fall and cause serious injury to a nearby child or adult. Ventilation outlets - The device shall not be placed in a position that restrains the operation of its fans. Avoid installing the device on a bed, couch, blanket or other similar surfaces that may prevent the appropriate air flow. Do not install the device in a confined space, such as a book shelf or other piece of furniture, that could prevent sufficient air from flowing freely. Plastic bags - Keep them away from children to prevent any risk of suffocation. Power - The device shall only be connected to a source of power compliant to the one described in this manual or on relevant printed labels on the product. If you are not sure of the type of power available, please contact your reseller or the local power company. Foreign bodies or liquid penetrate the device. he device does not seem to work correctly under normal operating conditions. Only operate the controls described in this manual. Any other operation could damage the device and require on-site visit of a qualified technician. The device has fallen or its housing is damaged. The performances of the device are strongly altered. Spare parts - If spare parts are needed to repair the device, make sure that the technician followed the manufacturer’s recommendations or that the replacement parts have the same specifications as the original ones. Non-compliant parts can result in multiple damages, including fire or electric shocks. Checks - After any servicing of the device, ask the technician to perform appropriate testing to make sure that the device works safely. Exposure to high temperatures - The device should be kept away from heat sources, such as radiators, heaters, amplifiers or any other similar item likely to make the operating temperature rise excessively. Applicable for USA, Canada or where approved for usage Caution ! To prevent electric shock, match wide blade plug to wide slot, insert fully. ANTIGUA MC170 - JERSEY MC170 - SOCOA MC170 UNPACKING After opening the top carton flaps, fold the carton flaps right back, remove the cardboard sheet, the bag of accessories and the foam halfshells protecting the speakers and the front grille. Then pull out the grill and the speaker. We suggest you to retain the packing for future use. ATTENTION : These speakers are very heavy, so 2 persons minimum are required to unpack and re-pack them. POSITIONING Speakers positioning Our speakers have been designed to function in a vertical position. Under these conditions, the polar response is most uniform1. The Jersey model is delivered with a set of decoupling spikes2. These accessories are to be screwed in the inserts on the base of the speakers. These accessories ensure the stability of the speaker while limiting resonance coming from certain types of grounds like wood floors. Speakers are delivered with a front grille to protect drivers. It is possible to use them without this front grille, by gently pulling its top end in order to cut off its magnetic link with the magnets to the front panel. To get the grill back in place, position it in front of the speaker and approach it to the front panel until the magnetic link is effective. These operations must be carried out very smoothly in order not to damage prematurely the veneer covering the magnets on the front panel of the speaker3. Powerful drivers generate magnetic fields that can extend beyond the boundaries of the speaker cabinet. We recommend you keep magnetically sensitive articles (CRT TV, computer screen, computer discs, audio and video tapes, swipe cards...) at least 1.5 ft (50 cm) away from the speaker. Positioning speakers in a room In addition to vertical position of the speakers themselves, their location in the listening room, as well as the acoustical characteristics of the room, are also very important. As it is impossible to indicate a typical location of speaker systems without a few tests, we suggest several general rules that are important to apply in order to obtain the best listening results. Optimal positioning for a 2.0 or stereo system4 􀀀 For the ideal positioning of your speakers follow diagram. If «d» is the distance between the two speakers, this distance must be higher than 5 ft (1.5 m) and the two speakers must be at equal distance from the listening area which forms with them an equilateral triangle. 􀀀 The drivers must be directed towards the listening area. 􀀀 The speakers should be located so that their diffusion follows the longest dimension of the room. 􀀀 Generally speaking it is better to avoid putting the speakers in the corners of a room as this amplifies the low frequencies and tends to enhance the room resonances. If possible it is better to place the speakers at least 8 inches (20 cm) from the walls. 􀀀 Moreover, in order to obtain a more accurate frequency response, it is recommended to raise a compact speaker from 12 to 16 inches (30 to 40 cm) above the floor by placing them on stands. The tweeters of the speakers must be roughly at the same height of the listener’s ear when the listener is in sitting position. 􀀀 No solid object or piece of furniture should be placed between the speakers and the listener. An effect of mask, even partial disturbs completely the sound reproduction as it attenuates the high frequencies and also, in most cases, the midrange frequencies. 􀀀 Placing the speakers in niches is not recommended. Unless designed for this application, bookshelf placement will alter the frequency response of the speaker, especially in the low frequencies. If a bookshelf location cannot be avoid, the speaker should be set up to minimize various resonance, and the visible part of the grille must be outside the niche. WEEE MARK Disposal of Wastes of Electrical & Electronic Equipment (Applicable in the European Union) This symbol on the product, consisting of the crossed- out wheeled bin, indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the disposal of electrical and electronic equipment at the end of life. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to preserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. CONNECTION Cable section To get the full sonic potential of Cabasse loudspeakers and avoid power losses, the cables connecting the speakers to the power amplifier must have the lowest possible electrical resistance. To help you in choosing the minimum correct cable gauge, follow diagram. Maximal lenght between recommended amplifier and loudspeakers section

3 mm2 4 mm2 Phase In order to maintain the phase relationship and frequency balance of the loudspeaker system, both loudspeakers must be properly connected to the power amplifier. When properly connected, the cones of the drivers of both loudspeakers will move in the same direction when driven by identical speakers will move in the same signals. If the cones move in opposite directions, the resulting out of phase signals will create a perceptible power loss, particularly in the low frequencies.

SPECIFICATIONS & TECHNICAL DATA

ANTIGUA JERSEY main speaker main speaker surround Position The stereophonic message will also be degraded. Amplifier and speaker manufacturers typically indicate connection polarity in one of two ways: red and black or plus and minus. In either case, always connect red or plus to red or plus and black or minus to black or minus. Connections should be identical for both channels. To check that the speakers are in correct phase, switch the system to mono while music is being played. if the amplifier does not have a phase inversion switch, it will be necessary to change over the connections on one only of the loudspeakers. If in correct phase, the image should be distinctly located between the loudspeakers with a slight loss of bass and low midrange level. If the image is confused and not centrally located and there is a drastic loss of bass and low midrange level, recheck your connections. MAINTENANCE The MC170 cabinets are made of medium density fiber panels, either pvc veneered or protected by 5 layers of high gloss lacquer. These hi-tech finish do not require any specific care. Use a wet cotton waste for cleaning, or any cleaning device for wood or plastic. Ways Drivers complement Sensivity 1W/1m (dB) SOCOA centre speaker bookshelf/ on stand floorstanding floorstanding
