USER MANUAL STEAMPOD BLANC L OREAL PARIS

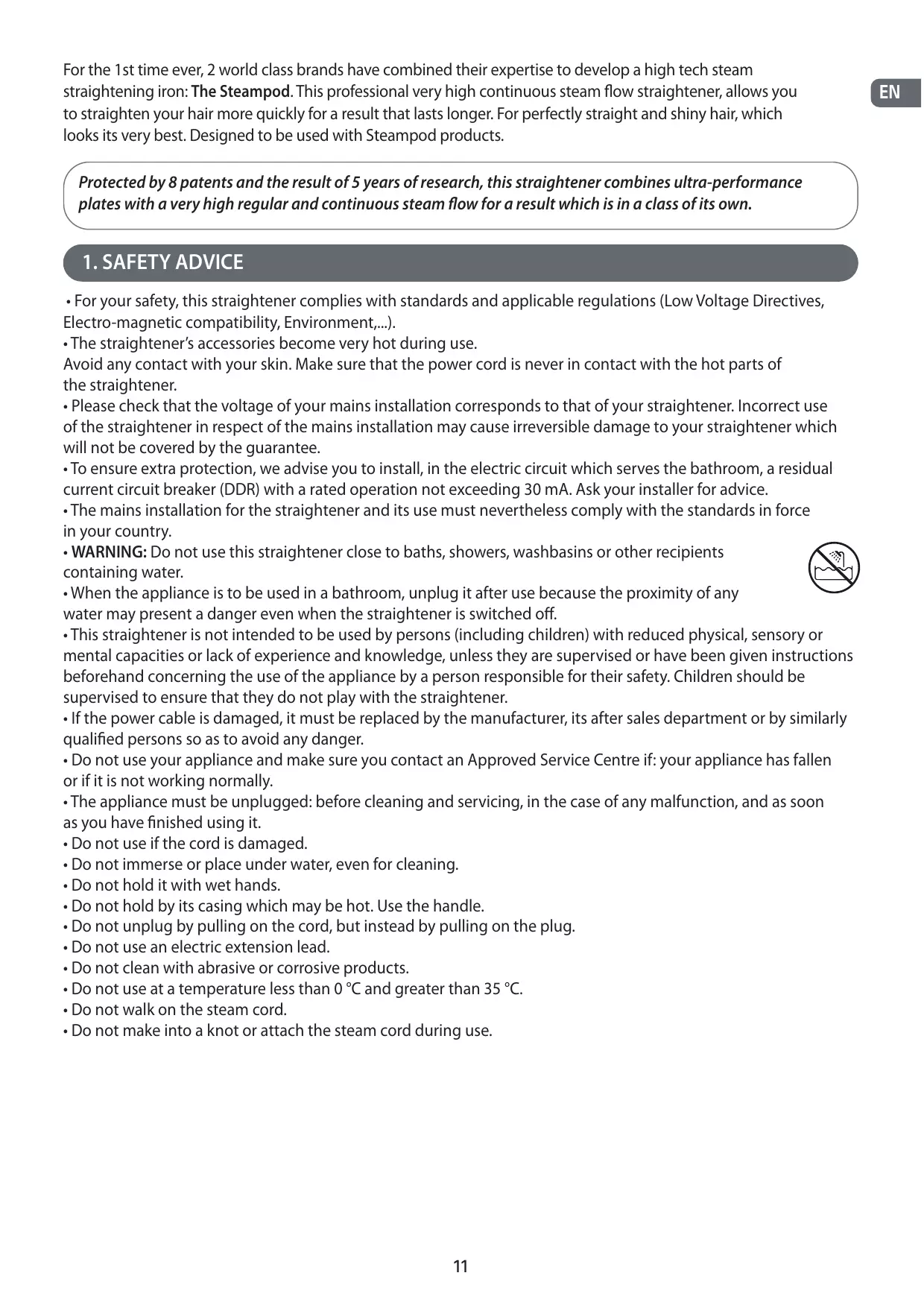

For the 1st time ever, 2 world class brands have combined their expertise to develop a high tech steam straightening iron: The Steampod. This professional very high continuous steam flow straightener, allows you to straighten your hair more quickly for a result that lasts longer. For perfectly straight and shiny hair, which looks its very best. Designed to be used with Steampod products.

Protected by 8 patents and the result of 5 years of research, this straightener combines ultra-performance plates with a very high regular and continuous steam flow for a result which is in a class of its own.

1. SAFETY ADVICE

• For your safety, this straightener complies with standards and applicable regulations (Low Voltage Directives, Electro-magnetic compatibility, Environment,...).
• The straightener's accessories become very hot during use.

Avoid any contact with your skin. Make sure that the power cord is never in contact with the hot parts of the straightener.

• Please check that the voltage of your mains installation corresponds to that of your straightener. Incorrect use of the straightener in respect of the mains installation may cause irreversible damage to your straightener which will not be covered by the guarantee.
• To ensure extra protection, we advise you to install, in the electric circuit which serves the bathroom, a residual current circuit breaker (DDR) with a rated operation not exceeding 30mA . Ask your installer for advice.
• The mains installation for the straightener and its use must nevertheless comply with the standards in force in your country.
• WARNING: Do not use this straightener close to baths, showers, washbasins or other recipients containing water.
• When the appliance is to be used in a bathroom, unplug it after use because the proximity of any water may present a danger even when the straightener is switched off.
• This straightener is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the straightener.
• If the power cable is damaged, it must be replaced by the manufacturer, its after sales department or by similarly qualified persons so as to avoid any danger.
• Do not use your appliance and make sure you contact an Approved Service Centre if: your appliance has fallen or if it is not working normally.
• The appliance must be unplugged: before cleaning and servicing, in the case of any malfunction, and as soon as you have finished using it.
• Do not use if the cord is damaged.
• Do not immerse or place under water, even for cleaning.
• Do not hold it with wet hands.
• Do not hold by its casing which may be hot. Use the handle.
• Do not unplug by pulling on the cord, but instead by pulling on the plug.
• Do not use an electric extension lead.
• Do not clean with abrasive or corrosive products.
• Do not use at a temperature less than 0^ C and greater than 35^ C .
• Do not walk on the steam cord.
• Do not make into a knot or attach the steam cord during use.

2. GENERAL DESCRIPTION

A. On/off button
B. +/- buttons for reducing / increasing the temperature
C. Digital screen
D. Straightening plates
E. Mobile plate
F. Detachable comb
G. Steam outlet

H. Steam cord
I. Base
J. Detachable water reservoir
K. Filling cap
L. Maximum filling level
M. Power cord

3. BEFORE STARTING TO USE YOUR STRAIGHTENER

OPERATION

1) reservoir :

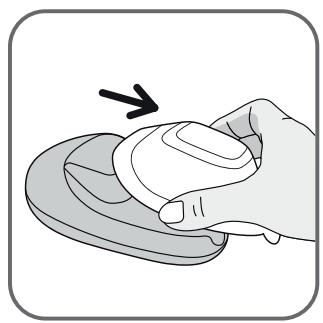

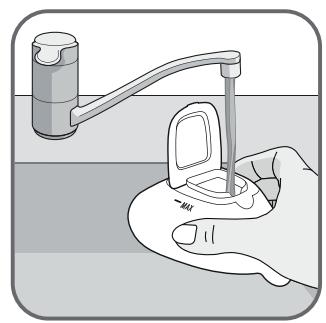

Removing and filling the reservoir : Do not pour water directly into the reservoir when it is fitted to its base.

Whenever you need to fill the reservoir you must first ensure that the cartridge is correctly in place in the reservoir, disconnect the reservoir from the base (moving it horizontally), lift the filling cap and fill the reservoir up to its maximum level.

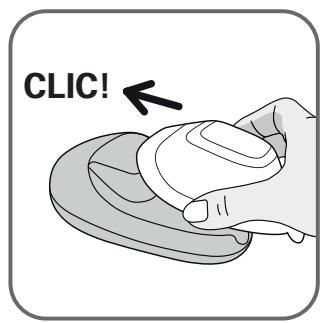

Reposition the reservoir on its base (moving it horizontally) until you hear the click sound.

IMPORTANT: Do not use any additives in the reservoir

What water should I use?

Your straightener has been designed to function using tap water. Test your water with the hardness paper supplied with your appliance**. If the hardness exceeds 9^ , use demineralised water that you can get from the shops.

Never use water which contains additives (starch, perfume, aromatic substances, softeners, etc.).

nor water from batteries or condensation (for example water from clothes dryers, water from refrigerators, from air conditioning units or rain water).

This is because they contain organic waste or mineral elements which become concentrated under the effect of heat and cause cracklings, brown colours or the premature ageing of your straightener.

If your water is very hard, we recommend you use a mixture 50 % tap water and 50 % demineralised water which you can get from the shops.

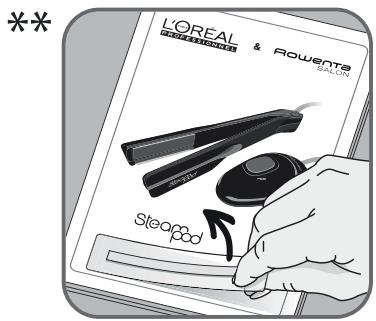

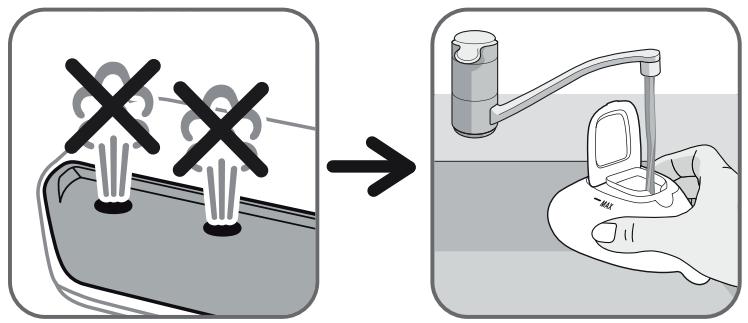

If the water runs out:

When using the straightener, you must be able to see steam coming out and hear the noise of the steam.

If you can't see any steam anymore and you can't hear the noise of the steam any longer either, this means that the reservoir needs to be filled up.

In this case, once you have filled the reservoir, you will need to wait for about 90 seconds before the steam starts coming out of the straightener again.

WARNING: Using the reservoir on a flat position. Your tool has feet underneath the reservoir to keep it flat during use. Place the reservoir on a flat, stable surface. Do not hang your straightener by its steam cord.

4. SWITCHING ON YOUR STRAIGHTENER

USING IT FOR THE 1^st TIME

1) Plug in the straightener.

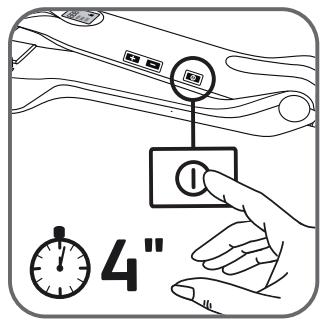

To switch your straightener on: press continuously on the on/off button

The LCD screen will then come on automatically.

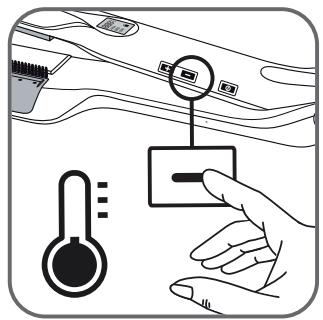

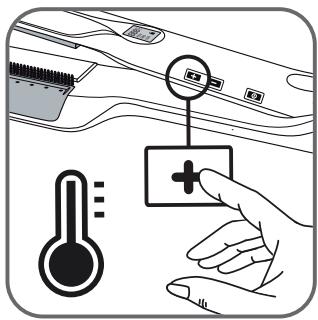

2) Select the ideal temperature for the type of hair you want to straighten using the + and - buttons:

Press the - button to reduce the temperature or the + button to increase it.

• It takes 90 seconds for the straightener to heat up.
  Whilst it is heating up the temperature indicator of the straightener will flash.
• There are 5 temperature settings for you to choose from: 170-180-190-200-210°C (330-350-370-390-410°F).
• We advise you to observe the following recommendations:

Type of hair	Normal	Fragile	Very fragile
Fine hair	200°C – 390°F / 1 to 2 runs	190°C – 370°F / 1 to 2 runs	180°C – 350°F / 1 to 2 runs
Normal hair	210°C - 410°F / 1 to 2 runs	200°C – 390°F / 1 to 2 runs	190°C – 370°F / 1 to 2 runs
Thick hair	210°C - 410°F / 1 to 2 runs	200°C – 390°F / 2 runs	200°C – 390°F / 2 runs

• When the temperature shown on the indicator stabilises and remains constant, this means that the temperature that you have chosen has been reached.
• After 5 seconds, the straightener will go into LOCK AUTO mode (a padlock symbol appears on the dial). This mode stops any ill effects occurring if you inadvertently press on a button you shouldn't have during use (for example pushing by mistake on the + /- buttons during use).
• If you wish to change the temperature of your straightener, you will have to unlock it:

To do this, press again for a few seconds on either the + button or the -.button. The control is now unlocked and the padlock sign will disappear from the screen.

At any time you can exit the control by pressing continuously on the - or + buttons.

When you use your straightener for the very first time, keep the tong closed in your hand until the steam appears (it will take around 90 seconds for you to obtain steam the first time you use your straightener).

3) Start the straightening by running the straightener once or twice along the hair section, depending on the type of hair (cf table below).

You must move the straightener slowly so that the steam can be spread correctly at the heart of the hair section.

5. HOW TO PROCEED

The straightener has a mobile plate to make the straightening action more effective.

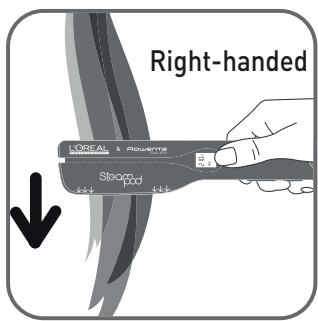

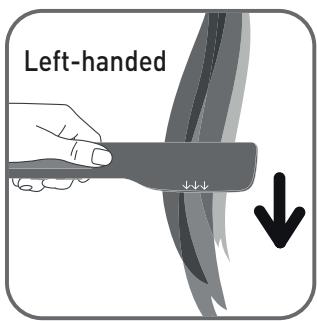

1) Direction of use.

• The straightener must be used in the direction indicated by the arrows (comb always located at the bottom) so that the hair section is exposed to the steam before being straightened between the plates.

• Clasp the hair firmly between the plates; The steam starts spreading automatically as soon as the tongs are closed. Run your straightener slowly, from the root to the end of the hair so that the steam can spread to the heart of the hair section.

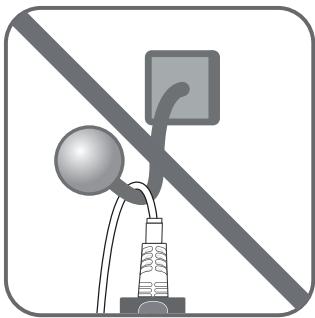

• Do not hang your straightener by its steam cord.
• Every time you use the Steampod we strongly recommend you take the utmost care in order to achieve the best result.

2) Using your straightener with a hair care.
- Step by step instructions on use:

1 Shampoo
2 Apply a suitable rinsing product
3 Rinse and Comb out
4 Wring your hair
5 Apply and mix in a suitable Steampod care to the lengths and ends of your hair
6 Comb out
7 Dry
8 Using a comb choose a fine section of hair (veil) which is a few centimetres wide,

Comb it then place it between the plates.

6. ENERGY ECONOMY MODE

The straightener will go into standby mode if it hasn't been used for 1 hour. To reset it, press continuously on the on/off button.

7. LOOKING AFTER YOUR STRAIGHTENER

Important: always unplug your straightener and allow it to cool down before cleaning it.

To clean your straightener: run a damp rag over it and dry it off with a dry rag.

You may only clean the plates using a rag soaked in alcohol based household cleaner.

Do not use scouring pads.

WARNING: For hygiene purposes and to avoid the risk of water leaking during storage, please assure you empty the reservoir after use.

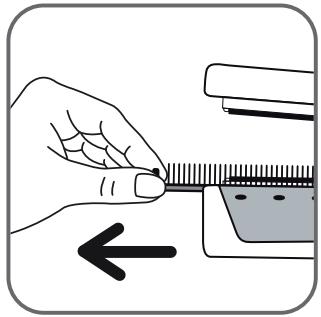

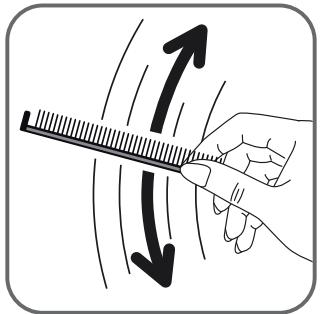

Attaching / Removing / cleaning the comb.

If you want to clean the comb, you can remove it by following the diagram beneath.

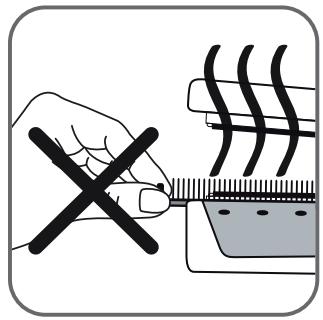

Important, you must remove the comb when it's cold in order to avoid getting burnt.

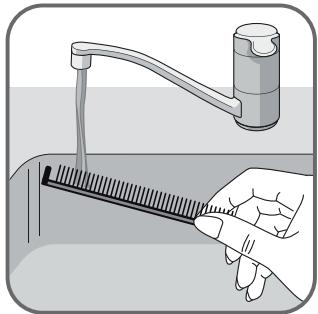

The comb can be cleaned in soapy water. Check that the comb is dry before fitting it back on the straightener.

8. IF THERE'S A PROBLEM

MY HAIR IS NOT STRAIGHTENED CORRECTLY:

• Have you been using your straightener in the right direction?
  (see paragraph 5. HOW TO START USING YOUR STRAIGHTENER, 1- direction of use).
• Did you choose the right temperature?

(take a look at the table showing the temperature settings)
- Is the straightener producing any steam? NO

• Did you fill the reservoir correctly (see paragraph on filling the reservoir page 12)?
  If the level is lower than the minimum level, fill the reservoir and close the tongs for around 90 seconds until the steam comes out.
• Have you positioned the reservoir correctly (see paragraph on removing and fitting the reservoir page 12)?
• Is the straightener at the right temperature? Wait until the figure representing the temperature you have chosen has stopped flashing.
• Check that the steam cord hasn't accidentally become stuck.

THE STEAM CAN'T BE SEEN:

• In a very moist environment, it's possible that although you can't see the steam it is still producing the required effect.

• Have you checked that the straightener is not in economy energy mode? (see paragraph on economy energy mode page 14).
• Have you plugged in your straightener and pressed continuously on the ON/OFF button to switch it on?

YOU'RE NOT ABLE TO CHANGE THE TEMPERATURE OF YOUR STRAIGHTENER:

• You're probably in locked mode (a padlock will be showing on the screen).

To unlock the straightener, press continuously on the + button or the - button.

THE TOP PLATE IS NOT STATIC:

• This is quite normal, the straightener is fitted with a mobile plate so ensure more efficient straightening.

YOUR STRAIGHTNER IS RELEASING WATER THROUGH THE STEAM OUTLETS:

• Bring your straightener to an approved service centre.

• Unplug it immediately and take it to an approved service centre.

YOUR DEVICE AUTO SHUTS OFF:

• This is quite normal, as the unit will automatically go into SLEEP mode if not used after 1 hour.

THE WATER IS LEAKING THROUGH THE LID:

• position the reservoir on a flat and stable surface.

9. HELP US CARE FOR THE ENVIRONMENT!

• Your straightener contains many materials which can be recovered or recycled.
• ① Leave it at a waste collection point or failing that at an approved service centre so that it can be processed.

: www.rowenta.com

This product is repairable by ROWENTA during and after the guarantee period.

The Guarantee

This product is guaranteed by ROWENTA against any manufacturing defect in materials or workmanship during the guarantee period within those countries as stated in the country list on the last page of the user manual, starting from the initial date of purchase.

The international manufacturer's guarantee by ROWENTA is an extra benefit which does not affect consumer's Statutory Rights.

The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At ROWENTA's choice, a replacement product may be provided instead of repairing a defective product. ROWENTA's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

The international ROWENTA guarantee only applies within the guarantee period and for those countries listed in the Country List attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a ROWENTA authorised service centre. Full address details for each country's authorised service centres are listed on ROWENTA website (www(rowenta.com) or by calling the appropriate telephone number as set out in the Country List to request the appropriate postal address.

ROWENTA shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This guarantee will not cover any damage which could occur as a result of misuse, negligence, failure to follow ROWENTA instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable;
• scaling (any de-scaling must be carried out according to the instructions for use);
• ingress of water, dust or insects into the product;
• mechanical damages, overloading
• damages or bad results due to wrong voltage or frequency
• accidents including fire, flood, thunderbolt etc
• professional or commercial use
• damage to any glass or porcelain ware in the product
• replacement of consumables

This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

The international ROWENTA guarantee applies only for products used in any of the listed countries where the specific product is sold.

Consumer Statutory Rights

This international ROWENTA guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

Additional information

Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described on the ROWENTA internet site.
