USER MANUAL TB 10 TIRE BOUCHON PROLINE

Automatic Corkscrew MANUAL

We recommend that you charge your corkscrew for at least eight hours before using it for the first time. Please follow the instructions for recharging below:

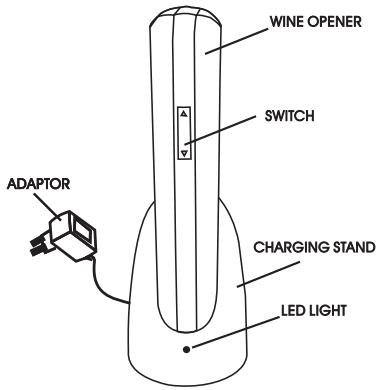

Recharging your corkscrew

Plug one end of the adaptor cord into the base of the recharging unit and the other end into a mains socket. Place the corkscrew into recharging unit, ensuring that it is firmly in position and is fully engaged with the recharging connectors. It will take approximately 6-8 hours to recharge your corkscrew. When the corkscrew is fully recharged it can be used to open approximately 30 bottles.

Model: TB10

How to operate the corkscrew

The corkscrew is operated by a one simple switch. The switch has two functions. Press the lower part of the switch to remove a cork from a bottle.

Press the upper part of the switch to release a cork from the mechanism after you have removed it from the bottle. (See Pic 1)

(Pic.01)

Before using the corkscrew, you must remove any foil from the top of the bottle using the foil cutter provided.

1. Place the corkscrew on the top of the wine bottle. Ensure that it remains as upright as possible at all the times. If you hold the corkscrew at an angle to the bottle, it will not remove the cork properly. (See Pic 2).

2.Hold the corkscrew firmly and depress the lower part of the switch. The corkscrew spiral will turn in a clockwise direction and enter the cork, then gradually remove it from the bottle. When the corkscrew mechanism stops, the cork has been fully removed from the bottle.

(Pic.02)

3.Lift the corkscrew away from the bottle. To remove the cork, simply depress the upper part of the switch. The spiral will turn in an anti-clockwise direction and release the cork. (See Pic 3).

1. Always return the corkscrew to the recharging unit when you have finished with it. This will protect the mechanism while it is not in use.

Note- It has been noted the automatic corkscrew may experience problems with a small percentage of plastic / synthetic corks and undersized corks, if in this case the cork should be removed manually.

PLEASE NOTE THESE IMPORTANT SAFETY POINTS

WARNING. When using this electrical appliance the following safety precautions should be taken to reduce the risk of fire, electric shock and personal injury.

Read all the instructions before use and save them for future reference.
When using or recharging the corkscrew keep your work surface clean and free from potential hazards.
Never use the corkscrew in damp areas or near water, sinks or taps.
Never submerge the corkscrew or charger.
For indoor use only. Do not expose the corkscrew or charging unit to rain or other extreme conditions.
Never force the corkscrew onto a bottle or attempt to speed up the mechanism. The corkscrew will work best when it is operated at its intended speed.
Do not touch or adjust the corkscrew's mechanism or the corkscrew spiral. Only hold the corkscrew by the plastic housing.
Do not attempt to open bottles if the switch is not working correctly.
Keep away from children. This is not a toy.
Do not attempt to open the corkscrew or the recharging unit. It has no serviceable parts. Your corkscrew is guaranteed for one year. In event of malfunction in this time please contact our customer services department (details below).
Do not attempt to operate if the corkscrew, cord, plug or recharging unit is damaged, dropped or malfunctions.
Only recharge the corkscrew using the recharging unit and power cord supplied.
Never remove the plug from the socket by pulling the power cord.

Safety information

Mains supply

This equipment is designed to operate from a 230 Volt, 50Hz AC mains supply. Other power sources may damage it.

Check that the rating label on the back of the equipment states 230V AC before you plug it in for the first time.

Mains Adapter

This product is supplied with a mains to DC adapter suitable for your local supply.

• If the mains adapter or its lead, gets damaged it must be replaced by a qualified service agent with an approved adapter of the same type and rating to avoid an electrical hazard.
• Please destroy the old adapter, as it would be dangerous if inserted into a live power outlet.
• You must make sure the mains lead is firmly secured under the cord clamp.

Mains fuse

UK standard (BS1363) plugs must have a 3 amp (BS1362 type) fuse fitted.

Replace the plug or have the power lead assembly replaced if The fuse cover is lost.

Symbols

This equipment is double insulated and an earth connection is not required.

This mark is applied to show the equipment conforms to European safety and electro-magnetic compatibility standards.

Dangerous voltage constituting a risk of electric shock is present inside this equipment.

There are important operating and maintenance instructions in the literature accompanying this equipment.

Safe use and care of your equipment

We have designed and made this product to meet European safety standards, but as with any electrical equipment you

must take care to get the longest working life from it and stay safe. Here are a few tips to help you do this.

Read these instructions carefully before you try to use the equipment

Protect the mains lead. You must ensure the mains lead cannot Be walked on, crushed, chafed or cut.

Avoid harsh conditions such as wet or damp places, high humidity, strong vibration, extremely high or low temperatures, strong sunlight and places which are very dusty.

Never push objects into holes and ventilation slots.

To save power, switch off mains power or pull out the mains power plug when you are not using the equipment, unless the function of the equipment requires a continuous power supply.

Don't continue to use this equipment if you have spilt liquids in it, if it is damaged in any way or if it does not work normally. Immediately unplug the equipment and get expert advice.

Pull the mains adapter out of the wall socket during thunderstorms.

This product is designed for domestic use only. Any other use may invalidate the guarantee and might be dangerous.

Ventilation

Place the equipment on a hard flat surface away from direct sunlight and heat sources. If it is in a cabinet, allow at least a 10cm gap all around. Don't obstruct the ventilation slots, including those underneath, with soft furnishings. Overheating will shorten the life of the equipment and increase the risk of fire.

Cleaning

Disconnect the mains supply and use only a lightly dampened soft cloth.

Do not use chemical solvents or strong detergents as these may damage the cosmetic finish.

Batteries

Remove batteries when the equipment is not to be used for a long time. Batteries left in equipment may cause damage through deterioration and corrosive leakage, invalidating the guarantee. To protect the environment please use local recycling facilities for battery disposal.

Disposal

Waste electrical and electronic products must not be disposed of with household waste. Please refer to the retailer from whom you purchased this item for disposal instructions.

Batteries and packaging materials can be recycled using your local collection facilities.

Important Safety warnings

• To prevent electric shock, do not remove any cover.
• If anything goes wrong, don't try and fix it yourself, get a qualified service agent to look at the product.
• Do not expose this equipment to dripping or splashing or place any objects filled with liquids, such as vases, on the equipment.
• Never put a naked flame source on or near this equipment.
• Small parts. Do not let young children play with the equipment

If something doesn't seem to work.

If there is something about your appliance which you do not understand and you live in the UK, you can phone our help line during normal office hours on: 0113 2793520.

Calls are charged at standard rates.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Kesa U.K HU1 3AU 30/07/2007

Specification

Charging time:10 hours

Bottles/full charged:30pcs

Charging Power:2W

Noise:<78db

Product weight (kg) :0.8

Product size(cm):12.51235
