HASF17V-I - Pedestal fan HOLMES - Free user manual and instructions

Product Type	Stand Fan
Brand	HOLMES
Model	HASF17V-I (HASF17V / HASF17VRC)
Power Supply	220-240 V, 50 Hz
Speeds	3 (Low, Medium, High)
Oscillation	Yes
Timer	Yes, up to 7.5 hours (model HASF17VRC)
Remote Control	Yes, with 2 AAA batteries not included (model HASF17VRC)
Natural Breeze Mode	Yes (model HASF17VRC)
Sleep Mode	Yes (model HASF17VRC)
Tilt Adjustment	Yes
Height Adjustment	Yes
Warranty	3 years
After-Sales Service	0 825 85 85 82
Maintenance	Clean with a dry cloth, do not immerse
Safety	Do not use near water or flames, unplug before cleaning

Frequently Asked Questions - HASF17V-I HOLMES

How to assemble the HASF17V-I fan?

Follow the assembly instructions: slide the main pole into the base, secure with 4 screws, then attach the top part. Assemble the blade and front grille by aligning the notches and screwing the left screw (reverse thread).

How to install the remote control (model HASF17VRC)?

Remove the remote control cover by sliding your thumb into the slot. Insert 2 AAA batteries (not included) following the diagram, then close.

How to use the timer?

Press the Timer button to add half-hour increments up to 7.5 hours. The indicators light up to show the duration. The fan automatically turns off at the end of the programmed time.

How to clean the fan?

Always unplug the appliance before cleaning. Use a dry cloth. Never immerse the motor or spray water on it.

What does the Natural Breeze mode do?

The Natural Breeze mode regularly varies the speed to simulate a natural breeze. Activate it by pressing the Breeze Mode button once (model HASF17VRC).

How to adjust the fan height?

Turn the pole locking knob counterclockwise to loosen, adjust the height, then tighten clockwise.

How to activate oscillation?

For manual models, push the oscillation control (T) on the motor. For model HASF17VRC, press the Oscillation button on the remote control or panel.

What to do if a part is missing?

Call 0 825 85 85 82 for assistance and to order the missing part.

How to store the fan in winter?

Store it in a dry and dust-free place. Preferably use the original packaging.

What is the warranty of the HOLMES fan?

The fan is warranted for 3 years from the date of purchase. In case of failure, return it with the receipt to the store of purchase.

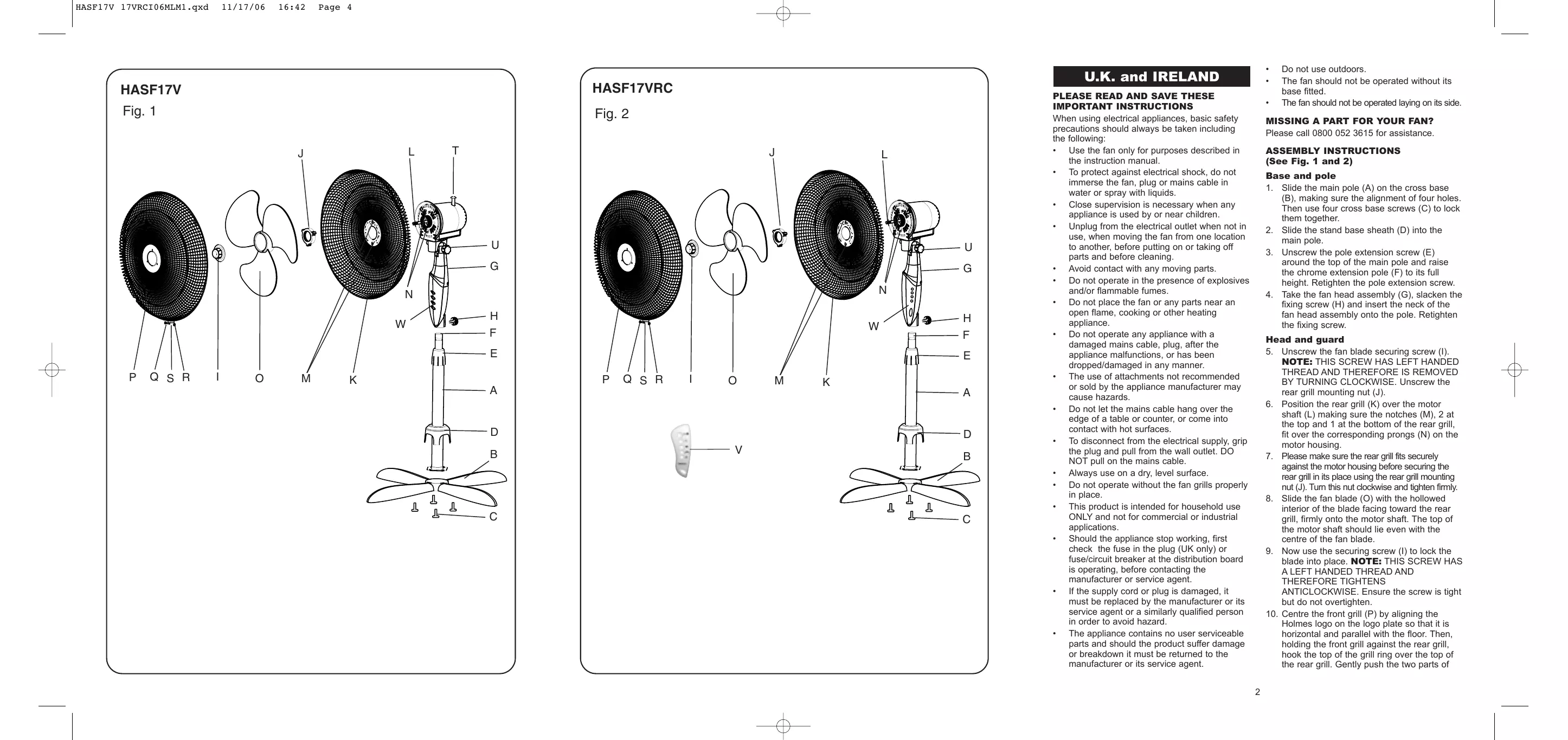

USER MANUAL HASF17V-I HOLMES

MANUEL D'INSTRUCTIONS

BETRIEBSANLEITUNG

CE PRODUIT EST FABRIQUE POUR

RESPECTER LES DIRECTIVES CEE

73/23/EEC, 89/336/EEC ET 98/37/EEC.
