USER MANUAL HC3100/15 PHILIPS

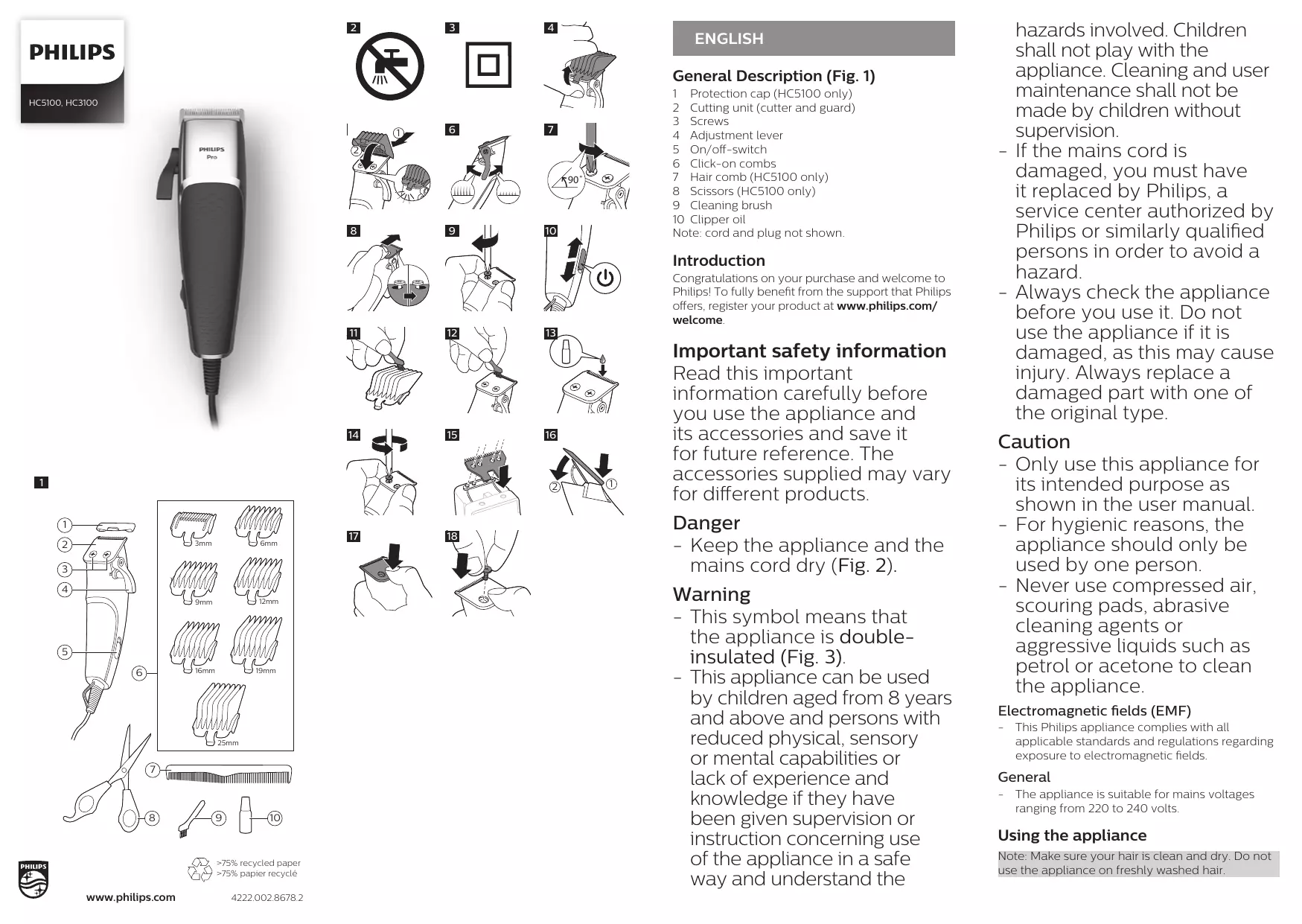

ENGLISH General Description (Fig. 1) 1 Protection cap (HC5100 only) 2 Cutting unit (cutter and guard) 3 Screws 4 Adjustment lever 5 On/off-switch 6 Click-on combs 7 Hair comb (HC5100 only) 8 Scissors (HC5100 only) 9 Cleaning brush 10 Clipper oil Note: cord and plug not shown.

Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome. 11

Important safety information Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products. Danger -- Keep the appliance and the mains cord dry (Fig. 2). Warning -- This symbol means that the appliance is doubleinsulated (Fig. 3). -- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. -- If the mains cord is damaged, you must have it replaced by Philips, a service center authorized by Philips or similarly qualified persons in order to avoid a hazard. -- Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type. Caution -- Only use this appliance for its intended purpose as shown in the user manual. -- For hygienic reasons, the appliance should only be used by one person. -- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. Electromagnetic fields (EMF) -- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General -- The appliance is suitable for mains voltages ranging from 220 to 240 volts.

Using the appliance Note: Make sure your hair is clean and dry. Do not use the appliance on freshly washed hair.

Clipping with click-on comb

-- To clip in the most effective way, move the appliance against the direction of hair growth. -- Since hair grows in different directions, you need to move the appliance in different directions (upwards, downwards or across). -- Make overlapping passes over the head to ensure that the appliance catches all hairs that need to be cut. -- Make sure that the flat part of the hair clipping comb is fully in contact with the scalp to obtain an even clipping result. -- If you wish to shape contours, tilt the appliance. -- Regularly remove cut hair from the hair clipping comb. If a lot of hair has accumulated in the comb, remove it from the appliance and blow and/or shake the hair out of it.

1 Place the desired comb onto the appliance (‘click’) (Fig. 5). 2 Switch on the appliance (Fig. 10). 3 Place the comb on the scalp and move the appliance through the hair slowly.

Replace the cutting unit if it is damaged or worn. Only replace the cutting unit with an original Philips cutting unit (see ‚Ordering accessories‘).

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Comb sizes Comb sizes in mm

Comb sizes in inches

Detaching and attaching click-on combs

1 To detach a comb from the cutting element, push the hook at the back of the comb upwards, then unhook it at the front (Fig. 4). 2 To attach a comb onto the cutting element, hook it onto the front of the cutting element and push it down at the back (‚click‘) (Fig. 5).

Preparing for use Use the adjustment lever on the left side of the appliance to set the desired hair length. Move the adjustment lever upwards to reduce the cutting length and move it downwards to increase the cutting length. When you hear a click, you have reached the next length setting (Fig. 6).

Fine adjustment You can reduce the cutting length manually to clip even closer to the skin, but make sure that the cutter does not emerge above the guard to avoid cutting yourself. 1 To reduce the cutting length manually, loosen the screws by turning the screwdriver a quarter turn (Fig. 7). Make sure that you only loosen the screws instead of completely unscrewing them. 2 Push the guard upwards until it is at the required length setting (Fig. 8). 3 Tighten the screws. Note: When you loosen or tighten the screws, the guard can move. To keep it in position, hold the sides of the guard in place while you tighten the screws (Fig. 9). 4 The cutter should not emerge above the guard. To check this, switch on the appliance and study the cutter and guard closely, preferably from the back. If the cutter emerges above the guard, adjust it as described above.

Switching the appliance on and off 1 To switch on the appliance, push the on/offslide upwards (Fig. 10). 2 To switch off the appliance, push the on/offslide downwards (Fig. 10).

Clipping without click-on comb You can use the appliance without click-on comb to clip your hair very close to the skin or to shape specific areas. 1 Detach the click-on comb (Fig. 4). 2 Switch on the appliance (Fig. 10). 3 To obtain an even clipping result, place the appliance flat on the skin. Move the appliance slowly and smoothly.

Shaping 1 Detach the click-on comb (Fig. 4). 2 Switch on the appliance (Fig. 10). 3 To shape contours, turn the appliance and make downward strokes. Move the appliance slowly and smoothly.

Cleaning and maintenance Warning: Keep the appliance and the mains cord dry. Only clean the appliance and the mains cord with the cleaning brush supplied. Caution: Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, petrol or acetone to clean the appliance. Caution: Do not use any sharp objects to clean the appliance. Clean the appliance after every use. 1 Make sure the appliance is switched off and disconnected from the mains. 2 Detach the click-on comb (Fig. 4). 3 Clean the cutting unit and the click-on comb with the cleaning brush supplied (Fig. 11, Fig. 12). 4 For optimal clipping performance, lubricate the cutter frequently with clipper oil (Fig. 13).

Storage Put the protection cap on the appliance to prevent damage (HC5100 only).

Replacing the blade 1 Hold the cutting unit in place with your thumb and remove the screws in the cutting unit carefully with a screwdriver (Fig. 14). 2 Remove the guard gently and slowly. When you do so, the spring and cutter emerge. Make sure you hold the appliance above a surface to prevent the spring and cutter from falling onto the floor. 3 Place the new cutter onto the spring. Note: the holes in the cutter fit exactly onto the projections in the spring (Fig. 15). 4 Place the back of the guard onto the top of the handle, and gently push it onto the cutter, pushing the cutter and spring downwards (Fig. 16). 5 Hold the cutting unit in place by placing your thumb between the two holes in the guard (Fig. 17). 6 With your other hand, put the screws back into place one by one (Fig. 18). 7 Fasten the screws with a screwdriver. 8 Perform the fine adjustment procedure (see‚ Fine adjustment‘).

Ordering accessories To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). The following accessories and spare parts are available: -- HC4100 Replacement pack

Guarantee and support If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions Cutting units are not covered by the terms of the international guarantee because they are subject to wear.

Recycling -- Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment. -- Follow your country’s rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

The cutter emerges above the teeth of the guard.

You have not performed the fine adjustment procedure correctly.

Perform the fine adjustment procedure (see 'Fine adjustment').

The cutter and guard have come loose and have fallen out.

You have unscrewed the screws too far.

Reattach the cutter and the guard (see 'Replacing the blade').

FRANÇAIS Description générale (fig. 1) 1 Capot de protection (HC5100 uniquement) 2 Bloc tondeuse (lame et grille) 3 Vis 4 Levier de réglage 5 Bouton marche/arrêt 6 Sabots amovibles 7 Sabot pour cheveux (HC5100 uniquement) 8 Ciseaux (HC5100 uniquement) 9 Brosse de nettoyage 10 Huile pour tondeuse Remarque : Non illustrés : câble et fiche.
