GSM68XL52GO - Mobile Phone ARCHOS - Free user manual and instructions

Product type	Mobile phone
Brand	ARCHOS
Model	GSM68XL52GO
Dimensions (estimated)	143 x 72 x 8.5 mm
Weight (estimated)	140 g
Operating system	Android
Screen	5 inches, capacitive touch
Mobile network	3G / EDGE
Wireless connectivity	Wi-Fi 802.11 b/g/n
SIM card type	Micro-SIM and Nano-SIM (dual SIM)
Memory card slot	Micro-SD (up to 32 GB)
Rear camera	5 megapixels with flash
Front camera	0.3 megapixels (webcam)
Battery	Lithium-ion 2000 mAh (removable)
Ports	Micro-USB, 3.5 mm headphone jack
Sensors	Accelerometer, proximity
Box contents	Phone, headset, USB cable, charger, quick start guide, warranty guide
Care and cleaning	Clean with a soft, dry cloth; avoid moisture
Security	Lock by pattern, PIN code or password
Repairability	Spare parts available from the manufacturer

Frequently Asked Questions - GSM68XL52GO ARCHOS

How to insert the SIM card?

Use the provided tool to open the SIM tray. Place the SIM card (micro or nano) in slot 1 or 2 with the contacts facing down. Close the tray.

How to turn on the phone?

Press and hold the ON/OFF button on the side. If a PIN code is requested, enter it and validate with 'OK'.

How to connect to Wi-Fi?

Swipe down the status bar, tap the settings icon, enable Wi-Fi, then select your network and enter the password if necessary.

How to add a Google account?

Go to Settings > Accounts > Add account, choose Google, then follow the on-screen instructions to enter your email address and password.

How to back up my contacts from the SIM card?

Open the Contacts app, tap the Menu button, select Import/Export, then Import from SIM card. Choose your Google account as destination and validate.

How to lock the screen with a pattern?

Go to Settings > Security > Screen lock, select 'Pattern', then draw your pattern. Confirm by redrawing it.

How to take a screenshot?

Press the ON/OFF button and the Volume down button simultaneously. The image is saved in the gallery.

How to transfer files via USB?

Connect the phone to a computer with the USB cable. On the phone, a notification appears: select 'Transfer files' (MTP). The files are then accessible on the computer.

Why is my phone not connecting to the internet?

Check that mobile data is enabled in the status bar. Make sure you are in a 3G coverage area. Consult the FAQs on www.archos.com or contact your operator.

How to perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Confirm the operation. Warning: all your personal data will be erased.

USER MANUAL GSM68XL52GO ARCHOS

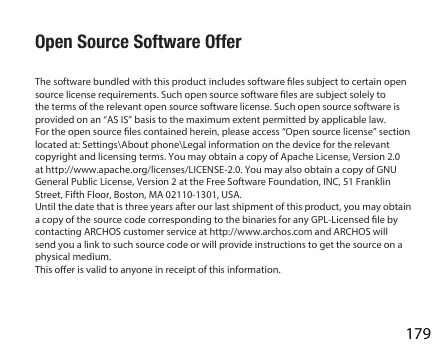

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law. For the open source files contained herein, please access "Open source license" section located at: Settings\About phone\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)

Norway

Implemented

This subsection does not apply for the geographical aera within a radius of 20km from the centre of Ny-Alesund

Russian Federation

None

Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/ declaration_conformity.html

SAR

After the laboratory measurement, this mobile phone SAR value is:

Head: 0.531W/Kg Body: 0.484W/Kg

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC

€0700
