USER MANUAL TH64ET AIRLUX

L H W D X X A X X L (mm)

ENGLISH Spécialiste de l’encastrable

CERAMIC HOB USER MANUAL DTTH63ET Thank you for choosing Airlux. Before using your new Airlux product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance oers in a safe way.

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.The design and

specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. The diagram above is just for reference. Please take the appearance of the actual product as the standard.

PRODUCT INSTALLATION

OPERATION INSTRUCTIONS

CLEANING AND MAINTENANCE

DISPOSAL AND RECLYCLING

SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS INTENDED USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols DANGER This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

WARNING OF ELECTRICAL VOLTAGE This symbol indicates that there is a danger to life and health of persons due to voltage.

WARNING The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

CAUTION The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

ATTENTION The signal word indicates important information (e.g. damage to property), but not danger.

OBSERVE INSTRUCTIONS This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions. .

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

SAFETY INSTRUCTIONS SAFETY WARNINGS Your safety is important to us. Please read this information before using your cooktop.

INSTALLATION Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. • Alterations to the domestic wiring system must only be made by a qualified electrician. • Failure to follow this advice may result in electrical shock or death. Cut Hazard • Take care - panel edges are sharp. • Failure to use caution could result in injury or cuts. Important Safety Instructions • Read these instructions carefully before installing or using this appliance. • No combustible material or products should be placed on this appliance at any time. • Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs. • In order to avoid a hazard, this appliance must be installed according to these instructions for installation. • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • Failure to install the appliance correctly could invalidate any warranty or liability claims. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • WARNING : If the surface is cracked, switch o the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. • A steam cleaner is not to be used. 34

SAFETY INSTRUCTIONS • Do not use a steam cleaner to clean your cooktop. • The appliance is not intended to be operated by means of an external timer or separate remotecontrol system. • WARNING : Danger of fire: do not store items on the cooking surfaces. • The cooking process has to be supervised. A short term cooking process has to besupervised continuously. • WARNING : Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch o the appliance and then cover flame e.g. with a lid or a fire blanket.

OPERATION AND MAINTENANCE Electrical Shock Hazard • Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance o immediately at the mains power supply (wall switch) and contact a qualified technician. • Switch the cooktop o at the wall before cleaning or maintenance. • Failure to follow this advice may result in electrical shock or death. Health Hazard • This appliance complies with electromagnetic safety standards. • However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be aected by the electromagnetic field. • Failure to follow this advice may result in death. Hot Surface Hazard • During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool. • Keep children away. • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. • Failure to follow this advice could result in burns and scalds. Cut Hazard • The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. • Failure to use caution could result in injury or cuts.

SAFETY INSTRUCTIONS Important safety instructions • Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance. • Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be aected by its electromagnetic field. • Never use your appliance for warming or heating the room. • After use, always turn o the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn o the cooking zones when you remove the pans. • Do not allow children to play with the appliance or sit, stand, or climb on it. • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. • Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings. • Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician. • Do not place or drop heavy objects on your cooktop. • Do not stand on your cooktop. • Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass. • Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass. • This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, oces and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. • WARNING : The appliance and its accessible parts become hot during use. • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

Installed Electric Power

5800 -7000 W Product Size DxWxH(mm)

Building-in Dimensions A×B (mm)

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

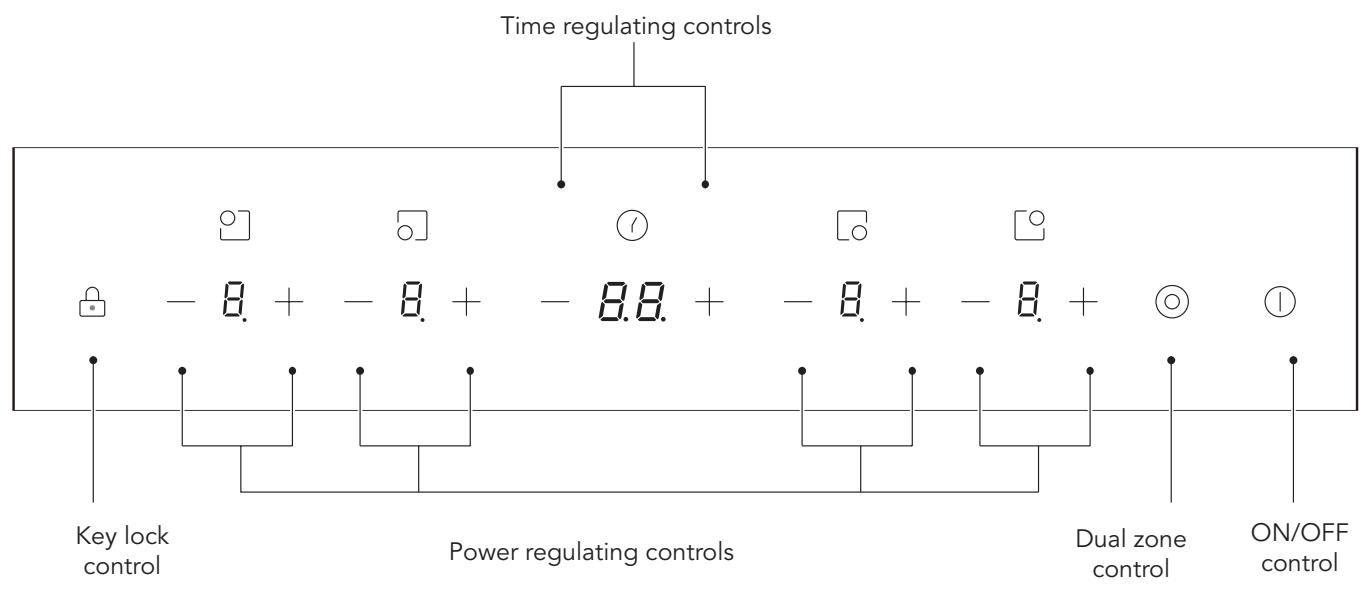

Power regulating controls

NOTE All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

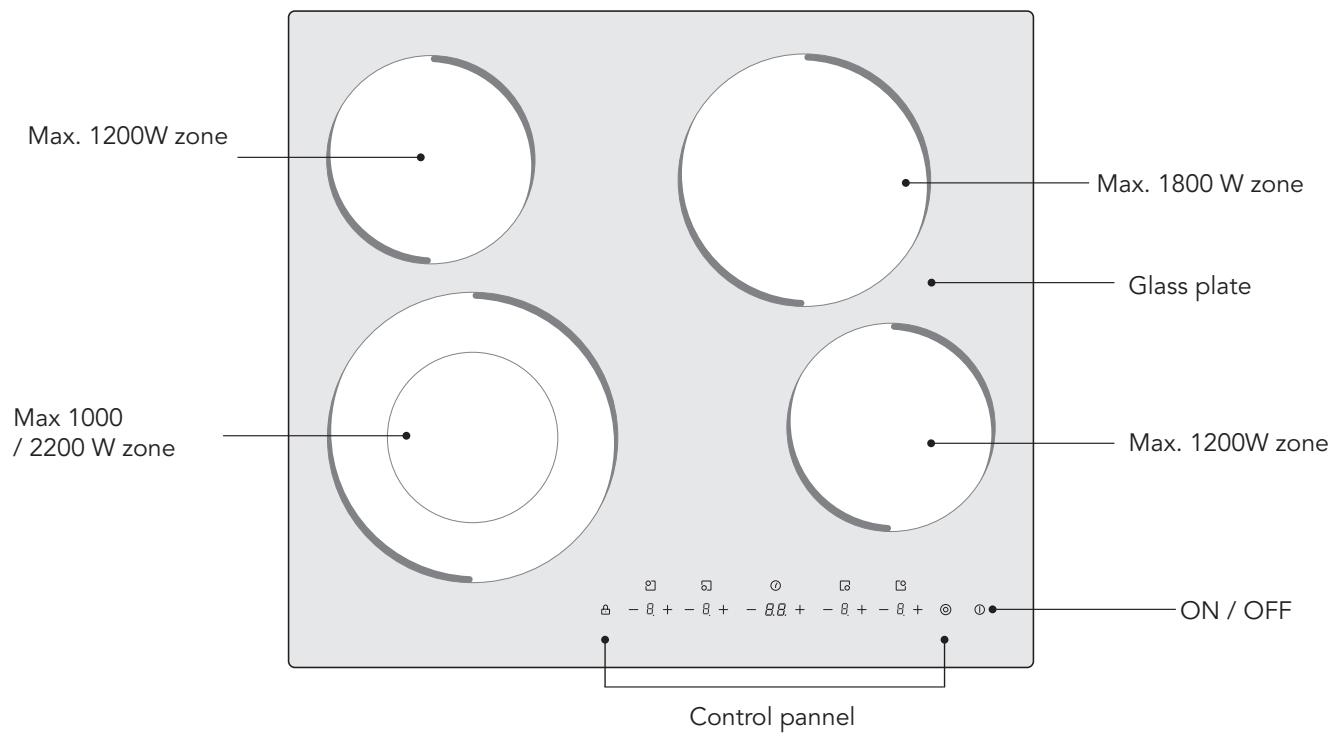

PRODUCT OVERVIEW Product Information The microcomputer ceramic cooker hob can meet dierent kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.

Working Principle This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the power regulation with the touch controls.

Before Using Your New Ceramic Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your Ceramic Hob.

QUICK START GUIDE QUICK START GUIDE Take care when frying as the oil and fat heat up very quickly, particularly if you’re using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

COOKING TIPS • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimize the amount of liquid or fat to reduce cooking times. • Start cooking on a high setting and reduce the setting when the food has heated through. Simmering, Cooking rice • Simmering occurs below boiling point, at around 85°C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point. • Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended. Searing Steak To cook juicy flavorsome steaks: 1. Stand the meat at room temperature for about 20 minutes before cooking. 2. Heat up a heavy-based frying pan. 3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan. 4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be. 5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving. For Stir-frying 1. Choose a ceramic compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons of oil. 4. Cook any meat first, put it aside and keep warm. 5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce. 6. Stir the ingredients gently to make sure they are heated through. 7. Serve immediately.

GUIDE DE DEMARRAGE RAPIDE HEAT SETTINGS The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic Hob to find the settings that best suit you.

• delicate warming for small amounts of food • melting chocolate, butter, and foods that burn quickly • gentle simmering • slow warming

• reheating • rapid simmering • cooking rice

• stir-frying • searing • bringing soup to the boil • boiling water

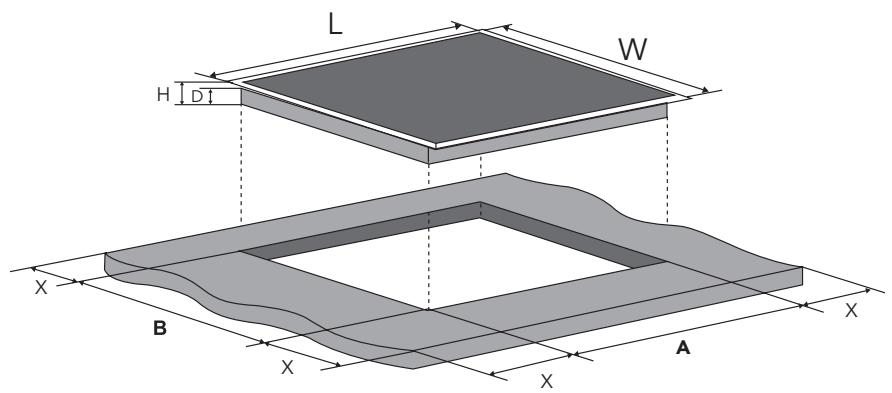

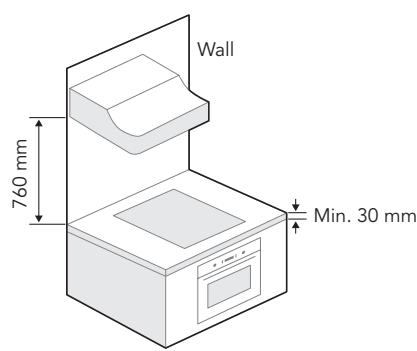

PRODUCT INSTALLATION PRODUCT INSTALLATION SELECTION OF INSTALLATION EQUIPMENT • Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. As shown below: NOTE : The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3mm.

L H W D X X A X X L (mm)

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below. Note : The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

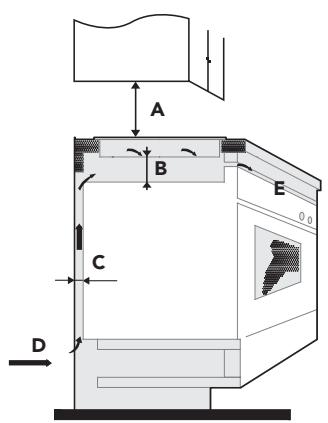

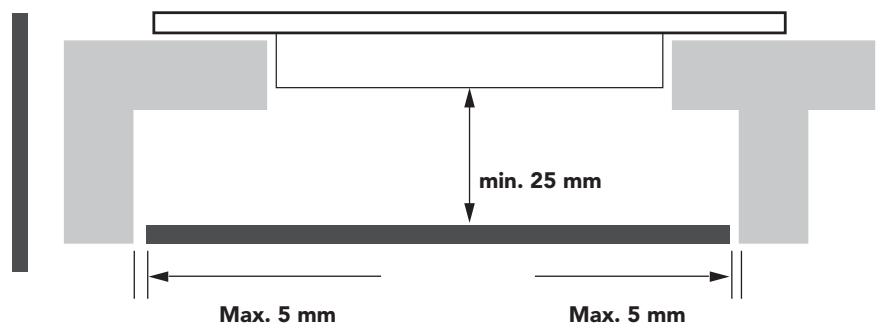

PRODUCT INSTALLATION WARNING: Ensuring Adequate Ventilation Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob. Follow the requirements below.

There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not blocked by the worktop when you put the hob into position. • Be aware that the glue that join the plastic or wooden material to the furniture, has to resist to temperature not below 150°C, to avoid the unstuck of the paneling. • The rear wall, adjacent and surrounding surfaces must therefore be able to withstand an temperature of 90°C.

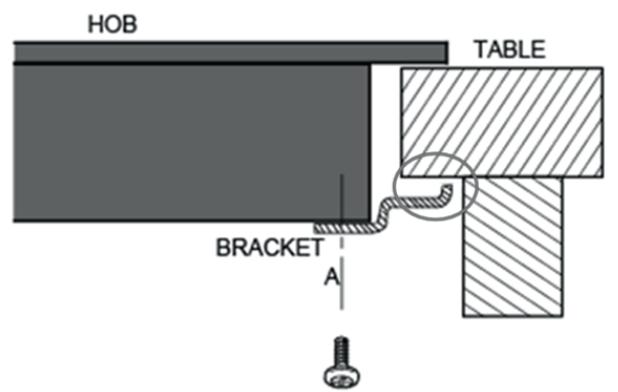

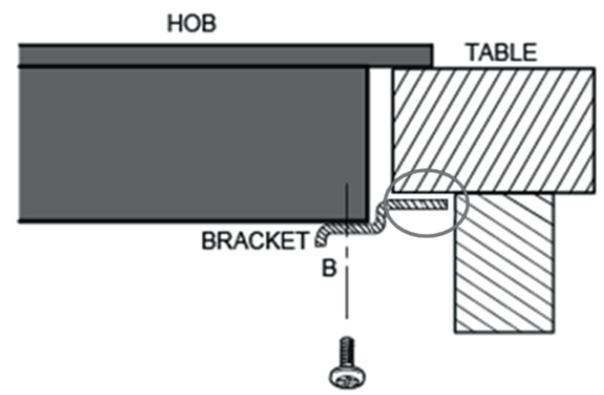

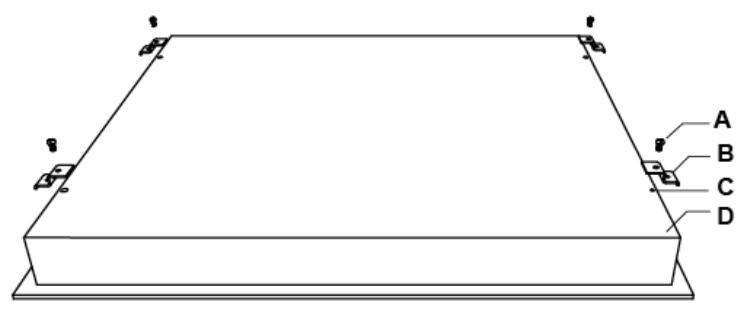

BEFORE LOCATING THE FIXING BRACKETS The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.

PRODUCT INSTALLATION Adjust the bracket position to suit for dierent table top thickness.

Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture).

CAUTIONS 1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. 3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability. 4. The wall and induced heating zone above the work surface shall withstand heat. 5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat. 6. A steam cleaner is not to be used. 7. This ceramic can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.

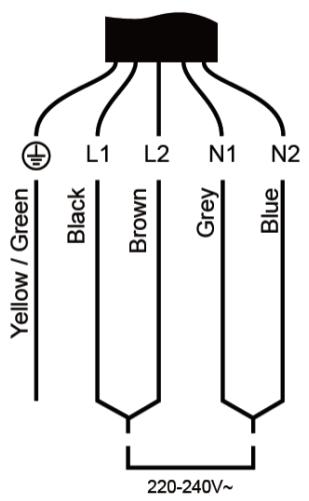

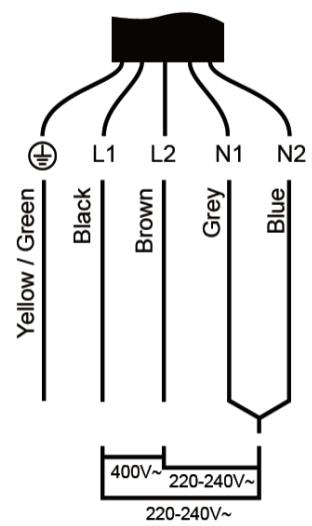

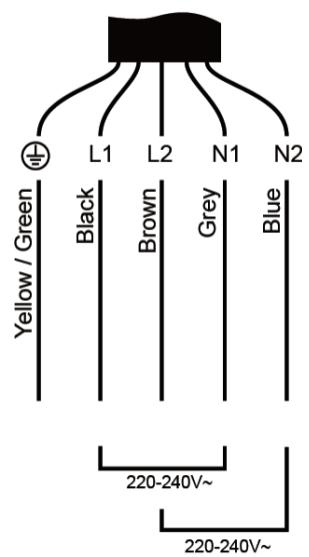

INSTALLATION CONNECTING THE HOB TO THE MAINS POWER SUPPLY The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

• If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. • If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts. • The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations. • The cable must not be bent or compressed. • The cable must be checked regularly and only replaced by a properly qualified person. The bottom surface and the power cord of the hob are not accessible after installation.

OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS TOUCH CONTROLS • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep each time a touch is registered. • Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls dicult to operate.

CHOOSING THE RIGHT COOKWARE • Do not use cookware with jagged edges or a curved base.

• Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

• Always lift pans o the ceramic hob – do not slide, or they may scratch the glass.

OPERATION INSTRUCTIONS HOW TO USE 1. Start Cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the stat of standby mode. 1. Touch the ON/OFF control. all the indicators show “-”

2. Place a suitable pan on the cooking zone that you wish to use. • Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

3. Select a heat setting by touching the “-” or “+” control. • If you don’t choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1. • You can modify the heat setting at any time during cooking. • By holding down either of these buttons, the value will adjust up or down.

2. Finish Cooking 1. Turn the cooking zone off by scrolling down to “0” or touching “-” and “+” control together.

2. Turn the whole cooktop off by touching the ON/ OFF control.

OPERATION INSTRUCTIONS Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

3. Locking the controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the lock

The timer indicator will show “Lo” To unlock the controls

Make sure the ceramic hob is turned on. Touch and hold the lock control

When the hob is in the lock mode, all the controls are disable except the ON/OFF , you can always turn the ceramic hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

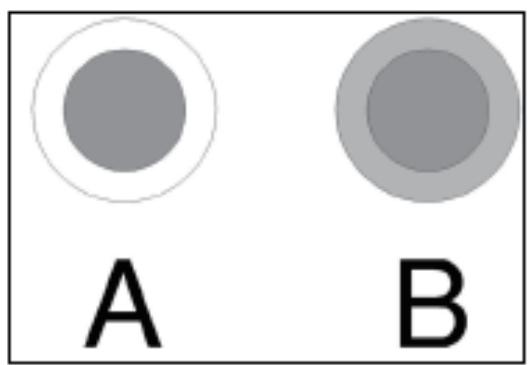

4. Using the Dual Zone Function • The function only work in 1# cooking zone. • The dual cooking zone has two cooking areas that you can use a central section and an outer section. You can use the central section (A) independently or both sections (B) at once.

Activate the Dual Zone 1. Select a heat setting by touching the “-” or “+” control.

2. Adjust the heating setting between power levels 1 and 9. (e.g. 6)

OPERATION INSTRUCTIONS 3. Central section of the dual cooking zone will switch on.

4. Touching the dual zone control “ activate the outer section as well.

5. A neon above the dual cooking zone control will light.

6. The cooking zone indicator show “ alternately

Desactivate the Dual Zone Touching dual zone control “ ” again, the dual zone function is deactivated. The cooking zone indicator show “6”.

NOTE 1. The double loop is available only in 4# cooking zone. 2. You can select the function from level 1 to level 9. 3. You can active the Dual zone only when the 4# cooking zone is selected.

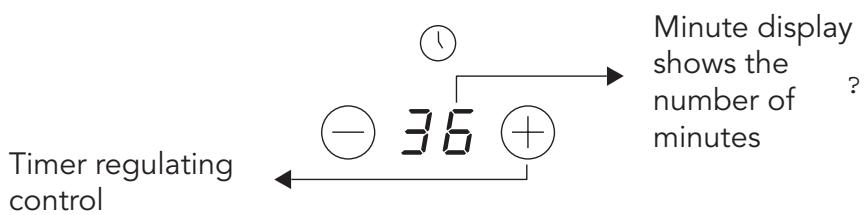

5. Timer Control You can use the timer in two dierent ways: • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • You can set it to turn one or more cooking zones o after the set time is up. The timer of maximum is 99 minutes.

Timer regulating control

Minute display shows the ? number of minutes

OPERATION INSTRUCTIONS Using the Timer as a Minute Minder If you are not selecting any cooking zone 1. Make sure the cooktop is turned on. NOTE

2. Adjust the timer setting by touch the “-” or “+” control. The minute minder indicator will start flashing and will show in the timer display.

You can use the minute minder even if you’re not selecting any cooking zone.

3. Touching the “-” and “+” together, the timer is cancelled, and the “--” will show in the minute display.

4. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

5. Buzzer will beep for 30 seconds and the timer indicator shows “- -” when the setting time finished.

Hint : • Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute. • Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes. • If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

Setting the timer to turn one or more cooking zones off Set one zone 1. Touch the - or + of the corresponding cooking zone you want to set the timer for.

2. Set the time by touching the - or + control of the timer.

OPERATION INSTRUCTIONS 3. Touching the - and + together, the timer is cancelled, and the “--” will show in the minute display.

4. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

5. When cooking timer expires, the corresponding cooking zone will be switched off automatically; The display will show ”H” which means hot;

Note 1. The red dot next to power level indicator will illuminate indicating that zone is selected.

2. If you want to change the time after the timer is set, you have to start from step 1.

Setting the timer to turn more than one cooking zones off • If more than one heating zones use this function, the timer indicator will show the lowest time. (e.g. zone 1# setting time of 5 minutes, zone 2# setting time of 15 minutes, the timer indicator shows “5”.)

Note The red dot next to power level indicator will flash.

OPERATION INSTRUCTIONS • Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

• When cooking timer expires, the corresponding cooking zone will be switch off automatically.

Note 1. The red dot next to power level indicator will illuminate indicating that zone is selected.

2. If you want to change the time after the timer is set, you have to start from step 1.

6. Over-Temperature Protection A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically.

7. Residual Heat Warning When the hob has been operating for some time, there will be some residual heat. The letter “ H ” appears to warn you to keep away from it.

8. Default Working Times Another safety feature of the hob is automatic shut down. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below: Power level

Default working timer (hour)

CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE What ?

Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass).

1. Switch the power to the cooktop off. 2. Apply a cooktop cleaner while the glass is still warm (but not hot!) 3. Rinse and wipe dry with a clean cloth or paper towel. 4. Switch the power to the cooktop back on.

• When the power to the cooktop is switched off, there will be no ‘hot surface’ indication but the cooking zone may still be hot! Take extreme care. • Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable. • Never leave cleaning residue on the cooktop: the glass may become stained.

Boilovers, melts, and hot sugary spills on the glass.

Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Ceramic glass cooktops, but beware of hot cooking zone surfaces: 1. Switch the power to the cooktop off at the wall. 2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop. 3. Clean the soiling or spill up with a dish cloth or paper towel. 4. Follow steps 2 to 4 for ‘Everyday soiling on glass’ above.

• Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be dicult to remove or even permanently damage the glass surface. • Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.

1. Switch the power to the cooktop off. 2. Soak up the spill. 3. Wipe the touch control area with a clean damp sponge or cloth. 4. Wipe the area completely dry. with a paper towel. 5. Switch the power to the cooktop back on.

• The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Spillovers on the touch controls.

TROUBLESHOOTING TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center. Problem

The cooktop cannot be turned on.

Make sure the ceramic hob is connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician.

The touch controls are unresponsive.

The controls are locked.

Unlock the controls. See section ‘Using your ceramic cooktop’ for instructions.

The touch controls are dicult to operate.

The glass is being scratched. Some pans make crackling or clicking noises.

There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.

Make sure the touch control area is dry and use the ball of your finger when touching the controls.

Rough-edged cookware. Unsuitable, abrasive scourer or cleaning products being used.

Use cookware with flat and smooth bases. See ‘Choosing the right cookware’. See ‘Care and cleaning’.

This may be caused by the construction of your cookware (layers of dierent metals vibrating dierently).

This is normal for cookware and does not indicate a fault.

Failure Display, Hints and Tips 1. The hob is equipped with a self diagnostic function. With this test the technician is able to check the function of several components without disassembling or dismounting the hob from the working surface. 2. Failure code occur during customer using & Solution;

Ceramic plate temperature sensor failure--open circuit.

Ceramic plate temperature sensor failure- -short circuit.

Ceramic plate temperature sensor failure

Reinsert the connection between the display board and the power board. Replace the power board.

Check the connection or replace the ceramic plate temperature sensor.

TROUBLESHOOTING / DISPOSAL AND RECYCLING Failure codes

High temperature of ceramic plate sensor.

Temperature sensor of the NTC failure --short circuit

EL Supply voltage is below the rated voltage.

EH Supply voltage is above the rated voltage.

EU Communication error.

Wait for the temperature of ceramic plate return to normal. Touch “ON/OFF” button to restart unit.

Replace the display board.

Please inspect whether power supply is normal. Power on after the power supply is normal. Reinsert the connection between the display board and the power board. Replace the power board or the display board.

DISPOSAL AND RECYCLING Important Instructions For Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to ocial collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance With Rohs Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
