USER MANUAL CV295A FRIGELUX

8. AVERTISSEMENT Dans un souci d’amélioration constante de nos produits, nous nous réservons la possibilité de modifier les caractéristiques techniques sans préavis. Les garanties des produits de la marque FRIGELUX sont exclusivement énoncées par les distributeurs que nous avons choisis. Aucun élément des présentes ne peut être interprété comme une garantie supplémentaire. La société FRIO ENTREPRISE ne peut être tenue responsable des erreurs ou des omissions techniques et de rédaction dans les présentes. Document non contractuel.

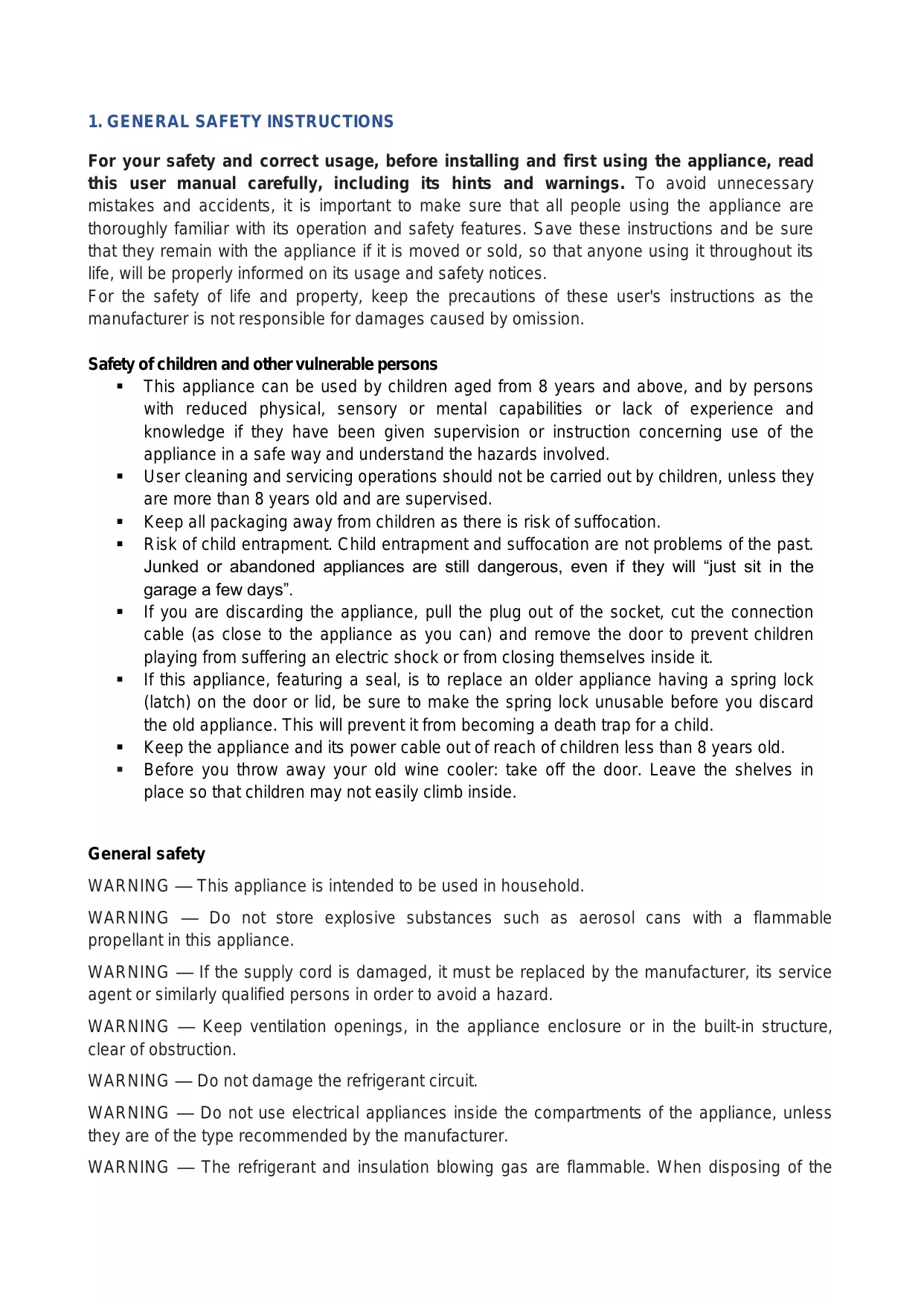

1. GENERAL SAFETY INSTRUCTIONS For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. Safety of children and other vulnerable persons ▪ This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ▪ User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised. ▪ Keep all packaging away from children as there is risk of suffocation. ▪ Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”. ▪ If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. ▪ If this appliance, featuring a seal, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. ▪ Keep the appliance and its power cable out of reach of children less than 8 years old. ▪ Before you throw away your old wine cooler: take off the door. Leave the shelves in place so that children may not easily climb inside.

General safety WARNING — This appliance is intended to be used in household. WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the

appliance, do so only at an authorized waste disposal center. Do not expose to flame. Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.

Caution risk of fire If the refrigerant circuit should be damaged: ▪

Avoid opening flames and sources of ignition.

Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock. Electrical safety ▪

We cannot be held responsible for any incident caused by poor electrical installation. The power cord must not be lengthened.

Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.

Make sure that you can access the main plug of the appliance.

Do not pull the main cable.

If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

You must not operate the appliance without the interior lighting lamp cover.

The appliance is only applied with power supply of single phase alternating current of 220~240V/50Hz. The device uses a wall socket earthed according to current recommendations.

If the power cable is damaged, do not proceed with his replacement but contact your aftersales service.

The socket must be readily accessible but out of reach of children. If unsure, contact your installer.

Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.

Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).

Never place bottles or jars containing liquids in the freezer unless they are filled at 2/3 of their capacity, freezing expands liquids and the container may explode.

When unplugging always pull the plug from the mains socket.do not pull on the cable.

Do not place the appliance in direct sunlight.

Keep burning candles jumps and other items with naked flames away from the appliance so that do not set the appliance on fire.

The appliance is intended for keeping food stuff.

The appliance is heavy. Care should be taken when moving it.

If your machine has wheels, remember that they are only used to facilitate small movements. Do not move it on longer journeys.

Never use the base, drawers, doors etc. to stand on or as supports.

To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Caution! Care and cleaning ▪

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.

Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important! ▪

For electrical connection, carefully, follow the instructions given in this manual.

Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.

It is advisable to wait at least 24 hours before connecting the appliance to allow the oil to flow back in the compressor.

Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.

Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.

This refrigerating appliance is not intended to be used as a built-in appliance

The appliance must not be located close to radiators or cookers.

Make sure that the mains plug is accessible after the installation of the appliance.

To reduce the power consumption of your device:

Install it in a suitable location (see "Installing your appliance").

Keep the doors open for as short time as possible.

Do not put hot food into your device.

Ensure the optimal functioning of your device by periodically cleaning the condenser (see "Routine maintenance of your appliance").

Ensure the optimal functioning of your device by not allowing too much frost accumulate in the freezer (defrost it when the frost thickness exceeds 5-6 mm).

Periodically check the door seals and make sure they always close effectively. If this is not the case, please contact your after-sales service.

Recommendation combination: The following combination of drawers, baskets, and shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

Service and spare parts ▪

Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.

This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

The following spare parts: door handles, door hinges, trays and trays, are available to professional repairers and final consumers for a minimum period of 7 years and door seals for a minimum period of 10 years from of the marketing of the last unit in the model. The list of spare parts and the procedure for ordering them (professional access / final consumer access) are available on the following website: www.interfroidservices.fr or by post to the following address: Interfroid Services, 143 Bd Pierre Lefaucheux - 72230 ARNAGE. All FRIGELUX refrigeration appliances benefit from a 1-year parts warranty. This appliance is for domestic use only. The manufacturer cannot be held responsible for another use.

R600a Safety regulation Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Warning: Keep ventilation openings in the appliance enclosure or in the structure clear of obstruction. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Warning: Do not damage the refrigerant circuit. Refrigerating units operating on Isobutane (R600a) may not be placed in an area with sources of ignition (e.g. unsealed electrical contacts) or where the refrigerant could gather in the event of a leak. The type of refrigerant is indicated on the cabinet's type plate. Warning: Do not use electrical appliances inside the compartments of the appliance, unless they are of the type recommended by the manufacturer.

The appliance meets the requirements of all European Directives and their modifications.

2. PRODUCT DESCRIPTION WARNING: Never touch the interior of the freezer chamber or frozen foods in the compartment with wet hands as this could result in frost bite. To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance. 3. INSTALLATION INSTRUCTIONS Before Using Your Freezer ▪ ▪

Remove the exterior and interior packing. Check to be sure you have all of the following parts: ➢ 1 storage basket ➢ 1 instruction manual Before connecting the freezer to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation. Clean the interior surface with lukewarm water using a soft cloth.

Installing Your Freezer ▪ ▪ ▪

This appliance is designed to be free standing only, and should not be recessed or built-in. Place your freezer on a floor that is strong enough to support the freezer when it is fully loaded. Allow 15 cm of space between the back and sides of the freezer, which allows the

proper air ventilation. Adjust the feet to keep the freezer level. ▪ Locate the freezer away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the freezer not to perform properly. This unit is not designed for use in a garage or any other outside installation. ▪ Avoid locating the freezer in moist areas. ▪ Plug the freezer into dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center. This unit is not designed to be installed in an RV or used with an inverter. ▪ After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for 2~3 hours under before placing food in the freezer compartment. Make sure that sufficient room is provided around the appliance to ensure free air circulation. Ideally, A space of no less than 10cm must be left around the freezer, and ensure you allow gaps as shown in the below diagram.

When selecting a location for your appliance you should make sure the floor is flat and firm, and the room is well ventilated. An average ambient temperature must be observed. This temperature is specific according to the climatic class of the device. CV99A+ CV142A+ CV198A+ CV295A+ appliances are intended to be used at ambient temperatures ranging from 10 °C to 43 °C

4. OPERATING YOUR FREEZER Temperature control •

For CV99A+, CV142A+, CV198A+

Power : the power light is on when the freezer is connected (green color light). Your freezer has one control for regulating the temperature. The temperature control is located on the lower right-hand corner. The range of the temperature control is from position" Min" the warmest to "Max" the coldest. Appliance thermostat has 3 settings. The appliance assures that temperature is maintained as long as it is in operation and that it is used in normal conditions of use. The temperature inside the appliance can be influenced by many factors: ambient temperature, sun exposure, number of door opening and amount of food stored… The slight changes in temperature are perfectly normal. Setting OFF: appliance is OFF Setting MIN: Freezer compartment average temperature -16°C Setting MAX: Freezer compartment average temperature -24°C •

The power light is on when the freezer is connected (green color light).

This light is on when the compressor is in operation (red color light).

The warning light illuminates when the temperature inside the compartment is too high (orange color light).

Your freezer has one control for regulating the temperature. The temperature control is located on the lower right hand corner. The range of the temperature control is from position" 1" the warmest to "6" the coldest. Appliance thermostat has 6 settings. The appliance assures that temperature is maintained as long as it is in operation and that it is used in normal conditions of use. The temperature inside the appliance can be influenced by many factors: ambient temperature, sun exposure, number of door opening and amount of food stored… The slight changes in temperature are perfectly normal.

Setting OFF: appliance is OFF Setting 1: Freezer compartment average temperature -14°C Setting 2: Freezer compartment average temperature -16°C Setting 3: Freezer compartment average temperature -18°C Setting 4: Freezer compartment average temperature -20°C Setting 5: Freezer compartment average temperature -22°C Setting 6: Freezer compartment average temperature -24°C

Turning the temperature control to "OFF" position stops the cooling cycle but does not shut off the power to the freezer. If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before Restarting the unit. If you attempt to restart before this time delay, the freezer will not start. Large amounts of food will lower the cooling efficiency of the appliance. If you choose to change the thermostat setting, adjust thermostat control by one numerical increment at a time. Allow several hours for temperature to stabilize between adjustments.

5. FOOD CONSERVATION The storage of foodstuffs must comply with the regulatory conservation temperatures established by the National Agency for Food, Environmental and Occupational Health Safety (ANSES). Failure to comply with these storage temperatures involves risks of poisoning and food waste. Food preservation and storage. Under the recommended setting, the best shelf life is no more than 3 months in the freezer (4 stars); The better storage time may reduce other parameters.

Failure to comply with these storage temperatures involves risks of poisoning and food waste. For optimal conservation of foodstuffs, it is recommended to adjust the temperatures of the compartments as below:

FROZEN AND DEEP- FROZEN FOOD Your domestic appliance enables you to freeze food, it lowers its core temperature rapidly and you can therefore keep it longer. Deep-freezing is an industrial process that is quicker and more intense that domestic freezing. The products you purchase from the shops are deep-frozen. PREPARING FOOD FOR FREEZING Freezing does not sterilise. It is therefore important to observe some simple hygiene rules when preparing your food for freezing: wash your hands before you touch the food and clean the kitchen tools you have just used before using them again. Only freeze fresh, good quality food. Refer to the table "Food Freezing Guide" to know which products you can freeze and how long you can keep them. Blanch fruit and vegetables before freezing them to preserve their color, smell, taste and vitamins: plunge them in boiling water for few moments. Divide the food you wish to freeze into small individual portions corresponding to one meal each. Small portions freeze quicker at their core.

Pack the food hermetically so that they do not lose their flavor or dry up. Use plastic bags, polyethylene film, aluminum foil or special freezer containers for this. If you are using plastic bags, compress them to eliminate the air before sealing them hermetically. Note on each package: -The freezing date -The consume-by date -The type of food contained -The number of portions contained If you are purchasing deep-frozen food, pick it up last when you are shopping. Check that: - The packaging isn't damaged - They are not covered in a layer of frost (which means that they have partially defrosted) Pack them in an isotherm bag or in newspaper. Transport them quickly and store them immediately. Comply with the maximum storage dates shown on the pack. Your appliance has a **** freezer compartment, this enables you to keep deep-frozen food in an optimal manner. ARRANGING FOOD IN YOUR FREEZER Do not put fresh food next to food that has already been frozen to avoid causing the frozen food to warm up. The maximum weight of food that you can freeze over 24 hours is shown on the information plate (inside your appliance's refrigerator section near the bottom of the left-hand wall) under the heading: "CAPACITE DE CONGELATION/ FREEZING CAPACITY (kg/24h)". DEFROSTING FOOD You can defrost food in five different ways: - By putting them in your appliance's refrigerator section for several hours - By leaving them to defrost gently at ambient temperature - In a conventional oven at a very low temperature (40/50°C) - In a microwave oven - By cooking them immediately Defrosting them in the refrigerator is the slowest but safest method. Never refreeze food once it has defrosted, even partially, without cooking it first. We would advise you not to place any items you have just taken out of the freezer straight into your mouth (ice cream, ice cubes, etc.), they will be at a very low temperature and you risk frostbite. Avoid touching frozen or deep-frozen food with wet hands; you may stick to the food. We recommend that you only defrost food for immediate use.

6. CLEANING YOUR APPLIANCE Defrosting your freezer ▪ When? For the most efficient operation and minimum energy consumption, defrost the freezer when the frost on the freezer walls is excessive or 5 to 10 mm thick. ▪ Choose a time when the stock of frozen food is low.

CAUTION: Do not use boiling water because it may damage the plastic parts. In addition, never use a sharp or metallic instrument to remove frost as it may damage the cooling coils and will void the warranty. We recommend using the plastic scraper provided with your unit. ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪

Remove the frozen food from the freezer and place it in a cooler to protect the food. Turn the thermostat knob to “OFF”. Unplug the freezer. The Power Supply light should be off (green light out). During defrosting, the ice melts into the cabinet. Remove the drain plug on the inside floor of the freezer by pulling straight out. Place a shallow pan outside drain outlet. The defrost water will drain out. Check the pan occasionally so the water does not overflow. Clean the interior of the freezer. Replace the plug on the inside floor. Reset the thermostat to desired setting. Allow the cabinet to cool for one hour. Return food to the freezer.

Defrosting usually takes a few hours. Leaving the door open will help speed the process. Also, pouring warm water (not boiling) on the ice/frost will help speed melting. If you must use a scraper- please use caution - it is very easy to damage the freezer compartment and void your warranty. Cleaning inside the Fridge/Freezer After defrosting you should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the Fridge/Freezer. Condensation will form on the back wall of the Fridge; however, it will normally run down the back wall and into the drain hole behind the salad bin. Cleaning outside the Fridge/Freezer Use standard non-abrasive detergent diluted in warm water to clean the Fridge/Freezer exterior. The grille of the condenser at the back of the Fridge/Freezer and the adjacent components can be vacuumed using a soft brush attachment. Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge/Freezer

If you're going on vacation If your appliance is not to be used for several months, remove all food, turn off and unplug the appliance from the outlet. Clean and dry the inside and outside of the appliance thoroughly. Also leave the door open, blocking it if necessary, to prevent condensation, odors, mold. Moving the unit ▪ Location Do not place your refrigerator / freezer near a heat source, for example. Stove, boiler or radiator. Also, avoid direct sunlight. ▪ Refrigerator / Freezer Upgrade Make sure the refrigerator / freezer is level. Use the rotatable adjustable feet at the front. If the refrigerator / freezer is not level, the doors and magnetic sealing alignments will be affected and may cause malfunctions. ▪ Do not turn on the refrigerator / freezer for 4 hours After any movement, it must not be connected for 4 hours. This delay allows the coolant to be adjusted. ▪ Installation Let your device breathe. Heat is released from the walls so it is important to leave a circulation of air around your device. 7. MAINTENANCE AND AFTER SALES SERVICE Maintenance This product should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact the local store where your purchase was made. When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Troubleshooting Before calling after-sales Service, check to see if you can solve problems. Problèmes Power cut

Solutions If the internal temperature of the Freezer is -18℃ or less when the power returns, your food is safe. The food in your Freezer will remain frozen between 30 and 57h according to your model. (see European sheet p.31) Do not open the Freezer door more than necessary.

Check the adjustment of the feet of your appliance and its stability. Check that it is not touching a wall. Check that all the movable parts (trays, racks, etc..) are securely in place.

The freezer does not get cold enough

Check if the temperature is correct. If this is not the case, adjust the temperature appropriately.

Make sure that you have not placed a large amount of food or hot food in your appliance. Be careful not to open the door too often or leave it open. Check that the door is closed tightly. Keep your device away from heat sources. Make sure that the ventilation around the unit is respected. Check that your appliance is connected to the electrical supply. Check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed

Frost forms inside your appliance

Be careful not to open your appliance’s door too often and not to leave it open.

some foods do not freeze completely

This is quite normal for food that contains a lot of sugar, fat or alcohol not to freeze completely and to remain partially soft (ice cream, fruit juice,etc.).

Frozen meat has white streaks

Check that your temperature is correctly set and is not at too low temperature Check that you haven’t kept this meat too long in the freezer

The door is difficult to open

It is normal for the door to offer some resistance to being opened, particularly when you have just shut it: a slight under pressure forms in your appliance to ensure the door seals perfectly. AIl you have to do is wait a few seconds before re-opening.

The Fridge/Freezer is not working

Condensation appears on the outside of the Fridge/Freezer

Check that your appliance is connected to the electrical supply. Check that the circuit-breaker for your house has not cut out and that the fuse has not blown or been unscrewed This may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues contact the local store where your purchase was made.

Your appliance does not get cold at all

7. ENVIRONMENT This appliance is marked according to the European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product. The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product. 8. WARNING As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.

Warranties for FRIGELUX brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee. FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document. Non-binding document.

EUROPEAN DATA SHEET according to the regulations (UE) N°1060/2010

FREEZER CHEST BRAND COMMERCIAL REFERENCE FRIGELUX CV99A+

POWER SUPPLY PRODUCT DIMENSIONS (W x D x H) NET WEIGHT APPLIANCE CATEGORY ENERGY EFFICIENCY CLASS ENERGY CONSUMPTION calculated on the basis of results obtained over 24 hours in standardized test conditions. Actual energy consumption depends on conditions of use and the location of the appliance. NET VOLUME COLDEST STORAGE TEMPERATURE FREEZING POWER POWER CUT SAFE (hours)

Energy consumption 190 kWh per year

Energy consumption 219 kWh per year

Energy consumption 268 kWh per year

No Climate class: SN - T This appliance is designed to be used at an ambient temperature of between 10°C (lowest) and 43°C (highest). 41 db
