XC600 - Desktop computer ACER - Free user manual and instructions

Product type	Desktop computer
Brand	Acer
Model	XC600
Dimensions (approx.)	175 x 420 x 480 mm (L x D x H)
Weight (approx.)	10 kg
Power supply	300 W, AC adapter with grounded plug
Operating temperature	5 °C to 35 °C
Storage temperature	-20 °C to 65 °C
Operating humidity	20% to 80% (non-condensing)
Storage humidity	20% to 80% (non-condensing)
Front ports	USB 2.0, microphone jack, headphone jack, memory card reader
Rear ports	USB 2.0, HDMI, Ethernet RJ-45, VGA, PS/2 keyboard/mouse, audio input/output, serial
Network connectivity	Ethernet 10/100/1000, Wi-Fi and Bluetooth (depending on model)
Optical drive	DVD±RW or combo (depending on model)
Hard drive	Variable capacity (up to 1 TB, depending on model)
RAM	Up to 8 GB DDR3 (depending on model)
Operating system	Microsoft Windows 7/8/10 or Linux (depending on model)
Main features	Desktop, multimedia, connectivity, Acer clear.fi (media sharing)
Maintenance and cleaning	Unplug the device, use a soft slightly damp cloth, avoid liquids
Safety	Grounded outlet required, do not obstruct ventilation, do not open the case

Frequently Asked Questions - XC600 ACER

How to clean my ACER XC600 computer?

Before any cleaning, turn off the computer and unplug the power cord. Use a soft cloth slightly dampened with water to wipe the exterior. Never use liquid or cleaning spray.

What to do if the computer does not start?

Check that the power indicator is lit. If not, make sure the power cord is properly connected and the wall outlet works. If the indicator is lit, remove any non-system diskette from the drive and restart with Ctrl+Alt+Del. If the problem persists, contact technical support.

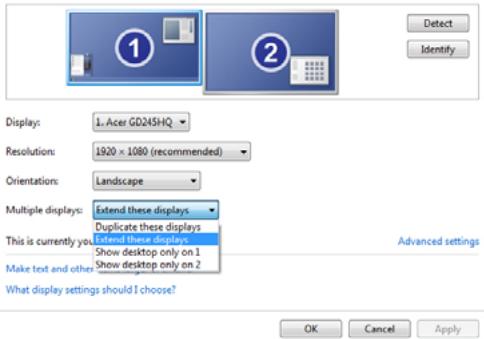

How to set up a second screen?

Right-click on the desktop, select Screen Resolution. Choose the main monitor and set the secondary display to Extend or Duplicate mode. Apply the changes.

The computer makes no sound. What to do?

Check that the volume is not muted. Click the Volume icon in the taskbar and make sure the Mute option is disabled. If headphones or external speakers are plugged in, the internal speakers are disabled automatically.

How to share multimedia files over the network?

Use Acer clear.fi. Open the application, make sure sharing is enabled in the settings. DLNA-compatible devices on the same network will be able to access your library.

Can I upgrade the memory or hard drive?

Yes, the system allows adding memory or replacing the hard drive. Open the side panel after unplugging the device. Consult an authorized dealer for compatible components.

What is the power consumption of the computer?

The power supply is 300 W. In sleep mode, the computer saves over 80% energy. It is ENERGY STAR certified.

How to recycle my computer at end of life?

Do not dispose of the device in the trash. Recycle it in accordance with WEEE regulations. Visit Acer's website for more information: www.acer-group.com/public/Sustainability/.

The screen remains black after power on. What to do?

Press a key on the keyboard or move the mouse to wake from sleep. If the screen stays black, restart the computer. If the problem persists, contact support.

How to use the Windows Media Center remote control?

If your model comes with a remote, insert the batteries and point it at the receiver. Use it to navigate Media Center, play videos, music, or photos.

USER MANUAL XC600 ACER

Federal Communications Commission 20

Change the appearance of your displays

This Class B digital apparatus complies with Canadian ICES-003.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

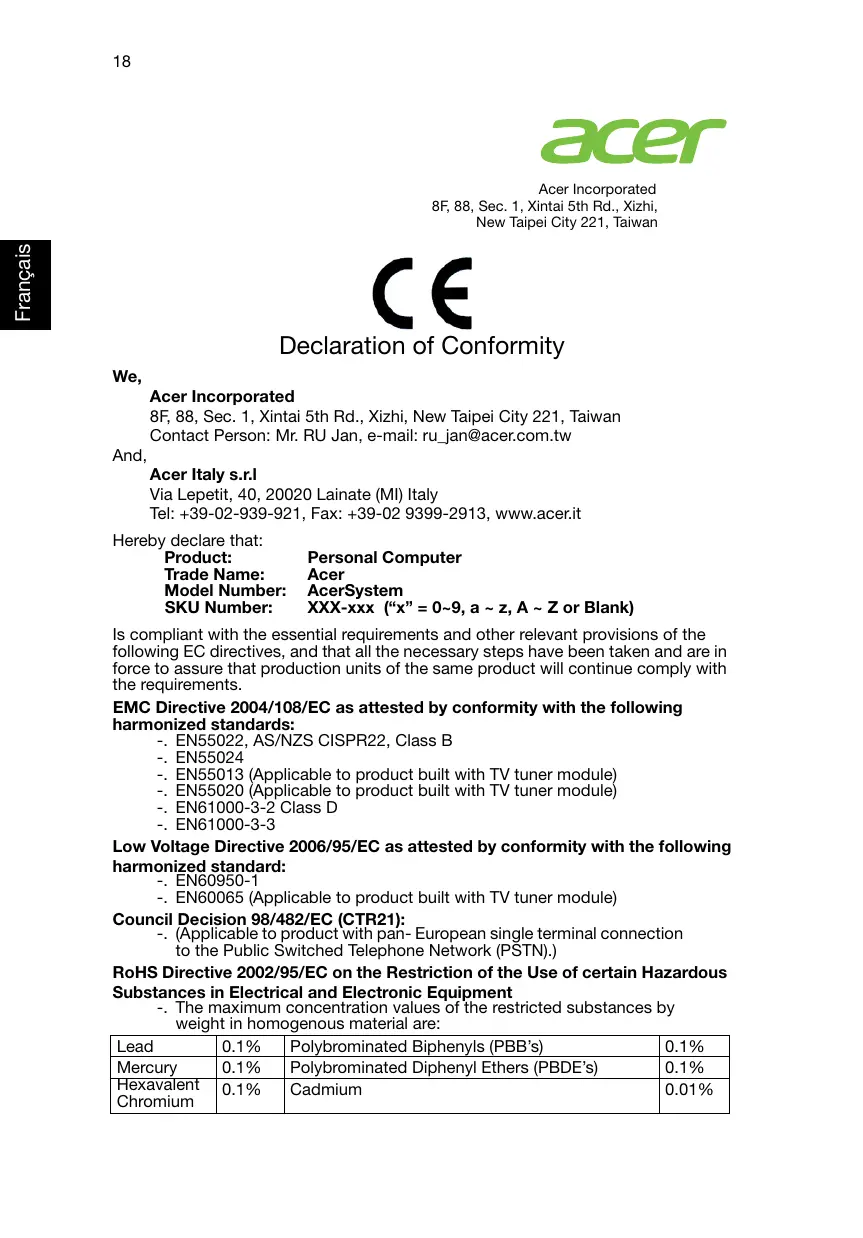

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC

• EN301 489-1

• EN301 489-3 (Applicable to non-bruethooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages

• EN300 440-2 (Applicable to non-bruethow wireless keyboard mouse set).

• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

R1I1

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147
