USER MANUAL RQ 1175/32 PHILIPS

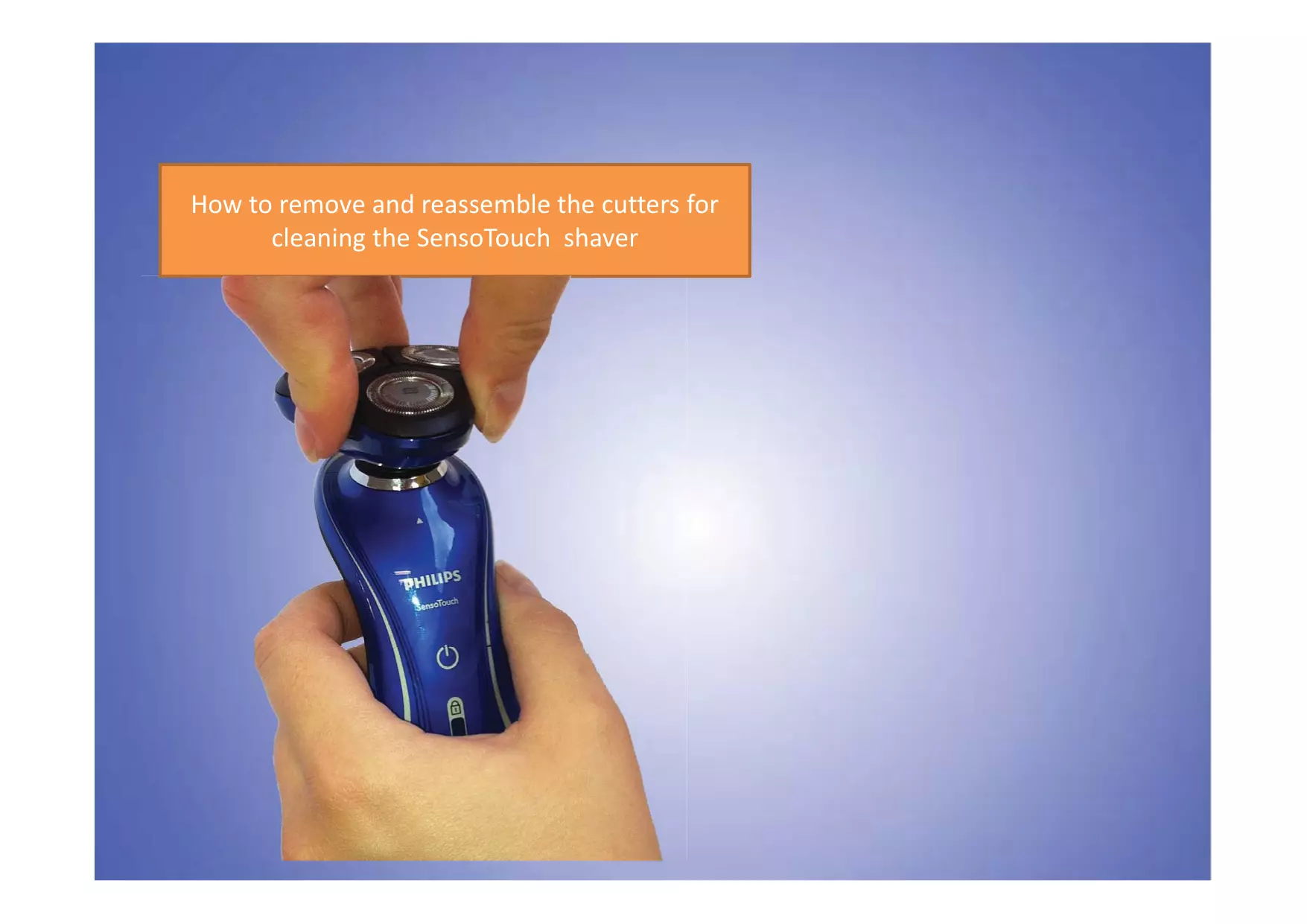

How to remove and reassemble the cutters for cleaning the SensoTouch shaver
Pull the top part of the shaving unit from the shaver by pressing slightly on the three sides of the head marked with pointer
Slide the green frame in the direction of the arrow
http://youtu.be/ggUJhftv0hs
Lift the green frame from the shaving unit
3 Take the cutters from the guards – one by one!
Remember which cutter belongs to which guard
5 The guards (caps) cannot be removed!!!
REPLACE CUTTERS and FRAME
http://youtu.be/1HCB8eWf3EM
Place cutters back in shaving unit, green part facing up
Place green frame over cutters NEXT slide for details
Place green frame over cutters. Pay attention to right orientation! nit 1) Black triangle in middle of shaving unit ng must be oriented with its point facing towards you 2) Green frame must be oriented: 1) With arrows visible 2) Turn the frame u until ntil the orientation is correct
PLACE SHAVING UNIT ON SHAVER
Reattach the shaving head holder to the bottom of the shaving unit (‘click’)
