Brand	HOTPOINT
Model	XH9T2ZXOJZ
Product type	Fridge-freezer
Cooling system	No Frost
Fast freezing technology	SUPER function (rapid freezing)
Interior lighting	LED light (replacement by technical service)
Special compartment	3-in-1 zone (storage, rapid cooling, defrosting)
Shelves	Removable and height-adjustable
Temperature indicator	OK display for coldest zone
Door reversibility	Possible (call after-sales service)
Power supply	220-240 V, earthed socket
Motor protection	Protection switch with 8-minute delay
Daily freezing capacity	Indicated on the label (e.g., 2 kg/24h)
Autonomy in case of power failure	Approximately 12-18 hours
Maintenance and cleaning	Warm water and baking soda; vacuum cleaner for the back
Defrosting	Automatic (No Frost)
Safety	Automatic shut-off in case of prolonged opening, audible alarm
Disposal	Separate collection according to WEEE directive
Spare parts	Original only, via approved service

Frequently Asked Questions - XH9T2ZXOJZ HOTPOINT

How to start the appliance?

Press the ON/OFF button for 2 seconds. The last recorded temperature is displayed. To turn off, press again.

How to adjust the refrigerator temperature?

Use the temperature adjustment button to cycle through the values. The desired temperature is displayed on the interface.

What to do if the audible alarm sounds?

The alarm sounds if the refrigerator door has been open for more than 2 minutes. Close the door to stop it. Also check that the appliance has been properly turned off.

How to quickly freeze fresh food?

Activate the SUPER function (SUPER button) 24 hours before adding the food. The SUPER light turns on. The function deactivates automatically after 24 hours.

How to reverse the door opening direction?

Call our technical support service. The operation requires a certified technician.

Why doesn't the motor start?

The appliance is equipped with a motor protection system that delays startup by 8 minutes. Wait this time. If the problem persists, check the power supply.

How to clean the interior of the refrigerator?

Unplug the appliance, then clean the interior with a sponge soaked in warm water and baking soda or mild soap. Rinse and dry thoroughly.

What to do in case of a power outage?

Do not open the freezer door. Frozen food stays good for 12 to 18 hours. Once power is restored, check the condition of the food.

How to replace the light bulb?

Unplug the appliance, remove the protective cover as shown in the manual, and replace with a bulb of the same wattage. For the LED light, contact technical service.

Where to find the serial number and model?

They are on the rating plate located in the refrigerator compartment, bottom left. Note them down before contacting after-sales service.

USER MANUAL XH9T2ZXOJZ HOTPOINT

Operating Instructions

Operating Instructions, 1

Assistance, 3

Description of the appliance, 6

Description of the appliance, 11

Start-up and use, 20

Maintenance and care, 21

Precautions and tips, 22

Troubleshooting, 23

NL

Nederlands

KOEL/DIEPVRIESCOMBINATIE

Inhoud

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
- serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

FR

Assistance

BIAAA 13 RW 34874470100 S/N 000000000 Gross 334 | Gross 218 | Gross 0 | Brut Brut Net Utile 303 | Brut Net Utile 213 | Brut Net Utile 0 | R 600a Refr. 62 g Freez. g Biprobneno a Pólouji Szenano a Pólouje MADE IN POLAND 87447 Chiller Vol. Freezezer Vol. Gross 116 | Gross 116 | Gross 116 | Freeze. Spor. Brut Net Utile 90 | Brut Net Utile 90 | Class 2,0 kg/24h Class 2,0 kg/24h Class 2,0 kg/24h Class 2,0 kg/24h Class 2,0 kg/24h Class 2,0 kg/24h Class 2,0 kg/24h Class 2,0 kg/24h Class 2,0 kg/24h Class 2,0 kg/24h Class Indisk Company Spa, Viale Arbitide Merfori 47 50044 Fabriano (AN) Italy 19512617900

Description of the appliance

Control panel

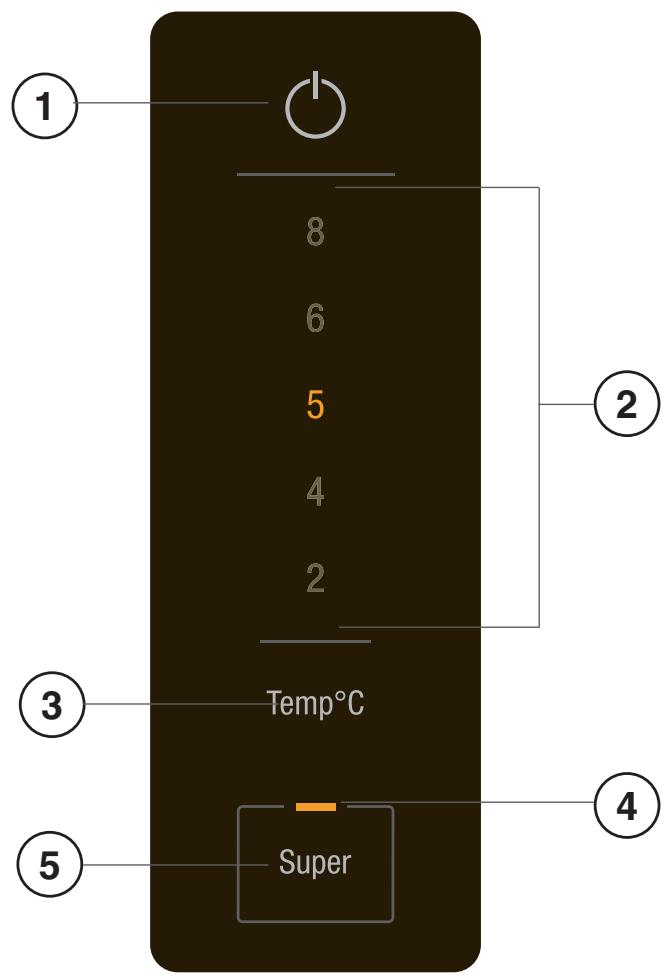

1. ON/OFF

The whole product (both fridge and freezer compartments) can be turned on by pressing this button for 2 seconds. The last set value is indicated on the interface. Press this button to turn off the device. An audible signal will confirm the “off commutation of the product”.

2. FRIDGE temperature indicator

It shows the temperature of the fridge compartment.

3. FRIDGE temperature setting

It allows you to change the fridge temperature value, in a cyclical way; it also confirms the selected temperature on the interface.

4 SUPER indicator light (rapid freezing)

illuminates when the SUPER button is pressed.

5 SUPER button (rapid freezing)

To be used to freeze fresh foods. When it is pressed, the SUPER indicator light illuminates (see Start-up and use).

1 8 6 5 4 2 Temp°C 3 4 5 Super

FR

Description of the appliance

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

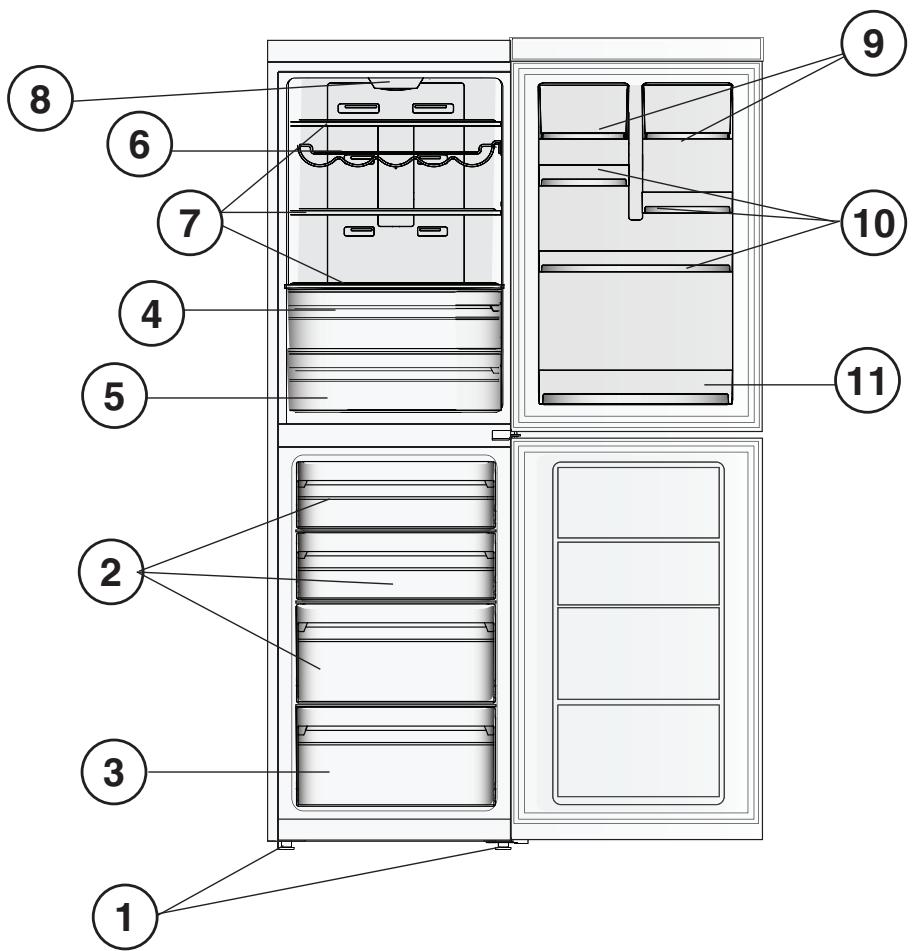

1 Levelling FEET
2 STORAGE compartment*
3 FREEZER and STORAGE compartment
4 FRUIT and VEGETABLE bin *
5 COMPAR TMENT 3 IN 1 ZONE*
6 WINE RACK *
7 SHELVES *
8 LAMP (see Maintenance).
9 Extractable STORAGE shelf WITH COVER
10 Removable multipurpose SHELVES *
11 BOTTLE shelf

* Varies by number and/or position, available only on certain models.

1 2 3 4 5 6 7 8 9 10 11

FR

Technical line drawing of a rectangular component with a side view showing a 50mm dimension (no text or symbols present)

Livellamento

Line drawing of a refrigerator front panel with rack-mounted dish (no text or symbols)

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

3D diagram of a mechanical housing or enclosure with an arrow indicating a component, labeled '3' (no text or symbols on the diagram itself)

|

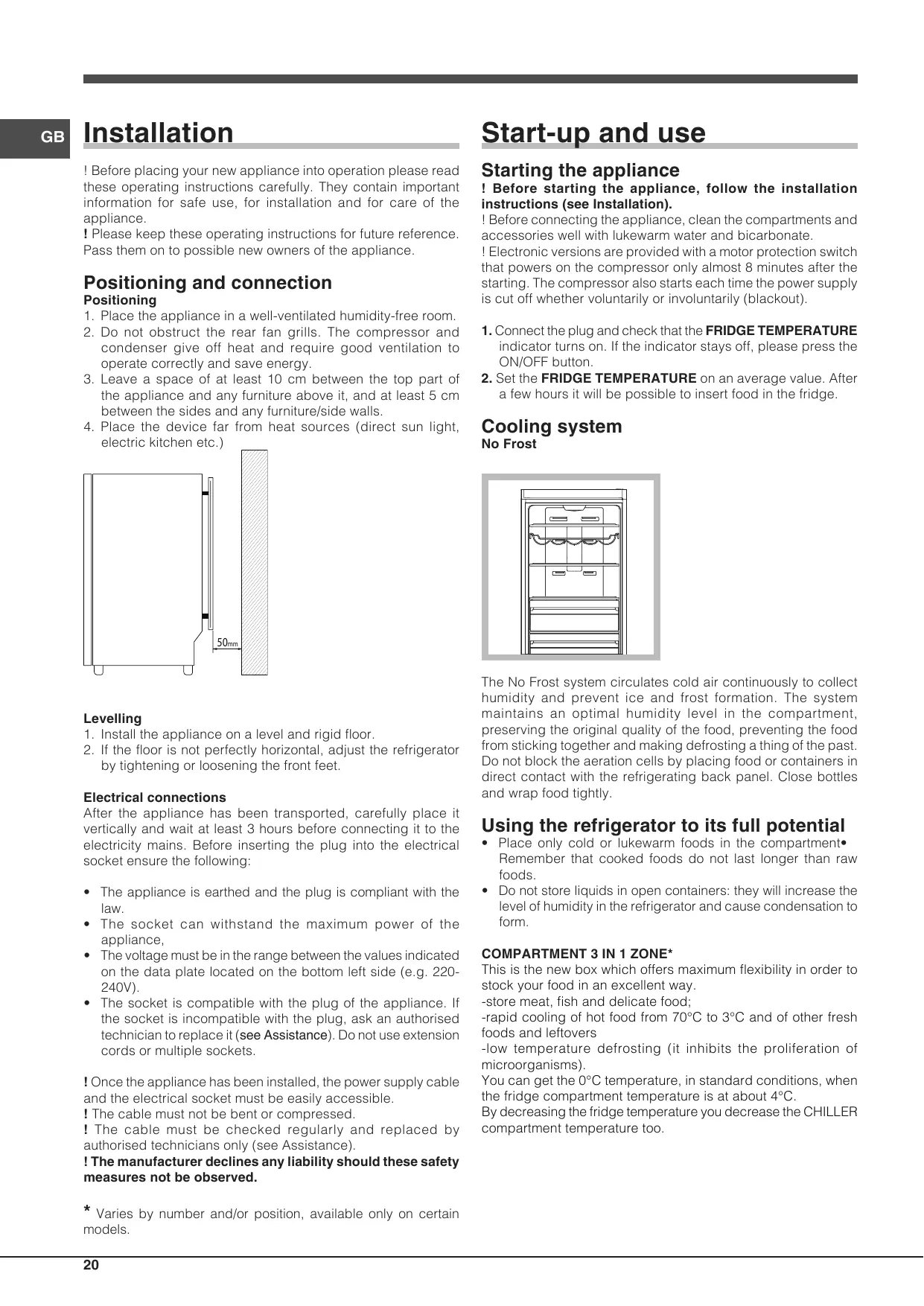

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.

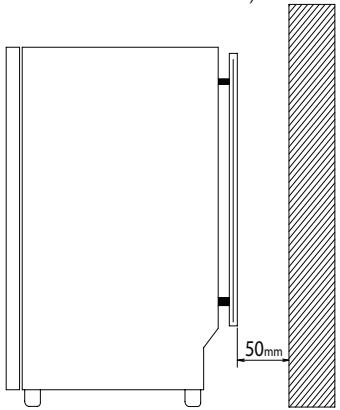

3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.
4. Place the device far from heat sources (direct sun light, electric kitchen etc.)

Technical line drawing of a rectangular frame with a side panel and a vertical dimension label (50mm), no readable text or symbols present.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance,
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

* Varies by number and/or position, available only on certain models.

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.
! Electronic versions are provided with a motor protection switch that powers on the compressor only almost 8 minutes after the starting. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Connect the plug and check that the FRIDGE TEMPERATURE indicator turns on. If the indicator stays off, please press the ON/OFF button.

2. Set the FRIDGE TEMPERATURE on an average value. After a few hours it will be possible to insert food in the fridge.

Cooling system

No Frost

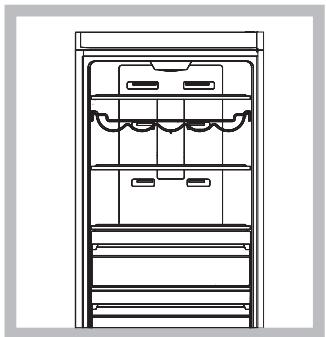

Line drawing of a refrigerator front panel with shelves and compartments (no text or symbols)

The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in the compartment, preserving the original quality of the food, preventing the food from sticking together and making defrosting a thing of the past. Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel. Close bottles and wrap food tightly.

Using the refrigerator to its full potential

• Place only cold or lukewarm foods in the compartment
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers: they will increase the level of humidity in the refrigerator and cause condensation to form.

COMPARTMENT 3 IN 1 ZONE\*

This is the new box which offers maximum flexibility in order to stock your food in an excellent way.

-store meat, fish and delicate food;

-rapid cooling of hot food from 70^ C to 3^ C and of other fresh foods and leftovers

-low temperature defrosting (it inhibits the proliferation of microorganisms).

You can get the 0^ C temperature, in standard conditions, when the fridge compartment temperature is at about 4^ C.

By decreasing the fridge temperature you decrease the CHILLER compartment temperature too.

SHELVES:

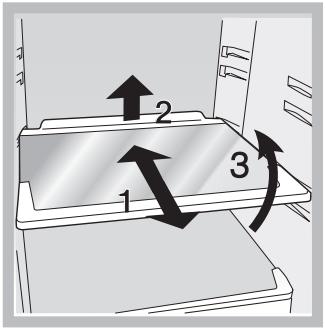

Due to the special guides the shelves are removable and the height is adjustable allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf. (see diagram),

1 2 3

TEMPERATURE Indicator light*: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see diagram).

1. If the word "OK" does not appear it means that the temperature is too high: set the FRIDGE TEMPERATURE on a colder value, and then wait 10 hours until the temperature becomes stable.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before you set the FRIDGE temperature on a colder value.

Using the freezer to its full potential

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food for freezing should not be placed in contact with the one already frozen; it should be placed in the lower FREEZER and STORAGE compartment that provides the best freezing rate.
• To freeze fresh food in the best and safest way possible, activate the SUPER function 24 hours before placing the food in the freezer. After placing the food inside, activate the SUPER function again; it will be deactivated automatically after 24 hours;
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: 2Kg/24h).
  ! To avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers.
  ! Do not open the door during freezing.
  ! If there is a power cut or malfunction, do not open the freezer

door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 12-18 hours.

! To get more space inside your freezer, you can take out any drawers (and flaps, if appropriate), from their slots, by putting your food directly on the provided shelves.

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. Press the ON/OFF button to turn off the device
2. pull the plug out of the socket

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Replace LED \* light

The LED lighting, thanks to the powerful diffused light, allows a clear view of each food. If you need to replace the LED light, contact the Technical Service.

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

Replacing the light bulb \*

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover.

1 2

3D diagram of a rectangular device with internal compartments and an arrow indicating a rotation or movement (no text or symbols)

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments;

- 2002/96/CE.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. -It is not enough to turn off the device (with the ON/OFF button) to eliminate all electric contacts.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given Supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be Supervised to ensure that they do not play with the appliance.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal

unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The interface is off.

- The plug is not inserted in the outlet, or it is not powerful enough to create a contact, or there is no electricity in the house.

The motor does not start.

- The appliance comes with a motor protection control (see Start-up and use).

a) The alarm sounds.

a) The refrigerator door has remained open for more than two minutes (the buzzer will stop sounding when you shut the door) or the correct switching-off procedure was not followed (see Maintenance).

The refrigerator and the freezer do not cool well.

• The doors do not close properly or the seals are damaged.
• The doors are opened too frequently.
• The FRIDGE TEMPERATURE is not correct (see Description).
• The refrigerator or the freezer have been over-filled.

The food inside the refrigerator is beginning to freeze.

• The FRIDGE TEMPERATURE is not correct (see Description).
• The food is in contact with the back inside wall of the refrigerator.

The motor runs continuously.

• The SUPER button was pressed: the yellow SUPER indicator is on (see Description).
• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.

The appliance makes a lot of noise.

- The appliance has not been installed on a level surface (see Installation).

* Varies by number and/or position, available only on certain models.

• The appliance has been installed between cabinets that vibrate and make noise.
• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

The back wall of the refrigerator unit is covered in frost or droplets of water

- This shows the appliance is operating normally.

F

Installation

Technical line drawing of a rectangular frame with a vertical side and a shaded vertical section, both without any text or symbols.

Mise à niveau

Line drawing of a refrigerator front panel with rack-mounted dish (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction, labeled '3' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

Technical line drawing of a rectangular frame with a vertical side and a shaded vertical section, both without any text or symbols.

Nivellierung

Line drawing of a refrigerator front panel with internal compartments and ventilation slots (no text or symbols)

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

Lampenaustausch \*

3D diagram of a mechanical component with an arrow indicating direction, labeled '3' (no text or symbols on the diagram itself)

Technical line drawing of a rectangular frame with a vertical side and a 50mm dimension label (no text or symbols beyond the dimension)

Nivellering

Line drawing of a refrigerator front panel with shelves and compartments (no text or symbols)

3D diagram of a rectangular device with internal compartments and a curved arrow indicating rotation (no text or symbols)

Vervang de LED \* lamp

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

Technical line drawing of a rectangular component with a side view showing a 50mm dimension (no text or symbols present)

Nivelación

Line drawing of a refrigerator front panel with rack-mounted dish (no text or symbols)

3D diagram of a device casing with internal compartments and an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular container with a circular hole on top (no text or symbols)

Technical line drawing of a rectangular frame with a vertical side and a shaded vertical section, both without any text or symbols.

Nivelamento

Line drawing of a refrigerator front panel with rack-mounted dish (no text or symbols)

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction, labeled '3' (no text or symbols on the diagram itself)

Technical line drawing of a rectangular frame with a vertical side and a 50mm dimension label (no text or symbols beyond the dimension)

Wypoziomowanie

Line drawing of a refrigerator front view showing internal compartments and ventilation slots (no text or labels)

3D diagram of a mechanical housing or enclosure with an arrow indicating a component, labeled '3' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular box with a circular recess and top hole (no text or symbols)

Technical line drawing of a rectangular frame with a vertical side and a shaded vertical section, showing dimension 50mm (no text or symbols)

Punere la nivel

Line drawing of a refrigerator front panel with rack-mounted dish (no text or symbols)

Simple line drawing of a rectangular box with a circular recess and top hole (no text or symbols)

Înlocuire bec \*

3D diagram of a mechanical component with an arrow indicating direction, labeled '3' (no text or symbols on the diagram itself)

If it is necessary to change the direction in which the doors open, please contact the Technical Assistance Centre.

FR
