Product type	DLP projector
Brand	ACER
Model	P1340W
Native resolution	WXGA (1280 x 800)
Lens	F = 2.56 - 2.8, f = 21.00 - 23.00 mm, 1.1x manual zoom
Screen size (diagonal)	44 to 230 inches (111 to 584 cm)
Projection distance	1.5 to 6 meters
Keystone correction	Vertical ±40°, manual and automatic
Digital zoom	2x
Audio	Speaker 2 W x 1
Weight	2.0 kg
Dimensions (W x D x H)	264 x 220 x 78.4 mm
Power supply	100 - 240 V AC, 50/60 Hz, 240 W
Input connectors	1x VGA, 1x HDMI (v1.4), 1x S-Video, 1x Composite, 1x USB (mini B), 1x RS232
Output connectors	1x VGA (loop-through), 1x 3.5 mm audio
Main features	ECO mode, High Altitude mode, Auto-off, Instant shutoff, Dynamic Black, Extreme Gradation
Security	Password, Kensington lock
Package contents	Projector, power cord, VGA cable, remote control (batteries included), user guide CD-ROM, quick start guide, security card
Maintenance and cleaning	Clean the case with a damp cloth and mild detergent. Clean the dust filter regularly. Do not use abrasive cleaners.
Spare parts and repairability	Replaceable lamp (ref. Acer). Ceiling mount installation possible with Acer kit. Optional dust filter.

Frequently Asked Questions - P1340W ACER

How to connect a computer to the P1340W projector?

Ensure the projector and computer are turned off. Connect one end of the VGA cable to the VGA IN connector on the projector, and the other end to the computer. Connect the power cord to the projector and to a wall outlet. Turn on the projector first, then the computer.

How to adjust the height of the projected image?

Use the front tilt adjustment wheel to raise or lower the image to the desired angle. Fine-tune the angle with the rear wheel. You can also use keystone correction (automatic or manual) if the image is distorted.

What to do if the projected image is blurry?

Turn the focus ring on the lens to adjust the focus. Ensure the projector-to-screen distance is between 1.5 and 6 meters. If blurriness persists, use the Sharpness setting in the OSD menu (Image > Sharpness).

How to replace the projector lamp?

Turn off the projector and unplug it. Let it cool for at least 45 minutes. Remove the lamp cover with a screwdriver, unscrew the lamp module, disconnect the connector and take out the old lamp. Install the new lamp following the illustrations in the manual, then reset the lamp counter in the Management > Lamp Reset menu.

How to activate 3D mode on the P1340W?

Ensure you have compatible 3D glasses and appropriate content. Press the MENU button, go to 3D and set 3D to On. You can also use the Empowering button to access the e3D menu. If the image is overlapping, enable Invert 3D Sync.

What does the solid red LED on the projector mean?

The solid red LED indicates the projector is in standby mode. If it blinks, it may indicate overheating or a fan problem. Refer to the LED table in the manual for details.

How to clean the projector?

Unplug the projector. Use a soft cloth slightly dampened with mild detergent to clean the case. Never use liquid or aerosol cleaners. Regularly clean the dust filter if present.

How to use the remote control with the P1340W projector?

Insert the two supplied batteries into the remote control. Point it at the IR receiver on the projector (front or rear). Main buttons include: POWER (on/off), SOURCE (input selection), MENU, directional keys, ZOOM, MUTE (sound), HIDE (hide image).

How to adjust keystone correction?

Press the Keystone button on the control panel or remote control. Use the directional arrows to adjust vertical distortion (±40 degrees). You can also activate automatic keystone in the OSD menu (Image > Auto Keystone).

How to save energy and extend lamp life?

Enable ECO mode in the Management > ECO Mode menu. Use the Auto-off function to automatically turn off the projector after a period of inactivity. The Dynamic Black and Extreme Gradation features also reduce power consumption.

USER MANUAL P1340W ACER

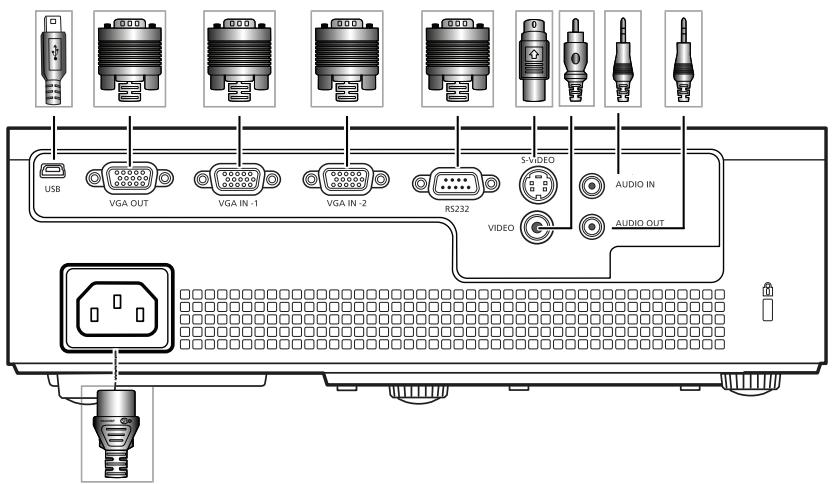

2 INTERFACE CONNECTOR
