USER MANUAL BO1000EX BRANDT

Bouilloire Intelligente Intelligent Kettle

BO1000EX

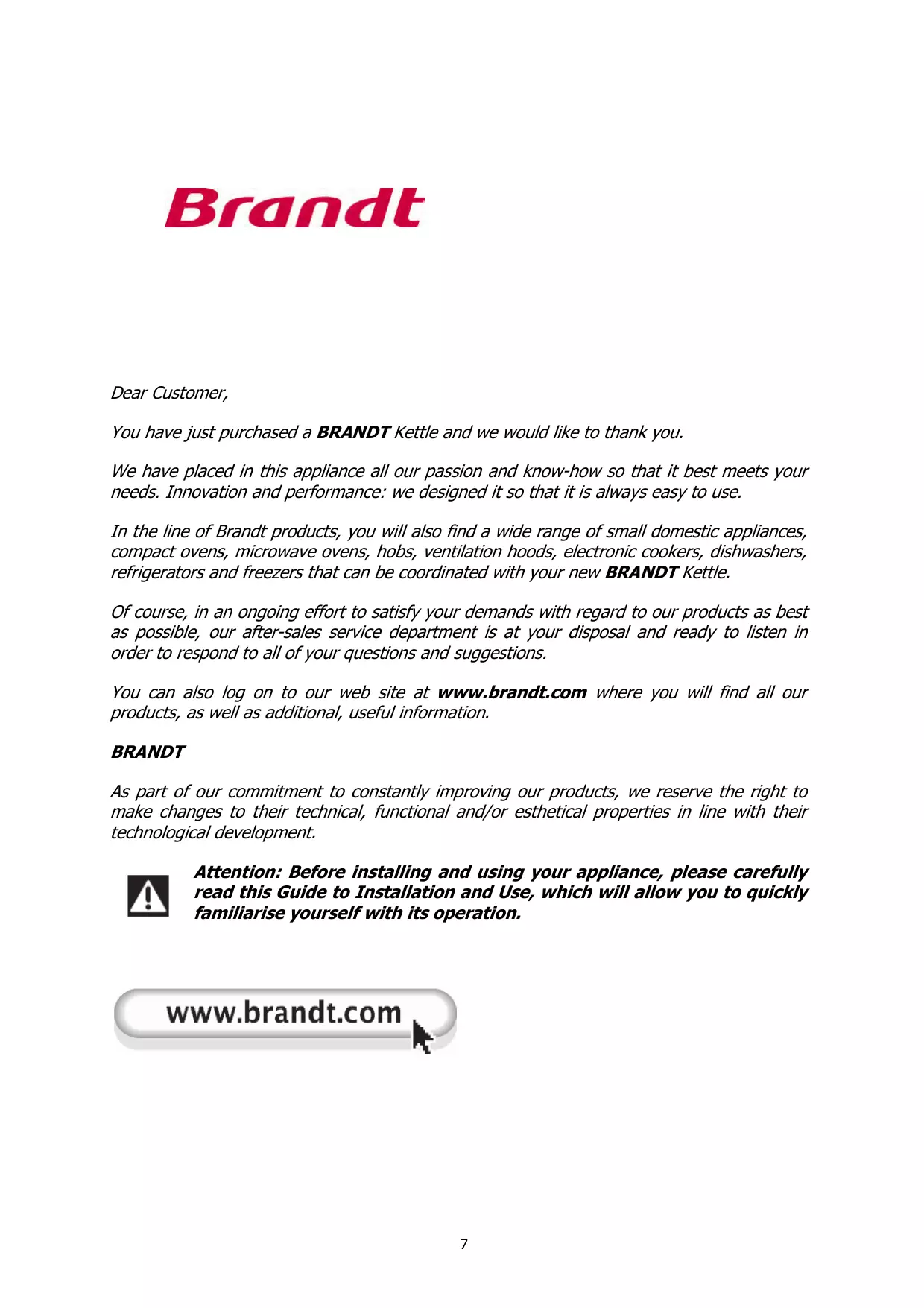

Chère Cliente, Cher Client,

ENGLISH INSTRUCTION MANUAL 7

You have just purchased a BRANDT Kettle and we would like to thank you.

We have placed in this appliance all our passion and know-how so that it best meets your needs. Innovation and performance: we designed it so that it is always easy to use.

In the line of Brandt products, you will also find a wide range of small domestic appliances, compact ovens, microwave ovens, hobs, ventilation hoods, electronic cookers, dishwashers, refrigerators and freezers that can be coordinated with your new BRANDT Kettle.

Of course, in an ongoing effort to satisfy your demands with regard to our products as best as possible, our after-sales service department is at your disposal and ready to listen in order to respond to all of your questions and suggestions.

You can also log on to our web site at www.brandt.com where you will find all our products, as well as additional, useful information.

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to their technical, functional and/or esthetical properties in line with their technological development.

Attention: Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.brandt.com

TABLE OF CONTENTS

1/ INFORMATION FOR THE USER 9

A. Safety recommendations 9
B. Technical data 9
C. Protecting the environment 9

2/ PREPARING YOUR APPLIANCE 10

A.Description of the kettle 10
B.Before using your kettle 10

3/ USING YOUR APPLIANCE 10-11

4/ CARING FOR AND CLEANING YOUR APPLIANCE 11

A. Cleaning the kettle 11
B. Decalcification 11
C. Warranty and after-sale service 11

A. Safety recommendations

Please read these instructions carefully before using the appliance and keep this manual for future use.

1. To avoid circuit overload, do not operate another high wattage appliance on the same circuit.
2. Electric kettle must be operated on a flat surface. Do not place this appliance on or near a hot gas or electric burner or on the top of other electric appliances of the base unit.
3. Do not fill kettle when positioned on base.
4. Do not use the kettle to heat anything other than water. Do not fill above the "max" indication. Do not operate kettle if water is below minimum.
5. Do not immerse any part of the appliance in water or other liquid. Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
6. In the event of incompatibility between the mains socket and the appliance plug or if the power cable is damaged, it should be replaced by the manufacturer, its after sale service or a qualified professional in order to avoid any danger
7. Dry the water on the bottom of the body before place it onto power base.
8. Never leave the appliance unattended when in use.
9. Close supervision is necessary when your appliance is being used near children or infirm persons.
10. Do not touch hot surfaces, use the handle. Be aware of steam being emitted from spout or lid especially during refilling. Do not remove lid during boiling cycle.
11. Do not let the power cord hang over the edge of the table or touch hot surfaces. Always store excess portion of the power cord in the compartment
12. To avoid any danger, always unplug from the plug socket when in following conditions: No water in kettle, filling water, not in use, before cleaning or moving kettle.
13. Do not use a base unit other than the one supplied. The use of accessory attachments not recommended by the manufacturer may result in injury and can be dangerous.
14. Never repair the appliance by yourself.
15. To reduce the risk of fire or electric shock, do not remove the bottom cover of the body or the power base by yourself. Do not insert any object into slots or holes of the kettle.
16. This appliance is for household use only. Do not use outdoor.

B. Technical data

Model no.	BO1000EX
Power supply	220-240V
Energy consumption	1000-1190W
Dimensions	210 x 227 x 212mm
Net wt.	1.2 Kg

C. Protecting the environment

At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection centre or to a company providing this service. Disposing household appliances separately avoids possible negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources.

To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste.

For further information, contact your local authority or the shop where you bought the product.

2/ PREPARED YOUR APPLIANCE

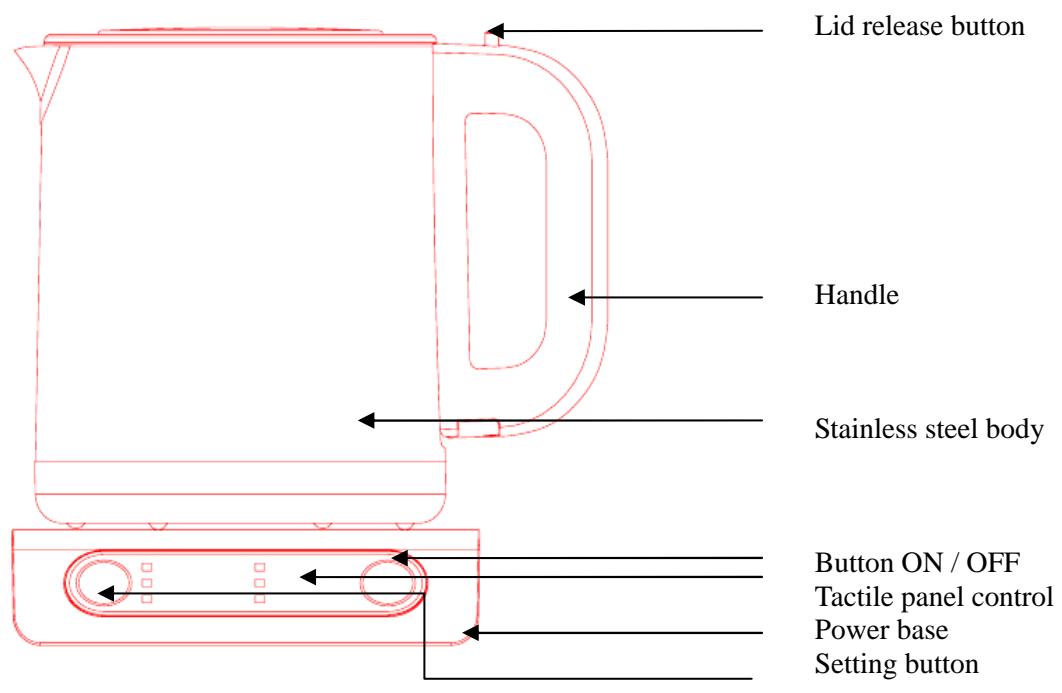

A. Description of the kettle

B. Before using your kettle

For the first time to use or no use for a long time, it is recommended that you fill to the maximum level mark with fresh tap water, boil and empty the kettle at least 2 times to clear kettle of any tiny particles. Do not drink such water.

3/ USING YOUR APPLIANCE

1. Put the power stand on a clear and smooth surface
2. Press the lid opening button on the lid.
3. Remove the kettle from the base to the filling place. Fill the kettle with desired amount (no less than the minimum amount and no more than the maximum). The level is noted inside the kettle.
4. Place the kettle back on the power base.
5. Connect the plug into a power outlet (220-240V, AC) and press the on/of switch on the right of the control panel. The function 100^ starts to blink. The user could select any other function by pressing the setting button on the left within 3 seconds (when the 100 indicate light is still blinking) or the kettle would start to work with 100^ as target function. When 100^ setting starts to work, there's a long beep. For having another setting, press the setting

button on the left until the setting wanted :

"Maintien au chaud" for "warm keeping": 70^ C
- "Thé vert" for Green tea: 75^ C
- "Thé noir" for Black tea: 85^ C
- "Café" for Coffee : 90^ C
-Tisane"forHerbalTea: 95^
- "Ebullition" for boil : 100°C

The target temperature could be kept for 20 minutes, and then the power is automatically cut off. For 100^ function there's no warm-keeping function for it. As long as the kettle reaches 100^ it beeps shortly for three times and the power is automatically cut off.

1. The power could be cut off by taking the kettle apart from the base or pressing the on/off switch when it's working.

4/ CLEANING & MAINTENANCE

A. Cleaning the kettle

• To prolong the kettle's life, clean the mineral deposits in the kettle regularly.
• To avoid any danger, always unplug from the plug socket and allow it to cool down before cleaning.

• Do not use chemical, steel wool, or abrasive cleaners to clean the outside of the kettle, as these will scratch the surface and fade the outside colour.

• Fill the kettle with 0.50L white vinegar and the remainder with water and allow it to stand for over 1 hour.

• Empty the solution from the kettle. Wipe off the deposits remained with damp cloth.
• Fill the kettle with clean water, bring to boil and then discard the water. Repeat and the kettle will be ready to use.
• If necessary, repeat the operations above for several times.
• The surface of the kettle may be wiped over with a damp cloth and polished with a soft dry cloth.

B. Decalcification

After a period of time, calcareous deposits accumulate on the inside of the kettle. This is normal, although an excessive amount of lime may affect the proper functioning of the kettle. If this should occur, use a commercially-available decalcifying solution. Never try to decalcify the kettle by chipping away or scratching.

C. Warranty and after-sale service

This product is covered by a 2-year warranty by your retailer. For more details, please refer to the warranty conditions supplied by your distributor.
