1. Setting up

• Refer to the identification label located on the rear of your player for its proper operating voltage.
• Install your player in a cabinet with adequate ventilation holes. (7\~10cm) Do not block ventilation holes on any of the components for air circulation.
• Do not push the disc tray in by hand.
• Do not stack components.
• Be sure to turn all components off before moving the player.
• Before connecting other components to this player, be sure to turn them off.
• Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time.
• The mains plug is used as a disconnect device and shall stay readily operable at any time.

2. For your safety

• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not open covers and do not repair yourself. Refer servicing to qualified personal.

3. Caution

• Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
• When condensation forms inside the player due to sharp changes in temperature, the

player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

4. Disc

• Do not clean disc using record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface.
• Do not touch the disc's signal surface. Hold by the edges or by one edge and the hole in the center.
• Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

5. Environmental info

• The battery used in this product contains chemicals that are harmful to the environment.
• So, dispose of batteries in the proper manner, according to federal, state, and local regulations.

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

BEFORE YOU START

Accessories

Remote Control

A Battery for Remote Control (CR2025)

User's Manual

Video/Audio Cable

AC IN Cable

Install Batteries in the Remote control

1. Open the battery cover on the bottom side of the remote control.
2. Insert a battery (CR2025).
   Make sure that the
   polarities (+ and -) are aligned correctly.
3. Replace the battery cover.

CR2025 OPEN

If remote control doesn't operate properly:

• Check the polarity + - of the battery (Dry-Cell)
• Check if the battery is drained.
• Check if remote control sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

TABLE OF CONTENTS

Precautions....2
Before you start 3

Setup

General Features 4

Disc Type and Characteristics .... 5

Description 6

Tour of the Remote Control 8

Connections

Choosing a Connection 9

Basic Functions

Playing a Disc 15
Using the Search and Skip Functions ..... 16
Using the Display Function 16
Using the Disc and Title Menu 17
Using the Function Menu 17
Repeat Play 17
Slow Play 18

Advanced Functions

Adjusting the Aspect Ratio (EZ View) ..... 18
Selecting the Audio Language ..... 19
Selecting the Subtitle Language.....19
Changing the Camera Angle ....20
Using the Bookmark Function ..... 20
Using the Zoom Function....21

Clips Menu for MP3/WMA/JPEG/MPEG4/ CD Audio 21

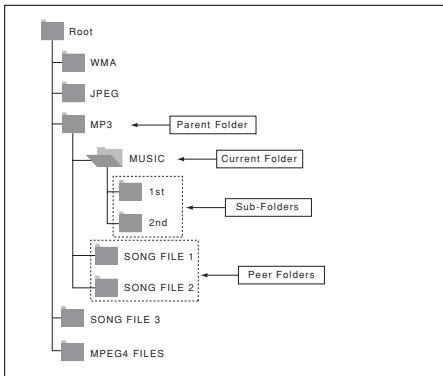

Folder Selection 21

MP3/WMA/CD Audio Playback....22

MPEG4 Playback 22

Picture CD Playback....24

Changing Setup Menu

Using the Setup Menu 25
Setting Up the Language Features ..... 25
Setting Up the Audio Options....26
Setting Up the Display Options ..... 27
Setting Up the Parental Control ..... 29
Setting Up the Anynet+(HDMI-CEC) (DVD-F1080 only) 30

Reference

Firmware Upgrade 31
Troubleshooting 32
Specifications 33

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

1080p Playback

This player upconverts regular DVDs for playback on 1080p TVs (DVD-F1080 only).

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

Progressive Scan

Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view Digital Photos on your TV.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA files.

MPEG4

This unit can play MPEG4 formats within an avi file.

HDMI (High Definition Multimedia Interface)

HDMI reduces picture noise by allowing a pure digital video/audio signal path from the player to your TV (DVD-F1080 only).

Note

- Discs which cannot be played with this player.

- DVD-ROM - DVD-RAM

- CD-ROM - CDV

- CDI - CVD

• CDGs play audio only, not graphics.

- Ability to play back may depend on recording conditions.

- DVD-R, +R

- CD-RW

• DVD+RW, -RW (V mode)

- The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN OUTPUTS DVD-FP580 (525p)/

DVD-F1080 (525p,720p,1080p)

"CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE, IN CASE OF 525, 720, 1080 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p, 720p, 1080p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER."

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)	Recording Types	Disc Size	Max. Playing Time	Characteristics
DVDVIDEO	Audio+Video	12 Cm	Single-sided 240 min.Double-sided 480 min.	- DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system.- Various screen and audio functions can be easily selected through the on-screen menu.
		8 Cm	Single-sided 80 min.Double-sided 160 min.
AUDIO-CDDIGITAL AUDIO	Audio	12 Cm	74 min.	- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
		8 Cm	20 min.

Disc Markings

	Play Region Number
	PAL broadcast system in U.K, France, Germany, etc.
	Dolby Digital disc
	Stereo disc
	Digital Audio disc
	DTS disc
	MP3 disc

You must only insert one DVD disc at a time. Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player.

Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the bottom panel of the player.

DivX Certification

DivX, DivX Certified,

and associated logos are trademarks of DivXNetworks, Inc and are used under license

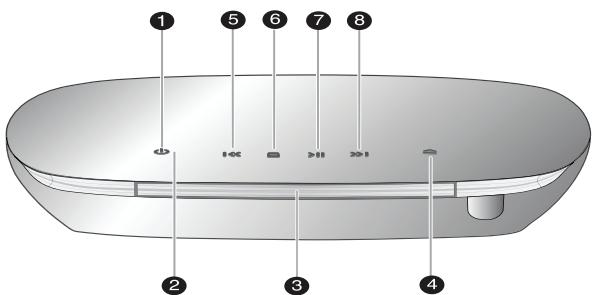

Front Panel Controls

Diagram of a device with numbered parts labeled 1 through 8, likely illustrating a component or layout.

1. STANDBY/ON ( ⏻ )

When STANDBY/ON is pressed on, the indicator goes out and the player is turned on.

2. STANDBY Indicator

When the unit is first plugged in, the indicator lights.

3. DISC TRAY

Place the disc here.

4. OPEN/CLOSE ( ≧ )

Press to open and close the disc tray.

5. SKIP (I«) / SEARCH

Use to reverse skip a scene or music..

6. STOP (☐)

Stops disc play.

7. PLAY/PAUSE (Ⅲ)

Begin or pause disc play.

8. SKIP ( »I ) / SEARCH

Use to forward skip a scene or music.

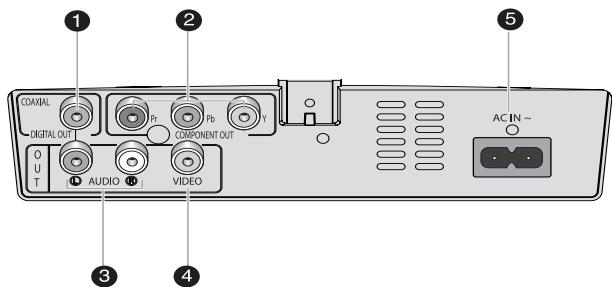

Rear Panel (DVD-FP580)

COXIAL DIGITAL OUT P COMPONENT OUT O T AUDIO VIDEO AC IN ~

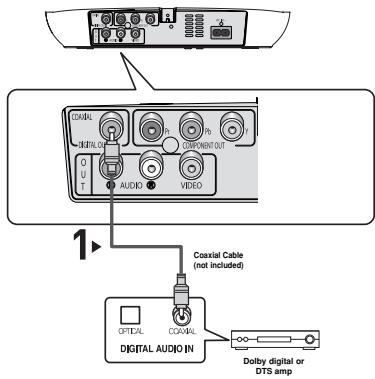

1. DIGITAL AUDIO OUT JACKS

• Use coaxial digital cable to connect to a compatible Dolby Digital receiver.
• Use coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

2. COMPONENT VIDEO OUT JACKS

• Use these jacks if you have a TV with Component Video in jacks. These jacks provide P_R , P_B and Y video.
• If P-SCAN Video Output is selected in Setup Menu, progressive scan mode will work.
• If I-SCAN Video Output is selected in Setup Menu, interlaced scan mode will work.

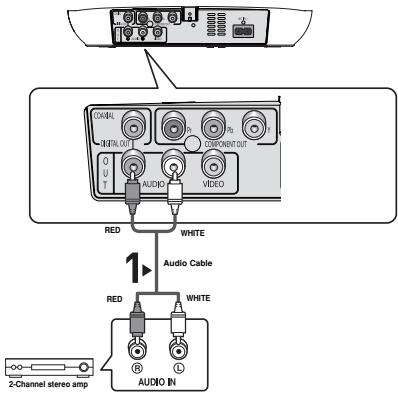

3. AUDIO OUT JACKS

- Connect to the Audio input jacks of your television or audio/video receiver.

4. VIDEO OUT JACK

- Use a video cable to connect to the Video input jack on your television.

5. AC IN JACK

- Use AC IN cable(Included) to connect this jack into the power outlet.

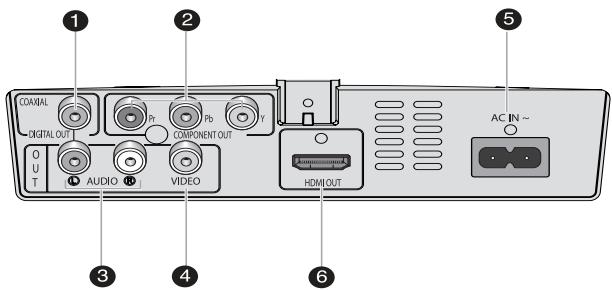

COAVIAL DIGITAL OUT R Pb COMPONENT OUT Y O U T AUDIO VIDEO HDMI OUT AC IN - ① ② ③ ④ ⑥

1. DIGITAL AUDIO OUT JACKS

• Use coaxial digital cable to connect to a compatible Dolby Digital receiver.
• Use coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

2. COMPONENT VIDEO OUT JACKS

• Use these jacks if you have a TV with Component Video in jacks. These jacks provide P_R , P_B and Y video.
• If P-SCAN Video Output is selected in Setup Menu, progressive scan mode will work.
• If I-SCAN Video Output is selected in Setup Menu, interlaced scan mode will work.

3. AUDIO OUT JACKS

- Connect to the Audio input jacks of your television or audio/video receiver.

4. VIDEO OUT JACK

- Use a video cable to connect to the Video input jack on your television.

5. AC IN JACK

- Use AC IN cable(Included) to connect this jack into the power outlet.

6. HDMI OUT JACK

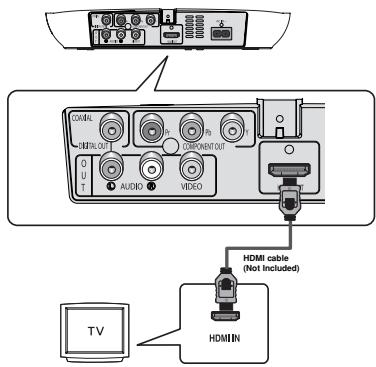

• Use the HDMI cable to connect this jack to the HDMI jack on your television for the best quality picture.
• If an HDMI cable is connected to an HDMI-compatible TV, HDMI will be output automatically within 10 seconds.

Note

• Consult your TV User's Manual to find out if your TV supports Progressive Scan (P-SCAN). If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.

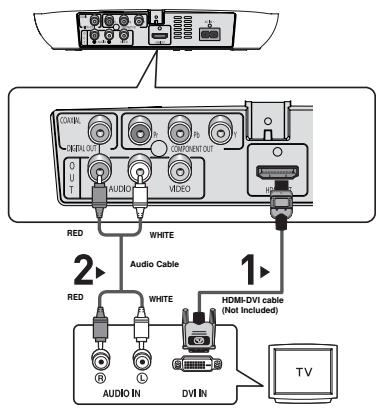

• The HDMI output of this unit can be connected to a DVI jack on a TV or other device using a conversion adapter. In this case, it is necessary to use a TV or display with an HDCP-compatible DVI input (DVD-F1080 only).
• There may be no image output if the DVD player is connected to a TV or display that is not compatible with the above format.
• Refer to the TV's instruction manual for detailed information regarding the HDMI terminal (DVD-F1080 only).
• See pages 27 \~ 28 to get more information on how to use the setup menu.

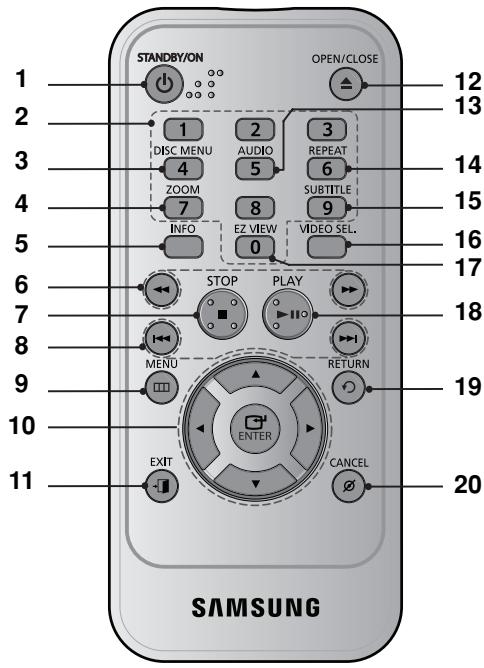

STANDBY/ON OPEN/CLOSE 12 13 1 2 3 4 5 6 7 8 9 10 11 DISC MENU AUDIO REPEAT ZOOM SUBTITLE INFO EZ VIEW VIDEO SEL. 0 16 17 STOP PLAY 18 MENU RETURN 19 ENTER CANCEL EXIT SAMSUNG

1. STANDBY/ON Button

Turns the power on or standby.

1. NUMBER Buttons

2. DISC MENU (NUMBER 4) Button

Brings up the Disc menu.

1. ZOOM (NUMBER 7) Button

Enlarge DVD Picture.

1. INFO Button

Displays the current disc mode.

1. SEARCH Buttons (◀/▶)

Allow you to search forward/backward through a disc.

1. STOP Button ( ■ )

2. SKIP Buttons (|◀/▶)

Use to skip the title, chapter or track.

1. MENU Button

Brings up the DVD player's menu.

1. ENTER/▲/▼,◀/▶ Buttons

This button functions as a toggle switch.

1. EXIT Button

Exit the on-screen menu.

1. OPEN/CLOSE ( ▲ ) Button

To open and close the disc tray.

1. AUDIO (NUMBER 5) Button

Use this button to access various audio functions on a disc.

1. REPEAT (NUMBER 6) Button

Allows you to repeat play a title, chapter, track or disc.

1. SUBTITLE (NUMBER 9) Button

2. VIDEO SEL. Button

Change Video output mode.

1. EZ VIEW (NUMBER 0) Button

The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3).

1. PLAY/PAUSE Button (▶II)

Begin/Pause disc play.

1. RETURN Button

Returns to a previous menu.

1. CANCEL Button

Use to remove menus or status displays from the screen.

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

• Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.
• Refer to the user's manual of the additional components you are connecting for more information on those particular components.

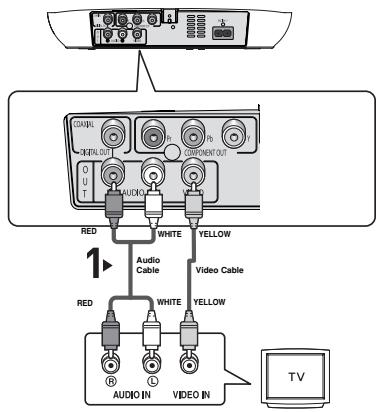

Connecting to a TV (VIDEO CVBS)

1

Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of TV.

2

Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen.

SIGNAL REFLUO OUT AUDIO COMPONENT OUT 1 RED WHITE YELLOW Audio Cable Video Cable RED WHITE YELLOW AUDIO IN VIDEO IN TV

Note

- Noise may be generated if the audio cable is too close to the power cable.

• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14)
• The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV.
• If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player.
• If you press the VIDEO SEL. button when DVD Player is in stop mode or no disc is inserted, the Video Output mode changes in the following sequence: (I-SCAN → P-SCAN).

Connection to a TV (Interlace)

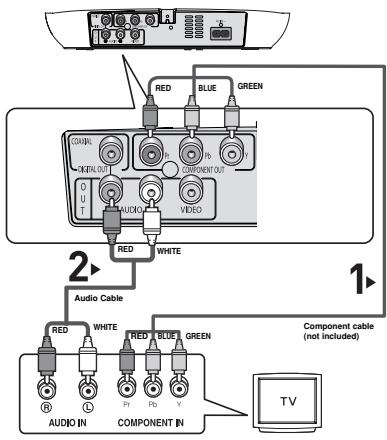

• Connecting to your TV using Component video cables.
• You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(P B ), red(P R ) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

1

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to I-SCAN in the Display Setup menu. (See pages 28) You can use the VIDEO SEL. button to change the Video Output mode. (See page 9)

Note

• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14)
• The component terminal of TV can be marked by "R-Y, B-Y, Y" or "Cr, Cb, Y" instead of "P R , P B , Y" depending on the manufacturer. The number and position of terminals can vary depending on the TV set. Please refer to the user's manual of the TV.

1

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to P-SCAN in the Display Setup menu. (See pages 28) You can use the VIDEO SEL. button to change the Video Output mode. (See page 9)

To see the progressive video output,

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• Depending on your TV, the connection method may differ from the illustration above.

Note

- What is "Progressive Scan"?

Progressive scan has twice as many scanning lines as the interlace output method has. Progressive scanning method can provide better and clearer picture quality.

1

Using the HDMI-DVI cable (not included), connect the HDMI OUT terminal on the rear of the DVD player to the DVI IN terminal of your TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the DVI signal from the DVD player appears on your TV screen.

CONTROL HOLD OUT Pb COMPONENT OUT U AUDIO VIDEO RED WHITE Audio Cable 1 RED WHITE HDMI-DVI cable (Not Included) AUDIO IN DVI IN TV

Connecting to a TV with HDMI Jack (DVD-F1080 only)

1

Using the HDMI-HDMI cable connect the HDMI OUT terminal on the rear of the DVD player to the HDMI IN terminal of your TV.

2

Press the input selector on your TV remote control until the HDMI signal from the DVD player appears on your TV screen.

TV HDMI HDMI IN HDMI cable (Not Included) OUTPUT AUDIO VIDEO

HDMI VIDEO Specifications

• Depending on your TV, certain HDMI output resolutions may not work.
• Please refer to the user's manual of your TV.
• If HDMI or HDMI-DVI cable is plugged into TV, the DVD player's output is set to HDMI/DVI within 10 seconds.
• If you set the HDMI output resolution 720p,1080p or 1080i, HDMI output provides better picture quality.
• If you connect an HDMI cable between Samsung TV and this DVD player, you can operate this DVD player using your TV remote control. This is only available with Samsung TVs that support Anynet+(HDMI-CEC). (See page 30).
• If your TV has an nynet^+ logo, then it will nynet^+ Supports the Anynet+ Function.

• HDMI (High Definition Multimedia Interface)

HDMI is an interface to enable the digital transmission of video and audio data with just a single connector. Using HDMI, the DVD player transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

• HDMI connection description

HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data).

• Though the player uses a HDMI cable, the player outputs only a pure digital signal to the TV.
• If TV does not support HDCP (High-bandwidth Digital content protection), snow noise appears on the screen.

• Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD player) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. DVI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.

• What is the HDCP?

HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector . etc). Content is encrypted at the source device to prevent unauthorized

Connection to an Audio System (2 Channel Amplifier)

1

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO or COMPONENT OUT terminals on the rear of the DVD player to the VIDEO or COMPONENT IN terminal of your TV as described on pages 9 to 12.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player.

CHANNEL RETRILOF 0 U T AUDIO VIDEO RED WHITE 1 Audio Cable RED WHITE AUDIO IN 2-Channel stereo amp

Note

• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 26 to 27)
• The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

1

If using a coaxial cable (not included), connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO, COMPONENT or HDMI OUT (DVD-F1080 only) terminals on the rear of the DVD player to the VIDEO, COMPONENT or DVI IN terminals of your TV as described on pages 9 to 12.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

COXIAL DIGITAL AUDIO IN DOLBY digital or DTS amp Coaxial Cable (not included) 1 OUTPUT AUDIO VIDEO OPTICAL COXIAL

Note

• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 26 to 27)
• The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

Playing a Disc

Before Play

• Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control.
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use.

Once you select a menu language, you can change it by pressing the ( »I ) button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

SELECT MENU LANGUAGE

1. Press the OPEN/CLOSE (▲) button. The STANDBY indicator light goes out and the tray opens.
2. Place a disc gently into the tray with the disc's label facing up.
3. Press the PLAY/PAUSE (▶II) button or OPEN/ CLOSE (▲) button to close the disc tray.

4. When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE (▶II) button again, it will pick up where you left off.

5. Stopping Play
   Press the STOP (■) button during play.

6. Removing Disc
   Press the OPEN/CLOSE (▲) button.

7. Pausing Play

Press the PLAY/PAUSE (▶II) button on the remote control during play.

• Screen stops, no sound.
  To resume, press the PLAY/PAUSE (▶II) button once again.

• Slow Motion Play

Press the SEARCH (◀◀/▶▶) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE mode.

• No sound is heard during slow mode.
• Press the PLAY/PAUSE (▶II) button to resume normal play.

Note

• If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE (▶Ⅱ) button to resume normal play.
• If the player is left in the stop mode for more than about 30 minutes, the power will automatically shut off.(Automatic Power-Off Function)
• If the player is left for about 5 minutes in pause mode, it will stop.
• This ( ) icon indicates an invalid button press.

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, press the SEARCH (◀◀ or ▶▶) button on the remote control for more than 1 second.

DVD	2X, 4X, 64X, 128X
CD	2X, 4X, 8X

Note

• The speed marked in this function may be different from the actual playback speed.
• No sound is hearing during search mode (Except CD).

Skipping Tracks

During play, press the SKIP (◀◀ or ▶▶) button.

• When playing a DVD, if you press the SKIP (▶) button, it moves to the next chapter. If you press the SKIP (◀) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.
• When playing a CD in Menu Off mode, if you press the SKIP (▶▶) button, it moves to the next track. If you press the SKIP (◀◀) button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track.

Using the Display Function

When Playing a DVD/MPEG4

1. During play, press the INFO button on the remote control.
2. You can select Info in the function menu by pressing the MENU button.
3. Press the ▲/▼ buttons to select the desired item.
4. Press the ◀/▶ buttons to make the desired setup and then press the ENTER button.
5. You may use the number buttons of the remote control to directly access a title, chapter or to start the play back from a desired time.
6. To make the screen disappear, press the INFO button again.

Note

	To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.
	Most DVD discs are recorded in chapters so that you can quickly find a specific passage.
	Allows playback of the film from a desired time. You must enter the starting time as a reference.The time search function does not operate on some disc.
	Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks.
	Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

Using the Disc and Title Menu

Using the Disc Menu

1. During the playback of a DVD disc, press the MENU button on the remote control.
2. Press the ▲/▼ buttons to select Disc Menu, then press the ▶ or ENTER button.

Press ENTER key for Disc Menu

Note

• Depending on a disc, the Disc Menu may not work.
• You can also use the Disc Menu, using the DISC MENU button on the remote control.

Using the Title Menu

1. During the playback of a DVD disc, press the MENU button on the remote control.
2. Press the ▲/▼ buttons to select Title Menu, then press the ▶ or ENTER button.

Press ENTER key for Title Menu

Note

• Depending on a disc, the Title Menu may not work.
• Title Menu will only be displayed if there are at least two titles in the disc.

Using the Function Menu

Using the Function Menu (DVD)

1. Press the MENU button during playback.
2. Press the ▲/▼ buttons to select Function, then press the ▶ or ENTER button.
3. Info (See pages 16)
4. Zoom (See page 21)
5. Bookmark (See pages 20 to 21)
6. Repeat (See pages 17 to 18)
7. EZ View (See pages 18 to 19)
8. Angle (See pages 20)

Info Zoom Bookmark Repeat EZ View Angle

1. Press the ▲/▼ buttons to select one of the six functions. Then press the ▶ or ENTER button to access the function. You can also directly select these functions using their respective buttons on the remote control.

2. INFO - ZOOM

3. EZ VIEW - REPEAT

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD

1. Press the REPEAT button on the remote control. Repeat screen appears.
2. Press the ◀/▶ buttons to select Chapter, Title or A-B, then press the ENTER button.
3. DVD repeats play by chapter or title.
4. Chapter (○): repeats the chapter that is playing.
5. Title (☐): repeats the title that is playing.
6. A-B: repeats a segment of the disc that you select.

DVD

Off 01 01 A - B ENTER REPEAT

Using the A-B Repeat function

1. Press the REPEAT button on the remote control.
2. Press the ◀/▶ buttons to select A-B button.
3. Press the ENTER button at the point where you want repeat play to start (A). B is automatically highlighted.
4. Press the ENTER button at the point where you want the repeat play to stop (B).
5. To return to normal play, press the CANCEL button.
6. To return to normal play, press REPEAT button again, then press the ◀/▶ buttons to select Off and press ENTER button.

DVD Off 01 01 A - B ENTER REPEAT

Note

• A-B REPEAT allows you to set point (B) until at least 5 seconds of play back time has elapsed after point (A) has been set.
• Depending on a disc, the Repeat function may not work.

Slow Play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD

1. During play, press the PLAY/PAUSE (▶II) button.
2. Press the SEARCH (◀/▶) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE mode.

ADVANCED FUNCTIONS

Adjusting the Aspect Ratio (EZ View)

To play back using aspect ratio (DVD)

Press the EZ VIEW button.

• The screen size changes when the button is pressed repeatedly.
• The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.
• To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the Display Setup menu. (See pages 27 to 28).

WIDE SCREEN EZ VIEW

If you are using a 16:9 TV

For 16:9 aspect ratio discs

• WIDE SCREEN
  Displays the content of the DVD title in 16:9 aspect ratio.
• SCREEN FIT
  The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarge

For 4:3 aspect ratio discs

• Normal Wide
  Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.
• SCREEN FIT
  The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

- Vertical Fit

When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan

The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

Note

This function may behave differently depending on the type of disc.

Selecting the Audio Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/MPEG4)

1. Press the AUDIO button. The Audio changes when the button is pressed repeatedly.

The audio languages are represented by abbreviations.

DVD

ENG DOLBY DIGITAL 5.1CH AUDIO

Press AUDIO button at remote control repeatedly to select the desired Audio on MPEG4 then press the ENTER.

MPEG4

PCM 1/2 AUDIO

1. To remove the AUDIO icon, press the CANCEL or RETURN button.

Note

• This function depends on audio languages are encoded on the disc and may not work.
• A DVD disc can contain up to 8 audio languages.
• To have the same audio language come up whenever you play a DVD; Refer to "Using the Audio Language" on page 26.

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD/MPEG4)

1. Press the SUBTITLE button. The subtitle languages are represented by abbreviations.

The subtitle changes when the button is pressed repeatedly.

DVD

Off SUBTITLE

External subtitle option will appear, depends the DivX Disc.

MPEG4

Subtitle Selection External Subtitle Off readme.TXT Non-standard fonts are not supported

Press SUBTITLE button at remocon repeatedly to select the desired subtitle language on a MPEG4 then press the ENTER.

MPEG4

Off SUBTITLE

1. To remove the SUBTITLE icon, press the CANCEL or RETURN button.

Note

• You have to change the desired subtitle in the Disc Menu, according to discs. Press the DISC MENU button.
• This function depends on what subtitles are encoded on the disc and may not work on all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 26.

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE function (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

1. During play or pause mode, press the MENU button on the remote control.
2. Press the ▲ /▼ buttons to select Function, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Angle, then press the ▶ or ENTER button.

Doc Menu Info Zoom Title Menu Bookmark Repeat EZ View Function Setup Angle Enter Return Menu

1. Press the ◀/▶ buttons on the remote control to select the desired angle.

4/6 < >

Note

• If the disc has only one angle, this feature won't work. Currently, very few discs have this feature.
• Depending on the disc, these functions may not work.

Using the Bookmark Function

This feature lets you bookmark sections of a DVD so you can quickly find them at a later time.

Using the Bookmark Function (DVD)

1. During play, press the MENU button on the remote control.
2. Press the ▲/▼ buttons to select Function, then press the ▶ or ENTER button.

Info Zoom Bookmark Repeat EZ View Angle Enter Return Menu

1. Press the ▲/▼ buttons to select Bookmark, then press the ▶ or ENTER button.

向 - - - < > ENTER

1. When you reach the scene you want to mark, press the ENTER button. Up to three scenes may be marked at a time.

1 - - < > CANCEL

Note

- Depending on a disc, the Bookmark function may not work.

Recalling a Marked Scene

1\~3. The first 1\~3 steps are the same as those for “Using the Bookmark Function” on page 20.
4. Press the ◀/▶ buttons to select a marked scene.

1 2 3 < > CANCEL

1. Press the PLAY/PAUSE (▶II) button to skip to the marked scene.

Clearing a Bookmark

1\~3. The first 1\~3 steps are the same as those for “Using the Bookmark Function” on page 20.
4. Press the ◀/▶ buttons to select the bookmark number you want to delete.

1. Press the CANCEL button to delete a bookmark number.

1 2 3 < > CANCEL

Using the Zoom Function

Using the Zoom Function (DVD)

1. During play or pause mode, press the MENU button on the remote control.
2. Press the ▲/▼ buttons to select Function, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Zoom, then press the ▶ or ENTER button.
4. Press the ▲/▼ or ◀/▶ buttons to select the part of the screen you want to zoom in on. Press the ENTER button.
5. During DVD play, press ENTER to zoom in 2X/4X/2X/Normal in order.

Info Zoom Bookmark Repeat EZ View Angle Enter Return Menu

Simple icon of a magnifying glass with a plus sign, no text or symbols present

Clips Menu for MP3/WMA/JPEG/ MPEG4/CD Audio

CD Audio or discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

Open the disc tray.

Place the disc on the tray.

Close the tray.

The tray closes and this screen displays.

Stop WMA JPEG MP3 MPEG4 Off 00:00:00 Enter Return Menu

: Name of currently playing file.

• : Current Playback Time.
• : Current Playback Mode : There are four modes. They can be selected in order by pressing the REPEAT button.
• Off: Normal Playback
• Track: Repeats the current track.
• Folder: Repeats the current folder

• Random: Files in the disc will be played in random order.

• MP3 : MP3 file icon. - CD : CD Audio file icon.

• WMA : WMA file icon. - : Folder icon.
• JPG : JPEG file icon - : Current Folder icon.
• AVI : AVI file icon.

Note

- When playing MPEG4 file, the VIDEO SEL. only work in stop mode.

Folder Selection

The folder can be selected both in Stop or Play mode.

- To select the Parent Folder

Press the RETURN button to go to parent folder, or press the ▲/▼ buttons to select “..” and press ENTER to go to the parent folder.

- To select the Peer Folder

Press the ▲/▼ buttons to select the desired folder, then press ENTER.

- To select the Sub-Folder

Press the ▲/▼ buttons to select the desired folder, then press ENTER.

MP3/WMA/CD Audio Playback

1. Open the disc tray. Place the disc on the tray. Close the tray.
2. Only one kind of file is played back when a disc or a folder contains both MP3 and WMA files.
3. Press the ▲/▼ buttons to select a song file.
   Press ENTER to begin playback of the song file.

Play Because You 00:00:23 ... Because You Cactus Iad Dayu Wonderful Enter Return Repeat

Repeat/Random playback

Press the REPEAT button to change the playback mode. There are four modes, such as Off, Track, Folder and Random.

• Off: Normal Playback
• Track: Repeats the current song file.
• Folder: Repeats the song files which have the same extension in the current folder.
• Random: Song files which have the same extension will be played in random order.

To resume normal play, press the CANCEL button.

CD-R MP3/WMA file

When you record MP3 or WMA files on CD-R, please refer to the following.

- Your MP3 or WMA files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used.

- When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension.

General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\=,+).

- Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly.

• Use a decompression transfer rate of at least 64Kbps when recording WMA files.
  Sound quality with WMA files basically depends on the rate of compression/decompression you choose.
  Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.

- Do not try recording copyright protected MP3 files.

Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media ^™ (registered trade mark of Microsoft Inc) and SDMI ^™ (registered trade mark of The SDMI Foundation). You cannot copy such files.

- Important:

The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).

- This unit can play a maximum of 500 files and 500 folders per disc.

MPEG4 Playback

MPEG4 Play Function

AVI files are used to contain the audio and video data. Only AVI format files with the “.avi” extensions can be played.

1. Open the disc tray. Place the disc on the tray. Close the tray.
2. Press the ▲/▼ or ◀/▶ buttons to select an avi file (DivX/XiviD) and then press ENTER button.

Stop MPEG4 01_divx51b-8 02_divx505b-8 03_divx502sp-8 04_divx412-8 00:00:00 Enter Return Menu

Repeat playback

Press the REPEAT button to change playback mode. There are 3 modes, such as Off, Folder and Title.

• Folder : repeats the AVI files which have the same extension in the current folder.
• Title : repeats the title that is playing.

MPEG4 Function Description

Function	Description	Reference page
Skip(I◀ or ▶)	During play, press the ◀◀ or ▶◀ button, it moves forward or backward 5 minutes.	-
Search( ◀◀ or ▶)	During play, press the SEARCH (◀◀ or ▶◀ ) button and press again to search at a faster speed. Allows you to search at a faster speed in an AVI file. (2X, 4X, 8X)	-
Slow Motion Play	Allows you to search at a slower speed in an AVI file. (1/8X, 1/4X, 1/2X)	P 15
ZOOM	2X/4X/2X/Normal in order	P 21

- These functions may not work depending on MPEG4 file.

CD-R AVI file

This unit can play the following video compression formats within the AVI file format:

• DivX 3.11 contents
• DivX 4 contents (Based on MPEG-4 Simple Profile)
• DivX 5 contents (MPEG-4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.)
• XviD MPEG-4 compliant Contents.

DVD-RW & DVD+R

Format that support for DivX file :

• Basic DivX format DivX3.11 / 4.12/ 5.x
• Xvid (MPEG-4 compliant video codec) and DivX Pro
• File format : *.avi, *.div, *.divx.

This unit supports all resolutions up to maximum below.

DivX3.11 & DivX4 & XviD	DivX5
Bitrate may fluctuate:Device may skip decoding the high bitrate portions and begin decoding again when Bitrate returns to normal.	720 x 480 @30fps720 x 576 @25fps: Maximum bitrate : 4Mbps

Possible warning messages that may appear when trying to play DivX/AVI files are :

1. No Authorization

- File with bad registration code.

Authorization Error This player is not authorized to play this video OK

1. Unsupported Codec

- Files with certain Codec Types, Versions (ex. MP4, AFS and other proprietary codecs) are not supported by this player.

File you attempt to play has un supported codec.

1. Unsupported Resolution

- Files containing resolutions higher than the player's specification are not supported.

File you attempt to play has unsupported resolution.

Note

• The resolution that can be supported by DVD-FP580/DVD-F1080 model up to 720 x 480 @30 frames/ 720 x 576 @25 frames

• This unit supports CD-R/RW written in MPEG4 in accordance with the "ISO9660 format".

• Select the desired folder.

• Press the ▲/▼ buttons to select a Picture file in the clips menu and then press the ENTER button.
• Press the INFO button on the remote control to select the menu you want to view and then press the ENTER button.

Illustration of a flower with visible petals and leaves, no text or symbols present.

Note

• Press the STOP button to return to the clips menu.
• When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.

Rotation

: Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.

Zoom

: Press the ▲/▼ buttons to select the part of the screen you want to zoom in on. Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 2X.

Slide Show

• : The unit enters slide show mode.
- Before beginning the Slide Show, the picture interval must be set.
- : When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second interval.
• : The pictures change automatically with about a 12 second interval.
• : The pictures change automatically with about a 18 second interval.

Black-and-white illustration of a flower with visible petals and leaves, no text or symbols present.

Note

- Depending on a file size, the amount of time between each picture may be different from the manual.

MP3-JPEG Playback

You can play JPEG using music as a background.

1. Press the ▲/▼ buttons to select an MP3 file in the clips menu and then press the ENTER button.
2. Press the ▲/▼ buttons to select a JPEG file in the clips menu and then press the ENTER button.
3. Music will play from the beginning
4. Press Stop button when you want to stop the playback.

Note

MP3 and JPEG files have to be on the same disc.

CD-R JPEG Disc

• Only files with the ".jpg" and ".JPG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).
• Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.
• A maximum of 3000 images can be stored on a single CD.
• Kodak Picture CDs are recommended.
• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
• Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.
• Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• QSS Picture CD: The unit may not play QSS Picture CD.
• If the number of files in 1 Disc is over 500, only 500 JPEG files can be played.
• If the number of folders in 1 Disc is over 500, only JPEG files in 500 folders can be played

CHANGING SETUP MENU

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1. With the unit in Stop mode, press the MENU button on the remote control. Use the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

DVD-FP580 Setup Menu

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Anynet+(HDMI-CEC):On

DVD-F1080 Setup Menu

① Language Setup: Setup of the Language.
② Audio Setup : Setup of the Audio Options.
③ Display Setup : Setup of the Display Options. Use to select which type of screen you want to watch and several display options.
① Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.
⑤ Divx(R) Registration : Please use the Registration code to register this player with the DivX(R) Video On Demand format. To learn more go to www.divx.com/vod.
⑥ Anynet+(HDMI-CEC): Setup of the Anynet+(HDMI-CEC) Options (DVD-F1080 only).

1. Press the ▲/▼ buttons to access the different features. Press the ▶ or ENTER button to access the sub features.

2. To make the setup screen disappear after setting up, press the MENU button again.

Note

Depending on the disc, some Setup Menu selections may not work.

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select Player Menu, then press the ▶ or ENTER button.
5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.
6. The language is selected and the screen returns to Language Setup menu.
7. To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Disc Menu Title Menu Function 5 Setup Player Menu Disc Menu Audio Subtitle DivX Subtitle English Français Deutsch Español Italiano Nederlands Enter Return Menu

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.

4. Press the ▲/▼ buttons to select Disc Menu, then press the ▶ or ENTER button.

5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

6. If the selected language is not recorded on the disc, the original pre-recorded language is selected.

7. The language is selected and the screen returns to Language Setup menu.
8. To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Player Menu English Disc Menu Français Title Menu Audio Deutsch Subtitle Espanol Function Italiano DivX Subtitle Nederlands Setup Enter Return Menu

Using the Audio Language

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select Audio, then press the ▶ or ENTER button.

5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

6. Select "Original" if you want the default soundtrack language to be the original language the disc is recorded in.

7. If the selected language is not recorded on the disc, the original pre-recorded language is selected.
8. The language is selected and the screen returns to Language Setup menu.
9. To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Disc Menu Title Menu Function Setup Player Menu Disc Menu Audio Subtitle DivX Subtitle Original English Français Deutsch Español Italiano Enter Return Menu

Using the Subtitle Language

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select Subtitle, then press the ▶ or ENTER button.

5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

6. Select "Automatic" if you want the subtitle language to be the same as the language selected as the audio language.

7. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.
8. The language is selected and the screen returns to setup menu.
9. To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Player Menu Disc Menu Audio Subtitle DivX Subtitle Automatic English Français Deutsch Español Italiano Enter Return Menu

Using the DivX Subtitle Language

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select DivX Subtitle, then press the ▶ or ENTER button.

5. Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

6. The language is selected and the screen returns to Language Setup menu.

7. To make the setup menu disappear, press the MENU button.

LANGUAGE SETUP Player Menu : English Disc Menu : English Audio ✓ Unicode Subtitle Western DivX Subtitle Turkish Central Cyrillic Greek Enter Return Menu

Setting Up the Audio Options

Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Audio Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select the desired item, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Enter Return Menu

AUDIO SETUP Digital Out : PCM MPEG-2 Digital Out : PCM Dynamic Compression : On PCM Down Sampling : On Enter Return Menu

① Digital Out

• PCM : Converts to PCM(2CH) audio.
• Bitstream : Outputs Dolby Digital via the digital output. Select Bitstream when connecting to a Dolby Digital Decoder.

② MPEG-2 Digital Out

• PCM : Converts to PCM(2CH) audio.
• Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH or 8CH). Select Bitstream when using the Digital Audio Output.

③ Dynamic Compression

- On : To select dynamic compression.

- Off : To select the standard range.

④ PCM Down Sampling

• On : Select this when the Amplifier connected to the player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ.
• Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case, all signals will be output without any changes.

Note :

• Even when PCM Down sampling is Off
• Some discs will only output down sampled audio through the digital outputs.
• There is no analog audio output when you play a DTS sound disc.
• To make the Setup menu disappear, press the MENU button.

HDMI (DVD-F1080 only)

• If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS, MPEG), you should set Digital Audio to PCM.
• If your TV is not compatible with LPCM sampling rates over 48kHz, you should set PCM Down sampling to On.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Setting Up the Display Options

Display options enable you to set various video functions of the player.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.
3. Press the ▲/▼ buttons to select Display Setup, then press the ▶ or ENTER button.
4. Press the ▲/▼ buttons to select the desired item, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Enter Return Menu

DVD-FP580 Dispay Setup

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Anynet+(HDMI-CEC):On

DVD-F1080 Dispay Setup

① TV Aspect

Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 4:3 Pan&Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)
• 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

DISPLAY SETUP Disc Menu Title Menu Function Setup TV Aspect Still Mode Screen Message TV System Video Output Black Level 4:3 Letter Box 4:3 Pan&Scan ✓ 16:9 Wide I-SCAN Off Enter Return Menu

② Still Mode

These options will help prevent picture shake in still mode and display small text clearer.

• Auto : When selecting Auto, Field/Frame mode will be automatically converted.
• Field : Select this feature when the screen shakes in the Auto mode.
• Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

③ Screen Messages

Use to turn on-screen messages On or Off.

④ TV System

• NTSC : In case of using NTSC disc
• If your TV system only has PAL-Video input, you must choose "PAL". When you choose "PAL", Interlace output format is PAL 60 Hz output.
• If your TV system only has NTSC, input you must choose "NTSC".
• If you set up the NTSC TV, HDMI output frame rate is 60 Hz.
• PAL : In case of using PAL disc
• If your TV system only has NTSC-Video input, you must choose "NTSC".
• If your TV system only has PAL input, you must choose "PAL".
• If you set up the PAL TV, HDMI output frame rate is 50 Hz.

DISPLAY SETUP Disc Menu Title Menu Function Setup TV Aspect : Wide Still Mode : Auto Screen Messages : On TV System NTSC Video Output ✓ PAL Black Level : Off Enter Return Menu

⑤ Video Output

Select Video Output.

• I-SCAN : Select when you want to use Component Interlace (525i) Out.
• P-SCAN : Select when you want to use Component Progressive (525p) Out.

- If you press the VIDEO SEL. button when DVD Player is in play mode, stop mode or no disc is inserted, the Video Output mode changes in the following sequence: (I-SCAN → P-SCAN)

⑥ HDMI (DVD-F1080 only)

This setting is used when the unit is connected by HDMI to Display devices (TV, Projector, etc.).

• Resolution Setting
• Auto : Resolution setting automatically
• Manual : Resolution setting manually

- Resolution

• 480p/576p : 720 x 480, 720 x 480
- 720p : 1280 x 720
• 1080i : 1920 x 1080
- 1080p : 1920 x 1080

DISPLAY SETUP TV Aspect : Wide Still Mode : Auto Screen Messages : On TV System : PAL Video Output : I-SCAN HDMI Picture Quality

HDMI SETUP Resolution Setting : Manual Resolution : 720p Disk Menu Title Menu Function Setup Enter Return Menu

⑦ Picture Quality / Black Level

• Black Level (DVD-FP580 and DVD-F1080) : Adjusts the brightness of the screen.(On or Off) It does not function in Progressive mode.
• Brightness : Level 1 \~ Level 5
• Contrast : Level 1 \~ Level 5
• Color Saturation : Level 1 \~ Level 5

DISPLAY SETUP TV Aspect : Wide Still Mode : Auto Screen Messages : On TV System : PAL Video Output : I-SCAN Black Level : Off Menu Enter Return

DVD-FP580 Black Level Menu

PICTURE QUALITY Black Level : Off Brightness : Level 3 Contrast : Level 3 Color Saturation : Level 3 Enter Return Menu

DVD-F1080 Picture Quality Menu

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• If Video Output is set incorrectly, the screen may be blocked.
• The resolutions available for HDMI output depend on the connected TV or projector. For details, see the user's manual of your TV or projector (DVD-F1080 only).
• When the resolution is changed during play-back, it may take a few seconds for a normal image to appear.
• If you set the HDMI output resolution 720p, 1080p or 1080i, HDMI output provides better picture quality (DVD-F1080 only).

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Setting Up the Rating Level

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

1. Press the ▲/▼ buttons to select Parental Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Enter Return Menu

1. Press the ▲/▼ buttons to select Rating Level, then press the ▶ or ENTER button.

PARENTAL SETUP Rating Level : Kids Safe Change Password Disc Menu Title Menu Function Setup Enter Return Menu

1. Enter your password.

2. By default, password is set to 0000.

3. Please change password to other than 0000 to activate parental control function.

PARENTAL SETUP Rating Level : Kids Safe Change Password Enter Password Enter Return Menu

1. Press the ▲/▼ buttons to select the Rating Level you want, then press the ▶ or ENTER button. e.g) Setting up in Kids Safe.

PARENTAL SETUP Disc Menu Title Menu Function Setup Rating Level Change Password Kids Safe Level 2 Level 3 Level 4 Level 5 Level 6 Enter Return Menu

To make the setup menu disappear, press the MENU button. For example, if you select up to Level 6, discs that contain Level 7,8 will not play.

Changing the Password

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

1. Press the ▲/▼ buttons to select Parental Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Enter Return Menu

1. Press the ▲/▼ button to select Change Password, then press the ▶ or ENTER button. Enter your new password. Re-enter the new password again.

PARENTAL SETUP Rating Level :Kids Safe Change Password Disc Menu Title Menu Function Setup Enter Return Menu

PARENTAL SETUP Rating Level :Kids Safe Change Password Enter Password Enter Return Menu

PARENTAL SETUP Rating Level :Kids Safe Change Password Enter New Password Enter Return Menu

Note

If you have forgotten your password, see "Forgot Password" in the Troubleshooting Guide.

Setting Up the Anynet+ (HDMI-CEC) (DVD-F1080 only)

Anynet+ is a function that can be used to operate the unit using a Samsung TV remote control, by connecting the DVD-F1080 to a SAMSUNG TV using a HDMI Cable. (see page 12) (This is only available with SAMSUNG TVs that support Anynet+).

Select On when you connecting the DVD-F1080 with Samsung TV that support Anynet+.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Anynet+(HDMI-CEC):On

1. Press the ▲/▼ buttons to select Anynet+(HDMI-CEC), then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Anynet+(HDMI-CEC):On

1. Set the Anynet+(HDMI-CEC) to "On" on your DVD Player, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Regi Off Anynet+(HDMI-√ On

1. Set the Anynet+ function at your TV. (See the TV instruction manual for more information.).

- When you press Anynet+ button on the TV remote control, the below OSD will appear.

DVDP View TV Select Device Record Menu on Device Device Operation Receiver - Off Setup Remove ON ENTER Exit

TV Menu

Note

To make the Setup menu disappear, press the MENU button.

- You can operate the DVD Player by using TV remote control. (TV buttons that can be used to control the DVD Player : ◀◀, ▶||, ■, ▶▶,

, , , and buttons, ①~⑨ buttons.).

• Select Device : Use this option to select device.
• Menu on Device : Same as MENU button on the DVD Player remote control.
• Device Operation : Same as INFO button on the DVD Player remote control.

Note

• By pressing the PLAY button of the unit while watching TV, the TV screen will change to the play screen.
• If you play a DVD when the TV power is off, the TV will power On.
• If you turn the TV off, the DVD Player will power off automatically.
• If you change the HDMI to other sources (Composite, Component,... etc) in TV while playing the DVD disc, the DVD Player will stop playing.

Firmware upgrade

Introduction

Samsung will often support the software upgrade to improve the performance of this unit to the latest status, through Samsung Internet Site (www.samsung.com).

Because the specially new mpeg4 codec continues and it is appearing. What improvements are made depends on the upgrade software you are using as well as the software that your DVD-player contained before the upgrade.

How to make an upgrade disc

Write the downloaded file onto a blank CD-R or CD-RW disc, using the following settings:

1. You have to download a new file through Download Center of Samsung Internet Site (www.samsung.com).
2. Write the file to Disc using CD-RW of your computer.

Note

• File System CD-ROM ISO Level
• Character set ISO 9660
• Finalized, single session
• Write speed low

Upgrade procedure

1. Open the disc tray. Place the disc on the tray. Close the tray. The Firmware upgrade screen appears.

Firmware upgrade Old Version: 090607.VD.FH1080XEG New Version : 070912.V1.D.F1080XEG Cancel Total

Firmware upgrade appears on the display

1. Press the ◀/▶ buttons to select Total, then press the ENTER button.

Firmware upgrade Old Version : 090607.VD.FH1080XEG New Version : 070912.V1.D.F1080XEG Cancel Total Now Loading... *** CAUTION !!! *** When the tray is opened Do not turn off the player until it goes off automatically

Firmware upgrade starts

• In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes.
• If the unit was successfully updated, the unit will turn off and on after closing the tray automatically. When the unit turns on, this screen will display.
• Press the number buttons to select the desired language

• If the "Select Menu Language" doesn't appear, please contact to "Samsung Service Center".
• Do not press any button and unplug the power code during upgrade.
• The upgrade procedure may change, refer to the web site (www.samsung.com).

Before requesting service (troubleshooting), please check the following.

Problem	Action	Page
No operations can be performed with the remote control.	Check the batteries in the remote control.They may need replacing.Operate the remote control at a distance of no more than 20 feet.Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.	P3
Disc does not play.	Ensure that the disc is installed with the label side facing up.Check the region number of the DVD.	P5
5.1 channel sound is not being reproduced.	51 channel sound is reproduced only when the following conditions are met.:1) The DVD player is connected with the proper Amplifier2) The disc is recorded with 5.1 channel sound.Check whether the disc being played has the "5.1 ch" mark on the outside.Check if your audio system is connected and working properly.In a SETUP Menu, is the Audio Output set to Bitstream?	P13-14P26~27
Theicon appears on screen.	The features or action cannot be completed at this time because:1. The DVD's software restricts it.2. The DVD's software doesn't support the feature (e.g., angles).3. The feature is not available at the moment.You've requested a title or chapter number or search time that is out of range.
Disc Menu doesn't appear.	Check if the disc has a Menu.
Play mode differs from the Setup Menu selection.	Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.	P25~30
The screen ratio cannot be changed.	The Screen Ratio is fixed on your DVDs.	P27~28
No audio.	Make sure you have selected the correct Digital Output in the Audio Options Menu.	P26~27
The screen is blocked	Press thebutton (in front panel) for more than 5 seconds under no disc inside. All settings will revert to the factory settings.	P15
Forgot password	Press thebutton (in front panel) for more than 5 seconds under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.	P29
If you experience other problems.	Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.If the problem still cannot be solved, please contact your nearest authorized service center.
The picture is noisy or distorted	Make sure that the disc is not dirty or scratched.Clean the disc.	P2
No HDMI output.(DVD-F1080 only)	Check the Video output is HDMI enabled.Check the connection between the TV and the HDMI jack of DVD player.See if the TV supports this 480p/576p/720p/1080i/1080p DVD player.	P12~13
Abnormal HDMI output screen. (DVD-F1080 only)	If snow noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection).	P12~13
HDMI output Jitter(DVD-F1080 only)	Check your TV system setup correctly.The screen Jitter phenomenon may occur when frame rate is converted from 50Hz to 60Hz for 720P/1080i/1080p HDMI (High Definition Multimedia Interface)Output.Please refer to the user's manual of your TV.	P27~28
General	Power Requirements	AC 110-240V ~ 50/60 Hz
	Power Consumption	7 W
	Weight	0.976 Kg
	Dimensions	240mm (W) X 240mm (D) X 50.5mm (H)
	Operating Temperature Range	+5°C to +35°C
	Operating Humidity Range	10 % to 75 %
Disc	DVD(DIGITAL VERSATILE DISC)	Reading Speed : 3.49 ~ 4.06 m/sec.Approx. Play Time(Single Sided, Single Layer Disc) : 135 min.
	CD : 12Cm(COMPACT DISC)	Reading Speed : 4.8 ~ 5.6 m/sec.Maximum Play Time : 74 min.
	CD : 8Cm(COMPACT DISC)	Reading Speed : 4.8 ~ 5.6 m/sec.Maximum Play Time : 20 min.
	VCD : 12Cm	Reading Speed : 4.8 ~ 5.6 m/sec.Maximum Play Time : 74 min. (Video + Audio)
Video Output	Composite Video	1 channel : 1.0 Vp-p (75 Ω load)
	Component Video	Y : 1.0 Vp-p (75 Ω load)Pr : 0.70 Vp-p (75 Ω load)Pb : 0.70 Vp-p (75 Ω load)
	HDMI	480p/576p. 720p. 1080i. 1080p (DVD-F1080 only)
Audio Output	2 Channel	L(1/L), R(2/R)
	*Frequency Response	48 kHz Sampling : 4 Hz to 22 kHz96 kHz Sampling : 4 Hz to 44 kHz
	*S/N Ratio	110 dB
	*Dynamic Range	100 dB
	*Total Harmonic Distortion	0.004 %

*: Nominal specification

• Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice.
• Weight and dimensions are approximate.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Region	Country	Customer Care Center	Web Site
North America	CANADA	1-800-SAMSUNG(726-7864)	www.samsung.com/ca
	MEXICO	01-800-SAMSUNG(726-7864)	www.samsung.com
	U.S.A	1-800-SAMSUNG(726-7864)	www.samsung.com
Latin America	ARGENTINE	0800-333-3733	www.samsung.com/ar
	BRAZIL	0800-124-421, 4004-0000	www.samsung.com
	CHILE	800-SAMSUNG(726-7864)	www.samsung.com/d
	NICARAGUA	00-1800-5077267
	HONDURAS	800-7919267
	COSTA RICA	0-800-507-7267	www.samsung.com/latin
	ECUADOR	1-800-10-7267	www.samsung.com/latin
	EL SALVADOR	800-6225	www.samsung.com/latin
	GUATEMALA	1-800-299-0013	www.samsung.com/latin
	JAMAICA	1-800-234-7267	www.samsung.com/latin
	PANAMA	800-7267	www.samsung.com/latin
	PUERTO RICO	1-800-682-3180	www.samsung.com/latin
	REP. DOMINICA	1-800-751-2676	www.samsung.com/latin
	TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864)	www.samsung.com/latin
	VENEZUELA	0-800-100-5303	www.samsung.com/latin
	COLOMBIA	01-8000112112	www.samsung.com.co
Europe	BELGIUM	0032 (0)2 201 24 18	www.samsung.com/be
	CZECH REPUBLIC	844 000 844Distributor pro Českou republiku: Samsung Zrt, Česka organizačné složka Vyskočilova 4, 14000 Praha 4	www.samsung.com/cz
	DENMARK	70 70 19 70	www.samsung.com/dk
	FINLAND	030-6227 515	www.samsung.com/fi
	FRANCE	3260 SAMSUNG (€ 0,15/Min), 08 25 08 65 65 (€ 0,15/Min)	www.samsung.com
	GERMANY	01805 - SAMSUNG(726-7864) (€ 0,14/Min)	www.samsung.com
	HUNGARY	06-80-SAMSUNG(726-7864)	www.samsung.com
	ITALIA	800-SAMSUNG(726-7864)	www.samsung.com
	LUXEMBURG	0035 (0)2 261 03 710	www.samsung.com/be
	NETHERLANDS	0900-SAMSUNG(726-7864) (€ 0,10/Min)	www.samsung.com/nl
	NORWAY	815-56 480	www.samsung.com/no
	POLAND	0 801 801 881 , 022-607-93-33	www.samsung.com/pl
	PORTUGAL	80820-SAMSUNG(726-7864)	www.samsung.com/pt
	SLOVAKIA	0800-SAMSUNG(726-7864)	www.samsung.com/sk
	SPAIN	902 10 11 30	www.samsung.com
	SWEDEN	0771-400 200	www.samsung.com/se
	U.K	0845 SAMSUNG (7267864)	www.samsung.com
	EIRE	0818 717 100	www.samsung.com/ie
	AUSTRIA	0800-SAMSUNG(726-7864)	www.samsung.com/at
	SWITZERLAND	0800-SAMSUNG(726-7864)	www.samsung.com/ch
CIS	RUSSIA	8-800-555-55-55	www.samsung.com
	KAZAHSTAN	8-10-800-500-55-500	www.samsung.kz
	UZBEKISTAN	8-10-800-500-55-500	www.samsung.uz
	KYRGYZSTAN	00-800-500-55-500
	TADJKISTAN	8-10-800-500-55-500
	UKRAINE	8-800-502-0000	www.samsung.com
	LITHUANIA	8-800-77777	www.samsung.lt
	LATVIA	800-7267	www.samsung.com/lv
	ESTONIA	800-7267	www.samsung.ee
Asia Pacific	AUSTRALIA	1300 362 603	www.samsung.com
	NEW ZEALAND	0800SAMSUNG(726-7864)	www.samsung.com/nz
	CHINA	800-810-5858 , 010-6475 1880	www.samsung.com
	HONG KONG	3698-4698	www.samsung.com/hk
	INDIA	3030 8282 , 1800 110011	www.samsung.com
	INDONESIA	0800-112-8888	www.samsung.com
	JAPAN	0120-327-527	www.samsung.com/jp
	MALAYSIA	1800-88-9999	www.samsung.com/my
	PHILIPPINES	1800-10-SAMSUNG(726-7864)	www.samsung.com/ph
	SINGAPORE	1800-SAMSUNG(726-7864)	www.samsung.com
	THAILAND	1800-29-3232 , 02-689-3232	www.samsung.com
	TAIWAN	0800-329-999	www.samsung.com/tw
	VIETNAM	1 800 588 889	www.samsung.com
Middle East & Africa	TURKEY	444 77 11	www.samsung.com
	SOUTH AFRICA	0860-SAMSUNG(726-7864 )	www.samsung.com
	U.A.E	800-SAMSUNG (726-7864), 8000-4726	www.samsung.com

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Memo

1. Installation

Diagram of a device with numbered parts labeled 1 through 8, likely for labeling or assembly reference.

1. STANDBY/ON ( ⏻ )

4. Touche OPEN/CLOSE ( ≈ )

1. Touche OPEN/CLOSE ( ▲ )

Ecran Large EZ VIEW

1. Press the PLAY/PAUSE (▶II) button to skip to the marked scene.

Simple icon of a magnifying glass with a plus sign, no text or symbols present

Illustration of a flower with visible petals and stem, enclosed in a frame (no text or symbols)

Remarque

Black and white illustration of a flower with visible petals and stem, enclosed in a software window (no text or symbols on the flower itself)

Remarque

Firmware upgrade Old Version: 090607.VD.FH1080XEG New Version: 070912.V1.D.F1080XEG Cancel Total Now Loading... *** CAUTION !!! *** When the tray is opened Do not turn off the player until it goes off automatically

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Diagram of a device with numbered parts labeled 1 through 8, likely illustrating a component or layout.

1. STANDBY/ON ( ⏻ )

Aus SUBTITLE

Aus SUBTITLE

Illustration of a flower with visible petals and stem, enclosed in a frame (no text or symbols)

Hinweis

Illustration of a flower with visible petals and stamens, labeled 'Zeit' in the top-left corner (no other text or symbols)

Hinweis

DVOP View TV Select Device Record Menu on Device Device Operation Receiver - Off Setup 5 Move 10 Gain UP ENTER

TV Menü

Firmware upgrade Old Version : 090607.VD.FH1080XEG New Version : 070912.V1.D.F1080XEG Cancel Total Now Loading... *** CAUTION !!! *** When the tray is opened Do not turn off the player until it goes off automatically

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Diagram of a device with numbered parts labeled 1 through 8, likely illustrating a component or layout.

1. STANDBY/ON ( ⏻ )

Black-and-white illustration of a flower with visible petals and stem, no text or symbols present.

Opmerking

Diashow (Slide Show)

Black and white illustration of a flower with visible petals and stamens (no text or symbols)

Opmerking

③ Meldingen via TV (Screen Messages)

DVOP View TV Select Device Record Menu on Device Device Operation Receiver - Off Setup 5 Move 10 Gain UP ENTER

TV Menu

Row of audio and media control icons including playback, pause, stop, and waveform labels with Chinese character 'en'

de knoppen 0\~9 knoppen.

Firmware upgrade Old Version : 090607.VD.FH1080XEG New Version : 070912.V1.D.F1080XEG Cancel Total Now Loading... *** CAUTION !!! *** When the tray is opened Do not turn off the player until it goes off automatically

Pure electrical circuit lines without any symbols
