• Refer to the identification label located on the rear of your player for its proper operating voltage.

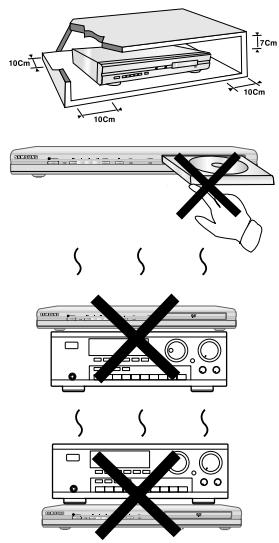

• Install your player in a cabinet with adequate ventilation holes. (7\~10cm) Do not block ventilation holes on any of the components for air circulation.
• Do not push the disc tray in by hand.
• Do not stack components.
• Be sure to turn all components off before moving the player.
• Before connecting other components to this player, be sure to turn them off.
• Be sure to remove the disc and turn off the player after use, especially if you don't use it for a long time.

2. For your safety

• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not open covers and do not repair yourself. Refer servicing to qualified personal.

3. Caution

• Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only.
• Do not put any container filled with liquid or any small metal objects on the player.
• Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
• When condensation forms inside the player due to sharp changes in temperature, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

4. Disc

• Do not clean record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface.
• Do not touch the disc's signal surface. Hold by the edges or by one edge and the hole in the center.

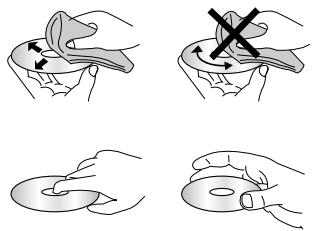

• Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

Diagram illustrating the use of a device to remove a CD, with labeled components and prohibition symbols.

CAUTION	LASER RADIATION WHEN OPENDO NOT STARE INFO BEAM
ATTENTION	RAYONEMENT LASER EN CAS D'OUVERTURE.NE PAS REGARDER DANS LE FAISCEAU.
VORBSICHT	LASERSTRAHLUNG, WENN ABDECKUNGEÖFFNET, NICHT IN DEN STRAHL BLICKEN.
ADVARSEL	LASERSTRALING VED ÅBNING.SE IKKE IND I STRÅLEN.,
WARNING	LASERSTRALING NÄR DENNA DEL ÄRÖPPNAD. STIRRA EJ IN STRÅLEN.
VARO!	AVATTAESSA OLET ALTINALASERSÄTELYLLE. ÄLÄ TUJUOTA SÄTEESEEN.
WAARSCHYWING	LASERSTRALING INDIEN GEOPEND,KÜK NIET IN DE STRAAL..

CLASS 1 LASER PRODUCT

Illustration showing various symbols and icons including crossed-out leaves, a sun, a pencil, a hand holding a pen, and a money bag with scissors.

Four-panel illustration showing hands performing a manual manipulation or disassembly process (no text or symbols)

5. Environmental info

• The battery used in this product contains chemicals that are harmful to the environment.
• So, dispose of batteries in the proper manner, according to federal, state, and local regulations.

Diagram showing a battery and a trash bin with a crossed-out symbol, indicating waste or disposal.

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Before you start

Accessories

Remote Control

Batteries for Remote Control (AAA Size)

User's Manual

Video/Audio Cable

Install Batteries in the Remote control

1

Open the battery cover on the back of the remote control.

Illustration of a remote control panel with a black arrow pointing to the interior (no text or symbols)

2

Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.

Technical illustration of a remote control device showing internal components (no text or symbols)

3

Replace the battery cover.

Diagram of a remote control panel with an arrow indicating left-side motion (no text or symbols)

If the remote control doesn't operate properly

• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote control sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

TABLE OF CONTENTS

Precautions....2

Before you start 4

Chapter 1: Setup

General Features 6

Disc Type and Characteristics 7

Description 8

Tour of the Remote Control 10

Chapter 2: Connections

Choosing a Connection 11

Chapter 3: Basic Functions

Playing a Disc 17

Using the Search and Skip Functions ..... 19

Using the Display Function 20

Using the Disc and Title Menu 22

Using the Function Menu 23

Repeat Play 24

Slow Repeat Play 25

Program Play & Random Play 26

Chapter 4: Advanced Functions

Adjusting the Aspect Ratio (EZ View)....27

Selecting the Audio Language 29

Selecting the Subtitle Language....30

Changing the Camera Angle 31

Using the Instant Replay/Skip Function 31

Using the Bookmark Function 32

Using the Zoom Function 34

DVD-AUDIO Playback 35

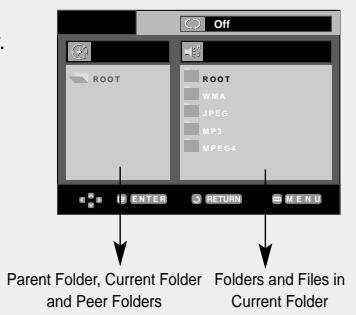

Clips Menu for MP3/WMA/JPEG/MPEG4 38

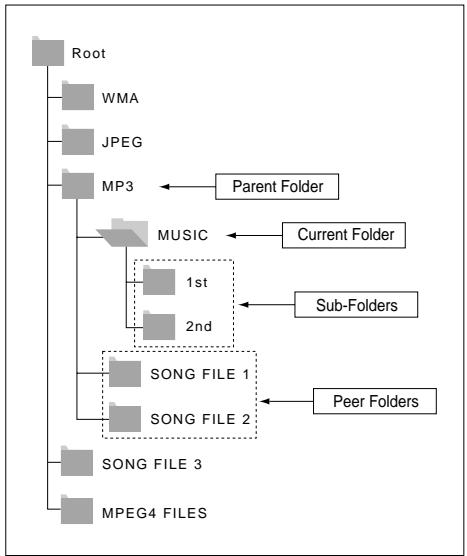

Folder Selection 38

MP3/WMA Playback....39

MPEG4 Playback 40

Picture CD Playback....43

Chapter 5: Changing Setup Menu

Using the Setup Menu 45

Setting Up the Language Features. 46

Setting Up the Audio Options 51

Setting Up the Display Options....53

Setting Up the Parental Control 55

Chapter 6: Reference

Firmware upgrade 58

Troubleshooting 59

Specifications 60

Chapter 1

SETUP

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Program Play (CD)

You can program tracks to play in desired order.

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

Progressive Scan

Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view Digital Photos on your TV.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA files.

Instant Replay (DVD)

This function is used to replay the previous 10 seconds of a movie from the current position.

Instant Skip (DVD)

This function skips playback ahead 10 seconds.

MPEG4

This unit can play MPEG4 formats within an avi file.

DVD AUDIO

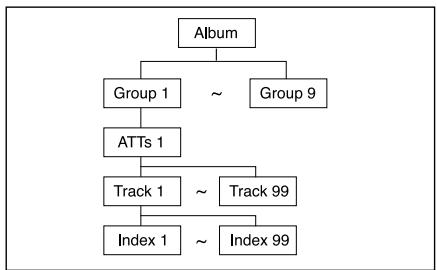

DVD AUDIO is a format specifically designed to provide the highest possible audio fidelity capable on DVD.

Note

• Discs which cannot be played with this player.
• DVD-ROM
• DVD-RAM
• CD-ROM
• CDV
• CDI
• CVD
  • Super Audio CD (except CD layer)
  • CDGs play audio only, not graphics.
• Ability to play back may depend on recording conditions.
• DVD-R, +R
• CD-RW
  • DVD+RW, -RW (V mode)
• The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PROGRESSIVE SCAN OUTPUTS (525p/625p)

"CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE, IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER."

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)	Recording Types	Disc Size	Max. Playing Time	Characteristics
DVDVIDEO	Audio+Video	12 Cm	Single-sided 240 min.Double-sided 480 min.	- DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system.- Various screen and audio functions can be easily selected through the on-screen menu.
		8 Cm	Single-sided 80 min.Double-sided 160 min.
VIDEO-CD	Audio+Video	12 Cm	74 min.	- Video with CD sound, VHS quality & MPEG-1 compression technology.
		8 Cm	20 min.
AUDIO-CDDIGITAL AUDIO	Audio	12 Cm	74 min.	- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
		8 Cm	20 min.
DVD-AUDIO	Audio+Video	12 Cm	400 min.	- DVD AUDIO is a format specifically designed to provide the highest possible audio fidelity capable on DVD.

Disc Markings

	Play Region Number
PAL	PAL broadcast system in U.K, France, Germany, etc.
DOLBY DIGITAL	Dolby Digital disc
STEREO	Stereo disc
DIGITAL SOUND	Digital Audio disc
dts	DTS disc
MP3	MP3 disc
DVD AUDIO	DVD AUDIO disc

You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player.

Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

DivX Certification

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.

Description

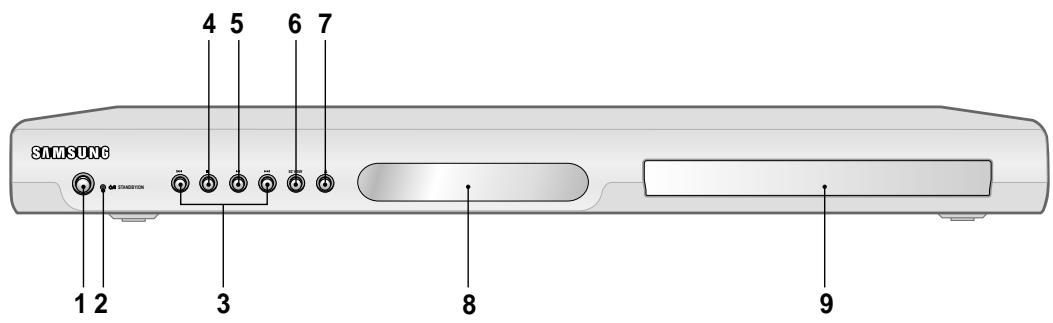

Front Panel Controls

SAMSUNG 1 2 3 4 5 6 7 8 9

1. STANDBY/ON (○/|)

When STANDBY/ON is pressed on, the indicator goes out and the player is turned on.

1. STANDBY indicator

When the unit is first plugged in, this indicator lights.

1. SKIP (|◀/▶|) SEARCH

Allow you to search forward/backward through a disc. Use to skip the title, chapter or track.

1. STOP ( ■ )

Stops disc play.

1. PLAY/PAUSE (▶II)

Begin or pause disc play.

1. EZ VIEW

The aspect ratio of a picture can easily be adjusted to your TV's screen size (16:9 or 4:3).

1. OPEN/CLOSE (▲)

Press to open and close the disc tray.

1. DISPLAY

Operation indicators are displayed here.

1. DISC TRAY

Place the disc here.

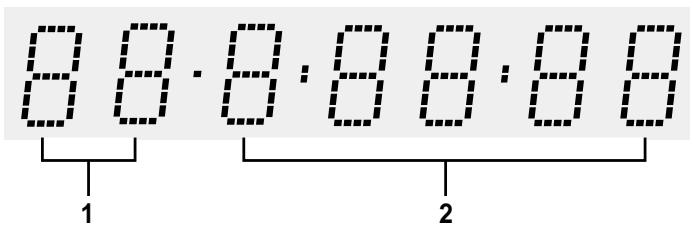

Front Panel Display

88.8:88.88 1 2

1. Chapter/Track number indicator
2. Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ...

no DISC: No disc loaded.

OPEN: The disc tray is open.

LOAD: Player is loading disc information.

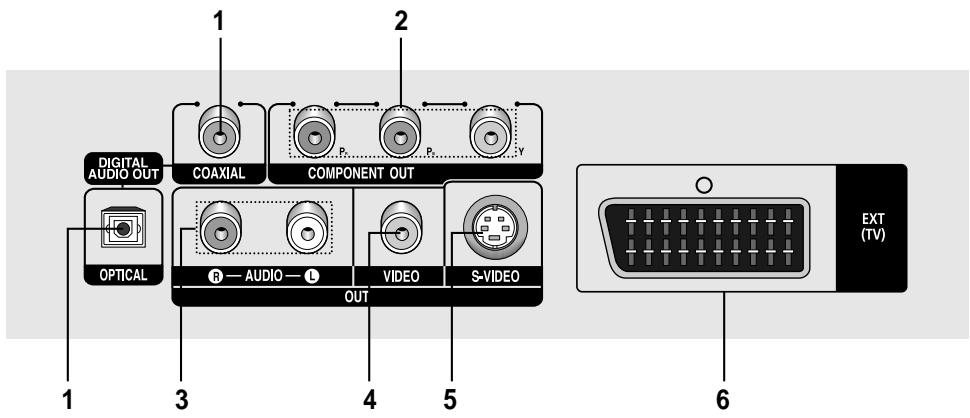

Rear Panel

DIGITAL AUDIO OUT COAXIAL COMPONENT OUT OPTICAL R — AUDIO — L VIDEO S-VIDEO OUT 1 2 3 4 5 EXT (TV) 6

1. DIGITAL AUDIO OUT JACKS

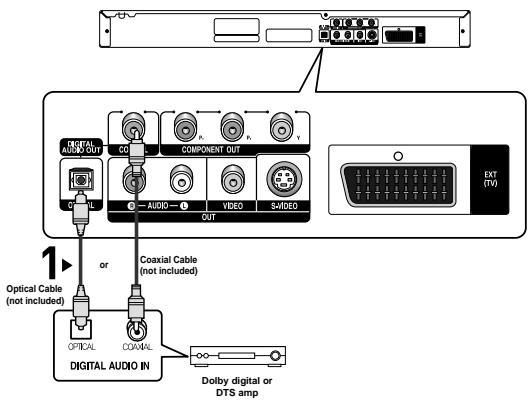

• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver.
• Use either an optical or coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

2. COMPONENT VIDEO OUT JACKS

• Use these jacks if you have a TV with Component Video in jacks. These jacks provide P_R , P_B and Y video.
• If Component(P-SCAN) Video Output is selected in Setup Menu, progressive scan mode will work.
• If Component(I-SCAN) Video Output is selected in Setup Menu, interlaced scan mode will work.

3. AUDIO OUT JACKS

Connect to the Audio input jacks of your television or audio/video receiver.

4. VIDEO OUT JACK

• Use a video cable to connect to the Video input jack on your television.
• The Video Output in Setup Menu must be set to COMPOSITE/S-VIDEO.

5. S-VIDEO OUT JACK

• Use the S-Video cable to connect this jack to the S-Video jack on your television for higher picture quality.
• The Video Output in Setup Menu must be set to COMPOSITE/S-VIDEO.

6. SCART JACK

- Connect to a TV scart input jack.

Note

• Consult your TV User's Manual to find out if your TV supports Progressive Scan (P-SCAN). If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• If Component (P-SCAN) Video Output is selected in Setup Menu, Video and S-Video Outputs do not work.
• See pages 53 \~ 54 to get more information on how to use the setup menu.

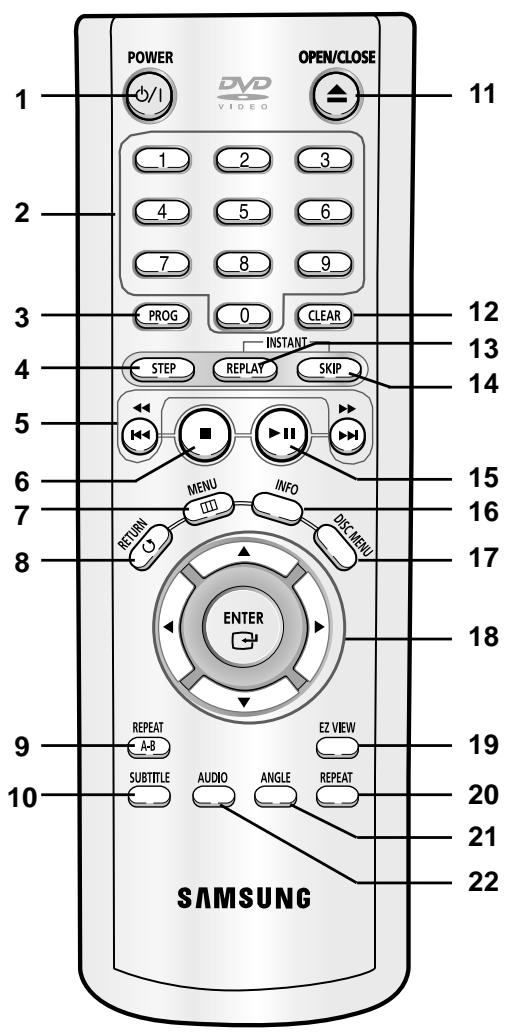

Tour of the Remote Control

POWER 1 2 3 4 5 6 7 8 9 OPEN/CLOSE PROG 0 CLEAR INSTANT STEP REPLAY SKIP MENU INFO RETURN DIS/CMENU ENTER REPEAT A-B EZ VIEW SUBTITLE AUDIO ANGLE REPEAT SAMSUNG 11 12 13 14 15 16 17 18 19 20 21 22

1. DVD POWER Button

Turns the power on or off.

1. NUMBER Buttons

2. PROG Button

Allows you to program a specific order.

1. STEP Button

Advances play one frame at a time.

1. SEARCH/SKIP Buttons (◀/▶, ◀/▶)

Allow you to search forward/backward through a disc.

Use to skip the title, chapter or track.

1. STOP Button ( ■ )

2. MENU Button

Brings up the DVD player's menu.

1. RETURN Button

Returns to a previous menu.

1. REPEAT A-B Button

Allows you to repeat play A-B disc.

1. SUBTITLE Button

2. OPEN/CLOSE ( ▲ ) Button

To open and close the disc tray.

1. CLEAR Button

Use to remove menus or status displays from the screen.

1. INSTANT REPLAY Button

This function is used to replay the previous 10 seconds of a movie from the current position.

1. INSTANT SKIP Button

This function skips playback ahead 10 seconds.

1. PLAY/PAUSE Button (▶)

Begin/Pause disc play.

1. INFO Button

Displays the current disc mode.

1. DISC MENU Button

Brings up the Disc menu.

1. ENTER/▲▼◀▶ Buttons

This button functions as a toggle switch.

1. EZ VIEW Button

The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3).

1. REPEAT Button

Allows you to repeat play a title, chapter, track, or disc.

1. ANGLE Button

Use to access various camera angles on a DVD.

1. AUDIO Button

Use this button to access various audio functions on a disc.

Chapter 2

CONNECTIONS

Choosing a Connection

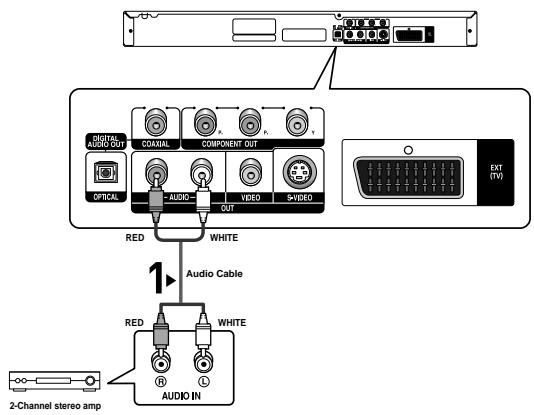

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

• Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.
• Refer to the user's manual of the additional components (such as a TV) you are connecting for more information on those particular components.

Connecting to a TV (SCART)

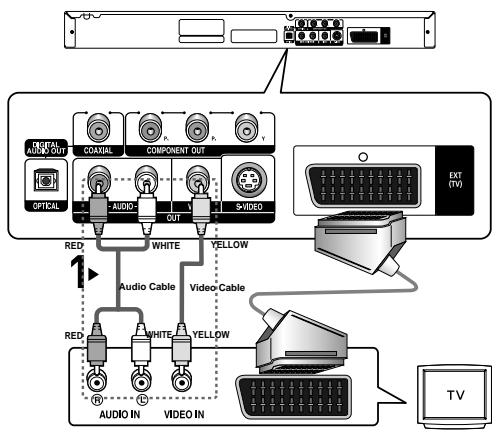

• Using the SCART, connect the SCART (EXT) terminal on the rear of the DVD Player to the SCART(IN) terminal of your TV.
• If your TV is not equipped with a SCART you can select one of the following alternative connections:

Connection to a TV (Video CVBS)

1

Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of your TV.

2

Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen.

Note

• Noise may be generated if the audio cable placed too close to the power cable.
• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16)
• The number and position of terminals may vary depending on your TV set. Please refer to the user's manual of your TV.
• If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player.

Connection to a TV (S-Video)

• Connecting to your TV using an S-Video cable.
• You will enjoy high quality images. S-Video separates the picture element into black and white(Y) and color(C) signals to present clearer images than regular video input mode. (Audio signals are delivered through the audio output.)

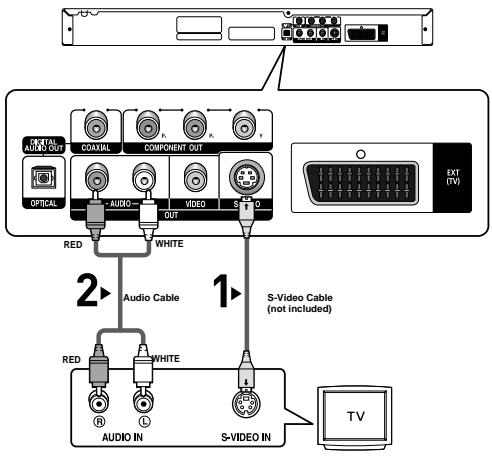

1

Using an S-Video cable (not included), connect the S-VIDEO

OUT terminal on the rear of the DVD player to the

S-VIDEO IN terminal of your TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV.

Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the S-Video signal from the DVD player appears on your TV screen.

4

Set the Video Output to COMPOSITE/S-VIDEO in the Display Setup menu. (See pages 53 to 54)

OK/ITAL AUDIO OUT COMPONENT OUT OPTICAL AUDIO OUT VIDEO 2 Audio Cable 1 S-Video Cable (not included) RED WHITE AUDIO IN L S-VIDEO IN TV EXT (TV)

Note

• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16)
• The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV.

Connection to a TV (Interlace)

• Connecting to your TV using Component video cables.
• You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(P B ), red(P R ) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

1

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminals on the rear of the DVD player to the COMPONENT IN terminals of your TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to Component (I-SCAN) in the Display Setup menu. (See pages 53 to 54)

Note

• If Video output is incorrectly set to COMPOSITE/S-VIDEO with the Component cables connected, the screen will turn red.
• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16)
• The component terminal of your TV may be marked "R-Y, B-Y, Y" or "Cr, Cb, Y" instead of "P R , P B , Y" depending on the manufacturer. The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV.

Connection to a TV (Progressive)

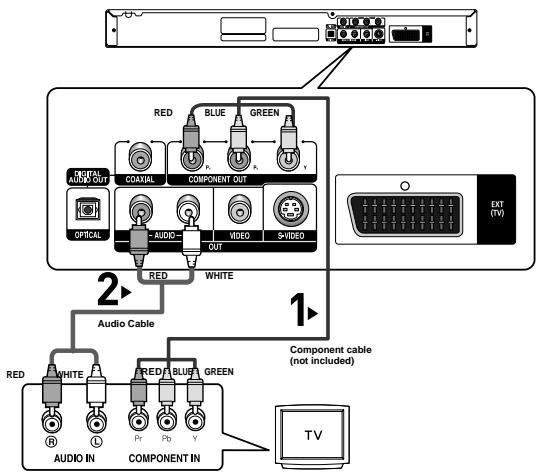

1

Using component video cables (not included), connect the COMPONENT VIDEO OUT terminals on the rear of the DVD player to the COMPONENT IN terminals of your TV.

2

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

4

Set the Video Output to Component (P-SCAN) in the Display Setup menu. (See pages 53 to 54)

RED BLUE GREEN COMPONENT OUT COMPONENT OUT OPTICAL AUDIO VIDEO SWIBED 2 RED WHITE Audio Cable 1 RED WHITE COMPONENT IN AUDIO IN COMPONENT IN Component cable (not included) TV

To see the progressive video output,

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• Depending on your TV, the connection method may differ from the illustration above.

Note

- What is "Progressive Scan"?

Progressive scan has twice as many scanning lines as the interlace output method. Progressive scanning method provides better and clearer picture quality.

Connection to an Audio System (2 Channel Amplifier)

1

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO, S-VIDEO or COMPONENT OUT terminals on the rear of the DVD player to the VIDEO, S-VIDEO or COMPONENT IN terminal of your TV as described on pages 11 to 14.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

DIGITAL AUDIO OUT COAGAL COMPONENT OUT OPTICAL AUDIO VIDEO 5VIBED RED WHITE 1 Audio Cable RED WHITE AUDIO IN 2-Channel stereo amp

Note

• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 51 to 52)
• The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier)

1

If using an optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (OPTICAL) terminal of the Amplifier. If using a coaxial cable (not included), connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO, S-VIDEO or COMPONENT OUT terminals on the rear of the DVD player to the VIDEO, S-VIDEO or COMPONENT IN terminal of your TV as described on pages 11 to 14.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

DIGITAL AUDIO OUT CO COMPONENT OUT A000 VIDEO SABED OUT 1 or Coaxial Cable (not included) Optical Cable (not included) OPTICAL COAVIAL DIGITAL AUDIO IN Dolby digital or DTS amp

Note

• When you connect the DVD player to DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu. If it is set to Off, sound will not be heard, or there will be a loud sound.
• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 51 to 52)
• The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

Chapter 3

BASIC FUNCTIONS

Playing a Disc

Before Play

• Turn on your TV and set it to the correct Video Input on the TV's remote control.
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the first time.)

If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use.

Once you select a menu language, you can change it by pressing the ▶▶I button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

SELECT MENU LANGUAGE

Press the OPEN/CLOSE

(▲) button.

The STANDBY indicator light goes out and the tray opens.

POWER O/I DVD VIDEO OPEN/CLOSE 1 2 3 4 5 6 7 8 9

2

Place a disc gently into the tray with the disc's label facing up.

Illustration of a CD or DVD disc with a downward arrow indicating compression (no text or symbols)

3

Press the PLAY/PAUSE (▶II) button or OPEN/CLOSE (▲) button to close the disc tray.

INSTANT STEP REPLAY SKIP RETURN MENU INFO (1) RETURN ON (2)

◀ RESUME function

When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE (▶) button again, it will pick up where you left off. (unless the disc is removed or the player is unplugged, or if you press the STOP (■) button twice.)

4

Stopping Play

Press the STOP (■) button during play.

INSTANT STEP REPLAY MENU INFO RETURN DD CHANGE

5

Removing Disc

Press the OPEN/CLOSE

(▲) button.

POWER DVD V I O E D OPEN/CLOSE 1 2 3 4 5 6 7 8 9

6

Pausing Play

Press the PLAY/PAUSE

(▶Ⅱ) or STEP button on the remote control during play.

INSTANT STEP REPLAY SKIP MENU INFO RETURN STOP

7

Step Motion Play (Except CD)

Press the STEP button on the remote control during play.

INSTANT STEP REPLAY SKIP RETURN C MENU IDD INFO PDC MENU

8

Slow Motion Play (Except CD)

Press and hold the

SEARCH (▶) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

INSTANT STEP REPLAY SKIP RETURN MENU INFO DIS MENU

Note

• If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE (▶II) button to resume normal play.
• If the player is left in the stop mode for more than 30 minutes, the power will automatically turn off. (Automatic Power-Off Function)

◀ Screen stops, no sound.

To resume, press the PLAY/PAUSE (▶II) button once again.

Note

If the player is left for about 5 minutes in pause mode, it will stop.

▶ Each time the button is pressed, a new frame will appear.

No sound is heard during STEP mode.

Press the PLAY/PAUSE (▶II) button to resume normal play.

You can only perform step motion play in the forward direction.

◀ No sound is heard during slow mode.

Press the PLAY/PAUSE (▶II) button to resume normal play.

Reverse slow motion play will not work.

Note

This (∅) icon indicates an invalid button press.

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, press the SEARCH (◀ or ▶) button on the remote control for more than 1 second.

INSTANT STEP REPLAY SKIP MENU INFO PROC MENU

If you want to search at a faster speed on the DVD, VCD or CD, press and hold the button.

DVD	2X, 8X, 32X, 128X
VCD	4X, 8X
CD	2X, 4X, 8X

Note

• The speed marked in this function may be different from the actual playback speed.
• No sound is hearing during search mode (Except CD).

Skipping Tracks

During play, press the SKIP (◀◀ or ▶▶) button.

INSTANT STEP REPLAY SKIP RETURN MENU INFO NEXT MENU

• When playing a DVD, if you press the SKIP (▶) button, it moves to the next chapter. If you press the SKIP (◀) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.
• When playing a VCD 2.0 in Menu Off mode, or a VCD 1.1 or a CD, if you press the SKIP (▶) button, it moves to the next track. If you press the SKIP (◀) button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track.
• If a track exceeds 15 minutes when playing a VCD and you press the ▶ button, it moves forward 5 minutes. If you press the ◀ button, it moves backward 5 minutes.

Note

When playing VCD 2.0, this function works only when the menu is off.

Using the Display Function

When Playing a DVD/VCD/CD/MPEG4

1

During play, press the INFO button on the remote control.

MENU INFO RETURN O ENTER

◀ You can select Info in the function menu by pressing the MENU button.

2

Press the ▲/▼ buttons to select the desired item.

DVD

DVD 01 02 Time: 0:00:13 English 5.1CH Off ENTER

VCD

VCD Time 01 Time 0:00:43

When playing VCD 2.0, this function works only when the menu is off.

CD

CD Track 01 Time 0:00:48 OK ENTER

MPEG4

DivX 01 Time: 0:00:13 Audio: MP3 1/8 None 640x272 ENTER

BASIC FUNCTIONS

3

Press the ◀/▶ buttons to make the desired setup and then press the ENTER button.

M10 M20 M30 RETURN ENTER REPEAT A+B E2 M

◀ You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from a desired time.

4

To make the screen disappear, press the INFO button again.

RETURN MENU INFO ENTER

Note

Title	To access the desired title when there is more than one in the disc.For example, if there is more than one movie on a DVD, each movie will be identified.
Chapter	Most DVD discs are recorded in chapters so that you can quickly find a specific passage (similar to tracks on an audio CD).
Track
Time	Allows playback of the film from a desired time. You must enter the starting time as a reference.The time search function does not operate on some discs.
Audio	Refers to the film's soundtrack language.In the example, the soundtrack is played in English 5.1CH.A DVD disc can have up to eight different soundtracks.The MP3, AC3 and WMA are supported.(DivX)
Subtitle	Refers to the subtitle languages available in the disc.You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen.A DVD disc can have up to 32 different subtitles.
Size	(DivX)File Size has a relationship with resolution of a title.The larger file size is, the higher resolution is displayed.If the file resolution is small, it scales up automatically. So you can see the larger screen.

Using the Disc and Title Menu

Using the Disc Menu (DVD)

1

During the playback of a DVD disc, press the MENU button on the remote control.

RETURN CUT MENU FOMNU ENTE

2

Press the ▲/▼ buttons to select Disc Menu, then press the ▶ or ENTER button.

Press ENTER key for Disc Menu

Note

• Depending on a disc, the Disc Menu may not work.
• You can also use the Disc Menu, using the DISC MENU button on the remote control.
• In VCD 2.0 the DISC MENU button is used to select Menu On or Menu Off mode.

Using the Title Menu (DVD)

1

During the playback of a DVD disc, press the MENU button on the remote control.

RETURN MENU CONT X2 MENU ENTE

2

Press the ▲/▼ buttons to select Title Menu, then press the ▶ or ENTER button.

Press ENTER key for Title Menu

Note

• Depending on a disc, the Title Menu may not work.
• Title Menu will only be displayed if there are at least two titles in the disc.

Using the Function Menu

Using the Function Menu (DVD/VCD)

1

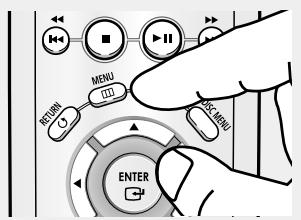

Press the MENU button during playback.

MENU RETURN ENTE

2

Press the ▲/▼ buttons to select Function, then press the ▶ or ENTER button.

• Info (See pages 20 to 21)
• Zoom (See page 34)
• Bookmark (See pages 32 to 33)
• Repeat (See pages 24 to 25)
• EZ View (See pages 27 to 28)

Info Zoom Bookmark Repeat EZ View Setup Enter RETURN MENU

3

Press the ▲/▼ buttons to select one of the five functions. Then press the ▶ or ENTER button to access the function.

RETURN C ENTER E REPEAT A-B EZ

◀ You can also directly select these functions using their respective buttons on the remote control.

• INFO
• EZ VIEW
• REPEAT

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD/VCD/CD

1

Press the REPEAT button on the remote control. Repeat screen appears.

REPEAT A-B SUBTITLE AUDD ANGLE REPEAT EZ VIEW SAMSUNG

2

Press the ◀/▶ buttons to select Chapter, Title, or A-B, then press the ENTER button.

DVD

Off 01 01 A-B REPEAT ENTER

VCD/CD

Off 01 01 A-B REPEAT ENTER

◀ DVD repeats play by chapter or title, CD and VCD repeat play by disc or track.

Chapter (○): repeats the chapter that is playing.

Title (☐): repeats the title that is playing.

Disc (☐): repeats the disc that is playing.

Track (💡): repeats the track that is playing.

A-B: repeats a segment of the disc that you select.

Using the A-B Repeat function

1. Press the REPEAT A-B button at the point where you want repeat play to start (A). B is automatically highlighted.
2. Press the REPEAT A-B button at the point where you want the repeat play to stop (B).
3. To return to normal play, press the CLEAR button.

Note

A-B REPEAT does not allow you to set point (B) until at least 5 seconds of playback time has elapsed after point (A) has been set.

3

To return to normal play, press REPEAT button again, then press the ◀/▶ buttons to select Off and press ENTER button.

DVD

Off 01 01 A-B REPEAT ENTER

VCD/CD

Off 01 01 A-B REPEAT ENTER

Note

• Depending on a disc, the Repeat function may not work.
• When playing VCD 2.0, this function works only when the menu is off.

Slow Repeat Play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD/VCD

1

During play, press the PLAY/PAUSE (▶II) button.

PROG U CLEAR INSTANT STEP REPLAY SKIP MENU INFO RETURN O

2

Press and hold the SEARCH (▶) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

PHUG U CLEAR INSTANT STEP REPLAY SKIP MENU INFO DIS MENU

3

Press the REPEAT button on the remote control. Press the ◀/▶ buttons to select A-B.

ENTER REPEAT A-8 SUBTITLE AUDIO ANGLE EZ VIEW REPEAT

4

Press the ENTER button at the point where you want repeat play to start (A). B is automatically highlighted. Press the ENTER button at the point where you want the repeat play to stop (B).

ENTER REPEAT EZ VIEW

5

To return to normal play, press the CLEAR button and then press the PLAY/PAUSE (▶II) button.

7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP

The disc will play from A to B repeatedly at the speed you chose.
To set A-B REPEAT, set (A) first, then set (B) after the following slow play time has elapsed: 1/8x: wait 40 seconds, then press B 1/4x: wait 20 seconds, then press B 1/2x: wait 10 seconds, then press B

Note

When playing VCD 2.0, this function works only when the menu is off.

Program Play & Random Play

Program Play (CD)

Program Play allows you to select the order in which you want tracks to play.

1

During play, press the PROG button.

4 5 6 7 8 PROG STEPS REPLAY SKIP

2

Press the ◀/▶ buttons to select PROGRAM. Press the ENTER button.

PROGRAM ↔ RANDOM

3

Press the ▲/▼/◄/► buttons to select the first track to add to the program. Press the ENTER button. The selection numbers appear in the Program Order box.

PROGRAM 01 Track 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 Program Order -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- ENTER RETURN CLEAR

4

Press the PLAY/PAUSE (▶II) button. The disc will be played in programmed order.

PKUG U CL2-AR INSTANT STEP REPLAY SKIP RETURN MENU INFO

Random Play (CD)

Random Play plays a disc's tracks in random order.

1

Press the PROG button.

PROGRAM ↔ RANDOM

2

Press the ◀/▶ buttons to select RANDOM. Press the ENTER button.

◀ - To return to the previous menu screen, press the RETURN button.
- To cancel the selected program order, press the CLEAR button.
- This unit can support a maximum of 20 programmed tracks.

Note

• Depending on a disc, the Program and Random Play functions may not work.
• While in playback mode, press the CLEAR button on the remote control to cancel Program Play or Random Play.

Adjusting the Aspect Ratio (EZ View)

To play back using aspect ratio (DVD)

Press the EZ VIEW button.

• The screen size changes when the button is pressed repeatedly.
• The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.
• To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the Display Setup menu. (See pages 52 to 53).

ENTER REPEAT A-B SUBTITLE AUDIO ANGLE E2 VIEW REPEAT

WIDE SCREEN E2 VIEW

◀ To make the aspect ratio bar disappear, press the CLEAR button.

If you are using a 16:9 TV

For 16:9 aspect ratio discs

- WIDE SCREEN

Displays the content of the DVD title in 16:9 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Wide

Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

- Vertical Fit

When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan

The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

Note

This function may behave differently depending on the type of disc.

Selecting the Audio Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/VCD/CD/MPEG4)

1

Press the AUDIO button. The Audio changes when the button is pressed repeatedly.

- The audio languages are represented by abbreviations.

ENTER REPEAT A-B SUBTITLE AUDI

DVD

ENG DOLBY DIGITAL 5.1CH AUDIO

When playing a VCD or CD, you can select among Stereo, Right or Left.

VCD/CD

Stereo audio

Press the ◀/▶ buttons to select the desired Audio on a MPEG4 then press the ENTER.

MPEG4

PCM 1/2 < > ENTER

2

To remove the AUDIO icon, press the CLEAR or RETURN button.

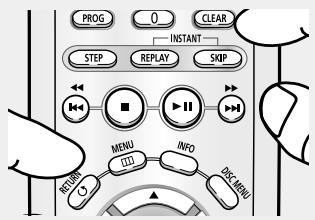

PROG 0 CLEAR INSTANT STEP REPLAY SKIP RETURN MENU INFO DIS/MENU

STEP REPLAY SKIP MENU INFO DEC MENU ENTER

Note

• This function depends on audio languages are encoded on the disc and may not work.
• A DVD disc can contain up to 8 audio languages.
• To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language” on page 48.

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD/MPEG4)

1

Press the SUBTITLE button.

The subtitle changes when the button is pressed repeatedly.

The subtitle languages are represented by abbreviations.

REPEAT A-B SUBTITLE SN

DVD

Off SUBTITLE

Press the ◀/▶ buttons to select the desired subtitle language on a MPEG4 then press the ENTER.

MPEG4

NONE ENTER

2

To remove the SUBTITLE icon, press the CLEAR or RETURN button.

PROG O CLEAR INSTANT STEP REPLAY SKIP MENU INFO DCT MENU

Note

• Depending on DVDs, you have to change the desired subtitle in the Disc Menu. Press the DISC MENU button.
• This function depends on what subtitles are encoded on the disc and may not work on all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 49.

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE button (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

1

Press the ANGLE button, then the ANGLE icon will appear with the current angle number and the number of angles available.

REPEAT A-B SUBTITLE AUDIO ANGLE EZ VIEW SAMSUNG

2

Press the ANGLE button repeatedly to select the desired angle. To remove the ANGLE icon, press the CLEAR or RETURN button.

4/6 ANGOL

Note

If the disc has only one angle, this feature won't work. Currently, very few discs have this feature.

Using the Instant Replay/Skip Function

Using the Instant Replay function (DVD)

If you miss a scene, you can see it again using this function.

Press the INSTANT REPLAY button.

- The current scene moves backward about 10 seconds, and plays back.

7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY MENU INFO

Using the Instant Skip function (DVD)

Use this function to skip playback about 10 seconds ahead of the current scene.

Press the INSTANT SKIP button.

- Playback will skip ahead 10 seconds.

7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP MENU INFO (1)

Note

Depending on the disc, these functions may not work.

Using the Bookmark Function

This feature lets you bookmark sections of a DVD or VCD (Menu Off mode) so you can quickly find them at a later time.

Using the Bookmark Function (DVD/VCD)

1

During play, press the MENU button on the remote control.

RETURN MENU ENTER AS-INPUT

2

Press the ▲/▼ buttons to select Function, then press the ▶ or ENTER button.

Disc Menu Info Zoom Bookmark Repeat EZ View Setup ENTER RETURN MENU

3

Press the ▲/▼ buttons to select Bookmark, then press the ▶ or ENTER button.

Doc Menu Info Zoom Title Menu Bookmark Function Repeat EZ View Setup ENTER RETURN MENU

4

When you reach the scene you want to mark, press the ENTER button. Up to three scenes may be marked at a time.

导入 ( ) ENTER

清 1 - - < > Clear

Note

• When playing VCD 2.0, this function works only when the menu is off.
• Depending on a disc, the Bookmark function may not work.

Recalling a Marked Scene

1\~3

The first 1\~3 steps are the same as those for "Using the Bookmark Function" on page 32.

RETURN MENU 100 TAX MENU ENTER

4

Press the ◀/▶ buttons to select a marked scene.

1 2 3 i > CLEAR

5

Press the PLAY/PAUSE (▶II) button to skip to the marked scene.

INSTANT STEP REPLAY SKIP RETURN ON MENU (12) INFO O

Clearing a Bookmark

1\~3

The first 1\~3 steps are the same as those for “Using the Bookmark Function” on page 32.

Diagram showing a hand interacting with a media control interface, featuring buttons labeled 'MENU' and 'ENTER' with directional arrows.

4

Press the ◀/▶ buttons to select the bookmark number you want to delete.

5

Press the CLEAR button to delete a bookmark number.

4 5 6 7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP

Using the Zoom Function

Using the Zoom Function (DVD/VCD)

1

During play or pause mode, press the MENU button on the remote control.

MENU ENTER

2

Press the ▲/▼ buttons to select Function, then press the ▶ or ENTER button.

Menu Info Zoom Bookmark Repeat EZ View Setup Enter Return MENU

3

Press the ▲/▼ buttons to select Zoom, then press the ▶ or ENTER button.

Menu Info Zoom Title Menu Bookmark Repeat EZ View Function Setup ENTER RETURN MENU

4

Press the ▲/▼ or ◀/► buttons to select the part of the screen you want to zoom in on. Press the ENTER button.

Simple diagram with four arrows pointing outward from a central plus sign (no text or labels)

During DVD play, press ENTER to zoom in 2X/4X/2X/Normal in order. During VCD play, press ENTER to zoom in 2X/Normal in order.

Note

When playing VCD 2.0, this function works only when the menu is off.

DVD AUDIO Playback

1

Open the disc tray.

Place the DVD AUDIO disc on the tray.

• Place the DVD AUDIO disc with the labeled side up.
  Close the tray.
• The tray closes and disc plays.

2

During play, press the INFO button on the remote control.

MENU INFO ENTER

3

Press the ▲/▼ buttons to select the desired item.

DVD-AUDIO

◀ You can select Info in the function menu by pressing the MENU button.

When playing VCD 2.0, this function works only when the menu is off.

◀ You may use the number buttons of the remote control to directly access a Group, Track, Page or to start the playback from the desired time.

4

Press the ◀/▶ buttons to make the desired setup and then press the ENTER button.

ON MRO NO ENTER REPEAT A-B E2 M

5

To make the screen disappear, press the INFO button again.

RETURN MENU INFO ENTER

Note

	(DVD-AUDIO)Most DVD AUDIO discs are recorded in Groups you can change Groups with this Function.Bonus Group playback.Some DVD AUDIO discs have Bonus groups. If you want to play a Bonus group, you must enter the Bonus Group code. The code is usually on the DVD AUDIO disc case.
	(DVD-AUDIO)To access the desired Track when there is more than one on the DVD AUDIO disc.
	(DVD-AUDIO)If pages are included with the DVD-AUDIO disc, you can see this icon.To access the desired page, you can use this Function.
	(DVD-AUDIO)If a slide show is included with the DVD-AUDIO disc, you can see this icon.
	(DVD-AUDIO)If a video zone is included with the DVD-AUDIO disc, you can see this icon.
	(DVD-AUDIO)Allows playback of music from a desired time by using the number buttons.

Page, Index Function

1

Use Page icon of display function to Skip the Page when there is more than one in a group.

• Some DVD-AUDIO discs include a slide show. In the slide show mode, this function can not be used.
• PAGE is still images. You can see the still images when a DVD-AUDIO disc is played back.

RETURN MENU INCH ENTER

Note

Depending on a disc, this function may not work.

REPEAT Play

1

Press the REPEAT button on the remote control. Repeat screen appears.

REPEAT A+B SUBTITLE AUDIO ANGLE EZ VIEW REPEAT SAMSUNG

2

Press the ◀/▶ buttons to select Title, Group, then press the ENTER button.

DVD-AUDIO

Off 01 01 REPEAT ENTER

◀ Title (💡): repeats the title that is playing. Group (💡): repeats the group that is playing.

AUDIO Format Display

1

During DVD AUDIO playback, press the AUDIO button to see AUDIO Format information.

REPEAT A+B SUBTITLE AUDIO EZ VERSI SAMSI

DVD-AUDIO

PPCM 5.1CH

◀ - LPCM : Linear Pulse Code Modulation. Not compressed Audio data format. - PPCM : Packet Pulse Code Modulation. Lossless compressed Audio data format.

Note

Some DVD-AUDIO discs don't allow audio down-mixing.

Clips Menu for MP3/WMA/JPEG/MPEG4

Discs with MP3/WMA/JPEG/MPEG4 contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

Open the disc tray. Place the disc on the tray. Close the tray. The tray closes and this screen displays.

Off ROOT ROOT WMA JPEG MP3 MPEG4 ENTER RETURN MENT Parent Folder, Current Folder and Peer Folders Folders and Files in Current Folder

• : Name of currently playing file.
• : Current Playback Time.
• : Current Playback Mode : There are four modes. They can be selected in order by pressing the REPEAT button.
• Off: Normal Playback
• Track: Repeats the current track.
• Folder: Repeats the current folder.
• Random: Files in the disc will be played in random order.
• MP3 : MP3 file icon.
• WMA : WMA file icon.
• JPG : JPEG file icon.
• AVI : AVI file icon.
• : Folder icon.
• : Current Folder icon.

Folder Selection

The folder can only be selected in the Stop mode.

- To select the Parent Folder

Press the RETURN button to go to the parent folder, or press the ▲/▼ buttons to select “..” and press ENTER to go to the parent folder.

- To select the Peer Folder

Press the ◀/▶ buttons to highlight the left window. Press the ▲/▼ buttons to select the desired folder, then press ENTER.

- To select the Sub-Folder

Press the ◀/▶ buttons to highlight the right window. Press the ▲/▼ buttons to select the desired folder, then press ENTER.

MP3/WMA Playback

1

Open the disc tray. Place the disc on the tray. Close the tray.

Off ROOT ROOT WMA JPEG MP3 MPEG4 ENTER RETURN MENU

2

Press the ▲/▼ or ◀/▶ buttons to select a song file.

Press ENTER to begin playback of the song file.

RETURN MENU INFO ENTER E2 VIEW REPEAT A/R

Off 00:00:23 ROOT WMA JPEG MP3 MPEG4 Because You ... Because You Cactus Bad Dayu Wonderful ENTER RETURN ON/RESET

When a disc that contains both MP3 and WMA files, only one type will play, not both.

Repeat/Random playback

1

Press the REPEAT button to change the playback mode. There are four modes: Off, Track, Folder and Random.

REPEAT A-R SUBTITLE AUDIO ANGLE E2 VIEW REPEAT SAMSUNG

• Off: Normal Playback
• Track: Repeats the current song file.
• Folder: Repeats the song files which have the same extension in the current folder.
• Random: Song files which have the same extension will be played in random order.

To resume normal play, press the CLEAR button.

CD-R MP3/WMA file

When you record MP3 or WMA files on CD-R, please refer to the following.

- Your MP3 or WMA files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used.

- When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension.

General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\=,+).

- Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality.

Conversely, files with decompression rates below 128 Kbps will not be played properly.

- Use a decompression transfer rate of at least 64Kbps when recording WMA files.

Sound quality with WMA files basically depends on the rate of compression/decompression you choose.

Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps.

Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.

- Do not try recording copyright protected MP3 files.

Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media™ (registered trade mark of Microsoft Inc) and SDMI™ (registered trade mark of The SDMI Foundation). You cannot copy such files.

- Important:

The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).

- This unit can play a maximum of 3000 files and 300 folders per disc.

MPEG4 Playback

MPEG4 Play Function

AVI files are used to contain the audio and video data. Only AVI format files with the “.avi” extensions can be played.

1

Open the disc tray. Place the disc on the tray. Close the tray.

Off ROOT ROOT WMA JPEG MP3 MPEG4 ENTER RETURN MENU

2

Press the ▲/▼ or ◀/► buttons to select an avi file (DivX/XviD), then press the ENTER button.

ENTER RESET A-B

Off 00:00:23 ROOT WMA JPEG MP3 MPEG4 ... EBT Wonderful ENTER RETURN MENU

Repeat Playback

1

Press the REPEAT button to change playback mode. There are 4 modes, such as Off, Folder, Title and A-B (a distance between two points appointed by user).

REPEAT A-B SUBTITLE AUDIO ANGLE E2 VIEW REPEAT SAMSUNG

• Folder : Repeats the AVI files which have the same extension in the current folder.
• Title : repeats the title that is playing.
• A-B : repeats a segment of the file that you select.

MPEG4 Function Description

Function	Description	Reference page
Skip(◄◄ or ►►)	During play, press the ◀◄ or ►► button, it moves forward or backward 5 minutes.	-
Search(◄◄ or ►►)	During play, press the SERACH (◄◄ or ►►) button and press again to search at a faster speed. Allows you to search at a faster speed in an AVI file. (2X, 4X, 8X)	-
Slow Motion Play	Allows you to search at a slower speed in an AVI file. (1/8X, 1/4X, 1/2X)	P 18
Step Motion Play	Each time the STEP button is pressed, a new frame will appear.	P 18
ZOOM	2X/4X/2X/Normal in order	P 34

- These functions may not work depending on MPEG4 file.

CD-R AVI file

This unit can play the following video compression formats within the AVI file format:

• DivX 3.11 contents
• DivX 4 contents (Based on MPEG4 Simple Profile)
• DivX 5 contents (MPEG4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.)
• XviD MPEG4 compliant Contents.

This unit supports all resolutions up to maximum below.

DivX3.11 & DivX4 & XviD	DivX5
Bitrate may fluctuate:Device may skip decoding the high bitrate portions and begin decoding again when Bitrate returns to normal.	720 x 480 @30fps720 x 576 @25fps: Maximum bitrate : 4Mbps

Note

• Some MPEG4 files created on a personal computer may not be play back.
  That is why Codec Type, Version and Higher resolution over specification is not supported.
• This unit supports CD-R/RW written in MPEG4 in accordance with the "ISO9660 format".

Picture CD Playback

1

Select the desired folder.

Off ROOT ROOT WMA JPEG MP3 MPEG4 ENTER RETURN MENU

2

Press the ▲/▼ buttons to select a Picture file in the clips menu and then press the ENTER button.

Off ROOT WMA JPEG MP3 MPEG4 ... F20 1 F20 2 F20 3 ENTER RETURN MENU

3

Press the INFO button to display the menu.

Press the ◀/▶ buttons to select the menu you want to view, then press the ENTER button.

Illustration of a flower with visible petals and leaves, enclosed in a decorative border (no text or symbols)

Note

• If no buttons on the remote control are pressed for 10 seconds, the menu will disappear.
• Press the STOP button to return to the clips menu.
• When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.

Album Screen

• : Returns to the Album Screen.
- To see the next six pictures, press the ▶▶| button.
- To see the previous six pictures, press the ◀ button.

Rotation

: Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.

Zoom

: Press the ▲/▼ or ◀/► buttons to select the part of the screen you want to zoom in on.

Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 4X.

$$ (2 X \rightarrow 4 X \rightarrow 2 X \rightarrow \text { Normal }) $$

Slide Show

TIMER: + ENTER RETURN

• : The unit enters slide show mode.

- Before beginning the Slide Show, the picture interval must be set. Press the ◀/▶ buttons to select a desired icon, then press the ENTER button.

• : The pictures change automatically with about a 6 second interval.
• : The pictures change automatically with about a 12 second interval.
• : The pictures change automatically with about a 18 second interval.

Note

• Depending on a file size, the amount of time between each picture may be different from the set interval time.
• If you don't press any button, the slide show will start automatically in about 10 seconds by default.

CD-R JPEG Discs

• Only files with the “.jpg” and “.JPG” extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).
• Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.
• A maximum of 3000 images can be stored on a single CD.
• Kodak Picture CDs are recommended.
• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
• Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.
• Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• QSS Picture CD: The unit may not play QSS Picture CD.
• If the number of files in 1 Disc is over 3000, only 3000 JPEG files can be played.
• If the number of folders in 1 Disc is over 300, only JPEG files in 300 folders can be played

Chapter 5

CHANGING SETUP MENU

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1

With the unit in Stop mode, press the MENU button on the remote control.

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

① Language Setup : Setup of the Language.
② Audio Setup : Setup of the Audio Options.
⑧ Display Setup : Setup of the Display Options. Use to select which type of screen you want to watch and several display options.
④ Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.
⑤ DivX(R) Registration : Please use the Registration code to register this player with the DivX(R) Video On Demand format. To learn more go to www.divx.com/vod.

2

Press the ▲/▼ buttons to access the different features. Press the ▶ or ENTER button to access the sub features.

MENU INFO RETURN C ENTER REPEAT A-B EX VIEW

3

To make the setup screen disappear after setting up, press the MENU button again.

RETURN MENU E2 VIEW ENTER REPEAT E2

Note

Depending on the disc, some Setup Menu selections may not work.

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language

1

With the unit in Stop mode, press the MENU button.

RETURN MENU 127 PICK MENU ENTER

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

3

Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration ENTER RETURN MENU

4

Press the ▲/▼ buttons to select Player Menu, then press the ▶ or ENTER button.

LANGUAGE SETUP Player Menu : English ▶ Disc Menu : English ▶ Audio : English ▶ Subtitle : Automatic ▶ DivX Subtitle : Western ▶

5

Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

PLAYER MENU LANGUAGE Player Menu English Français Deutsch Español Italiano Nederlands ENTER RETURN MENU

• The language is selected and the screen returns to Language Setup menu.
• To make the setup menu disappear, press the MENU button.

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

1

With the unit in Stop mode, press the MENU button.

RETURN MENU CO ENTER RESET

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

3

Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration ENTER RETURN MENU

4

Press the ▲/▼ buttons to select Disc Menu, then press the ▶ or ENTER button.

LANGUAGE SETUP Player Menu : English ▶ Disc Menu : English ▶ Audio : English ▶ Subtitle : Automatic ▶ DivX Subtitle : Western ▶

5

Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

DISC MENU LANGUAGE English Disc Menu Français Deutsch Español Italiano Nederlands Others

◀ - Select “Others” if the language you want is not listed.

• If the selected language is not recorded on the disc, the original pre-recorded language is selected.
• The language is selected and the screen returns to Language Setup menu.
• To make the setup menu disappear, press the MENU button.

Using the Audio Language

1

With the unit in Stop mode, press the MENU button.

MENU RETURN ENTER BSC MENU

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

3

Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Setup ENTER RETURN MENU

4

Press the ▲/▼ buttons to select Audio, then press the ▶ or ENTER button.

LANGUAGE SETUP Player Menu : English ▶ Disc Menu : English ▶ Audio : English ▶ Subtitle : Automatic ▶ DivX Subtitle : Western ▶

5

Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

AUDIO LANGUAGE English Français Deutsch Español Italiano Nederlands Original Others

◀ - Select "Original" if you want the default soundtrack language to be the original language the disc is recorded in.

• Select "Others" if the language you want is not listed.
• If the selected language is not recorded on the disc, the original pre-recorded language is selected.
• The language is selected and the screen returns to Language Setup menu.
• To make the setup menu disappear, press the MENU button.

Using the Subtitle Language

1

With the unit in Stop mode, press the MENU button.

MENU RETURN DEC MENU ENTER

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

3

Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

4

Press the ▲/▼ buttons to select Subtitle, then press the ▶ or ENTER button.

LANGUAGE SETUP Player Menu : English ▶ Disc Menu : English ▶ Audio : English ▶ Subtitle : Automatic ▶ DivX Subtitle : Western ▶

5

Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

SUBTITLE LANGUAGE Automatic English Français Deutsch Español Italiano Nederlands Others

◀ - Select "Automatic" if you want the subtitle language to be the same as the language selected as the audio language.

• Select “Others” if the language you want is not listed. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.
• The language is selected and the screen returns to setup menu.
• To make the setup menu disappear, press the MENU button.

Using the DviX Subtitle Language

1

With the unit in Stop mode, press the MENU button.

MENU RETURN ENTER INS MENU

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

3

Press the ▲/▼ buttons to select Language Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration ENTER RETURN MENU

4

Press the ▲/▼ buttons to select DivX Subtitle, then press the ▶ or ENTER button.

LANGUAGE SETUP Player Menu : English ▶ Disc Menu : English ▶ Audio : English ▶ Subtitle : Automatic ▶ DivX Subtitle : Western ▶ ENTER RETURN MENU

5

Press the ▲/▼ buttons to select the desired language, then press the ▶ or ENTER button.

DivX SUBTITLE LANGUAGE DivX Subtitle Westren Central Greek Cyrilic ENTER RETURN MENU

• The language is selected and the screen returns to setup menu.
• To make the setup menu disappear, press the MENU button.

Western	English, Breton, Catalan, Danish, Dutch, Faroese, Finnish, French, Gaelic, German, Icelandic, Irish, Italian, Norwegian, Portuguese, Spanish and Swedish
Central	English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak, Slovene and Serbian(Latin)
Greek	English and modern Greek
Cyrillic	English, Russian, Bulgarian, Belorussian, Macedonian, Moldavian, Serbian(Cyrillic), Ukrainian

Setting Up the Audio Options

Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

1

With the unit in Stop mode, press the MENU button.

MENU RETURN O C:\MENU ENTER

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

3

Press the ▲/▼ buttons to select Audio Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration ENTER RETURN MENU

4

Press the ▲/▼ buttons to select the desired item, then press the ▶ or ENTER button.

AUDIO SETUP Dolby Digital Out : PCM MPEG-2 Digitla Out : PCM DTS : Off Dynamic Compression : On PCM Down Sampling : On

◀ To make the setup menu disappear, press the MENU button.

① Dolby Digital Out

• PCM : Converts to PCM(2CH) audio.
• Bitstream : Outputs Dolby Digital Bitstream via digital output. Select Bitstream when connecting to a Dolby Digital Decoder.

Note

- There is no analog audio output when you play a DTS disc.

② MPEG-2 Digital Out

• PCM : Converts to PCM(2CH) audio.
• Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH or 8CH). Select Bitstream when using the Digital Audio Output.

③ DTS

• Off : Doesn't output digital signal.
• On : Outputs DTS Bitstream via digital output only. Select DTS when connecting to a DTS Decoder.

④ Dynamic Compression

• On : To select dynamic compression.
• Off : To select the standard range.

⑤ PCM Down Sampling

• On : Select this when the Amplifier connected to the player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ.
• Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case, all signals will be output without any changes.

Note

Even when PCM Down sampling is Off

- Some discs will only output down sampled audio through the digital outputs.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Setting Up the Display Options

Display options enable you to set various video functions of the player.

1

With the unit in Stop mode, press the MENU button.

ENTER DIS MENU

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

3

Press the ▲/▼ buttons to select Display Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration ENTER RETURN MENU

4

Press the ▲/▼ buttons to select the desired item, then press the ▶ or ENTER button.

DISPLAY SETUP TV Aspect : Wide Still Mode : Auto Screen Messages : On Black Level : Off TV System : PAL Video Output : SCART

◀ To make the setup menu disappear, press the MENU button.

① TV Aspect

Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 4:3 Pan Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)
• 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

4:3 Lettre Box 4:3 Pan Scan 16:9 Wide ENTER RETURN MENU

② Still Mode

These options will help prevent picture shake in still mode and display small text clearer.

• Auto : When selecting Auto, Field/Frame mode will be automatically converted.
• Field : Select this feature when the screen shakes in the Auto mode.
• Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

③ Screen Messages

Use to turn on-screen messages On or Off.

④ Black Level

Adjusts the brightness of the screen. (On or Off) It does not function in Progressive mode.

⑤ TV System

- NTSC : In case of using NTSC disc

• If your TV system only has PAL-Video input, you must choose "PAL". When you choose "PAL", Interlace output format is PAL 60 Hz output.

• If your TV system only has NTSC, input you must choose "NTSC".

• PAL : In case of using PAL disc

• If your TV system only has NTSC-Video input, you must choose "NTSC".
• If your TV system only has PAL input, you must choose "PAL".

⑥ Video Output

Select Video Output.

• COMPOSITE/S-VIDEO : Select when you want to use Video and S-Video Out.
• Component (I-SCAN) : Select when you want to use Component Interlace (525i) Out.
• Component (P-SCAN) : Select when you want to use Component Progressive (525p) Out.

• SCART Output : Select when you want to use Scart Out.

• RGB : Select when you want to use SCART RGB Out.
  • Video : Select when you want to use SCART Video Out.

- If the Yes/No selection in the Display Setup sub Menu is not made within 10 seconds, the screen returns to the previous menu.

DISPLAY SETUP TV Aspect : Wide Still Mode : Auto Screen Messages : On Black Level : Off TV System : PAL Video Output : SCART

COMPOSITE/S-VIDEO Component (I-SCAN) Component (P-SCAN) SCART Output RGB S-Video Video

• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
• If Video Output is set incorrectly, the screen may be blocked.

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1

With the unit in Stop mode, press the MENU button.

MENU ENTER ENTER

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Setup ENTER RETURN MENU

3

Press the ▲/▼ buttons to select Parental Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Menu

4

Press the ▶ or ENTER button to select Yes if you want to use a password. The Enter Password screen appears.

PARENTAL SETUP Use Password : No ENTER RETURN MENU

5

Enter your password. The Re-enter Password screen appears to confirm the password. Enter your password again. The player is locked (☐).

CREATE PASSWORD Enter Password ...... 0 - 0 RETURN

CREATE PASSWORD Re-enter Password ****** RETURN

◀ To make the setup menu disappear, press the MENU button.

Setting Up the Rating Level

1

With the unit in Stop mode, press the MENU button.

MENU EXIT DIS MENU ENTER

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Menu

3

Press the ▲/▼ buttons to select Parental Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration ENTER RETURN MENU

4

Enter your password.

PASSWORD CHECK Enter Password **** 0 - 0 RETURN

5

Press the ▲/▼ buttons to select Rating Level, then press the ▶ or ENTER button.

PARENTAL SETUP Use Password : Yes Rating Level : 8 Change Password

6

Press the ▲/▼ buttons to select the Rating Level you want, then press the ▶ or ENTER button. e.g) Setting up in Level 6.

RATING LEVEL Level 8 Adult Level 7 Level 6 Level 5 Level 4 Level 3 Level 2 Level 1 Kids Safe

◀ To make the setup menu disappear, press the MENU button.

For example, if you select up to Level 6, discs that contain Level 7,8 will not play.

Changing the Password

1

With the unit in Stop mode, press the MENU button.

MENU ENTRY ENTER DISCMIN

2

Press the ▲/▼ buttons to select Setup, then press the ▶ or ENTER button.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration

3

Press the ▲/▼ buttons to select Parental Setup, then press the ▶ or ENTER button. The Enter Password screen appears. Enter your password.

Language Setup Audio Setup Display Setup Parental Setup : DivX(R) Registration Setup ENTER RETURN MENU

4

Press the ▲/▼ button to select Change Password, then press the ▶ or ENTER button. Enter your new password. Re-enter the new password again.

PARENTAL SETUP Use Password : Yes Rating Level : 8 Change Password

CHANGE PASSWORD Enter New Password **** 0 - 0 RETURN

CHANGE PASSWORD Re-enter Password ****** RETURN

◀ To make the setup menu disappear, press the MENU button.

Note

If you have forgotten your password, see "Forgot Password" in the Troubleshooting Guide.

Chapter 6

REFERENCE

Firmware upgrade

Introduction

Samsung will often support the software upgrade to improve the performance of this unit to the latest status, through Samsung Internet Site (www.samsung.com).

Because the specially new mpeg4 codec continues and it is appearing. What improvements are made depends on the upgrade software you are using as well as the software that your DVD-player contained before the upgrade.

How to make an upgrade disc

1

You have to download a new file through Download Center of Samsung Internet Site (www.samsung.com).

2

Write the file to Disc using CD-RW of your computer.

Note

• File System CD-ROM ISO Level
• Character set ISO 9660
• Finalized, single session
• Write speed low

Upgrade procedure

1

Open the disc tray. Place the disc on the tray. Close the tray. The Firmware upgrade screen appears.

Firmware upgrade Old Version : TRINO*178*040904 New Version : TRINO*178*041212 Cancel Total everyone's invited

Firmware upgrade appears on the display

2

Press the ◀/▶ buttons to select Total, then press the ENTER button.

Firmware upgrade Old Version : TRINO*178*040904 New Version : TRINO*178*041212 Cancel Total SAMSUNG DIGITAL Now Leading... every 1st Caution !!! When the tray is opened Do not turn off the player until it goes off automatically

Firmware upgrade starts

3

Press the number buttons to select the desired language.

SELECT MENU LANGUAGE Press 1 for English Touche 2 pour Français Drücken Sie 3 für Deutsch Pulsar 4 para Español Premere 5 per Italiano Druk op 6 voor Nederlands

• In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes.
• If the unit was successfully updated, the unit will turn off and on after closing the tray automatically.
  When the unit turns on, this screen will display.

Note

• If the "Select Menu Language" doesn't appear, please contact to "Samsung Service Center".
• Do not press any button and unplug the power code during upgrade.
• The upgrade procedure may change, refer to the web site (www.samsung.com).

Troubleshooting

Before requesting service (troubleshooting), please check the following.

Problem	Action	Page
No operations can be performed with the remote control.	Check the batteries in the remote control.They may need replacing.Operate the remote control at a distance of no more than 20 feet.Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it.Reinstal batteries and try to operate the remote control again.	P4
Disc does not play.	Ensure that the disc is installed with the label side facing up.Check the region number of the DVD.	P7
5.1 channel sound is not being reproduced.	5.1 channel sound is reproduced only when the following conditions are met.:1) The DVD player is connected with the proper Amplifier2) The disc is recorded with 5.1 channel sound.Check whether the disc being played has the “5.1 ch” mark on the outside.Check if your audio system is connected and working properly.In a SETUP Menu, is the Audio Output set to Bitstream?	P16P51~52
The ∅ icon appears on screen.	The features or action cannot be completed at this time because:1. The DVD’s software restricts it.2. The DVD’s software doesn’t support the feature (e.g., angles).3. The feature is not available at the moment.4. You’ve requested a title or chapter number or search time that is out of range.
Disc Menu doesn’t appear.	Check if the disc has a Menu.
Play mode differs from the Setup Menu selection.	Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.	P45~57
The screen ratio cannot be changed.	The Screen Ratio is fixed on your DVDs.	P53~54
No audio.	Make sure you have selected the correct Digital Output in the Audio Options Menu.	P51~52
The screen is blocked	Press the ➤ button for more than 5 seconds under no disc inside.All settings will revert to the factory settings.	P17
Forgot password	Press the ➤ button for more than 5 seconds under no disc inside.All settings including the password will revert to the factory settings.Don’t use this unless absolutely necessary.	P55~57
If you experience other problems.	Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.If the problem still cannot be solved, please contact your nearest authorized service center.
The picture is noisy or distorted	Make sure that the disc is not dirty or scratched.Clean the disc.	P2

Specifications

General	Power Requirements	AC 230 V, 50 Hz
	Power Consumption	10 W
	Weight	1.7 Kg
	Dimensions	430mm (W) X 207mm (D) X 42mm (H)
	Operating Temperature Range	+5°C to +35°C
	Operating Humidity Range	10 % to 75 %
Disc	DVD(DIGITAL VERSATILE DISC)	Reading Speed: 3.49 ~ 4.06 m/sec.Approx. Play Time(Single Sided, Single Layer Disc): 135 min.
	CD: 12Cm(COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 74 min.
	CD: 8Cm(COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 20 min.
	VCD: 12Cm	Reading Speed: 4.8 ~ 5.6 m/sec.Maximum Play Time: 74 min. (Video + Audio)
Video Output	Composite Video	1 channel: 1.0 Vp-p (75 load)
	SCART Jack	R(Red): 0.7 Vp-p (75 load)G(Green): 0.7 Vp-p (75 load)B(Blue): 0.7 Vp-p (75 load)Composite Video: 1.0 Vp-p (75 load)Luminance Signal: 1.0 Vp-p (75 load)Color Signal: 0.3 Vp-p (75 load)
	Component Video	Y: 1.0 Vp-p (75 load)Pr: 0.70 Vp-p (75 load)Pb: 0.70 Vp-p (75 load)
	S-VIDEO	Luminance Signal: 1.0 Vp-p (75 load)Chrominance Signal: 0.3 Vp-p (75 load)
Audio Output	SCART Jack	2 Channel: L(1/L), R(2/R)
	2 Channel	L(1/L), R(2/R)
	*Frequency Response	48 kHz Sampling: 4 Hz to 22 kHz96 kHz Sampling: 4 Hz to 44 kHz
	*S/N Ratio	110 dB
	*Dynamic Range	100 dB
	*Total Harmonic Distortion	0.004 %

*: Nominal specification

• Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice.
• Weight and dimensions are approximate.

MEMO

SAMSUNG

ELECTRONICS

Vorsichtsmaßnahmen

1. Gerät aufstellen

Hand holding a device with a black X mark and wavy lines below, no text or symbols present

CAUTION	LASER RADIATION WHEN OPENDO NOT STARE INFO BEAM
ATTENTION	RAYONEMENT LASER EN CAS D'OUVERTURE.NE PAS REGARDER DANS LE FAISCEAU.
VORBSICHT	LASERSTRAHLUNG, WENN ABDECKUNGEÖFFNET, NICHT IN DEN STRAHL BLICKEN.
ADVARSEL	LASERSTRALING VED ÅBNING.SE IKKE IND I STRÅLEN.,
WARNING	LASERSTRALING NÄR DENNA DEL ÄRÖPPNAD. STIRRA EJ IN STRÅLEN.
VARO!	AVATTAESSA OLET ALTINALASERSÄTELYLLE. ÄLÄ TUJUOTA SÄTEESEEN.
WAARSCHYWING	LASERSTRALING INDIEN GEOPEND,KÜK NIET IN DE STRAAL..

Illustration showing various symbols and icons including crossed-out leaves, a sun, a person, a pencil, a handbag, and a money bag, suggesting themes of environmental or social issues.

Illustration of two hands performing a medical or therapeutic procedure with a cross symbol (no text or labels present)

4. CDs/DVDs

Diagram showing a battery with a switch and a trash bin marked with a black X, indicating a process or safety symbol.

Illustration of a remote control panel with a black arrow pointing to the interior (no text or symbols)

2

Technical illustration of a remote control device showing internal components (no text or symbols)

3

Diagram of a remote control panel with an arrow indicating left-side motion (no text or symbols)

PROGRESSIVE SCAN OUTPUTS (525p/625p)

WIEDERGABE MIT PROGRESSIVER ABTASTRATE (525p/625p) "DER BENUTZER WIRD DARAUF HINGEWIESEN, DASS NICHT ALLE HOCHAUFLÖSENDEN FERNSEHGERÄTE VOLLSTÄNDIG MIT DIESEM PRODUKT KOMPATIBEL SIND, UND DASS ES DAHER BEI DER WIEDERGABE ZUM AUFTRETEN VON ARTEFAKTEN KOMMEN KANN. FALLS BEI DEN MODELLEN 525p ODER 625p PROBLEME BEI DER WIEDERGABE MIT PROGRESSIVER ABTASTUNG AUFTRETEN, WIRD EMPFOHLEN, DIE AUSGABE AUF "STANDARD DEFINITION" UMZUSCHALTEN. BEI FRAGEN ZUR KOMPATIBILITÄT IHRES FERNSEHGERÄTES MIT DEN DVD-PLAYER-MODELLEN 525p UND 625p WENDEN SIE SICH BITTE AN DEN KUNDENDIENST VON SAMSUNG."

88.8:88.88 1 2

Illustration of a CD or DVD disc with an arrow pointing downward (no text or symbols)

3

POWER DVD V I O E D OPEN/CLOSE 1 2 3 4 5 6 7 8 9

6

ENTER REPEAT A-8 SUBTITLE AUDIO ANGLE EZ VIEW REPEAT

4

4 7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP

- Normal Wide (Normale Breite)

ENTER REPEAT A-B SUBTITLE AUDIO

DVD

ENG DOLBY DIGITAL 5.1CH AUDIO

REPEAT A-B SUBTITLE SN

DVD

Aus SUBTITLE

7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY MENU INFO (1)

1 ... < > CLEAR

Hinweis

1 2 3 i > CLEAR

5

4 5 6 7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP

Pure diagram of four arrows pointing outward from a central circle, no text or symbols present

REPEAT A-B SUBTITLE AUDD EZ U/R SAMSI

DVD-AUDIO

PPCM 5.1CH

Illustration of a flower with visible petals and leaves, enclosed in a decorative border (no text or symbols)

Albumfenster

Black-and-white line drawing of a flower with visible petals and leaves, enclosed in a frame (no text or symbols)

Western	English, Breton, Catalan, Danish, Dutch, Faroese, Finnish, French, Gaelic, German, Icelandic, Irish, Italian, Norwegian, Portuguese, Spanish und Swedish
Central	English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak, Slovene und Serbian(Latin)
Greek	English und modern Greek
Cyrillic	English, Russian, Bulgarian, Belorussian, Macedonian, Moldavian, Serbian(Cyrillic), Ukrainian

Firmware upgrade Old Version : TRINO*178*040904 New Version : TRINO*178*041212 Cancel Total everyone's invited

Firmware upgrade Old Version : TRINO*178*040904 New Version : TRINO*178*041212 Cancel Total SAMSUNG DIGITAL New Loading... every 4"CAUTION !!!" When the tray is opened Do not turn off the player until it goes off automatically

Illustration showing various symbols and icons including crossed-out arrows, a sun, a pencil, a hand holding a magnifying glass, and a money bag with a briefcase.

4. Disque

Diagram showing a battery with a switch and a recycling bin marked with a black X symbol, indicating a recycling or disassembly process.

Illustration of a remote control panel with a black arrow pointing to the interior (no text or symbols)

2

Technical line drawing of a remote control device with internal components (no text or symbols)

3

Diagram of a remote control panel with an arrow indicating left-side motion (no text or symbols)

Inscriptions relatives aux disques

1. Bouton SUBTITLE

2. Bouton OPEN/CLOSE ( ▲ )

Illustration of a DVD disc with a downward arrow indicating compression or disassembly (no text or symbols present)

3

POWER DVD V I D E O OPEN/CLOSE 1 2 3 4 5 6 7 8 9

6

ENTER REPEAT A-8 SUBTITLE AUDIO ANGLE EZ VIEW REPEAT

4

7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP

4 5 6 7 8 PROG REPLAY SKIP

2

Ecran Large EZ HENS

REPEAT A-B SUBTITLE SN

DVD

Non SUBTITLE

7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY MENU INFO LTI

清 1 - - < > = CLEAR

Remarque

Diagram showing a hand interacting with a media control interface, featuring buttons labeled 'MENU', 'ENTER', and 'RETURN', with directional arrows indicating action.

4

4 5 6 7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP

Pure diagram of four arrows pointing outward from a central plus sign, no text or symbols present

REPEAT A+B SUBTITLE AUDIO EZ VIDE SAMSI

DVD-AUDIO

PPCM 5.1CH

ENTER REPEAT A-B

Non 00:00:23 ROOT WMA JPEG MP3 MPEG4 ... EGT Wonderful ENTER RETURN MENU

Lecture répétée

1

Illustration of a black-and-white flower with visible petals and stem, enclosed in a gray border (no text or symbols)

Ecran album

Illustration of a flower with visible petals and leaves, no text or symbols present

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1

Firmware upgrade Old Version : TRINO*178*040904 New Version : TRINO*178*041212 Cancel Total SAMSUNG RIOFT full everyone's invited_

Firmware upgrade Old Version : TRINO*178*040904 New Version : TRINO*178*041212 Cancel Total SAMSUNG DIGITAL Now Loading... ever #CAUTION !!! When the tray is opened Do not turn off the player until it goes off automatically

Diagram illustrating three types of electronic devices with 10cm labels and a hand holding a switch, all marked with black X symbols.

CAUTION	LASER RADIATION WHEN OPENDO NOT STARE INFO BEAM
ATTENTION	RAYONEMENT LASER EN CAS D'OUVERTURE.NE PAS REGARDER DANS LE FAISCEAU.
VÖRBSICHT	LASERSTRAHLUNG, WENN ABDECKUNGEÖFFNET, NICHT IN DEN STRAHL BLICKEN.
ADVARSEL	LASERSTRÄLING VED ÄBNING.SE IKKE IND I STRÄLEN.,
VARNING	LASERSTRÄLING NÄR DENNA DEL ÄRÖPPNAD. STIRRA EJ IN STRÄLEN.
VARO!	AVATTASSA OLET ALTTINA LASERSÄTELYLLE. ÄLÄ TUJUOTA SÄTEESEEN.
WAARSCHYWING	LASERSTRALING INDIEN GEOPEND,KÜK NIET IN DE STRAAL.

CLASS 1 LASER PRODUCT

Illustration showing various symbols and icons including crossed-out leaves, a sun, a pencil, a hand holding a pen, and a money bag with scissors.

Four-panel illustration showing hands performing a manual manipulation or disassembly process (no text or symbols)

5. Batterij

Diagram showing a battery and a trash bin with a crossed-out symbol, indicating a recycling or disposal process.

Illustration of a remote control panel with a black arrow pointing to the interior (no text or symbols)

2

Technical illustration of a remote control device showing internal components (no text or symbols)

3

Diagram of a remote control panel with an arrow indicating left-side motion (no text or symbols)

Specifications....60

Garantie....61

Hoofdstuk 1

INSTELLINGEN

Algemene kenmerken

88.8:88.88 1 2

Illustration of a CD or DVD disc with a downward arrow indicating compression (no text or symbols)

3

POWER DVD V I O E D OPEN/CLOSE 1 2 3 4 5 6 7 8 9

6

Hand interacting with a media control interface showing playback controls and navigation buttons

2

ENTER REPEAT A-8 SUBTITLE AUDIO ANGLE EZ VIEW REPEAT

4

4 7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP

PROGRAMMA WILLEKEURIG

3

PROGRAMMA ◆ WILLEKEURIG

2

Druk op ◀/▶ om

WILLEKEURIG te selecteren.

PROG 0 CLEAR INSTANT STEP REPLAY SKIP MENU INFO CONTINUO DISH

STEP REPLAY SKIP MENU INFO DCT MENU ENTER

Opmerking

REPEAT A-B SUBTITLE SN

DVD

Off SUBTITLE

7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY MENU INFO OXY

4 5 6 7 8 9 PROG 0 CLEAR INSTANT STEP REPLAY SKIP ← ← → ↓

De functie Zoom

Pure diagram of four arrows pointing outward from a central plus sign, no text or symbols present

REPEAT A+B SUBTITLE AUDIO EZ VIDE SAMSI

DVD-AUDIO

PPCM 5.1CH

◀ - LPCM : Linear Pulse Code Modulation. Niet gecomprimeerd audiogegevens- formaat.

- PPCM : Packet Pulse Code Modulation. Lossless gecomprimeerd audiogegevensformaat.

Opmerking

Illustration of a black-and-white flower with visible petals and stem, enclosed in a gray border (no text or symbols)

Diashow (Slide Show)

Illustration of a flower with visible petals and leaves, enclosed in a frame (no text or symbols)

Western	English, Breton, Catalan, Danish, Dutch, Faroese, Finnish, French, Gaelic, German, Icelandic, Irish, Italian, Norwegian, Portuguese, Spanish en Swedish
Central	English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak, Slovene en Serbian(Latin)
Greek	English en modern Greek
Cyrillic	English, Russian, Bulgarian, Belorussian, Macedonian, Moldavian, Serbian(Cyrillic), Ukrainian

③ Meldingen via TV (Screen Messages)

④ Zwarting (Black Level)

Firmware upgrade Old Version : TRINO*178*040904 New Version : TRINO*178*041212 Cancel Total everyone's invited-

Firmware upgrade Old Version : TRINO*178*040904 New Version : TRINO*178*041212 Cancel Total SAMSUNG DIGITAL Now Loading... ever #CAUTION !!! When the tray is opened Do not turn off the player until it goes off automatically
