USER MANUAL DVD-P181 SAMSUNG

Allow you to search forward/backward through a

scene. ) button to skip to the marked Effacement d’un signet

Press Upgrade procedure

- Refer to the identification label located on the rear of your player for its proper operating voltage. - Install your player in a cabinet with adequate ventilation holes. (7~10cm) Do not block ventilation holes on any of the components for air circulation. - Do not push the disc tray in by hand. - Do not stack components. - Be sure to turn all components off before moving the player. - Before connecting other components to this player, be sure to turn them off. - Be sure to remove the disc and turn off the player after use, especially if you don’t use it for a long time. - The mains plug is as a disconnect device and shall stay readily operable at any time.

- This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. - Do not open covers and do not repair yourself. Refer servicing to qualified personal.

- Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only. - Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. - Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally. - When condensation forms inside the player due to sharp changes in temperature, the player may not operate

correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

- Do not clean with record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface. - Do not touch the disc’s signal surface. Hold by the edges or by one edge and the hole in the center. - Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

5. Environmental info

- The battery used in this product contains chemicals that are harmful to the environ ment. - So, dispose of batteries in the proper man ner, according to federal, state, and local regulations. The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3. CAUTION: USE OF ANY CONTROLS,

ADJUSTMENTS, OR PROCEDURES OTHER

THAN SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE. Remote Control Video/Audio Cable User’s Manual Install Batteries in the Remote control

1. Open the battery cover on the back of the remote

2. Insert two AAA batteries.

Make sure that the polarities (+ and -) are aligned correctly.

3. Replace the battery cover.

• If remote control doesn’t operate properly: - Check the polarity + - of the batteries (Dry-Cell) - Check if the batteries are drained. - Check if remote control sensor is blocked by obstacles. TABLE OF CONTENT Precautions p. 2
• Before you start p. 3
• Setup General Features p. 4
• Disc Type and Characteristics p. 5
• Description p. 6
• Tour of the Remote Control p. 8
• Connections Choosing a Connection p. 9
• Basic Functions Playing a Disc p. 12
• Using the Search and Skip Functions p. 13
• Using the Display Function p. 13
• Using the Disc and Title Menu p. 13
• Repeat Play p. 14
• Slow Play p. 14
• Advanced Functions Adjusting the Aspect Ratio (EZ View) p. 15
• Selecting the Audio Language p. 15
• Selecting the Subtitle Language p. 16
• Changing the Camera Angle p. 16
• Using the Bookmark Function p. 16
• Using the Zoom Function p. 17
• Clips Menu for MP3/WMA/JPEG/ CD Audio/MPEG4 p. 17
• Folder Selection p. 17
• MP3/WMA/CD Audio Playback p. 17
• MPEG4 Playback p. 18
• Picture CD Playback p. 19
• Changing Setup Menu Using the Setup Menu p. 20
• Setting Up the Language Features p. 20
• Setting Up the DivX Options p. 21
• Setting Up the Audio Options p. 22
• Setting Up the Display Options p. 22
• Setting Up the Parental Control p. 23
• Reference Firmware Upgrade p. 25
• Troubleshooting p. 26
• Specifications - Check if there is any fluorescent lighting nearby. p. 27

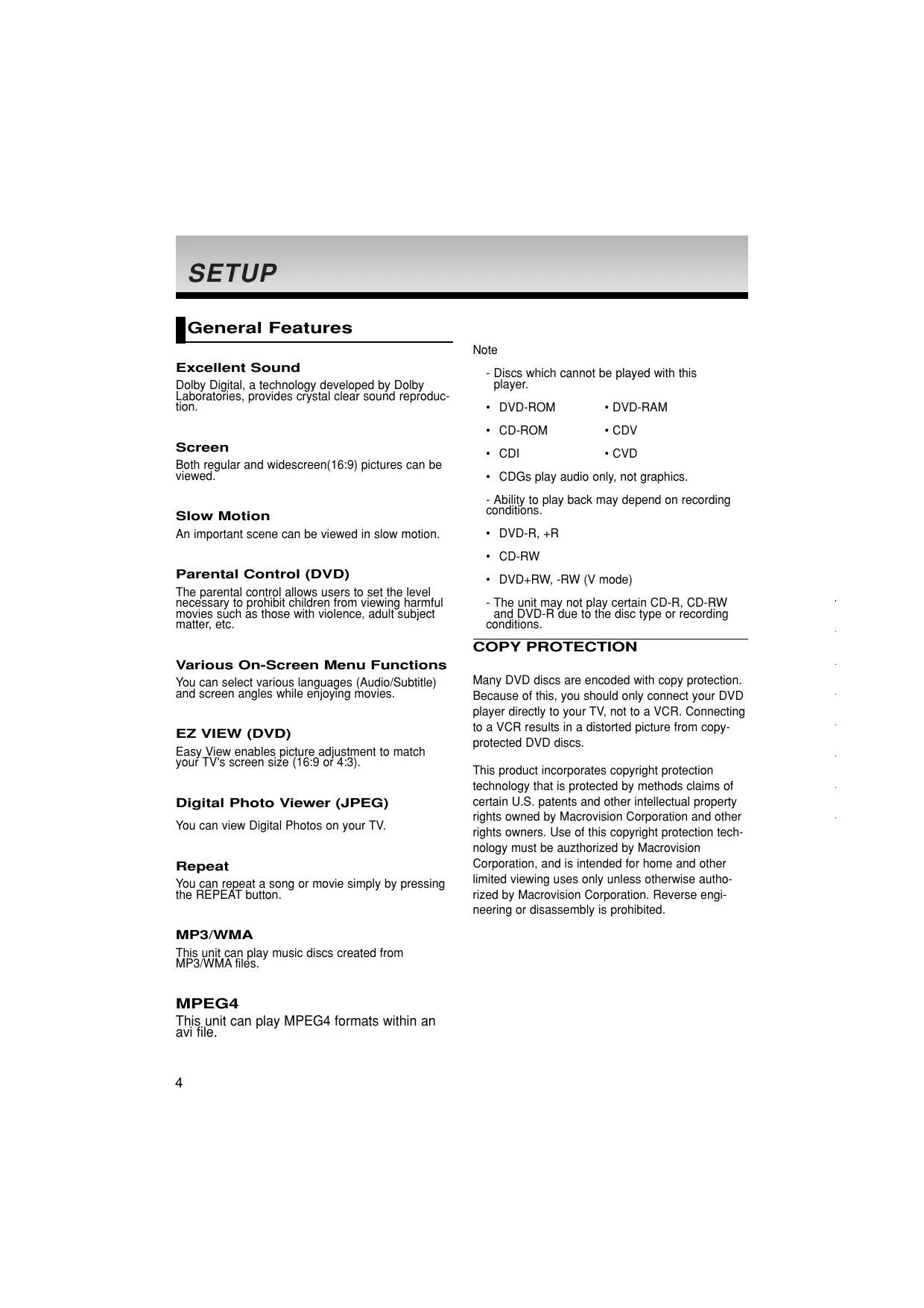

English BEFORE YOU STAR T SETUP General Features Note Excellent Sound Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction. Screen Both regular and widescreen(16:9) pictures can be viewed. Slow Motion An important scene can be viewed in slow motion. - Discs which cannot be played with this player.

• CDGs play audio only, not graphics. - Ability to play back may depend on recording conditions.
• CD-RW Parental Control (DVD) The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

• DVD+RW, -RW (V mode) - The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions. COPY PROTECTION Various On-Screen Menu Functions You can select various languages (Audio/Subtitle) and screen angles while enjoying movies. EZ VIEW (DVD) Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3). Digital Photo Viewer (JPEG) You can view Digital Photos on your TV. Repeat You can repeat a song or movie simply by pressing the REPEAT button. MP3/WMA This unit can play music discs created from MP3/WMA files. MPEG4 This unit can play MPEG4 formats within an avi file.

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copyprotected DVD discs. This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be auzthorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Disc Type and Characteristics Disc Types (Logos) Recording Types DVD Audio Video AUDIO-CD Disc Size Max. Playing Time Characteristics 12 Cm Single-sided 240 min. Double-sided 480 min. 8 Cm Single-sided 80 min. Double-sided 160 min. - DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system. - Various screen and audio functions can be easily selected through the on-screen menu. 12 Cm 74 min. 8 Cm 20 min. Audio Disc Markings

PAL Play Region Number PAL broadcast system in U.K, France, Germany, etc. Dolby Digital disc STEREO DIGITAL SOUND Stereo disc - CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time. Region Number Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is described on the rear panel of the player. Digital Audio disc DivX Certification DTS disc DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license. MP3 disc You must only insert one DVD disc at a time. Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player.

English This DVD player is capable of playing the following types of discs with the corresponding logos: Description Front Panel Controls

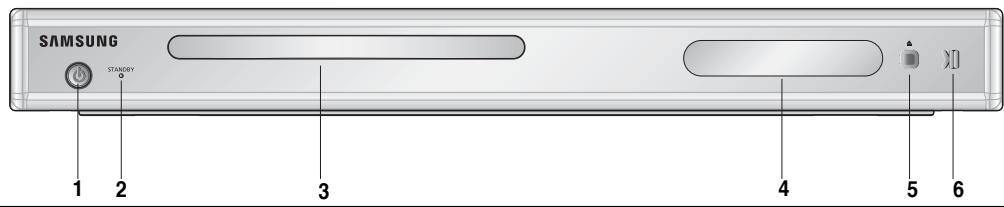

STANDBY/ON ( ) When STANDBY/ON is pressed on, the indicator goes out and the player is turned on. STANDBY indicator When the unit is first plugged in, this indicator lights. DISC TRAY Place the disc here.

DISPLAY Operation indicators are displayed here. OPEN/CLOSE /STOP ( ) Stops disc play. Press to open and close the disc tray. PLAY/PAUSE ( Begin or pause disc play. Front Panel Display Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ... nodSC: No disc loaded. OPEn: The disc tray is open. LOAd: Player is loading disc information.

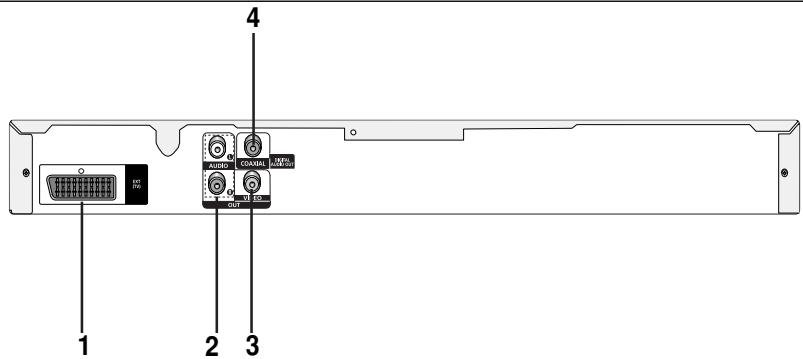

SCART JACK - Connect to a TV scart input jack.

- Connect to the Audio input jacks of your television or audio/video receiver.

- Use a video cable to connect to the Video input jack on your television.

- Use either coaxial digital cable to connect to a compatible Dolby Digital receiver. - Use either coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder. Note - See pages 22-23 to get more information on how to use the setup menu.

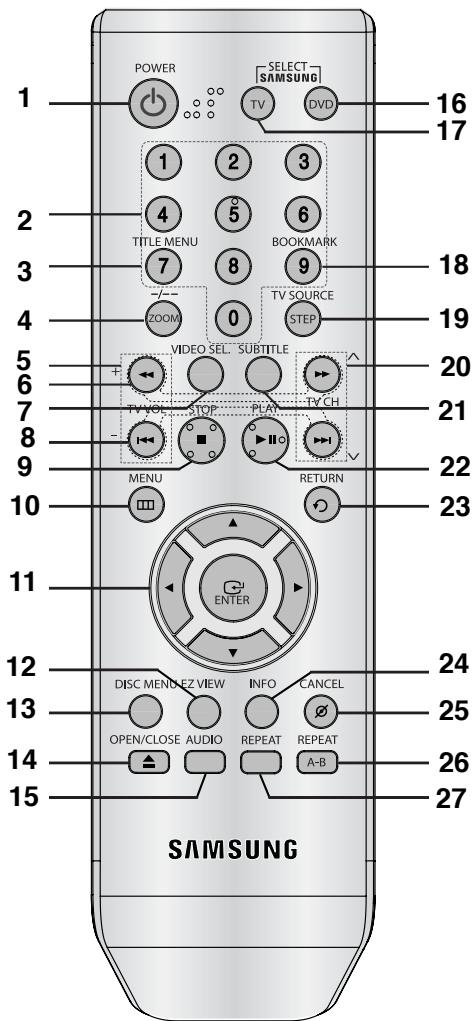

Tour of the Remote Control

Use to skip the title, chapter or track. STOP Button (

Use to stop playback.

This button functions as a toggle switch.

The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3)

) Button To open and close the disc tray

Use this button to access various audio functions on a disc.

Quickly find bookmark sections of a DVD.

19. STEP /TV SOURCE Button

Advances play one frame at a time.

Use to change channel.

Use to change subtitle.

Begin/Pause disc play.

DVD Power Button Turns the power on or standby. NUMBER Buttons Use to input the value of operationg needed. (Example : find track, chapter, etc.). TITLE MENU (number 7) Button Brings up the Title menu. ZOOM/-/-- Button Enlarge DVD Picture Use this button to select the channel of TV program by inserted the channel number (TV mode). TV VOLUME TV VOL(+,-) button.

Allows you to repeat A-B disc.

Allows you to repeat play a title, chapter, track, or disc. CONNECTIONS The following shows examples of connections commonly used to connect the DVD player with a TV and other components. Before Connecting the DVD Player - Always turn off the DVD player, TV, and other components before you connect or disconnect any cables. - Refer to the user’s manual of the additional components (such as a TV) you are connecting for more information on those particular components. Connecting to a TV (SCART) - Using the SCART, connect the SCART (EXT) terminal on the rear of the DVD Player to the SCART(IN) terminal of your TV. - If your TV is not equipped with a SCART you can select one of the following alterative connections: Connection to a TV (Video CVBS)

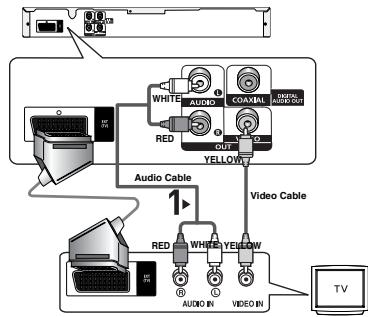

Using video/audio cables, connect the VIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of TV.

WHITE RED YELLOW Audio Cable Turn on the DVD player and TV. Video Cable RED WHITE YELLOW

Press the TV/VIDEO button on the TV's remote control to select Video. Note - Noise may be generated if the audio cable is too close to the power cable. - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 10 to 11) - The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV. - If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player. - If you press the VIDEO SEL. button when DVD Player is in stop mode or no disc is inserted, the Video Output mode changes in the following sequence: (SCART RGB ➝ SCART CVBS).

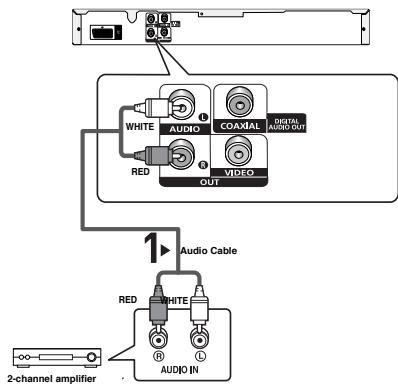

English Choosing a Connection Connection to an Audio System (2 Channel Amplifier)

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

Using the video signal cable(s), connect the VIDEO terminals on the rear of the DVD player to the VIDEO terminal of your TV. WHITE RED Audio Cable

Turn on the DVD player, TV, and Amplifier. RED WHITE 2-channel amplifier

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Note - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. - Please set the audio in the menu screen according to the Amplifier. (See pages 10 to 11). - The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

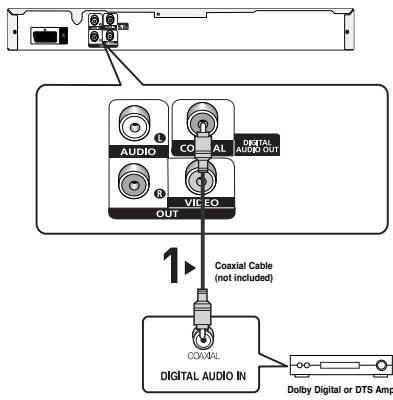

English If using an optical cable (not included), connect the DIGITAL AUDIO OUT terminal on the rear of the DVD player to the DIGITAL AUDIO IN ( terminal of the Amplifier. If using a coaxial cable (not included), connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

Using the video signal cable(s), connect the VIDEO terminals on the rear of the DVD player to the VIDEO terminal of TV.

Coaxial Cable (not included) Dolby Digital or DTS Amp Turn on the DVD player, TV, and Amplifier.

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Note - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. - Please set the audio in the menu screen according to the Amplifier. (See pages 22) - The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

BASIC FUNCTION Playing a Disc Before Play - Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control. - If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input. After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

1. Press the OPEN/CLOSE ( ) button. The STANDBY

indicator light goes out and the tray opens.

2. Place a disc gently into the tray with the disc’s label facing

up. - You must only insert one disc at a time. Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player.

3. Press the PLAY/PAUSE ( ) button or OPEN/ CLOSE

( ) button to close the disc tray. - When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE ( ) button again, it will pick up where you left off. (unless the disc is removed or the player is unplugged, or if you press the STOP ( ) button twice.)

Press the STOP ( ) button during play.

Press the OPEN/CLOSE ( ) button.

Press the PLAY/PAUSE ( ) or STEP button on the remote control during play. - Screen stops, no sound. To resume, press the PLAY/PAUSE ( ) button once again.

7. Step Motion Play (Except CD)

Press the STEP button on the remote control during play. - Each time the button is pressed, a new frame will appear. - No sound is heard during STEP mode. - Press the PLAY/PAUSE ( ) button to resume normal play. - You can only perform step motion play in the forward direction.

Press and hold the SEARCH ( ) button to choose the play speed between 1/2, 1/4, 1/8 and 1/16 of normal during PAUSE or STEP mode. - No sound is heard during slow mode. - Press the PLAY/PAUSE ( ) button to resume normal play. Note - If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE ( ) button to resume normal play. - If the player is left in the stop mode for more than about 30 minutes, the power will automatically shut off. (Automatic Power-Off Function) - If the player is left for about 5 minutes in pause mode, it will stop. - This ( ) icon indicates an invalid button press. Note To access the desired title when there is more than one on the disc. For example, if there is more than one movie on a DVD, each movie will be identified. During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection. Most DVD discs are recorded in chapters so that you can quickly find a specific passage. Searching through a Chapter or Track Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs. During play, press the SEARCH ( or ) button on the remote control for more than 1 second. DVD 2X, 4X, 64X, 128X

2X, 4X, 8X Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks. Note - The speed marked in this function may be different from the actual speed of playback. - No sound is heard during search mode (Except CD). Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles. To access the desired Angle function. Some DVD discs are have more angle function from any picture. Skipping Tracks During play, press the SKIP (

button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter. - When playing a CD, if you press the SKIP ( ) button, it moves to the next track. If you press the SKIP (

button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track. Using the Disc and Title Menu Using The Disc Menu

1. During play, press the INFO button on the remote control.

2. Press the ›/‚buttons to select the desired item.

3. Press the ¥/Š buttons to make the desired setup and then

press the ENTER button. - You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from the desired time. Note - Depending on a disc, the Disc Menu may not work. - You can also access the Disc Menu by pressing the DISC MENU button on the remote control.

English Using the Search and Skip Functions Repeat Play Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. When playing a DVD DVD repeat play by chapter, title. - Chapter : repeats the chapter that is playing. - Title : repeats the title that is playing. - Disc : repeats the disc that is playing. - Off Chapter Note - A-B REPEAT does not allow you to set point (B) directly after point (A) has been set. - Depending on the disc, the Repeat function may not work. Slow Play This feature allows you to repeat scenes slowly containing sports, dancing, musical instruments being played etc., so you can study them more closely. When playing a DVD Title Chapter Disc Chapter Off Chapter Using the A-B Repeat function

1. Press the REPEAT A-B button on the remote control at the

point where you want repeat play to start (A).

2. Press the REPEAT A-B button on the remote control at

the point where you want the repeat play to stop (B).

3. To return to normal play, press REPEAT A-B button

1. During play, press the PLAY/PAUSE (

2. Press the SEARCH ( ) button repeatedly to choose

the play speed between 1/2, 1/4,1/8,1/16 of normal during PAUSE mode. If you are using a 4:3 TV Adjusting the Aspect Ratio (EZ View) To play back using aspect ratio (DVD) Press the EZ VIEW button. - The screen size changes when the button is pressed repeatedly. - The screen zoom mode operates differently depending on the screen setting in the Display Setup menu. - To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the Display Setup menu. (See pages 22 to 23). 4:3 Pan&scan Wide Sreen TV If you are using a 16:9 TV For 16:9 aspect ratio discs - WIDE SCREEN Displays the content of the DVD title in 16:9 aspect ratio. - SCREEN FIT The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.) - ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. For 4:3 aspect ratio discs - NORMAL WIDE Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched. - SCREEN FIT The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged. - VERTICAL FIT When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched. For 16:9 aspect ratio discs - 4:3 LETTER BOX Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen. - 4:3 PAN & SCAN The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed. - SCREEN FIT The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. For 4:3 aspect ratio discs - NORMAL SCREEN Displays the content of the DVD title in 4:3 aspect ratio. - SCREEN FIT The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged. Note This function may behave differently depending on the type of disc. Selecting the Audio Language You can select a desired audio language quickly and easily with the AUDIO button. Using the AUDIO button

1. Press the AUDIO button. The Audio changes when the

button is pressed repeatedly. The audio languages are represented by abbreviations. DVD ENG Dolby 2 CH Press the Audio button on the remote control repeatedly to select the desired audio on MPEG4 then press the ENTER.

English ADVANCED FUNCTIONS Note - This function depends on audio languages are encoded on the disc and may not work. - A DVD disc can contain up to 8 audio languages. - To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language” on page

Selecting the Subtitle Language You can select a desired subtitle language quickly and easily with the SUBTITLE button. Using the Bookmark Function This feature lets you bookmark sections of a DVD so you can quickly find them at a later time. Using the Bookmark Function (DVD)

1. During play, press the Bookmark button on the remote

control. DVD Bookmark Using the SUBTITLE button (DVD) Play

1. Press the SUBTITLE button. The subtitle languages are

represented by abbreviations. The subtitle changes when the button is pressed repeatedly. Clear

2. When you reach the scene you want to mark, press the

ENTER button. Up to12 scenes may be marked at a time. DVD Bookmark TT:01 CH:05 Time 0:39:23 English

2. To remove the SUBTITLE icon, press the CANCEL or

RETURN button. Note - You can change the desired subtitle in the Disc Menu, according to discs. Press the DISC MENU button. - This function depends on what subtitles are encoded on the disc and may not work on all DVDs. - A DVD disc can contain up to 32 subtitle languages. - To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 21. Changing the Camera Angle When a DVD contains multiple angles of a particular scene, you can use the ANGLE function. Using the ANGLE Function (DVD). If the disc contains multiple angles, ANGLE will appear on the screen. Play Clear Note - Depending on a disc, the Bookmark function may not work. Recalling a Marked Scene

1. During play, press the bookmark button on the remote

2. Press the ›/‚¥/Š buttons to select a marked scene.

3. Press the ¥/Š buttons or you can use the number buttons

on the remote control to select the desired angle.

3. Press the PLAY/PAUSE (

scene. Clear ) button to skip to the marked Clearing a Bookmark

1. During play, press the Bookmark button on the remote

2. Press the ›/‚¥/Š buttons to select the bookmark number you want to delete.

3. Press the CANCEL button to delete a bookmark number.

1. During play, press INFO button on the remote control.

Using the Zoom Function (DVD) - During DVD play or pause mode, press ZOOM button on the remote control repeatedly to zoom in by 2X/3X/4X. Clips Menu for

: current file icon English Using the Zoom Function Folder Selection Discs with MP3/WMA/JPEG/MPEG4 contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders. - To select the Parent Folder Press the RETURN button to go to parent folder, or press the ‚ buttons to select “..” and press ENTER to go to the parent folder. MP3/WMA/CD Audio Playback 001/004 Off Open the disc tray. Place the disc on the tray. Close the tray. The tray closes and this screen displays.

1. Open the disc tray. Place the disc on the tray. Close the tray.

- Only one kind of file is played back when a disc or a folder contains both MP3 and WMA files. ‚ buttons to select a song file.

Press ENTER to begin playback of the song file. 00:01 03:12 Off

001/004 128kbps : Current Playback Mode : There are four modes. They can be selected in order by pressing the REPEAT button. - Off: Normal Playback - Track: Repeats the current track. - Folder: Repeats the current folder. - Random: Files in the disc will be played in random order. track 1 track 2 track 3 track 4 Repeat/Random playback Press the REPEAT button to change the playback mode. There are four modes, such as Off, Track, Folder and Random. - Off: Normal Playback - Track: Repeats the current song file. - Folder: Repeats the song files which have the same extension in the current folder. - Random: Song files which have the same extension will be played in random order.

CD-R MP3/WMA file When you record MP3 or WMA files on CD-R, please refer to the following. - Your MP3 or WMA files should be ISO 9660 or JOLIET format. ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used. - When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension. General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+). - Use a decompression transfer rate of at least 128 Kbps when recording MP3 files. Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly. - Use a decompression transfer rate of at least 64Kbps when recording WMA files. Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly. - Do not try recording copyright protected MP3 files. Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media (registered trade mark of Microsoft Inc) and SDMI (registered trade mark of The SDMI Foundation). You cannot copy such files. - Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files). - This unit can play a maximum of 500 files and 500 folders per disc.

MPEG4 Playback MPEG4 Play Function AVI files contain the audio and video data format files. This player can play AVI file with “.avi&.DivX” extensions.

1. Open the disc tray. Place the disc on the tray.

Close the tray. ‚ or ¥/Š Š buttons to select an avi file

(DivX/XviD), then press the ENTER button. 001/005 Off Repeat Playback Press the REPEAT button to change playback mode. There are 4 modes, such as Off, Folder and Title. - Folder : Repeats the AVI files which have the same extension in the current folder. - Title : repeats the title that is playing. MPEG4 Function Description

During play, press the button, it moves forward or backward 5 minutes. During play, press the SEARCH ( ) button and press again to search at a faster speed. Allows you to search at a faster speed in an AVI file. (2X, 4X, 8X) Allows you to search at a slower speed in an AVI file. (1/2X, 1/4X, 1/8X, 1/16X) Each time the STEP button is pressed, a new frame will appear.

P 12 P 12 - These functions may not work depending on MPEG4 file. CD-R AVI file This unit can play the following video compression formats within the AVI file format: - DivX 3.11 contents - DivX 4 contents (Based on MPEG4 Simple Profile) - DivX 5 contents (MPEG4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.) - XviD MPEG4 compliant Contents. This unit supports all resolutions up to maximum below. DivX5 Zoom Bitrate may fluctuate: 720 x 480 @30fps Device may skip decoding the 720 x 576 @25fps - Each time number 7 is pressed, the picture is enlarged. zoom mode : 100% -125%-150%-200%-100% . high bitrate portions and begin : Maximum bitrate : 4Mbps Slide show decoding again when Bitrate returns to normal. Note - Some MPEG4 files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification is not supported. - This unit supports CD-R/RW written in MPEG4 in accordance with the “ISO9660 format”. - When you press the ENTER/PLAY at JPEG file,it will go to full screen mode and automaically slide show. Note - Depending on a file size, the amount of time between each picture may be different from the manual. - If you don’t press any button, the slide show will start automatically in about 10 seconds by default. CD-R JPEG Discs Picture CD Playback

1. Select the desired folder.

‚ buttons to select a Picture file in the clips

menu and then press the ENTER button. Rotation - Each time the ¥/Šbutton is pressed, the picture rotates 90 degrees clockwise. - Each time the › button is pressed, the picture rotates 180 degrees. - Only files with the “.jpg” and “.JPG” extensions can be played. - If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played. - Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played. - The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +). - Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment. - A maximum of 500 images can be stored on a single CD. - Kodak Picture CDs are recommended. - When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played. - When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played. - Kodak Picture CD: The JPEG files in the pictures folder can be played automatically. - Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu. - Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu. - QSS Picture CD: The unit may not play QSS Picture CD. - If the number of files in 1 Disc is over 500, only 500 JPEG files can be played. - If the number of folders in 1 Disc is over 500, only JPEG files in 500 folders can be played. - Each time the ‚ button is pressed, the picture changes to the mirror appearance.

English DivX3.11 & DivX4 & XviD CHANGING SETUP MENU Using the Setup Menu The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have. Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

1. Press the MENU button on the remote control. Use the ¥/Š

buttons to select Setup, then press the ‚ or ENTER button. .. Language Setup Player Menu Disc Menu Audio Subtitle Setting Up the Language Features If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie. Using the Player Menu Language

1. Press the MENU button.

2. Press the ¥/Š buttons to select Language Setup, then

then press ENTER button. - The language is selected and the screen returns to Language Setup page. - To make the setup menu disappear, press the MENU button .. Language Setup Player Menu Disc Menu Audio Subtitle Page .. .. ENG ENG ORI AUTO English Français Deutsch Español Italiano Nederlands Page .. .. ENG ENG ORI AUTO Using the Disc Menu Language ❶ Language Setup page: Setup of the Language. ❷ Audio Setup page: Setup of the Audio Options. ❸ Display Setup page: Setup of the Display Options. Use to select which type of screen you want to watch and several display options. ❹ Parental Setup page: Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc. ❺ DivX(R) page : Please use the Registration code to register this player with the DivX(R) Video On Demand format. To learn more go to www.divx.com/vod.

2. Press the ¥/Š buttons to access the different features.

Press the ‚ or ENTER button to access the sub features.

3. To make the setup screen disappear after setting up, press

the MENU button again. This function changes the text language only on the disc menu screens.

1. Press the MENU button.

2. Press the ¥/Š buttons to select Language Setup, then

2. Press the ¥/Š buttons to select Language Setup, then

press the ENTER button. - Select “Original” if you want the default soundtrack language to be the original language the disc is recorded in. - If the selected language is not recorded on the disc, the original pre-recorded language is selected. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. .. Language Setup Page .. .. Player Menu ENG Disc Menu ENG Audio ORI Subtitle AUTO Using the DivX Subtitle Language 1.Press the MENU button.

2. Press the ¥/Š buttons to select Language Setup, then

then press the ENTER button. - Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio language. - Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting. - The language is selected and the screen returns to setup menu. - To make the setup menu disappear, press the MENU button.

1. With the unit in stop mode, press the menu butoon.

4. Please record your registration number and visit

www.divx.com/vod. DivX(R) Video on demand your registration code is: XR3YJ4HZ http://www.divx.com/vod

Note - Press ok will make the registration code window disappear. - Divx VoD can only be accessed at stop mode.

English Using the Audio Language Setting Up the Audio Options Audio Options allow you to setup the audio device and sound status, depending on the audio system in use.

press the Š or ENTER button. Note Even when PCM Down sampling is Off

• Some discs will only output down sampled audio through the digital outputs.
• To make the Setup menu disappear, press the MENU button. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. .. Audio Setup Page .. Dolby Digital Out MPEG2 Digital Out Dynamic Compression PCM Down Sampling PCM PCM

press the Š or ENTER button. .. Display Setup Page .. Tv Aspect Wide Screen Message Video Output RGB Black Level Off TV System PAL ❶ TV Aspect Depending on the type of television you have, you may want to adjust the screen setting (aspect ratio). - 4:3 Pan&Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.) - 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplied. When you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen. - 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

4:3 Pan&Scan 4:3 letter Box 16:9 Wide ❷ Screen Message Use to turn on-screen messages On or Off. Setting Up the Parental Control The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc. Setting Up the Rating Level

1. With the unit in Stop mode, press the MENU button.

❸ Video Output Select Video Output. - SCART RGB : Select when you want to use Scart RGB output from scart connection. - SCART-CVBS : Select when you want to Use Scart CVBS output from scart connection.

• If you press the VIDEO SEL. button, Video output mode is changed in regular sequence in no disc mode. (SCART CVBS -> SCART RGB).
• If the Yes/No selection in the Display Setup sub Menu is not made within 10 seconds, the screen returns to the previous menu.

.. Display Setup Page .. Tv Aspect 4:3 PS Screen Message Video Output RGB Black Level Off TV System PAL Scart-RGB Scart-CVBS .. Parental Page .. Parental Password ❹ Black Level Adjusts the brightness of the screen.(On or Off). It can only be accessed when the unit is set to “Auto” or “NTSC” in TV System Settings. ‚ buttons to select the Rating Level you want,

then press the ENTER button. e.g) Setting up in KID SAFE ➎ TV System - NTSC : In case of using NTSC disc

• If your TV system only has PAL-Video input, you must choose “PAL”. When you choose “PAL”, Interlace output format is PAL 60 Hz output.
• If your TV system only has NTSC, input you must choose “NTSC ”. - PAL : In case of using PAL disc
• If your TV system only has NTSC-Video input, you must choose “NTSC”.
• If your TV system only has PAL input, you must choose “PAL ”. .. Parental Page .. Parental Password 1 KID SAFE 3 PG 4 PG 13 5 PGR 7 NC17 8 ADULT Cancelar

5. Enter your password.

English .. Display Setup Page .. Tv Aspect Screen Message Video Output RGB Black Level Off TV System PAL Note ❶ KID SAFE ❷ G(General Audiences) : All Ages Admitted ❸ PG(Parental Guidance suggested): Some material may not be suitable for young children. ❹ PG-13 (PG-13-Parents strongly cautioned) : Some material may be inapproriate for children under 13 ❺ PGR ( parental guidance Recommended): These are not necessarily unsuitable for children, but viewer discretion is advised, and parents and guardians are encouraged to supervise younger viewers. ❻ R( Restricted): Under 17 requires accompanying adult ❼ NC17( NC-17) : No one 17 and under admitted ❽ Adult Note

• If you select up to Level 6, discs that contain Level 7 and 8 will not play.
• To make the setup menu dissapear, press the MENU button. Changing the Password

4. Press Change, then the Enter password screen appear.

Enter your current password (defauld password is 0000), then enter your new password twice. Old Password New Password Confirm Password Cancel Note If you have forgotten your password, see “Forgot Password” in the Troubleshooting Guide.

Cancelar REFERENCE Introduction Samsung will often support the software upgrade to improve the performance of this unit to the latest status, trough the samsung Internet Site (www.samsung.com) 2.Press enter or play to start upgrade. - Press any other key to cancel upgrade back to Samsung logo and eject the disc. English Firmware upgrade Upgrade file detected Curent version: 07.12.15.00 Upgrade ? Press Play to start File copying Firmware upgrade stars Because the specially new mpeg4 codec continues to appear more often. What improvements are made depends on the software upgrade you are using as well as the software that your DVDplayer contained before the upgrade. Upgrade file detected Curent version: 07.12.15.00 Upgrade ? Press Play to start Upgrade Firmware upgrade stars How to make an upgrade disc Write the downloaded file onto a blank CD-R or CDRW disc, using the following settings: - In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes. - If the unit was successfully updated, the unit will turn off and on after closing the tray automatically. When the unit turns on, this screen will display.

1. Download the upgrade trough the Download

2. Write the file to disc using CD-RW driver of your

voor Nederlands computer. Note - File system CD-ROM - Chracteer set ISO 9660 - Finalized, single session - Write speed low 3.Press the number buttons to select the desired language Note Update procedure 1.Open the disc tray. Place disc the on the tray. close the tray. The Firmware Upgrade screen appears. - If the “Select Menu Language” doesn’t appear, please contact the “Samsung Service Center. - If the unit was successfully updated, the unit will turn off and on after closing the tray automatically. - Do not press any button or unplug the power cord during upgrade. - The upgrade procedure may change, refer to the web site( www.samsung.com) Upgrade file detected Curent version: 07.12.15.00 Upgrade ? Press Play to start Firmware upgrade appears on the display

Troubleshooting Before requesting service (troubleshooting), please check the following. Action Problem Page No operations can be performed with the remote control.

• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.

• Ensure that the disc is installed with the label side facing up.

5.1 channel sound is

not being reproduced. The icon appears on screen.

• 5.1 channel sound is reproduced only when the following conditions are met. :

1) The DVD player is connected with the proper Amplifier

2) The disc is recorded with 5.1 channel sound.

• Check whether the disc being played has the “5.1 ch” mark on the outside.
• Check if your audio system is connected and working properly.
• In the SETUP Menu, is the Audio Output set to Bitstream?
• The features or action cannot be completed at this time because:

1. The DVD’s software restricts it.

2. The DVD’s software doesn’t support the feature (e.g., angles).

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

P10-11 P22-23 Disc Menu doesn’t appear. • Check if the disc has a Menu. Play mode differs from the Setup Menu selection.

• Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function. P20~24 The screen ratio cannot be changed.

• The Screen Ratio is fixed on your DVDs. P22-23 No audio.

• Make sure you have selected the correct Digital Output in the Audio Options Menu. P22-23 The screen is blocked

• Press the button for more than 5 secondswhen no disc is inserted. All settings will revert to the factory settings. P12 Forgot password

• Press the button for more than 5 seconds when no disc is inserted. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary. P26 If you experience other problems. The picture is noisy or distorted

• Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.
• If the problem still cannot be solved, please contact your nearest authorized service center.
• Make sure that the disc is not dirty or scratched.

*: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice. - Weight and dimensions are approximate.

4HIS MARKING SHOWN ON THE PRODUCT OR ITS LITERATURE INDICATES THAT IT SHOULD NOT BE DISPOSED WITH OTHER HOUSEHOLD WASTES AT THE END OF ITS WORKING LIFE 4O PREVENT POSSIBLE HARM TO THE ENVIRONMENT OR HUMAN HEALTH FROM UNCONTROLLED WASTE DISPOSAL PLEASE SEPARATE THIS FROM OTHER TYPES OF WASTES AND RECYCLE IT RESPONSIBLY TO PROMOTE THE
