• Connections ■■ Connecting VHF and UHF Antennas p. 9
• ■■ Connecting Cable TV p. 9
• ■■ Connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via HDMI p. 11
• ■■ Connecting a DVD /Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via DVI p. 11
• ■■ Connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via Component cables p. 12
• ■■ Connecting a Camcorder p. 12
• ■■ Connecting a VCR p. 13
• ■■ Connecting a Digital Audio System p. 14
• ■■ Connecting a PC p. 14
• PC Display ■■ Using Your TV as a Computer (PC) Display p. 33
• ■■ Display Modes p. 33
• Channel Control ■■ Storing Channels p. 19
• ■■ Managing Channels Symbol Press p. 19

Note One-Touch Button Tools English - 4 BN68-02426A_Eng.indb 4 2009-09-10 2:58:06 Connecting and Preparing Your TV List of Features

Adjustable picture settings that can be stored in the TV’s memory. Automatic timer to turn the TV on and off. A special sleep timer. V-Chip function. Excellent Digital Interface & Networking : With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-Top Box) needed.

• • HDMI/DVI connection of your PC to this TV.

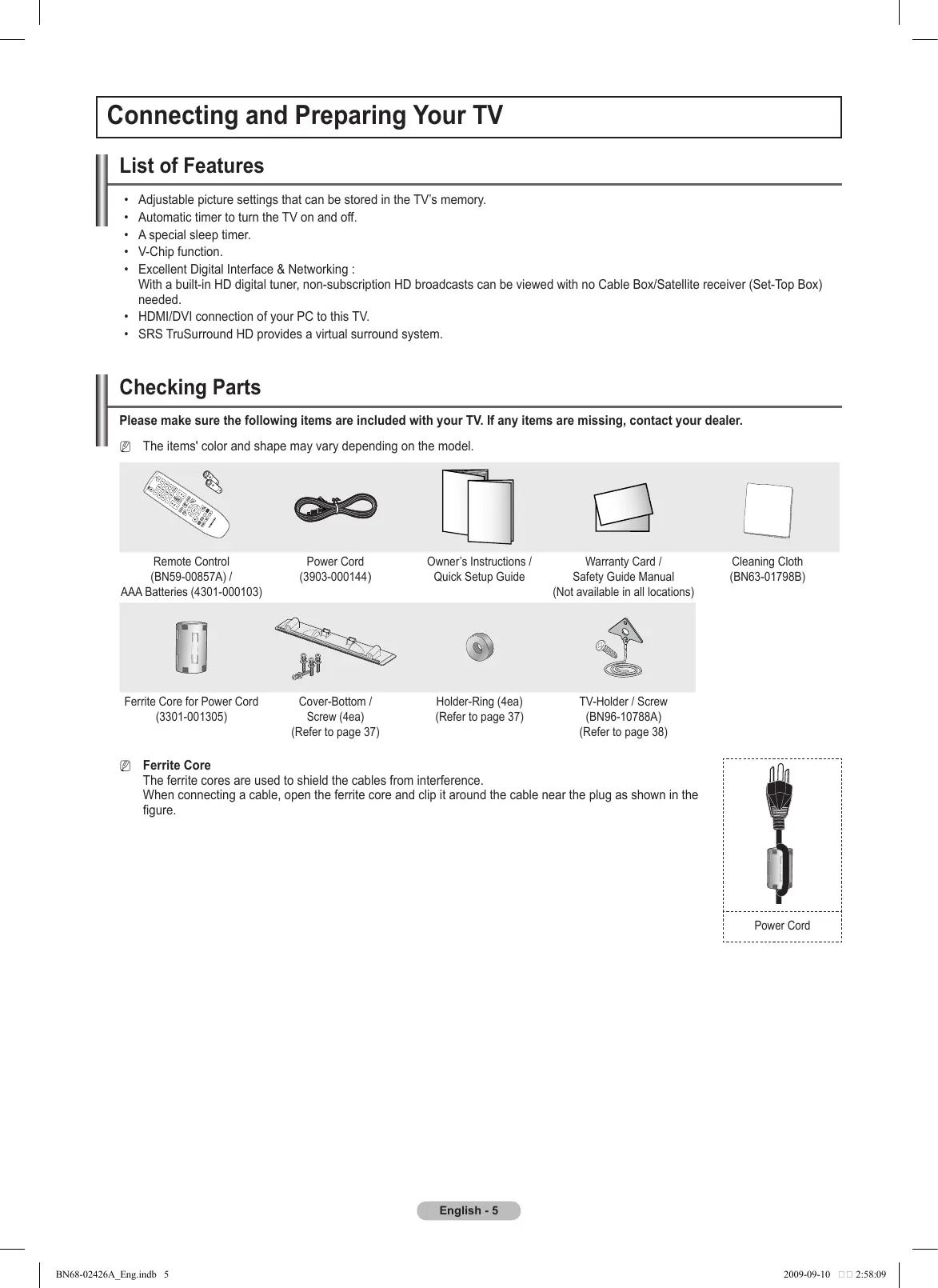

• • SRS TruSurround HD provides a virtual surround system. Checking Parts Please make sure the following items are included with your TV. If any items are missing, contact your dealer. NN The items' color and shape may vary depending on the model. Remote Control (BN59-00857A) / AAA Batteries (4301-000103) Power Cord (3903-000144) Owner’s Instructions / Quick Setup Guide Warranty Card / Safety Guide Manual (Not available in all locations) Ferrite Core for Power Cord (3301-001305) Cover-Bottom / Screw (4ea) (Refer to page 37) Holder-Ring (4ea) (Refer to page 37) TV-Holder / Screw (BN96-10788A) (Refer to page 38) Cleaning Cloth (BN63-01798B) The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure. Power Cord English - 5 BN68-02426A_Eng.indb 5 2009-09-10 2:58:09 Viewing the Control Panel The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. NN The product color and shape may vary depending on the model. NN If you touch the front panel button, the each button will be operated. 1 SOURCE E Toggles between all the available input sources (TV, AV, Component, HDMI1/DVI, HDMI2). In the on-screen menu, use this button as you use the ENTERE button on the remote control. 2 MENU Press to see an on-screen menu of your TV’s features. 3 + VOL – Press to increase or decrease the volume. In the on-screen menu, use the + VOL – buttons as you would use the ◄ and ► buttons on the remote control. 4 < CH > Press to change channels. In the on-screen menu, use the < CH > buttons as you would use the ▲ and ▼ buttons on the remote control. 5 POWER INDICATOR Blinks and turns off when the power is on and lights up in stand-by mode. 6 P (POWER) Press to turn the TV on and off.

7 REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV. 8 SPEAKERS English - 6 BN68-02426A_Eng.indb 6 2009-09-10 2:58:09 Viewing the Connection Panel Use the connection panel jacks to connect A/V components that will be connected continuously, such as Blu-Ray DVD Players or a VCR. NN The product color and shape may vary depending on the model. TV Rear Panel 1 POWER IN Connects the supplied power cord.

6 DVI AUDIO IN

Connect to the DVI audio output jack of an external device. 2 SERVICE Used for service only.

7 COMPONENT IN / AV IN

Connects Component video / audio. The COMPONENT IN jack is also used as the AV IN jack. 3 DIGITAL AUDIO OUT (OPTICAL) Connects to a Digital Audio component. NN Connect the video cable to the COMPONENT IN 4 ANT IN Uses a 75Ω Coaxial connector for an Air/Cable Network.

5 HDMI IN 1(DVI), 2

Connect to the HDMI jack of a device with an HDMI output. -- HDMI 1 can also be used as a DVI connection with separate analog audio inputs. An optional HDMI/DVI cable will be necessary to make this connection. [Y/VIDEO] jack and the audio cable to the COMPONENT IN [R-AUDIO-L] jacks. 8 EX-LINK Used for service only. English - 7 BN68-02426A_Eng.indb 7 2009-09-10 2:58:10 Remote Control You can use the remote control up to a distance of about 23 feet from the TV. NN The product color and shape may vary depending on the model. NN The performance of the remote control may be affected by bright light. 1 POWER Turns the TV on and off. # TV Selects the TV mode directly. 2 NUMERIC BUTTONS Press to change the channel. $ PRE-CH Tunes to the previous channel.

Press to select additional channels (digital Press to change channels. and analog) being broadcast by the same ^ MENU station. For example, to select channel Displays the on-screen menu. “54-3”, press “54”, then press “ ” and “3”. & FAV.CH MUTE Press to switch to your favorite channels. Press to temporarily cut off the sound.

• RETURN VOL Returns to the previous menu. Press to increase or decrease the volume. ( EXIT SOURCE Press to exit the menu. Press to display and select the available video sources. ) CC Controls the caption decoder. CH LIST Used to display Channel Lists on the screen. a MTS Press to choose stereo, mono or Separate TOOLS Audio Program (SAP broadcast). Use to quickly select frequently used functions.

P▲ / DOWN▼ / LEFT◄ /

9 U RIGHT► / ENTER Use to select on-screen menu items and change menu values. 0 INFO Press to display information on the TV screen. ! COLOR BUTTONS Use these buttons in the Channel list. @ P.SIZE Picture size selection. ❑❑ Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. NN Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Close the cover as shown in the figure. NN Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. (Assuming typical TV usage, the batteries should last for about one year.) NN If the remote control doesn’t work, check the following

Is the TV power on? Are the plus and minus ends of the batteries reversed? Are the batteries drained? Is there a power outage or is the power cord unplugged? Is there a special fluorescent light or neon sign nearby? English - 8 BN68-02426A_Eng.indb 8 2009-09-10 2:58:11 Connections Connecting VHF and UHF Antennas If your antenna has a set of leads that look like this, see “Antennas with 300 Ω Flat Twin Leads” below. If your antenna has one lead that looks like this, see “Antennas with 75 Ω Round Leads.” If you have two antennas, see “Separate VHF and UHF Antennas.” ❑❑ Antennas with 300 Ω Flat Twin Leads If you are using an off-air antenna (such as a roof antenna or rabbit ears) that has 300 Ω twin flat leads, follow the directions below.

1. Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied).

Use a screwdriver to tighten the screws.

2. Plug the adaptor into the ANT IN terminal on the back of the TV.

ANT IN ❑❑ Antennas with 75 Ω Round Leads ANT IN Plug the antenna lead into the ANT IN terminal on the back of the TV. ❑❑ Separate VHF and UHF Antennas If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

1. Connect both antenna leads to the combiner.

2. Plug the combiner into the ANT IN terminal on the bottom of the back panel.

UHF VHF ANT IN UHF VHF Connecting Cable TV To connect to a cable TV system, follow the instructions below. ❑❑ Cable without a Cable Box Plug the incoming cable into the ANT IN terminal on the back of the TV. ANT IN NN Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels. ❑❑ Connecting to a Cable Box that Descrambles All Channels

1. Find the cable that is connected to the ANT OUT terminal on your cable box.

NN This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”. ANT IN ANT OUT

2. Connect the other end of this cable to the ANT IN terminal on the back of the TV.

ANT IN Continued... English - 9 BN68-02426A_Eng.indb 9 2009-09-10 2:58:13 ❑❑ Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of Antenna cable. (These items are available at most electronics stores.)

1. Find and disconnect the cable that is

connected to the ANT IN terminal on your cable box. NN This terminal might be labeled “ANT IN”, “VHF IN” or simply, “IN”. ANT IN

2. Connect this cable to a two-way splitter.

3. Connect an Antenna cable between the

OUTPUT terminal on the splitter and the IN terminal on the cable box.

4. Connect an Antenna cable between the ANT

OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch. Incoming cable Splitter Splitter Cable Box Incoming cable Splitter RF (A/B) Switch Cable Box

5. Connect another cable between the other

OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch. Incoming cable Splitter Cable Box

6. Connect the last Antenna cable between the

OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV. RF (A/B) Switch TV Rear Incoming cable Splitter ANT IN RF (A/B) Switch After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.) English - 10 BN68-02426A_Eng.indb 10 2009-09-10 2:58:14 Connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via HDMI This connection can only be made if there is an HDMI Output jack on the external device. This connection will provide the highest quality picture.

Connect an HDMI Cable between the HDMI IN 1(DVI) or 2 jack on the TV and the HDMI jack on the DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box). TV Rear Panel DVD/Blu-Ray Player or Cable Box / Satellite receiver 1 HDMI Cable (Not supplied) NN What is HDMI?

• • HDMI, or high-definition multimedia interface, is an interface that enables the transmission of digital audio and video signals using a single cable.
• • The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed. NN Each DVD Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. NN The TV may not output sound and pictures may be displayed with abnormal color when DVD / Blu-Ray Player or Cable Box / Satellite receiver supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 1(DVI) jack and the audio cables to the DVI AUDIO IN jacks on the back of the TV. If this happens, contact the company that provided the DVD / Blu-Ray Player or Cable Box / Satellite receiver to confirm the HDMI version, then request an upgrade. NN HDMI cables that are not 1.3 may cause annoying flicker or no screen display. Connecting a DVD /Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via DVI This connection can only be made if there is a DVI Output jack on the external device.

Connect a HDMI/DVI Cable or DVI-HDMI Adapter between the HDMI IN 1(DVI) jack on the TV and the DVI jack on the DVD / Blu-Ray Player or Cable Box/Satellite receiver (Set-Top Box). Connect Audio Cables between the DVI AUDIO IN jack on the TV and the DVD / Blu-Ray Player or Cable Box / Satellite receiver. TV Rear Panel DVD/Blu-Ray Player or Cable Box / Satellite receiver 2 Audio Cable (Not supplied) 1 HDMI/DVI Cable (Not supplied) NN Each DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. NN When connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. NN When using an HDMI / DVI cable connection, you must use the HDMI IN 1(DVI) jack. English - 11 BN68-02426A_Eng.indb 11 2009-09-10 2:58:16 Connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) via Component cables The rear panel jacks on your TV make it easy to connect a DVD/Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) to your TV.

Connect Component Cable between the COMPONENT IN [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD / Blu-Ray Player or Cable Box / Satellite receiver(Set-Top Box). Connect Audio Cables between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD / BluRay Player or Cable Box / Satellite receiver (Set-Top Box). TV Rear Panel DVD / Blu-Ray Player or Cable Box / Satellite receiver 2 Audio Cable (Not supplied) 1 Component Cable (Not supplied) NN Component video separates the video into Y (Luminance (brightness)), PB (Blue) and PR (Red) for enhanced video quality. NN Each DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration. NN When connecting a DVD / Blu-Ray Player or Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. Connecting a Camcorder The side and rear panel jacks on your TV make it easy to connect a camcorder to your TV. ❑❑ Using an HDMI Cable

1. Connect an HDMI Cable between the HDMI IN 1(DVI) or 2 jack on the TV and the HDMI jack on the camcorder.

TV Rear Panel Camcorder 1 HDMI Cable (Not supplied) NN Each Camcorder has a different back panel configuration. English - 12 BN68-02426A_Eng.indb 12 2009-09-10 2:58:18 Connecting a VCR ❑❑ Video Connection These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 9~10). Skip step 1 if you have not yet connected to an antenna or a cable system.

1. Unplug the cable or antenna from the back of the TV.

2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

3. Connect an Antenna Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.

4. Connect a Video Cable between the AV IN [Y/VIDEO] jack on the TV and the VIDEO OUT jack on the VCR.

5. Connect Audio Cables between the AV IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the VCR

TV Rear Panel VCR Rear Panel

Antenna cable (Not supplied) 5 Audio Cable (Not supplied) 4 Video Cable (Not supplied) NN If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to connect to the right and left audio input jacks of the TV. Alternatively, connect the cable to the “R” jack. If your VCR is stereo, you must connect two cables. NN Each VCR has a different back panel configuration. NN When connecting a VCR, match the color of the connection terminal to the cable. NN When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow). English - 13 BN68-02426A_Eng.indb 13 2009-09-10 2:58:19 Connecting a Digital Audio System The rear panel jacks on your TV make it easy to connect a Digital Audio System(Home theater/Receiver) to your TV.

Connect an Optical Cable between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input (OPTICAL) jacks on the Digital Audio System. When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack : Decrease the volume of the TV, and adjust the volume level with the system’s volume control. TV Rear Panel Digital Audio System Optical Cable (Not supplied) NN 5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH. NN Each Digital Audio System has a different back panel configuration. NN When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Blu-Ray player or Cable/ Satellite Box directly to an Amplifier or Home Theater, not the TV. Connecting a PC ❑❑ Using an HDMI Cable

Connect an HDMI/DVI cable between the HDMI IN 1(DVI) jack on the TV and the PC output jack on your computer. Connect a 3.5 mm Stereo plug to 2RCA cable between the DVI AUDIO IN jack on the TV and the Audio Out jack of the sound card on your computer. TV Rear Panel

2 3.5 mm Stereo plug (Not supplied) 1 HDMI/DVI Cable (Not supplied) NN Each PC has a different back panel configuration. NN When connecting a PC, match the color of the connection terminal to the cable. NN When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) terminal. English - 14 BN68-02426A_Eng.indb 14 2009-09-10 2:58:21 Operation Turning the TV On and Off Press the POWER button on the remote control. You can also use the POWER button on the TV. NN It may take a while for your TV to power on. Changing Channels ❑❑ Using the Channel Buttons Press the CH or CH button to change channels. or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See page 19 to memorize channels. ❑❑ Using the Number Buttons Press the number buttons to go directly to a channel. For example, to select channel “27”, press “2”, then “7”. NN For quick channel change, press the number buttons, then press the ENTERE button. ❑❑ Using the “ ” Button The “ ” button is used to select stations that broadcast a digital signal.

1. For example, for Channel "7-1", press "7", then "

”, then "1". NN HD indicates the TV is receiving a Digital High Definition signal. SD indicates the TV is receiving a Standard Definition signal. NN For quick channel change, press the number buttons, then press the ENTERE button. ❑❑ Using the PRE-CH Button to select the Previous Channel

1. Press the PRE-CH button. The TV will switch to the last channel viewed.

NN To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them. Adjusting the Volume ❑❑ Using the Volume Buttons

1. Press the VOL

❑❑ Using the or VOL button to increase or decrease the volume. MUTE Button At any time, you can cut off the sound using the MUTE button.

1. Press MUTE button and the sound cuts off.

The will displayed on the screen.

2. To turn mute off, press the MUTE button again, or simply press the VOL

English - 15 BN68-02426A_Eng.indb 15 2009-09-10 2:58:22 Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The Tools menu changes depending on which external input mode you are viewing.

Press the TOOLS button. The Tools menu will appear. Press the ▲/▼ button to select a menu, then press the ENTERE button.

Press the ▲/▼/◄/►/ ENTERE buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

Picture Mode, see page 21 Sound Mode, see page 25 Sleep Timer, see page 30 Add to Favorite (or Delete from Favorite), see page 20 Switch to Cable (or Air), see page 19 Tools Picture Mode

Add to Favorite Switch to Cable Move Adjust Exit Viewing the Display The display identifies the current channel and the status of certain audio-video settings.

Press the INFO button on the remote control. The TV will display the channel, the type of sound, and the status of certain picture and sound settings. TV #1 DTV Air 13-1 OO Press the INFO button once more or wait approximately 10 seconds and it disappears automatically. English - 16 BN68-02426A_Eng.indb 16 2009-09-10 2:58:22 Viewing the Menus Before using the TV, follow the steps below to learn how to navigate the menu in order to select and adjust different functions.

Press the MENU button. The main menu is displayed on the screen. Its left side has the following icons: Picture, Sound, Channel , Setup, Input, Support. Press the ▲ or ▼ button to select one of the icons. Press the ◄ or ► button to access the icon’s sub-menu. Press the ▲ or ▼ button to move to items in the menu. Press the ENTERE button to enter items in the menu. Press the ▲/▼/◄/► button to change the selected items. Press the RETURN button to return to the previous menu. Press the EXIT button to exit from the menu. Using the remote control buttons Button Operations MENU Return to the previous menu. EXIT Operations Move the cursor and select an item. Select the currently selected item. Confirm the setting. ❑❑ Example: Setting the TV’s Brightness in the Picture Menu „„ Adjusting the Brightness to 80

2. Press the ENTERE button to select Picture.

3. Press the ▲ or ▼ button to select Brightness.

4. Press the ENTERE button.

Advanced Settings Picture Options

5. Press the ◄ or ► button until the Brightness changes to 80.

6. Press the ENTERE button.

NN Press the EXIT button to exit from the menu. Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently. NN The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running. NN The Screen Saver is activated if there is no operating signal for longer than 15 minutes.

Press the POWER button on the remote control. The message Menu Language, Store Demo, Channels, and Time will be set. is displayed. Press the ENTERE button, then Select Language of the OSD. menu is automatically displayed. Press the ENTERE button. Press the ▲ or ▼ button to select language, then press the ENTERE button. The message Select ‘Home Use’ when installing this TV in your home. is displayed. Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTERE button. We recommend setting the TV to Home Use mode for the best picture in your home environment. Plug & Play Menu Language, Store Demo, Channels, and Time will be set. Start Enter Plug & Play Select the Antenna source to memorize. NN Store Demo mode is only intended for use in retail environments. Start Cable Start Auto If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

Air Start Move Skip Plug & Play The message Select the Antenna source to memorize. is displayed. Press the ▲ or ▼ button to memorize the channels of the selected connection. Press the ENTERE button to select Start. Auto Program in Progress. Air : 8 Cable : --

• • Air: Air antenna signal.
• • Cable: Cable antenna signal.
• • Auto: Air and Cable antenna signals. NN In Cable mode, you can select the correct signal source among STD, HRC, and IRC by pressing the ▲, ▼, ◄ or ► button, then press the ENTERE button. If you have Digital cable, select the cable system signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area.

Stop Enter Skip Plug & Play Enjoy your TV.

The TV will begin memorizing all of the available channels. NN To stop the search before it has finished, press the ENTERE button with Stop selected. NN After all the available channels are stored, it starts to remove scrambled channels. The Auto program menu then reappears. Press the ENTERE button when channel memorization is complete.

The message Set the Clock Mode. is displayed. Press the ENTERE button. Press the ▲ or ▼ button to select Auto, then Press the ENTERE button. The message Set to daylight saving time. is displayed. If you select Manual, Set current date and time is displayed. For detailed descriptions about the Manual, refer to page 30. Press the ▲ or ▼ button to select Off, On, or Auto, then press the ENTERE button. The image to select time zone in which you live is automatically displayed. Press the ▲ or ▼ button to select the time zone, then press the ENTERE button. If you have received a digital signal, the time will be set automatically. If not, see page 30 to set the clock. The brief instruction on How to get the best performance from your new HDTV. is displayed. Press the ENTER E button. NN This menu is available HD connection Guide in the Support menu.

10. Press the ENTERE button. The message Enjoy your TV. is displayed. When you have finished, press the ENTERE button.

If you want to reset this feature...

NN The Plug & Play feature is only available in the TV mode. Setup

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTERE button. Press the ENTERE button again to select Plug & Play. For further details on setting up options, press the ENTERE button again. Channel Control Storing Channels ❑❑ Antenna → Air / Cable You can also switch the antenna by selecting Tools → Switch to Cable (or Air) Channel Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). Antenna : Air

Auto Program Clear Scrambled Channel ❑❑ Auto Program Channel List

• • Air: Air antenna signal.
• • Cable: Cable antenna signal.
• • Auto: Air and Cable antenna signals NN STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected. NN After all the available channels are stored, it starts to remove scrambled channels. The Auto program menu then reappears. NN If you want to stop Auto Programming, press the ENTERE button. The Stop Auto Program? message will be displayed. Select Yes by pressing the ◄ or ► button, then press the ENTERE button. Fine Tune ❑❑ Clearing Scrambled Channel (Digital) The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes. NN To stop searching scrambled channels: Press the ENTERE button to select Stop. Press the ◄ button to select Yes, then press the ENTERE button. NN This function is only available in Cable mode. Clear Scrambled Channel Removing scrambled channel. DTV Cable 122

Stop Enter ❑❑ Fine Tune (Analog) Use fine tuning to manually adjust a particular channel for optimal reception. NN If you do not store the fine-tuned channel in memory, adjustments are not saved. NN “*” will appear next to the name of fine-tuned channels. NN To reset the fine tuning setting, press the ▼ button to select Reset, then press the Return Fine Tune Fine Tuned Air 6*

Reset ENTERE button. Move Adjust Save Return Managing Channels ❑❑ Channel List Using this menu, you can Add / Delete or set Favorite channels and use the program guide for digital broadcasts.

• • All Channels: Shows all currently available channels.
• • Added Channels: Shows all added channels.
• • Favorite: Shows all favorite channels.
• • Programmed: Shows all current reserved programs. OO Press the CH LIST button on the remote control to bring up the channel lists. „„ Using the Color buttons with the Channel List

• • Green (Zoom): Enlarges or shrinks a channel number.
• • Yellow (Select): Selects multiple channel lists.
• • TTOOLS (Tools): Displays the Add (or Delete), Add to Favorite (or Delete from Favorite), Timer Viewing, Channel Name Edit, Select All, Deselect All, and Auto Program menus (The Options menus may differ depending on the situation.) NN Channel Status Display Icons

A channel set as a Favorite.

A channel selected by pressing the yellow button.

A program currently being broadcast. Continued... English - 19 BN68-02426A_Eng.indb 19 2009-09-10 2:58:25 ❑❑ Channel List Tools Menu (in All Channels / Added Channels / Favorite) NN Press the TOOLS button to use the option menu. NN Option menu items may differ depending on the channel status. „„ Add / Delete

All Channels You can delete or add a channel to display the channels you want. NN All deleted channels will be shown on All Channels menu. NN A gray-colored channel indicates the channel has been deleted. NN The Add menu only appears for deleted channels. NN You can also delete a channel to the Added Channels or Favorite menu in the same manner. Air 6-1 ♥ TV #6

Air 7-1 9-1 10-1 11-1 Air „„ Add to Favorite / Delete from Favorite ♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air Zoom Select

NN The “♥” symbol will be displayed and the channel will be set as a favorite. NN All favorite channels will be shown on Favorite menu. Air 7-1 9-1 10-1 11-1 Air OO To select the favorite channels you have set up, press the FAV.CH button on the remote control. ♥ TV #6

You can also set the favorite channel by selecting Tools → Add to Favorite (or Delete from Favorite) T Tools Air 6-1 All Channels You can set channels you watch frequently as favorites. Delete Add to Favorite Timer Viewing Channel Name Edit Select All Auto Program ♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air Zoom Select Delete Add to Favorite Timer Viewing Channel Name Edit Select All Auto Program T Tools If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a program , set the current time first. NN Only memorized channels can be reserved. NN You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control. NN Reserving a program will be shown on Programmed menu. NN Digital Program Guide and Viewing Reservation: When a digital channel is selected, and you press the ► button, the Program Guide for the channel appears. You can reserve a program according to the procedures described above. ♥ TV #6

Air 7-1 9-1 10-1 11-1 Air ♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air Zoom Select Delete Add to Favorite Timer Viewing Channel Name Edit Select All Auto Program T Tools „„ Channel Name Edit (Analog) Channels can labeled so that their call letters appear whenever the channel is selected. NN The names of digital broadcasting channels are automatically assigned and cannot be labeled. „„ Select All / Deselect All

• • Select All: You can select all the channels in the channel list.
• • Deselect All: You can deselect all the selected channels in the channel list. NN You can perform the add / delete, add to Favorite / delete from Favorite function for multiple channels at the same time. Select the required channels and press the yellow button to set all the selected channels at the same time. NN The c mark appears to the left of the selected channels. NN You can only select Deselect All when there is a selected channel. ❑❑ Channel List Tools Menu (in Programmed) 9/20/2009 Programmed You can view, modify or delete a reservation. NN Press the TOOLS button to use the option menu. 5:02 pm

9/19/2009 5:20 pm „„ Change Info Change Info Cancel Schedules Information Select All Select to change a viewing reservation. „„ Cancel Schedules Air Zoom Select T Tools E Information Select to cancel a viewing reservation. „„ Information Select to view a viewing reservation. (You can also change the reservation information.) „„ Select All / Deselect All You can select (or deselect) all channels in the channel list. English - 20 BN68-02426A_Eng.indb 20 2009-09-10 2:58:26 Picture Control Changing the Picture Settings ❑❑ Mode Picture You can select the type of picture which best corresponds to your viewing requirements.

• • Dynamic: Select a high-definition picture for bright environments.
• • Standard: Selects the optimal picture display for normal environments. This setting is convenient for most situations.
• • Movie: Selects a comfortable picture display for dark environments. TT Press the TOOLS button to display Tools menu. You can also set the picture mode by selecting Tools → Picture Mode. ❑❑ Cell Light / Contrast / Brightness / Sharpness / Color / Tint (G/R) Picture Your television has several setting options that allow you to control the picture quality.
• • Cell Light: Adjusts the pixel brightness. 10 is the brightest setting.
• • Contrast: Adjusts the contrast level.
• • Brightness: Adjusts the brightness level.
• • Sharpness: Adjusts the sharpness.
• • Color: Adjusts the color saturation of the picture using the bar on the screen.
• • Tint (G/R): The closer to Red 100, the more saturated the red color becomes. NN When you make changes to Cell Light, Contrast, Brightness, Sharpness, Color or Tint (G/R), the OSD will be adjusted accordingly. NN Settings can be adjusted and stored for each external device you have connected to an input of the TV. NN The energy consumed during use can be significantly reduced if thebrightness level is lowered, which will reduce the overall running cost. Mode :Standard Cell Light

Contrast : 95 Brightness : 45 Sharpness : 50 Color : 50 Tint (G/R) : G50/R50 Mode : Standard Cell Light

Contrast : 95 Brightness : 45 Sharpness : 50 Color : 50 Tint (G/R) : G50/R50

Advanced Settings ❑❑ Advanced Settings Advanced Settings You can adjust the detailed settings for your screen including the color and contrast. NN Advanced Settings is available in Standard or Movie mode. „„ Black Tone You can select the black level on the screen to adjust the screen depth.

• • Off: Turns the Black Adjust function off.
• • Dark: Sets the black color depth to dark.
• • Darker: Sets the black color depth to darker.
• • Darkest: Sets the black color depth to darkest. Black Tone : Off Dynamic Contrast : Medium

Color Space : Native White Balance Flesh Tone

Edge Enhancement : On Move Enter Return You can adjust the screen contrast so that the optimal contrast is provided.

• • Off: Turns the Dynamic Contrast function off.
• • Low: Sets Dynamic Contrast to low.
• • Medium: Sets Dynamic Contrast to medium.
• • High: Sets Dynamic Contrast to high. „„ Gamma You can adjust the Primary Color (Red, Green, Blue) Intensity. „„ Color Space Color Space is a color matrix composed of red, green and blue colors. Select your Favorite color space to experience the most natural color.
• • Auto: Automatically sets the color range depending on the input video source.
• • Native: Sets the color range wider than that of the input video source. Continued... English - 21 BN68-02426A_Eng.indb 21 2009-09-10 2:58:27 „„ White Balance You can adjust the color temperature for more natural picture colors.
• • R-Offset: Adjust the low level red intensity.
• • G-Offset: Adjust the low level green intensity.
• • B-Offset: Adjust the low level blue intensity.
• • R-Gain: Adjusts the high level red intensity.
• • G-Gain: Adjusts the high level green intensity.
• • B-Gain: Adjusts the high level blue intensity.
• • Reset: Resets the default white balance. NN Changing the adjustment value will refresh the adjusted screen. Advanced Settings Black Tone : Off Dynamic Contrast : Medium Gamma

Color Space : Native White Balance Flesh Tone

Edge Enhancement : On Enter Move Return „„ Flesh Tone You can emphasize the pink flesh tone in the picture. NN Changing the adjustment value will refresh the adjusted screen. „„ Edge Enhancement → Off / On You can emphasize object boundaries in the picture. You can select the most comfortable color tone for viewing. NN Warm1 or Warm2 is only activated when the picture mode is Movie. NN Settings can be adjusted and stored for each external device you have connected to an input of the TV. Picture „„ Color Tone → Cool / Normal / Warm1 / Warm2 : G50/R50 Advanced Settings Picture Options

Picture Reset „„ Size Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size options, each designed to work best with specific types of video input. Your satellite receiver may have its own set of screen sizes as well. In general, though, you should view the TV in 16:9 mode as much as possible.

• • 16:9: Sets the picture to the 16:9 aspect ratio.
• • Zoom1: Stretches the 16:9 aspect ratio picture vertically.
• • Zoom2: Stretches the Zoom 1 picture vertically.
• • Wide Fit: Stretches the picture both horizontally and vertically to display the optimal picture.
• • 4:3: Sets the picture to the 4:3 aspect ratio.
• • Screen Fit: Displays the full native HD signal that cannot be viewed using a normal TV. Picture Options Color Tone : Normal Size : 16:9 Digital NR : Auto Screen Burn Protection Move Enter Return OO Alternately, you can press the P.SIZE button on the remote control repeatedly to change the picture size. 16:9 Wide Fit Zoom1 Zoom2 4:3 Screen Fit Continued... English - 22 BN68-02426A_Eng.indb 22 NN Temporary image retention may occur when viewing a static image on the set for more than two hours. NN After selecting Zoom1, Zoom2 or Wide Fit: Press the ◄ or ► button to select Position, then press the ENTERE button. Press the ▲ or ▼ button to move the picture up and down. Reset: Press the ◄ or ► button to select Reset, then press the ENTERE button. You can initialize the setting. NN After selecting Screen Fit in HDMI (1080i/1080p) or Component (1080i/1080p) mode, you made need to center the picture: Press the ◄ or ► button to select Position, then press the ENTERE button. Press the ▲, ▼, ◄ or ►button to move the picture. Reset: Press the ◄ or ► button to select Reset, then press the ENTERE button. The TV will be reset to 16:9. NN HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720) NN Settings can be adjusted and stored for each external device you have connected to an input of the TV. Input Source Picture Size If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.
• • Off: Turns the Digital NR function off.
• • Low: Sets Digital NR to low.
• • Medium: Sets Digital NR to medium.
• • High: Sets Digital NR to high.
• • Auto: Sets Digital NR to Auto. : G50/R50 Advanced Settings Picture Options

Picture Reset You can directly select the black level on the screen to adjust the screen depth.

• • Normal: The screen gets brighter.
• • Low: The screen gets darker. NN This function is active only when an external device is connected to the TV via HDMI. HDMI Black Level function may not be compatible with all external devices. „„ Film Mode The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality.
• • Off: Basic video image processing applied and No auto-detection for film-based programs.
• • Auto: Automatically adjusts for the best image quality between film and video programs. NN Film mode is supported in TV, Video, Component (480i / 1080i) and HDMI (1080i). Picture Options Color Tone : Normal Size : 16:9 Digital NR : Auto Screen Burn Protection Move Enter Return Continued... English - 23 BN68-02426A_Eng.indb 23 2009-09-10 2:58:30 „„ Screen Burn Protection Configures the Screen Burn Protection options to prevent and reduce pixel burn. When an image remains in one position too long, it may cause a permanent burn on the screen. Preventing Screen Burn-in To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes.
• • Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to prevent afterimages on the screen. NN Optimum condition for pixel shift; Horizontal Item TV/AV/Component/HDMI 0~4

Time(min.) 1~4 min. 2 min.

• • Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides. To prevent the screen burn from happening, select Dark or Light. -- Dark: When you set the screen ratio to 4:3, it darkens the left and right sides. -- Light: When you set the screen ratio to 4:3, it brightens the left and right sides. Reducing the Effects of Screen Burn If screen burn has occurred, you can select scrolling to help remove screen burn artifacts.
• • Scrolling: This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after-images or symbols on the screen, especially when you displayed a still image on the screen for a long time. NN The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after- images on the screen. If the after-image is not removed after performing the function, repeat the function again. NN Press any key on the remote control to cancel this feature. Advanced Settings Picture Resets all picture settings to the default values. NN Select a picture mode to be reset. The reset is performed for each picture mode. Picture Options Picture Reset

English - 24 BN68-02426A_Eng.indb 24 2009-09-10 2:58:30 Sound Control Changing the Sound Settings ❑❑ Mode Sound You can select the sound mode to best suit the programming you’re watching.

• • Standard: This sound mode is for general purposes.
• • Music: Music mode enables you to listen to music as if you are sitting in a concert hall.
• • Movie: Movie mode enables you to experience live and full movie sound as if you are sitting in a movie theater.
• • Clear Voice: Emphasizes voice over other sounds. Select this sound mode when watching news, soap operas, or documentaries.
• • Custom: You can customize the sound settings to suit your personal preferences. Mode ❑❑ Equalizer The sound settings can be adjusted to suit your personal preferences.
• • Mode: Selects the sound mode among the predefined settings.
• • Balance L/R: Adjusts the balance between the right and left speaker.
• • 100Hz, 300Hz, 1kHz, 3kHz, 10kHz (Bandwidth Adjustment): Adjusts the level of different bandwidth frequencies.
• • Reset: Resets the equalizer settings to the default values.

SRS TruSurround HD : Off Preferred Language : English Multi-Track Sound : Stereo Auto Volume : Off Speaker Select : TV Speaker You can also configure the sound mode by selecting Tools → Sound Mode. : Costom Equalizer Equalizer Mode : Custom Balance

Move Adjust Enter Return ❑❑ SRS TruSurround HD → Off / On SRS TruSurround HD enables you to enjoy a virtual 5.1 Surround Sound effect over the TV's two speakers. This function provides not only rich deep bass also improves high frequency resolution. TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc. Digital-TV broadcasts are capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). NN You can only select the language from among the actual languages being broadcast. OO You can listen in a language other than the Preferred Language by pressing the MTS button on the remote control. ❑❑ Multi-Track Sound (MTS) (Analog)

• • Mono: Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal.
• • Stereo: Choose for channels that are broadcasting in stereo.
• • SAP: Choose to listen to the Separate Audio Program, which is usually a foreignlanguage translation. NN Depending on the particular program being broadcast, you can listen to Mono, Stereo, or SAP. OO Press the MTS button on the remote control repeatedly to select Mono, Stereo, or SAP. ❑❑ Auto Volume → Off / On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. Continued... English - 25 BN68-02426A_Eng.indb 25 2009-09-10 2:58:31 ❑❑ Speaker Select Multi-Track Sound Sound When you watch TV with it connecting to a Home theater, turn the TV speakers off so you can listen to sound from the Home theater’s (external) speakers.
• • External Speaker: Uses the external speakers(Home Theater) to output sound.
• • TV Speaker: Uses the TV speakers to output sound. NN If you select External Speaker in the Speaker Select menu, the sound settings will be limited. NN The volume buttons and MUTE buttons do not operate when the Speaker Select is set to External Speaker. Please set the volume on your Home theater. : Stereo Auto Volume : Off Speaker Select : TV Speaker

Sound Reset TV's Internal Speakers Audio Out (Optical, L / R Out) to Sound System Video No Signal Mute Mute Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. ❑❑ Sound Reset You can restore the Sound settings to the factory defaults.

• • Reset All: All the sound values return to default settings.
• • Reset Sound Mode: Current sound values return to default settings.
• • Cancel: Select the sound reset options. Function Description Configuring the Setup Menu ❑❑ Language You can set the menu language. ❑❑ Game Mode → Off / On Language : English

Time When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting the game menu. Game Mode : Off V-Chip Caption „„ When the Game Mode is On Melody : Medium Energy Saving : Off

• • Picture mode is automatically changed to Standard and cannot be changed.
• • Sound mode is automatically changed to Custom and cannot be changed. Adjust the sound using the equalizer.
• • The Reset in the Sound menu is activated. Reset function initializes the Equalizer settings to the factory default setting. NN Game Mode is not available in regular TV mode. NN If the picture is poor when an external device is connected to the TV, check if Game Mode is On. NN If you display the TV menu in Game mode, the screen shakes slightly. NN The mark ( ) appears on the screen which means that Game Mode is on with the selected source. NN This function supports only game function. Continued... English - 26 BN68-02426A_Eng.indb 26 2009-09-10 2:58:32 ❑❑ V-Chip The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed. NN V-Chip function is not available in HDMI or Component mode. NN The default PIN number of a new TV set is ‘0-0-0-0’. NN If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to ‘0-0-0-0’ : Power Off. → MMUTE → 8 → 2 → 4 → Power On. NN Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings. „„ V-Chip Lock → Off / On Turns the V-Chip function on/off. TV Parental Guidelines First, set up a personal identification number (PIN) and enable the V-Chip. Allow All Parental restrictions can be set up using either of two methods: The TV guidelines or the Block All MPAA rating.
• • Base Categories -- TV-Y: Young children / TV-Y7: Children 7 and over / TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / TV-MA: Mature audience
• • Sub-ratings -- All: Lock all TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual situation Enter Return Move / L: Adult Language / D: Sexually Suggestive Dialog NN The V-Chip will automatically block certain categories that are more restrictive. For example, if you block TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG, TV-14 and TVMA). The sub-ratings (D, L, S, V) work together similarly. „„ MPAA Rating The MPAA rating system uses the Motion Picture Association of America (MPAA) system and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).
• • G: General audience (no restrictions).
• • PG: Parental guidance suggested.
• • PG-13: Parents strongly cautioned.
• • R: Restricted. Children under 17 should be accompanied by an adult.
• • NC-17: No children under age 17.
• • NR: Not rated. NN While a particular category is selected, press the ENTERE button to activate it. The “ \ ” symbol will be displayed. Press the ENTERE button to block or unblock the category. NN The V-Chip will automatically block any category that is More restrictive. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked also. MPAA Rating Allow All Block All Move Enter Return „„ Canadian English You can block TV programs depending on their Canadian English rating.
• • C: Programming intended for children under age 8.
• • C8+: Programming generally considered acceptable for children 8 years and over to watch on their own.
• • G: General programming, suitable for all audiences.
• • PG: Parental Guidance.
• • 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14.
• • 18+: Adult programming. NN The V-Chip will automatically block any category that is More restrictive. For example, if you block G category, then PG, 14+ and 18+ will automatically be blocked also. Continued... English - 27 BN68-02426A_Eng.indb 27 2009-09-10 2:58:32 „„ Canadian French Canadian French You can block TV programs depending on their French Canadian rating.
• • 8 ans+: Programming generally considered acceptable for children 8 years and over to watch on their own.
• • 13 ans+: Programming may not be suitable for children under the age of 13.
• • 16 ans+: Programming is not suitable for children under the age of 16.
• • 18 ans+: Programming restricted to adults. NN The V-Chip will automatically block any category that is More restrictive. For example, if you block 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also. Allow All Block All Move Downloadable U.S. Rating Parental restriction information can be used while watching DTV channels NN If information is not downloaded from the broadcasting station, the Downloadable U.S.

Return Rating title „„ Downloadable U.S. Rating

1/2 Rating menu is deactivated. Allow All

Parental restriction information is automatically downloaded while watching DTV channels. Block All It may take several seconds. The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use. Parental restriction levels differ depending on the broadcasting station. The default Enter Return Move menu name and Downloadable U.S. Rating changes depending on the downloaded information. The number of The number of all rating information Even if you set the On-screen display to your desired language, the Downloadable U.S. current rating information Rating menu will appear in English only. The rating will automatically block certain categories that are more restrictive. NN The rating titles (For example: Humor Level..etc) and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station. „„ Change PIN You can change four-digit code to use the V-Chip function. NN The default PIN code for a new TV set is ‘0-0-0-0’. NN If you change the PIN code completely, the message PIN is changed successfully. is displayed. „„ How to Reset the TV after the V-Chip Blocks a Channel (Emergency Escape) If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear.

1. Enter your PIN.

To resume normal viewing, tune to a different channel using CH > button. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the V-Chip function for an “emergency escape”: NN If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to ‘0-0-0-0’: Power Off. → MMUTE → 8 → 2 → 4 → Power On. Received Rating :TV-14/NL This channel is blocked by a Parental Lock. Please enter the PIN to unblock.

Change 0~9 Enter PIN Continued... English - 28 BN68-02426A_Eng.indb 28 2009-09-10 2:58:33 ❑❑ Caption (On-Screen Text Messages) NN The Caption feature doesn’t work in Component or HDMI modes. NN The availability of captions depends on the program being broadcast. OO Press the CC button on the remote control to turn the Caption On or Off. „„ Analog Game Mode : Off V-Chip Setup The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to TV. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)

• • Caption Mode: Default, CC1~CC4, Text1~Text4 Caption

Melody : Medium Energy Saving : Off „„ Digital The Digital Captions function operates on digital channels.

• • Caption Mode: Default, Service1~Service6, CC1~CC4, Text1~Text4
• • Digital Caption Options -- Size : You can select the caption font size. -- Font Style: You can select the caption font. -- Foreground Color: You can select the color of the captions. -- Background Color: You can select the background color for the captions. -- Foreground Opacity: You can select the opacity of the caption foreground. -- Background Opacity: You can select the opacity of the background for the captions. -- Return to Default: Returns to the default settings of the broadcasting station for the captions.

Caption Caption : On Caption Mode : Default

Digital Caption Options are available only when Default and Service1~Service6 can be selected in Caption Mode. Service1~6 in digital caption mode may not be available depending on the broadcast. Default means to follow the standard set by the broadcaster. Foreground and Background cannot be set to have the same color. Foreground Opacity and Background Opacity cannot be both set to Transparent. ❑❑ Melody A melody sound can be set to come on when the TV is powered On or Off.

• • Off: Turns off the melody function.
• • Low: Sets the melody volume to low.
• • Medium: Sets the melody volume to medium.
• • High: Sets the melody volume to high. NN The Melody does not play. -- When no sound is output from the TV because the MUTE button has been pressed, -- When no sound is output from the TV because the volume has been reduced to minimum with the VOL button. -- When the TV is turned off with the Sleep Timer function. Melody : Medium Energy Saving : Off ❑❑ Energy Saving This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the Energy Saving mode option to High to reduce eye fatigue as well as power consumption.
• • Off: Turns the Energy Saving function off.
• • Low: Sets the Energy Saving function to low.
• • Medium: Sets the Energy Saving function to medium.
• • High: Sets the Energy Saving function to maximum. English - 29 BN68-02426A_Eng.indb 29 2009-09-10 2:58:33 Setting the Time Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.)

• • Clock Mode → Auto / Manual You can set up the current time manually or automatically.
• • Clock Set You can set the current time manually. NN This function is only available when Clock Mode is set to Manual. NN You can set the Month, Day, Year, Hour, or Minute directly by pressing the number buttons on the remote control.
• • Time Zone Select your time zone. NN This function is only available when Clock Mode is set to Auto. NN Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually. NN The Antenna or cable must be connected in order to set the time automatically.

: Off Caption Melody : Medium Energy Saving : Off Clock Clock Mode : Auto Clock Set Time Zone DST

• • DST (Daylight Saving Time) → Off / On / Auto Switches the Daylight Saving Time function on or off. NN This function is only available when Clock Mode is set to Auto. „„ Sleep Timer The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes). TT Press the TOOLS button to display Tools menu. You can also set the sleep timer by selecting Tools → Sleep Timer Time Off Clock 30 min. Sleep Timer 60 min. 90 min. Timer 1 120 min. Timer 2 Use this feature to set the TV to turn on or off at a desired time. 3 different On/Off times can be set. You must set the clock first.
• • On Time: Set the Hour, Minute, am/pm, and Activate/Inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)
• • Off Time: Set the Hour, Minute, am/pm, and Activate/Inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)
• • Volume: Set the required volume level.
• • Antenna: Select Air or Cable. NN When you set the timer, Antenna is inactivated. If you want to set the Antenna, refer to page 19.
• • Channel: Select the desired channel.
• • Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun, or Manual. NN When Manual is selected, press the ►button to select the desired day of the week. Press the ENTERE button over the desired day and the c mark will appear. 150 min. Timer 3 180 min. Move Enter Return Timer 1 On Time

Inactivate Off Time Volume Repeat Inactivate Antenna Channel Air

Sun Mon Tue Wed The Fri Sat Once Move Adjust Enter Return NN You can set the hour, minute and channel by pressing the number buttons on the remote control. NN Auto Power Off When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time. English - 30 BN68-02426A_Eng.indb 30 2009-09-10 2:58:34 Source List / Edit Name ❑❑ Source List Input Use to select TV or other external input sources such as DVD / Blu-Ray players / Cable Boxes / Satellite / receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice. Source List Edit Name „„ TV, AV, Component, HDMI1/DVI, HDMI2. NN You can choose only those external devices that are connected to the TV. In the Source List, connected inputs will be highlighted and sorted to the top. Inputs that are not connected will be sorted to the bottom. NN Using the TOOLS buttons on the remote with the Source list

• • TTOOLS (Tools): Displays the Edit Name and Information menus. OO Press the SOURCE button on the remote control to view an external signal source. ❑❑ Edit Name You can name the device connected to the input jacks to make your input source selection easier. „„ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI / TV / IPTV / Blu-ray / HD DVD / DMA NN When a PC with a resolution of 640x480@60Hz is connected to the HDMI IN 1(DVI) port, you should set the HDMI1/DVI mode to PC in the Edit Name menu. Edit Name

Component VCR HDMI1/DVI DVD HDMI2 Cable STB Satellite STB PVR STB Move Enter Return Support ❑❑ Self Diagnosis If you think you have a picture problem, perform the picture test. Check the color pattern on the screen to see if the problem still exists. NN Does the problem still exist with this test photo? appears on the screen. If the test pattern does not appear or there is noise in the test pattern, select Yes If the test pattern is properly displayed, select No

• • Yes: There may be a problem with the TV. Contact the Samsung Call center.
• • No: There may be a problem with your external equipment. Please check your connections. If the problem still persists, refer to the external device’s user manual. Support Self Diagnosis HD Connection Guide Contact Samsung Self Diagnosis Picture Test Sound Test Signal Strength „„ Sound Test

If you think you have a sound problem, please perform the sound test. You can check the sound by playing a built-in melody sound through the TV. NN Does the problem still exist with this sound test? appears on the screen. Move Enter Return If during the sound test you can hear sound only from one speaker or not at all, select Yes. If you can hear sound from the speakers, select No.

• • Yes: There may be a problem with the TV. Contact the Samsung Call center.
• • No: There may be a problem with your external equipment. Please check your connections. If the problem still persists, refer to the external device’s user manual. NN If you hear no sound from the TV’s speakers, before performing the sound test, make sure Speaker Select is set to TV speaker in the Sound menu. NN The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button. Continued... English - 31 BN68-02426A_Eng.indb 31 2009-09-10 2:58:34 Unlike analog channels, which can vary in reception quality from snowy to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels. NN If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal. Signal Strength

Enter Return USB Drive TV Panel ❑❑ Software Upgrade A brief instruction on How to get the best performance from your new HDTV. is displayed. Follow the guide for the best connection method for your HD devices.. Self Diagnosis Support Samsung may offer upgrades for your TV’s firmware in the future. Please visit Samsung. com or contact the Samsung call center at 1-800-SAMSUNG (726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port. NN Please be careful not to disconnect the power or remove the USB drive while upgrades are being applied. The TV will shut off and turn on automatically after completing the firmware upgrade. NN When software is upgraded, video and audio settings you have made will return to their default (factory) settings. NN We recommend you write down your settings so that you can easily reset them after the upgrade. Software upgrade

Software Upgrade Scanning for USB... It may take up to 30 seconds. HD Connection Guide How to get the best performance from your new HDTV. Step 1. Connect the HD box to the TV using the Component video (Red,Green, Blue) and audio (Red, White) cables or HDMI Cable.

HDMI Cable TV rear view Component Cable Step 2. Press the Source button on the Remote to select HDMI or Component Input. ● Depending on your location, HD programming may also be viewed using an off-air antenna. or more details, please refer to HD Connections in the Owner Manual. Return You can know the Samsung Call center, website and information for product. NN You can move the previous or next page by pressing the ▲ or ▼ button. 1/2 Please contact Samsung if you are having problems operating this TV. Contact Samsung : - Call Center : 1-800-SAMSUNG (726-7864) - Web Site : www.samsung.com, then select your country. To obtain latest firmware of your TV, go to the Samsung website (www.samsung.com). www.samsung.com >“Support”> “Download Center” Page Up/Down Enter Return English - 32 BN68-02426A_Eng.indb 32 2009-09-10 2:58:35 PC Display Using Your TV as a Computer (PC) Display „„ Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) First, click on Control Panel on the Windows start menu. When the control panel window appears, click on Appearance and Themes and a display dialog-box will appear. When the control panel window appears, click on Display and a display dialog-box will appear. Navigate to the Settings tab on the display dialog-box. The correct size setting (resolution) Optimum: PN42B400P3D : 1024x768 pixels, PN50B400P3D : 1360x768 pixels If a verticalfrequency option exists on your display settings dialog box, the correct value is 60 or 60 Hz. Otherwise, just click OK and exit the dialog box. Display Modes If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacturing. „„ HDMI/DVI Input Mode IBM MAC Resolution Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) PN42B400P3D PN50B400P3D 640 x 350

640 x 480 VESA DMT 800 x 600 1024 x 768 VESA CVT VESA GTF 1280 x 720 1280 x 720

NN When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) terminal. English - 33 BN68-02426A_Eng.indb 33 2009-09-10 2:58:36 Appendix Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit samsung.com, then click on Support or call Samsung customer service at 1-800-SAMSUNG. Problem Possible Solution Poor picture First of all, please perform the Picture Test to confirm that your TV is properly displaying test image.

• Go to Menu → Support → Self Diagnosis → Picture test If the test image is properly displayed, the poor picture may caused by the source or signal. TV image does not look as good as it did in the store.

• • If you have an analog Cable/Satellite Box, upgrade to an HD Box. Use HDMI or Component cables to deliver HD picture quality.
• • Cable/Satellite subscriber : Try HD (High Definition) stations from channel line up.
• • Air/Cable Antenna connection: Try HD stations after performing Auto program NN Many HD channels are upscaled from SD (Standard Definition) contents.
• • Adjust Cable/Sat box video output resolution to 1080i or 720p. Picture is distorted: macroblock,small block, dots,pixelization.

• • Compression of video contents may cause picture distortion especially on fast moving pictures such as sports and action movies.
• • Low signal level can cause picture distortion. This is not a TV problem. Wrong or missing color with Component connection.

• • Make sure the Component cables are connected to the correct jacks. Incorrect or loose connections may cause color problems or the screen will be blank. Poor color or brightness.

• • Adjust Picture options in the TV menu (Picture Mode, Color, Brightness, Sharpness).
• • Adjust Energy Saving option in Setup menu.
• • Try picture reset to view the default picture setting. (Go to Menu → Picture → Picture Reset) Dotted line on the edge of screen.

• • If picture size is set to Screen fit, change to 16:9.
• • Change cable/satellite box resolution. Picture is black and white with AV (Composite) input only.

• • Connect video cable (Yellow) to Green jack of component input 1 of the TV. Picture freezes or is distorted when changing channels or picture is delayed.

• • If connected with cable box, please try to reset cable box. (reconnect AC cord and wait until cable box reboots. It may take up to 20 minutes)
• • Set output resolution of cable box to 1080i or 720p Sound Problem First of all, please perform the Sound Test to confirm that your TV audio is properly operating.
• Go to Menu → Support → Self Diagnosis → Sound Test If the audio is OK, the sound problem may caused by the source or signal. No sound or sound is too low at maximum volume.

• • Please check the volume of device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV. Then, adjust the TV volume accordingly. Picture is good but no sound.

• • Set the Speaker Select option to TV speaker in the sound menu.
• • Make sure audio cables from an external device are connected to correct audio input jacks on the TV.
• • Check connected device's audio output option. Ex) You may need to change your cable box' audio option to HDMI when you have HDMI connected to your TV.
• • If you are using a DVI to HDMI cable, a separate audio cable is required.
• • Remove plug from headphone jack (if available on your TV).
• • Reboot the connected device by reconnecting the device’s power cable. Noise from speaker.

• • Check cable connections. Make sure a video cable is not connected to an audio input.
• • For Antenna/Cable connection, check signal strength. Low signal level may cause sound distortion.
• • Perform the Sound Test as explained above. Continued... English - 34 BN68-02426A_Eng.indb 34 2009-09-10 2:58:36 Problem Possible Solution No Picture, No Video TV won't turn on. TV turns off automatically. No picture/Video.

• • Make sure the AC power cord is plugged in securely to the wall outlet and the TV.
• • Make sure the wall outlet is working.
• • Try pressing the Power button on the TV to make sure the remote is working properly. If the TV turns on, it may be caused by Remote Control. To fix the Remote problem, refer to "Remote control does not work" below.

Check if the Sleep Timer is set to On in the Setup menu. If connected the TV to your PC, check your PC power settings. Make sure the AC power cord is plugged in securely to the wall outlet and the TV. If there is no signal for about 10 ~ 15 minutes with Antenna/Cable connection, the TV will turn off.

• • Check cable connections. (remove and reconnect all cables of TV and external devices)
• • Set your external device's (Cable/Sat Box, DVD, Blu-ray etc) video output to match the connections to the TV input. For example, external device's output : HDMI , TV's input : HDMI.
• • Make sure your connected device is powered on.
• • Make sure to select the TV's correct source by pressing the SOURCE button on the remote control.
• • Reboot the connected device by reconnecting the device’s power cable. RF (Cable/Antenna) Connection Cannot receive all channels.

• • Make sure coaxial cable is connected securely.
• • Please try Auto Program to add available channels to the channel list. Go to Menu → Channel → Auto Program then select Auto and make sure correct Cable TV signal type is set in the menu. There are 3 options. (STD, HRC and IRC)
• • Verify Antenna is positioned correctly. No Caption on digital channels.

• • Check Caption setup menu. Try changing Caption Mode Service 1 to CC1.
• • Some channels may not have Caption data. Picture is distorted : macroblock,small block,dots,pixelization.

• • Compression of video contents may cause picture distortion especially on fast moving pictures such as sports and action movies.
• • Low signal level can cause picture distortion. This is not a TV problem. PC Connection “Not Supported Mode” message.

• • Set your PC's output resolution so it matches the resolutions supported by the TV. PC is always shown on source list even if not connected.

• • This is normal; PC is always shown on the source list even though a PC is not connected. Video is OK but there is no audio with HDMI connection.

• • Check the audio output setting on your PC. Others Purple/green rolling horizontal bars and buzzing noise from the TV speakers with Component cable connection. Picture is not shown in full screen. Remote control does not work.

• • Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates that the set-top-box has a grounding issue. Replace the Component video cables with an HDMI connection.
• • Black bars on each side will be shown on HD channels when displaying upscaled SD (4:3) contents.
• • Black bars on Top & Bottom will be shown on movies that have aspect ratios different from your TV.
• • Adjust picture size option on your external device or TV to full screen.
• • Replace the remote control batteries with correct polarity (+ -).
• • Clean the transmission window located on the top of the remote.
• • Try pointing the remote directly at the TV from 5~6 feet away. Continued... English - 35 BN68-02426A_Eng.indb 35 2009-09-10 2:58:36 Problem Possible Solution Plasma TV is making humming noise.

• • Plasma TVs typically make a soft humming sound. This is normal. It’s caused by the electrical charges that are used to create the images on the screen.
• • If the humming sound is loud, you may have set the brightness on the TV too high. Try setting the brightness lower.
• • You can also have loud humming if the back of your Plasma TV is too close to a wall or other hard surface. Also try rerouting your connection cables.
• • Improper installation of wall mount can create excessive noise. Image Retention (Burn In) Issue.

• • To minimize the possibility of screen burn, this unit is equipped with screen burn reduction technology. Pixel Shift technology enables you to set picture movement up/ down (Vertical Line) and side to side (Horizontal Dot). Can not control TV power or volume with Cable/Sat box remote control.

• • Program the Cable/Sat remote control to operate the TV. Refer to Cable/Sat user manual for SAMSUNG TV code. “Not Supported Mode” message.

• • Check the supported resolution of the TV and adjust the external device's output resolution accordingly. Refer to resolution settings in this manual. Caption on TV menu is greyed out.

• • Caption can not be selected in the TV menu when connected via HDMI or Component.
• • Caption must be activated on the external device. Plastic smell from TV.

• • This smell is normal and will dissipate over time. TV Signal Strength is unavailable in the Self Diagnostic Test menu.

• • This function is only available with digital channels with an Antenna (RF/Coax) connection (Air or Cable). TV is tilted to right or left side.

• • Remove the stand base from TV and reassemble. Can not assemble stand base.

• • Make sure TV is placed on flat surface. If can not remove screws from TV, please use magnetized screw driver. Channel menu is grey out (unavailable).

• • Channel menu is only available when TV source is selected (Antenna or Cable). Your settings are lost after 30 minutes or every time TV is turned off.

• • If TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Please change from Store Demo mode to Home Use mode in the Plug & Play procedure. Press the SOURCE button to select TV mode, go to Menu → Setup → Plug & Play
• EnterE Intermittent loss of audio or video.

• • Check cable connections and reconnect.
• • Can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If wall mounting, we recommend using cables with 90 degree connectors. You may see small particles if you look closely at the edge of the bezel surrounding the TV screen.

• • This is part of the product’s design and is not a defect. Input cables (Not supplied) HDMI HDMI/DVI Component Composite (AV) Coaxial (RF) English - 36 BN68-02426A_Eng.indb 36 2009-09-10 2:58:38 Preparation before installing the Wall-Mount Case A. Installing the SAMSUNG Wall-Mount Case B. Installing another company’s Wall-Mount

Install the Wall Mount with a torque range of 15kgf·cm or less. Use care as the parts can be damaged if the torque is out of the specified range.

2. Accessory Kit contains Holder–Ring [②] for installing other company’s Wall-Mount on Samsung TV. (Case B)

NN Screw down the hole [①] when installing wall-mount on the wall. How to attach the Stand-Base Using the screws for securing the stand base and the TV, firmly attach the TV to the stand base. (The exterior of the set may be different fr om the picture.) When mounting your TV on a wall, install the cover (➊) on the stand-base using two screws. Warning Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury. NN Two or more people should carry the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright. English - 37 BN68-02426A_Eng.indb 37 2009-09-10 2:58:42

Securing the TV to the Wall Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang

Caution over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows. „„ Accessaries „„ To prevent the TV from falling

1. Attach the TV-Holder to the TV by fastening the screws 1 (M4*16) into the holes in the center of the TV.

NN 42˝, 50˝ : Unscrew a screw attached on the back of your TV before attaching the TV-Holder. NN Make sure to only use the supplied screw. 2. Firmly fasten the screws to the wall or cabinet where the TV is to be installed. Tie the TV-Holder attached to the TV and the screws fastened on the wall or cabinet so that the TV is fixed. NN Purchase the screws to be used on the wall or cabinet separately. NN Install the TV close to the wall so that it does not fall. NN When attaching the TV to the wall, tie the cord level with the ground or slanted downwards for safety purposes. NN Confirm that the cord or link does not come loose frequently. NN Before moving the TV, separate the connected cord first. Wall 3. Verify all connections are properly secured. Periodically check connections for any sign of fatigue or failure. If you have any doubt about the security of your connections, contact a professional installer. English - 38 BN68-02426A_Eng.indb 38 2009-09-10 2:58:44 Wall Mount Kit Specifications (VESA) Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. Product Family inch VESA Spec. (A * B) 19" ~22" 100 * 100 23"~29" 200 * 100 30"~40" 200 * 200 46"~55" 400 * 400 57"~70" 800 * 400 80" ~ 1400 * 800 42"~ 50" 400 * 400 58"~ 63" 600 * 400 70" ~ 800 * 400 80" ~ 1400 * 800 Standard Screw Quantity

The standard dimensions for wall mount kits are shown in the table above. When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set. For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications. NN Do not use screws that do not comply with the VESA standard screw specifications. Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. NN Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. NN Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model. NN Do not exceed 15 degrees tilt when mounting this TV. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. English - 39 BN68-02426A_Eng.indb 39 2009-09-10 2:58:45 Securing the Installation Space Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product. Install the product so the required distances shown in the figure are kept. NN When using a stand or wall-mount, use parts provided by Samsung Electronics only. -- If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling. -- If you use parts provided by another manufacturer, it may result in a problem with the product or fire due to an increase in the internal temperature of the product due to poor ventilation. NN The appearance may differ depending on the product. „„ When installing the product with a stand 10 cm 10 cm 10 cm „„ When installing the product with a wall-mount 10 cm 10 cm 10 cm 10 cm 10 cm 10 cm 10 cm 10 cm 10 cm 10 cm 10 cm Specifications Model Name PN42B400P3D PN50B400P3D 42 inch (42.3 inches measured diagonally) 50 inch (49.9 inches measured diagonally) PC Resolution 1024x768 @ 60 Hz 1360x768 @ 60 Hz Sound (Output) 10W x 2 10W x 2 Screen Size (Diagonal) Dimension (W x H x D) Body With stand Weight Body With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

This device is a Class B digital apparatus. Design and specifications are subject to change without prior notice. For the power supply and Power Consumption, refer to the label attached to the product. When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) terminal. English - 40 BN68-02426A_Eng.indb 40 2009-09-10 2:58:45 Dimensions (PN42B400P3D)

TOP VIEW FRONT VIEW REAR VIEW NOTE: All drawings not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to dimensions on each unit prior to performing any carpentry. Not responsible for typographical or printed errors. © 2009 Samsung Electronics America, Inc. English - 41 BN68-02426A_Eng.indb 41 2009-09-10 2:58:46 Dimensions (PN50B400P3D)

TOP VIEW FRONT VIEW REAR VIEW NOTE: All drawings not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to dimensions on each unit prior to performing any carpentry. Not responsible for typographical or printed errors. © 2009 Samsung Electronics America, Inc. English - 42 BN68-02426A_Eng.indb 42 2009-09-10 2:58:46 Aire ♥ TV #6 Aire ♥ TV #7 Aire ♥ TV #9 Aire ♥ TV #10 ♥ TV #11 Aire Trusurround SRS HD : Apagado Idioma preferido : Español „„ Guías pater. TV Guías pater. TV Dom Lun Mar Mie Jue Vie Sáb Una vez Mover Ajustar Ingresar Regresar ♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air Zoom Choisir ♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air Zoom Choisir ♥ TV #7 Air ♥ TV #9 Air ♥ TV #10 ♥ TV #11 Air Zoom Choisir ❑❑ SRS TruSurround HD → Off / On ❑❑ Volume auto → Off / On „„ Classif. MPAA Dim Lun Mar Mar Jeu Ven Sam Autodiagnostic Support technique Connexion au PC Message “Not Supported Mode”. Dimensions (PN42B400P3D)

VUE EN PLONGÉE

VUE AVANT Dimensions (PN50B400P3D)

VUE EN PLONGÉE
