USER MANUAL LN-S2351W SAMSUNG

Customer Care Center Web Site CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca U.S.A 1-800-SAMSUNG (7267864) www.samsung.com LN-S2351W LN-S2352W TFT-LCD TELEVISION Address Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada Samsung Electronique Canada Inc., Service á la Clientéle 55 Standish Court Mississauga, Ontario L5R 4B2 Canada Samsung Electronics America, Inc. 105 Challenger Road Ridgefield Park, NJ 07660-0511 Owner’s Instructions This device is a Class B digital apparatus. BN68-00998G-00 Register your product at www.samsung.com/global/register MIJU-Still.qxd 7/3/06 8:31 PM Page 1 Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. © 2006 Samsung Electronics Co., Ltd. All rights reserved. BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 1 English Contents GENERAL INFORMATION SOUND CONTROL Using Automatic Sound Settings .................................................. Customizing the Sound ................................................................ Choosing a Multi-Channel Sound (MTS) Soundtrack .................. Using the Auto Volume ................................................................. Listening to the Sound of the Sub (PIP) Picture .......................... Resetting the Sound Settings to the Factory defaults ..................

• CONNECTIONS Connecting VHF and UHF Antennas p. 6
• Connecting Cable TV p. 7
• Connecting a VCR p. 8
• Connecting an S-VHS VCR p. 8
• Connecting a DVD Player p. 9
• Connecting a DVD Player/Set-Top Box via DVI p. 9
• Connecting a DVD Player/Set-Top Box via HDMI p. 10
• Connecting a PC p. 10
• PC DISPLAY Setting Up Your PC Software (Based on Windows XP) p. 23
• Display Modes p. 23
• Setting up the TV with your PC p. 24
• One-Touch Button English-1 Specifications BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 2 General Information List of Features p. 25

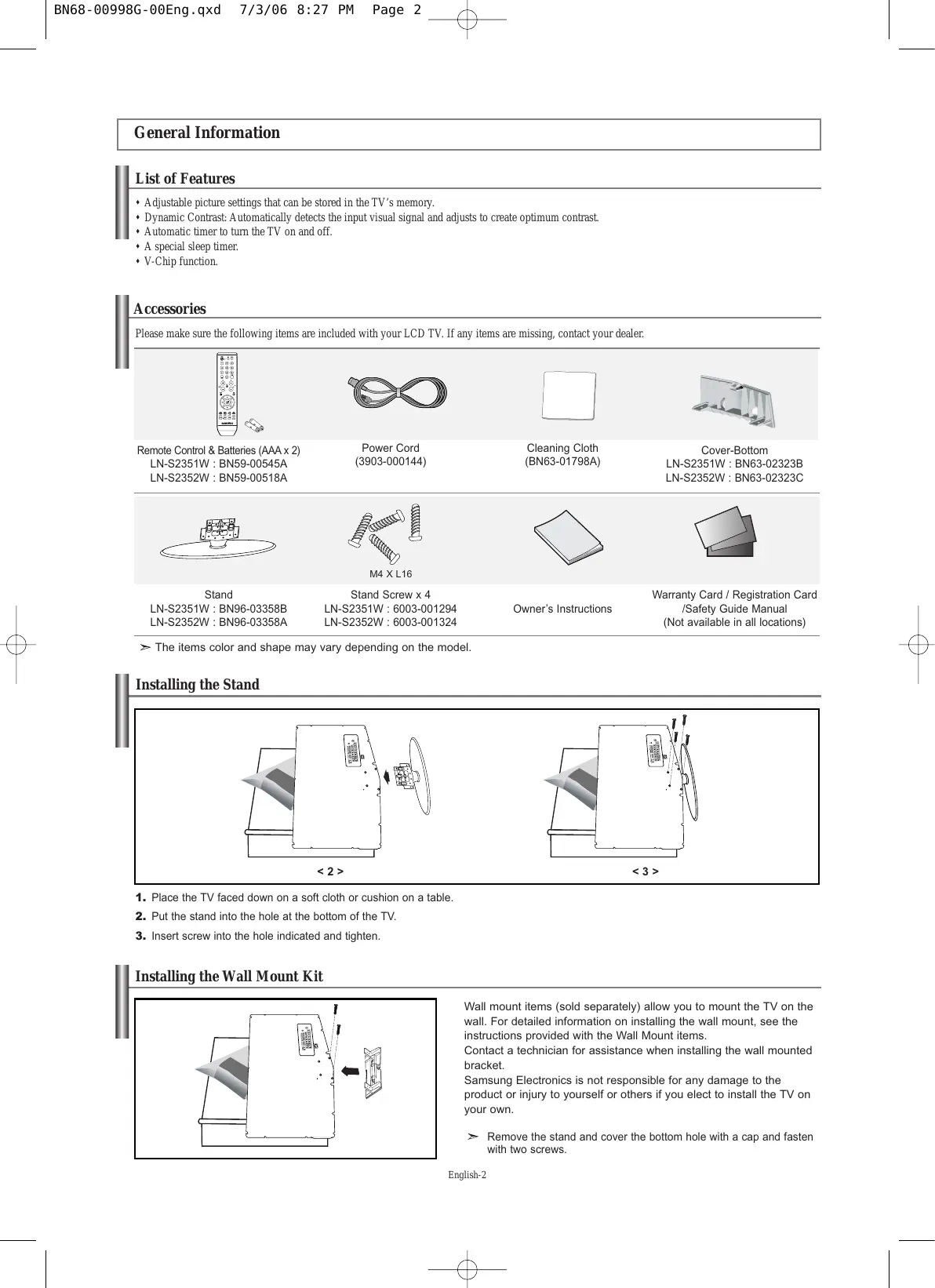

Adjustable picture settings that can be stored in the TV’s memory. Dynamic Contrast: Automatically detects the input visual signal and adjusts to create optimum contrast. Automatic timer to turn the TV on and off. A special sleep timer. V-Chip function. Accessories Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. Remote Control & Batteries (AAA x 2) LN-S2351W : BN59-00545A LN-S2352W : BN59-00518A Power Cord (3903-000144) Cleaning Cloth (BN63-01798A) Warranty Card / Registration Card /Safety Guide Manual (Not available in all locations) The items color and shape may vary depending on the model. Installing the Stand <2> <3>

1. Place the TV faced down on a soft cloth or cushion on a table.

2. Put the stand into the hole at the bottom of the TV.

3. Insert screw into the hole indicated and tighten.

Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Remove the stand and cover the bottom hole with a cap and fasten with two screws. English-2 BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 3 Viewing the Control Panel The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. The product color and shape may vary depending on the model. SOURCE Toggles between all the available input sources (TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI). In the on-screen menu, use this button as you use the ENTER button on the remote control. MENU Press to see an on-screen menu of your TV’s features. Press to change channels. In the on-screen menu, use the buttons as you use the and buttons on the remote control. SPEAKERS (POWER) Press to turn the TV on and off. Press to increase or decrease the volume. In the on-screen menu, use the buttons as you use the and buttons on the remote control. POWER INDICATOR Blinks and turns off when the power is on and lights up in stand-by mode.

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV. English-3 BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 4 Viewing the Connection Panel Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For more information on connecting equipment, see pages 6-10.

HDMI/DVI IN, DVI IN

Connect to the HDMI jack of a device with an HDMI output. Use the HDMI/DVI terminal for DVI connection to an external device. You should use the DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for video connection, and the DVI-IN ‘R-AUDIO-L’ terminal for audio. HDMI/DVI IN terminal does not support PC. No sound connection is needed for an HDMI to HDMI connection. PC IN Connect to the video and audio output jack on your PC. ANT IN Connect to an antenna or to a cable TV system. HEADPHONE Connect a set of external headphones for private listening. AV IN Video and audio inputs for external devices, such as a camcorder or VCR. S-VIDEO Connect an S-Video signal from a camcorder or VCR. POWER INPUT Connect the supplied power cord. COMPONENT IN 1, 2 Connect component video/audio. KENSINGTON LOCK The Kensington lock (optional) is a device used to physically fix the system when used in a public place. If you want to use a locking device, contact the dealer where you purchased the TV. English-4 BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 5 Viewing the Remote Control Turns the TV on and off. Press to select channels directly on the TV. Press to select additional channels (digital and analog) being broadcast by the same station. For example, to select channel “54-3”, press “54”, then press “–” and “3”. Press to increase or decrease the volume. Press to temporarily cut off the sound. Displays the main on-screen menu. Use to select on-screen menu items and change menu values. Adjust the TV sound by selecting one of the preset factory settings. (or selects your personal, customized sound settings) Adjust the TV picture by selecting one of the preset factory settings. (or selects your personal, customized picture settings) Press to select a time for the TV to turn off automatically. Press to choose stereo, mono or Separate Audio Program (SAPbroadcast). Press to automatically store selected TV/Cable channels. Use to store and delete channels to/from memory. Press to display information on the TV screen. Input source selection Returns to the previous channel. Press CH

buttons to change channels. Press to exit the on-screen menu. Press to stop the action during a particular scene. Press again to resume normal video. Press to change the screen size. Picture-in-Picture ON/OFF. Displays the available channels in sequence. (These buttons change channels in the PIP window only.) Press to set caption on/off. The performance of the remote control may be affected by bright light. English-5 BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 6 Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure.

Install two AAA size batteries.

Replace the cover. Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.) If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Connections Connecting VHF and UHF Antennas If your antenna has a set of leads that look like this, see “Antennas with 300 Ω If your antenna has one lead that looks like this, see “Antennas with 75 Ω If you have two antennas, see “Separate VHF and UHF Antennas”. Flat Twin Leads” below. Round Leads”. Antennas with 300 Ω Flat Twin Leads If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300 Ω twin flat leads, follow the directions below.

Place the wires from the twin leads under the screws on a 300-75 Ω (not supplied). Use a screwdriver to tighten the screws. adapter

Plug the adaptor into the ANT IN terminal on the back of the TV.

Plug the antenna lead into the ANT IN terminal on the back of the TV. ANT IN Antennas with 75 Ω Round Leads ANT IN Separate VHF and UHF Antennas If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

Connect both antenna leads to the combiner.

Plug the combiner into the ANT IN terminal on the bottom of the rear panel. UHF VHF ANT IN UHF VHF English-6 BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 7 Connecting Cable TV To connect to a cable TV system, follow the instructions below. Cable without a Cable Box

Plug the incoming cable into the ANT IN terminal on the back of the TV. ANT IN Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels. Connecting to a Cable Box that Descrambles All Channels

Find the cable that is connected to the ANT OUT terminal on your cable box. This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”. ANT OUT ANT IN

Connect the other end of this cable to the ANT IN terminal on the back of the TV. ANT IN Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of RF cable. (These items are available at most electronics stores.) ANT IN Find and disconnect the cable that is connected to the ANT IN terminal on your cable box. This terminal might be labeled “ANT IN”, “VHF IN” or simply, “IN”. Incoming cable Incoming cable

Connect this cable to a two-way splitter.

Connect an RF cable between an OUTPUT terminal on the splitter and the IN terminal on the cable box.

Connect an RF cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch.

Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.

Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the TV. Splitter Splitter Cable Box Incoming cable Splitter RF (A/B) Switch Cable Box Incoming cable Splitter RF (A/B) Switch Cable Box ANT IN Incoming cable TV Rear Splitter Cable Box RF (A/B) Switch After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.) English-7 BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 8 Connecting a VCR These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 6-7). Skip step 1 if you have not yet connected to an antenna or a cable system.

Unplug the cable or antenna from the back of the TV.

Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.

Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN [VIDEO] jack on the TV.

Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN [R-AUDIO-L] jacks on the TV. ANT IN TV Rear Panel VCR Rear Panel

5 Audio Cable (Not supplied) If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables. 4 Video Cable (Not supplied) 3 RF Cable (Not supplied) Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape. Each external input source device has a different back panel configuration. When connecting an external device, match the color of the connection terminal to the cable. Connecting an S-VHS VCR Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR. (This connection delivers a better picture as compared to a standard VHS VCR.)

To begin, follow steps 1–3 in the previous section to connect the antenna or cable to your VCR and your TV.

Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN [S-VIDEO] jack on the TV.

Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN [R-AUDIO-L] jacks on the TV. TV Rear Panel VCR Rear Panel 3 Audio Cable (Not supplied) 2 S-Video Cable (Not supplied) 1 RF Cable (Not supplied) An S-Video cable is usually included with an S-VHS VCR. (If not, check your local electronics store.) Each external input source device has a different back panel configuration. When connecting an external device, match the color of the connection terminal to the cable. English-8 BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 9 Connecting a DVD Player The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

Connect a Component Cable between the COMPONENT IN 1 or COMPONENT IN 2 [PR, PB, Y] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD player.

Connect Audio Cables between the COMPONENT IN 1 or COMPONENT IN 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD player.

Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI/DVI IN connector on the TV and the DVI connector on the DVD player/Set-Top Box.

Connect Audio Cables between the DVI IN [R-AUDIO-L] jack on the TV and the AUDIO OUT jacks on the DVD player/ Set-Top Box. TV Rear Panel DVD Player Rear Panel

Audio Cable (Not supplied)

Component Cable (Not supplied) Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN, connect the audio cable to COMPONENT IN also. Each external input source device has a different back panel configuration. When connecting an external device, match the color of the connection terminal to the cable. Connecting a DVD Player/Set-Top Box via DVI This connection can only be made if there is a DVI Output connector on the external device. DVD Player / Set-Top Box TV Rear Panel

Audio Cable (Not supplied)

DVI to HDMI Cable (Not supplied) Each external input source device has a different back panel configuration. When connecting an external device, match the color of the connection terminal to the cable. English-9 BN68-00998G-00Eng.qxd 7/3/06 8:27 PM Page 10 Connecting a DVD Player/Set-Top Box via HDMI This connection can only be made if there is an HDMI Output connector on the external device. DVD Player Rear Panel

Connect an HDMI Cable between the HDMI/DVI connector on the TV and the HDMI connector on the DVD player/Set-Top Box.

Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.

Connect a PC Audio Cable between PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer. TV Rear Panel HDMI Cable (Not supplied) What is HDMI?

• HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.
• “Multimedia interface” is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio. Each external input source device has a different back panel configuration. When connecting an external device, match the color of the connection terminal to the cable. Connecting a PC TV Rear Panel

PC Audio Cable (Not supplied)

D-Sub Cable (Not supplied) Each external input source device has a different back panel configuration. When connecting an external device, match the color of the connection terminal to the cable. The HDMI/DVI jacks do not support PC connection. English-10 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 11 Operation Turning the TV On and Off Press the POWER button on the remote control. You can also use the POWER button on the front of the panel. Plug and Play Feature When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

Press the POWER button on the remote control. The message “Plug & Play” is displayed.

Select the appropriate language by pressing the or button. Press the ENTER button to confirm your choice.

The message “Check antenna input.” is displayed with “OK” selected. Press the ENTER button.

Press the or button to select “Air”, “STD”, “HRC”, or “IRC”, then press the ENTER

Please check that the antenna cable is connected correctly. button. button to select “Start”. The channel search will start and end automatically. After all the available channels are stored, the “Clock Set” menu appears. Press the ENTER button at any time to interrupt the memorization process.

Press the ENTER button. Press the or button to move to the “Hour”, “Minute” or “am/pm”. Set the “Hour”, “Minute” or “am/pm” by pressing the or button.

Press the ENTER button to confirm your setting. The message “Enjoy your watching.” is displayed.

• Language: Select your language.
• Air/Cable: Select your local cable company TV system.
• Auto Program: Selects between terrestrial antenna connection or your local cable company TV system. The TV automatically cycles through all of the available channels and stores them in memory. This takes about one to two minutes.
• Clock Set: Sets the current time for the TV clock. You can also set the hour and minute by pressing the number buttons on the remote control. If you want to reset this feature...

This will change or reset the settings. button to select “Plug & Play”. English-11 button. BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 12 Changing Channels Using the Channel Buttons:

Press the CH or CH button to change channels. When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. Using the PRE-CH Button to select the Previous Channel:

Press the PRE-CH button. The TV will switch to the last channel viewed. To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them. Adjusting the Volume

Press the VOL or VOL button to increase or decrease the volume. Using MUTE button: At any time, you can temporarily cut off the sound using the MUTE button.

Press MUTE and the sound cuts off. The word “Mute” will appear in the lower-left corner of the screen.

To turn mute off, press the MUTE button again, or simply press the VOL or VOL Viewing the Display Press the INFO button on the remote control to view current channel and the status of certain audio-video settings. Press the button once more or wait approximately 10 seconds and it disappears automatically. English-12 button. BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 13 Selecting the Video Signal-source Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an antenna or a cable system).

Press the MENU button to display the menu. Press the or button to select “Channel”, then press the ENTER

Press the or button to select the video signal source, then press the ENTER

button. button to select “Air/Cable”. button. Press the EXIT button to exit. STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected. Proceed to “Storing Channels Automatically”. Storing Channels Automatically The TV automatically cycles through all of the available channels and stores them in memory. This takes about one to two minutes.

To select the signal source, follow the “Selecting the Video Signal-source” instructions number 1 to 3 on page 13.

Press the or button to select “Auto Program”. Press the ENTER

Press the ENTER button. The channel search will start and end automatically. Press the ENTER button at any time to interrupt the memorization process and return to the “Channel” menu.

After all the available channels are stored, the “Channel” menu reappears.

button. Press the EXIT button to exit. Press the AUTO PROG. button on the remote control. Storing Channels Manually You can store up to 100 channels, including those received via cable networks.

Press the MENU button to display the menu. Press the or button to select “Channel”, then press the ENTER

Press the or button to select “Add/Delete”. Press the ENTER button.

Repeatedly pressing the ENTER

or CH button. button will alternate between add channel and delete channel. button to switch to the appropriate channel, then repeat above. Press the EXIT button to exit. You can view any channel (including an erased channel) by using the number buttons on the remote control. Use the number buttons to directly select the channel that will be added or erased. Press the ADD/DEL button on the remote control. English-13 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 14 Picture Control Using Automatic Picture Settings Your TV has four automatic picture settings (“Dynamic”, “Standard”, “Movie”, “Custom”) that are preset at the factory. Each Picture mode can be set to your preference by adjusting particular items such as Contrast, Brightness, Sharpness, Color, Tint and Color Tone.

button, to select “Mode”.

button again, to select “Mode”.

Press the or button to select the desired picture effect. Press the ENTER button.

Press the EXIT button to exit. button.

• Dynamic: Selects the picture for high-definition in a bright room.
• Standard: Selects the picture for optimum display in a normal environment.
• Movie: Selects the picture for comfortable display in a dark room.
• Custom: Select to view your favorite display settings (see “Customizing the Picture”, page 14). The Picture mode must be adjusted separately for each input source. You can return to the factory defaults picture settings by selecting the “Reset”. (see “Resetting the Picture Settings to the Factory Defaults”, page 15). You can also press the P.MODE button on the remote control to select one of the picture settings. Customizing the Picture Your set has several settings which allow you to control picture quality.

To select the desired picture effect, follow the “Using Automatic Picture Settings ” instructions number 1 to 4 on page 14.

Press the o button to decrease or increase the value of a particular item. Press the ENTER button.

Press the EXIT button to exit.

• Contrast: Adjusts the lightness and darkness between objects and the background.
• Brightness: Adjusts the brightness of the whole screen.
• Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
• Color: Adjusts the colors, making them lighter or darker.
• Tint: Adjusts the color of objects, making them more red or green for a more natural look. The adjusted values are stored according to the selected Picture mode. Adjusting the Color Tone You can Change the color of the entire screen according to your preference.

To select the desired picture effect, follow the “Using Automatic Picture Settings ” instructions number 1 to 4 on page 14.

Press the or button to select “Color Tone”, then press the ENTER

Press the or button to select the desired color tone setting. Press the ENTER button.

Press the EXIT button to exit.

• Cool2: Makes the color temperature bluer than “Cool1” menu.
• Cool1: Makes whites bluish.
• Normal: Keeps whites white.
• Warm1: Makes whites reddish.
• Warm2: Makes the color temperature redder than “Warm1” menu. The adjusted values are stored according to the selected Picture mode. English-14 button. BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 15 Resetting the Picture Settings to the Factory Defaults You can return to the factory defaults picture settings.

To select the desired picture effect, follow the “Using Automatic Picture Settings ” instructions number 1 to 4 on page 14.

Press the or button to select “Reset”, then press the ENTER

Press the EXIT button to exit. button. The “Reset” will be set for each picture mode. Changing the Picture Size You can select the picture size which best corresponds to your viewing requirements.

Press the or button to select “Size”, then press the ENTER

Select the required option by pressing the or button. Press the ENTER button.

Press the EXIT button to exit. button. button.

• 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.
• Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
• 4:3: This is the default setting for a video movie or normal broadcasting. In PC, Component and DVI Mode, only “16:9” and “4:3” mode can be adjusted. (The “Zoom” mode is not supported.) Select by pressing the or buttons. Use the or button to move the picture up and down. After selecting , use the or button to magnify or reduce the picture size in the vertical direction. Setting the Digital Noise Reduction (Digital NR) If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Press the or button to select “Digital NR”, then press the ENTER

Press the or button to select “On” or “Off”. Press the ENTER button.

button. button. Press the EXIT button to exit. This function don’t work in PC mode. Dynamic Contrast Dynamic Contrast is to automatically detect distribution of inputted visual signal and adjust to create optimum contrast.

Press the or button to select “Dynamic Contrast”, then press the ENTER

Press the or button to select “On” or “Off”. Press the ENTER button.

Press the EXIT button to exit. This function don’t work in PC mode. English-15 button. button. BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 16 Viewing Picture-in-Picture This product has one built-in tuner, which does not allow PIP to function in the same mode. For example, you cannot watch one TV channel in the main screen, and a different one in the PIP screen. You can use the PIP feature to simultaneously watch two video sources.

Press the or button to select “PIP”, then press the ENTER

Press the or button to select “On” Press the ENTER button. button. button. button. PIP is available only in PC mode and will be unavailable for other modes. If you turn the TV off while watching in PIP mode and turn it on again, the PIP window will disappear.

Press the or button to select “Source”, then press the ENTER

Select the source of the sub picture (PIP) by pressing the or buttons and press the ENTER button.

Press the or button to select “Position”, then press the ENTER

Press the or buttons to select the desired PIP window position. Press the ENTER button.

Press the or button to select “Channel”, then press the ENTER button. button. button.

10. Press the or buttons to select the desired channel in the PIP window.

Press the ENTER button.

11. Press the EXIT button to exit.

• Source: Selecting a signal source (external A/V) for PIP. The sub picture can serve different source selections based on what the main picture is set to.
• Position: Changing the position of the PIP window.
• Channel: Changing the PIP channel. The channel can be active when the sub picture is set to TV. PIP Settings (O: PIP operates, X: PIP doesn’t operate) Sub Main

Component1 Component2

When the main picture is PC, the sub picture only supports TV, AV and S-VIDEO. The sub picture does not support other input sources in this case. You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke. While V-Chip is in operation, the PIP function cannot be used. Press the PIP button on the remote control repeatedly to activate or deactivate the “PIP”. Sound Control Using Automatic Sound Settings You can select the type of the special sound effect to be used when watching a given broadcast.

Press the or button to select the desired sound effect. Press the ENTER button.

Press the EXIT button to exit. button. button to select “Mode”.

• Standard: Selects the normal sound mode.
• Music: Emphasizes music over voices.
• Movie: Provides live and full sound for movies.
• Speech: Emphasizes voices over other sounds.
• Custom: Selects your custom sound settings (See “Customizing the Sound”, page 17). You can also press the S.MODE button on the remote control to select one of the sound settings. English-16 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 17 Customizing the Sound The sound settings can be adjusted to suit your personal preferences. (Alternatively, you can use one of the “automatic” settings.)

Press the or button to select “Equalizer”, then press the ENTER

Press the or buttons to select a particular frequency to adjust. Press the or buttons to increase or decrease the level of the particular frequency. button. Press the ENTER

button. button. Press the EXIT button to exit. If you make any changes to the “Equalizer” settings, the sound mode is automatically switched to the “Custom” mode. Choosing a Multi-Channel Sound (MTS) Soundtrack Depending on the particular program being broadcast, you can listen to stereo, mono or a Separate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAP has unrelated information like news or weather).

Press the or button to select “MTS”, then press the ENTER

Press the or button to select the required option, then press the ENTER

Press the EXIT button to exit.

• Mono: Select for channels that are broadcast in mono, or if you are having difficulty receiving a stereo signal.
• Stereo: Select for channels that are broadcast in stereo.
• SAP: Select to listen to the Separate Audio Program, which is usually a foreign-language translation. You can also press the MTS button on the remote control to change the MTS settings. Using the Auto Volume Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume every time the channel is changed. “Auto Volume” automatically adjusts the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

Press the or button to select “Auto Volume”, then press the ENTER

Press the or button to select “On” or “Off”. Press the ENTER

Press the EXIT button to exit. button. button. button. Listening to the Sound of the Sub (PIP) Picture During the PIP feature is activating, you can listen to the sound of the sub picture.

Press the or button to select “Sound Select”, then press the ENTER

Press the or button to select “Sub”. Press the ENTER

Press the EXIT button to exit. button. button. button.

• Main: Used to listen to the sound of the main picture.
• Sub: Used to listen to the sound of the sub picture. You can select this option when the “PIP” is set to “On”. Resetting the Sound Settings to the Factory defaults If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

Press the or button to select “Reset”, then press the ENTER button.

Press the EXIT button to exit. You can select this option when the “Game Mode” is set to “On”. English-17 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 18 Time Setting Setting the Clock You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

Press the or button to select “Time”, then press the ENTER

Press the or button to adjust “Hour”, then press the button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.

Press the EXIT button to exit. button. button. button to select “Clock Set”. If you disconnect the power cord, you have to set the clock again. You can also set the hour and minute by pressing the number buttons on the remote control. Setting the Sleep Timer Set the timer for the TV to turn off at the preset time automatically.

Press the or button to select “Time”, then press the ENTER

Press the or button repeatedly until the desired time appears. (Off, 30, 60, 90, 120, 150, 180) Press the ENTER button.

Press the EXIT button to exit. The TV automatically turn off when the timer reaches 0. You can also press the SLEEP button on the remote control to set the sleep time. Setting the On/Off Timer You can set the On/Off timers so that the set will: Switch on automatically and tune to the channel of your choice at the time you select. Switch off automatically at the time you select.

Press the or button to select “Time”, then press the ENTER

Press the or button to select “On Timer”, then press the ENTER

Press the or button to adjust “Hour”, then press the button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.

Press the or button to select “Off Timer”, then press the ENTER

Press the or button to adjust “Hour”, then press the button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.

Press the EXIT button to exit. The clock must be set (see above) before you can set the On/Off timer. You can also set the hour and minute by pressing the number buttons on the remote control. The "Activation" setting must be set to "Yes" in order for the timers to work. Auto Power Off: When you set the timer on, your television will be turned off if you do not operate any controls for 3 hours after the TV has been turned on with the “Timer On” function. English-18 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 19 Function Description Using the V-Chip Setting Up Your Personal ID Number (PIN): The V-Chip feature automatically locks out programming that is deemed inappropriate for children. The user must first enter a Pin (personal ID number) before any of the V-Chip restrictions can be set up or changed.

Press the or button to select “V-Chip”, then press the ENTER

The “Enter PIN” screen will appear. Enter your 4-digit PIN.

After entering a valid PIN number, the “V-Chip” screen will appear. Press the or button to select “Change PIN”. Press the ENTER button.

The Change PIN screen will appear. Choose any 4-digits for your PIN and enter them. As soon as the 4 digits are entered, the “Enter new PIN” screen appears. Re-enter the same 4 digits. When the confirm screen disappears, your PIN has been memorized.

Press the EXIT button to exit. button. button. The default PIN number for a new TV set is “0-0-0-0”. How to Enable/Disable the V-Chip:

Press the or button to select “V-Chip”, then press the ENTER

The “Enter PIN” screen will appear. Enter your 4-digit PIN. button. button.

The “V-Chip” screen will appear, and “V-Chip Lock” will be selected. Press the ENTER

Press the or button to select “On” or “Off”. Press the ENTER

Press the EXIT button to exit. button. button. How to Set up Restrictions Using the ‘TV guidelines’: First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.

Press the or button to select “V-Chip”, then press the ENTER

The “Enter PIN” screen will appear. Enter your 4-digit PIN.

Press the or button to select “TV Parental Guidelines”, then press the ENTER

The “TV Parental Guidelines” screen will appear. Press the or button to select one of the six age-based categories:

• TV-Y: Young children
• TV-Y7: Children 7 and over

• TV-MA: button. button. General audience Parental guidance Viewers 14 and over Mature audience At this point, one of the TV-Ratings is selected. Press the ENTER button: Depending on your existing setup, the color of the letter “U” or “B” will be highlighted. (U= Unblocked, B= Blocked) When the color of the “U” or “B” is highlighted, press the ENTER button to block or unblock the category. A TV-Rating will be highlighted. To exit this screen, press MENU again. To select a different TV-Rating, press the or button and then repeat the process. The TV-Y7, TV-PG, TV-14, and TV-MA have additional options. See the next step to change any of the following sub-ratings: FV: Fantasy Violence / D: Sexual suggestive Dialog L: Adult Language / S: Sexual situation / V: Violence The V-Chip will automatically block certain categories that are “more restrictive.” For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14, and TV-MA). The sub-ratings (D, L, S, V) work together similarly. English-19 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM

Page 20 How to set the FV, D, L, S, and V sub-ratings. First, highlight one of these TV-Ratings: TV-Y7, TV-PG, TV-14, or TV-MA (See Step 4, on previous page). Next, while the TV-Rating is selected, repeatedly button. This will cycle through the available sub-ratings (FV,L, S, D, or V). press the ENTER A highlighted letter (“U” or “B”) will be displayed for each sub-rating. button to change the sub-rating. While the “U” or “B” is highlighted, press the ENTER Press MENU once to save the TV guidelines. A TV-Rating will be selected, and no letters “U” or “B” will be changed to yellow. To exit this screen, press the MENU button again. To select a different TV-Rating, press the or button and then repeat the process. The V-chip will automatically block certain categories that are “More restrictive”. For example, if you block the “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.

Press the EXIT button to clear all the screens. (Or proceed to the next section, and set up additional restrictions based on the MPAA codes). How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).

Press the or button to select “V-Chip”, then press the ENTER

The “Enter PIN” screen will appear. Enter your 4-digit PIN.

Press the or button to select “MPAA Rating”, then press the ENTER

Repeatedly press the or button to select a particular MPAA category. (When a category is selected, its color changes to yellow.) Pressing the or button will cycle through the MPAA categories:

button. button. General audience (no restrictions). Parental guidance suggested. Parents strongly cautioned. Restricted. Children under 17 should be accompanied by an adult. No children under age 17. Adults only. Not rated. Press the or button to select a category. Press the ENTER button to select “U” or “B”. Press the EXIT button to save the settings and to clear all screens. The V-Chip will automatically block any category that is “more restrictive”. For example, if you block the “PG-13” category, then “R”, “NC-17”, and “X” will automatically be blocked also. How to Reset the TV after the V-Chip Blocks a Channel (‘Emergency Escape’) If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: “Excessive rating”. To resume normal viewing, tune to a different channel using the number buttons. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the Menu button for an “emergency escape”: Select the V-Chip on the Menu. Enter your PIN number, and press the ENTER button to temporarily disable the V-Chip Lock. How to Set up Restrictions Using the Canadian English

Press the or button to select “V-Chip”, then press the ENTER

The “Enter PIN” screen will appear. Enter your 4-digit PIN.

Press the or button to select “Canadian English”, then press the ENTER

Press the or button to select a appropriate restriction. Press the ENTER button to activate the restriction selected. The “B” is indicated.

Press the EXIT button to exit.

• 18+: button. button. button. Exempt programming includes...news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. Programming intended for children under age 8. Programming generally considered acceptable for children 8 years and over to watch on their own. General programming, suitable for all audiences. Parental Guidance. Programming contains themes or content which may not be suitable for viewers under the age of 14. Adult programming. English-20 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 21 How to Set up Restrictions Using the Canadian French

Press the or button to select “V-Chip”, then press the ENTER

The “Enter PIN” screen will appear. Enter your 4-digit PIN.

Press the or button to select “Canadian French”, then press the ENTER

Press the or button to select a appropriate restriction. button to activate the restriction selected. The “B” is indicated. Press the ENTER

Press the EXIT button to exit. button. button. button.

• E: Exempt programming includes...news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.
• 8 ans+: Not recommended for young children.
• 13 ans+: Programming may not be suitable for children under the age of 13.
• 16 ans+: Programming is not suitable for children under the age of 16.
• 18 ans+: Programming restricted to adults. Selecting a Menu Language

Press the or button to select “Language”. button. Press the ENTER

Press the or button to select the appropriate language. button. Press the ENTER

Press the EXIT button to exit. button. Using Game mode When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting game menu.

Press the or button to select “Game Mode”, then press the ENTER

Press the or button to select “On” or “Off”, then press the ENTER

button to exit. To disconnect the game console and connect another external device, cancel game mode in the picture menu. If you display the TV menu in Game mode, the screen shakes slightly. Game Mode is not available in TV mode. Viewing Closed Captions Your TV decodes and displays the closed captions that are broadcast with certain TV shows. These captions are usually subtitles for the hearing impaired or foreign-language translations. All VCRs record the closed caption signal from television programs, so home-recorded video tapes also provide closed captions. Most pre-recorded commercial video tapes provide closed captions as well. Check for the closed caption symbol in your television schedule and on the tape’s packaging:

Press the or button to select “Caption”, then press the ENTER

Press the or button to set caption “On” or “Off”, then press the ENTER

Depending on the particular broadcast, it might be necessary to make changes to “Channel” and “Field”.

Press the EXIT button to exit. button. button.

• Mode: Caption / Text
• Field: 1 / 2 The Caption feature does not work with DVD or Set-top box signals. Different channels and fields display different information: Field 2 carries additional information that supplements the information in Field 1. (For example, Channel 1 may have subtitles in English, while Channel 2 has subtitles in Spanish). Press the CAPTION button on the remote control. English-21 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 22 Using the Energy Saving Feature This feature adjusts the brightness of TV so as to reduce the power consumption. When you watching TV at night, set the "Energy Saving " mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

Press the or button to select “Energy Saving”, then press the ENTER

Select the required option (Off, Low, Medium, High) by pressing the or button. Press the ENTER button.

Press the EXIT button to exit. button. Setting the Blue Screen Mode If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue Screen” mode to “Off”.

Press the or button to select “On” or “Off”. Press the ENTER

Press the EXIT button to exit. button. button. button. Selecting the Melody You can hear melody sound when the television is powered on or off.

Press the or button to select “On” or “Off”. Press the ENTER

Press the EXIT button to exit. Selecting the Source You can select among external sources connected to your TV's input jacks.

button to select the “Source List”. button. You can only select a source if it is connected to your TV. You can also press the SOURCE button on the remote to choose the Input source. Editing the Input Source Name You can name the input device connected to the input jacks to make your input source selection easier.

Press the or button to select the desired input device, then press the ENTER

Press the or button repeatedly until the appropriate source name appears. After the source is selected, press the ENTER button. button. button. The following options are available: - - - - - VCR - DVD - Cable STB - HD STB - Satellite STB - AV Receiver - DVD Receiver - Game Camcorder - DVD Combo - DHR - PC DHR: DVD HDD Recorder

Press the EXIT button to exit. English-22 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 23 PC Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on “Control Panel” on the Windows start menu.

When the control panel window appears, click on “Appearance and Themes” and a display dialog-box will appear.

When the control panel window appears, click on “Display” and a display dialog-box will appear.

Navigate to the “Settings” tab on the display dialog-box. The correct size setting (resolution): Optimum- 1360 X 768 If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box. Display Modes Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. (All resolutions between the supported limits are supported) Mode Resolution Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) IBM 640 x 480 720 x 400

VEAS 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768 The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. DVI does not support PC function. Separate and Composite modes are supported. SOG is not supported. English-23 BN68-00998G-00Eng.qxd 7/3/06 8:28 PM Page 24 Setting up the TV with your PC Image Lock: The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

Press the or button to select “PC”, then press the ENTER

Press the or button to select “Coarse” or “Fine”, then press the ENTER

Press the or button to adjust the screen quality, vertical stripes may appear or the picture may be blurry. Press the ENTER button.

Press the EXIT button to exit. button. button. button to select “Image Lock”. button. Position: Adjust the PC’s screen positioning if it does not fit the TV screen.

Press the or button to select “PC”, then press the ENTER

Press the or button to select “Position”, then press the ENTER

Press the or button to adjust the V-Position (Vertical-Position). Press the or button to adjust the H-Position (Horizontal-Position). Press the ENTER button.

Press the EXIT button to exit. button. button. Image Reset: You can replace all image settings with the factory default values.

Press the or button to select “PC”, then press the ENTER

Press the or button to select “Image Reset”, then press the ENTER

Press the EXIT button to exit. button. button. Auto Adjustment: Auto adjustment allows you to set the TV to self-adjust to the incoming PC video signal. The fine, coarse and position values are adjusted automatically.

Press the or button to select “PC”, then press the ENTER

Press the or button to select “Auto Adjustment”, then press the ENTER

Press the EXIT button to exit. English-24 Troubleshooting Identifying Problems If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center. Problem Possible Solution Poor picture Try another channel. Adjust the antenna. Check all wire connections. Poor sound quality. Try another channel. Adjust the antenna. No picture or sound. Try another channel. Press the SOURCE button. Make sure the TV is plugged in. Check the antenna connections. No sound or sound is too low at maximum volume. First, check the volume of units connected to your TV (Digital broadcasting receiver, DTV, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly. Picture rolls vertically. Check all wire connections. The TV operates erratically. Unplug the TV for 30 seconds, then try operating it again. Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. “Check signal cable. PC” message. Ensure that the signal cable is firmly connected to the PC sources. “Not Supported Mode” message. Check the maximum resolution and the frequency of the Video Adaptor. Compare these values with the data in the Display Modes. The image is too light or too dark. Adjust the Brightness and Contrast. Horizontal bars appear to flicker, jitter or shimmer on the image. Adjust the Coarse tuning and then adjust the Fine tuning. Appendix Specifications Model Name Screen Size (Diagonal) Power Supply Power Consumption PC Resolution Sound Output Dimension (WxDxH) Body With stand Weight With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity LN-S2351W LN-S2352W 23 inches 23 inches AC 110-120V 60Hz AC 110-120V 60Hz 100 W 100 W 1360 x 768 @ 60 Hz 1360 x 768 @ 60 Hz 3W X 2 3W X 2

23.39 X 2.95 X 16.57 inches (594 X 75 X 421mm)

23.39 X 8.48 X 18.72 inches (594 X 215.5 X 475.5mm)

23.39 X 2.95 X 16.57 inches (594 X 75 X 421mm)

23.39 X 8.48 X 18.72 inches (594 X 215.5 X 475.5mm)

16.75 Ibs (7.6 kg)

16.75 Ibs (7.6 kg)

5 Câble Audio (non fourni) Câble Audio (non fourni)

Câble composante (non fourni) Câble Audio (non fourni)

Câble Audio PC (non fourni)

Câble D-Sub (non fourni) Composant1 Composant2

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768 594 X 75 X 421mm (23,39 X 2,95 X 16,57 inches) 594 X 215,5 X 475,5mm (23,39 X 8,48 X 18,72 inches) 594 X 75 X 421mm (23,39 X 2,95 X 16,57 inches) 594 X 215,5 X 475,5mm (23,39 X 8,48 X 18,72 inches) 7,6 kg (16,75 Ibs) 7,6 kg (16,75 Ibs) 3 Cable RF (No incluido)

640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1360 x 768
