USER MANUAL HP-T4234 SAMSUNG

HP-T4234 HP-T5034 PLASMA DISPLAY Owner’s Instructions Register your product at www.samsung.com/global/register Record your Model and Serial number here for future reference.

2007-04-30 ｿﾀﾀ・10:45:13 Important Warranty Information Regarding Television Format Viewing Wide screen format PDP Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of PDP Displays that leave subtle, but permanent burned-in ghost images in the PDP picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On PDP models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty. U.S.A Only The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. Other countries The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. © 2007 Samsung Electronics Co., Ltd. All rights reserved. English - 2 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:14 User Instructions Screen Image retention Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, refer to page 27 of this manual to reduce the degree of brightness and contrast of the screen when displaying a still image. Altitude The PDP can only operate normally at heights under 6500ft. Heat on the top of the PDP TV The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product. The product is making a ‘cracking’ noise. A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit. Cell Defects The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. Avoid operating the TV at temperatures below 5°C (41°F) A still image displayed too long may cause permanent damage to the PDP Panel. Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen. Damages caused by the above effect are not covered by the Warranty. After-images on the Screen. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images for a long time. Warranty Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty. English - 3 BN68-01192R_Eng-1.indd

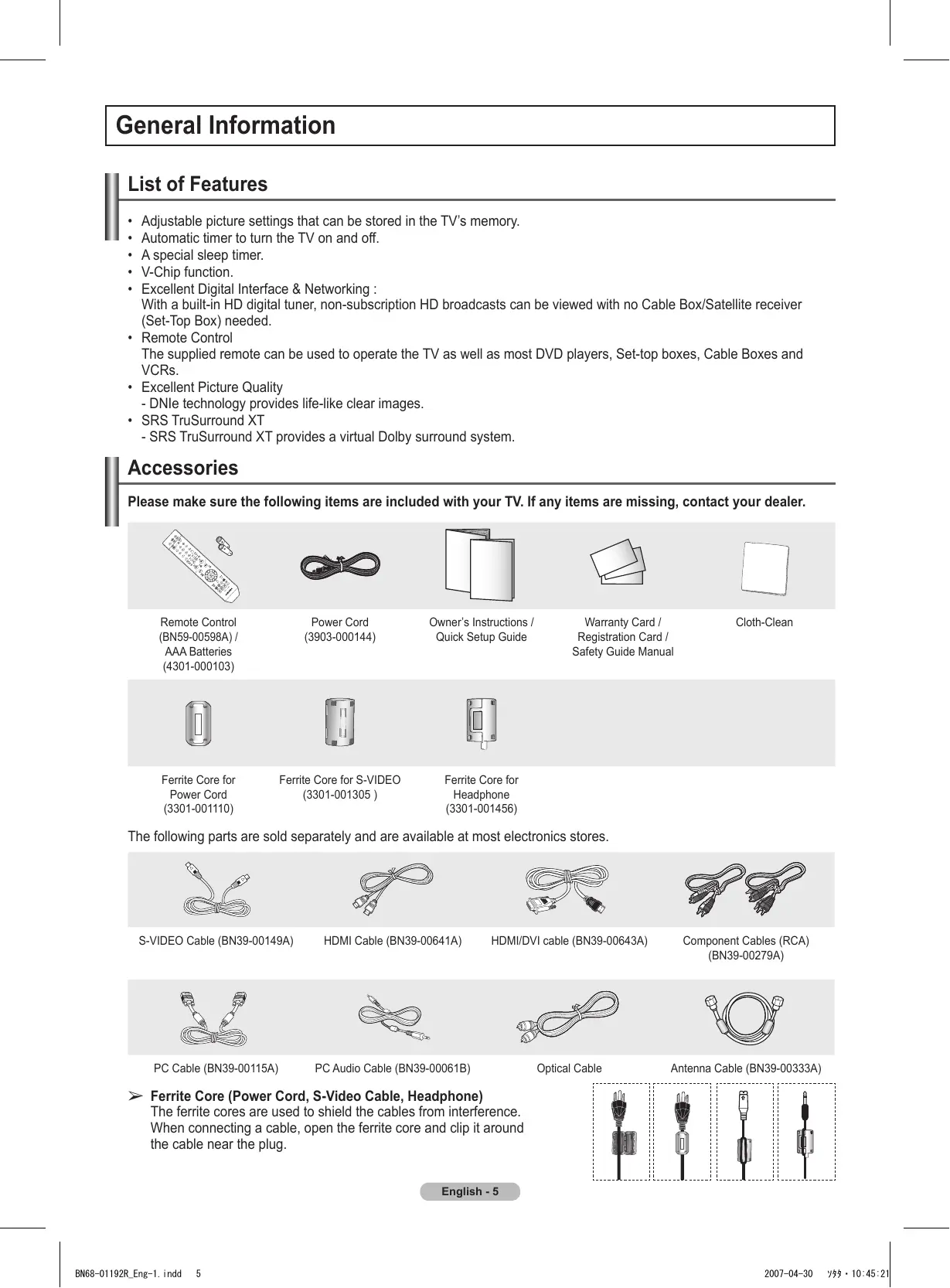

2007-04-30 ｿﾀﾈﾄ 3:02:31 General Information List of Features

Adjustable picture settings that can be stored in the TV’s memory. Automatic timer to turn the TV on and off. A special sleep timer. V-Chip function. Excellent Digital Interface & Networking : With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-Top Box) needed.

• Remote Control The supplied remote can be used to operate the TV as well as most DVD players, Set-top boxes, Cable Boxes and VCRs.
• Excellent Picture Quality - DNIe technology provides life-like clear images.
• SRS TruSurround XT - SRS TruSurround XT provides a virtual Dolby surround system. Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer. Remote Control (BN59-00598A) / AAA Batteries (4301-000103) Power Cord (3903-000144) Owner’s Instructions / Quick Setup Guide Ferrite Core for Power Cord (3301-001110) Ferrite Core for S-VIDEO (3301-001305 ) Ferrite Core for Headphone (3301-001456) Warranty Card / Registration Card / Safety Guide Manual Cloth-Clean The following parts are sold separately and are available at most electronics stores. S-VIDEO Cable (BN39-00149A) HDMI Cable (BN39-00641A) HDMI/DVI cable (BN39-00643A) Component Cables (RCA) (BN39-00279A) PC Cable (BN39-00115A) PC Audio Cable (BN39-00061B) Optical Cable Antenna Cable (BN39-00333A)

Ferrite Core (Power Cord, S-Video Cable, Headphone) The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug. English - 5 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:21 Viewing the Control Panel Buttons on the Lower-Right Part of the Panel The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

The product color and shape may vary depending on the model. 1 SOURCE Toggles between all the available input sources (TV, AV1, AV2, S-Video1, S-Video2, Component1, Component2, PC, HDMI1, or HDMI2).

2 MENU Press to see an on-screen menu of your TV’s features. 3 + VOL – Press to increase or decrease the volume. In the onscreen menu, use the + VOL – buttons as you would use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you would use the ▲ and ▼ buttons on the remote control. (ENTER) Press to confirm a selection. 6 POWER Press to turn the TV on and off. Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode. Remote Control Sensor Aim the remote control towards this spot on the TV. 7 Speakers English - 6 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:31 Viewing the Connection Panel Rear Panel Jacks Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For more information on connecting equipment, see pages 9~15. The product color and shape may vary depending on the model. 1 POWER IN Connect the supplied power cord. 8 ANT 1 IN(AIR)/ANT 2 IN(CABLE) Uses a 75Ω Coaxial connector for an Air/Cable Network. 2 DIGITAL AUDIO OUT (OPTICAL) Connect to a Digital Audio component. 9 EX-LINK Connect the serial jack between the electro-motion wall mount bracket and your TV when you want to adjust the TV viewing angle using your remote control. 3 AUDIO OUT (R/L) Audio outputs for external devices.

Connect to the audio output jack on your PC. 0 AUDIO-R/L (AV IN 1) Audio inputs for external devices, such as a camcorder or VCR. 5 PC IN Connect to the video output jack on your PC. 6 DVI IN (HDMI 1) (AUDIO-R/L) Connect to the DVI audio output jack of an external device. ! S-VIDEO (AV IN 1) Video input for external devices with an S-Video output, such as a camcorder or VCR. 7 HDMI IN 1, 2 @ VIDEO (AV IN 1) Connect to the HDMI jack of a device with HDMI output. Video input for external devices, such as a camcorder (Only HDMI 1 can support HDMI and DVI IN.) or VCR. This input can also be used as a DVI connection with # COMPONENT IN 1, 2 separate analog audio inputs. An optional HDMI/DVI Video (Y/PB/PR) and audio (R-AUDIO-L) Component inputs. cable will be necessary to make this connection. When using an optional HDMI/DVI adapter, the DVI analog audio inputs on your TV allow you to receive left and right audio from your DVI device. (Not compatible with PC) Side Panel Jacks Use the right side panel jacks to connect a component that is used only occasionally, such as a camcorder or video game. The product color and shape may vary depending on the model. 1 SERVICE For service only. 2 S-VIDEO IN 2 S-Video input for external devices with an S-Video output. 3 AV IN 2 Video and audio inputs for external devices. 4 HEADPHONE You can connect a set of headphones if you wish to watch a television program without disturbing other people in the room. English - 7 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:33 Remote Control You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it directly at the TV. You can also use your remote control to operate your VCR, Cable box, DVD player, or Set-Top Box. 1 POWER Turns the TV on and off. 2 NUMERIC BUTTONS Press to directly select a channel.

• TV/DVD/STB/CABLE/VCR Press to operate your TV, DVD player, STB, CABLE (box), or VCR.

3 – Press to select additional channels (digital and analog) being broadcast by the same station. For example, to select channel “54-3”, press “54”, then press “–” and “3”. 4 CH LIST Used to display Channel Lists on the screen. 5 ANTENNA ) SOURCE Press to display all of the available video sources. a PRE-CH Tunes to the previous channel. b FAV.CH Press to switch to your favorite channels. Press to select “AIR” or “CABLE”. 6 VCR/DVD Functions - Rewind - Stop - Play/Pause - Fast/Forward

Press to change channels. 8 MENU f UP▲/DOWN▼/LEFT◄/ RIGHT►/ENTER 9 MUTE Press to temporarily cut off the sound. 0 S.MODE Press to select the sound mode. ! RETURN Returns to the previous menu. @ P.MODE Press to select the picture mode. Press to exit the menu. Use to select on-screen menu items and change menu values. g INFO Press to display information on the TV screen. h CAPTION Controls the caption decoder. i STILL Press to stop the action during a particular scene. Press again to resume normal video. # SRS j P.SIZE $ MTS k PIP Selects SRS TruSurround XT mode.

Press to backlight the VOL, CH, and active source button (TV, DVD, CABLE, STB, VCR) on the remote. Press to choose stereo, mono or Separate Audio Program (SAP broadcast). % SLEEP Press to select a preset time interval for automatic shut off. ^ AUTO PROG. Press to automatically store selected Air/Cable channels. & SET Sets the remote to control your TV, VCR, Cable, DVD player, or Set-Top Box.

Press to change the screen size. Picture-in Picture ON/OFF. l CH

Displays the available channels in sequence. (These buttons change channels in the PIP window only.) m ADD/DEL Use to store and delete channels to/from memory. n RESET When your remote does not work, change the batteries and press the RESET button for 2-3 seconds before use. This is a special remote control for the visually impaired person, and has Braille points on the POWER, Channel, Volume, STOP, and PLAY/ PAUSE buttons. The performance of the remote control may be affected by bright light. English - 8 BN68-01192R_Eng-1.indd

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. ➢ Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. ➢ Do not mix battery types, i.e. alkaline and manganese. Close the cover as shown in the figure. ➢ Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet (7m) from the TV. (Assuming typical TV usage, the batteries last for about one year.) If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Connections Connecting VHF and UHF Antennas If your antenna has a set of leads that look like this, see “Antennas with 300 Ω Flat Twin Leads” below. If your antenna has one lead that looks like this, see “Antennas with 75 Ω Round Leads”. If you have two antennas, see “Separate VHF and UHF Antennas”. Antennas with 300 Ω Flat Twin Leads If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300 Ω twin flat leads, follow the directions below. 1 Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied). Use a screwdriver to tighten the screws.

Plug the adaptor into the ANT 1 IN (AIR) or ANT 2 IN (CABLE) terminal on the back of the TV. ANT 1 IN (AIR) Antennas with 75 Ω Round Leads

Plug the antenna lead into the ANT 1 IN (AIR) or ANT 2 IN (CABLE) terminal on the back of the TV. ANT 1 IN (AIR) Separate VHF and UHF Antennas If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops). 1 Connect both antenna leads to the combiner.

Plug the combiner into the ANT 1 IN (AIR) or ANT 2 IN (CABLE) terminal on the bottom of the back panel. UHF VHF UHF VHF ANT 1 IN (AIR) English - 9 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:40 Connecting Cable TV To connect to a cable TV system, follow the instructions below. Cable without a Cable Box

Plug the incoming cable into the ANT 2 IN(CABLE) terminal on the back of the TV. ➢ Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels. ANT 2 IN (CABLE) Connecting to a Cable Box that Descrambles All Channels

Find the cable that is connected to the ANT OUT terminal on your cable box. This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”.

ANT IN ANT OUT Connect the other end of this cable to the ANT 2 IN (CABLE) terminal on the back of the TV. ANT 2 IN (CABLE) Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of Antenna cable. (These items are available at most electronics stores.)

Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.

ANT IN This terminal might be labeled “ANT IN”, “VHF IN” or simply, “IN”. Connect this cable to a two-way splitter. Incoming cable

Connect an Antenna cable between an OUTPUT terminal on the splitter and the IN terminal on the cable box. Incoming cable Splitter Splitter Cable Box

Connect an Antenna cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch. Incoming cable Splitter RF (A/B) Switch Cable Box

Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch. Incoming cable Splitter Cable Box

Connect the last Antenna cable between the OUT terminal on the RF (A/B) switch and the ANT 2 IN (CABLE) terminal on the rear of the TV. RF (A/B) Switch TV Rear Incoming cable Splitter ANT 2 IN (CABLE) RF (A/B) Switch After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.) English - 10 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:43 Connecting a VCR Video Connection These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 9~10). Skip step 1 if you have not yet connected to an antenna or a cable system.

Unplug the cable or antenna from the back of the TV.

Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

Connect an Antenna Cable between the ANT OUT terminal on the VCR and the ANT 1 IN(AIR) or ANT 2 IN (CABLE) terminal on the TV.

Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN 1 [VIDEO] jack on the TV.

Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 [R-AUDIO-L] jacks on the TV.

TV Rear Panel VCR Rear Panel 5 Audio Cable(Not supplied)

4 Video Cable(Not supplied) 3 Antenna cable(Not supplied) If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables. Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. S-Video Connection Your Samsung TV can be connected to the S-Video jack of a VCR. (This connection delivers a better picture when compared to the regular Video connection above.)

To begin, follow steps 1–3 in the previous section to connect the antenna or cable to your VCR and your TV.

Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN 1 [S-VIDEO] jack on the TV.

Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 [R-AUDIO-L] jacks on the TV. TV Rear Panel VCR Rear Panel 3 Audio Cable (Not supplied) 2 S-Video Cable(Not supplied) 3 Antenna cable(Not supplied) An S-Video cable is usually included with an S-VHS VCR. (If not, check your local electronics store.) ➢ Each VCR has a different back panel configuration. ➢ When connecting a VCR, match the color of the connection terminal to the cable. English - 11 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:48 Connecting a Camcorder The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR

Connect a Video Cable (or S-Video Cable) between the AV IN 2 [VIDEO] (or S-VIDEO) jack on the TV and the VIDEO OUT jack on the Camcorder. TV Side Panel 1 S-Video Cable(Not supplied)

Camcorder 1 Video Cable (Not supplied)

Connect Audio Cables between the AV IN 2 [L-AUDIO-R] jacks on the TV and the AUDIO OUT jacks on the Camcorder.

Each Camcorder has a different back panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable. 2 Audio Cable (Not supplied) Connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box) The rear panel jacks on your TV make it easy to connect a DVD Player/Cable Box/Satellite receiver (Set-Top Box) to your TV.

DVD Player/Cable Box/ TV Rear Panel Satellite receiver (Set-Top Box). Connect Component Cable between the COMPONENT IN 1 [Y, PB, PR] (or COMPONENT IN 2 [Y, PB, PR]) jacks on the TV and the COMPONENT OUT [Y, PB, PR] jacks on the DVD Player/ Cable Box/Satellite receiver (Set-Top Box). 2 Audio Cable (Not supplied) Connect Audio Cables 1 Component Cable (Not supplied) between the COMPONENT IN 1 [R-AUDIO-L](or COMPONENT IN 2 [R-AUDIO-L]) jacks on the TV and the AUDIO OUT jacks on the DVD Player/Cable Box/Satellite receiver (Set-Top Box). Component video separates the video into Y (Luminance (brightness)), PB (Blue) and PR (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN, connect the audio cable to COMPONENT IN also. Each DVD Player/Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration. When connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. English - 12 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:53 Connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box) via HDMI This connection can only be made if there is an HDMI Output jack on the external device. This connection will provide the highest quality picture.

Connect an HDMI Cable between the HDMI IN 2 on the TV and the HDMI OUT on the DVD Player/Cable Box/ Satellite receiver (Set-Top Box). DVD Player/Cable Box/ Satellite receiver (Set-Top Box) TV Rear Panel 1 HDMI Cable (Not supplied) What is HDMI?

• HDMI, or high-definition multimedia interface, is a interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio. ➢ Each DVD Player/Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration. ➢ When connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. ➢ When connecting via HDMI, you do not need to connect Audio Cables. You only need to connect Audio cables when connecting via HDMI/DVI. Connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box) via DVI This connection can only be made if there is a DVI Output jack on the external device.

Connect a HDMI/DVI Cable or DVI-HDMI Adapter between the [HDMI IN 1] jack on the TV and the DVI jack on the DVD Player/Cable Box/ Satellite receiver (Set-Top Box).

Connect Audio Cables between the DVI IN (HDMI 1) [R-AUDIO-L] jack on the TV and the AUDIO OUT jacks on the DVD Player/Cable Box/Satellite receiver (SetTop Box).

DVD Player/Cable Box/ Satellite receiver (Set-Top Box) TV Rear Panel 2 Audio Cable (Not supplied) 1 HDMI/DVI Cable (Not supplied) Each DVD Player and Cable Box/Satellite receiver (Set-Top Box), has a different back panel configuration. When connecting a DVD Player/Cable Box/Satellite receiver (Set-Top Box),, match the color of the connection terminal to the cable. Only HDMI IN 1 can support HDMI and DVI. English - 13 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:45:58 Connecting a Digital Audio System The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

Connect an Optical Cable between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input (OPTICAL) jacks on the Digital Audio System. When a Digital Audio System is connected to the “DIGITAL

AUDIO OUT (OPTICAL)”

terminal: Decrease the gain (volume) of the TV, and adjust the volume level with the system’s volume control. Digital Audio System TV Rear Panel Optical Cable (Not supplied) What is OPTICAL?

• An optical cable converts an electric signal into an optical light signal, and transmits it through glass fibers. S/PDIF is a transmission system of digital audio in the form of a light wave that uses a glass conductor. ➢ 5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH. ➢ Each external input source device has a different back panel configuration. ➢ If you have an external device (DVD player/Cable Box/Satellite receiver (Set-Top Box)) connected via HDMI to the TV, audio is not output from the Optical jack. Connecting an Amplifier/DVD Home Theater

Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [L-AUDIO-R] jacks on the Amplifier/DVD Home Theater. When an audio amplifier is connected to the “AUDIO OUT [R-AUDIO-L]” jacks: Decrease the gain (volume) of the TV, and adjust the volume level with the Amplifier’s volume control.

TV Rear Panel Amplifier/DVD Home Theater Audio Cable (Not supplied) Each Amplifier/DVD Home Theater has a different back panel configuration. When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the cable. English - 14 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:46:04 Connecting a PC Using the D-Sub Cable 1 Connect a D-Sub Cable between PC IN [PC] jack on the TV and the PC output jack on your computer. 2 Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer. Using the D-Sub Cable TV Rear Panel

2 PC Audio Cable (Not supplied) 1 D-Sub Cable (Not supplied) Using the HDMI/DVI Cable 1 Connect a HDMI/DVI cable between the [HDMI IN 1] jack on the TV and the PC output jack on your computer. 2 Connect a 1Stereo/2RCA cable between the DVI IN (HDMI 1) [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer. Using the HDMI/DVI Cable TV Rear Panel

2 3.5 mm Stereo plug to 2 RCA Cable (Not supplied) 1 HDMI/DVI Cable (Not supplied)

Each PC has a different back panel configuration. When connecting a PC, match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI IN1 terminal. English - 15 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:46:11 Operation Turning the TV On and Off Press the POWER button on the remote control. You can also use the POWER button on the TV.

It may take a while when your TV starts. Plug & Play Feature When the TV is initially powered On, basic customer settings proceed automatically and subsequently:

Press the POWER button on the remote control. The message Menu language, Shop Mode, Channels and Time will be set. is displayed.

Menu language, Shop Mode, Channels and Time will be set. Start

Press the ◄ or ► button to select Shop or Home, then press the ENTER button. ➢ The default selection is Home. ➢ We recommend setting the TV to Home mode for the best picture in your home environment. ➢ Shop mode is only intended for use in retail environments. ➢ If the unit is accidentally set to Shop mode and you want to return to Dynamic (Home) mode, press the any Volume button and then hold down the MENU button for five seconds on the TV panel. Press the ▲ or ▼ button to memorize the channels of the selected connection. Press the ENTER button to select Start. ➢ If the antenna is connected to ANT1 IN(AIR), select Air and if it is connected to ANT 2 IN(CABLE), select Cable. ➢ If both ANT 1 IN(AIR) and ANT 2 IN(CABLE) are connected, select the Air + Cable. ➢ In Cable mode, select the correct analog signal cable system source among STD, HRC, and IRC by pressing the ▲ or ▼ button, then press the ENTER button. If you have Digital cable, select the cable system signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area. To memorize the channels, press the ► button to select Start, then press the ENTER button. Contact your local cable company to identify the type of cable system that exists in your particular area. :English Español Français Enter Skip Plug & Play Select Home Mode when installing this TV at home. Home Shop

Plug & Play Select the antennas to memorize. Start Start Start Air Cable Air + Cable Move Enter Skip Plug & Play Select a cable signal type for your location. Analog STD Start HRC IRC Digital STD HRC IRC Move Enter Skip Continued... English - 16 BN68-01192R_Eng-1.indd

The TV will begin memorizing all of the available channels. After all the available channels are stored, the Auto program menu reappears. Press the ENTER button when channel memorization is complete. The Clock Mode menu is automatically displayed. ➢ To stop the search before it has finished, press the ENTER button with Stop selected. Plug & Play Auto Program in progress. Cable Channel 67 68% Stop Skip Enter Plug & Play Auto Program is completed. 14 Channels were memorized. Air : 9 , Cable : 5.

Press the ENTER button. Press the ▲ or ▼ button to select Manual if you want to set the current time manually, then press the ENTER button. Set current date and time. is displayed. ➢ If you select Auto, Set to daylight savings time. is displayed, then go to step 9. Press the ◄ or ► button to move to Month, Day, Year, Hour, Minute, or am/pm. Set the date and time you want by pressing the ▲ or ▼ button, then press the MENU button. ➢ You can set the Month, Day, Year, Hour, and Minute directly by pressing the number buttons on the remote control. Plug & Play Select the clock mode. Clock Mode :Manual Auto Enter Move Clock Set Set current date and time. Month Day

Hour The message Enjoy your watching. is displayed. When you have finished, press the ENTER button. ➢ Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Move

Skip Enter Adjust Skip Enjoy your watching.

Setting the Clock Automatically

Press the ENTER button. Press the ▲ or ▼ button to select On or Off, then press the ENTER button. Select the time zone in which you live. menu is automatically displayed. Plug & Play Set to daylight savings time.

Off Daylight Savings Time 10 Press the ▲ or ▼ button to highlight the time zone for your local area (and to move the highlight to the appropriate time zone on the map of the United States). Press the ENTER button. If clock is not automatically set, see page 48 to set the clock. Move Skip Plug & Play Select the time zone in which you live. Newfoundland Atlantic Eastern Central Mountain Pacific Alaska Hawaii Move 11 The message Enjoy your watching. is displayed. When you have finished, press the ENTER button. ➢ Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Enter

Enter Skip Enjoy your watching.

2007-04-30 ｿﾀﾀ・10:46:21 If you want to reset this feature...

Press the CH or CH button to change channels. ➢ When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See page 20 to memorize channels. Using the Number Buttons

Press the number buttons to go directly to a channel. For example, to select channel 27, press 2, then 7. The TV will change channels when you press the second number.

Using the “-” Button The “-” button is used to select stations that broadcast a digital signal.

For example, for Channel 7-1, press 7, then -, then 1. ➢ HD indicates the TV is receiving a Digital High Definition signal. SD indicates the TV is receiving a Standard Definition signal. ➢ For quick channel change, press the number buttons, then press the ENTER button. Using the PRE-CH Button to select the Previous Channel Use the number buttons to quickly tune to any channel.

Press the PRE-CH button. The TV will switch to the last channel viewed. ➢ To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them.

Press the VOL + or VOL – button to increase or decrease the volume. Using the Mute Button At any time, you can cut off the sound using the MUTE button.

Press MUTE and the sound cuts off. The word “Mute” will appear in the lower-left corner of the screen.

The display identifies the current channel and the status of certain audio-video settings.

Press the INFO button on the remote control. The TV will display the channel, the type of sound, and the status of certain picture and sound settings.

Air 28 Mono Picture Mode : Dynamic Sound Mode : Custom MTS : Stereo 12 : 00 am Press the INFO button once more or wait approximately 10 seconds and it disappears automatically.

With the power on, press the MENU button. The main menu appears on the screen. Its left side has five icons: Picture, Sound, Channel, Setup, Input.

It takes about one minute until the on-screen menu disappears.

R 50 More Move Enter Exit

2007-04-30 ｿﾀﾀ・10:46:29 Memorizing the Channels Your TV can memorize and store all of the available channels for both “off-air” (air) and cable channels. After the available channels are memorized, use the CH or CH button to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding or deleting channels (Channel Lists). Selecting the Video Signal-source Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an air or a cable system).

Press the ▲ or ▼ button to select the antenna connection, then press the ENTER button. ➢ Air: “Air” antenna signal. Cable: “Cable” antenna signal. Air+Cable: “Air” and “Cable” antenna signals. ➢ If the antenna is connected to ANT 2 IN(CABLE), select Cable and if it is connected to ANT 1 IN(AIR), select Air. ➢ If both ANT 1 IN and ANT 2 IN are connected, select the Air + Cable. ➢ If you selected Air, then go to step 5.

Press the ▲ or ▼ to select the correct analog signal cable system source among STD, HRC, and IRC, then press the ENTER button. If you have Digital cable, select the cable system signal source for both Analog and Digital. ➢ If you have Digital cable TV, select the signal source for both Analog and Digital. ➢ STD, HRC, and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected.

Return Enter Auto Program Select the cable system. Analog STD Start HRC IRC Digital STD HRC IRC The TV begins memorizing all available stations. If you want to stop Auto Programming, press the ENTER button. The Stop Auto Program? message will be displayed. Select Yes by pressing the ◄ or ► button. Press the EXIT button to exit. The TV must be connected to an antenna/cable in order to receive digital TV signals. Even if a particular channel is deleted from the memory, you can always tune to that channel directly by using the number buttons on the remote control. ➢ • All available DTV and analog channels are automatically stored in memory.

• It takes approximately 3 to 10 minutes to memorize channels.

Return Move Enter Return Auto Program Auto Program in progress.

You can also press the AUTO PROG. button on the remote control to bring up the AutoProgram menu.

2007-04-30 ｿﾀﾀ・10:46:36 Setting Up Your Remote Control After your remote control has been properly set up, your remote control can operate in five different modes: TV, VCR, Cable, DVD, or Set-Top Box. Pressing the corresponding button on the remote control allows you to switch among these modes, and control whichever piece of equipment you choose.

The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top Boxes. Setting Up the Remote to Operate Your VCR

Press the VCR button on your TV’s remote control.

Press the SET button on your TV’s remote control.

Using the number buttons on your remote control, enter three digits of the VCR code listed on page 23 of this manual for your brand of VCR. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your VCR should turn on if your remote is set up correctly. If your VCR does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of VCR. If no other codes are listed, try each VCR code, 000 through 080.

Note on Using Remote Control Modes: VCR When your remote control is in VCR mode, the volume buttons still control your TV’s volume. Setting Up the Remote to Operate Your Cable Box

Turn off your cable box.

Press the CABLE button on your TV’s remote control.

Press the SET button on your TV’s remote control.

Using the number buttons on your remote control, enter three digits of the cable box code listed on page 24 of this manual for your brand of cable box. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your cable box should turn on if your remote is set up correctly.

If your cable box does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of cable box. If no other codes are listed, try each code, 000 through

Note on Using Remote Control Modes: Cable Box When your remote control is in CABLE mode, the volume buttons still control your TV’s volume.

Press the DVD button on your TV’s remote control.

Press the SET button on your TV’s remote control.

Using the number buttons on your remote control, enter three digits of the DVD code listed on page 25 of this manual for your brand of DVD. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your DVD should turn on if your remote is set up correctly. If your DVD does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of DVD. If no other codes are listed, try each code, 000 through 141.

Note on Using Remote Control Modes: DVD When your remote control is in DVD mode, the volume buttons still control your TV’s volume. Setting Up the Remote to Operate Your Set Top Box

Press the SET button on your TV’s remote control.

Using the number buttons on your remote control, enter three digits of the STB code listed on page 24 of this manual for your brand of STB. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your STB should turn on if your remote is set up correctly.

If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of STB. If no other codes are listed, try each code, 000 through 074.

Note on Using Remote Control Modes: STB When your remote control is in STB mode, the volume buttons still control your TV’s volume.

DVD Receiver AV Receiver Code

2007-04-30 ｿﾀﾀ・10:46:47 To Select the Source Use to select TV or other external input sources such as DVD players or Cable Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Input, then press the ENTER button. Press the ENTER button to select Source List. Press the ▲ or ▼ button to select the signal, then press the ENTER button. ➢ You can choose between the following sets of jacks: AV1, S-Video1, Component1, Component2, PC, HDMI1, or HDMI2 on the TV’s rear panel and AV2 or S-Video2 on the TV’s side panel. ➢ HDMI1 or HDMI2 input can only be selected when the external device is turned on and connected via HDMI. ➢ You can choose only those external devices that are connected to the TV.

Press the ▲ or ▼ button to select VCR, DVD, D-VHS, Cable STB, HD STB, Satellite STB, PVR STB, AV Receiver, DVD Receiver, Game, Camcorder, DVD Combo, PC, VOD STB, or TV input source, then press the ENTER button. Input Source List Edit Name : TV

2007-04-30 ｿﾀﾀ・10:46:51 Picture Control Using Automatic Picture Settings Your new Plasma TV gives you optimal control over the picture you’re watching. You can change the screen size, improve the image quality, even watch something else without turning off what you’re currently watching. Please be aware that the best picture on this TV will be obtained from High Definition (HD) sources such as Digital cable or DVD players.

• Choose Dynamic to increase the clarity and sharpness of the picture.
• Choose Standard for general TV watching mode.
• Choose Movie when watching movies.

R 50 More Move Press the P.MODE button on the remote control to select one of the standard picture settings. Enter Return

: Dynamic Enter Return Press the ◄ or ► button to decrease or increase the value of a particular item. Contrast Press the ENTER button. Move Adjust Return ➢ • In PC mode, only the Contrast and Brightness can be selected.

• Each adjusted setting will be stored separately according to its input mode.
• When you make changes to Contrast, Brightness, Sharpness, Color, or Tint, the OSD will be adjusted accordingly.

Press the ENTER button to return to Picture.

Press the EXIT button to exit. ➢ Each picture mode can be reset. : Cool1 : 16:9 : Auto : On : On : Cancel Enter Return Digital Noise Reduction If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

2007-04-30 ｿﾀﾀ・10:46:59 Changing the Screen Size Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size options, each designed to work best with specific types of video input. Your cable box or satellite receiver may have its own set of screen sizes as well.

Press the ▲ or ▼ button to select the screen format you want. Press the ENTER button. Press the EXIT button to exit.

• 16:9 : Sets the picture to 16:9 wide mode.
• Zoom1 : Magnifies the size of the picture on the screen.
• Zoom2 : Expands the Zoom1 format picture.
• Wide Fit : Enlarges the aspect ratio of the picture to fit the entire screen.
• 4:3 : Sets the picture to 4:3 normal mode.
• Just Scan : Use this function to see the full image without any cutoff when DTV or HDMI 720p/1080i signals are input.

16:9 Sets the picture to 16:9 wide mode. Zoom1 The screen size when Wide screen is vertically enlarged. Zoom2 The screen size when the Zoom1 screen is vertically enlarged. Wide Fit Enlarges the aspect ratio of the picture to fit the entire screen. 4:3 Sets the picture to 4:3 normal mode. Just Scan Use this function to see the full image without any cutoff when DTV or HDMI 720p/1080i signals are input.

• In COMPONENT(720p, 1080i) or HDMI(720p, 1080i) mode, 16:9, 4:3 and Wide Fit can be selected.
• In Zoom1, Zoom2 and Wide Fit modes, you can move the picture on the screen by pressing the ▲ or ▼ button.
• You can not change the picture size when PIP is set to Double.
• When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.
• Wide Fit can be used when watching a Digital HD (High Definition) signal.

Some cable boxes and satellite receivers have their own set of screen sizes, which may differ from the ones above. English - 29 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾈﾄ 2:54:29 Making Detailed Picture Settings Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to make Detailed picture settings.

Select the desired Detailed Settings option by pressing the ▲ or ▼ button, then press the ENTER button.

Press the EXIT button to exit. When the picture mode is set to Standard or Movie, Detailed Settings can be selected. If DNIe is set to Off and the picture mode is in Standard mode, the Detailed Settings cannot be selected. Move White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the color temperature for more natural picture colors. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Move BN68-01192R_Eng-1.indd

Return Detailed Settings Black Adjust : Off Dynamic Contrast : Off Gamma Color Space : Wide Auto Wide White Balance My Color Control Edge Enhancement : Off Move Enter Return White Balance R-Offset G-Offset B-Offset R-Gain G-Gain B-Gain Reset My Color Control: Pink/Green/Blue/White/Reset This setting can be adjusted to suit your personal preferences. Pink/Green/Blue/White: Select the desired color by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. ➢ When using the My Color Control Feature, the current picture remains in movement. Reset: The previously adjusted colors will be reset to the factory defaults.

English - 30 Return Detailed Settings

• B-Offset : Adjusts the blue color darkness.
• R-Gain : Adjusts the red color brightness.
• G-Gain : Adjusts the green color brightness.
• B-Gain : Adjusts the blue color brightness.
• Reset : The previously adjusted white balance will be reset to the factory defaults. Edge Enhancement: Off/On You can emphasize object boundaries. Enter

Black Adjust : Off Off Low Dynamic Contrast : Off Gamma : 0Medium High Color Space : Wide White Balance My Color Control Edge Enhancement : Off Gamma: -3 ~ 3 You can adjust the Primary Color (Red, Green Blue) Intensity. Press the ◄ or ► button until you reach the optimal setting. Color Space: Auto/Wide Color space is a color matrix composed of red, green, and blue colors. Select your favorite color space and experience the most natural color. : 16:9 : Auto : On : On : OK Enter

Return Detailed Settings

Black Adjust: Off/Low/Medium/High You can select the black level on the screen to adjust the screen depth. Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. : Cool1 Black Adjust : Off Dynamic Contrast : Off Gamma Color Space : Wide White Balance My Color Control Edge Enhancement : Off When you are satisfied with your setting, press the ENTER button.

When you select Standard or Movie in Picture Mode, the Active Color automatically changes to Off and it is deactivated. When the Picture Mode is set to Dynamic, the Active Color is activated regardless of the Picture Mode settings. : 16:9 : Auto : On : On : OK Enter Return Picture More Color Tone Detailed Settings Size Digital NR Active Color DNIe Reset Move This function is not available in PC mode.

: Cool1 : Cool1 : 16:9 : Auto : On Off : On : OK Enter Return DNIe (Digital Natural Image engine) This TV includes the DNIe function to provide high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

Press the EXIT button to exit.

• Off: Switches off the DNIe mode.
• Demo : The screen before applying DNIe appears on the left and the screen after applying DNIe appears on the right.
• On: Switches on the DNIe mode.

The DNIe function is not supported in the Movie mode. DNIeTM (Digital Natural Image engine) This feature brings you more a detailed image with detail, contrast and white enhancement. Picture More Color Tone Detailed Settings Size Digital NR Active Color DNIe Reset Move

2007-04-30 ｿﾀﾀ・10:47:15 Selecting the Film Mode Automatically senses and processes film signals from all sources and adjusts the picture for optimum quality.

Setting the Blue Screen Mode If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue Screen” mode to “Off”.

Press the ▲ or ▼ button to select Off or On, then press the ENTER button. Press the EXIT button to exit. ➢ A Blue Screen is displayed when there is no signal from an external device, regardless of the Blue Screen Setting.

This function is active only when an external device is connected to a TV via HDMI. English - 32 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:47:17 Viewing Picture-in-Picture This product has one built-in tuner, which does not allow PIP to function in the same mode. For example, you cannot watch one TV channel in the main screen, and a different one in the PIP screen. Please see ‘PIP Settings’ below for details. You can use the PIP feature to simultaneously watch two video sources. (See page 38 to select the PIP picture sound.)

While the V-Chip is in operation, the PIP function cannot be used. (Refer to page 56) Activating Picture-in-Picture

Press the ENTER button again. Press the ▲ or ▼ button to select On, then press the ENTER button. ➢ If you turn the TV off while watching in PIP mode and turn it on again, the PIP window will disappear.

Press the PIP button on the remote control to activate or deactivate the PIP.

Analog TV signals can be viewed on the PIP screen while viewing the picture from an external source (DVD, Set-top box, PC etc.) connected to the Component 1, 2, PC and HDMI 1, 2 jacks on the main screen. Changing the Size of the PIP Window

Press the ▲ or ▼ button to select Size, then press the ENTER button. Press the ▲ or ▼ button to select the desired size of the PIP window, then press the ENTER button. ➢ If the main picture is in PC and HDMI 1 modes, Size is not available. ➢ You may notice that the picture in the PIP window becomes slightly unnatural when you use the main picture to view a game or karaoke. PIP PIP Size Position Channel Move : On

Changing the Position of the PIP Window

Press the ▲ or ▼ button to select Position, then press the ENTER button. Press the ▲ or ▼ button to select the desired PIP window position, then press the ENTER button. ➢ In Double Window ( ) and Double Wide ( ) modes, Position cannot be selected. ➢ If the PIP window is set to Double Window ( ) or Double Wide ( ) mode, the screen size or alignment may slightly differ depending on the signal type. Changing the PIP Channel

Press the EXIT button to exit. and CH : On

Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button at the bottom of the remote to select the desired channel in the PIP window, then press the ENTER button. ➢ The channel can be active when the sub picture is set to TV. Press the PIP CH channel. PIP PIP Size Position Channel PIP PIP Size Position Channel Move and buttons on the remote control to change the PIP Return : On

Freezing the Current Picture

Press the STILL button to freeze a moving picture. ➢ Normal sound will still be heard. Press again to cancel. ➢ To prevent screen burn-in, this function will automatically cancel after 5 minutes. ➢ While V-Chip is in operation, the Still function cannot be used.

2007-04-30 ｿﾀﾀ・10:47:20 Sound Control Using Automatic Sound Settings Your TV has automatic sound settings (“Standard”, “Music”, “Movie”, “Speech”, and “Custom”) that are preset at the factory. Or, you can select “Custom”, which automatically recalls your personalized sound settings.

• Choose Standard for the standard factory settings.
• Choose Music when watching music videos or concerts.
• Choose Movie when watching movies.
• Choose Speech when watching a show that is mostly dialog (i.e., news).
• Choose Custom to recall your personalized settings (see Customizing the Sound). Press the S.MODE button on the remote control to select one of the standard sound settings.

Customizing the Sound The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one of the “automatic” settings.)

Press the ◄ or ► button to select a particular frequency to adjust. Press the ▲ or ▼ button to increase or decrease the level of the particular frequency, then press the ENTER button. Press the EXIT button to exit. ➢ • R/L Sound Balance Adjustment: To adjust the sound balance of the R/L speakers.

• Bandwidth Adjustment (100Hz, 300Hz, 1KHz, 3KHz, 10KHz): To adjust the level of different bandwidth frequencies. ➢ If you make any changes to the equalizer settings, the sound mode is automatically switched to the Custom mode. Resetting the Equalizer Settings to the Factory Defaults To operate the Reset function, the Game mode must be set to On. (Refer to page 50)

2007-04-30 ｿﾀﾀ・10:47:24 Setting the TruSurround XT TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multi channel formats.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. Choosing a Multi-Channel Sound (MTS) Track - Digital The digital-TV broadcast system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). The availability of these additional “multitracks” depends upon the program. Preferred language

Press the ENTER button to select Preferred Language. Press the ▲ or ▼ button to choose the language (English, Spanish, or French) you want, then press the ENTER button. Press the EXIT button to exit. You can only select the language from among the actual languages being broadcast. Sound Mode : Custom Equalizer SRS TruSurround XT : Off Multi-Track Options Auto Volume : Off Internal Mute : Off Sound Select : Main Reset Move Enter

Return Multi-Track Options English Preferred Language : English Spanish Multi-Track Sound : Stereo French

Press the MTS button on the remote control to listen in a language other than the preferred language.

2007-04-30 ｿﾀﾀ・10:47:27 Choosing a Multi-Channel Sound (MTS) Track - Analog Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP. Multi-Track Sound

Return Multi-Track Options Preferred Language : English Mono Multi-Track Sound : Stereo Stereo SAP Press the EXIT button to exit.

• Choose Mono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal.
• Choose Stereo for channels that are broadcasting in stereo.
• Choose SAP to listen to the Separate Audio Program, which is usually a foreignlanguage translation. Move Press the MTS buttons on the remote control to select Mono, Stereo, or SAP. Enter Return

Automatic Volume Control Reduces the difference in volume level among broadcasters.

Return Sound Mode Equalizer SRS TruSurround XT Multi-Track Options Auto Volume Internal Mute Sound Select Reset Move : Custom : Off : Off Off : Off : Main Enter Return Selecting the Internal Mute Sound output from the TV speakers is muted. This is useful when you want to listen to audio through your sound system instead of the TV.

Press the EXIT button to exit. ➢ • When Internal Mute is set to On, Sound menus except Multi-track Options cannot be adjusted.

AV/S-Video Component, PC, HDMI Internal Mute Off Speaker Output Speaker Output Speaker Output Sound Output Sound Output Sound Output Internal Mute On Mute Mute Mute Sound Output Sound Output Sound Output Video No Signal Mute Mute Mute Mute Mute Mute When Internal Mute is set to On, Sound menus except Multi-Track Options cannot be adjusted. Adjusting the TV On/Off Melody Sound The TV power on/off melody sound volume can be adjusted.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. : Off Off Low : Low Medium High : Off : In Watching TV : Off Enter Return Listening to the Sound of the Sub (PIP) Picture When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

Press the EXIT button to exit.

• Main: Used to listen to the sound of the main picture.
• Sub: Used to listen to the sound of the sub picture.

2007-04-30 ｿﾀﾀ・10:47:34 Channel Control Selecting the Antenna

If the antenna is connected to ANT1 IN(AIR), select Air and if it is connected to ANT2 IN(CABLE), select Cable.

If both ANT1 IN(AIR) and ANT2 IN(CABLE) are connected, select the antenna input you want. If the antenna input is not selected properly, noise may appear on the screen. Channel Air Antenna : Air Cable Auto Program Clear Scrambled Channel Channel List Name Fine Tune Signal Strength LNA : On Move Enter Return Adding and Erasing Channels You can add or delete a channel to display the channels you want. To use the Channel List function, first run Auto Program (see page 20).

Press the ▲/▼/◄/► buttons to select a channel to delete, then press the ENTER button. Press the ▲ or ▼ button to select Delete, then press the ENTER button to delete the channel. Press the EXIT button to exit.

• P.MODE (RED) button: Press repeatedly to select All, Added, or Favorite.
• S.MODE (GREEN) button: Press to add all channels deleted.
• STILL (YELLOW) button: Press to delete all channels memorized. Channel List /Added DTV Air 2 DTV Air 2 Air 3 Air 4 Air 5 Air 6 Air 7 DTV Air 7-1 Air 9 Watch DTV Air 9-1 AddAir 10 Delete Air 11 Favorite Air 16 DTV Air 11-1 Air 12 Air 13 Air 14 Air 15 List Mode Move Delete All Page Enter Return

Press the ADD/DEL button on the remote control. Press the CH and CH to select the channel to be added or deleted, then press the ENTER button.

Setting Up Your Favorite Channels You can set channels you watch frequently as favorites.

Channel List All Added Favorite Default List Mode

Press the ▲/▼/◄/► buttons to select a channel as a favorite channel, then press the ENTER button. Press the CH

and CH button to display the next channel list page. Press the ▲ or ▼ button to select Favorite, then press the ENTER button. The “ ” symbol will be highlighted and the channel will be set as a Favorite. To cancel your Favorite channel selection, press the ENTER button until the “ ” symbol disappears. Press the EXIT button to exit. ➢ Only memorized channels can be set as favorite channels. ➢ All favorite channels will be shown on the Favorite menu. To select the favorite channels you have set up, press the FAV.CH button on the remote control.

2007-04-30 ｿﾀﾀ・10:47:46 Viewing the Channel Lists You can display a list of all channels, added channels or your favorite channels.

To toggle between your all channels, add channels, or favorite channels, use the P.MODE (RED) button on the remote control.

Return Channel List All Added Favorite Default List Mode

• P.MODE (RED) button: Press repeatedly to select All, Added, or Favorite.

Setting the Default Channel List Mode You can set All, Added, or Favorite to be the Default List that appears when you press the CH LIST button.

• All: Shows All the channels when you press the CH LIST button on the remote control.
• Added: Shows Added channels when you press CH LIST button on the remote control.
• Favorite: Shows Favorite channels when you press CH LIST button on the remote control. Press the EXIT button to exit.

Return Channel List All Added Favorite Default List Mode Move All : All Added Favorite Enter Return Press the CH LIST button on the remote control to bring up the Channel Lists. English - 41 BN68-01192R_Eng-1.indd

2007-04-30 ｿﾀﾀ・10:47:52 Labeling Channels Channels can labeled so that their call letters appear whenever the channel is selected.

Press the ▲ or ▼ button to select a letter, a number or a blank (Results in this sequence: A~Z, 0~9, +, -, *, /, blank). Press the ► button to switch to the next field, which will be selected. Select a second letter or digit by pressing the ▲ or ▼ button, as above. Repeat the process to select the last three digits. When you have finished, press the ENTER button to assign the new name. To erase the assigned new name, select Clear by pressing the ◄ or ► button, then press the ENTER button.

Air 6 Air 7 Air 9 Air 11 Air 13 Press the EXIT button to exit. ➢ The names of digital broadcasting channels are automatically assigned and thus cannot be assigned by users. Return Enter Move Clear Clear Clear Clear Clear

Return Adjust Move Fine Tuning Analog Channels Use fine tuning to manually adjust a particular channel for optimal reception.

Press the ◄ or ► button to adjust the fine tuning.

To store the fine tuning setting in the TV’s memory, press the ENTER button. To reset the fine tuning setting, press the ▼ button to select Reset, then press the ENTER button. Press the EXIT button to exit. ➢ Only analog TV channels can be fine tuned. ➢ “ * ” will appear next to the number of fine-tuned channels.

2007-04-30 ｿﾀﾀ・10:47:56 Checking the Digital-Signal Strength Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels.

Press the ▲ or ▼ button to select Signal Strength, then press the ENTER button. If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal. Press the EXIT button to exit. Channel Antenna : Air Auto Program Clear Scrambled Channel Channel List Name Fine Tune Signal Strength LNA : On Move Enter

Return Signal Strength You can also press the ENTER button to select OK then press the EXIT button to exit the menu. Enter Return LNA (Low Noise Amplifier) If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).

Press the ▲ or ▼ button to select Off or On, then press the ENTER button. Press the EXIT button to exit. ➢ If the picture is noisy with the LNA set to On, select Off. ➢ The LNA setting must be made separately for each channel.

2007-04-30 ｿﾀﾀ・10:47:58 PC Display Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer or video card manufacturer.) 1 First, click on Control Panel on the Windows start menu. 2 When the control panel window appears, click on Appearance and Themes and a display dialog-box will appear. 3 When the control panel window appears, click on Display and a display dialog-box will appear. 4 Navigate to the Settings tab on the display dialog-box. The correct size setting (resolution) Optimum: 1024 x 768 pixels If a vertical-frequency option exists on your display settings dialog box, the correct value is 60 or 60 Hz. Otherwise, just click OK and exit the dialog box. Display Modes If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacture. D-Sub Input Resolution 720 x 400 VGA SVGA XGA WXGA 640 x 480 800 x 600 1024 x 768 1360 x 768 Vertical Frequency (Hz) Horizontal Frequency (kHz) Vertical Polarity Horizontal Polarity HP-T4234 HP-T5034

The interlace mode is not supported. The TV operates abnormally if a non-standard video format is selected. The table above conforms to IBM/VESA regulations and is based on using the Analog Input. “ ✔ ” mark means that this mode can be supported.

• For the HP-T4234, PC text quality is optimum in XGA mode (1024 x 768@60Hz).
• For the HP-T5034, PC text quality is optimum in WXGA mode (1360 x 768@60Hz). (Three pixels on left, right, top and bottom will be grayed out at the resolution setting of 1360x768@60Hz. This is not a mechanical problem but a result caused by the pixel difference between the standard resolution and the PDP panel.)
• When this TV is used as a PC display, 32-bit color is supported.
• Depending on the manufacturer, your PC display screen might appear different. (and depending on your particular version of Windows.) Check your PC instruction book for information about connecting your PC to a TV.
• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 48.4KHz (horizontal).
• In some cases, abnormal signals (such as stripes) might appear on the TV screen when the PC power is turned off (or if the PC is disconnected). If so, press the SOURCE button on the remote control or TV panel to enter a VIDEO mode. Also, make sure that the PC is connected. English - 44 BN68-01192R_Eng-2.indd

2007-04-30 ｿﾀﾀ・10:51:42 Setting up the TV with your PC Use the Auto Adjust function to have the TV set automatically adjust the video signals it receives from the PC. The function also automatically fine-tunes the settings and adjusts the frequency values and positions. How to Auto Adjust

Image Lock Position Auto Adjustment Image Reset Press the EXIT button to exit. ➢ This function does not work in DVI-Digital mode. ➢ Change to the PC mode first. Move

Enter Return Auto Adjustment in progress. Please wait. Adjusting the Screen Quality The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then do the frequency adjustments to the utmost and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of the screen.

Change to the PC mode first.

Image Lock Position Auto Adjustment Image Reset Press the ENTER button to select Image Lock. Move

Press the EXIT button to exit. This feature may change the width of the image. If necessary, adjust the position to center.

You can adjust the position of the screen after connecting the TV to your PC.

Change to the PC mode first.

Image Lock Position Auto Adjustment Image Reset

Change to the PC mode first.

Image Lock Position Auto Adjustment Image Reset Press the ▲ or ▼ button to select Image Reset, then press the ENTER button. The message Image Reset is completed. appears on the screen. Press the EXIT button to exit. The previously adjusted settings will be reset to the factory defaults.

Move Return Enter Image Reset is completed. Setting the Home Theater PC This function enables you to view higher quality pictures while in PC Mode. After setting the Home Theater PC function to On, you can go into the Detailed Settings menu and make adjustments without affecting settings in the regular TV mode.

This function is available only in PC mode. Setup More Blue Screen Melody Home Theater PC Light Effect Energy Saving More Move

2007-04-30 ｿﾀﾀ・10:51:45 Time Setting Setting the Time Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Option 1: Setting the Clock Manually

: Auto Manual Auto : Off Enter : Manual Press the EXIT button to exit. ➢ The current time will appear every time you press the INFO button. ➢ You can set the Month, Day, Year, Hour, and Minute directly by pressing the number buttons on the remote control.

: Off Move Press the ◄ or ► button to move to Month, Day, Year, Hour, Minute, or am/pm. Set the date and time you want by pressing the ▲ or ▼ button, then press the ENTER button. Return Clock Clock Mode Clock Set Time Zone DST

Enter Return Clock Set Set current date and time. Month

2007-04-30 ｿﾀﾀ・10:51:47 Option 2: Setting the Clock Automatically The Clock can be set automatically if you are receiving a digital signal.

Press the ▲ or ▼ button to highlight the time zone for your local area (and to move the highlight to the appropriate time zone on the map of the United States), then press the ENTER button.

Press the ▲ or ▼ button to select DST (Daylight Saving Time), then press the ENTER button. Press the ▲ or ▼ button to select On or Off, then press the ENTER button. Press the EXIT button to exit. ➢ Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually. ➢ Antenna or Cable must be connected in order to set the time automatically. Return : Auto Manual Auto : Off Enter Return Time Zone Select the time zone in which you live. Newfoundland Atlantic Eastern Central Mountain Pacific Alaska Hawaii Move

2007-04-30 ｿﾀﾀ・10:51:48 Setting the On/Off Timer Use this feature to set the TV to turn on or off at a desired time. You must set the clock first.

Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Time, then press the ENTER button. Press the ▲ or ▼ button to select Timer1, Timer2,or Timer3, then press the ENTER button. The timer menu is displayed. Press the ▲ or ▼ button to adjust hour, then press the ► button to move to the next step. Set other items using the same method as above. Press the ◄ or ► button to select the desired item below. Press the ▲ or ▼ button to adjust the setting. Press the EXIT button to exit.

• On Time: Select hour, minute, am/pm, and Inactivated/Activated. To activate timer with the setting, set to Activated.)
• Off Time: Select hour, minute, am/pm, and Inactivated/Activated. (To activate timer with the setting, set to Activated.)
• Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, or Sat~Sun.
• Volume: Select the volume level you want the TV to be at when it turns on with the Timer.
• Antenna : Select Air or Cable.
• Channel : Select the required channel.

You can set the hour, and minute directly by pressing the number buttons on the remote control. Auto Power Off When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

Press the SLEEP button on the remote control until the a ppropriate time interval appears (any of the preset values from 30 min to 180 min). Return Sleep Timer Move Adjust Return

2007-04-30 ｿﾀﾀ・10:51:50 Function Description Selecting a Menu Language Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.)

: English English : English Español Français : Off : Medium Enter Return Using the Game Mode When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting game menu.

: English Press the EXIT button to exit. : Off ➢ Restrictions on Game mode (Caution) Off

• To disconnect the game console and connect another external device, set : Medium the Game mode to Off in the setup menu. Return Enter
• If you display the TV menu in Game mode, the screen shakes slightly.
• The mark ( ) appears on the screen which means that Game Mode is on AV1 with the selected source. Game Mode ➢ If Game Mode is On
• Picture Mode is automatically changed to Game and cannot be changed.
• Sound Mode in the Sound menu is deactivated. You must adjust the sound using the equalizer.
• The Reset in the Sound menu is activated. The Reset function restores Equalizer settings to the factory default settings. ➢ Game Mode is not available in regular TV/Antenna mode. ➢ If the picture is poor when a game console is connected to the TV, check if the Game Mode is On. Set Game Mode to Off and connect external devices. Plug & Play Language Time Game Mode V-Chip Caption Menu Transparency More Move English - 50 BN68-01192R_Eng-2.indd

Press the ▲ or ▼ button to select Size, then press the ENTER button. Press the ▲ or ▼ button to select the desired caption option, then press the ENTER button. Press the ▲ or ▼ button to select the desired sub-menu options (see options below), then press the ENTER button. Press the EXIT button to exit. ➢ The availability of captions depends on the program being broadcast. ➢ Default means to follow the standard set by the broadcaster. ➢ Foreground and Background cannot be set to have the same color. ➢ Foreground Opacity and Background Opacity cannot be both set to Transparent.

• Size: This option consists of Default, Small, Standard, and Large. The default is Default.
• Font Style: This option consists of Default, Style0 ~ Style7. You can change the font you want. The default is Default.
• Foreground Color: This option consists of Default, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan. You can change the color of the letter. The default is Default.
• Background Color: This option consists of Default, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan. You can change the background color of the caption. The default is Default.
• Foreground Opacity: This option consists of Default, Transparent, Translucent, Solid, and Flashing. You can change the opacity of the letter.
• Background Opacity: This option consists of Default, Transparent, Translucent, Solid, and Flashing. You can change the background opacity of the caption.
• Return to Default: This option sets each of Size, Font Style, Foreground Color, Background Color, Foreground Opacity, and Background Opacity to its default.

Return Press the CAPTION button on the remote control to select On or Off.

• The default is Default.
• CC1: The Primary Synchronous Caption Service. These are captions in the primary language that must be in sync with the sound, preferably matched to a specific frame.
• CC2: The Special Non-Synchronous Use Captions.This channel carries data that is intended to augment information carried in the program.
• CC3: Secondary Synchronous Caption Service. Alternate program-related caption data, typically second language captions.
• CC4: Special Non-Synchronous Use Captions. Similar to CC2.
• Text1: First Text Service. This may be various non-program related data.
• Text2: Second Text Service. Additional data, usually not program related.
• Text3/Text4: Third and Fourth Text Services. These data channels should be used only if Text1 and Text2 are not sufficient.

• The availability of captions depends on the program being broadcast. You can also press the CAPTION button on the remote control to select Captions On or Off.

Press the EXIT button to exit.

• Off: The LED is always off.
• In Standby: The LED lights while in Standby mode and it turns off when your TV is turned on.
• In Watching TV: The LED lights when watching TV and it turns off when your TV is turned off.
• Always: The LED is always lit.

Set the Light Effect to Off to reduce power consumption. Setup More Blue Screen Melody Home Theater PC Light Effect Energy Saving More Move

2007-04-30 ｿﾀﾀ・10:51:58 Using the Energy Saving Feature This feature adjusts the power consumption of the unit in order to save energy.

• Off: Switches off the Energy Saving mode.

: Off : Low Off : Off Low : InMideum Watching TV High : Off Return Enter Preventing Screen Burn-in To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes.

Press the ENTER button to select Pixel Shift, then press the ENTER button. Pressing the ▲ or ▼ button will alternate between On and Off. You will also see the items Horizontal Dot, Vertical Line and Time.

• Optimum condition for pixel shift;

Screen Burn Protection Pixel Shift White Scroling Side Gray

• Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to prevent after-images on the screen.

2007-04-30 ｿﾀﾀ・10:52:00 Reducing the Effects of Screen Burn If screen burn has occurred, you can select a white screen or signal pattern (rolling screen) to help remove screen burn artifacts.

White This function removes after-images on the screen by changing the color of pixels to white. Use this function when there are remaining after-images or symbols on the screen especially when you displayed a still image on the screen for a long time. Scroling This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after-images or symbols on the screen especially when you displayed a still image on the screen for a long time.

: Dark Enter Return Screen Burn Protection Pixel Shift White Scroling Side Gray Side Gray When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides. To prevent the screen burn from happening, select Dark or Light. Move : Dark Dark Light Enter Return

• Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.
• Light: When you set the screen ratio to 4:3, it brightens the left and right sides.

To remove after-images on the screen, use either the White or Scroling function. Although both functions remove after-images on the screen, Scroling is more effective. The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove afterimages on the screen. If the after-image is not removed after performing the function, repeat the function again. Press any key on the remote control to cancel this feature. Setting the Function Help Displays help on the menu functions.

2007-04-30 ｿﾀﾀ・10:52:01 Upgrading the Software Samsung may offer upgrades for your TV’s firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on the side of your TV.

Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on the side of the TV.

Press the ▲ or ▼ button to select USB, then press the ENTER button. The message Scanning for USB... It may take up to 30 seconds. is displayed.

If the firmware on the USB is properly recognized, the message Upgrade version xxxx to version xxxx? The system would be reset after upgrade. is displayed. Press the ◄ or ► button to select OK, then press the ENTER button. The upgrade starts. Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will shut off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. ➢ The firmware and upgrade process may be different by country and region.

Return SW Upgrade USB

Move Enter Return SW Upgrade Scanning for USB... It may take up to 30 seconds. SW Upgrade Upgrade version XXXX to version XXXX ? The system would be reset after upgrade.

Cancel Using the V-Chip U.S.A Only This product is covered by the following U.S. patents : US4,930,158 US4,930,160 The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed.

When the V-Chip feature is activated, the PIP features do not function. The V-Chip does not work if the input is DTV (HD or SD). V-Chip function is not available in HDMI or component mode.

The V-Chip screen will appear. Press the ▲ or ▼ button to select Change PIN, then press the ENTER button. The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. Re-enter the same 4 digits. When the message PIN is changed successfully. is displayed, your PIN has been memorized.

If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0 : Power Off. → Mute → 8 → 2 → 4

V-Chip V-Chip Lock : Off TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Move Enter

Return <for Canada models only>

Change PIN Enter new PIN Confirm new PIN How to Enable/Disable the V-Chip

The V-Chip screen will appear. To enable the V-Chip feature, press the ENTER button so that the V-Chip Lock field is On. (Pressing the ▲ or ▼ button will alternate between On and Off.) Press the ENTER button.

V-Chip Lock : Off Off TV Parental Guidelines On MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN

0~9 Enter PIN How to Set up Restrictions Using “TV Parental Guidelines” First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating. V-Chip Enter PIN Press the EXIT button to exit.

The TV Parental Guidelines screen will appear. Press the ▲ or ▼ button to select one of the six aged based categories:

• TV-Y: All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages two to six.
• TV-Y7: Directed to older children. The themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of seven.
• TV-G: General audience. It contains little or no violence, no strong language, and little or no sexual dialog or situations.
• TV-PG: Parental guidance suggested. This program may contain infrequent coarse language, limited violence, some suggestive sexual dialog and situations.
• TV-14: Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.
• TV-MA: Mature audiences only. This program may contain mature themes, profane language, graphic violence and explicit sexual content.

V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Move

Enter Return TV Parental Guidelines Allow All Block All Move Enter Return At this point, one of the TV-Ratings is selected. Press the ENTER button. Depending on your existing setup, the “ ” symbol will be selected. (Blank = Unblocked, = Blocked) While “ ” is selected, press the ENTER button to block or unblock the category. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process. ➢ Allow all: Press to unlock all TV ratings. Block all: Press to lock all TV ratings. ➢ The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings:

• FV: Fantasy violence.
• D: Sexually suggestive dialog.

• S: Sexual situation.
• V: Violence. The V-Chip will automatically block certain categories that are “more restrictive”. For example, if you block TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14, and TV-MA). The subratings (D, L, S, V) work together similarly. (See next section.)

How to set the FV, D, L, S and V sub-ratings. First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14, or TV-MA (See Step 4), and press the ENTER button. The “ ” symbol will be displayed for each sub-rating. While “ ” is selected, press the ► button to go to a sub rating. Press the ENTER to block the sub rating. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process.

Press the EXIT button to clear all the screens. (Or proceed to the next section, and set up additional restrictions based on the MPAA codes.) ➢ These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7), and TV-G through TV-MA (everybody else). The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group. Continued... English - 58 BN68-01192R_Eng-2.indd

2007-04-30 ｿﾀﾀ・10:52:07 How to Set up Restrictions Using “MPAA Ratings” (G, PG, PG-13, R, NC-17, X, NR ) The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).

The V-Chip screen will appear. Press the ▲ or ▼ button to select MPAA Rating, then press the ENTER button.

V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated. While “ ” is selected, press the ENTER button to block or unblock the category. Press the EXIT button to exit. ➢ Allow all: Press to unlock all TV ratings. Block all: Press to lock all TV ratings. Move

Return Enter MPAA Rating Allow All Block All

• G: General audience (no restriction).
• PG: Parental guidance suggested.
• PG-13: Parents strongly cautioned.
• R: Restricted. Children under 17 should be accompanied by an adult.
• NC-17: No children under age 17.

V-Chip Move Enter Return The V-Chip will automatically block any category that is “more restrictive”. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked also. How to Set up Restrictions Using “Canadian English” (for Canada Models)

The V-Chip screen will appear. Press the ▲ or ▼ button to select Canadian English, then press the ENTER button

V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Move

Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ indicated. ” symbol is Canadian English

• C: Programming intended for children under age 8.
• C8+: Programming generally considered acceptable for children 8 years and over to watch on their own.
• G: General programming, suitable for all audiences.
• PG: Parental guidance.
• 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14.
• 18+: Adult programming.

The V-Chip screen will appear. Press the ▲ or ▼ button to select Canadian French, then press the ENTER button. Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ indicated.

V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN General. Not recommended for young children. Programming may not be suitable for children under the age of 13. Programming is not suitable for children under the age of 16. Programming restricted to adults. Move

Return Enter The V-Chip will automatically block any category that is “more restrictive”. For example, if you block G category, then PG, 14+ and 18+ will automatically be blocked also. How to Set up Restrictions Using “Canadian French” (for Canada Models)

Return Enter Press the EXIT button to exit. ➢ Allow all: Press to unlock all TV ratings. Block all: Press to lock all TV ratings.

Parental restriction information can be used while watching DTV channels.

The V-Chip screen will appear. Press the ▲ or ▼ button to select Downloadable U.S. Rating, then press the ENTER button. ➢ If information is not downloaded from the broadcasting station, the Downloadable U.S. Rating menu is deactivated. ➢ Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds. ➢ The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use. How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”) If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:

Enter your PIN. To resume normal viewing, tune to a different channel using CH

button. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the V-Chip function for an “emergency escape”:

Enter your PIN, then press the ENTER button, and press the ▲ or ▼ button to temporarily disable the V-Chip Lock. ➢ If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0 : Power Off. → MUTE → 8 → 2 → 4 → Power On.

V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S. Rating Change PIN Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated. Press the EXIT button to exit. ➢ Allow all: Press to unlock all TV ratings. Block all: Press to lock all TV ratings. ➢ Parental restriction levels differ depending on the broadcasting station. ➢ The default menu name and downloadable US rating changes depending on the downloaded information. ➢ Even if you set the on-screen display to your desired language, the Downloadable U.S. Rating menu will appear in English only. ➢ The rating will automatically block certain categories that are more restrictive. ➢ The rating titles (for example: Humor Level..etc) and TV ratings (for example: DH,MH,H..etc) may differ depending on the broadcasting station. Setup Plug & Play Language Time Game Mode V-Chip Caption Menu Transparency More Move Move

Enter Return The number of Rating title current rating information

Move Enter Return The number of all the rating information Channel Is Locked by TV-PG[ S ] Use the NUMBER buttons to enter your pin number to unlock all channels. Press EXIT to clear PIN. Press MENU for main menu. Channel Is Locked by TV-PG[ L ] Use the NUMBER buttons to enter your pin number to unlock all channels. Press EXIT to clear PIN. Press MENU for main menu. English - 61 BN68-01192R_Eng-2.indd

2007-04-30 ｿﾀﾀ・10:52:14 Appendix Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center. Problem Poor picture quality. Poor sound quality. No picture or sound. No sound or sound is too low at maximum volume. Picture rolls vertically. The TV operates erratically. The TV won’t turn on. Remote control malfunctions Digital broadcasting screen problem. Possible Solution Try another channel. Adjust the antenna. Check all wire connections. Try another channel. Adjust the antenna. Try another channel. Press the SOURCE button. Make sure the TV is plugged in. Check the antenna connections. Make sure the MUTE button is off. First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly. Check all connections. Unplug the TV for 30 seconds, then try operating it again. Make sure the wall outlet is working. Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. Press the TV button to put your remote control in the TV mode. Make sure the remote has batteries. Check that the “+” and “-” ends of the batteries are inserted correctly. Please check the digital signal strength and input antenna. The image is too light or too dark. Adjust the Brightness and Contrast. Adjust the Fine tuning. The image is too large or too small. Adjust the Size settings. The visual qualities of digital channels The visual qualities of digital channels may vary depending on the original production method vary. (analog or digital). - If the original production method is digital: High visual quality. - If the original production method is analog: The digital program displayed on the screen is originally an analog program which has been converted to digital. The visual quality is of an SD(Standard Definition) grade. Screen is black and power indicator On your computer; check the Power and Signal Cable. light blinks steadily. The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard. On your equipment check (STB, DVD, etc) ; Power and Signal Cable. The TV is using its power management system. Press the Source button on the panel or remote control. Turn the TV off and on. Although the TV caption shows HD, The HD(High Definition) caption that appears when switching channels or when pressing the the visual quality is not satisfactory. Information button on the remote control means the selected channel is a digital channel. If the broadcasting station converts an analog signal into digital and transmits the signal, the visual quality may not be perfect. The damaged picture appears in the If Just Scan is selected in some external devices, the damaged picture may appear in the corner of the screen. corner of the screen. This symptom is caused by external devices, not TV. English - 62 BN68-01192R_Eng-2.indd

2007-04-30 ｿﾀﾀ・10:52:14 Wall- mount adjustment (Sold separately) Once the wall mount is installed, the position of your TV can be easily adjusted. Auto Wall-Mount TV Rear Panel EX-LINK Cable (Not supplied) Entering the menu

Adjust to the desired position using the ▲/▼/◄/► buttons. Press the EXIT button to exit.

If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.

When you turn the power off, your TV moves to the initial installation position. When you turn the power on, your TV moves to the last remembered position you adjusted. Wall-Mount Adjustment Position1 Position Adjust

Center Exit Using the remote Control Buttons Button

Operations Wall-mount angle adjustment Tilt Up, Tilt Down, Move right, Move left Reset Moves to the initial installation position Remembering the position and moving to the remembered position Remembers 3 positions with the Red, Green and Yellow buttons. Moves to the remembered position using these 3 color buttons. For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer English - 63 BN68-01192R_Eng-2.indd

2007-04-30 ｿﾀﾀ・10:52:16 Wall Mount Kit Specifications (VESA) Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury. Product Family LCD-TV PDP-TV

We provided the standard dimensions for wall mount kits as shown in the table above. When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set. For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications. Do not use screws that do not comply with the VESA standard screw specifications. Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model. Do not exceed 15 degrees tilt when mounting this TV. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. English - 64 BN68-01192R_Eng-2.indd

2007-04-30 ｿﾀﾀ・10:52:21 How to assemble the Stand-Base (depending on the model) Using the 4 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different than the picture.) Warning Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury.

Two or more people should carry the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright. Specifications Model Name HP-T4234 HP-T5034 42 inch 50 inch PC Resolution 1024 x 768 @ 60 Hz 1360 x 768 @ 60 Hz Sound (Output) AUDIO (R/L) AUDIO (R/L)

48.3 X 31.6 X 3.8 inches

(1226.8 X 802.6 X 96.5 mm)

48.3 X 33.5 X 13.4 inches

Screen Size (Diagonal) Dimension (W x H x D) Body With stand Weight Body With stand Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

50 °F to 104 °F (10 °C to 40 °C) 10% to 80%, non-condensing -4 °F to 113 °F (-20 °C to 45 °C) 5% to 95%, non-condensing This device is a Class B digital apparatus. Design and specifications are subject to change without prior notice. For the power supply and Power Consumption, refer to the label attached to the product. English - 65 BN68-01192R_Eng-2.indd

COMPONENT OUT [Y, PB, PR]

DVD Receiver AV Receiver Code
