USER MANUAL HL-T5689S SAMSUNG

DLP TV Owner’s Instructions HL-T5089S HL-T5689S HL-T6189S Register your product at www.samsung.com/global/register Record your Model and Serial number here for future reference.

• Model _______________ ▪ Serial No. _______________ BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:07 A Guide to Digital TV

What is Digital Television? Digital television (DTV) is a new way of transmitting high quality video and audio to your TV set. Using DTV, broadcasters can transmit high definition TV (HDTV) images, Dolby digital surround audio, and new services such as multicasting (transmitting more than one program on the same TV channel) and datacasting. Several of these services can be combined into a single digital broadcast. Digital Television Services

Digital Picture Quality DTV programs are transmitted in two different formats. The first is Standard Definition Television (SDTV) and the second is High Definition Television (HDTV).

SDTV program formats include 480-line interlaced (480i) and 480-line progressive (480p) video. 480i programs are essentially

HDTV program formats include 1080-line interlaced (1080i) and 720-line progressive (720p). Both HDTV formats are always broadcast in widescreen, and offer much higher picture quality than SDTV.

a digital version of our current analog TV programs, while the 480p format offers improved image detail over 480i. Some 480p programs are broadcast in widescreen and are comparable to progressive-scan DVD movies in image quality. Dolby Surround Sound With DTV, you can listen to a variety of Dolby digital audio formats from Dolby Surround 2.0 to Dolby Digital 5.1 surround, using your home audio system. Many HDTV programs are now broadcast with DD 5.1 soundtracks. U.S.A Only The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. Other countries The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. FCC Statements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. © 2007 Samsung Electronics Co., Ltd. All rights reserved. English - 2 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:07 Q&A

1. Is the antenna I use for existing TV reception good enough for DTV?

Over-the-air (OTA) digital TV broadcasting uses the same channels as analog TV and works well with many existing TV antennas. However, DTV broadcast channel assignments are different than analog channels. You should find out whether your local DTV broadcasts are on VHF (channels 2-13) or UHF (channels 14-69) to see if you need a different antenna. If your DTV channels are on UHF and you already get good UHF reception, your present antenna may work fine. The same holds true for VHF DTV reception. Note that in some markets, both VHF and UHF channels are used for DTV broadcasts. You can find out the latest DTV channel assignments for your area by browsing selected Internet web sites such as www.titantv. com, www.10000watts.com, and www.fcc.gov.

2. How difficult is it to receive DTV signals indoors?

This depends on whether your local DTV stations are running full power or not and how close your location is to the transmission tower. DTV receivers do not require as much signal as analog TV receivers to produce high-quality images and sound. Once the DTV signal level exceeds a certain threshold at the receiver, the digital video and audio data is decoded at the same quality it was originally encoded for broadcast. This is a big advantage for DTV over analog TV - there is no noise, ghosting, static, or scratchy audio.

3. How can I connect an antenna in my townhouse, co-operative apartment, condominium, or

apartment? The Federal Communications Commission’s OTARD Rule (part of the Telecommunications Act of 1996) allows residents of condominiums, townhouse, or members of neighborhood associations to put up outside antennas for reception of broadcast TV signals as long as those antennas are not located in common areas and are no more than 12’ in height. Residents of rental units (apartments, etc.) are not covered by the OTARD rules and will have to use indoor antennas to receive DTV broadcasts. It is possible that the landlord of an apartment complex can provide broadcast DTV signals via a master TV antenna system to each apartment.

4. Can I connect my DTV set-top receiver to my cable TV service?

Cable TV systems use a different method for transmitting digital TV programs that is currently incompatible with broadcast DTV settop receivers. So you will still need to use an outdoor or indoor antenna to receive OTA broadcast DTV programs. The good news is that you won’t have to pay a monthly or per-program charge to watch OTA DTV and HDTV programs. They’re free, unlike subscription satellite TV or premium cable TV. All you need is an antenna and a DTV set-top receiver to enjoy clear, sharp widescreen images and high-quality audio. English - 3 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:07 Contents Channel Control General Information

• Connecting VHF and UHF Antennas p. 10
• Connecting Cable TV p. 11
• Connecting a VCR p. 12
• Connecting a Camcorder p. 13
• Connecting a DVD Player/Set-Top Box p. 13
• Connecting a DVD Player/Set-Top Box via HDMI p. 14
• Connecting a DVD Player/Set-Top Box via DVI p. 14
• Connecting a Digital Audio System p. 15
• Connecting an Amplifier/DVD Home Theater p. 15
• Connecting a PC Operation p. 16

• Using Automatic Picture Settings p. 28
• Making Detail Settings on the Picture p. 29
• Changing the Screen Size p. 30
• Digital Noise Reduction p. 31
• Setting the Active Color p. 31
• DNIe (Digital Natural Image engine) p. 32
• Setting the Color Gamut p. 32
• Adjusting the Screen Position p. 33
• Resetting the Picture Settings p. 33
• Viewing Picture-in-Picture p. 34
• Freezing the Current Picture Sound Control p. 35

• Using the Automatic Sound Settings p. 36
• Customizing the Sound p. 36
• Setting the TruSurround XT p. 37
• Choosing a Multi-Channel Sound (MTS) Track Digital p. 38
• Choosing a Multi-Channel Sound (MTS) Track Analog p. 38
• Automatic Volume Control p. 39
• Selecting the Internal Mute p. 39
• Resetting the Sound Settings p. 40
• Symbols Press One-Touch Button Clearing Scrambled Channels - Digital p. 40
• Managing Channels p. 41
• Fine Tuning Analog Channels - Analog p. 46
• Checking the Digital-Signal Strength - Digital p. 47
• LNA (Low Noise Amplifier) PC Display p. 47

• Using Your TV as a Computer (PC) Display p. 63
• Display Modes p. 64
• Setting up the TV with your PC p. 65
• Changing the Picture Size (PC Mode) p. 67
• Setting the Home Theater PC Bluetooth p. 67

• What is Bluetooth? p. 68
• Bluetooth Communication and Setting Up PIN p. 68
• Connecting a Bluetooth Headset (Optional) p. 69
• Capturing and Printing the Screen Wiselink p. 69

• Using the WISELINK Function p. 70
• Using the WISELINK Mode p. 71
• Using the Photo (JPEG) List p. 72
• Using the Music (MP3) List About Anynet+ p. 79

• What is Anynet+? p. 81
• Connecting Anynet+ Devices p. 81
• Setting Up Anynet+ p. 82
• Scanning and Switching between Anynet+ Devices p. 82
• Recording p. 83
• Listening through a Receiver (Home theater) p. 84
• Check Points before Requesting Service Appendix p. 84

• Identifying Problems p. 85
• Cleaning and Maintaining Your TV p. 86
• Using Your TV in Another Country p. 86
• Technical Specifications English - 4 BP68-00628B-01Eng_1.indd p. 87

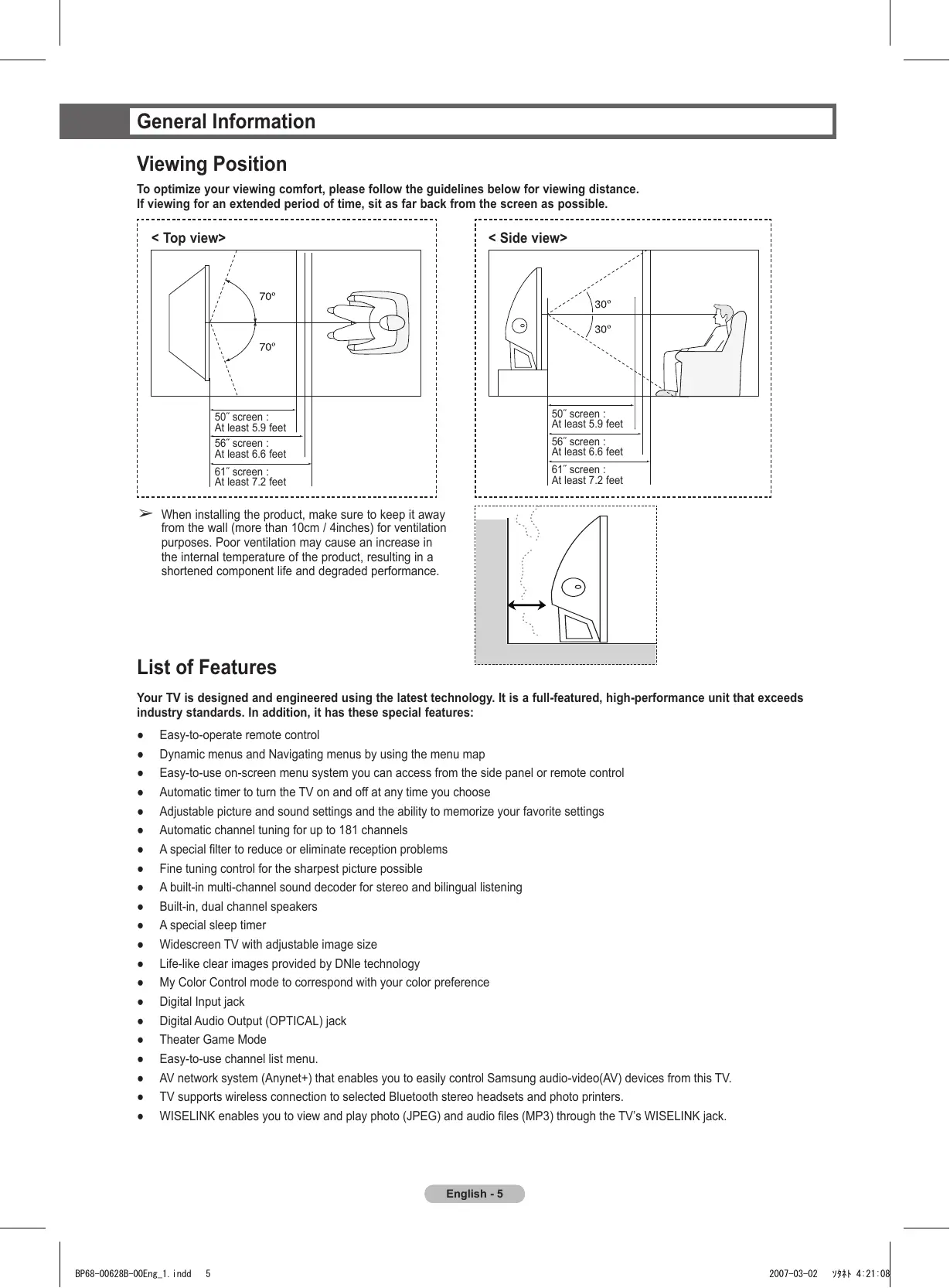

2007-03-09 ｿﾀﾀ・9:39:44 General Information Viewing Position To optimize your viewing comfort, please follow the guidelines below for viewing distance. If viewing for an extended period of time, sit as far back from the screen as possible. < Top view> < Side view> 50˝ screen : At least 5.9 feet 56˝ screen : At least 6.6 feet 50˝ screen : At least 5.9 feet 61˝ screen : At least 7.2 feet 61˝ screen : At least 7.2 feet 56˝ screen : At least 6.6 feet ➢ When installing the product, make sure to keep it away from the wall (more than 10cm / 4inches) for ventilation purposes. Poor ventilation may cause an increase in the internal temperature of the product, resulting in a shortened component life and degraded performance. List of Features Your TV is designed and engineered using the latest technology. It is a full-featured, high-performance unit that exceeds industry standards. In addition, it has these special features:

Easy-to-operate remote control Dynamic menus and Navigating menus by using the menu map Easy-to-use on-screen menu system you can access from the side panel or remote control Automatic timer to turn the TV on and off at any time you choose Adjustable picture and sound settings and the ability to memorize your favorite settings Automatic channel tuning for up to 181 channels A special filter to reduce or eliminate reception problems Fine tuning control for the sharpest picture possible A built-in multi-channel sound decoder for stereo and bilingual listening Built-in, dual channel speakers A special sleep timer Widescreen TV with adjustable image size Life-like clear images provided by DNle technology My Color Control mode to correspond with your color preference Digital Input jack Digital Audio Output (OPTICAL) jack Theater Game Mode Easy-to-use channel list menu. AV network system (Anynet+) that enables you to easily control Samsung audio-video(AV) devices from this TV. TV supports wireless connection to selected Bluetooth stereo headsets and photo printers. WISELINK enables you to view and play photo (JPEG) and audio files (MP3) through the TV’s WISELINK jack. English - 5 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:08 Checking Parts Owner’s Instructions Remote Control (BP59-00126A)/ AAA Batteries Warranty Card/ Registration Card/ Safety Guide Manual/ Quick Guide Manual Power Cord (3903-000144) Cloth-Clean Sold Separately S-Video Cable Video Cable Antenna Cable Component Cables Audio Cables PC Cable PC Audio Cable HDMI/DVI Cable HDMI Cable Optical Cable 1Stereo/2RCA Cable Viewing the Control Panel Buttons on the Lower-Right Part of the Panel The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. ➢ The product color and shape may vary depending on the model. Continued... English - 6 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:12 2 MENU Press to see an on-screen menu of your TV’s features. 7 Remote Control Sensor Aim the remote control towards this spot on the TV. 3 + VOL – Press to increase or decrease the volume. In the on-screen menu, use the + VOL – buttons as you would use the ◄ and ► buttons on the remote control. 8 Indicator Lights Blinks and turns off when the power is on and lights up in stand-by mode.

(ENTER) Press to confirm a selection. 6 POWER Press to turn the TV on and off.

Press to change channels. In the on-screen menu, use the buttons as you would use the ▲ and ▼ buttons on the remote control. ● You can use the channel selection buttons to switch on the TV when it is in standby mode depending on the model. ● When using the on-screen menu the volume adjustment and channel selection buttons have the same function as the ▲/▼/◄/► buttons on the remote control. ● If the remote control no longer works or you have lost it, you can use controls on the panel of the TV. Indicator Light Key

STAND BY/TEMP

: Off) TIMER LED Indication Standby state. The picture will automatically appear in about 15 seconds. Auto Timer ON/OFF has been set and the set will automatically be turned on in about 15 seconds. A cooling fan inside the set is not operating normally. Check if the ventilation hole on the side of the set is blocked, because if the inner temperature is too high, the power will shut off. LED may be defective. Please contact a certified technician.

● It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately. ● The TV has a fan to keep the inside optic chassis from overheating. You’ll occasionally hear it working. English - 7 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:14 Viewing the Connection Panel Side Panel Jacks Use the side panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For more information on connecting equipment, see pages 10~16. ➢ The product color and shape may vary depending on the model. 1 ANT 1 IN (CABLE)/ANT 2 IN (AIR) 75Ω Coaxial connector for Air/Cable Network.

8 3D SYNC OUT

Connect to 3D IR Emitter.

2 HDMI IN 1, HDMI IN 2

Connect to the HDMI jack of a device with HDMI output. 9 VIDEO/AUDIO OUT-L/R (AV OUT) Video/Audio outputs for external devices. Video output is not avaiable RF(Digital)/Component/PC/ HDMI.

3 HDMI3/DVI IN

Connect to the HDMI jack of a device with HDMI output. This input can also be used as a DVI connection with separate analog audio inputs. An optional HDMI/DVI cable will be necessary to make this connection. When using an optional HDMI/DVI adapter, the DVI analog audio inputs on your TV allow you to receive left and right audio from your DVI device. (Not compatible with PC) 4 RS232C For service only. 0 WISELINK Connect an USB mass storage device to view photo files (JPEG) and play audio files (MP3). ! VIDEO/AUDIO-L/R (AV IN 1, 2) Video input for external devices, such as a Camcorder or VCR. @ PC IN Connect to the video output jack on your PC. 5 DIGITAL AUDIO OUT (OPTICAL) Connect to a Digital Audio component. 6 DVI IN (AUDIO-L/R) Connect to the DVI audio output jack of an external device. 7 S-VIDEO (AV IN 1, 2) Video input for external devices with an S-Video output, such as a Camcorder or VCR.

# PC AUDIO IN

Connect to the audio output jack on your PC. $ COMPONENT IN 1, 2 Video (Y/PB/PR) and audio (L-AUDIO-R) component inputs. % POWER IN Connect the supplied power cord. Continued... English - 8 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:14 Remote Control You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it directly at the TV. You can also use your remote control to operate your VCR, Cable box, DVD player, or Set-Top Box. 1 POWER Turns the TV on and off. 2 Numeric Buttons Press to directly select a channel. 3 – Press to select additional channels being broadcast by the same station. For example, to select channel “54-3”, press “54”, then press “–” and “3”. 4 CH LIST Used to display Channel Lists on the screen. 5 ANTENNA Press to select “Air” or “Cable”. 6 VOL +, VOL – Press to increase or decrease the volume. 7 MUTE Press to temporarily cut off the sound. 8 MENU Displays the main on-screen menu. 9 RETURN Returns to the previous menu. 0 S.MODE Press to select the sound mode. ! P.MODE Press to select the picture mode. @ FAV.CH Press to switch to your favorite channels. # GAME Press to select the Game mode except for the TV mode. $ CAPTION Controls the caption decoder. % 3D Press to select the 3D/Dual-View mode. ^ SET Sets the remote to control your TV, VCR, Cable, DVD, or Set-Top Box.

& TV, DVD, STB, CABLE, VCR

Press to operate your TV, DVD, STB, CABLE (box), or VCR.

• SOURCE Press to display all of the available video sources. Press to activate the backlight of the VOL, CH and the active source button (TV, DVD, CABLE, STB, VCR) on the remote control. ) PRE-CH Tunes to the previous channel.

a WISELINK This function enables you to view and play photo (JPEG) and audio files (MP3) from an external device. (See page 72 (JPEG), 79 (MP3)) b REC Use to make a recording. c VCR/DVD Functions - Rewind - Stop - Play/Pause - Fast Forward d CH , CH Press to change channels. e EXIT Press to exit from the menu. f UP▲/DOWN▼/LEFT◄/RIGHT►/ ENTER Use to select on-screen menu items and change menu values. g INFO Press to display information on the TV screen. h TOOLS Use to quickly select frequently used functions. Anynet+ Runs the Anynet+ view functions and sets up Anynet+ devices. i STILL Press to stop the action during a particular scene. Press again to resume normal video. j P.SIZE Press to change the screen size. k Color buttons Press to add or delete channels and to store channels to the favorite channel list in the Channel List menu. (Refer to pages 41~46) l CH / Displays the available channels in sequence. (These buttons change channels in the PIP window only.) m PIP Picture-in Picture ON/OFF. n MTS Press to choose stereo, mono or Separate Audio Program (SAP broadcast). o RESET When your remote control does not work, change the batteries and press the RESET button for 2-3 seconds before use. The performance of the remote control may be affected by bright light. This is a special remote control for the visually impaired persons, and has Braille points on the POWER, Channel, Volume, STOP, and PLAY/PAUSE buttons. English - 9 BP68-00628B-01Eng_1.indd

2007-03-09 ｿﾀﾀ・9:40:49 Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. ➢ ● Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. ● Do not mix battery types, i.e. alkaline and manganese. Close the cover as shown in the figure. ➢ Remove the batteries and store them in a cool and dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.) If the remote control doesn’t work! Check the following

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Connections Connecting VHF and UHF Antennas If your antenna has a set of leads that look like this, see “Antennas with 300 Ω Flat Twin Leads” below. If your antenna has one lead that looks like this, see “Antennas with 75 Ω Round Leads”. If you have two antennas, see “Separate VHF and UHF Antennas”. Antennas with 300 Ω Flat Twin Leads If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300 Ω twin flat leads, follow the directions below. 1 Place the wires from the twin leads under the screws on a 300-75 Ω adapter (not supplied). Use a screwdriver to tighten the screws.

Plug the adaptor into the ANT 1 IN (CABLE) or ANT 2 IN (AIR) terminal on the side of the TV. Antennas with 75 Ω Round Leads

Plug the antenna lead into the ANT 1 IN (CABLE) or ANT 2 IN (AIR) terminal on the side of the TV. Separate VHF and UHF Antennas If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

Connect both antenna leads to the combiner.

Plug the combiner into the ANT 1 IN (CABLE) or ANT 2 IN (AIR) terminal on the bottom of the side panel. English - 10 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:18 Connecting Cable TV To connect to a cable TV system, follow the instructions below. Cable without a Cable Box

Plug the incoming cable into the ANT 1 IN (CABLE) terminal on the side of the TV. ➢ Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels. Connecting to a Cable Box that Descrambles All Channels

Find the cable that is connected to the ANT OUT terminal on your cable box. ➢ This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”. Connect the other end of this cable to the ANT 1 IN (CABLE) terminal on the side of the TV. ANT IN ANT OUT Connecting to a Cable Box that Descrambles Some Channels If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of Antenna cable. (These items are available at most electronics stores.)

Find and disconnect the cable that is connected to the ANT IN terminal on your cable box. ➢ This terminal might be labeled “ANT IN”, “VHF IN” or simply, “IN”. ANT IN Connect this cable to a two-way splitter. Incoming cable

Connect an Antenna cable between an OUTPUT terminal on the splitter and the IN terminal on the cable box. Incoming cable Splitter Splitter Cable Box

Connect an Antenna cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch. Incoming cable Splitter RF (A/B) Switch Cable Box

Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch. Incoming cable Splitter Cable Box

Connect the last Antenna cable between the OUT terminal on the RF (A/B) switch and the ANT 1 IN (CABLE) terminal on the side of the TV. RF (A/B) Switch TV Side Incoming cable Splitter Cable Box RF (A/B) Switch After you have made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.) English - 11 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:21 Connecting a VCR Video Connection These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 10~11). Skip step 1 if you have not yet connected to an antenna or a cable system.

Unplug the cable or antenna from the side of the TV.

Connect the cable or antenna to the ANT IN terminal on the side of the VCR.

Connect an Antenna Cable between the ANT OUT terminal on the VCR and the ANT 1 IN (CABLE) or ANT 2 IN (AIR) terminal on the TV. TV Side Panel VCR

Connect a Video Cable between the AV IN 1 [VIDEO] (or AV IN 2 [VIDEO]) jack on the TV and the VIDEO OUT jack on the VCR.

Connect Audio Cables between the AV IN 1 [L-AUDIO-R] (or AV IN 2 5 Audio Cable(Not supplied) [L-AUDIO-R]) jacks on the TV and 4 Video Cable(Not supplied) the AUDIO OUT jacks on the VCR. ➢ If you have a “mono” 3 Antenna cable(Not supplied) (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.

Each VCR has a different side panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. S-Video Connection Your Samsung TV can be connected to the S-Video jack of a VCR. (This connection delivers a better picture when compared to the regular video connection above.)

To begin, follow steps 1–3 in the previous section to connect the antenna or cable to your VCR and your TV. Connect an S-Video Cable between the AV IN 1 [S-VIDEO] (or AV IN 2 [S-VIDEO]) jack on the TV and the S-VIDEO OUT jack on the VCR. Connect Audio Cables between the AV IN 1 [L-AUDIO-R] (or AV IN 2 [L-AUDIO-R]) jacks on the TV and the AUDIO OUT jacks on the VCR. TV Side Panel VCR

Audio Cable (Not supplied) 2 S-Video Cable(Not supplied) 1 Antenna cable(Not supplied)

Each VCR has a different side panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. Some games may be displayed with a cut off picture when the TV is connected to a game player. English - 12 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:24 Connecting a Camcorder The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR

Connect a Video Cable or S-Video Cable between the AV IN 1 [VIDEO] or [S-VIDEO] (or AV IN 2 [VIDEO] or [S-VIDEO]) jack on the TV and the VIDEO OUT or S-VIDEO OUT jack on the camcorder. Connect Audio Cables between the AV IN 1 [L-AUDIO-R] (or AV IN 2 [L-AUDIO-R]) jacks on the TV and the AUDIO OUT jacks on the camcorder. TV Side Panel 1 S-Video Cable(Not supplied) or 1 Video Cable(Not supplied) Camcorder 2 Audio Cable(Not supplied) Each Camcorder has a different side panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable. Connecting a DVD Player/Set-Top Box The side jacks on your TV make it easy to connect a DVD player/Set-Top Box

Connect Component Cables between the COMPONENT IN 1 [Y, PB, PR] (or COMPONENT IN 2 [Y, PB, PR]) jacks on the TV and the COMPONENT OUT [Y, PB, PR] jacks on the DVD Player/Set-Top Box. Connect Audio Cables between the

COMPONENT IN 1 [L-AUDIO-R]

(or COMPONENT IN 2 [L-AUDIOR]) jacks on the TV and the AUDIO OUT jacks on the DVD player/SetTop Box. TV Side Panel DVD Player/Set-Top Box 2 Audio Cable(Not supplied) 1 Component Cable(Not supplied)

Component video separates the video into Y Luminance (brightness), PB (Blue) and PR (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN, connect the audio cable to COMPONENT IN also. Each DVD Player/Set-Top box has a different side panel configuration. When connecting a DVD Player/Set-Top box, match the color of the connection terminal to the cable. English - 13 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:28 Connecting a DVD Player/Set-Top Box via HDMI This connection can only be made if there is an HDMI Output jack on the external device.

Connect an HDMI Cable between the HDMI IN 1 (or HDMI IN 2 ) on the TV and the HDMI OUT jack on the DVD Player/Set-Top Box. TV Side Panel DVD Player/Set-Top Box

HDMI Cable(Not supplied) What is HDMI? ● HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of the digital audio and video signals using a single cable. ● “Multimedia interface” is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio. ➢ Each DVD Player/Set-top box has a different side panel configuration. ➢ When connecting a DVD Player/Set-top box, match the color of the connection terminal to the cable. ➢ When connecting via HDMI, you do not need to connect Audio Cables. You only need to connect Audio cables when connecting via HDMI/DVI. Connecting a DVD Player/Set-Top Box via DVI This connection can only be made if there is a DVI Output jack on the external device.

Connect a HDMI/DVI Cable or DVI-HDMI Adapter between the HDMI3/DVI IN jack on the TV and the DVI OUT jack on the DVD Player/Set-Top Box. Connect Audio Cables between the DVI IN [L-AUDIO-R] jacks on the TV and the AUDIO OUT jacks on the DVD Player/Set-Top Box. TV Side Panel DVD Player/Set-Top Box 2 Audio Cable(Not supplied) 1 HDMI/DVI Cable(Not supplied)

Each DVD Player/Set-Top box has a different side panel configuration. When connecting a DVD Player/Set-Top box, match the color of the connection terminal to the cable. English - 14 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:30 Connecting a Digital Audio System The side panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

Connect an Optical Cable between the DIGITAL AUDIO OUT (OPTICAL) jack on the TV and the Digital Audio Input jack on the Digital Audio System. When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) terminal: Decrease the volume of the TV, and adjust the volume level with the audio system’s volume control. TV Side Panel Digital Audio System

Optical Cable (Not supplied) Each Digital Audio System has a different side panel configuration. 5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH. What is OPTICAL? ● Converts the electric signal into an optical light signal, and transmits it through glass fibers. S/PDIF is a transmission system of digital audio in the form of a light wave that uses a glass conductor. Connecting an Amplifier/DVD Home Theater

Connect Audio Cables between the AV OUT [L-AUDIO-R] jacks on the TV and AUDIO IN [L-AUDIO-R] jacks on the Amplifier/DVD Home Theater. When an audio amplifier is connected to the AV OUT [LAUDIO-R] terminals: Decrease the volume of the TV, and adjust the volume level with the amplifier’s volume control. TV Side Panel Amplifier/DVD Home Theater

Audio Cable (Not supplied) Each Amplifier/DVD Home Theater has a different side panel configuration. When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the cable. English - 15 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:32 Connecting a PC Using the D-Sub Cable

Connect a D-Sub Cable between the PC IN [PC] jack on the TV and the PC output jack on your computer. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer. Using the D-Sub Cable TV Side Panel

PC Audio Cable (Not supplied)

D-Sub Cable (Not supplied) Connect a HDMI/DVI Cable between the HDMI3/DVI IN jack on the TV and the PC output jack on your computer. Connect a 1Stereo/2RCA Cable between the DVI IN [L-AUDIO-R] jack on the TV and the Audio Out jack of the sound card on your computer. TV Side Panel

1Streo/2RCA Cable (Not supplied)

HDMI/DVI Cable (Not supplied) Each PC has a different side panel configuration. When connecting a PC, match the color of the connection terminal to the cable. When connecting the HDMI/DVI to your PC, select HDMI3/DVI in Edit Name from you PC to see the original screen with no cutting images. See page 27. Operation Turning the TV On and Off Press the POWER button on the remote control. You can also use the POWER button on the TV.

It may take a while when your TV starts. English - 16 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:36 Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically:

Press the POWER button on the remote control. The message Executes the Plug & Play function when you set the TV at first or reset it. Sets channels, clock and other functions. is automatically displayed. Press the ENTER button to enter the language. Press the ▲ or ▼ button to select language, then press the ENTER button. The message Select Home Mode when installing this TV at home. is automatically displayed. Press the ◄ or ► button to select Shop or Home, then press the ENTER button. ➢ The default selection is Home. ➢ We recommend setting the TV to Home mode for the best picture in your home environment. ➢ Shop mode is only intended for use in retail environments. ➢ If the unit is accidentally set to Shop mode, and you want to return to Dynamic (Home) mode, press the Volume button and then hold down the MENU button for five seconds on the TV panel. Plug & Play Executes the Plug & Play function when you set the TV at first or reset it. Sets channels, clock and other functions. Enter Plug & Play Select Language of the OSD. English If both ANT 1 IN (CABLE) and ANT 2 IN (AIR) are connected, select the Air + Cable.

In Cable mode, you can select the correct analog signal source among STD, HRC, and IRC by pressing the ◄ or ► button, then press the ENTER button. If you have Digital cable, select the signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area. The TV will begin memorizing all of the available channels. After all the available channels are stored, the Auto program menu reappears. Press the ENTER button when channel memorization is complete. The Clock Mode menu is displayed. ➢ To stop the search before it has finished, press the ENTER button with stop selected. Plug & Play Select Home Mode when installing this TV at home. Press the ▲ or ▼ button to memorize the channels of the selected connection, then press the ENTER button. ➢ If the antenna is connected to ANT 1 IN (CABLE), select Cable and if it is connected to ANT 2 IN (AIR), select Air.

Exit Shop Home Enter Move Skip Plug & Play Select the antennas to memorize Air Start Cable Start Air+Cable Start Enter Move Skip Plug & Play Selects the cable system. Analog STD HRC IRC Digital STD HRC IRC Move Enter Skip Plug & Play Auto Program in Progress. Digital Channels are added on the favorite channel list. Cable 10

Stop Enter Skip Enter Skip Plug & Play Auto Program is completed. 3 channels are memorized. Air : 1 Cable : 2

Continued... English - 17 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:39

Press the ENTER button. Press the ▲ or ▼ button to select Manual for setting the current time manually, then press the ENTER button. The message Set current date and time. is displayed. ➢ If you select Auto. Set to daylight saving time. is displayed, then go to step 9. Press the ◄ or ► button to move to Month, Day, Year, Hour, Minute, or am/pm. Set the date and time you want by pressing the ▲ or ▼ button, then press the ENTER button. ➢ You can set the month, day, year, hour, and minute directly by pressing the number buttons on the remote control. Plug & Play Set the Clock Mode. Clock Mode : Auto

Enter Skip Plug & Play Set the Clock Mode. Clock Mode The message Enjoy your watching. is displayed. When you have finished, press the ENTER button. ➢ Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Plug & Play Set current date and time Setting the Clock Automatically

Move Press the ENTER button. Press the ▲ or ▼ button to select Off or On, then the ENTER button. The message Select the time zone in which you live. is displayed. 10 Press the ▲ or ▼ button to highlight the time zone for your local area (and to move the highlight to the appropriate time zone on the map of the United States). Press the ENTER button. If clock is not automatically set, see pages 48~49 to set the clock. 11 The message Enjoy your watching. is displayed. When you have finished, press the ENTER button. ➢ Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Enter Adjust Skip Plug & Play Set to daylight saving time. DST : Off

Enter Skip Enter Skip Plug & Play Set to daylight saving time. DST Plug & Play Select the time zone in which you live. Newfoundland Atlantic Eastern Central Mountain Pacific

Move Enter Skip Plug & Play Enjoy your watching.

English - 18 BP68-00628B-01Eng_1.indd

2007-03-09 ｿﾀﾈﾄ 5:22:48 Changing Channels Using the Channel Buttons Press the CH or CH button to change channels. ➢ When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See page 21 to memorize channels. Using the Number Buttons Use the number buttons to quickly tune to any channel. Press the number buttons to go directly to a channel. For example, to select channel 27, press “2,” then “7.” The TV will change channels when you press the second number. Using the “-” Button The “-” button is used to select stations that broadcast a digital signal. For example, for Channel 7-1, press “7”, then “-”, and then “1”. ➢ HD indicates the TV is receiving a Digital High Definition signal. SD indicates the TV is receiving a Standard Definition signal. ➢ For quick channel change, press the number buttons, then press the ENTER button. Using the PRE-CH Button to select the Previous Channel Press the PRE-CH button. The TV will switch to the last channel viewed. ➢ To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them. Adjusting the Volume Press the VOL + or VOL – button to increase or decrease the volume. Using the Mute Button At any time, you can cut off the sound using the MUTE button.

Press the MUTE button and the sound cuts off. The is displayed on the screen. To turn mute off, press the MUTE button again, or simply press the VOL + or VOL – button. English - 19 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:41 Viewing the Display The display identifies the current channel and the status of certain audio-video settings. Press the INFO button on the remote control. Air

Press the ▲ or ▼ button, then press the ENTER button to select an item you want in the menu. Press the ▲/▼/◄/►/ENTER button to display, change, or use the selected items. Press the EXIT button to exit. Picture

With the power on, press the MENU button. The main menu will appear at the bottom of the screen. There are seven menu groups: Picture, Sound, Channel, Setup, Input, Guide, and PIP. Mode :Dynamic Contrast : 100 Brightness : 45 Sharpness : 75 Color : 55 Tint (G/R) : G50/R50 Color Tone : Cool1 Detail Settings Using the TOOLS Button The Tools button allows you to display frequently used Menu and Connection items with a Single button press.

Press the TOOLS button. The TOOLS menu will appear. Press the ▲/▼ button to select a menu, then press the ENTER button. Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page. Device List Headset Connection Picture Setting Sound Setting Sleep Timer Off Caption Off Channel Add/Delete Delete Favorite Channel Move

Enter Device List, see page 82 Headset Connection, see page 69 Picture Setting, see page 28 Sound Setting, see page 36 Sleep Timer, see page 50 Caption, see page 51~52 Channel Add/Delete, see page 42 Delete Favorite Channel, see page 43 Auto Program, see page 21 English - 20 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:45 Memorizing the Channels Your TV can memorize and store all of the available channels for both “off-air”(air) and cable channels. After the available channels are memorized, use the CH and CH button to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels(automatic) and adding or deleting channels(manual). Selecting the Video Signal-source Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV(i.e. an air or a cable system).

Channel Channel List Auto Program Clear Scrambled Channel Fine Tune Signal Strength

LNA : On Antenna : Air Air Channel List Auto Program Clear Scrambled Channel Fine Tune Signal Strength LNA : On Storing Channels in Memory (Automatic Method)

Press the ▲ or ▼ button to select Auto Program, then press the ENTER button. Press the ▲ or ▼ button to select an antenna connection, then press the ENTER button. ➢ Air: “Air” antenna signal. Cable: “Cable” antenna signal. Air+Cable: “Air” and “Cable” antenna signals. ➢ If the antenna is connected to ANT 1 IN (CABLE), select Cable and if it is connected to ANT 2 IN (AIR), select Air. ➢ If both ANT 1 IN (CABLE) and ANT 2 IN (AIR) are connected, select the Air+Cable. ➢ If you selected Air, then go to step 6. Press the ◄ or ► to select the correct analog signal source among STD, HRC, and IRC, then press the ENTER button. If you have Digital cable, select the signal source for both Analog and Digital. ➢ STD, HRC, and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected. The TV begins memorizing all available stations. When pressing the ENTER button during a storing process, the message Would you like to stop the auto channel selection? is displayed. Select Yes by pressing the ◄ or ► button. Press the EXIT button to exit. ➢ The TV must be connected to an antenna/cable in order to receive digital TV signals. Even if a particular channel is deleted from the memory, you can always tune to that channel directly by using the number buttons on the remote control. ➢ All available DTV and analog channels are automatically stored in memory. It takes approximately 3 to 10 minutes to memorize channels. Auto Program Select the antennas to memorize Air Start Cable Start Air+Cable Start Enter Move Return Auto Program Select the cable system. Analog STD HRC IRC Digital STD HRC IRC Enter Move Return Auto Program Auto Program in Progress. Digital Channels are added on the favorite channel list. Air 10

Stop Enter Skip Auto Program Would you like to stop the auto channel selection ? Digital Channels are added on the favorite channel list. Air 10

Yes Enter Move Return Auto Program Auto Program is incomplete. 3 channels are memorized. Air : 1 Cable : 2

English - 21 BP68-00628B-00Eng_1.indd

Enter Return 2007-03-02 ｿﾀﾈﾄ 4:21:46 Setting Up Your Remote Control After your remote control has been properly set up, your remote control can operate in five different modes: TV, VCR, Cable, DVD, or Set-Top Box. Pressing the corresponding button on the remote control allows you to switch among these modes, and control whichever piece of equipment you choose.

The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top Boxes. Setting Up the Remote to Operate Your VCR

Turn off your VCR. Press the VCR button on your TV’s remote control. Press the SET button on your TV’s remote control. Using the number buttons on your remote control, enter three digits of the VCR code listed on page 24 of this manual for your brand of VCR. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.) Press the POWER button on the remote control. Your VCR should turn on if your remote is set up correctly. If your VCR does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of VCR. If no other codes are listed, try each VCR code, 000 through 080. Note on Using Remote Control Modes: VCR When your remote control is in VCR mode, the volume buttons still control your TV’s volume. Setting Up the Remote to Operate Your Cable Box

Turn off your cable box. Press the CABLE button on your TV’s remote control. Press the SET button on your TV’s remote control. Using the number buttons on your remote control, enter three digits of the cable box code listed on page 25 of this manual for your brand of cable box. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.) Press the POWER button on the remote control. Your cable box should turn on if your remote is set up correctly. If your cable box does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of cable box. If no other codes are listed, try each code, 000 through 046. Note on Using Remote Control Modes: Cable Box When your remote control is in CABLE mode, the volume buttons still control your TV’s volume. Continued... English - 22 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:47 Setting Up the Remote to Operate Your DVD

Turn off your DVD. Press the DVD button on your TV’s remote control. Press the SET button on your TV’s remote control. Using the number buttons on your remote control, enter three digits of the DVD code listed on page 26 of this manual for your brand of DVD. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.) Press the POWER button on the remote control. Your DVD should turn on if your remote is set up correctly. If your DVD does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of DVD. If no other codes are listed, try each code, 000 through Note on Using Remote Control Modes: DVD When your remote control is in DVD mode, the volume buttons still control your TV’s volume. Setting Up the Remote to Operate Your Set Top Box

Turn off your STB. Press the STB button on your TV’s remote control. Press the SET button on your TV’s remote control. Using the number buttons on your remote control, enter three digits of the STB code listed on page 25 of this manual for your brand of STB. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.) Press the POWER button on the remote control. Your STB should turn on if your remote is set up correctly. If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of STB. If no other codes are listed, try each code, 000 through 074. Note on Using Remote Control Modes: STB When your remote control is in STB mode, the volume buttons still control your TV’s volume. Continued... English - 23 BP68-00628B-00Eng_1.indd

2007-03-02 ｿﾀﾈﾄ 4:21:49 Remote Control Codes VCR Brand SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO LG(Goldstar) HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL KENWOOD KLH LIOYD LOGIK LXI JVC MAGNAVOX MARANTZ MARTA KONIA ORION MEI MEMOREX MGA MIDLAND MINOLTA Code

Product Home Theater VCR COMBO HDD Record COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Code

To Select the Source Use to select TV or other external input sources such as DVD players, VCRs, etc. connected to the TV.

Input Source List Edit Name

Press the ▲ or ▼ button to select a signal source, then press the ENTER button. Press the EXIT button to exit. ➢ You can choose between the following sets of jacks: TV, AV1, AV2, S-Video1, S-Video2, Component1, Component2, PC, HDMI1, HDMI2, HDMI3/DVI, or USB on the TV’s side panel. ➢ HDMI1, HDMI2, or HDMI3/DVI input can only be selected when the external device is turned on and connected via HDMI. ➢ You can choose only those external devices that are connected to the TV.

Press the SOURCE button on the remote control to view an external signal source. To Edit the Input Source Name Name the external device connected to the input jacks to make your input source selection easier.

Press the ▲ or ▼ button to select VCR, DVD, D-VHS, Cable STB, HD STB, Satellite STB, PVR STB, AV Receiver, DVD Receiver, Game, Camcorder, DVD Combo, DVD HDD Recorder, PC, Internet TV Recv., Interactive TV Recv., VOD STB, or TV input source, then press the ENTER button. Press the EXIT button to exit. Enter Return Edit Name AV1 AV2 S-Video1 S-Video2 Component1 Component2

Picture Control Using Automatic Picture Settings Your TV has three automatic picture settings (“Dynamic”, “Standard”, “Movie”) that are preset at the factory. You can activate a Picture Setting by making a selection from the menu.

Picture Press the MENU button. Press the ENTER button to select Picture. Press the ENTER button again to select Mode. Mode :Dynamic Contrast : 100 Brightness : 45 Sharpness : 75 Color : 55 Tint (G/R) : G50/R50 Color Tone : Cool1

Choose Dynamic to increase the clarity and sharpness of the picture. Choose Standard for general TV watching mode. Choose Movie when watching movies. Picture Press the P.MODE button on the remote control to select one of the standard picture settings.

Picture Press the ▲ or ▼ button to select Contrast, Brightness, Sharpness, Color, or Tint (G/R), then press the ENTER button. ➢ Tint (G/R) is not available in DTV or PC mode. Mode : Dynamic Contrast :100 Brightness : 45 Sharpness : 75 Color : 55 Tint (G/R) : G50/R50 Color Tone : Cool1

Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. ➢ ● Each adjusted setting will be stored separately according to its input mode. ● When you make changes to Contrast, Brightness, Sharpness, Color, or Tint (G/R), OSD color will also be adjusted accordingly.

Contrast Move Detail Settings Size : 16:9 Digital NR : Auto Active Color : On DNIe : On Color Gamut : Wide Position Continued... English - 28 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:19

Picture Press the ▲ or ▼ button to select Cool2, Cool1, Normal, Warm1, or Warm2, then press the ENTER button. ➢ When the picture mode is set to Dynamic or Standard, Warm1, and Warm2 cannot be selected. Color : 55 Tint (G/R) : G50/R50 Color Tone : Cool1 Cool2 Press the EXIT button to exit.

Cool1 Detail Settings Size Digital NR Warm2 : On Active Color DNIe : On Color Gamut : Wide Position Making Detail Settings on the Picture Picture Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to make Detailed picture settings. 1 Press the MENU button. Tint (G/R) Press the ENTER button to select Picture. Color Tone Press the ▲ or ▼ button to select Detail Settings, then press the ENTER button. : G50/R50 : Cool1 Detail Settings

Size : 16:9 Digital NR : Auto Active Color : On DNIe : On Color Gamut : Wide Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. When you are satisfied with your setting, press the ENTER button. Press the EXIT button to exit. ➢ When the picture mode is set to Standard or Movie, Detail Settings can be selected.

If DNIe is set to Off and the picture mode is in Dynamic or Standard mode, the Detailed Settings cannot be selected. Detail Settings Black Adjust : Medium Dynamic Contrast : Medium Gamma : +1 White Balance

Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided.

Gamma: -3 ~ +3 You can adjust the Primary Color (Red, Green Blue) Intensity. Press the ◄ or ► button until you reach the optimal setting.

White Balance: -10 ~ +10 You can adjust the color temperature for more natural picture colors. Press the ◄ or ► button until you reach the optimal setting.

My Color Control: Pink/Green/Blue/Reset This setting can be adjusted to suit your personal preferences. Select the Pink, Green or Blue by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted colors will be reset to the factory defaults.

Edge Enhancement: Off/On You can emphasize object boundaries.

xvYCC: Off/On Setting the xvYCC mode to On increases detail and color space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. English - 29 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:20 Changing the Screen Size You can select the picture size which best corresponds to your viewing requirements.

Color Tone Picture Press the MENU button. Press the ENTER button to select Picture. Press the ▲ or ▼ button to select Size, then press the ENTER button. : Cool1 Detail Settings Size : 16:9 Digital NR : Auto Active Color : On DNIe : On Color Gamut : Wide

Press the ▲ or ▼ button to select the screen format you want, then press the ENTER button. Press the EXIT button to exit.

Size 16:9 Zoom1 16:9: Sets the picture to 16:9 wide mode. Zoom1: Magnifies the size of the picture on the screen. Zoom2: Expands the Zoom1 format picture. Wide Fit : Enlarges the aspect ratio of the picture to fit the entire screen. 4:3 : Sets the picture to 4:3 normal mode. Just Scan : Use this function to see the full image without cutting off the picture when DTV or HDMI 1080i/1080p signals are input. Press the P.SIZE button on the remote control to change the picture size. 16:9 Sets the picture to 16:9 wide mode. Zoom1 The screen size when Wide screen is vertically enlarged. Zoom2 The screen size when the Zoom1 screen is vertically enlarged. Just Scan Wide Fit Enlarges the aspect ratio of the picture to fit the entire screen.

4:3 Sets the picture to 4:3 normal mode. Just Scan Use this function to see the full image without cutting off the picture when DTV or HDMI 1080i/1080p signals are input. ● Only 16:9 and 4:3 are available in DTV, Component (720p, 1080i) and HDMI (720p, 1080i) modes. ● In COMPONENT(720p, 1080i) or HDMI(720p, 1080i) mode, 16:9, 4:3 and Wide Fit can be selected. ● You can select the 16:9, 4:3, Wide Fit and Just Scan screen sizes in the Component (1080i, 1080p), HDMI (1080i, 1080p), or DTV (1080i, 1080p) mode. ● In Zoom1, Zoom2 and Wide Fit modes, you can move the picture on the screen by pressing the ▲ or ▼ button. ● Each adjusted setting will be stored separately according to its input mode. ● When watching an HD(High Definition 720p,1080i,1080p) signal, you can use Wide Fit. Wide Fit sets the optimum picture format by expanding it both horizontally and vertically. For example, you can reset the picture in 4:3 format to 16:9. Wide Fit does not support all external devices (DVD, VCR etc.). English - 30 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:22 Digital Noise Reduction If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Detail Settings Picture Press the EXIT button to exit.

Detail Settings Picture Press the ▲ or ▼ button to select Off, Low, Medium, High, or Auto, then press the ENTER button. Off: Switches the Digital NR function off. Low: Sets Digital NR to low. Medium: Sets Digital NR to mid range. High : Sets Digital NR to high. Auto : Reduces the noise of the picture automatically. Size : 16:9 Digital NR : Auto Off Active Color High : Wide Auto Picture Reset Setting the Active Color If you turn on this option, the blue and green colors will be more vivid.

Size Picture Press the MENU button. Press the ENTER button to select Picture. Press the ▲ or ▼ button to select Active Color, then press the ENTER button. : 16:9 Digital NR : Auto Active Color : On DNIe : On Color Gamut : Wide

Press the EXIT button to exit. ➢ This function is not available in PC mode. ➢ When you select Standard or Movie in Picture Mode, the Active Color automatically changes to Off and it is deactivated. When the Picture Mode is set to Dynamic, the Active Color is activated regardless of the Picture Mode setting. Size : 16:9 Digital NR : Auto Active Color : On Off DNIe

: On Color Gamut : Wide

DNIe (Digital Natural Image engine) This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

Picture Press the MENU button. Press the ENTER button to select Picture. Press the ▲ or ▼ button to select DNIe, then press the ENTER button. ➢ This function doesn’t work when the Input Source is PC. Digital NR : Auto Active Color : On DNIe : On Color Gamut : Wide

Press the ▲ or ▼ button to select Off, Demo, or On, then press the ENTER button. Off: Switches off the DNIe mode. Demo: The screen before applying DNIe appears on the left and the screen after applying DNIe appears on the right. On: Switches on the DNIe mode.

Picture Press the EXIT button to exit. Digital NR : Auto Active Color : On DNIe : On Off Color Gamut Demo : Wide

Picture Reset The DNIe function is not supported in the Movie mode. (It is inactivated.) DNIeTM (Digital Natural Image engine) This feature brings you more a detailed image with 3D noise reduction and detail, contrast and white enhancement. Setting the Color Gamut Color gamut is a color matrix made up with the basic colors of Red, Green and Blue.

Picture Press the EXIT button to exit. Wide: Displays the native color gamut of panel device. Normal: Normal Color Gamut offers flat and natural color tone. sRGB: Supports color tone of sRGB format. Picture Adjusting the Screen Position You can adjust the horizontal and vertical position of the screen.

Picture Press the MENU button. Press the ENTER button to select Picture. Press the ▲ or ▼ button to select Position, then press the ENTER button. DNIe : On Color Gamut : Wide Position

Press the ▲/▼/◄/► button to adjust the screen position. Position Press the EXIT button to exit. Adjust Enter Return Resetting the Picture Settings Color Gamut Using the Picture menu, you can restore the settings to the factory defaults. Press the MENU button. Press the ENTER button to select Picture. Press the ▲ or ▼ button to select Picture Reset, then press the ENTER button.

Press the ◄ or ► button to select Reset All, Reset Picture Mode, or Cancel, then press the ENTER button. Reset All: All the picture values return to default settings. Reset Picture Mode: Current picture values return to default settings. Picture

: Wide Position Picture Reset

Picture Reset Select the option for picture reset. Reset All Viewing Picture-in-Picture This product has one built-in tuner, which does not allow PIP to function in the same mode. For example, you cannot watch one TV channel in the main screen, and a different one in the PIP screen. Please see ‘PIP Settings’ below for details. You can use the PIP feature to simultaneously watch two video sources. ➢ While V-Chip is in operation, the PIP function cannot be used. (Refer to page 54) Activating Picture-in-Picture

Press the ENTER button again. Press the ▲ or ▼ button to select On, then press the ENTER button. ➢ If you turn the TV off while watching in PIP mode and turn it on again, the PIP window will disappear. You can view Analog TV broadcasts on the PIP screen (sub-picture) when the main picture is from an external device connected to HDMI1,2,3 Component1,2 or PC. Main picture Sub picture Analog TV broadcasts only PIP : Off Size

Air/Cable : Cable Channel : Cable 3 PIP : Off Off Size

Air/Cable : Cable Channel : Cable 3 Press the PIP button on the remote control to activate or deactivate the PIP. Changing the Size of the PIP Window

PIP Press the ▲ or ▼ button to select Size, then press the ENTER button. Press the ▲ or ▼ button to select the desired size of the PIP window, then press the ENTER button. ➢ If main picture is in PC mode, Size is not available. ➢ You may notice that the picture in the PIP window becomes slightly unnatural when you use the main picture to view a game or karaoke. PIP : On Size

Air/Cable : Cable Channel : Cable 3 Continued... English - 34 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:27 Changing the Position of the PIP Window

PIP Press the ▲ or ▼ button to select Position, then press the ENTER button. Press the ▲ or ▼ button to select the desired PIP window position, then press the ENTER button. ➢ In Double Window ( ) and Double Wide ( ) modes, Position cannot be selected. ➢ If the PIP window is set to Double Window ( ) or Double Wide ( ) mode, the screen size or alignment may slightly differ depending on the signal type. PIP : On Size

Air/Cable : Cable Channel : Cable 3

Selecting a Signal Source (Air or Cable) for PIP

PIP Changing the PIP Channel

PIP Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button at the bottom of the remote to select the desired channel in the PIP window, then press the ENTER button. ➢ The channel can be active when the sub picture is set to TV. Position

Air/Cable : Cable Channel Press the EXIT button to exit. Press the PIP CH PIP channel. and CH and buttons on the remote control to change the Freezing the Current Picture Press the STILL button to freeze a moving picture. (Normal sound will still be heard.) To cancel this function, press the STILL button again or press any button on the remote control. Still Print Cancel This function is available only when a bluetooth printer is connected to the TV. (Refer to page 69) English - 35 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:30 Sound Control Using the Automatic Sound Settings Your TV has automatic sound settings (“Standard”, “Music”, “Movie”, “Speech”, and “Custom”) that are preset at the factory. Or, you can select “Custom”, which automatically recalls your personalized sound settings.

Equalizer SRS TruSurround XT : Off Preferred Language : English Multi-Track Sound : Mono Auto Volume : Off Internal Mute : Off Sound Reset

Press the EXIT button to exit.

Sound Press the ENTER button to select Mode. Press the ▲ or ▼ button to select Standard, Music, Movie, Speech, or Custom sound setting, then press the ENTER button. Mode SRS TruSurround XT Choose Standard for the standard factory settings. Choose Music when watching music videos or concerts. Choose Movie when watching movies. Choose Speech when watching a show that is mostly dialog (i.e., news). Choose Custom to recall your personalized settings (see “Customizing the Sound”).

Music Equalizer Preferred Language Multi-Track Sound Movie : Off Speech : English Custom : Mono Auto Volume : Off Internal Mute : Off Sound Reset Press the S.MODE button on the remote control to select one of the standard sound settings. Customizing the Sound The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one of the “automatic” settings.)

Mode Sound SRS TruSurround XT : Off Preferred Language : English Multi-Track Sound : Mono Auto Volume : Off Internal Mute : Off Sound Reset

Press the ENTER button to select Mode. Press the ▲ or ▼ button to select a particular item (Standard, Music, Movie, Speech, Custom), then press the ENTER button. Equalizer Mode Press the ▲ or ▼ button to select a particular frequency to adjust. Press the ◄ or ► button to increase or decrease the level of the particular frequency. Mode

● L/R Sound Balance Adjustment : To adjust the sound balance of the L/R speakers. ● Bandwidth Adjustment (100Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 15kHz, Reset) : To adjust the level of different bandwidth frequencies. Equalizer : Custom

Move Adjust Enter Return Resetting the Equalizer Settings to the Factory Defaults

Press the ▲ or ▼ button to select Reset, then press the ENTER button. ➢ The equalizer resets to the factory defaults. Press the EXIT button to exit. Equalizer

Move Enter Return Setting the TruSurround XT TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Mode : Custom Equalizer Sound SRS TruSurround XT : Off Preferred Language : English Multi-Track Sound : Mono Auto Volume : Off Internal Mute : Off

Press the EXIT button to exit. SRS TruSurround XT : Off Off Preferred Language

: English Multi-Track Sound : Mono Auto Volume : Off Internal Mute : Off

TRADEMARK & LABEL LICENSE NOTICE

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. English - 37 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:33 Choosing a Multi-Channel Sound (MTS) Track - Digital The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). The availability of these additional “multitracks” depends upon the program. Preferred Language

Equalizer SRS TruSurround XT Sound Preferred Language : English Multi-Track Sound

: Mono Auto Volume : Off Internal Mute : Off Sound Reset

Press the ▲ or ▼ button to choose the language (English, Spanish, or French) you want, then press the ENTER button. Sound Press the EXIT button to exit. ➢ You can only select the language among the actual languages being broadcast. Equalizer SRS TruSurround XT : Off Preferred Language : English English Auto Volume Spanish : Mono French : Off Internal Mute : Off Multi-Track Sound

Sound Reset Press the MTS button on the remote control to listen in a language other than the preferred language. Choosing a Multi-Channel Sound (MTS) Track - Analog Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP. Multi-Track Sound

Sound SRS TruSurround XT : Off Preferred Language : English Multi-Track Sound : Mono Auto Volume : Off Internal Mute : Off

Press the ▲ or ▼ button to select a setting you want, then press the ENTER button. Choose Mono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal. Choose Stereo for channels that are broadcasting in stereo. Choose SAP to listen to the Separate Audio Program, which is usually a foreignlanguage translation. Sound Press the EXIT button to exit. SRS TruSurround XT : Off Preferred Language : English Multi-Track Sound : Mono Mono Auto Volume Press the MTS button on the remote control repeatedly to select Mono, Stereo, or SAP. English - 38 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:34 Automatic Volume Control Reduces the difference in volume level among broadcasters.

Sound Multi-Track Sound : Mono Auto Volume : Off Internal Mute : Off

Press the EXIT button to exit. Preferred Language : English Multi-Track Sound : Mono Auto Volume : Off Off Internal Mute

Sound Reset Selecting the Internal Mute Sound output from the TV speakers is muted. This is useful when you want to listen to audio through your sound system instead of the TV.

Sound Multi-Track Sound : Mono Auto Volume : Off Internal Mute : Off

TV’s Internal Speakers Sound Press the EXIT button to exit. ➢ ● The left/right audio outputs and digital audio outputs (Optical) remain enabled. ● The VOL +, VOL -, MUTE, and S.MODE buttons do not operate when the Internal Mute is set to On. ● When Internal Mute is set to On, Sound menu except Multi-Track Sound cannot be adjusted. Multi-Track Sound : Mono Auto Volume : Off Internal Mute : Off Off Sound Reset

Audio Out Optical (R/L Out) to Sound System

AV, S-Video Internal Mute Off Speaker Output Speaker Output Speaker Output Sound Output Sound Output Sound Output Internal Mute On Mute Mute Mute Sound Output Sound Output Sound Output Video No Signal Mute Mute Mute Mute Mute Mute English - 39 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:36 Resetting the Sound Settings You can restore the Sound settings to the factory defaults.

Press the ◄ or ► button to select Reset All, Reset Sound Mode, or Cancel, then press the ENTER button. Reset All: All the sound values return to default settings. Reset Sound Mode: Current sound values return to default settings.

Sound Reset Select the sound reset options. Reset All Channel Control Clearing Scrambled Channels - Digital The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed. It removes the scrambled channels from the list by tuning the digital cable channels. This process may take up to 20-30 minutes.

Channel List Channel Press the MENU button. Press the ▲ or ▼ button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Clear Scrambled Channel, then press the ENTER button. It searches scrambled channels, which are to be removed from the list. Auto Program Clear Scrambled Channel

To stop searching scrambled channels; Press the ▼ button to select Stop, then press the ENTER button. Press the ◄ button to select Yes, then press the ENTER button.

: On Clear Scrambled Channel Removing scrambled channel. DTV Cable 122

When the scrambled channel searching is completed, press the ENTER button. Press the EXIT button to exit. Stop Enter Return English - 40 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:36 Managing Channels Using this menu, you can Add/Delete or set Favorite channels and use the program guide for digital broadcasts. Viewing All Channels Show all currently available channels. To use the Channel List function, first run Auto Program (see page 21).

Antenna Channel Auto Program Clear Scrambled Channel Fine Tune Signal Strength LNA Press the ◄ button to select Added Channels.

Press the ▲ or ▼ button to select All Channels, then press the ENTER button. Shows all currently available channels. Press the ▲ or ▼ button to select a channel to view, then press the ENTER button. You can watch the selected channel. Air 6-1 ♥ Air

Press the CH LIST button on the remote control to bring up the channel lists. Using the Color buttons on the Remote with the Channel List Red (Antenna): Switches to DTV air or DTV cable. Green (Zoom): Enlarges or shrinks a channel number. Yellow (Select): Selects multiple channel lists. Blue (Option): Displays the Add (or Delete), Add Favorite (or Delete Favorite), Timer Viewing, and Channel Name Edit menus. ➢ A gray-colored channel refers to a deleted channel. The Add menu only appears for deleted channels. ➢ A channel marked with the ♥ mark refers to a channel set as a Favorite. The Delete Favorite menu only appears for channels with the ♥ mark. Continued... English - 41 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:37 Adding and Erasing Channels You can add or delete a channel to display the channels you want.

Antenna Channel Auto Program Clear Scrambled Channel Fine Tune Signal Strength LNA Press the ◄ button to select Added Channels.

Press the ▲ or ▼ button to select a channel to add, then press the blue button.

Press the ENTER button to select Add. ➢ All added channels will be shown on Added Channels menu.

Press the ▲ or ▼ button to select a channel to delete, then press the blue button. Press the ENTER button to select Delete.

Press the EXIT button to exit. You can also delete a channel in the Added Channels menu in the same manner. Air

All Channels Press the ▲ or ▼ button to select All Channels, then press the ENTER button. Show all currently available channels. Air 6-1 Air

: On Add Add Favorite Timer Viewing Channel Name Edit Press the CH LIST button on the remote control to bring up the channel lists. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲/▼ button to select Channel Add/Delete, then press the ENTER button.

3. Press the CH

and CH button to select the channel to be added or deleted, then press the ENTER button. Device List Headset Connection Picture Setting Sound Setting Sleep Timer Off Caption Off Channel Add/Delete Set Favorite Channel Move Enter Channel Add/Delete DTV Air 6-1 Not In Memory Add

Change Enter Exit Continued... English - 42 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:40 Setting Your Favorite Channels You can set channels you watch frequently as favorites.

Antenna Channel Auto Program Clear Scrambled Channel Fine Tune Signal Strength LNA Press the ▲ or ▼ button to select a channel as a favorite channel, then press the blue button.

To cancel your favorite channel selection, press the blue button when a favorite channel is selected. Press the ▲ or ▼ button to select Delete Favorite, then press the ENTER button. The channel is deleted from Favorites and the “♥” mark also disappears. Press the EXIT button to exit. You can also Add or Delete a channel from Favorites in the All Channels menu in the same manner. Only memorized channels can be set as favorite channels. All favorite channels will be shown on Favorite menu. Air

Press the ▲ or ▼ button to select Add Favorite, then press the ENTER button. The “♥” symbol will be displayed and the channel will be set as a favorite. Air 6-1 Air

Option Air 6-1 Air Zoom Delete Add Favorite Timer Viewing Channel Name Edit Press the CH LIST button on the remote control to bring up the channel lists. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲/▼ button to select Set Favorite Channel or Delete Favorite Channel, then press

the ENTER button. The current channel is added to or deleted from Favorites. Device List Headset Connection Picture Setting Sound Setting Sleep Timer Off Caption Off Channel Add/Delete Set Favorite Channel Move Enter To select the favorite channels you have set up, press the FAV.CH button on the remote control. Continued... English - 43 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:43 Reserving a Program (Time Viewing) If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List even when you are watching another channel. To reserve a program set the current time first. See pages 48~49. Reserved channels can only be set if they are in the Channel List (See page 41).

: Air Antenna Channel Auto Program Clear Scrambled Channel Fine Tune Signal Strength : On LNA

Press the ▲ or ▼ button to select a channel, then press the Blue (Options) button. Added Channels Air

Press the ▲ or ▼ button to select Timer Viewing, then press the ENTER button. The Reserve a Program (Timer Viewing) screen appears.

Press the ▲/▼/◄/► buttons to reserve a program and then press the ENTER button. Reserving a program has been completed.

Delete Delete Favorite Timer Viewing Channel Name Edit Zoom

Option Timer Viewing Press the EXIT button to exit. You can also reserve a program in the All Channels or Favorite menus using the same procedures. For information on how to confirm a viewing reservation, refer to page 45. Repeat once Channel 7-1 Antenna Air Move Enter Adjust Return Press the CH LIST button on the remote control to bring up the channel lists. Air 2007/2/3 Air

Added Channels Digital Program Guide and Viewing Reservation When a digital channel is selected, and you press the ► button, the Program Guide for the channel appears. You can reserve a program according to the procedures described above. : A program currently being broadcast. : A reserved program 6-1 ♥ Air 1:30 am

Confirming a Viewing Reservation You can view, modify or delete a reservation.

Antenna Channel Auto Program Clear Scrambled Channel Fine Tune Signal Strength LNA Press the ◄ button to select Added Channels.

Press the ▲ or ▼ button to select Programed, then press the ENTER button. You can view reservations. : On Air 3:15 am 6-1 Air Modifying a viewing reservation

To select a reservation item to be modified, press the ▲ or ▼ button and then press the blue button. Press the ENTER button to select Change Info. Press the ▲/▼/◄/► buttons to change a reservation setting and then press the ENTER button. The reservation modification is applied. Air 3:15 am 6-1 Air schedules NoCancel Program Name Information

6-1 Air Canceling a reservation

To select a reservation item to be canceled, press the ▲ or ▼ button, and then press the blue button. Press the ▲ or ▼ button to select Cancel schedules, then press the ENTER button. Press the ◄ or ► button to select OK, then press the ENTER button. The viewing reservation has been canceled. Press the EXIT button to exit. Programed Menu Change Info: Select to change a viewing reservation. Cancel schedules: Select to cancel a viewing reservation. Information: Select to view a viewing reservation. Press the CH LIST button on the remote control to bring up the channel lists. Continued... English - 45 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:47 Labeling Channels - Analog Channels can labeled so that their call letters appear whenever the channel is selected.

Antenna Channel Auto Program Clear Scrambled Channel Fine Tune Signal Strength LNA Press the ▲ or ▼ button to select the channel to be assigned a new name, then press the blue button. Added Channels

Option Added Channels

Air 6-1 7-1 9-1 10-1

Delete Add Favorite Timer Viewing Channel Name Edit Channel Name Edit Numeric buttons: You can enter numbers. Red button: You can switch between English and Characters. Green button: You can delete an already entered character. Yellow button: You can enter a blank space. Blue button: Press this button to finish renaming a channel.

Character Delete Blank

Done Move When you have finished, press the blue button to assign the new name. Enter Return Press the EXIT button to exit.

The names of digital broadcasting channels are automatically assigned and thus cannot be assigned by users. Fine Tuning Analog Channels - Analog Use fine tuning to manually adjust a particular channel for optimal reception.

Auto Program Channel Clear Scrambled Channel Fine Tune

Press the ◄ or ► button to adjust the fine tuning.

To store the fine tuning setting in the TV’s memory, press the ENTER button. : On To reset the fine tuning setting, press the ▼ button to select Reset, then press the ENTER button. Press the EXIT button to exit. ➢ Only analog TV channels can be fine tuned. ➢ “” will appear next to the number of fine-tuned channels. Fine Tuned Reset Move Adjust Save Return Checking the Digital-Signal Strength - Digital Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels.

Clear Scrambled Channel Channel

If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal. : On Signal Strength Press the EXIT button to exit.

Enter Return LNA (Low Noise Amplifier) If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).

Fine Tune Channel Press the EXIT button to exit. ➢ If the picture is noisy with the LNA set to On, select Off. ➢ The LNA setting must be made separately for each channel. Signal Strength Signal Strength LNA

English - 47 BP68-00628B-00Eng_2.indd

2007-03-02 ｿﾀﾈﾄ 4:22:52 Function Description Selecting a Menu Language

Press the EXIT button to exit. : English English Setting the Time Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Option 1: Setting the Clock Automatically The Clock can be set automatically if you are receiving a digital signal.

DLP® 3D/Dual-View : Off Clock Clock Mode : Auto Auto Clock Set Manual Time zone DST : Off Move Enter Return Continued... English - 48 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:20

Press the ▲ or ▼ button to select Time Zone, then press the ENTER button. Press the ▲ or ▼ button to highlight the time zone for your local area (and to move the highlight to the appropriate time zone on the map of the United States), then press the ENTER button. Time Zone Newfoundland Atlantic Eastern Central Mountain Pacific

Press the ▲ or ▼ button to select DST (Daylight Saving Time), then press the ENTER button. Press the ▲ or ▼ button to select Off or On, then press the ENTER button. Press the EXIT button to exit. ➢ Depending on the broadcast station and signal, the auto time may not be set correctly. If this occurs, set the time manually. ➢ Antenna or Cable must be connected in order to set the time automatically. Enter Return Enter Return Clock Clock Mode : Auto Clock Set Time zone Off : Off DST Move Option 2: Setting the Clock Manually

Clock Clock Mode : Auto Auto Clock Set Manual Time zone DST : Off Move

Press the ▲ or ▼ button to select Clock Set, then press the ENTER button. Press the ◄ or ► button to move to Month, Day, Year, Hour, Minute, or am/pm. Set the date and time you want by pressing the ▲ or ▼ button, then press the ENTER button. Press the EXIT button to exit. ➢ The current time will appear every time you press the INFO button. ➢ You can set the Month, Day, Year, Hour, and Minute directly by pressing the number buttons on the remote control. Enter Return Clock Set Month

Move Adjust Enter Return Continued... English - 49 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:20 Setting the On/Off Timer Use this feature to set the TV to turn on or off at a desired time. Press the MENU button. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Timer 1, then press the ENTER button. The Timer 1 menu is displayed. Setup

Clock : 12 : 00 am Sleep Timer : Off Timer 1 : Inactivated ▶ Timer 2 : Inactivated Timer 3 : Inactivated DLP® 3D/Dual-View : Off V-Chip Menu Transparency

Timer 1 Press the ◄ or ► button to select the required item below. Press the ▲ or ▼ button to adjust to the setting satisfied. On Time Hour

Press the EXIT button to exit. Minute

Off Time On Time: Select Hour, Minute, am/pm, and No/Yes. (To activate timer with the setting satisfied, set to Yes.) Off Time: Select Hour, Minute, am/pm, and No/Yes. (To activate timer with the setting satisfied, set to Yes.) Repeat: Select Once, Daily, Mon~Fri, Mon~Sat, or Sat~Sun. Volume: Select the required volume level. Contents: When the On Time is active, you can turn on a specific channel or play back contents such as photo or audio files. (Make sure that an USB device is connected to your TV.)

: Medium Move Adjust Contents Air Enter

Return Contents TV/USB

Auto Power Off When you set the timer On, the TV will eventually turn off if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time. Antenna Air Channel

Music None Photo None Move Adjust Enter Return Setting the Sleep Timer The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).

Press the ▲ or ▼ button to select the minute, then press the ENTER button. To cancel the set sleep timer: Press the ▲ or ▼ button to select Off, then press the ENTER button. Setup

Press the EXIT button to exit.

Viewing Closed Captions (On-Screen Text Messages) - Digital The Digital Captions function operates on digital channels.

Setup DLP® 3D/Dual-View : Off

V-Chip Menu Transparency : Medium

Home theater PC : Off Press the ▲ or ▼ button to select Digital Caption Options, then press the ENTER button. ➢ Digital Caption Options are available only when Default and Service1~Service6 can be selected in Caption Mode. ➢ Service1~Service6 in digital caption mode may not be available depending on the broadcast. Press the ▲ or ▼ button to select the desired caption option, then press the ENTER button. Press the ▲ or ▼ button to select the desired sub-menu options (see options below), then press the ENTER button. Enter Return Return to Default Move Enter Return Press the EXIT button to exit. ➢ The availability of captions depends on the program being broadcast. ➢ Default means to follow the standard set by the broadcaster. ➢ Foreground and Background cannot be set to have the same color. ➢ Foreground Opacity and Background Opacity cannot be both set to Transparent. Size: This option consists of Default, Small, Standard, and Large. Font Style: This option consists of Default, Style0 ~ Style 7. You can change the font you want. Foreground Color: This option consists of Default, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan. You can change the color of the letter. Background Color: This option consists of Default, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan. You can change the background color of the caption. Foreground Opacity: This option consists of Default, Transparent, Translucent, Solid, and Flashing. You can change the opacity of the letter. Background Opacity: This option consists of Default, Transparent, Translucent, Solid, and Flashing. You can change the background opacity of the caption. Return to Default: This option sets each of Size, Font Style, Foreground Color, Background color, Foreground Opacity, and Background Opacity to its default. Press the CAPTION button on the remote control to select On or Off. Caption : On English - 51 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:22 Viewing Closed Captions (On-Screen Text Messages) - Analog The Analog Caption function operates in either analog TV channel mode or external signal mode. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)

Setup DLP® 3D/Dual-View : Off

V-Chip Menu Transparency : Medium

Home theater PC : Off Press the ▲ or ▼ button to select Caption Mode, then press the ENTER button. Press the ▲ or ▼ button to select submenu (Default, CC1~CC4, or Text1~Text4) you want, then press the ENTER button. Press the EXIT button to exit. Caption Caption : Off Default Caption Mode : Default CC1 CC1: The Primary Synchronous Caption Service. These are captions in the primary language that must be in sync with the sound, preferably matched to a specific frame. CC2: The Special Non-Synchronous Use Captions. This channel carries data that is intended to augment information carried in the program. CC3: Secondary Synchronous Caption Service. Alternate program-related caption data, typically second language captions. CC4: Special Non-Synchronous Use Captions. Similar to CC2. Text1: First Text Service. This may be various non-program related data. Text2: Second Text Service. Additional data, usually not program related. Text3/Text4: Third and Fourth Text Services. These data channels should be used only if Text1 and Text2 are not sufficient.

Move Enter Return ● The default is the caption mode provided by broadcasters. ● The Caption feature doesn’t work in COMPONENT, PC, HDMI(DVI) modes. ● When the Caption is not available to view, change the setup value to CC1 and such. Press the CAPTION button on the remote control to select On or Off. Caption : On English - 52 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:23 Using the Game Mode When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic gaming experience by selecting game menu.

Press the ▲ or ▼ button to select Off, Adventure, Sports, or Standard, then press the ENTER button. Timer 3 Setup

DLP® 3D/Dual-View : Off Menu Transparency Restrictions on Game Mode (Caution) ● To disconnect the game console and connect another external device, set Game Mode to Off in the Setup menu. ● If you display the TV menu in Game Mode, the screen shakes slightly. ● The mark ( ) appears on the screen which means that Game Mode is On with the selected source.

Off: It cancels the game mode. Adventure: It provides clearer images when the game setting is dark. Sports: Improves synchronization of pictures and sound with sports games. Standard: Use this setting for general game play. Setup

Game Mode V-Chip Press the EXIT button to exit.

: Inactivated Caption If Game Mode is On ● Picture Mode is automatically changed to Game and users cannot change the mode. ● Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer. ● The Reset in the Sound menu is activated. Reset function initializes the Equalizer settings to the factory default setting. ● The Channel menu is deactivated. Game Mode is not available in TV mode. If the picture is poor when external device is connected to TV, check if Game Mode is On. Set Game Mode to Off and connect external devices. Home theater PC : Off DLP® 3D/Dual-View V-Chip Menu Transparency

Home theater PC : Off Using the 3D/Dual-View Function For the information of how to use the 3D/Dual-View Function,

Please go to www.samsung.com → ‘PRODUCTS’ → ‘HDTV’ → ‘DLP TV’ Click “3D/Dual-View Information” English - 53 BP68-00628B-01Eng_3.indd

2007-03-09 ｿﾀﾀ・9:42:09 Using the V-Chip The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or changed. ➢ V-Chip function is not available in HDMI or component mode. How to Enable/Disable the V-Chip Press the MENU button. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select V-Chip, then press the ENTER button. Setup

Game Mode : Off DLP® 3D/Dual-View : Off V-Chip

Menu Transparency : Medium

Home theater PC : Off Press the number buttons to enter your current 4-digit PIN. ➢ The default PIN for a new TV set is “0-0-0-0”. Enter PIN

Return 0~9 Enter PIN

The V-Chip screen will appear. To enable the V-Chip feature, press the ENTER button so that the V-Chip Lock field is On. (Pressing the ▲ or ▼ button will alternate between On and Off.) Press the ENTER button. V-Chip V-Chip Lock TV Parental Guidelines : Off Off MPAA Rating Press the EXIT button to exit.

Canadian English Canadian French Downloadable U.S.Rating Change PIN Move Enter Return Setting Up Your Personal ID Number (PIN)

Setup DLP® 3D/Dual-View : Off V-Chip

Menu Transparency : Medium

Home theater PC : Off Press the number buttons to enter your current 4-digit PIN. ➢ The default PIN for a new TV set is “0-0-0-0”. V-Chip Enter PIN

0~9 Enter PIN Return Continued... English - 54 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:24

The V-Chip screen will appear. Press the ▲ or ▼ button to select Change PIN, then press the ENTER button. V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Downloadable U.S.Rating Change PIN

The Change PIN screen will appear. Press the number buttons to enter your new 4-digit PIN. Re-enter the same 4 digits. The message PIN is changed sucessfully. is displayed, then your PIN has been memorized. V-Chip Lock Press the EXIT button to exit. Canadian English

If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to 0-0-0-0 : Power Off. → Mute → 8 → 2 → 4 → Power On. Enter Return <for USA models only> V-Chip : On TV Parental Guidelines MPAA Rating Canadian French Downloadable U.S.Rating Change PIN

Move U.S.A Only This product is covered by the following U.S. patents : US4,930,158 US4,930,160 Enter Return <for Canada models only> Change PIN Enter new PIN. Confirm new PIN. 0~9 Enter PIN Return How to Set up Restrictions Using “TV Parental Guidelines” First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.

Setup DLP® 3D/Dual-View : Off V-Chip

Menu Transparency : Medium

Home theater PC : Off Press the number buttons to enter your current 4-digit PIN. ➢ The default PIN for a new TV set is “0-0-0-0”. V-Chip Enter PIN

0~9 Enter PIN Return Continued... English - 55 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:24

The V-Chip screen will appear. Press the ▲ or ▼ button to select TV Parental Guidelines, then press the ENTER button. The TV Parental Guidelines screen will appear. Press the ▲ or ▼ button to select one of the six aged based categories: All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages two to six. TV-Y7: Directed to older children. The themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of seven. General audience. It contains little or no violence, no strong language, and TV-G: little or no sexual dialog or situations. TV-PG: Parental guidance suggested. This program may contain infrequent coarse language, limited violence, some suggestive sexual dialog and situations. TV-14: Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence. TV-MA: Mature audiences only. This program may contain mature themes, profane language, graphic violence and explicit sexual content. TV-Y:

At this point, one of the TV-Ratings is selected. Press the ENTER button. Depending on your existing setup, the “ ” symbol will be selected. (Blank = Unblocked, = Blocked) While “ ” is selected, press the ENTER button to block or unblock the category. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process. ALL: Lock all TV ratings. FV: Fantasy violence. Violence.

: On TV Parental Guidelines

MPAA Rating Canadian English Canadian French Downloadable U.S.Rating Change PIN Move Enter Return TV Parental Guidelines Allow All Block All S: Sexual situation. L: Adult language. D: Sexually suggestive dialog. Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings. The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings: Move Enter Return The V-Chip will automatically block certain categories that are “more restrictive”. For example, if you block TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14, and TV-MA). The subratings (D, L, S, V) work together similarly. (See next section.) How to set the FV, D, L, S and V sub-ratings. First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14, or TV-MA (See Step 4), and press the ENTER button. The “ ” symbol will be displayed for each sub-rating. While “ ” is selected, press the ► button to go to a sub rating. Press the ENTER button to block the sub rating. To select a different TV-Rating, press the ▲ or ▼ button and then repeat the process. Press the RETURN button to return to V-Chip.

V-Chip V-Chip Lock The V-chip will automatically block certain categories that are “more restrictive”. For example, if you block L sub-rating in TV-PG, then the L sub-ratings in TV-14 and TV-MA will automatically be blocked. These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7), and TV-G through TV-MA (everybody else). The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group. Continued... English - 56 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:25 How to Set up Restrictions Using “MPAA Ratings” (G, PG, PG-13, R, NC-17, X, NR) The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).

Press the ▲ or ▼ button to select MPAA Rating, then press the ENTER button. V-Chip V-Chip Lock : On TV Parental Guidelines

The MPAA Rating screen will appear. Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated. While “ ” is selected, press the ENTER button to block or unblock the category. Press the RETURN button to return to V-Chip.

Canadian English Canadian French Downloadable U.S.Rating Change PIN Move General audience (no restriction). Parental guidance suggested. Parents strongly cautioned. Restricted. Children under 17 should be accompanied by an adult. No children under age 17. Adults only. Not rated.

Allow All: Press to unlock all TV ratings Block All: Press to lock all TV ratings.

The V-Chip will automatically block any category that is “more restrictive”. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked also. Enter Return MPAA Rating Allow All Block All Enter Move Return How to Set up Restrictions Using “Canadian English” (for Canada Models)

Press the ▲ or ▼ button to select Canadian English, then press the ENTER button. V-Chip V-Chip Lock : On TV Parental Guidelines 10 The Canadian English screen will appear. Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ indicated. Press the RETURN button to return to V-Chip. MPAA Rating Canadian English ” symbol is Programming intended for children under age 8. C8+: Programming generally considered acceptable for children 8 years and over to watch on their own. General programming, suitable for all audiences. PG: Parental guidance. 14+: Programming contains themes or content which may not be suitable for 18+: viewers under the age of 14. Adult programming.

Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings.

The V-Chip will automatically block any category that is “more restrictive”. For example, if you block the G category, then PG, 14+ and 18+ will automatically be blocked also.

Canadian French Downloadable U.S.Rating Change PIN Move Enter Return Canadian English Allow All Block All Move Enter Return Continued... English - 57 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:26 How to Set up Restrictions Using “Canadian French” (for Canada Models) 11 Press the ▲ or ▼ button to select Canadian French, then press the ENTER button. V-Chip V-Chip Lock : On TV Parental Guidelines 12 The Canadian French screen will appear. Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ indicated. Press the RETURN button to return to V-Chip.

MPAA Rating Canadian English ” symbol is Canadian French

Downloadable U.S.Rating Change PIN General. Not recommended for young children. Programming may not be suitable for children under the age of 13. Programming is not suitable for children under the age of 16. Programming restricted to adults.

Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings.

The V-Chip will automatically block any category that is “more restrictive”. For example, if you block 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also. Move Enter Return Canadian French Allow All Block All Enter Move Return Using the V-Chip for Digital Channels Parental restriction information can be used while watching DTV channels. 13 Press the ▲ or ▼ button to select Downloadable U.S. Rating, then press the ENTER button. ➢ If information is not downloaded from the broadcasting station, the Downloadable U.S. Rating menu is deactivated. ➢ Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds. ➢ The Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use. V-Chip V-Chip Lock : On TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S.Rating Move 14 The Downloadable U.S. Rating screen will appear. Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ indicated.

Enter Return Rating title ” symbol is Press the EXIT button to exit.

Change PIN Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings. Parental restriction levels differ depending on the broadcasting station. The default menu name and downloadable US rating changes depending on the downloaded information. Even if you set the on-screen display to your desired language, the Downloadable U.S. Rating menu will appear in English only. The rating will automatically block certain categories that are more restrictive. The rating titles (for example: Humor Level..etc) and TV ratings (for example: DH, MH, H..etc) may differ depending on the broadcasting station. Downloadable U.S. Rating Humor Level

Block All Move The number of current rating information 1/2 Allow All

Enter Return The number of all rating information English - 58 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:26 Menu Transparency Level Adjusts the transparency of the menu screen.

DLP® 3D/Dual-View Setup Press the EXIT button to exit. Home theater PC : Off DLP® 3D/Dual-View : Off

V-Chip Menu Transparency : Medium High

Medium Home theater PC Low : Off Setting the HDMI Black Level Use this function when the screen is too dark in the HDMI mode. (by HDMI input for the RGB limited range of 16 to 235)

Setup Home theater PC : Off Bluetooth Anynet+ (HDMI-CEC) SW Upgrade

Press the EXIT button to exit. ➢ This function is active only when the externel input connects to HDMI (RGB signals).

Home theater PC : Off : Normal Normal Film Mode Low : Off Light Effect : Always Blue Screen : Off Melody : Medium

Bluetooth Anynet+ (HDMI-CEC) SW Upgrade English - 59 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:27 Setting the Film Mode - Analog You can automatically sense and process film signals and adjust the picture for optimum quality.

Setup Home theater PC : Off Bluetooth Anynet+ (HDMI-CEC) SW Upgrade Function Help

Press the EXIT button to exit. ➢ Film Mode is available in TV (analog), AV, and S-Video modes. : On

Home theater PC : Off Bluetooth Anynet+ (HDMI-CEC) SW Upgrade Function Help : On

Setting the Light Effect You can turn the blue LED on the front of TV on or off. Turning it off will lower power consumption.

Setup Bluetooth Anynet+ (HDMI-CEC) SW Upgrade Press the ▲ or ▼ button to select submenu (Off, In Standby, In Watching TV, and Always) you want, then press the ENTER button. Press the EXIT button to exit. Off: LED (Blue) will not come on. In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on. In Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off. Always: LED (Blue) will come on after you turn the TV off. Setup

Function Help : On In Standby : Off In Watching TV : Medium Melody Bluetooth

Always Anynet+ (HDMI-CEC) SW Upgrade Function Help : On English - 60 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:27 Setting the Blue Screen Mode If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue Screen” mode to “Off”.

Setup Bluetooth Anynet+ (HDMI-CEC) SW Upgrade

Press the EXIT button to exit. ➢ Blue Screen is displayed when there is no signal from an external device, regardless of the Blue Screen Setting. Function Help : On Film Mode : Off Light Effect : Always Blue Screen : Off Off Melody

Bluetooth Anynet+ (HDMI-CEC) SW Upgrade Function Help : On Adjusting the Melody Sound The TV power on/off melody sound can be adjusted.

Setup Bluetooth Anynet+ (HDMI-CEC) SW Upgrade Function Help

Press the EXIT button to exit. Setup Press the ▲ or ▼ button to select Off, Low, Medium, or High, then press the ENTER button. Light Effect : Always Blue Screen : Off Melody : Medium Off Bluetooth Anynet+ (HDMI-CEC) SW Upgrade Low Medium High : On Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. English - 61 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:28 Upgrading the Software Samsung may offer upgrades for your TV’s firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG to receive information about downloading upgrades and using the USB device. Upgrades will be possible by connecting a USB drive to the USB port located on the back of your TV. Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on the side of the TV.

Press the MENU button. Press the ▲ or ▼ button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select SW Upgrade, then press the ENTER button. The message Scanning for USB... It may take up to 30 seconds. is displayed.

If the firmware on the USB is properly recognized, the message Upgrade version xxxx to version xxxx? The system would be reset after upgrade. is displayed. Press the ◄ or ► button to select OK, then press the ENTER button. The upgrade starts. Please be careful not to disconnect the power or remove the USB drive while upgrades are being applied. The TV will shut off and turn on automatically after completing the firmware upgrade. Please check the firmware version after the upgrades are complete. ➢ The firmware and upgrade process may be different by country and region. Bluetooth Setup

Software Upgrade Scanning for USB..... It may take up to 30 seconds. Software Upgrade Upgrade version XXXX to version XXXX ? The system would be reset after upgrade.

Cancel Setting the Function Help Displays help on the menu functions.

Press the EXIT button to exit. ➢ The Function Help default setting is On. SW Upgrade SW Upgrade Function Help : On Off

English - 62 BP68-00628B-00Eng_3.indd

2007-03-02 ｿﾀﾈﾄ 4:23:29 PC Display Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on Control Panel on the Windows start menu. When the control panel window appears, click on Appearance and Theme and a display dialog-box will appear. When the control panel window appears, click on Display and a display dialog-box will appear. Navigate to the Settings tab on the display dialog-box. The correct size setting (resolution) Optimum: 1920 x 1080 pixels If a vertical-frequency option exists on your display settings dialog box, the correct value is 60 or 60 Hz. Otherwise, just click OK and exit the dialog box. English - 63 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:17 Display Modes If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no video. For the display modes listed below, the screen image has been optimized during manufacture. Resolution (Dot X Line) Horizontal frequency (KHz) Vertical frequency (Hz) Horizontal Polarity Vertical Polarity IBM 640 x 350 720 x 400 640 x 480

Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V) 640 x 350 720 x 400 640 x 480 800 x 600 1024 x 768 1280 x 1024 1920 x 1080

640 x 480 800 x 600 1024 x 768 VESA 1152 x 864 1280 x 960 1280 x 1024 1920 x 1080

● When this TV is used as a PC display, 32-bit color is supported. ● Depending on the manufacturer, your PC display screen might appear different. (and depending on your particular version of Windows.) Check your PC instruction book for information about connecting your PC to a TV. ● If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 66.58KHz (horizontal). ● In some cases, abnormal signals (such as stripes) might appear on the TV screen when the PC power is turned off (or if the PC is disconnected). If so, press the SOURCE button on the remote control or SOURCE button on the side panel to enter a VIDEO mode. Also, make sure that the PC is connected. English - 64 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:17 Setting up the TV with your PC How to Auto Adjust Use the Auto Adjust function to have the TV set automatically adjust the video signals it receives from the PC. The function also automatically fine-tunes the settings and adjusts the frequency values and positions. ➢ Change to the PC mode first.

V-Chip Setup Home theater PC : Off Press the ▲ or ▼ button to select Auto Adjustment, then press the ENTER button. The message Auto Adjustment in Progress. Please wait. appears on the screen and the picture adjustments are automatically activated.

Menu Transparency : Medium

Image Lock Home theater PC Position : Off Auto Adjustment : Normal Auto Adjustment in Progress. Please Wait. Adjusting the Screen Quality The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then do the frequency adjustments to the utmost and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of the screen. ➢ Change to the PC mode first.

V-Chip Setup Press the ENTER button to select PC, then press the ENTER button to select Image Lock.

Menu Transparency : Medium

Image Lock Home theater PC Position : Off Auto Adjustment : Normal Press the ▲ or ▼ button to select Coarse or Fine, then press the ENTER button. Press the ◄ or ► button to adjust the screen quality, then press the ENTER button. ➢ This feature may change the width of the image. If necessary, adjust the position to center. Image Lock Coarse

Move Adjust Enter Return Continued... English - 65 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:18 Changing the Screen Position After connecting the TV to your PC, adjust the position of the screen if it is not well-aligned. ➢ Change to the PC mode first.

V-Chip Setup Home theater PC Position : Off Auto Adjustment : Normal Press the ▲ or ▼ button to adjust the vertical position. Press the ◄ or ► button to adjust the horizontal position. Press the ENTER button. Position Adjust Enter Return Initializing the Image Settings You can reset the previously adjusted settings to the factory defaults. Change to the PC mode first.

Home theater PC Position : Off Auto Adjustment : Normal The message Image Reset is completed. appears on the screen. Image Reset is completed. English - 66 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:18 Changing the Picture Size (PC Mode) You can select the picture size which best corresponds to your viewing requirements.

Color Tone Picture Press the MENU button. Press the ENTER button to select Picture. Press the ▲ or ▼ button to select Size, then press the ENTER button. : Cool1 Detail Settings Size : Wide PC Digital NR : Auto Active Color : Off DNIe : Off Color Gamut : Wide

Press the ▲ or ▼ button to select the screen format you want, then press the ENTER button. Press the EXIT button to exit. Size Wide TV Wide PC 4:3 Wide TV: Sets the picture in Wide TV format. Wide PC: Set the picture in Wide PC format. 4:3: Set the picture in 4:3 format Move Enter Return Press the P.SIZE button on the remote control to change the picture size.

Wide PC: The picture position ( pressing the ▲/▼/◄/► button.

) and size ( ) adjustment are available by Wide PC

Setting the Home Theater PC You can view higher quality pictures by configuring the screen settings in PC Mode. If you set the Home Theater PC function to On, you can configure the Detail Settings (when Picture Mode is set to Standard or Movie) as in PC Mode.

Home theater PC : Off Press the EXIT button to exit. ➢ This function is available only in PC mode. : Medium

Home theater PC : Off Off BLUETOOTH What is Bluetooth? Bluetooth is the wireless short-range networking technology, which enables you to connect between multiple mobile devices using the 2.45GHz frequency. Using Bluetooth, you can make a wireless connection between this TV and selected Bluetooth handsets or photo printers. For more information on Bluetooth, refer to the user manual of the Bluetooth device. This TV supports the Bluetooth communication capability so that you can connect a Bluetooth stereo headset and photo printer wirelessly. Instructions for use

Use the product within the range shown in the picture below. If you use the product out of the range or there is an obstacle, it may cause a communication failure. Depending on other devices you have nearby, there may be a communication failure. – Communication failure may occur due to interference from the following devices: microwave oven, wireless LAN, PDP display, and range hood. (Those products use the same frequency as Bluetooth.) The time for searching devices may differ depending on the operation condition and the number of the Bluetooth devices operating nearby. The fewer the devices are connected, the faster the searching time takes. 26 feet(8m) Available range for use Bluetooth Communication and Setting Up PIN In order for the TV to communicate with a Bluetooth photo printer or stereo headset, a PIN must be set up for these devices. You have to set a PIN for first time use only.

Blue Screen Setup Anynet+ (HDMI-CEC) SW Upgrade Function Help

Press the ENTER button to select Bluetooth. Press the ▲ or ▼ button to select On, then press the ENTER button. Bluetooth communication is on. To not use Bluetooth communication, select Off. : On Bluetooth Bluetooth : On

Set the PIN Move Enter Return Enter Return Bluetooth Bluetooth : PC Off Set the PIN

Move Continued... English - 68 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:20 Setting a PIN

Bluetooth Press the ▲ or ▼ button to select Set the PIN, then press the ENTER button. Enter a PIN for the headset or printer to be connected. For the PIN, refer to the headset or printer’s user manual. Bluetooth : On Set the PIN

Press the EXIT button to exit. Move Enter Return Enter Return Set the PIN Enter your PIN Clear 0~9 Number Connecting a Bluetooth stereo headset (Sold separately) If you select Bluetooth stereo headset in Headset Connection, you can listen to the TV through a Bluetooth stereo headset without using a cable connection. Check if the Bluetooth stereo headset is ready. For information on how to switch the device to the ready state, refer to the user manual of the corresponding device. 1 Press the TOOLS button. Device List Press the ▲ or ▼ button to select Headset Connection, then press the ENTER button. Headset Connection 2 Press the ▲ or ▼ button to select the Bluetooth headset and press the ENTER button. Picture Setting ➢ ● The Bluetooth stereo headset is connected to the TV. Sound Setting ● If you cannot find the headset in the Device List, press the Red button to rescan it. Sleep Timer Off ● To find the Bluetooth headset, it must be in the ready state. Caption Off For more detailed information, refer to the headset’s user manual. Channel Add/Delete ➢ Use the compatible stereo headset (model name: iSkin CERULEAN™ F1(CE-F1000)). If Delete Favorite Channel you use a different headset, the lip synchronization problem can happen and the available communication range is not guaranteed. For purchasing a compatible headset, access the Move Enter following website: www.iskin.com ➢ You can also select a Bluetooth stereo headset or printer in the Source List menu. ➢ You can only scan and connect an officially certified Bluetooth stereo headset. ➢ You can only connect a Bluetooth stereo headset which supports the A2DP (AV) profile. ➢ You cannot connect a Bluetooth stereo headset supporting the HF (Hands Free) profile only. ➢ If the configured Bluetooth device PIN differs from the PIN in the manual of the headset, you will not be able to make a connection. For more detailed information, refer to the user manual of the device. ➢ If you fail to make a connection because of a different headset PIN, change the PIN. ➢ In the following circumstances, you may fail to scan or make a connection. ● When there is a strong radiation source nearby ● When there are a number of Bluetooth devices ● When the headset or printer is off or malfunctioning. ➢ Communication failure may happen with the products such as microwave oven, wireless LAN, PDP display, and range hood because those products are using the same frequency as Bluetooth. ➢ You can only connect one headset at a time. ➢ You cannot connect a headset to another Bluetooth device. ➢ A connection that is disrupted by turning the TV off is not automatically restored. In this case, reconnect the device. ➢ While using the Anynet+ enabled Samsung receiver, you cannot use the Bluetooth functions. Disconnect the receiver. See page 82. Capturing and Printing the Screen You can capture and print the screen while watching TV or an external video source when the Bluetooth printer is located within the available range without any obstacles.

While watching TV or an external video source, press the STILL button when a screen shot you wish to print is displayed. The screen stops playing and the menu appears. Press the ENTER button to select Print. Press the ▲ or ▼ button to select to the Bluetooth printer and press the ENTER button. The captured screen picture is printed by the Bluetooth printer. - If you cannot find the printer in the Device List, press the Red button to rescan it. - To find the Bluetooth printer, it must be in the ready state. For more detailed information, refer to the printer’s user manual. Still Print Cancel Canceling Print In Step 2 above, press the ▲ or ▼ button to select Cancel and press the ENTER button. The print is canceled and the screen play resumes. ➢ If a Bluetooth printer is connected when you are listening to TV sound through the Bluetooth stereo headset, the connection with the headset is automatically terminated. ➢ To connect a Bluetooth printer, a PIN setting is not required. ➢ In case of 16:9 display, the image may be partly printed depending on the printer. Sending the still images using the Bluetooth printer supports the OPP (Object Push Profile) only. Still Print Cancel English - 69 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:20 WISELINK Using the WISELINK Function This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device.

Press the power button on the remote control or front panel. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV. TV Side Panel Removing a USB Device

WISELINK Folder 1 Photo ● If you enter the WISELINK mode with no USB device connected. “No external storage device found. Check the connection status.” message will appear. In this case, insert the USB device, exit the screen by pressing the WISELINK button on the remote control and enter the WISELINK screen again. ● Photo and audio files must be named in English, French, or Spanish. If not, the files can not be played. Change the file names to English, French, or Spanish if necessary. ● Folder or file names can not exceed 128 characters. If exceeded, they won’t function. ● The file system only supports the FAT16/32. ● Certain types of USB Digital camera and audio devices may not be compatible with this TV. ● WISELINK supports USB Mass Storage Class (MSC) devices only. ● MSC is the device for mass storage class bulk-only transport. (e.g. thumb device, flash card reader) ● WISELINK only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers. ● Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. ● The USB hub is not supported and you cannot use a digital camera (PTP: Picture Transfer Protocol) and USB storage device at the same time. ● To remove a USB storage device from the TV or to turn it off (if available), exit WISELINK first for a proper system operation. Guide

Press the MENU button. Press the ▲ or ▼ button to select Guide, then press the ENTER button. Press the ENTER button to select WISELINK. The photo or music files saved on the memory device are listed. Press the blue button and press the ▲ or ▼ button to select Safe Remove and press the ENTER button. The Removing the device safe... message appears and then the USB could be removed safe message appears. Remove the USB device from the TV. 2007/1/2 Removing the device safe... Continued... English - 70 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:21 Using the Remote Control Button in WISELINK Menu Button Operations Move the cursor and select an item Select the currently selected item. Play or pause the Slide Show or MP3 file. Return to the previous menu. Run various functions from the Photo and Music menus. Stop the current slide show or MP3 file. Page Up or Down (file list item) Using the WISELINK Mode

WISELINK Photo Press the ▲ or ▼ button to select Photo or Music, then press the ENTER button. The photo or music files saved on the storage device are listed. To exit WISELINK mode, press the EXIT button on the remote control. Guide

Press the MENU button. Press the ▲ or ▼ button to select Guide, then press the ENTER button. Press the ENTER button to select WISELINK. USB

Folder 1 2007/1/2 Press the WISELINK button on the remote control to turn on the WISELINK mode. English - 71 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:23 Using the Photo (JPEG) List You can play back the JPEG files saved on a memory device in various ways.

USB To exit WISELINK mode, press the EXIT button on the remote control.

WISELINK Photo Press the ▲ or ▼ button to select a photo, then press the ENTER button. ➢ Pressing the button over a photo icon shows the currently selected photo in full screen. ➢ Pressing the button over a folder icon shows the JPEG files included in the folder. ➢ While a full screen is displayed, ◄ or ► button will let you see another photo image in the same folder. ➢ Press the PLAY/PAUSE button when a photo icon is selected to start a Slide Show. Guide

After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71) Press the ENTER button to select Photo. JPEG files and existing folders are displayed.

Moving to a photo may take a few seconds because the file needs to be loaded. At this point, the icon will appear. This menu shows only the files whose extension is jpeg (or jpg). Files with other formats such as gif or tiff will not be displayed. Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and JPEG files are sorted in alphabetical order. If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen. (Refer to pages 75~76) If the size of a photo file is too big, the playing of the background music may be interrupted intermittently. (When Background Music is On) See page 77. WISELINK for this product supports JPEG files up to 8K x 8K pixels. When trying to view a progressive JPEG file, the Not supported mode message will appear. When trying to view a file exceeding 8MB, the This file is too large to decode message will appear. Folder 1 2007/1/2 ◀ Previous ▶ Next TOOLS Option WISELINK List Press the WISELINK button on the remote control to turn on the WISELINK mode. Using the Options Menu Start Slide Show (or Stop Slide Show): You can start or stop a Slide Show. (Refer to “Viewing a Slide Show” on page 74) Zoom: You can zoom into images in full screen mode. Images are zoomed in on in the order of x1 (original size), x2 and x4. (Refer to “Zooming-In” on page 75) II Pause 800x600 103.1KB 2007/1/2 ◀ Previous ▶ Next TOOLS Option WISELINK List

Rotate: You can rotate images in full screen mode. Images are rotated in the order of 0° (original state), 180°, 270° and 90°. (Refer to “Rotating” on page 76) Slide Show Setting: You can determine the slide interval and whether to repeat the background music. (Refer to “Setting a Slide Show” on page 74) 90° Rotate Slide Show Setting Slide Show Speed Normal

Repeat Music Screen Saver Adjust Background Music: You can determine whether to play the configured background music. (Refer to “Background Music On/Off” on page 77)

5 min Move Enter Exit Start Slide Show Zoom Rotate Background Music

Background Music Setting Delete Picture Setting Sound Setting Move Background Music Setting: You can set the background music. (Refer to “Background Music Setting” on page 77) Adjust Enter Background Music Setting Folder 1 Swan Song feat.TBNY.mp3 Beatles-Yesterday.mp3 Fall in Love.mp3 Tom Waits-Time.mp3 Chuk Mangione-Feel So good.mp3 Ryuichi Sakamoto-Rain.mp3 Move Select Delete: You can delete a photo (JPEG) file. (Refer to “Deleting the Photo files” on page 78)

Enter Exit Do you want to delete file File 1.jpg?

Picture Setting: You can set the Picture mode. (Refer to on page 28) Cancel Picture Setting Mode

Brightness Sharpness Color Tint (G/R) Color Tone Detail Settings

Move Sound Setting: You can set the Sound mode. (Refer to on page 36~37) Adjust Enter Exit Sound Setting Mode

Balance Standard L50 100Hz 500Hz 1kHz 2kHz 4kHz 8kHz

Move Adjust Enter Exit Continued... English - 73 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:26 Information: The photo file information including the order of the file in the current directory, the name, the size, the resolution, and the date modified is displayed. Position Name Size Resolution Date Viewing a Slide Show

Press the ENTER button to select Photo. JPEG files and existing folders are displayed.

Press the ▲ or ▼ button to select a photo, then press the blue button to display the option (View, Start Slide Show, Delete, Delete All, Select All, Information, Safe Remove). Press the ▲ or ▼ button to select Start Slide Show, then press the ENTER button. ➢ Slide show displays all JPEG files in the selected folder at a pre-set speed. ➢ During the slide show, files are displayed in order from the currently shown file. ➢ MP3 files can be automatically played during the slide show if the Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the memory device. USB

Folder 1 2007/1/2 After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71) Photo

File 1.jpg 2007/1/2 View Start Slide Show 2007/1/2 Delete 2007/1/2 Delete All 2007/1/2 Select All Information Safe Remove Press the PLAY/PAUSE button when a photo icon is selected to start a Slide Show. Press the TOOLS button during slide show to set the option (Slide Show Setting). USB

Select To exit WISELINK mode, press the EXIT button on the remote control.

Option II Slide Show Stop Slide Show Zoom Rotate Slide Show Setting Background Music

Background Music Setting Delete Picture Setting Move Enter Press the WISELINK button on the remote control to turn on the WISELINK mode. Setting a Slide Show You can determine the slide interval and whether to repeat the background music. 1 Press the TOOLS button during a Slide Show. 2 Press the ▲ or ▼ button to select Slide Show Setting, then press the ENTER button. 3 Press the ▲ or ▼ button to select a desired item, then press the ◄ or ► button to select the item you want. To exit WISELINK mode, press the EXIT button on the remote control. Slide Show Speed: Select to control the slide show speed. Each time the ◄ or ► button is pressed, the speed changes repeatedly. (Fast → Slow → Normal) Repeat Music: Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played. You can select On or Off. ● On: Plays back a music file or all music files repeatedly. ● Off: Doesn’t play back repeatedly. Screen Saver: Select to set the waiting time before the screen saver is run when no button is pressed. You can select from Off (Do Not Use), 5min or 10min. ➢ To prevent a residual image on the screen, the time to run the Screen Saver is set to 5min by default. Users can change the setting to Off, 5min or 10min according to user requirements.

To listen to music during a Slide Show, you have to set the background music first. See page 77. To play background music during a Slide Show, the photo (JPEG) files and the background music (MP3) file must be on the same USB storage device. To move to the photo lists during a Slide Show, press the WISELINK button. Slide Show Setting Slide Show Speed Repeat Music Normal

5 min Move Enter Exit Slide Show Setting Slide Show Speed Normal Repeat Music

Screen Saver Adjust Move Enter

Exit Slide Show Setting Slide Show Speed Normal Repeat Music Screen Saver Adjust

Exit Press the WISELINK button on the remote control to turn on the WISELINK mode. Continued... English - 74 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:27 Zooming-In After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71)

Press the ENTER button to select Photo. JPEG files and existing folders are displayed.

Press the ▲ or ▼ button to select a photo, then press the ENTER button. ➢ Pressing the button over a photo icon shows the currently selected photo in full screen.

USB Press the TOOLS button. Press the ▲ or ▼ button to select Zoom, then press the ENTER button. Each time the ◄ or ► button is pressed, the photo size decreases or increases. (x1 → x2 → x4) ● x1: Restore the photo to its original size. ● x2: Zoom-in to the photo x2. ● x4: Zoom-in to the photo x4. To move the enlarged photo image up/down/left/right, press the ENTER button, then press the ▲/▼/◄/► buttons. ➢ Note that when the enlarged picture is smaller than the original screen size, the location change function doesn’t work.

Folder 1 2007/1/2 Start Slide Show Zoom Rotate Background Music

Background Music Setting Delete Picture Setting Sound Setting Move Enter

To exit WISELINK mode, press the EXIT button on the remote control. ➢ The enlarged file is not saved. Press the WISELINK button on the remote control to turn on the WISELINK mode. Zoom function information icon (Displayed at the top left of the screen). Icon Current OSD Function Zoom (x 1) Restore a photo to its original size. Zoom (x 2) Zoom-in to a photo x2. Zoom-in to a photo x4. Pan up to view the upper part of a zoomed-in photo. Pan down to view the lower part of a zoomed-in photo. Pan Left Pan left to view the left side of a zoomed-in photo. Pan Right Pan right to view the right side of a zoomed-in photo. Continued... English - 75 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:29 Rotating After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71)

Press the ENTER button to select Photo. JPEG files and existing folders are displayed.

Press the ▲ or ▼ button to select a photo, then press the ENTER button. ➢ Pressing the button over a photo icon shows the currently selected photo in full screen.

Folder 1 2007/1/2 Start Slide Show Zoom Press the ◄ or ► button to rotate the photo by the required amount. ➢ Whenever you press the ◄ button, it rotates by 270˚, 180˚, 90˚, and 0˚. ➢ Whenever you press the ► button, it rotates by 90˚, 180˚, 270˚, and 0˚. ➢ Rotating directly from 90 degrees to 270 degrees is not allowed. Rotate Background Music

Background Music Setting Delete Picture Setting Sound Setting Move Enter To exit WISELINK mode, press the EXIT button on the remote control. ➢ The rotated file is not saved. 90° Rotate Press the WISELINK button on the remote control to turn on the WISELINK mode. The Rotating function information icon (Displayed at the top left of the screen). Icon Current OSD Rotating (270°) Function To rotate a photo by 270 degrees Rotating (180°) To rotate a photo by 180 degrees Rotating (90°) To rotate a photo by 90 degrees Rotating (0°) To rotate a photo by original Continued... English - 76 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:31 Background Music On/Off If you set Background Music On, the background music will be played when viewing photos one by one or in a Slide Show. After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71)

Press the ENTER button to select Photo. JPEG files and existing folders are displayed.

Press the ▲ or ▼ button to select a photo, then press the ENTER button. ➢ Pressing the button over a photo icon shows the currently selected photo in full screen.

Folder 1 2007/1/2 Press the TOOLS button. Press the ▲ or ▼ button to select Background Music, then press the ◄ or ► button to select On or Off. ➢ On: When the background music is available, if you select On, the music is played back. ➢ Off: Background music is not played. Start Slide Show Zoom Rotate Background Music

Background Music Setting Delete Picture Setting Sound Setting To exit WISELINK mode, press the EXIT button on the remote control. Move Adjust Enter Press the WISELINK button on the remote control to turn on the WISELINK mode. Background Music Setting After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71)

Press the ENTER button to select Photo. JPEG files and existing folders are displayed.

Press the ▲ or ▼ button to select a photo, then press the ENTER button. ➢ Pressing the button over a photo icon shows the currently selected photo in full screen.

Folder 1 2007/1/2 Press the TOOLS button. Press the ▲ or ▼ button to select Background Music Setting, then press the ENTER button. The music (MP3) files are listed. Start Slide Show Zoom Rotate Background Music

Background Music Setting Delete Picture Setting Sound Setting Move

Press the ▲ or ▼ button to select a particular music file and press the yellow button. ➢ The <✔> mark appears to the left of the selected music (MP3). ➢ Repeat the above operation to select multiple music files. Press the ENTER button to save the current selections.

Enter Background Music Setting Folder 1 Swan Song feat.TBNY.mp3 Beatles-Yesterday.mp3 To exit WISELINK mode, press the EXIT button on the remote control. Fall in Love.mp3 If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played. Tom Waits-Time.mp3 Ryuichi Sakamoto-Rain.mp3 Select Move

Enter Exit Press the WISELINK button on the remote control to turn on the WISELINK mode. Continued... English - 77 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:32 Deleting the Photo files You can delete photo (JPEG) files saved on a USB storage device.

Press the ENTER button to select Photo. JPEG files and existing folders are displayed. Press the ▲ or ▼ button to select a photo you want to delete and then press the blue button. Press the ▲ or ▼ button to select Delete or Delete All and then press the ENTER button. ➢ If you select Delete, only the selected photo will be deleted. ➢ If you select Delete All, all photos in the folder will be deleted.

Press the ◄ or ► button to select OK and press the ENTER button. ➢ The photo will be deleted. ➢ If you select Cancel, the deletion is canceled. USB

Folder 1 2007/1/2 After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71) Photo

2007/1/2 File 1.jpg 2007/1/2 View Start Slide Show 2007/1/2 Delete 2007/1/2 Delete All 2007/1/2 Select All Information Safe Remove To exit WISELINK mode, press the EXIT button on the remote control. USB

You cannot remove the following files: ● PTP-connected digital camera picture files ● Read-only files While removing files, don’t remove the USB memory device. You cannot recover a deleted photo file.

Option II Slide Show Do you want to delete file File 1.jpg?

Removing read-only files When removing any read-only files, the screen to the right appears. Press the ◄ or ► button to select OK, then press the ENTER button. ➢ If you select Cancel, the removing operation is cancelled. Cancel File 1.jpg is deleted.

Cancel Press the WISELINK button on the remote control to turn on the WISELINK mode. Deleting Multiple Photos

In the Photo list, press the ▲ or ▼ button to select a photo to be deleted and press the yellow button. ➢ The <✔> mark appears to the left of the selected photo. ➢ Repeat the above operation to select multiple photos. Press the blue button, press the ▲ or ▼ button to select Delete the selected file and press the ENTER button. Press the ◄ or ► button to select OK and press the ENTER button. ➢ The selected photos are deleted. ➢ If you select Cancel, the deletion will be canceled. To exit WISELINK mode, press the EXIT button on the remote control.

2007/1/2 Start Slide Show Delete the selected file 2007/1/2 Select All 2007/1/2 Deselect All 2007/1/2 Safe Remove Option II Slide Show Do you want to delete the 2 files including File 1.jpg?

Cancel You cannot remove the read-only files from the selected ones. You cannot restore the removed pictures. Press the WISELINK button on the remote control to turn on the WISELINK mode. English - 78 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:35 Using the Music (MP3) List You can play back the MP3 files saved on a memory device in various ways. After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71)

Press the ▲ or ▼ button to select Music, then press the ENTER button. MP3 files and existing folders are displayed.

Press the ▲ or ▼ button to select a music to be played, then press the ENTER button. ➢ Pressing the ENTER button while a music file is highlighted immediately plays the music file. ➢ Pressing the ENTER button while a folder is highlighted shows the music files in the folder. ➢ To select a file on the next page, press the REW or FF button. ➢ Pressing the ◄ or ► button while playing a music file will let you play another music file in the same folder. ➢ To play back the files repeatedly, change the setting by referring to page 80.

USB Press the PLAY/PAUSE button while playing an MP3 file to pause the file. Press the STOP button to stop playback.

Folder 1 2007/1/2 Fall in Love.mp3 Beatles-Yesterday.mp3 Swan Song feat.TBNY.mp3 Tom Waits-Time.mp3 Swan Song feat.TBNY.mp3 To exit WISELINK mode, press the EXIT button on the remote control.

This menu shows only the files whose extension is mp3. Files with other extensions are not displayed, even if they have been saved on the same memory device.

The selected file is displayed on the top of the screen with its playing time. To adjust the music volume, press the VOL+ or VOL- button on the remote control. To mute the sound, press the MUTE button on the remote control.

To move to the music list while playing a music file, press the WISELINK button. ◀ Previous ▶ Next II Pause TOOLS Option WISELINK List Press the WISELINK button on the remote control to turn on the WISELINK mode. Playing a Selected Music File

In the Music list, press the ▲ or ▼ button to select a music file and then press the yellow button. ➢ The <✔> mark appears to the left of the selected music. ➢ Repeat the above operation to select multiple music files. Folder 1 2007/1/2 Fall in Love.mp3 2007/1/2 Beatles-Yesterday.mp3 2007/1/2 Swan Song feat.TBNY.mp3 2007/1/2 Tom Waits-Time.mp3 2007/1/2 Press the blue button, then press the ENTER button to select Play the selected file. To exit WISELINK mode, press the EXIT button on the remote control.

The selected music files are played. Folder 1 Icon Current OSD Music Music function information icon (Displayed at the top left of the screen). 2007/1/2 Play the selected file mode Beatles-Yesterday.mp3Repeat 2007/1/2 Delete the selected file Swan Song feat.TBNY.mp3 2007/1/2 Select All Tom Waits-Time.mp3 2007/1/2 Deselect All Safe Remove Function (Music) One Repeat When a music file is repeated. (Music) One When a music file is played once. (Music) Play/Pause When pressing the PLAY/PAUSE button on the remote control while music is playing. The music stops and the ‘Play’ text appears at the top of the screen. 2007/1/2 Fall in Love.mp3 USB

Press the WISELINK button on the remote control to turn on the WISELINK mode. English - 79 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:37 Repeating Music Play You can play music repeatedly.

After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71) Press the ▲ or ▼ button to select Music, then press the ENTER button. MP3 files and existing folders are displayed. Press the ▲ or ▼ button to select a music, then press the blue button. Press the ▲ or ▼ button to select Repeat mode, then press the ◄ or ► button to select On. To cancel Repeat mode, select Off. 2007/1/2 Fall in Love.mp3 Play2007/1/2 mode Beatles-Yesterday.mp3Repeat 2007/1/2 Delete Swan Song feat.TBNY.mp3 2007/1/2 Delete All Tom Waits-Time.mp3 2007/1/2 Select All Information Safe Remove USB

To exit WISELINK mode, press the EXIT button on the remote control. Press the WISELINK button on the remote control to turn on the WISELINK mode. Deleting the Music files You can delete music (MP3) files saved on the USB storage device.

After switching the mode to WISELINK, select a memory device that you have installed. (Refer to page 70~71) Press the ▲ or ▼ button to select Music, then press the ENTER button. MP3 files and existing folders are displayed. Press the ▲ or ▼ button to select a music file to be deleted and then press the blue button. Press the ▲ or ▼ button to select Delete or Delete All and then press the ENTER button. ➢ If you select Delete, only the selected music will be deleted. ➢ If you select Delete All, all music files in the selected folder are deleted. 2007/1/2 Fall in Love.mp3 Play2007/1/2 mode Beatles-Yesterday.mp3Repeat 2007/1/2 Delete Swan Song feat.TBNY.mp3 2007/1/2 Delete All Tom Waits-Time.mp3 2007/1/2 Select All Information Safe Remove USB

Do you want to delete file Fall in Love.mp3? Press the ◄ or ► button to select OK and press the ENTER button. ➢ The music will be deleted. ➢ If you select Cancel, the deletion will be canceled.

Cancel You cannot remove the following files: ● Read-only files While removing any files, don’t remove the USB memory device. You cannot restore a deleted music file. Removing read-only files When removing read-only files, the screen to the right appears. Press the ◄ or ► button to select OK, then press the ENTER button. The music files are removed. ➢ If you select Cancel, the removing operation is cancelled. Fall in Love.mp3 is deleted.

To exit WISELINK mode, press the EXIT button on the remote control. Cancel Press the WISELINK button on the remote control to turn on the WISELINK mode. Deleting Multiple Music Files

Press the blue button, press the ▲ or ▼ button to select Delete the selected file and press the ENTER button. Press the ◄ or ► button to select OK and press the ENTER button. ➢ The selected music files will be deleted. ➢ If you select Cancel, the deletion will be canceled. To exit WISELINK mode, press the EXIT button on the remote control.

You cannot remove the read-only files from the selected ones. You cannot restore the removed pictures. Folder 1 Music

In the Music list, press the ▲ or ▼ button to select a music file to be deleted and press the yellow button. ➢ The <✔> mark appears to the left of the selected music file. ➢ Repeat the above operation to select multiple music files. 2007/1/2 Fall in Love.mp3 Play2007/1/2 the selected file mode Beatles-Yesterday.mp3Repeat 2007/1/2 Delete the selected file Swan Song feat.TBNY.mp3 2007/1/2 Select All Tom Waits-Time.mp3 2007/1/2 Deselect All Safe Remove USB

Do you want to delete the 2 files including Fall in Love.mp3?

Cancel Press the WISELINK button on the remote control to turn on the WISELINK mode. English - 80 BP68-00628B-00Eng_4.indd

2007-03-02 ｿﾀﾈﾄ 4:25:39 About Anynet+ What is Anynet+? Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with your Samsung TV’s remote. Connecting Anynet+ Devices The Anynet+ system can be used only with Samsung AV devices that have the Anynet+ feature. To be sure your Samsung AV device has this feature, check if there is an Anynet+ mark on it. To directly connect to TV

Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. HDMI 1.3 Cable To connect to Home Theater Anynet+ Device 1 Anynet+ Device 2

1. Connect the [HDMI 1], [HDMI

2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

2. Connect the HDMI IN jack

of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. HDMI 1.3 Cable HDMI 1.3 Cable Home Theater Optical Cable Anynet+ Device 3 HDMI 1.3 Cable HDMI 1.3 Cable ➢ Connect the Optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the Home Theater. ➢ Connect only one Home Theater. ➢ You can listen to 5.1 channel sound through the home theater’s speakers. Otherwise, you can only listen to 2 channel stereo

sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theater and the TV correctly to listen to TV sound through the home theater. However, you cannot listen to sound from the BD recorder that is sent to the home theater via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theater. You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 12 AV devices in total. English - 81 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:19 The following settings are to use Anynet+ functions. To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On

SW Upgrade Function Help

Press the ENTER button to select Anynet+ (HDMI-CEC), then press the ENTER button. Press the ▲ or ▼ button to select On, then press the ENTER button. ➢ The Anynet+ function is enabled. ➢ If you select Off, Anynet+ is disabled. ➢ When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. : On Setting an Anynet+ Device to turn Off Automatically when the TV is Turned Off

Press the ▲ or ▼ button to select Auto Turn Off, then press the ENTER button. Press the ▲ or ▼ button to select On, then press the ENTER button. ➢ The Auto turn off function is enabled. ➢ If you select Off, the Auto turn off function is canceled. Press the EXIT button to exit. Move

Enter Return The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function. If you set the Anynet+ (HDMI-CEC) to On, the Device List menu appears when you press the TOOLS button on the remote control. If you set Auto Turn Off to On, connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off. Scanning and Switching between Anynet+ Devices

Press the Anynet+ button. Press the ENTER button to select Device List. ➢ Anynet+ devices connected with the TV are listed. ➢ If you cannot find a device you want, press the red button to scan for devices. Press the ▲ or ▼ button to select to a particular device and press the ENTER button. It is switched to the selected device. Device List Headset Connection Picture Setting Sound Setting Sleep Timer Off Caption Off Channel Add/Delete Delete Favorite Channel Only when you set Anynet+ (HDMI-CEC) to On in the Setup menu, the Device List menu appears. Move Enter Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation. The time required to scan for devices is determined by the number of connected devices. When the device scan is complete, the number of found devices is not displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is already on are not displayed in the device list. Therefore press the red button to re-scan devices if necessary. If you have selected external AV device by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the Anynet+ button. Continued... English - 82 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:20 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu Description View TV Switches from Anynet+ to TV broadcast mode. Device List Displays the Anynet+ device list. Menu on Device Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Device Operation Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Record Starts a recording immediately. (This menu works only for a device supporting recording.) Timer Recording Allows reserving a recording. (This menu works only for a device supporting recording reservations.) Stop Recording Stops recording. Receiver Sound is output through the receiver (home theater). A audio stream in HDMI is one way only from Device to TV. But there’s SPDIF output in TV. So TV sound can be sent to HT. TV Remote Control Buttons Available in Anynet+ Mode Device Type Operating Status Available Buttons After switching to the device, when the menu of the corresponding device is displayed on the screen. After switching to the device, while playing a file ◄◄ (Backward search) ►►(Forward search) (Stop) ► (Play/Pause) Device with built-in Tuner After switching to the device, when you are watching a TV program

Audio Device When Receiver is activated VOL +/- button MUTE button Anyview2 When watching TV ► (Play/Pause) Anynet+ Device

button The Anynet+ function only works when the remote control is set to TV. The REC button works only in View TV status. You cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+ devices only using the TV remote control. The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device. The Anynet+ functions don’t operate for the products from other manufacturers. The Anynet+ functions do not work with other manufacturers’ products. The ◄◄, ►► operations may differ depending on the device. Recording You can make a recording of a TV program using a recorder.

Press the Anynet+ button. Press the ▲ or ▼ button to select to Record Immediately and press the ENTER button. Recording begins. When there are more than one recording device When multiple recording devices are connected, the recording devices are listed. Press the ▲ or ▼ button to select to a recording device and press the ENTER button. Recording begins. When the recording device is not displayed Select Device List and press the red button to search devices. Press the EXIT button to exit.

Device List Record Timer Recording Receiver Off Headset Connection Picture Setting Sound Setting Sleep Timer Off

Move Enter You can record instantly using the REC button of the TV remote control. The current TV program is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual. English - 83 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:21 Listening through a Receiver (Home theater) You can listen to sound through a receiver instead of the TV speaker.

Press the ▲ or ▼ button to select Receiver, press the ◄ or ► button to select to On. Now you can listen to sound through the receiver. Press the EXIT button to exit.

Device List Record Timer Recording Receiver Off Headset Connection Picture Setting Sound Setting When the receiver is set to On, you may listen to the TV sound through the Sleep Timer Off 2-channel(Stereo) Sound. This is not always true. When TV is displaying DTV(air) TV can send out 5.1 channel sound through SPDIF. But when the source is DVD(for example), Move Enter TV can receive only 2 channel sound using HDMI. In that case, 2 channel sound is only transmitted to the Receiver through SPDIF. If the receiver is exclusively for a home theater only (supporting audio only), it may not appear in the device list. Only when you have connected the optical jack of the TV and the receiver properly, does Receiver work. When Receiver is set to On, a Bluetooth device may not work properly. Or while a Bluetooth device is operating, listening through the receiver does not work. In case of a content with copyright problem, listening through the receiver does not properly operate. When executing WISELINK, the listening through the receiver may not work properly. When listening through the receiver, there are restrictions for using the PIP and audio-related menu. Check Points before Requesting Service Symptom Anynet+ does not work. I want to start Anynet+. I want to exit Anynet+. The Connecting to Anynet+ device …message appears on the screen. The Anynet+ device does not play. The connected device is not displayed. The TV program cannot be recorded. Solution Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. ■ Connect only one receiver (home theater). ■ Check if the Anynet+ device power cord is properly connected. ■ Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. ■ Check whether the TV remote control is in TV mode. ■ Check whether it is Anynet+ exclusive remote control. ■ Anynet+ doesn’t work at a certain condition. (Searching channels, operating WISELINK) ■ When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. ■ Check if the Anynet+ Function of Anynet+ device is set on. ■ Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. ■ Press the TV button on the TV remote control to switch to TV. Then press the Anynet+ button to show the Anynet+ menu and select a menu you want. ■ Select View TV in Anynet+ menu. ■ Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. ■ Press any of CH, CH LIST, PRE-CH, and FAV.CH to change to the TV mode. (Note that the channel button operates only when an Anynet+ device with a built-in tuner is not connected.) ■ You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. ■ Use the remote control when the Anynet+ setting or switching to view mode is complete. You cannot use the play function when Plug & Play is in progress.

Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI 1.3 cable is properly connected. Check whether <Anynet+ (HDMI-CEC)> is set to <On> in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. Check whether the antenna jack on the recording device is properly connected. The TV sound is not output through Connect the optical cable between TV and the receiver. the receiver. English - 84 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:21 Appendix Identifying Problems If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center. Problem Possible Solution Poor picture quality. No sound or sound is too low at maximum volume. - Try another channel. - Adjust the antenna. - Check all wire connections. - Try another channel. - Adjust the antenna. - Try another channel. - Press the SOURCE button. - Make sure the TV is plugged in. - Check the antenna connections. - Make sure the MUTE button is off. First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly. Picture rolls vertically. Check all connections. The TV operates erratically. Unplug the TV for 30 seconds, then try operating it again. The TV won’t turn on. Make sure the wall outlet is working. Remote control malfunctions - Replace the remote control batteries. - Clean the upper edge of the remote control(transmission window). - Check the battery terminals. - Press the TV button to put your remote control in the TV mode. - Make sure the remote has batteries. - Check that the “+” and “-” ends of the batteries are inserted correctly. Please check the digital signal strength and input antenna. Poor sound quality. No picture or sound. Digital broadcasting screen problem. The image is too light or too dark. - Adjust the Brightness and Contrast. - Adjust the Fine tuning. The visual qualities of digital channels The visual qualities of digital channels may vary depending on the original production vary. method(analog or digital). - If the original production method is digital: High visual quality program. - If the original production method is analog: The digital program displayed on the screen is originally an analog program which has been converted to digital. The visual quality is of an SD(Standard Definition) grade. Although the TV caption shows HD, The HD(High Definition) caption that appears when switching channels or when pressing the the visual quality is not satisfactory. Information button on the remote control means the selected channel is a digital channel. If the broadcasting station converts an analog signal into digital and transmits the signal, the visual quality may not be perfect.

The display panel used for the DLP TV is composed of many tiny pixels. These pixels may occasionally appear on the screen. English - 85 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 Cleaning and Maintaining Your TV Please follow these guidelines to get the maximum performance from your TV. Placement

Do not put the TV near extremely hot, cold, humid or dusty places. Do not place the TV near appliances with electric motors that create magnetic fields, such as vacuum cleaners. Keep the ventilation openings clear; do not place the TV on a soft surface, such as cloth or paper. Place the TV in a vertical position only. Liquids

Do not handle liquids near or on the TV. Liquids that spill into it can cause serious damage. Cabinet

Never open the cabinet or touch the parts inside. Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals. Do not put heavy objects on top of the cabinet. This DLP TV projects the image onto a large screen by applying an optical system. If you place the TV set face down, it might cause a problem because dirt, or some other contaminant may become attached to the inside of the TV set. Temperature

If your TV is suddenly moved from a cold to a warm place, unplug the power cord, and allow at least two hours for moisture that may have formed inside the unit to dry completely. Using Your TV in Another Country If you plan to take your TV with you to a foreign country, please be aware of the different television systems that are in use around the world. A TV designed for one system may not work properly with another system due to differences in the TV channel frequencies. English - 86 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 Technical Specifications The descriptions and characteristics in this booklet are given for information purposes only and are subject to modification without notice. Model Name Screen Size (Diagonal) HL-T5089S HL-T5689S HL-T6189S 50 inch 56 inch 61 inch Power Consumption 230 W PC Resolution 1920 X 1080 @ 60Hz Sound (Output) 10W X 2 Dimension (W x H x D) Weight Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity ➢ This device is a Class B digital apparatus. ➢ Design and specifications are subject to change without prior notice. ➢ For the power supply, refer to the label attached to the product. English - 87 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 This product uses parts of the software from the Independent JPEG Group. This product uses parts of the software owned by the Freetype Project (www.freetype.org). This product uses some software programs which are distributed under the GPL/LGPL license. Accordingly, the following GPL and LGPL software source codes that have been used in this product can be provided after asking to vdswmanager@samsung.com. GPL software: Linux Kernel, Busybox, Binutils LGPL software: Glibc, libusb, libgphoto2 The GNU General Public License (GPL) Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and th at you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does. 1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) Continued... English - 88 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it. 6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. Continued... English - 89 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED

BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER

PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. One line to give the program’s name and a brief idea of what it does. Copyright (C) <year> <name of author> This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w’. This is free software, and you are welcome to redistribute it under certain conditions; type `show c’ for details. The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w’ and `show c’; they could even be mouse-clicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision’ (which makes passes at compilers) written by James Hacker. signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License. Continued... English - 90 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 GNU Lesser General Public License (LGPL) Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system. Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library. The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”. A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/ or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Continued... English - 91 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 “Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does. 1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices. Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library. 4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange. If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code. 5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License. However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables. When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Continued... English - 92 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself. 6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications. You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machinereadable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with. c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy. For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute. 7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work. 8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it. 10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License. 11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. Continued... English - 93 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:22 This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation. 14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY

APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER

PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. <one line to give the library’s name and an idea of what it does.> Copyright (C) <year> <name of author> This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by James Random Hacker. signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice That’s all there is to it! English - 94 BP68-00628B-00Eng_5.indd

2007-03-02 ｿﾀﾈﾄ 4:26:23 5 Câble audio (non fourni) Each VCR has a different side panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. Some games may be displayed with a cut off picture when the TV is connected to a game player. Français - 12 BP68-00628B-00Fre_1.indd

2007-03-02 ｿﾀﾈﾄ 4:31:28 2 Câble audio (non fourni) Câble audio (non fourni) Câble audio PC (non fourni)

Câble D-Sub (non fourni) Câble 1Stereo/2RCA (non fourni)

Plug & Play Executes the Plug & Play function when you set the TV at first or reset it. Sets channels, clock and other functions. Enter Exit Plug & Play Select Language of the OSD. English Español : English Menu Language Français Move Enter Skip Magnétoscope Marque SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO LG(Goldstar) HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL KENWOOD KLH LIOYD LOGIK LXI JVC MAGNAVOX MARANTZ MARTA KONIA ORION MEI MEMOREX MGA MIDLAND MINOLTA Code

Nuance coul. Image Fixe Imprimer Effacer SRS TruSurround XT SRS TruSurround XT : Off Langue privilégiée : Français SRS TruSurround XT : Off Langue privilégiée : Français SRS TruSurround XT : Off Langue privilégiée SRS TruSurround XT : Off Langue privilégiée : Français SRS TruSurround XT : Off Langue privilégiée : Français Syn. Précise Puissance signal AFB Puissance signal AFB

DLP® 3D/Dual-View : Off Fuseau hor. Newfoundland Atlantique Est Centre Rocheuses Pacifique

DLP® 3D/Dual-View : Off Activation Activation

DLP® 3D/Dual-View : Off Maison theater PC : Off Nv nr HDMI : Normal DLP® 3D/Dual-View : Off V-Chip : Moyen Maison theater PC : Off Nv nr HDMI : Normal DLP® 3D/Dual-View : Off

Mode Jeu Transparence menu Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Minuterie 3 : Désactivé Sous-titres Mode Jeu : Off Off DLP® 3D/Dual-View

Maison theater PC : Off DLP® 3D/Dual-View : Off

Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off DLP® 3D/Dual-View : Off

Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off DLP® 3D/Dual-View : Off

Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off DLP® 3D/Dual-View Configuration

Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off Mélodie : Moyen DLP® 3D/Dual-View : Off V-Chip Maison theater PC Basse : Off Nv nr HDMI : Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off Mélodie : Moyen Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off Mélodie : Moyen

Maison theater PC : Off Nv nr HDMI : Normal Normal Mode film Basse : Off Effet lumière : Toujours Écran Bleu : Off Mélodie : Moyen

Maison theater PC Configuration Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Off Effet lumière

: Toujours Écran Bleu : Off Mélodie : Moyen

640 x 480 800 x 600 1024 x 768 VESA 1152 x 864 1280 x 960 1280 x 1024 1920 x 1080

Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off Mélodie : Moyen Bluetooth

V-Chip Configuration V-Chip Configuration V-Chip Configuration Nuance coul. Image Transparence menu Configuration Maison theater PC : Off Nv nr HDMI : Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off Mélodie : Moyen

Transparence menu Configuration Maison theater PC : Off Off Nv nr HDMI

: Normal Mode film : Off Effet lumière : Toujours Écran Bleu : Off Mélodie : Moyen

100Hz 500Hz 1kHz 2kHz 4kHz 8kHz

Dépl. Réglage Intro. Sortie Suite... Français - 73 BP68-00628B-00Fre_4.indd

2007-03-02 ｿﾀﾈﾄ 4:34:21 Fall in Love.mp3 Tom Waits-Time.mp3 Chuk Mangione-Feel So good.mp3 Ryuichi Sakamoto-Rain.mp3 Chiosir Dépl. Intro.

Sortie Press the WISELINK button on the remote control to turn on the WISELINK mode. Suite... Français - 77 BP68-00628B-00Fre_4.indd

2007-03-02 ｿﾀﾈﾄ 4:34:26 Fall in Love.mp3 Beatles-Ouiterday.mp3 Swan Song feat.TBNY.mp3 Tom Waits-Time.mp3 Swan Song feat.TBNY.mp3 Fall in Love.mp3 2007/1/2 Fall in Love.mp3 Fall in Love.mp3 Fall in Love.mp3 Fall in Love.mp3 Do you want to delete the 2 files including Fall in Love.mp3?

Effacer ► (Lecture/Pause)

10W X 2 1147 x 808 x 340 pouces (1147 x 808 x 340 mm) VCR (APARATO DE VÍDEO) Marca SAMSUNG ADMIRAL AIWA AKAI AUDIO DYNAMICS BELL&HOWELL BROKSONIC CANDLE CANON CITIZEN COLORTYME CRAIG CURTIS MATHES DAEWOO DIMENSIA DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC GO VIDEO LG(Goldstar) HARMAN KARDON HITACHI INSTANT REPLAY JC PENNEY JCL KENWOOD KLH LIOYD LOGIK LXI JVC MAGNAVOX MARANTZ MARTA KONIA ORION MEI MEMOREX MGA MIDLAND MINOLTA Código

Producto Home Theater VCR COMBO HDD Record COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver AV Receiver Código

Digital NR Active Color DNIe : Encendido Gama cromática : Ancho Posición Active Color Imagen Active Color Imagen Pausa Imprimir Cancelar SRS TruSurround XT SRS TruSurround XT : Apagado Idioma preferido : Español : Normal Normal Balance

Mover Ingresar Regresar Continúa… Español - 36 BP68-00628B-00Spa_2.indd

2007-03-02 ｿﾀﾈﾄ 4:42:35

SRS TruSurround XT : Apagado Idioma preferido : Español SRS TruSurround XT : Apagado Idioma preferido : Español DLP® 3D/Dual-View : Apagado

DLP® 3D/Dual-View : Apagado

DLP® 3D/Dual-View : Apagado

DLP® 3D/Dual-View DLP® 3D/Dual-View Vaya a www.samsung.com → ‘PRODUCTS’ → ‘HDTV’ → ‘DLP TV’ Haga clic en “3D/Dual-View Information” Español - 53 BP68-00628B-01Spa_3.indd

2007-03-09 ｿﾀﾀ・10:08:12 DLP® 3D/Dual-View : Apagado V-Chip

Guías pater. TV Encendido DLP® 3D/Dual-View : Apagado V-Chip

DLP® 3D/Dual-View : Apagado V-Chip

Guías pater. TV Perm. Todo Bloq. Todo Mover Ingresar Regresar Guías pater. TV Clas. MPAA

Guías pater. TV Clas. MPAA Guías pater. TV Clas. MPAA DLP® 3D/Dual-View : Apagado

V-Chip : Normal Normal Modo película Bajo : Apagado Efecto de luz : Siempre Pantalla Azul : Apagado Melodía : Medio

640 x 480 800 x 600 1024 x 768 VESA 1152 x 864 1280 x 960 1280 x 1024 1920 x 1080

100Hz 500Hz 1kHz 2kHz 4kHz 8kHz

Mover Ajustar Ingresar Salir Continúa… Español - 73 BP68-00628B-00Spa_4.indd

2007-03-02 ｿﾀﾈﾄ 4:44:01 Fall in Love.mp3 Tom Waits-Time.mp3 Fall in Love.mp3 Beatles-Yesterday.mp3 Swan Song feat.TBNY.mp3 Tom Waits-Time.mp3 Swan Song feat.TBNY.mp3 Beatles-Yesterday.mp3 2007/1/2 Swan Song feat.TBNY.mp3 2007/1/2 Tom Waits-Time.mp3 2007/1/2 USB

Folder 1 Fall in Love.mp3 Fall in Love.mp3 Fall in Love.mp3 Fall in Love.mp3 Fall in Love.mp3 Exterior

Customer Care Center Web Site CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca U.S.A 1-800-SAMSUNG (7267864) www.samsung.com Address Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada Samsung Electronique Canada Inc., Service à la Clientèle 55 Standish Court Mississauga, Ontario L5R 4B2 Canada Samsung Electronics America, Inc. 105 Challenger Road Ridgefield Park, NJ 07660-0511 BP68-00628B-01 BP68-00628B-01Eng_1.indd

2007-03-09 ｿﾀﾀ・9:46:50
