Product type	Compact digital camera
Brand	Samsung
Model	VLUU WB650
Sensor	CCD 1/2.3", 12 effective megapixels
Lens	Schneider-KREUZNACH, 15x optical zoom (24-360 mm equiv. 35 mm)
Aperture	F3.2 (wide-angle) - F5.8 (telephoto)
Screen	AMOLED 3.0" (7.62 cm), 614,400 pixels
Focus	Auto TTL (multi, center, selective, tracking, manual, face detection, intelligent recognition)
Shutter speed	Auto: 1 - 1/2000 s; Manual: 16 - 1/2000 s; Night: 8 - 1/2000 s; Fireworks: 2 s
Internal storage	Approx. 128 MB
External storage	SD card (up to 2 GB) or SDHC card (up to 8 GB), optional
Power supply	Rechargeable lithium-ion battery SLB-11A, 1130 mAh
Dimensions (W x H x D)	106.6 x 60.5 x 28 mm
Weight	214.6 g (without battery or memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
Main functions	Photo and video capture, built-in GPS, 15x optical zoom, image stabilization, various scene modes
Maintenance and cleaning	Avoid dust, humidity, and extreme temperatures. Clean the lens with a soft cloth. Do not use chemical products.
Safety	Do not use near flammable gases. Keep out of reach of children. Use only Samsung batteries and chargers.
Included accessories	AC adapter/USB cable, Audio/Video cable, HDMI cable, battery, wrist strap, CD-ROM, quick start manual

Frequently Asked Questions - VLUU WB650 SAMSUNG

How to insert the battery and memory card?

Open the compartment on the bottom of the camera. Insert the battery with the Samsung logo facing up and the memory card with the chip facing up. Press gently until it clicks into place.

How long does it take to charge the battery?

Full charging time is approximately 2 to 3 hours with the included charger. The red light indicates charging, green indicates it's complete.

What type of memory card is compatible?

The camera accepts SD cards (up to 2 GB) and SDHC cards (up to 8 GB). SDXC cards are not guaranteed.

How to focus?

Press the shutter button halfway. A green frame confirms focus. You can also use manual focus via the menu.

What to do if the screen remains black?

Check that the battery is charged and inserted correctly. If the screen remains black, remove the battery, wait a few seconds, then reinsert it.

How to transfer photos to a PC?

Connect the camera to the PC with the USB cable. Turn on the camera. On Windows, the Intelli-studio program opens automatically to import files.

Can I use the camera while charging?

It is not recommended to use the camera while charging as it may slow charging or damage the battery. Wait until charging is complete.

How to set date and time?

After the first start, a setup screen appears. Use the navigation buttons to select the language, time zone, then date and time. Press OK to confirm.

What safety precautions should be taken?

Do not use the camera near flammable gases. Keep it out of reach of children. Use only Samsung batteries and chargers. Avoid extreme temperatures and humidity.

How to clean the lens?

Use a soft, dry cloth specially designed for optics. Do not use liquid or abrasive products. If necessary, a blower can remove light dust.

USER MANUAL VLUU WB650 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG/FRE/T.CHI/IND/ARA/THA/PER

Contents

Health and safety

information. 2

Camera layout... 4 13

Setting up your camera... 5

Unpacking 5 12

Inserting the battery and memory card 6 16

Charging the battery 6 17

Turning on your camera. 7 18

Selecting options 7 19

Capturing photos or videos 8 28

Playing files 9 67

Transferring files to a PC

(Windows) 10 85

Specifications 104

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

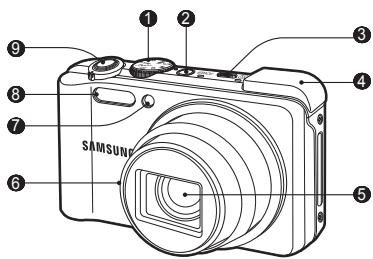

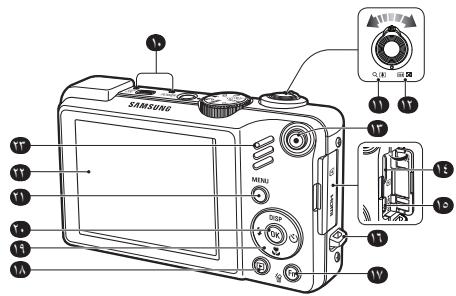

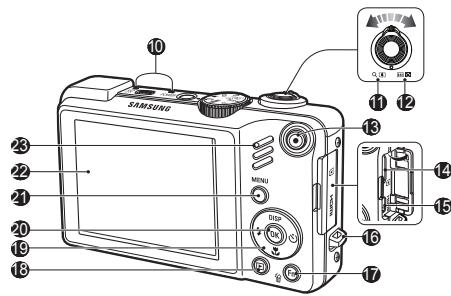

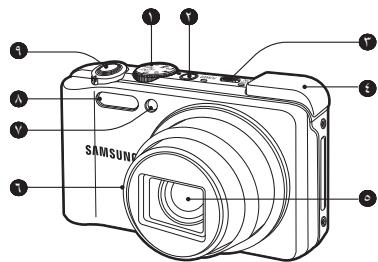

Camera layout

Mode dial

POWER button

GPS button

GPS antenna

Lens

Speaker

AF-assist light/timer lamp

Flash

Shutter button

Microphone

Zoom T Lever (Digital zoom)

Zoom W Lever (Thumbnail)

Video shooting button

USB and AV port

HDMI port

Strap eyelet

Fn/Delete button

Play mode button

Navigation button

OK button

MENUButton

Display

Status lamp

Setting up your camera

Unpacking

Camera

AC adapter/USB cable

Rechargeable battery

Strap

User Manual CD-ROM

Quick Start Manual

Sold Separately

Camera case

Memory cards

AV cable

Battery Charger

HDMI cable

Setting up your camera

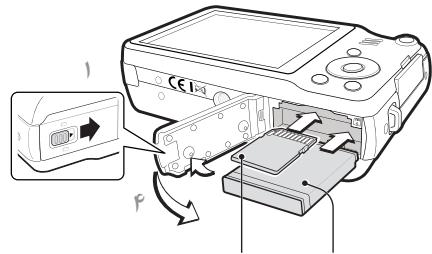

Inserting the battery and memory card

3 With the gold-coloured contacts facing up

2 With the Samsung logo facing up

Removing the battery

Removing the memroy card

Push gently until the card disengages from the camera and then pull it out of the slot.

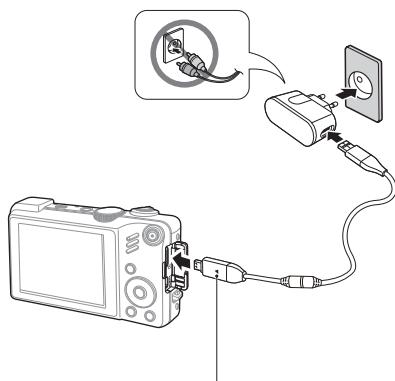

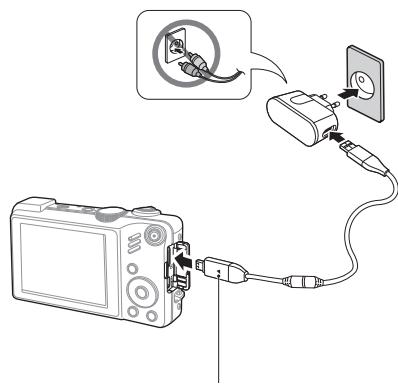

Charging the battery

Be sure to charge the battery before using the camera.

Indicator light

Red:Charging
- Green : Fully charged

Turning on your camera

1 Press [POWER].

• The initial setup screen appears.

2 Press [O] to select Language and press [OK].

3 Press [DISP] or [ ] to select Time Zone and press [].
4 Press [ ] or [ ] to select an item.
5 Press [DISP] or [ ] to select Date & Time and press [].
6 Press [4] or [心] to select an item.
7 Press [DISP] or [ ] to change the number or select another date format and press [OK].

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

• To move left or right, press [F] or [O].
• To move up or down, press [DISP] or [].

3 Press [OK] to confirm the highlighted option or menu.

• Press [MENU] again to go back to the previous menu.

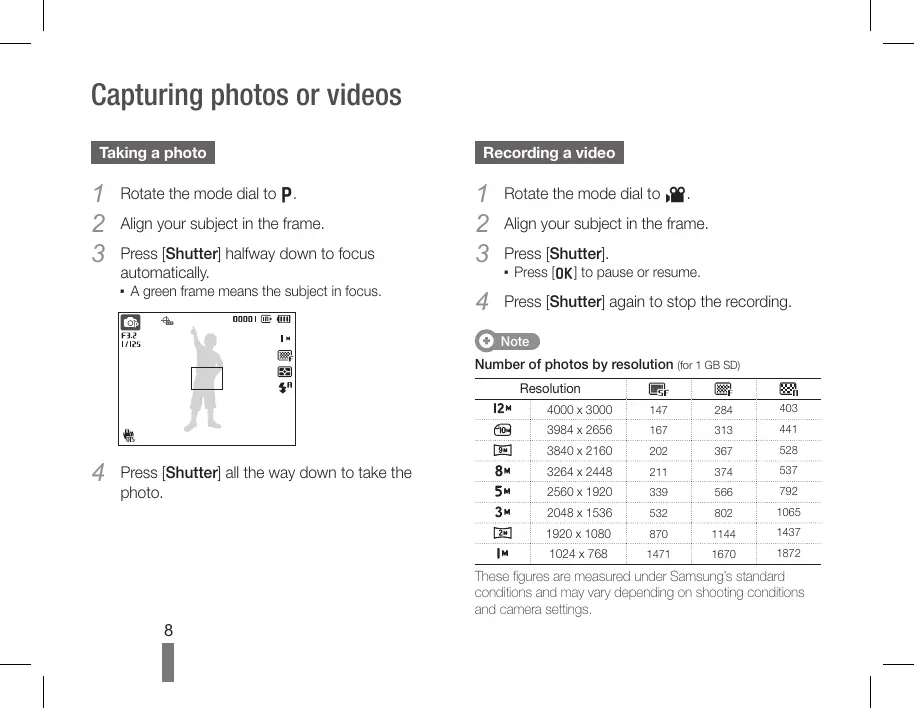

Capturing photos or videos

Taking a photo

1 Rotate the mode dial to P.
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

• A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Rotate the mode dial to
2 Align your subject in the frame.
3 Press [Shutter].

• Press [OK] to pause or resume.

4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		\( \widehat{\mathbf{F}} \)	\( \widehat{\mathbf{F}} \)	\( \widehat{\mathbf{F}} \)
12M	4000 x 3000	147	284	403
10M	3984 x 2656	167	313	441
3M	3840 x 2160	202	367	528
8M	3264 x 2448	211	374	537
5M	2560 x 1920	339	566	792
3M	2048 x 1536	532	802	1065
2M	1920 x 1080	870	1144	1437
1M	1024 x 768	1471	1670	1872

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [D].
2 Press [+] or [O] to scroll through files. Press and hold to view files quickly.

Viewing videos

1 Press [D].
2 Press [OK].

3 Use the following buttons to control playback.

[+]	Scan backward
[OK]	Pause or resume playback
[?]	Scan forward
[Zoom W/T] left or right	Adjust the volume level

Transferring files to a PC (Windows)

1 Connect the camera to your computer with the USB cable.

Note

Make sure that the PC Software option is set to On in the settings menu.

2 Turn on the camera.

• The computer recognizes the camera automatically.
• For Windows Vista, select Run iStudio.exe from the AutoPlay window.

3 Select a folder on your computer to save new files.

• If your camera has no new files, the pop-up window for saving new files will not appear.

4 Select Yes.

• New files will be transferred to your computer. You can now use the Intelli-studio program.

Note

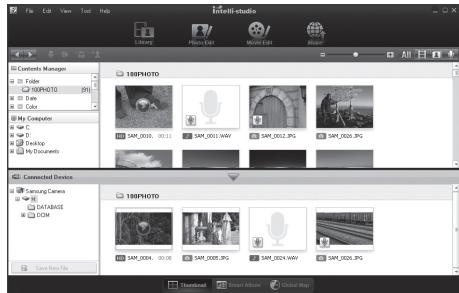

About Intelli-studio

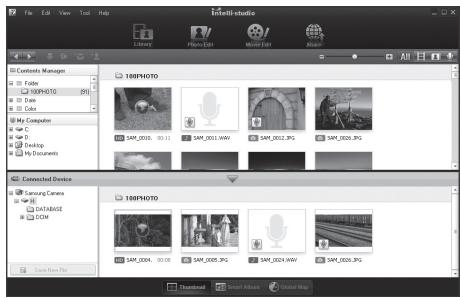

Intelli-studio is a built-in program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.

Specifications

Image sensor	• Type: 1/2.3" (Approx. 1.10 cm) CCD • Effective pixels: approx. 12.0 mega-pixels • Total pixels: approx. 14.2 mega-pixels
Lens	• Focal length: Schneider-KREUZNACH lens f = 3.9 ~ 58.5mm (35 mm film equivalent: 24 ~ 360mm), 15X optical zoom • F-stop range: F3.2(W) ~ F5.8(T)
Display	AMOLED 3.0" (7.62cm) VGA 614,400 dots
Focusing	TTL auto focus (Multi AF, Center AF, Selection AF, Tracking AF, Manual Focus, Face Detection AF, Face Recognition AF)
Shutter speed	• Auto: 1-1/2,000 sec. • Manual: 16-1/2,000 sec. • Night: 8-1/2,000 sec. • Firework: 2 sec.
Storage	• Internal memory: approx. 128 MB • External memory (Optional): SD card (up to 2 GB guaranteed), SDHC card (up to 8 GB guaranteed) Internal memory capacity may not match these specifications.
DC power input connector	20 pin, 4.4 V
Rechargeable battery	Lithium-ion battery (SLB-11A, 1,130 mAh)
Dimensions (W x H x D)	106.6 x 60.5 x 28 mm
Weight	214.6 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

Sommaire

Batterie rechargeable

Dragonne

Bagian-bagian camera 4 13

Mengatur camera 5

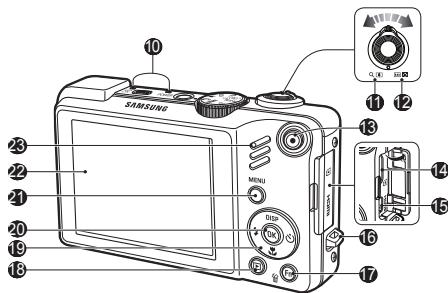

Bagian-bagian camera
