USER MANUAL LANDIAO L201 SAMSUNG

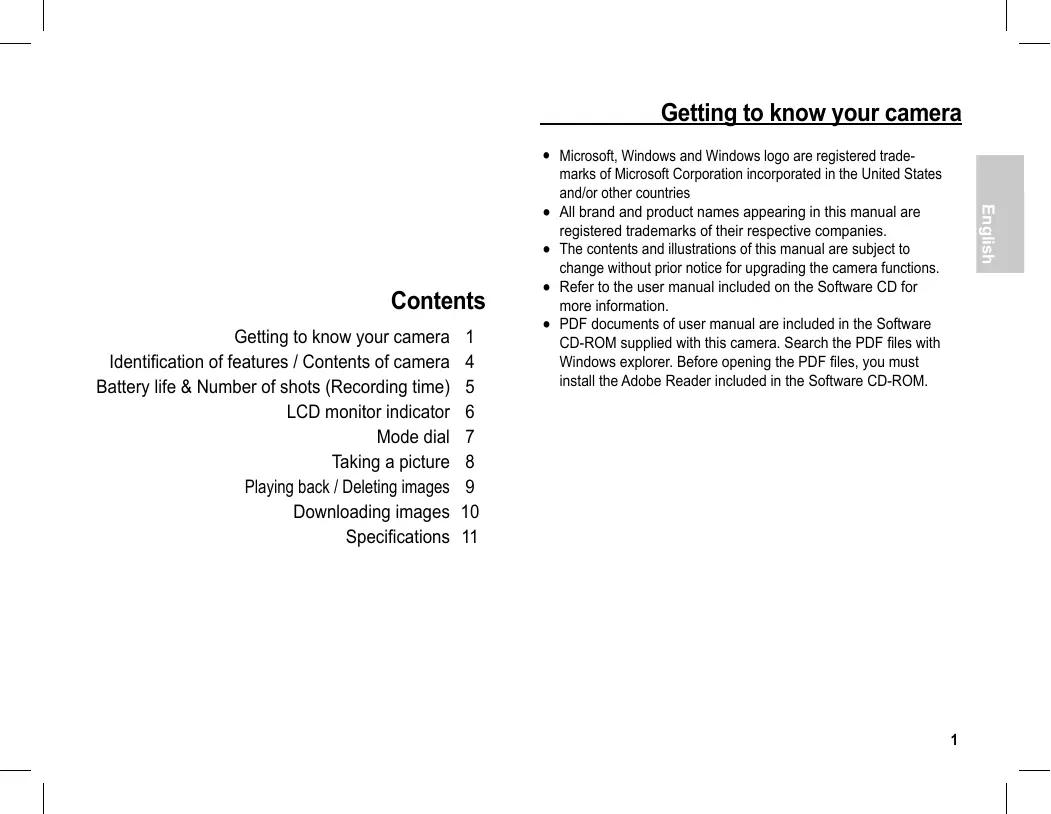

Getting to know your camera Getting to know your camera Identification of features / Contents of camera Battery life & number of shots (Recording time) LCD monitor indicator Mode dial Taking a picture Playing back / Deleting images Downloading images Specifications

English Contents å Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries å All brand and product names appearing in this manual are registered trademarks of their respective companies. å The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions. å Refer to the user manual included on the Software CD for more information. å PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM.

Getting to know your camera DANGER WARNING DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre. Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock. Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion. Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock. Do not operate this camera with wet hands. This could pose a risk of electric shock.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject’s eyes may cause eyesight damage. For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.: - Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately. - There is the possibility of injury from the camera’s moving parts. Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool. Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a fire. When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area. Getting to know your camera CAUTION Remove the battery when not planning to use the camera for a long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera’s components. Leaking, overheating, or damaged battery could result in fire or injury. - Use battery with the correct specification for the camera. - Do not short circuit, heat or dispose of battery in fire. - Do not insert the battery with the polarities reversed. Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns. Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction. Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case. Do not insert the memory card the wrong way round. Never the connect the 20 pin connector to a USB port of a PC. Doing so is highly likely to cause a computer malfunction. Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera. Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

English CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury. Identification of features / Contents of camera Camera status lamp Power button Mode dial Flash AF sensor/ Self-timer lamp Shutter button USB / AV connection terminal Zoom T button (Digital zoom) Zoom W button (Thumbnail) E (Effects) button Strap eyelet LCD monitor Lens / Lens cover Microphone Speaker Face Detection(FD) button Fn / Delete button 5 function button Rechargeable battery (SLB-0837(B)) AC adapter (SAC-47) / USB cable (SUC-C3) Camera strap AV Cable Optional items SD / SDHC memory card / MMC Camera case User manual, Product warranty Software CD Ä Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Battery life & Number of shots (Recording time) Ê Number of images and battery life: Using the SLB-0837(B) Conditions Using the fully charged battery, Auto mode, 10M image size, Fine image quality, Shot to shot interval: 30Sec. Approx. 120 MIN / Changing the zoom position between Still image Approx. 240 shots the Wide and the Tele after every shot. Using the flash on every second shot. Using the camera for 5 minutes and then powering it off for 1 minute. Movie Ê When using a 1GB SD memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type. Recorded image size Still image Using the fully charged battery Approx. 120 MIN 640x480 image size 30fps frame rate

hese figures are measured under Samsung’s standard conditions and shooting conditions and may vary depending on the user’s methods. Fine Normal 30 FPS 15 FPS

About 219 About 304 About 507

About 241 About 341 About 550

About 282 About 395 About 619

About 290 About 412 About 660

About 366 About 507 About 825

About 1089 About 1458 About 2204

About 1907 About 2204 About 2419

*Movie clip Super Fine

About 14'15" About 28'02"

About 51'32" About 01:41'47" Ä The zoom button doesn't use during the movie recording. The recording times can be changed by the zoom operation. You can record videos of up to 4GB or 2hours each.

English Battery life / Number of images LCD monitor indicator Ê The LCD monitor displays information about the shooting functions and selections. [Image & Full Status] No. Description

3 Voice Memo / Without Sound

Icons h/ê Number of available shots remaining

Remaining time 00:00:00 No. Description

Memory card icon / Internal memory icon

Image Quality / Frame Rate

Exposure compensation

Camera shake Warning

Aperture Value / Shutter Speed

Face Detection / Self Portrait Icons F3.0, 1/30

Mode dial Ê You can select a desired camera mode by using the Mode dial on the top of the camera. Selects this mode for quick and easy picture taking with minimal user interaction. PROGRAM Selecting the program mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed. Photo Help Guide Helps the user to learn the correct picture taking method. This includes solutions for potential problems that may occur, and enables the user to practice shooting. PORTRAIT Use this menu to take a picture of a person. MANUAL SCENE You can manually configure all functions with the aperture value and shutter speed. Use the menu to easily configure optimal settings for a varisty of shooting situations. DIS This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions. MOVIE CLIP A movie clip can be recorded for as long as the available recording time.

English AUTO Taking a picture Ê How to take a picture

4. Take a picture.

1. Turn on the camera and select

a camera mode by rotating the mode dial. Pressing halfway down Pressing fully Focus and Flash status Image is taken are checked.

2. Hold the camera as shown

Ê How to record a movie Rotate the Mode dial and select ( ü ).

1. Confirm the composition

3. Confirm the composition

2. Start the recording

Press the Shutter button and the recording starts and press the Shutter button again to stop the recording.

Playing back / Deleting images Ê Playingback the images -The last image stored on the memory is displayed.

1. S

elect an image that you want to delete by pressing the Left / Right button and press the DELETE ( n ) button. Delete? Select an image that you want to play back by pressing the Left/ Right button Select OK Comfirm OK Confirm [Single Image] Ä Manner mode : Pressing the play mode button for more than 3 seconds changes the buzzer and start-up sound setting to OFF, even though you may have set these to ON. Delete? Yes

English Ê Deleting images - This deletes images stored on the memory card. [Thumbnail Image]

2. To add images to delete, press the T

button. - Left / Right button : S elects images - T button : C hecks for deletion - OK button : d eletes the selected images. Prev

Select Next OK Delete

3. S

elect the submenu values by pressing the Up / Down button and then press the OK button. - If [No] is selected : cancels "Delete Image". - If [Yes] is selected : deletes the selected images.

Downloading images For Windows PC with processor better than Pentium III 500MHz USB Connection (Pentium 800MHz recommended) Specifications Windows 2000 / XP / Vista Minimum 256MB RAM (Over 512MB recommended) 200MB of available hard disk space (Over 1GB recommend) Software 1024x768 pixels, 16bit color Support display compatible monitor Specifications (24bit color display recommended) Microsoft DirectX 9.0C For Macintosh Ê PC connection mode

1. Install the supplied Software.

Power Mac G3 or later Mac OS 10.3 or later Minimum 256MB RAM (Over 512MB recommended)

2. Download the images

- Connect the camera and Computer with supplied USB cable and download the image on your computer to save them.

Specifications Lens (depends on image size) - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red-eye Fix - Range : Wide : 0.4m ~ 3.0m, Tele : 0.5m ~ 2.5m - Recharging Time : Approx. 4 sec Sharpness - Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color LCD Monitor - 2.7" color TFT LCD (230,000 dots) White Balance Focusing - Type : TTL auto focus (Multi AF, Center AF, Face Detection AF) - Range - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Normal Wide Tele 80cm ~ Infinity Macro Auto Macro 10cm ~ 80cm 10cm ~ Infinity 50cm ~ 80cm 50cm ~ Infinity Shutter Voice Recording - Voice Recording (max. 10 hours) - Voice Memo in Still Image (max. 10 sec.) Date Imprinting - Date, Date & Time, Off (user selectable) Shooting - Still Image

• Mode : Auto, Program, Manual, DIS, Photo Help Guide , Portrait, Scene
• Scene : Nightscene, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow
• Shooting : Single, Continuous, AEB, Motion Capture
• Self-timer : 1 0 sec., 2 sec., Double, Motion Timer

English - Movie Clip

• With Audio or without Audio (user selectable, recording time : max 2 hours)
• Size : 640x480, 320x240
• Frame rate : 30 fps, 15 fps
• 3X Optical Zoom and Mute in Zooming
• Movie Editing (Embedded): Pause during recording, Still Image Capture Storage - Media
• Internal memory : About 16MB flash memory
• External Memory (Optional) : MMC card (Up to 1GB guaranteed) SD card (Up to 2GB guaranteed) SDHC card (Up to 8GB guaranteed) - Capacity (1GB Size)

Super Fine About 219 About 241 About 282 About 290 About 366 About 1089 About 1907 Fine About 304 About 341 About 395 About 412 About 507 About 1458 About 2204 Normal About 507 About 550 About 619 About 660 About 825 About 2204 About 2419 Ä These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings. “E” Button - Effect : C olor, Image Adjust (Sharpness, Contrast, Saturation) - Editing : Resize, Rotate, Color, ACB, Red Eye Fix, Image Adjust (Brightness, Contrast, Saturation) Image Play Power Source - Rechargeable battery : SLB-0837(B),3.7V (800mAh) - Charger: SAC-47 Ä Included battery may vary depending on sales region. Specifications - 90.2 X 58 X 19.3mm (excluding protrusions) Weight - Approx. 110g (without batteries and card) English Dimensions (WxHxD) Operating Temperature - 0 ~ 40°C Operating Humidity - 5 ~ 85% Software Specifications are subject to change without prior notice. All trademarks are the property of their respective owners.
