USER MANUAL SCB81826TS - 925 501 038 - 8925501038 AEG

. HINTS AND TIPS... . CARE AND CLEANIN! . TROUBLESHOOTING. . NOISES. 0. TECHNICAL DATA.

FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance www.aeg.com/shop

CUSTOMER CARE AND SERVICE Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate

À\ Warning / Caution-Safety information © General information and tips [1] Environmental information

Subject to change without notice

1. À SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or

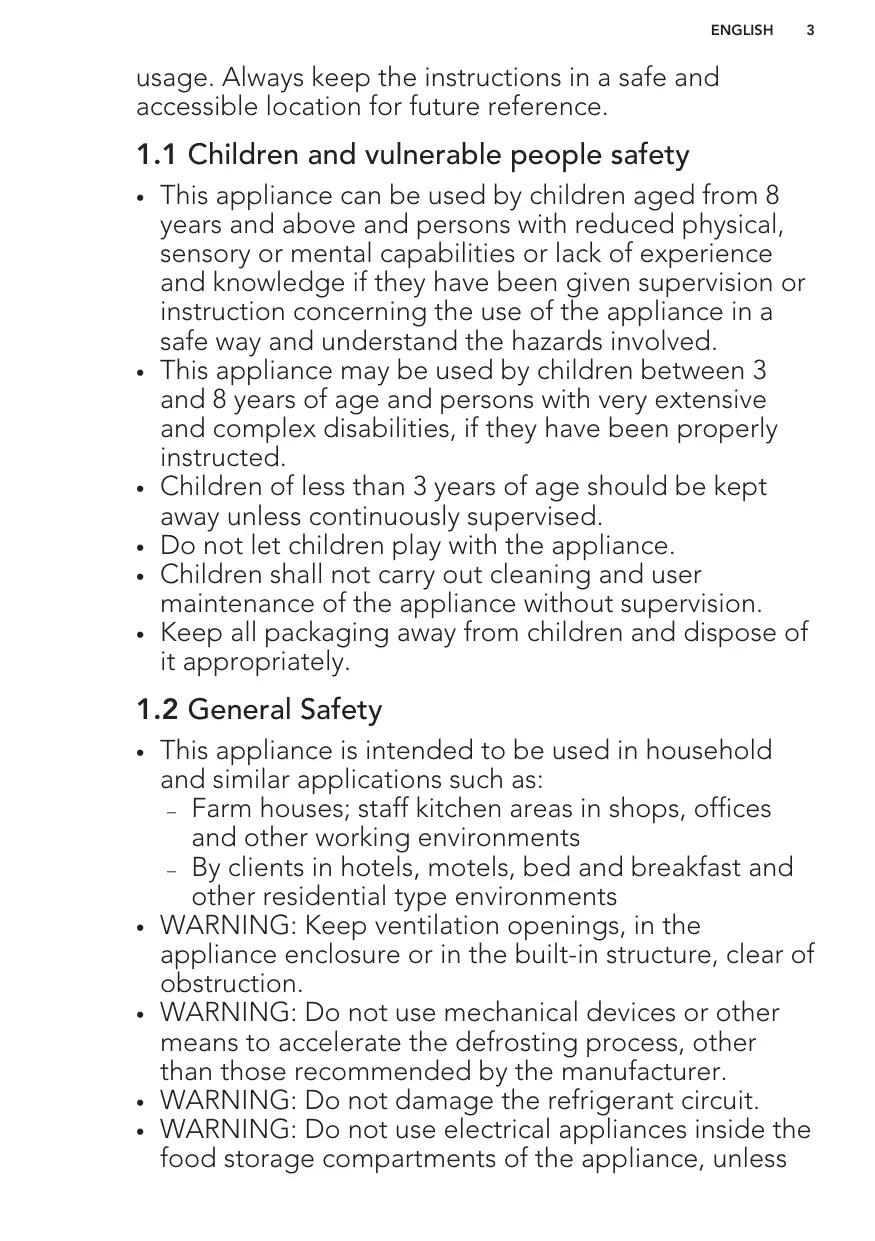

usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

- This appliance may be used by children between 3 and 8 years of age and persons with very extensive and complex disabilities, if they have been properly instructed.

+ Children of less than 3 years of age should be kept away unless continuously supervised.

+ Do not let children play with the appliance.

+ Children shall not carry out cleaning and user maintenance of the appliance without supervision.

+ Keep all packaging away from children and dispose of it appropriately.

- This appliance is intended to be used in household and similar applications such as:

- Farm houses; staff kitchen areas in shops, offices and other working environments

- By clients in hotels, motels, bed and breakfast and other residential type environments

+ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

+ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

+ WARNING: Do not damage the refrigerant circuit.

+ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless

they are of the type recommended by the manufacturer.

+ Do not use water spray and steam to clean the appliance.

+ Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

+ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

+ Ifthe supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

WARNING! Only a qualified person must install this appliance.

Remove all the packaging. Do not install or use a damaged appliance

Do not use the appliance before installing it in the built-in structure. Follow the installation instructions supplied with the appliance.

Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear. Make sure the air can circulate around the appliance.

At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil +0 flow back in the compressor. Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.

Do not install the appliance close to radiators or cookers, ovens or hobs. Do not expose the appliance to the rain.

Do not install the appliance where there is direct sunlight.

Do not install this appliance in areas that are too humid or too cold.

+ When you move the appliance, lift it by the front edge to avoid scratching the floor.

+ _ The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not use multi-plug adapters and extension cables.

+_ The appliance must be earthed.

+ Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply

+ Always use a correctly installed shockproof socket.

+ Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor).

Contact the Authorised Service Centre or an electrician to change the electrical components.

+ The mains cable must stay below the level of the mains plug,

+ Connect the mains plug to the mains socket only at the end ofthe installation. Make sure that there is access to the mains plug after the installation.

+ Do not pull the mains cable to disconnect the appliance. Always pull the mains plug

+ Obey the storage instructions on the packaging of frozen food

2.4 Internal lighting

WARNING! Risk of electric shock.

+ The type of lamp used for this appliance is for household appliances only. Do not use it for house lighting.

2.5 Care and cleaning

2.3 Use WARNING! © Risk of injury or damage to WARNING! the appliance

Risk of injury, burns, electric shock or fire.

À The appliance contains flammable

gas, isobutane (R6002), a natural gas with

+ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

+ This appliance contains hydrocarbons in the cooling unit. Only a qualified

à high level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.

Do not change the specification of this appliance

Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.

1f damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

Do not let hot items to touch the plastic parts of the appliance

Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.

Do not store flammable gas and liquid in the appliance

Do not put flammable products or items that are wet with flammable products in, near or on the appliance. Do not touch the compressor or the condenser. They are hot.

Do not remove or touch items from the freezer compartment if your hands are wet or damp

Do not freeze again food that has been thawed.

person must do the maintenance and the recharging of the unit.

Regularly examine the drain ofthe appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

To repair the appliance contact an Authorised Service Centre Use original spare parts only,

WARNING! Risk of injury or suffocation.

Disconnect the appliance from the mains supply.

Cut off the mains cable and discard it. Remove the door to prevent children and pets to be closed inside of the appliance.

The refrigerant circuit and the insulation materials of this appliance are ozone-friendly,

The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

+ Do not cause damage to the part of the cooling unit that is near the heat exchanger.

3. INSTALLATION WARNING! Refer to Safety chapters.

3.1 Location Refer to the assembly instructions for the installation.

To ensure best performance, install the

appliance well away from sources of heat

such as radiators, boilers, direct sunlight

etc. Make sure that air can circulate freely

around the back of the cabinet.

Install the appliance in a dry, well ventilated indoors where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

Climate Ambient temperature class

SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C

o Some functional problems might occur for some types

of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

3.3 Electrical connection

+ _ Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

+ The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

+ _ The manufacturer declines all responsibility if the above safety precautions are not observed.

°_ This appliance complies with the E.E.C. Directives.

3.4 Ventilation requirements

The airflow behind the appliance must be sufficient.

Refer to the assembly instructions for the installation

Connect the mains plug to the power socket

Press the appliance ON/OFF if the display is off. The temperature indicators show the set default temperature.

The alarm buzzer could

operate after few seconds. To reset the alarm refer to "High temperature alarm”.

To select a different set temperature refer to "Temperature regulation"

HA Fidos Temperature colder button

ON/OFF It is possible to change predefined sound of buttons by pressing together Mode and temperature colder button foi a few seconds. Change is reversible

. Fridge compartment indicator Timer indicator

/Temperature indicator ON/OFF indicator

H"dEMo" appears on the display, refer +0 “Troubleshooting"

1. Press the appliance ON/OFF for 5 seconds.

The display switches off.

2. Disconnect the mains plug from the power socket.

4.5 Temperature regulation

Set the temperature of the appliance by pressing the temperature regulators. Default set temperature:

+ +5°C forthe fridge

+ 18°C forthe freezer The temperature indicators show the set temperature.

The set temperature will be reached within 24 hours. After a power failure the set temperature remains stored.

4.6 Switching on the fridge

To switch on the fridge it is enough to press the fridge temperature regulator. To switch on the fridge in the other way:

1. Press Mode until the corresponding icon appears.

The Fridge OFF indicator flashes.

2. Press OK to confirm.

The fridge OFF indicator goes off.

To select a different set temperature refer to "Temperature regulation"

4.7 Switching off the fridge

1. Press Mode until the corresponding icon appears.

The fridge OFF indicator and the fridge

compartment indicator flash.

The fridge temperature indicator shows

2. Press OK to confirm.

The fridge OFF indicator is shown.

4.8 Coolmatic function

If you need to insert a large amount of warm food, for example after doing the grocery shopping, we suggest activating the Coolmatic function to chill the products more rapidly and to avoid warming the other food which is already in the refrigerator.

1. Press the Mode until the corresponding icon appears

The Coolmatic indicator flashes.

2. Press the OK to confirm

The Coolmatic indicator is shown.

The Coolmatic function shuts off

automatically after approximately 6

To switch off the function before its automatic end, repeat the procedure.

The function switches off by selecting a different fridge set temperature

This mode allows you to keep the appliance closed and empty during a long holiday period without the formation of bad odours

1. Press the Mode until the corresponding icon appears.

The Holiday indicator flashes. The

temperature indicator shows the set

2. Press the OK to confirm.

The Holiday indicator is shown.

This mode switches off after selecting a different temperature.

4.10 Frostmatic function

The Frostmatic function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming

1. To activate this function press the Mode button until the corresponding icon appears.

The Frostmatic indicator flashes.

2. Press the OK button to confirm.

The Frostmatic indicator is shown

This function stops automatically after 52

To switch off the function before its

automatic end repeat the procedure until the Frostmatic indicator turns off.

The function switches off by selecting a different set temperature.

4.11 ChildLock function

Activate the ChildLock function to lock the buttons from unintentional operation.

1. Press Mode until the corresponding icon appears

The ChildLock indicator flashes.

2. Press OK to confirm.

The ChildLock indicator is shown

To deactivate the ChildLock function, repeat the procedure until the ChildLock indicator goes off.

4.12 DrinksChill function

The DrinksChill function is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down food products for a certain period of time.

It is also useful when a reminder is needed in order not to forget the bottles placed in the freezer for fast cooling.

1. Press Mode until the corresponding icon appears.

The DrinksChill indicator flashes.

The Timer shows the set value (30

minutes) for a few seconds.

2. Press the Timer regulator to change the Timer set value from 1 to 90 minutes.

3. Press OK to confirm.

TheDrinksChill indicator is shown.

The Timer start to flash (min)

At the end of the countdown the

DrinksChill indicator flashes and an

audible alarm sounds. Press OK to switch

off the sound and terminate the function

To switch off the function repeat the procedure until the DrinksChill goes off.

It is possible to change the time at any time during the countdown and at the end by pressing the Temperature colder button and the Temperature warmer button

4.13 High temperature alarm

An increase in the temperature in the freezer compartment (for example due to an earlier power failure) is indicated by

5. DAILY USE WARNING! Refer to Safety chapters.

flashing the alarm icon and freezer temperature indicators, and sounding of buzzer.

Press any button The buzzer switches off.

The freezer temperature indicator shows the highest temperature reached for a few seconds, then displays the set temperature again.

The alarm indicator continues to flash until the normal conditions are restored.

4.14 Door open alarm

Ifthe door is left open for approximately 90 seconds, the acoustic alarm starts and alarm indicator flashes.

The alarm stops after closing the door. During the alarm, the acoustic signal can be muted by pressing any button.

4.15 DYNAMICAIR function

To switch on the function: 1. Press the Mode button until the corresponding icon appears. The DYNAMICAIR indicator flashes. 2. Press the OK button to confirm. The DYNAMICAIR indicator is shown.

To switch offthe function repeat the procedure until the DYNAMICAIR indicator icon goes off.

If the function is activated automatically the DYNAMICAIR indicator is not shown (refer to "Daily use")

The activation of the DYNAMICAIR function increase the energy consumption.

5.1 Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap

to remove the typical smell of a brand- new product, then dried thoroughly.

Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1. Gradually pull the shelf up until it comes free 2. Reposition as required.

This model is equipped with à variable storage box which can be moved sideways

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation

5.4 DYNAMICAIR The refrigerator compartment is equipped with a device that allows rapid cooling of food and keeps a more uniform temperature in the compartment.

This device activates automatically when needed, for example for a quick temperature recovery after door opening or when the ambient temperature is high.

It is possible to switch on the device manually when needed (refer to "DYNAMICAIR function").

The DYNAMICAIR device stops when the door is open and restarts immediately after the door closing

5.5 Freezing and storage of frozen food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours with the Frostmatic function turned on.

To freeze fresh food place it in the top compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance

The freezing process lasts 24 hours, during this period do not add other food to be frozen.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under “rising time", the defrosted food must be consumed quickly or cooked immediately and then re- frozen (after cooling).

6.1 Normal operating sounds

The following sounds are normal during operation:

+_A faint gurgling and bubbling sound from coils sound when refrigerant is pumped

+ Awhirring and pulsating sound from the compressor when refrigerant is pumped

+_A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon)

+ A faint click noise from the temperature regulator when the compressor switches on or off.

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

5.7 Ice-cube production

This appliance is equipped with one or more trays for the production of ice- cubes.

Do not use metallic instruments to remove the trays from the freezer.

1. Fillthese trays with water 2. Putthe ice trays in the freezer compartment

5.8 Cold accumulators

The freezer contains at least one cold accumulator which increases storage time in the event of a power cut or breakdown.

6.2 Hints for energy saving

+ Do not open the door frequently or leave it open longer than absolutely necessary.

+ Do not remove the cold accumulators from the freezer basket.

6.3 Hints for fresh food refrigeration

Do not store warm food or evaporating liquids in the refrigerator. + Cover or wrap the food, particularly if it has a strong flavour. + Position food so that air can circulate freely around it.

6.4 Hints for refrigeration Useful hints:

Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days. Cooked foods, cold dishes: cover and place on any shelf.

Fruit and vegetables: clean thoroughly and place in a special drawer. Bananas, potatoes, onions and garlic must not be kept in the refrigerator if not packed.

Butter and cheese: place in a special airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible Bottles: close with a cap and place on the door bottle shelf, or (if available) on the bottle rack.

6.5 Hints for freezing

Freeze only top quality, fresh and thoroughly cleaned food products For more efficient freezing and thawing divide food into small portions.

Wrap the food in aluminium foil or polythene. Make sure that the packages are airtight

7. CARE AND CLEANING WARNING! Refer to Safety chapters.

7.1 General warnings

D CAUTION! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit, maintenance and recharging must therefore only be carried out by authorized technicians.

+ To avoid increase in temperature of already frozen food, do not place fresh unfrozen food directly next to it.

+ Lean food store better and longer than fatty ones. Salt reduces the storage life of food

+ Do not eat ice cubes, water ices or ice lollies immediately after taking them out of the freezer. Risk of frostbites.

+_Itis advisable to show the freezing date on each individual pack to enable you to keep tab of the storage time.

6.6 Hints for storage of frozen food

+ Make sure that the commercially frozen food products were adequately stored by the retailer.

+ Make sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time.

+ Once defrosted, food deteriorates rapidly and cannot be refrozen

+_ Do not exceed the storage period indicated by the food manufacturer.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

7.2 Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or cables inside the appliance

CAUTION! Do not damage the cooling system.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral

p 2. Regularl check the door seals and wipe them clean to ensure they are

clean and free from deboris. Rinse and dry thoroughly.

the appliance with a brush

This will improve the performance of the appliance and save electricity

7.3 Defrosting of the refrigerator

Frost is automatically eliminated from the

evaporator of the refrigerator compartment every time the motor

compressor stops, during normal use. The defrost water drains out through a

trough into a special container at the

back of the appliance, over the motor

compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to

prevent the water overflowing and dripping onto the food inside.

If accessible, clean the condenser and the compressor at the back of

8. TROUBLESHOOTING WARNING! Refer to Safety chapters.

7.4 Defrosting of the freezer

The freezer compartment is frost free This means that there is no build up of frost when it is in operation, neither on the internal walls, nor on the foods.

7.5 Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity supply.

3. Clean the appliance and all accessories.

4. Leave the door/doors open to prevent unpleasant smells.

1 you want to keep the appliance switched on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure

We recommend activating Holiday Mode.

8.1 What to do if...

The appliance does not op- erate

The appliance is switched off

Switch on the appliance.

The mains plug is not con- nected to the mains socket correctly.

Connect the mains plug to the mains socket correctly.

There is no voltage in the mains socket.

Connect a different electrical appliance to the mains socket. Contact a qualified electrician.

Audible or visual alarm is on

The cabinet has been re- cently switched on or the temperature is too high.

Refer to "High temperature alarm"

The temperature in the ap- pliance is too high.

Contact a qualified electrician or contact the nearest Author- ised Service Centre

The door is left open

Close the door. Refer to "Door open alarm"

À O or © symbol is shoun instead of numbers on the Temperature Display

Temperature sensor prob- ler.

Contact the nearest Author- ised Service Centre (the cool- ing system will continue to keep food products cold, but temperature adjustment will not be possible)

The lamp does not work

The lamp is in stand-by,

Close and open the door.

The lamp is defective.

Contact the nearest Author- ised Service Centre

The compressor operates continually.

Temperature is set incor- rectly.

Refer to "Operation"

Many food products were put in at the same time.

Wait few hours and then check the temperature again.

The room temperature is too high.

Refer to climate class chart on the rating plate.

Food products placed in the appliance were too warm

Allow food products to cool to room temperature before stor- ing

The door is not closed cor- rectly.

Refer to “Closing the door”

The "Frostmatic function" or "Coolmatic function" is switched on.

Refer to "Frostmatic function" or "Coolmatic function"

The compressor does not start immediately after pressing the "Frostmatic" or “Coolmatic", or after chang- ing the temperature.

This is normal, no error has occurred.

The compressor starts after a period of time.

Water flows inside the refrig- erator.

Food products prevent the water to flow into the wa- ter collector.

Make sure that food products do not touch the rear plate.

The water outlet is clog- ged

Clean the water outlet.

Water flows on the floor.

The melting water outlet is not connected to the evaporative tray above the compressor.

Attach the melting water out- let to the evaporative tray.

Temperature cannot be set.

The "Frostmatic function" or "Coolmatic function" is switched on.

Switch off "Frostmatic func- tion" or “Coolmatic function" manually, or wait until the function resets automatically to set the temperature. Refer to "Frostmatic function" or "Coolmatic function"

dEMo appears on the dis- play.

The appliance is in demon- stration mode.

Keep the OK pressed for ap- proximately 10 seconds until a long sound is heard and dis- play shuts off for a short time

The temperature in the ap- pliance is too low/too high

The temperature regulator is not set correctly.

Set a higher/lower tempera- ture.

The door is not closed cor- rectly.

Refer to “Closing the door"

The food products’ tem- perature is too high.

Let the food products temper- ature decrease to room tem- perature before storage.

Many food products are stored at the same time:

Add less food products at the same time.

The door has been opened often.

Open the door only if necessa- ry.

The "Frostmatic function" or "Coolmatic function" is switched on.

Refer to “Frostmatic function" or "Coolmatic function"

There is no cold air circula- tion in the appliance.

Make sure that there is cold air circulation in the appliance.

o IÉthe advice does not lead 8.3 Closing the door to the desired result, contact 1. Clean the door gaskets. the nearest Authorised 2. lfnecessary, adjust the door. Refer to Service Centre. assembly instructions. 3. lfnecessary, replace the defective 8.2 Replacing the lamp door gaskets. Contact the Authorised

The appliance is equipped with a longlife SNNIES LENTE LED interior light.

Only service is allowed to replace the lighting device. Contact your Authorised Service Centre

9. NOISES There are some sounds during normal running (compressor, refrigerant circulation)

Trade Mark AEG Model SCB81826TS PNC925501038 Category 7. Refrigerator-freezer Energy efficiency class A++

Energy consumption in kWh per year, based on 228

standard test results for 24 hours. The actual energy consumption will depend on how the appliance is used and where it is located

Storage volume in litres, Fridge 192

Storage volume in litres, Chiller

Storage volume in litres, Other compartments

Star rating of freezer compartment with highest stor- ****

Design temperature of other compartments > 14°C -

CC) if any Frost free (Y/N), Fridge No

Frost free (Y/N), Freezer Yes

Power cut safe in h 21 Freezing capacity in kg/24h 10

Climate class SN-N-ST-T Lowest ambient temperature at which this appliance 10

is intended to be used, in °C Highest ambient temperature at which this appli- 43

ance is intended to be used, in °C Acoustical noise emissions dB(A) re1 pW. 3° Built in appliance Y/N Yes

This appliance is intended to be used exclusively for No

the storage of wine Y/N

10.2 Additional technical data

Dimensions of the re-

cess Height 1780 mm Width 560 mm

Depth 550 mm Voltage 230 - 240 V Frequency 50 Hz

The technical information is situated in the rating plate, on the external or internal side of the appliance and on the energy label

11. ENVIRONMENTAL CONCERNS Recycle materials with the symbol © Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol À with the household waste. Return the product to your local recycling facility or contact your municipal office

© HAL: G CEMRRE KJ I h

Nutzinhalt in Liter, Star -

Nutzinhalt in Liter, Kellerzone -

Nutzinhalt in Liter, Wein -

Nutzinhalt in Liter, Total 253

Nutzinhalt in Liter, Gefrierschrank, éi
