USER MANUAL MS61A4110 BOSCH

Register yo new devic ur MyBosch e on no get free b w and enefits: bosch-ho me.com/ welcome

Read and follow the operating instructions carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer’s liability for any resulting damage will be excluded. This appliance is intended for domestic use only. Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use. The appliance is only suitable for cutting or mixing food. The appliance is not suitable for preparing mashed potatoes (or purées of foods with a similar consistency). It must not be used for processing other substances / objects. Use the appliance only with original parts and accessories. Do not place the appliance on or near hot surfaces, e.g. hobs. The blender jug is not suitable for use in the microwave. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

W Warning! Danger of electric shock and fire! Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed. Connect and operate the appliance only according to the type plate specifications. Use only if power cord and appliance show no signs of damage. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel. Do not connect the appliance to or operate it by means of a time switch or remote control socket. Never leave the appliance unattended while it is switched on! We recommend that the appliance is never switched on for longer than is necessary to process the ingredients. 10

Safety instructions en

The mains cable must not come into contact with hot parts or be pulled across sharp edges. Never immerse the base unit in water or place it in the dishwasher. Do not use the appliance with damp hands and do not operate at no load. Do not immerse the appliance in the ingredients above the blender foot-base unit connection point.

After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains. W Warning! Risk of injury! Do not attach or remove accessories until the appliance is at a standstill. Never grip the blade in the blender foot. Never clean the blade in the blender foot with bare hands. Use a brush. W Warning! Risk of scalding! Take care when processing hot food. Hot food may splash during processing. Never place blender foot on hot surfaces or use in very hot food. Leave boiling food to cool down to at least 70°C before processing. Before using the hand blender in a cooking pot, take the pot off the hotplate. W Warning! Risk of suffocation! Do not allow children to play with packaging material. W Important! It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period. X “Cleaning” see page 13

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

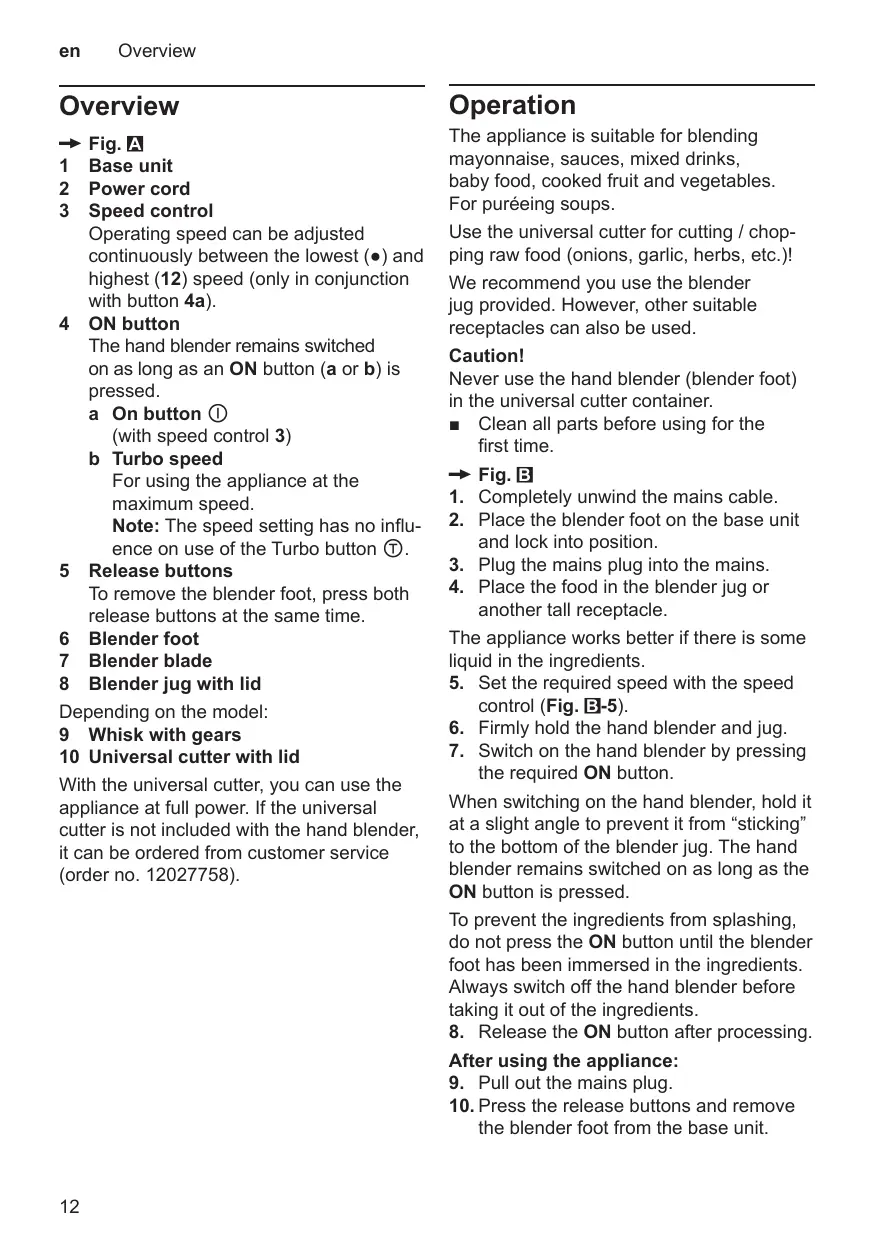

Power cord Speed control Operating speed can be adjusted continuously between the lowest (●) and highest (12) speed (only in conjunction with button 4a). ON button The hand blender remains switched on as long as an ON button (a or b) is pressed. a On button à (with speed control 3) b Turbo speed For using the appliance at the maximum speed. Note: The speed setting has no influence on use of the Turbo button Â. Release buttons To remove the blender foot, press both release buttons at the same time. Blender foot Blender blade Blender jug with lid

Depending on the model:

9 Whisk with gears 10 Universal cutter with lid With the universal cutter, you can use the appliance at full power. If the universal cutter is not included with the hand blender, it can be ordered from customer service (order no. 12027758).

The appliance is suitable for blending mayonnaise, sauces, mixed drinks, baby food, cooked fruit and vegetables.

For puréeing soups. Use the universal cutter for cutting / chopping raw food (onions, garlic, herbs, etc.)! We recommend you use the blender jug provided. However, other suitable receptacles can also be used. Caution! Never use the hand blender (blender foot) in the universal cutter container. ■ Clean all parts before using for the first time. X Fig. B 1. Completely unwind the mains cable. 2. Place the blender foot on the base unit and lock into position. 3. Plug the mains plug into the mains. 4. Place the food in the blender jug or another tall receptacle. The appliance works better if there is some liquid in the ingredients. 5. Set the required speed with the speed control (Fig. B-5). 6. Firmly hold the hand blender and jug. 7. Switch on the hand blender by pressing the required ON button. When switching on the hand blender, hold it at a slight angle to prevent it from “sticking” to the bottom of the blender jug. The hand blender remains switched on as long as the ON button is pressed. To prevent the ingredients from splashing, do not press the ON button until the blender foot has been immersed in the ingredients. Always switch off the hand blender before taking it out of the ingredients. 8. Release the ON button after processing. After using the appliance: 9. Pull out the mains plug. 10. Press the release buttons and remove the blender foot from the base unit.

The appliance and the tools used must be thoroughly cleaned after each use.

X Fig. C Caution! Surfaces may be damaged. Do not use abrasive cleaning products. Note: The plastic parts may become discoloured when processing certain ingredients such as red cabbage or carrots, however this can be removed with a few drops of cooking oil. ■ Pull out the mains plug! ■ Wipe the base unit with a damp cloth and then wipe dry. ■ The blender jug can be cleaned in the dishwasher. ■ Clean the blender foot in the dishwasher or with a brush under running water. ■ Dry the blender foot in an upright position (blender blade face up) so that any trapped water can run out. Note: Appliances with a spiral cable: Never wind the cable round the appliance!

Problem Appliance switches off during use. Remedy The overload protection device is activated. ■ Switch off the appliance and pull out the mains plug. ■ Leave the appliance to cool down for approx. 1 hour in order to deactivate the overload protection device. ■ Switch the appliance on again. If the fault cannot be eliminated, please contact customer service.

Always observe the maximum quantities and processing times in the table. After each operation cycle allow the appliance to

cool down to room temperature. X Fig. D Mayonnaise

– 1 egg (egg yolk and egg white)

– 1 tbsp mustard – 1 tbsp lemon juice or vinegar – 200-250 ml oil – Salt and pepper to taste All ingredients must be at room temperature. When making mayonnaise, air underneath the blender foot prevents the ingredients blending together well. To achieve an optimum result, check that the air can escape before you start mixing. X Fig. E ■ Add all ingredients to the blender jug. ■ Immerse the blender foot and position it on the bottom of the jug. ■ Do not switch on the hand blender. ■ First hold the blender foot at an angle and then tilt the blender jug slowly to the side so air bubbles can escape. Hold the blender jug at an angle without spilling the ingredients and wait until no more air bubbles appear. ■ Hold the blender jug and blender foot straight again and press à button. ■ When the ingredients emulsify, slowly lift the hand blender while switched on and lower again until the mayonnaise has reached the required consistency.

– – – – – – – – ■ ■ ■ ■ ■ ■ ■

200 g carrots 1 small stick of celery 2 tomatoes 1 onion 50 g butter 2 l water Salt and pepper to taste Skin and de-seed the tomatoes. Chop cleaned and washed vegetables and sauté in the hot butter. Add water and salt. Leave to cook for 20-25 min. Take the pot off the cooker. Purée the soup in the pot with the blender. Season with salt and pepper.

1 egg 100 g flour 25 g melted, cooled butter Put all ingredients in the jug in the indicated sequence and blend into a smooth dough.

6 large strawberries or 10 raspberries or 1 banana (cut up into slices) ■ Put the ingredients in the jug and blend. ■ Add sugar to taste.

Tip: For a milkshake, add a scoop of ice cream or use very cold milk.

J Dispose of packaging in an environ­ mentally­friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the frame­ work for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Utilisation conforme

Utilisation conforme

BSH Home Appliances FZE Round About 13, Plot Nr MO-0532A Jebel Ali Free Zone - Dubai

Tel.: 04 881 44 01* mailto:service.uae@bshg.com www.bosch-home.com/ae

*Sun-Thu 8am to 5pm (exclude public holidays)

BA United Arab Emirates,

BSH Home Appliances Pty. Ltd. Gate 1, 1555 Centre Road Clayton, Victoria 3168 Tel.: 1300 369 744* mailto:customersupport.au@bshg.com www.bosch-home.com.au *Mon-Fri 24 hours

*Sat-Thu 7am to 5pm (exclude public holidays)

BSH Home Appliances Service Jiangsu Co. Ltd. 19F, Jinling Asia Pacific Tower, No.2 Hanzhong Road, Gulou District, 210005 Nanjing, Jiangsu Province Service Tel.: 400 8855 888* mailto:careline.china@bshg.com www.bosch-home.cn *phone rate depends on the network used

BSH Electroménager S.A.S. Service Après-Vente 26 ave Michelet – CS 90045 93582 SAINT-OUEN cedex Service interventions à domicile: 01 40 10 11 00 Service Consommateurs: 0,40 € / min 0 892 698 010 Service Pièces Détachées et Accessoires: 0,40 € / min 0 892 698 009 mailto:serviceconsommateur.fr@ bosch-home.com www.bosch-home.com/fr GB Great Britain BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton Milton Keynes MK12 5PT To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call Tel.: 0344 892 8979* *Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IE Republic of Ireland

BSH Home Appliances Ltd. M50 Business Park Ballymount Road Upper Walkinstown Dublin 12 To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: 01450 2655* www.bosch-home.ie *Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

C/S/B/ Home Appliance Ltd. 1, Hamasger St. North Industrial Park Lod, 7129801 Tel.: 08 9777 222 mailto:csb-serv@csb-ltd.co.il www.bosch-home.co.il IN India, Bhārat, BSH Household Appliances Mfg. Pvt. Ltd. Arena House, Main Bldg, 2nd Floor, Plot No. 103, Road No. 12, MIDC, Andheri East Mumbai 400 093 Toll Free 1800 266 1880* www.bosch-home.com/in *Mon-Sat 8am to 8pm (exclude public holidays)

Daehan Minguk, Empel Co. Ltd. 1201 ACE High Tech City 1 Building 775 Gyeongin-ro Youngdeungpo-gu Seoul 07299 South Korea Tel.: 1899 4636 mailto:hsshim@empel.co.kr KZ Kazakhstan, Қазақстан BSH Home Appliances LLP Dostyk 117/6, Business Center “Khan Tengri” Almaty Hotline: 5454* mailto:ALA-Service@bshg.com *Toll free from mobile only

*Mon-Fri 8.30am to 5pm (exclude public holidays)

*Mon-Sat 9am to 6pm (exclude public holidays)

Kingdom Saudi Arabia,

Abdul Latif Jameel Electronics and

Airconditioning Co. Ltd. BOSCH Service centre, Kilo 5 Old Makkah Road (Next to Toyota), Jamiah Dist., P.O. Box 7997 Jeddah 21472 Tel.: 800 127 9999* mailto:ALJECC8@ALJ.COM www.aljelectronics.com.sa *Sat-Thu 8am to 11pm (exclude public holidays)

BSH Home Appliances AB Landsvägen 32 169 29 Solna Tel.: 0771 197 000 mailto:Bosch-Service-SE@bshg.com www.bosch-home.se SG Singapore, BSH Home Appliances Pte. Ltd. 38C Jalan Pemimpin, #01-01 Singapore 577180 Tel.: 6751 5000* mailto:bshsgp.service@bshg.com www.bosch-home.com.sg *Mon-Fri 9am to 6pm, Sat 9am to 1pm (exclude public holidays)

*Mon-Sat 8am to 6pm (exclude public holidays)

Thank you for buying a

Bosch Home Appliance! Register your new device on MyBosch now and profit directly from: • • • • •

Expert tips & tricks for your appliance

Warranty extension options Discounts for accessories & spare-parts Digital manual and all appliance data at hand Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

You´ll find it here. Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
