USER MANUAL CI41236S ASKO

Instructions for use

Mode d'emploi

Cooker hood

Hotte aspirante

CI41236S / ES11AETBE

EN Manual

EN3-EN23

FR Notice dutilisation

FR3-FR23

Technical specifications

22

Appendix

Disposal 23

Introduction

On reading these user manuals you will soon become familiar with the features of this appliance. Please read the appliance's safety and maintenance instructions.

Please retain the operating and installation instructions as these may be useful for future reference.

Please read the separate safety instructions prior to use.

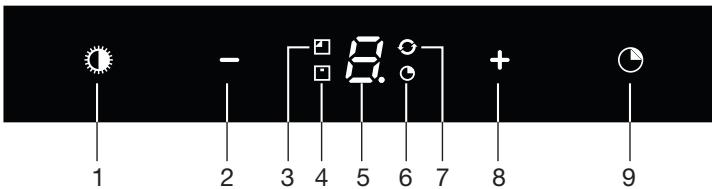

Description

1. Switching on/off and dimming the lighting
2. Reducing air extraction capacity and switching off
3. Cleaning carbon filter indicator
4. Cleaning grease filter indicator
5. Display status
6. Timer function indicator
7. Clean Air function indicator
8. Switching on and increasing air extraction capacity
9. Switching on timer function

Note!

• Prior to activating or deactivating a function, the motor and lighting should be switched off.
• If you have a cooker hood with a carbon filter, you should activate the carbon filter indicator as described in the 'Cleaning filters' paragraph.

Operation

Switching extraction on and off

• Press the ^ + button (8).
  The cooker hood will switch on at the lowest setting.
• Press the ^ + button (8) again to set a higher extraction setting.
  Press and hold the +^ button (8) for 2 seconds to select the highest setting (boost) (see switching on intensive setting).
  The extraction setting can be set between speeds 1 to 5 or 9 (depending on the model).
• Press the '-' button (2) to select a lower setting.
  The extraction setting is indicated in the display (5).
• If the extraction setting is set at 1, you can switch off the cooker hood by quickly pressing and releasing the '-' button (2).
• To switch off the cooker hood from whatever setting press and hold the - button (2) for at least 2 seconds.

Alter the number of speed-settings (models with 9 speed-settings)

You can choose between 9 speed-settings (standard) or 5 speed-settings.

• Press and hold the - button (2) and + button (8) for at least 5 seconds.

This selects the 5 speed-setting option. Press and hold the '-' button (2) and +' button (8) again for at least 5 seconds to select the 9 speed-setting option.

Switching the lighting on and off

• Quickly press and release the lighting button (1).
  The light switches on at maximum strength.
• Press and hold the lighting button (1) to set the lighting strength.
• To turn off the light, quickly press and release the lighting button (1) while the light is on.

The lighting changes from maximum to minimum strength and vice versa.

Switch on intensive setting:

• Press and hold the ^ + button (8) for approximately 2 seconds. The intensive setting (setting ^ P ) is switched on for ten minutes (depending on the model). The display will flash (5) during this period. The original extraction setting will be reactivated after this period.
• Quickly press and release the ^ + (8) button to switch off the intensive setting.

Switching on the timer

• Press the timer button (9). The timer indicator (6) will light up The cooker hood will switch off automatically after 10 minutes.
• Switch off the timer function by pressing the ' -' button '2'.

If the lighting is lit its strength will be reduced automatically by 30 - 40% once the timer has finished.

Note!

If the intensive setting has been selected you cannot activate the timer function.

Clean Air function

The Clean Air function allows you to freshen the air in your kitchen for a maximum of 12 hours.

• Switch off the cooker hood.
• Press and hold the timer button (9) for approximately 4 seconds. The cooker hood will switch on automatically for 10 minutes every hour at the lowest speed setting. During extraction the Clean Air indicator will flash (7). When the hood switches off after 10 minutes, the Clean Air indicator (7) will be lit continuously until the hood switches on again after 50 minutes.
• Switch off the Clean Air function in the meantime by pressing a random button (except the one for lighting).

Cleaning filters

Saturation grease and carbon filters

The filters should be replaced or cleaned when the grease filter indicator (4) or the carbon filter indicator (3) are lit.

Grease filter

The grease filter indicator (4) will flash after 30 operating hours.

• The grease filters should then be cleaned.
• Reset the memory by pressing and holding the - button (2) until the grease filter indicator (4) stops flashing.

Carbon filter

The carbon filter indicator (3) will flash after 120 operating hours.

• The carbon filter should then be cleaned or replaced.
• Reset the memory by simultaneously pressing and holding the - (2) and + (8) buttons until the carbon filter indicator (3) stops flashing.

Switching on carbon filter indicator

• Simultaneously press and hold the ^ + (8) button and the lighting button (1) until the carbon filter indicator (3) flashes twice. The carbon filter indicator is activated.

Switching off carbon filter indicator

• Simultaneously press and hold the ^ + (8) button and the lighting button (1) until the carbon filter indicator (3) flashes once.

The carbon filter indicator is switched on:

• The carbon filter indicator (3) lights up for 3 seconds.
  The carbon filter indicator is switched off:
• The carbon filter indicator (3) flashes for 3 seconds.

Cleaning

Important!

For all maintenance first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least in the same frequency as the grease filter cleaning).

Do not use abrasive cleaning products. Do not use alcohol!

Important!

If the instructions regarding cleaning the appliance or replacing the filters are not followed, this can cause a fire. These instructions should be followed! The manufacturer is not liable for damage to the hood or fire damage resulting from incompetent maintenance or from non-adherence to the above safety instructions.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth.

Then wash off with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker hood finish stays in good condition if it is buffed periodically following the application of wax.

Stainless steel cooker hoods

Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with a non-abrasive, non-polishing agent and buff the stainless steel in the direction of the grain.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator – if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter.

Aluminium grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Removing cassette filter

1 Switch off the motor and lighting.
2 Open the access hatch.
3 Remove the filter from the hood.

Cleaning

The filters can be cleaned in the dishwasher. Allow the filters to drain well before replacing.

The filters can also be cleaned by hand.

Clean the filters in soapy water with washing up liquid and rinse. Allow the filters to drain well. See page 9 for instructions. The underside of the cooker hood can be cleaned with a mild cleaning agent and a damp cloth. Dry off with a paper towel.

Replacing cassette filter

The filter should be placed with the locking mechanism on the side. Open the filter access hatch. The notches at the side of the filter will then slot in. Hold the access hatch in this position when placing the filters.

1 Slot the notches at the back of the filter in the specially designed opening to the side of the cooker hood.
2 Tilt the filter upwards.
3 Release the filter access hatch. The notches at the back of the filter will extend outwards and slot into the specially designed openings of the cooker hood.

The filter is now in position again.

Please note!

Replace the grease filters in their original assembled position (see figure).

Positioning the grease filters correctly ensures the most efficient extraction.

Active carbon filters:

The regenerable active carbon filter must be washed by hand with neutral cleaning products, or in the dishwasher at a maximum temperature of 65^ (the washing should be done without any plates, dishes, cups, etc. in the machine).

Remove the excess water without damaging the filter, remove the holder and let the filter dry in the oven for at least 15 minutes at a maximum temperature of 100^ .

To keep the regenerable carbon filter efficient, this action should be repeated every 2 months or when indicated by the filter indicator. The filter must be replaced after no more than 3 years, or if it has been damaged.

It is important that the grease filters and the regenerable active carbon filter are thoroughly dry before repositioning.

Replacing the carbon filter:

The grease filters should first be removed before replacing the carbon filter.

• Press the two 'B' buttons on the carbon filter inwards.
• Tilt the carbon filter downwards to remove it.
• Repeat the steps above in reverse order, to replace the carbon filter.

Operation:

• Using a carbon filter creates more sound than when using the cooker hood with an outlet.
• The carbon filter's operation is optimal at a lower motor speed. You should, therefore, avoid using the boost function.

Attention!

This hood is fitted with LED light! These have to be replaced by a authorized technician. Do not attempt to replace LED light by yourself.

General

This appliance should be connected to the mains power by a registered installer, who knows and applies the correct safety specifications.

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in your country.

Important information:

• The distance between the lowest point of the cooker hood and a gas hob should be at least 65~cm . With an electric, ceramic or induction hob this distance should be at least 55~cm .
• Follow the applicable local regulations regarding the ventilation of gas appliances.
• The cooker hood will work better with a short outlet pipe and the fewest bends possible.
• Prior to drilling check that there are no pipes or cables present.
• The cooker hood connection pipe is 120 ~mm, 125 ~mm or 150 ~mm in diameter. Use the largest possible (150 mm) flue of the same diameter.
• The installation material provided with this cooker hood is suitable for reinforced concrete and brick walls. You will need special plugs and screws for certain walls.

Connection

Electrical connection

This appliance is manufactured in class I, it must therefore be connected to the earth system.

Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows:

BROWN = phase L

BLUE = phase N

YELLOW/GREEN = Earth

During the electrical connection make sure that the electrical socket is equipped with earth connection.

This built in unit has been provided with a power plug. When installing the hood, make sure that this plug remains accessible.

Please note!

If you want to make a fixed connection, make sure that an omnipolar switch with a contact separation of at least 3mm is fitted in the supply line.

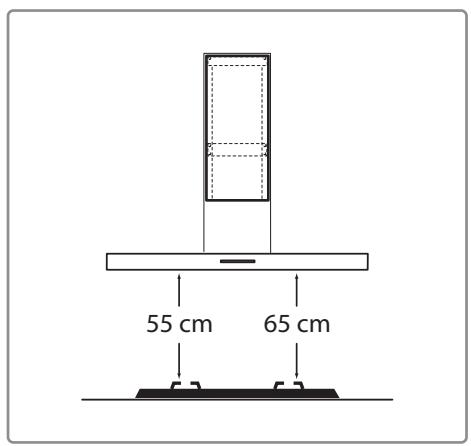

Build-in dimensions

Installation height:

The minimum distance between a gas hob's pan supports and the lower edge of the hood should be 65~cm . For use with an electric, ceramic or induction hob this distance should be at least 55~cm .

This hood could be heavy, therefore we advise to install this hood with at least two people.

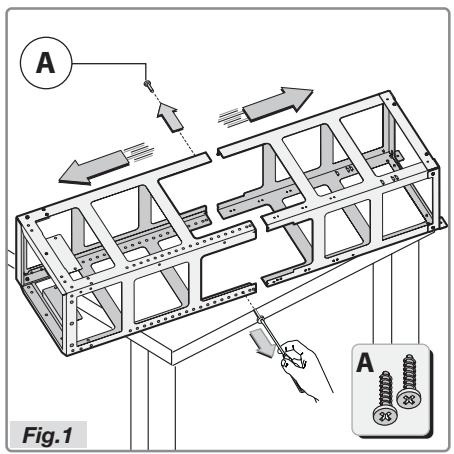

- Unpack the frame and remove the two screws A to separate the top section from the bottom section (Fig.1).

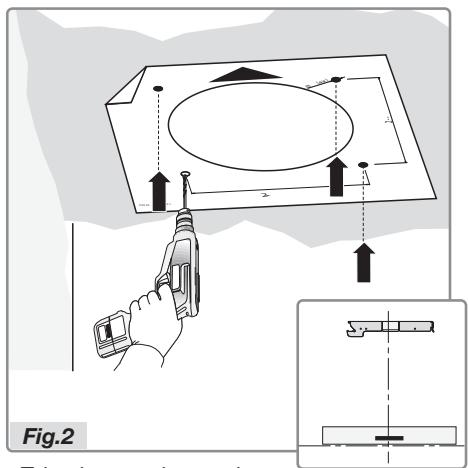

- Take the template and place this against the ceiling with the arrow on the same side as the hood's control panel (Fig.2).

For assembly, screws should be used that are suitable for the wall type (for example reinforced concrete, plasterboard, etc.). If screws and plugs are supplied with the hood, make sure in advance that these are suitable for the wall on which the hood is to be installed.

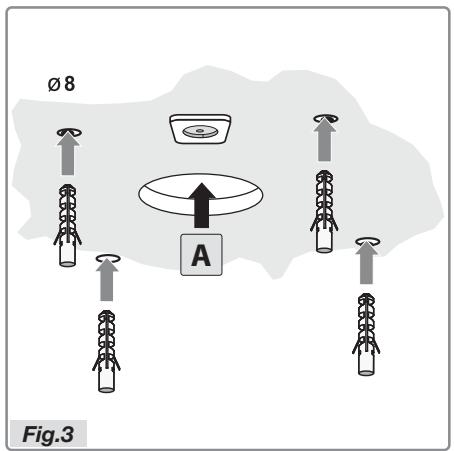

• Drill four holes 8 in the ceiling and affix the four plugs.
• Form the air outlet opening A (Fig.3).
• Connect the tube to the opening A.

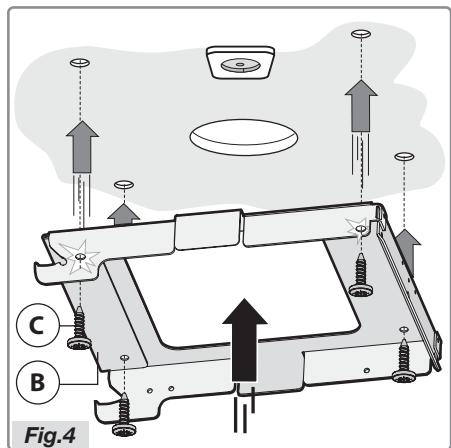

• Take the bracket B and secure this to the ceiling with the four screws C (Fig.4).

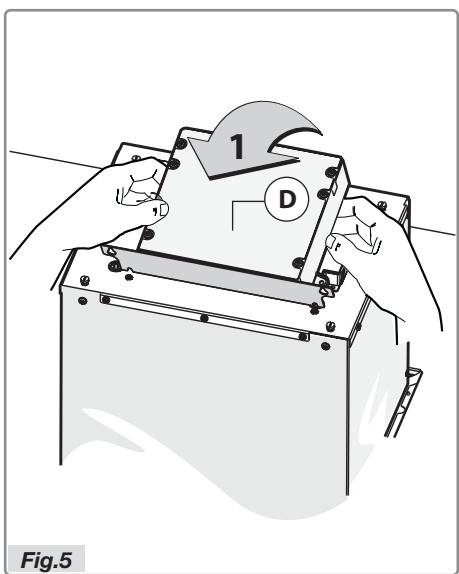

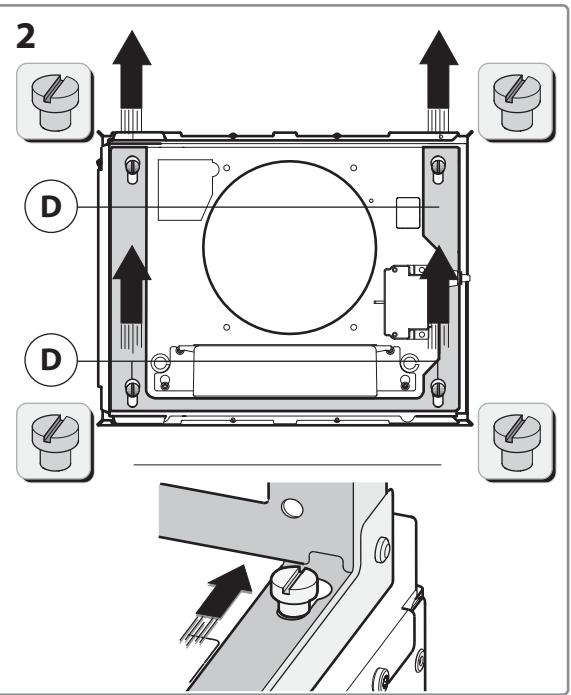

- Before installing the cooker hood fit the electric unit D upright.

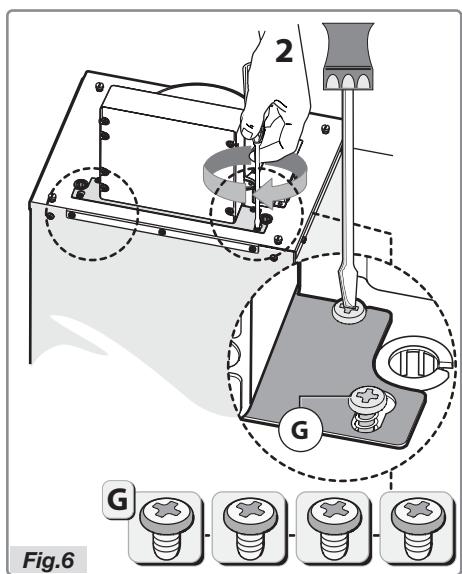

- Secure the bracket with the four screws G, as indicated in Figure 6.

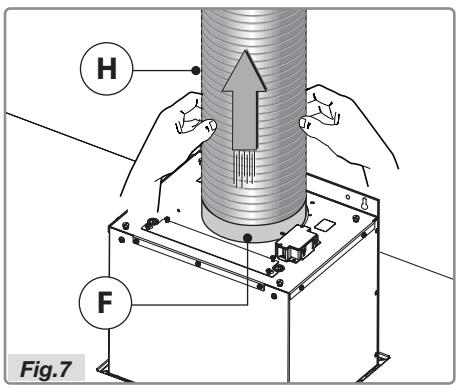

• Secure the air outlet pipe H (not supplied) to the connection flange F as indicated in Figure 7.

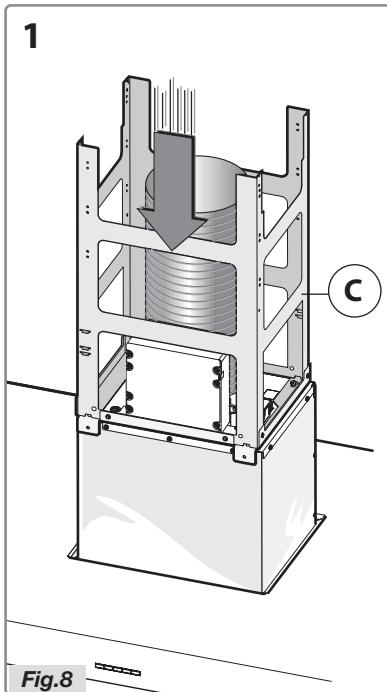

- Take the bottom section of the frame C and fix this to the motor housing (Fig.8).

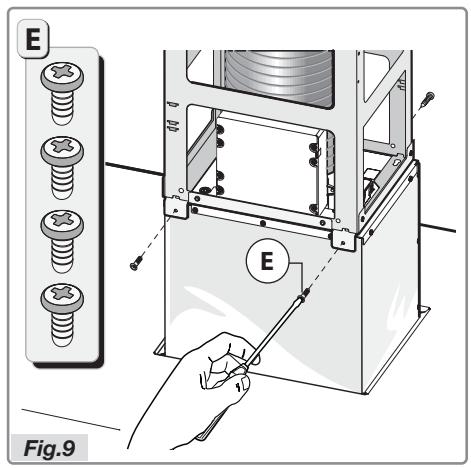

Fix the construction C to the motor housing using the 4 screws E (Fig.9).

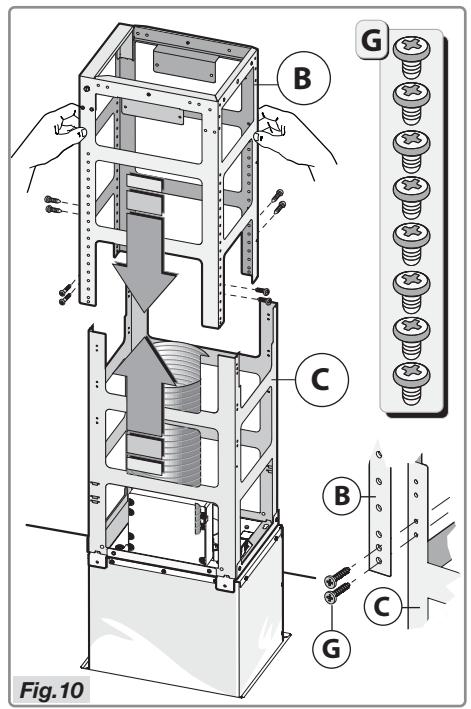

• Take the top section of the frame B and slot this in the bottom section C.

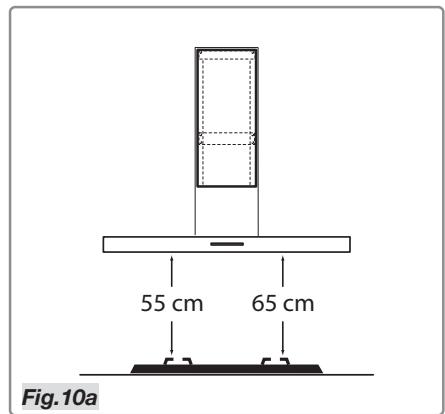

• Adjust the height according to the dimensions in Figure 10a and secure these with the 8 screws G supplied.

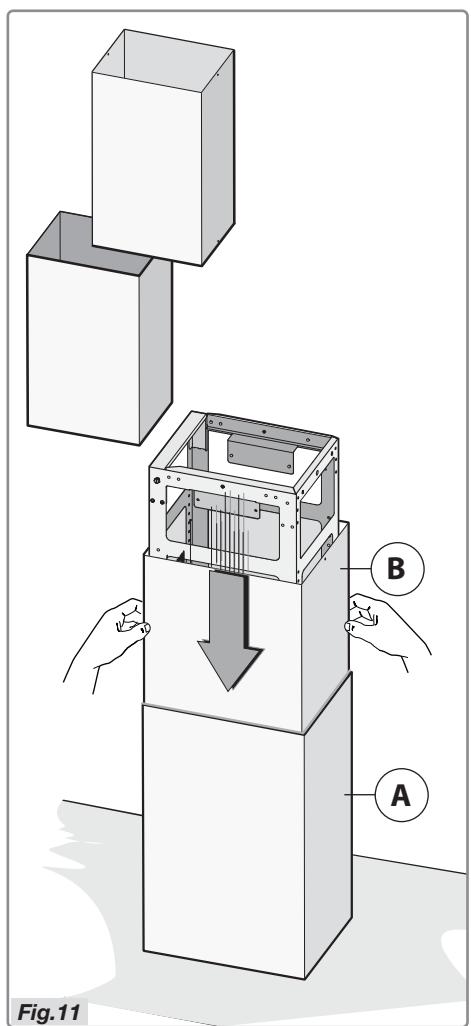

- Connect the bottom shaft A with the top one B as indicated in Figure 11.

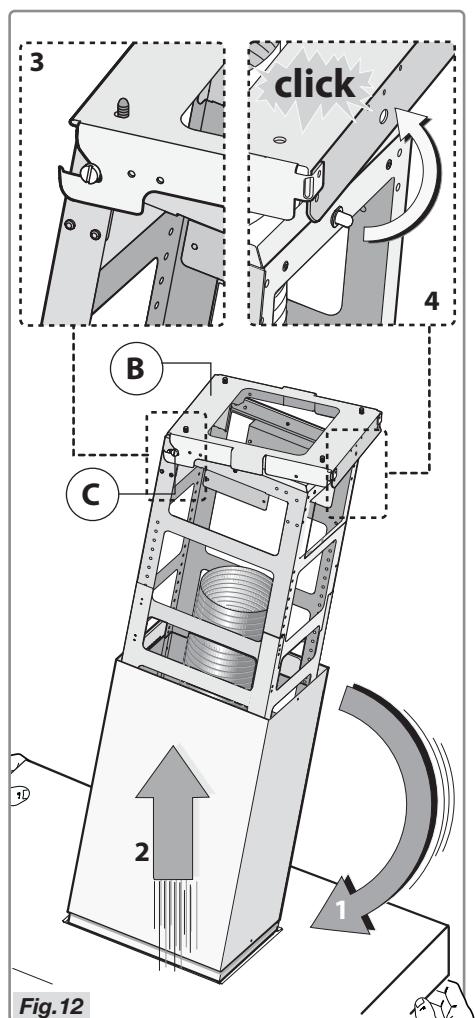

- Tilt the hood as indicated in Figure 12 - step 1.
- Use the two pivot pins C that are already present in the construction to hang the hood on the bracket B. Figure 12 - steps 2-3.
- Put the hood in position so that the safety pin clicks in the gap in the bracket B. Figure 12 - step 4.

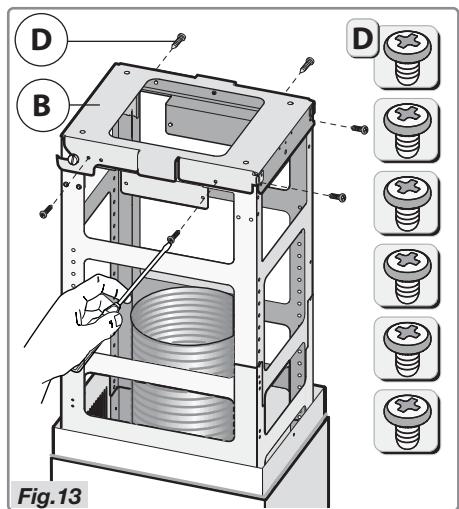

- Please note! Secure the hood directly onto the bracket B with the 6 screws D (Fig.13).

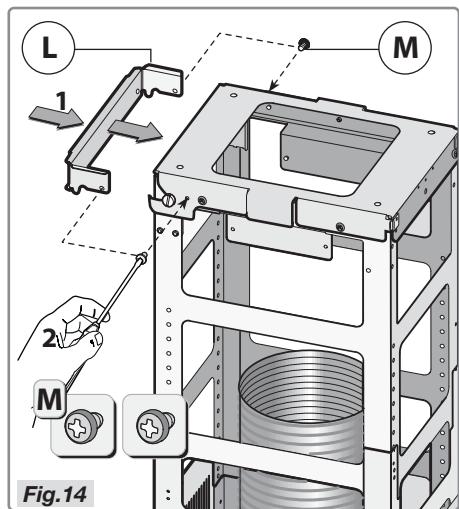

- Take the safety bracket L and secure this to the ceiling plate with the two screws M as indicated in Figure 14 - steps 1-2.

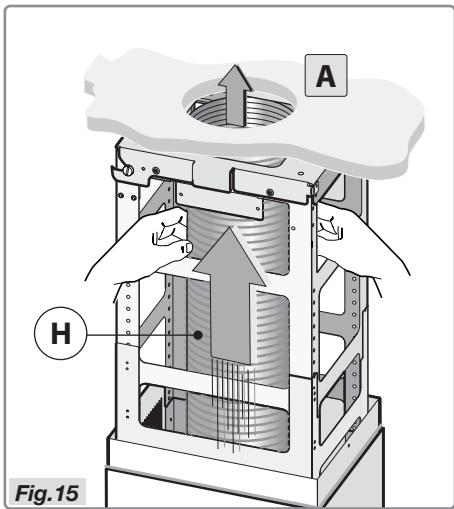

- Connect the pipe H (not supplied) to the air outlet opening A (Fig.15).

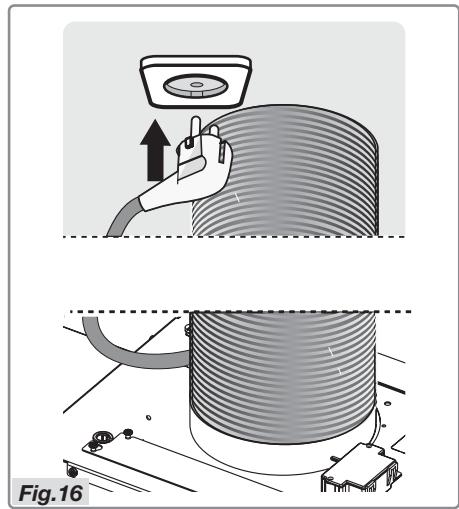

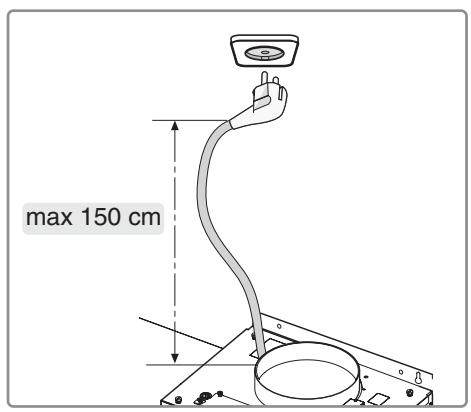

- Insert the plug into the disconnected wall socket (Fig.16).

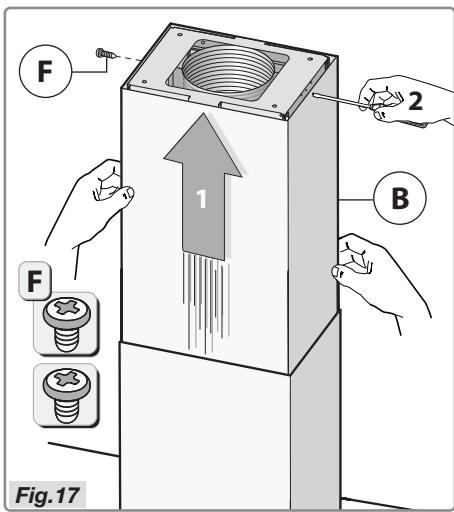

- Connect the shaft B to the ceiling plate using the two screws F (Fig.17).

• Test if the appliance operates correctly.

Hood type	CI41236S
Type / Approval	Island / ES11AETBE
Control type	Touch control
Width	115 cm
Supply Voltage, Frequency	220-240 V, 50/60 Hz
Power	238 W
Power motor	231 W
Power lights	3 x LED 3,5 W
Level 1 Air flow, Noise, Pressure	266 m³/h, 39 dB(A), 169 Pa
Level 2 Air flow, Noise, Pressure	358 m³/h, 47 dB(A), 315 Pa
Level 3 Air flow, Noise, Pressure	438 m³/h, 50 dB(A), 396 Pa
Level 4 Air flow, Noise, Pressure	491 m³/h, 55 dB(A), 420 Pa
Level 5 Air flow, Noise, Pressure	610 m³/h, 61 dB(A), 421 Pa
Level 6 Air flow, Noise, Pressure	656 m³/h, 63 dB(A), 422 Pa
Level 7 Air flow, Noise, Pressure	790 m³/h, 67 dB(A), 424 Pa
Level 8 Air flow, Noise, Pressure	836 m³/h, 69 dB(A), 425 Pa
Level 9 Air flow, Noise, Pressure	930 m³/h, 71 dB(A), 425 Pa

Disposal

Disposal of packaging and appliance

Sustainable materials have been used during manufacture of this appliance. This appliance must be disposed of responsibly at the end of its life cycle. Ask your local authorities for more information about how to do this.

The appliance packaging is recyclable. The following materials may have been used:

cardboard;
polyethylene film (PE);
CFC-free polystyrene (PS-rigid foam);

Dispose of these materials in a responsible manner and in accordance with government regulations.

The product has been marked with a crossed-out dustbin symbol to remind you of the obligation to dispose of electrical household appliances separately. This means that the appliance may not be included with normal domestic refuse at the end of its service life. The appliance must be taken to a special municipal centre for separated waste collection or to a dealer providing this service.

Separate processing of household appliances prevents the potentially negative consequences for the environment and health that can arise as a result of inappropriate processing. It ensures that the materials of which the appliance is composed can be recovered to obtain significant savings in energy and raw materials.
