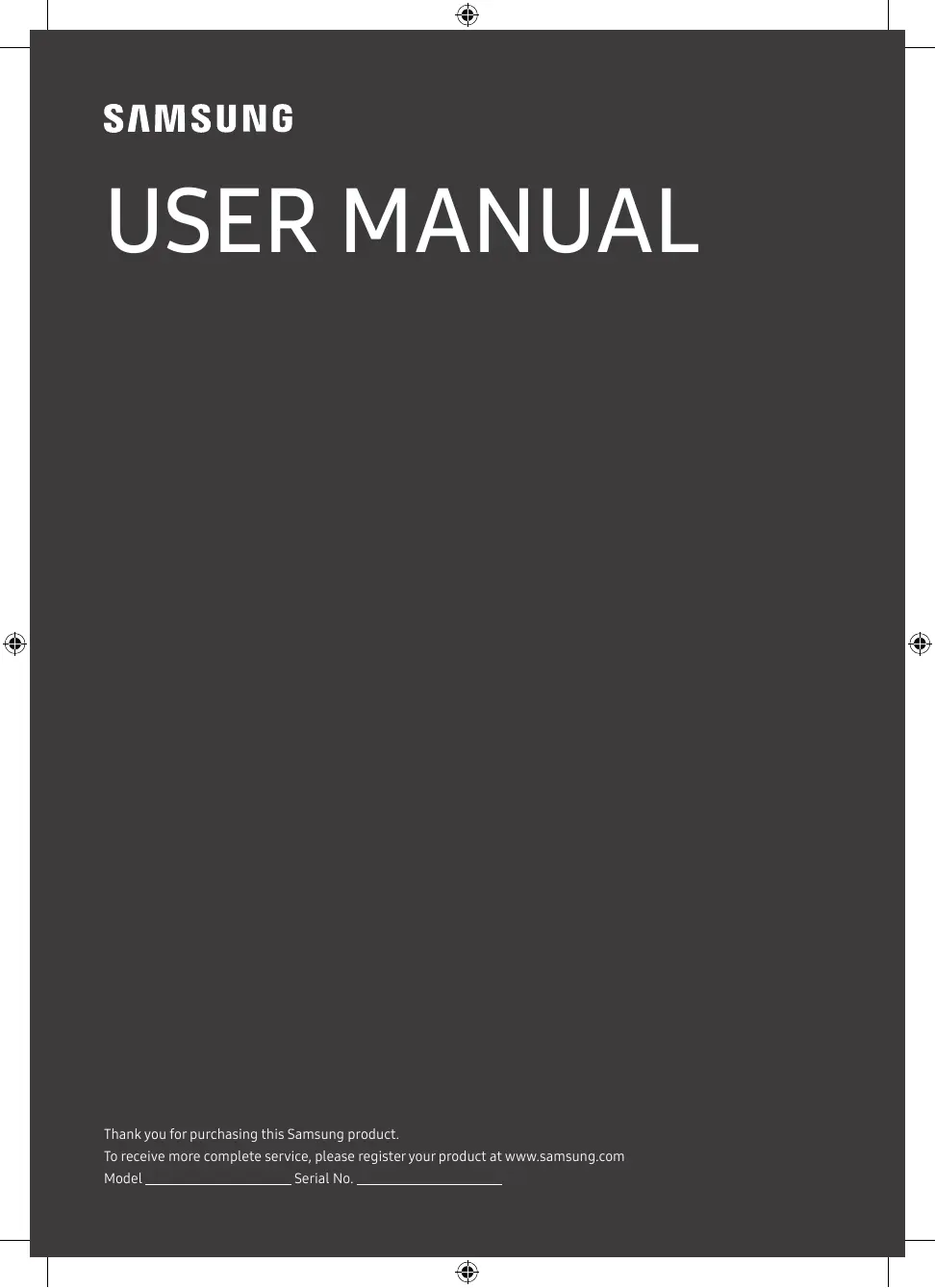

USER MANUAL UE55AU7105 - UE65TU7025 SAMSUNG
Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com Model
Before Reading This User Manual
This TV comes with this User Manual and an embedded e-Manual (
Warning! Important Safety
Instructions Please read the Safety Instructions before using your TV. Refer to the table below for an explanation of symbols which may be on your Samsung product.
•• Do not overload wall outlets, extension cords, or adaptors beyond their voltage and capacity. It may cause fire or electric shock.
Refer to the power specifications section of the manual and/ or the power supply label on the product for voltage and amperage information. •• Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at the plug end, at wall outlets, and at the point where they exit from the
CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product. This symbol indicates that this product has included important literature concerning operation and maintenance. Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground). AC voltage: Rated voltage marked with this symbol is AC voltage. DC voltage: Rated voltage marked with this symbol is DC voltage. Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.
•• Never insert anything metallic into the open parts of this apparatus. This may cause electric shock. •• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus. •• Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug it by pulling on the power cord. Do not touch the power cord with wet hands. •• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it unplug it immediately and contact an authorised dealer or Samsung service centre. •• To protect this apparatus from a lightning storm, or to leave it unattended and unused for a long time (especially when a kid, the elderly, or the disabled is left alone), be sure to unplug it from the wall outlet and disconnect the antenna or cable system. –– Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or by causing the insulation to deteriorate. •• Use only a properly grounded plug and wall outlet. –– An improper ground may cause electric shock or equipment damage. (Class l Equipment only.) •• To turn off this apparatus completely, disconnect it from the wall outlet. To ensure you can unplug this apparatus quickly if necessary, make sure that the wall outlet and power plug are readily accessible.
Installation register, or where it is exposed to direct sunlight.
•• Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock. •• Do not expose this apparatus to rain or moisture. •• Be sure to contact an authorised Samsung service centre for information if you intend to install your TV in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failure to do so may lead to serious damage to your TV. •• Do not expose this apparatus to dripping or splashing.
Mounting the TV on a wall
If you mount this TV on a wall, follow the instructions exactly as set out by the manufacturer. If it is not correctly mounted, the TV may slide or fall and cause serious injury to a child or adult and serious damage to the TV. •• To order the Samsung wall mount kit, contact Samsung service centre. •• Samsung is not responsible for any damage to the product or injury to yourself or others if you choose to install the wall mount on your own. •• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or when the consumer fails to follow the product installation instructions. •• You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe personal injury. •• When installing a wall mount kit, we recommend you fasten all four VESA screws. •• If you want to install a wall mount kit that attaches to the wall using two top screws only, be sure to use a Samsung wall mount kit that supports this type of installation. (You may not be able to purchase this type of wall mount kit, depending on the geographical area.) •• Do not mount the TV at more than a 15 degree tilt. •• Standard dimensions for wall mount kits are shown in the table on the Quick Setup Guide.
turned on. This may result in personal injury from electric shock.
•• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set. •• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications. •• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. •• Always have two people mount the TV onto a wall. –– For 82 inch or larger models, have four people mount the TV onto a wall.
Providing proper ventilation for your TV When you install your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.
•• When you install your TV with a stand or a wall mount, we strongly recommend you use parts provided by Samsung only. Using parts provided by another manufacturer may cause difficulties with the product or result in injury caused by the product falling.
Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang on or destabilise the TV. This action may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the Safety Flyer included with your TV. For added stability and safety, you can purchase and install the anti-fall device, referring to "Preventing the TV from falling". WARNING: Never place a television set in an unstable location. The television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
•• Do not place this apparatus near or over a radiator or heat
Do not install your wall mount kit while your TV is
•• Always use cabinets or stands or mounting methods recommended by Samsung.
3. Connect the brackets fixed to the TV and the brackets fixed to the wall with a durable, heavy-duty string, and then tie the
•• Always use furniture that can safely support the television set.
•• Always ensure the television set is not overhanging the edge
–– Install the TV near the wall so that it does not fall
of the supporting furniture.
•• Always educate children about the dangers of climbing on furniture to reach the television set or its controls.
•• Always route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
–– Connect the string so that the brackets fixed to the wall are at the same height as or lower than the brackets fixed to the TV.
•• Never place a television set in an unstable location.
•• Never place the television set on tall furniture (for example,
•• This apparatus uses batteries. In your community, there might
cupboards or bookcases) without anchoring both the furniture
be environmental regulations that require you to dispose of
and the television set to a suitable support.
these batteries properly. Please contact your local authorities
•• Never place the television set on cloth or other materials that may be located between the television set and supporting
for disposal or recycling information.
•• Store the accessories (remote control, batteries, or etc.) in a location safely out of the reach of children.
•• Never place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.
•• Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a Samsung service centre.
If the existing television set is going to be retained and relocated,
•• Do not dispose of remote control or batteries in a fire.
the same considerations as above should be applied.
•• Do not short-circuit, disassemble, or overheat the batteries.
•• When you have to relocate or lift the TV for replacement or
•• CAUTION: There is danger of an explosion if you replace the
cleaning, be sure not to pull out the stand.
batteries used in the remote with the wrong type of battery.
Replace only with the same or equivalent type.
Preventing the TV from falling
•• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES AND OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
•• To clean this apparatus, unplug the power cord from the wall outlet and wipe the product with a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, Wall-anchor (not supplied)
insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the appearance of the TV or erase the printing on the product.
•• The exterior and screen of the TV can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using a soft cloth to prevent scratches. •• Do not spray water or any liquid directly onto the TV. Any liquid that goes into the product may cause a failure, fire, or electric
1. Using the appropriate screws, firmly fasten a set of brackets to the wall. Confirm that the screws are firmly attached to the wall.
–– You may need additional material such as wall anchors depending on the type of wall. 2. Using the appropriately sized screws, firmly fasten a set of brackets to the TV. –– For the screw specifications, refer to the standard screw part in the table on the Quick Setup Guide.
Make sure the following items are included with your TV. If any
When you turn on your TV for the first time, it immediately
items are missing, contact your dealer.
starts the Initial Setup. Follow the instructions displayed on the
•• Standard Remote Control & Batteries (Depending on the model)
•• Remote Control & Batteries (Depending on the model) •• Samsung Smart Remote & Batteries (Depending on the model)
screen and configure the TV's basic settings to suit your viewing environment.
Using the TV Controller
You can turn on the TV with the TV Controller button at the bottom of the TV, and then use the Control menu. The Control
menu appears when the TV Controller button is pressed while
•• Warranty Card / Regulatory Guide (Not available in some locations)
•• The screen may dim if the protective film on the SAMSUNG logo or the bottom of the TV is not detached. Please remove
the protective film.
•• The type of battery may vary depending on the model.
•• The items’ colours and shapes may vary depending on the models. •• Cables not included can be purchased separately. •• Check for any accessories hidden behind or in the packing materials when opening the box. Warning: Screens can be damaged from direct pressure when handled incorrectly. We recommend lifting the TV at the edges, as shown. For more information about handling, refer to the Quick Setup Guide came with this product.
TV Controller button / Remote control sensor
Setting the sound sensor
•• This function is supported only in Q7*A/Q8*A/QN8*A/ QN9*A Series.
You can turn on or off the sound sensor by using its button at the bottom of the TV.
With the TV on, you can push the button to the left (or backward) to turn on the sound sensor or to the right (or forward) to turn off it. See the pop-up window on the TV to check whether the sound sensor is turned on or off. •• The position and shape of the sound sensor may differ depending on the model. •• During analysis using data from the sound sensor, the data is not saved.
01 What's in the Box?
03 Troubleshooting and
Eco Sensor and screen brightness
brightness of the TV automatically to reduce power consumption.
Eco Sensor adjusts the brightness of the TV automatically. This feature measures the light in your room and optimises the
For more information, see "Troubleshooting" or "FAQ" in the e-Manual.
If none of the troubleshooting tips apply, please visit "www. samsung.com" and click Support or contact the Samsung service centre.
•• This TFT LED panel is made up of sub pixels which require sophisticated technology to produce. There may be, however, a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. •• To keep your TV in optimum condition, upgrade to the latest software. Use the Update Now or Auto update functions on the TV's menu (
Settings > Support > Software Update
If you want to turn this off, go to
Settings > General >
Power and Energy Saving > Brightness Optimisation.
•• The eco sensor is located at the bottom of the TV. Do not block the sensor with any object. This can decrease picture brightness.
Changing the TV’s password
Settings > General > System Manager > Change PIN Run Change PIN and then enter the current password in the password field. The default password is “0000” (France: “1111”).
Enter a new password and then enter it again to confirm it. The password change is complete. If you forgot your PIN code, press the buttons in the following sequence to reset the PIN to “0000” (France: “1111”): On the Samsung Smart Remote or Remote Control: Press
The TV won’t turn on.
•• Make sure that the AC power cable is securely plugged in to the TV and the wall outlet.
•• Make sure that the wall outlet is working and the remote
control sensor at the bottom of the TV is lit and glowing a
04 Specifications and Other
•• Try pressing the TV Controller button at the bottom of the TV to make sure that the problem is not with the remote control.
If the TV turns on, refer to "The remote control does not work".
The remote control does not work.
•• Check if the remote control sensor at the bottom of the TV blinks when you press the remote's Power button. –– AU Series or Standard Remote Control: If it does not blink, replace the remote control's batteries. Make sure that the
Display Resolution Q5*A Series: 1920 x 1080 AU7-AU9/Q6*A-QN9*A Series: 3840 x 2160
batteries are installed with their poles (+/–) in the correct
direction. Alkaline batteries are recommended for longer
Q8*A Series (50"): 40 W, Q8*A Series (55"-85"): 60 W
–– Q Series (except for Standard Remote Control): When the remote's battery is discharged, charge the battery using the USB charging port, or turn over the remote to expose the solar cell to light.
•• Try pointing the remote directly at the TV from 1.5-1.8 m away. •• If your TV came with a Samsung Smart Remote (Bluetooth Remote), make sure to pair the remote to the TV. To pair a Samsung Smart Remote, press the for 10 seconds.
QN9*A Series (43"): 20 W, QN9*A Series (50"): 40 W QN9*A Series (55"-98"): 60 W Operating Temperature
10 °C to 40 °C (50 °F to 104 °F)
-20 °C to 45 °C (-4 °F to 113 °F)
(Volume Down) > Press RETURN Notes
•• For information about the power supply, and more information about power consumption, refer to the information on the label attached to the product. –– On most models, the label is attached to the back of the TV. (On some models, the label is inside the cover terminal.)
•• Typical power consumption is measured according to IEC Decreasing power consumption
When you shut the TV off, it enters Standby mode. In Standby mode, it continues to draw a small amount of power. To decrease power consumption, unplug the power cord when you don't intend to use the TV for a long time.
•• To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps) * Shielded Twisted Pair •• The images and specifications of the Quick Setup Guide may differ from the actual product. •• An administration fee may be charged in the following situations: (a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read). (b) You bring the unit to the Samsung service centre, but it is found that the product has no defect (i.e., where the user manual has not been read). •• You will be informed of the administration fee amount before a technician visits. * Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.
Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.
Please visit samsung.com/support to find futher information about external power adapter and remote control associated with EU Ecodesign directive - ErP regulation
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other countries. Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements. The full text of the declaration of conformity is available at the following internet address: http://www.samsung.com go to Support and enter the model name. This equipment may be operated in all EU countries and in the UK. The 5 GHz WLAN(Wi-Fi) function of this equipment may only be operated indoors. BT max transmitter power : 100mW at 2.4GHz – 2.4835GHz Wi-Fi max transmitter power : 100mW at 2.4GHz-2.4835GHz, 200mW at 5.15GHz-5.25GHz, 100mW 5.25GHz-5.35GHz & 5.47GHz - 5.725GHz
•• This device is a Class B digital apparatus.
Correct Disposal of This Product (Waste
Correct disposal of the batteries in this
Electrical & Electronic Equipment)
(Applicable in countries with separate
(Applicable in countries with separate
This marking on battery, manual or packaging indicates that the
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. Removing the battery •• To remove the battery, contact an authorised service centre. To obtain battery removal instructions, please visit www. samsung.com/global/ecodesign_energy. •• For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe.
batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. •• The type of battery may vary depending on the model. Correct disposal of the batteries in this product (Applicable in countries with separate collection systems) The marking on the battery, manual or packaging indicates that the battery in this product should not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. The battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider. Do not attempt to remove the battery or dispose it in a fire. Do not disassemble, crush, or puncture the battery. If you intend to discard the product, the waste collection site will take the appropriate measures for the recycling and treatment of the product, including the battery. •• The type of battery may vary depending on the model.
