Product type	Personal computer
Brand	AOPEN
Model	DE3450S
Dimensions (L x D x H)	170 x 380 x 410 mm
Weight	Approximately 7 kg
Power supply	250 W
Processor	Intel Core i3
RAM memory	4 GB
Hard drive	500 GB HDD
Operating system	Windows 10
Main functions	Office work, internet browsing, multimedia
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use liquids.
Safety	Unplug before cleaning. Do not open the case while powered on.
Battery	Replaceable CMOS battery (CR2032). Risk of explosion if replaced incorrectly.
Spare parts	Available from AOPEN customer service
Repairability	Repairable by a qualified professional
General information	Operating temperature: 0-35°C. Do not expose to moisture.

Frequently Asked Questions - DE3450S AOPEN

How to clean my AOPEN DE3450S?

Use a soft, dry cloth to dust surfaces. Never use liquid or abrasive products. Unplug the device before cleaning.

How to replace the CMOS battery?

The CMOS battery (CR2032) is on the motherboard. Open the case, locate the battery, unclip it and insert the new one respecting polarity. Caution: risk of explosion if replaced incorrectly.

What to do if the computer does not turn on?

First check the power cable and wall outlet. Ensure the switch on the back of the case is in the 'I' position. If nothing happens, contact a technician.

Can I add more RAM?

Yes, the computer has free DIMM slots. Maximum supported memory is 16 GB. Use compatible DDR3 modules.

How to connect the computer to a Wi-Fi network?

Ensure the Wi-Fi driver is installed. Click on the network icon in the taskbar, select your network and enter the password.

The computer beeps at startup, what to do?

Beeps indicate a hardware problem. Consult the manual for code meanings. Common causes are improperly seated memory or a faulty graphics card.

Where to download drivers?

Visit the AOPEN website, Support section. Search for your model DE3450S and download drivers for your operating system.

How to reset the Windows password?

Use a password reset disk or boot into safe mode with command prompt. For more security, contact support.

The screen stays black after powering on, what to check?

Check that the video cable is properly connected to both computer and monitor. Try another monitor or video port. If the problem persists, the graphics card may be faulty.

How to recycle the computer at end of life?

Do not throw the device in the trash. According to the WEEE directive, dispose of it at an authorized collection point. More information at www.aopen.com, 'Green Products' section.

USER MANUAL DE3450S AOPEN

Personal Computer User Guide for DE6340 series

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under "Green Products"

糜葉上の指示

Instruction de Disposition (French)

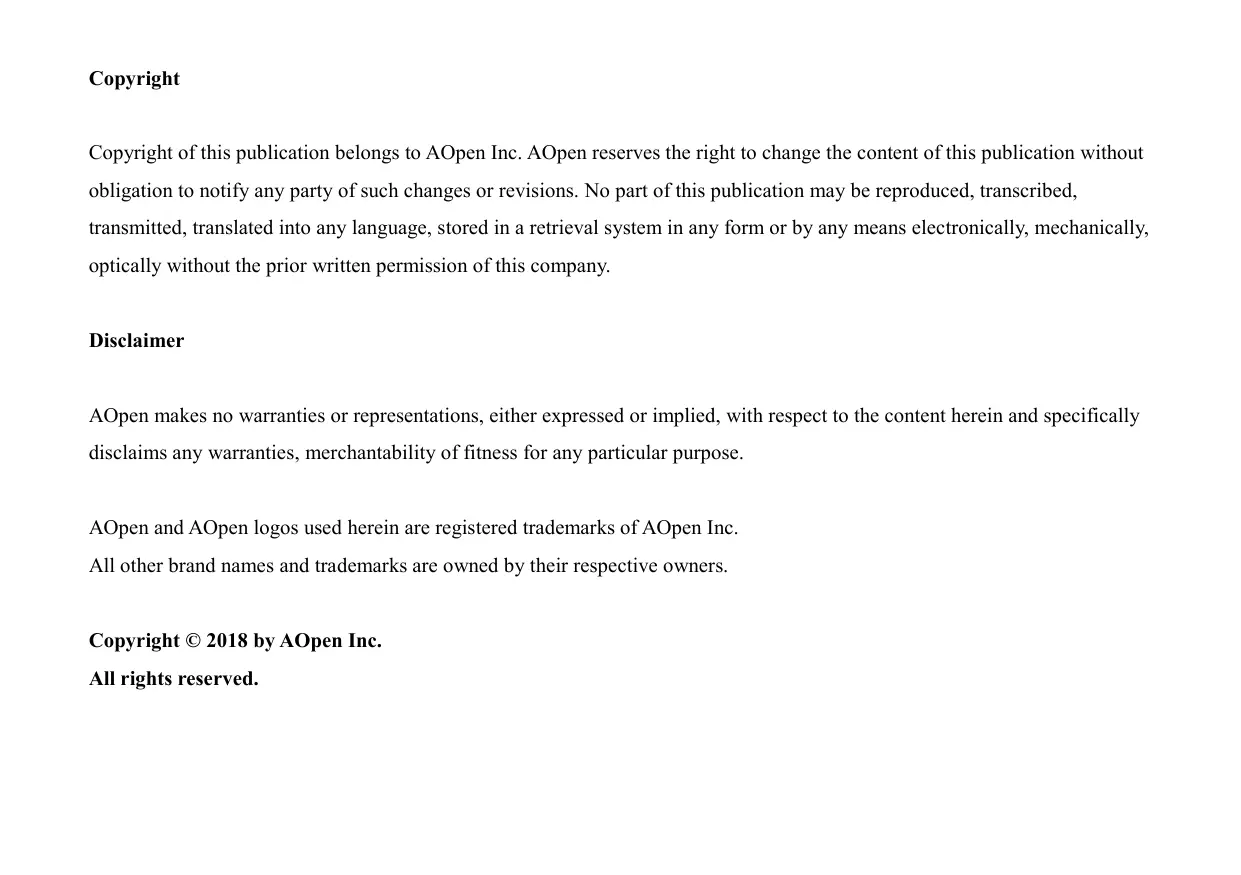

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpens makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2018 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according the manufacturer's instruction or your local authority.

1. Safety caution concerning laser products:

DVD-ROM/CD-RW combo drive is "Class I Laser Product" This equipment, built with DVD and/or CD disc drives using laser beam to read or write data on optical discs, is classified as "Class 1 laser product". While the laser optical drive is reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve the optical disc only after the in-use indicator goes off.

1. Ambient operation temperature: 0 40 degrees C.

2. Risk of overheating!

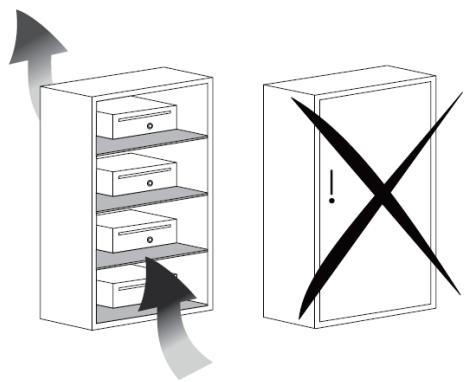

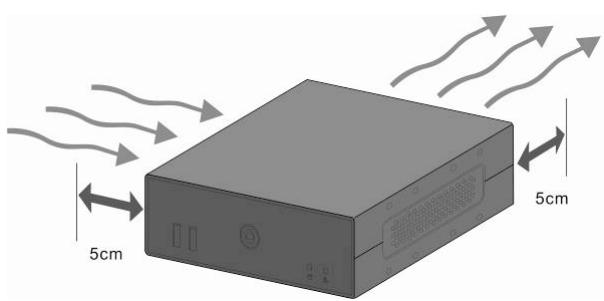

3. Do not install DE6340 in a closed space. Be sure the ventilation holes in the DE6340 side for at least 1 to 2 inches or 2 to 5cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE6340

In right side and rear side keep space at least 5cm

Don't put operating device inside closed space.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1.Outlook 2
2. Product Specification 4
3. Internal Connectors 5
4. Function introduction 6
5. Packing List 8
6. Chassis and Holder Dimension 9

1. Outlook

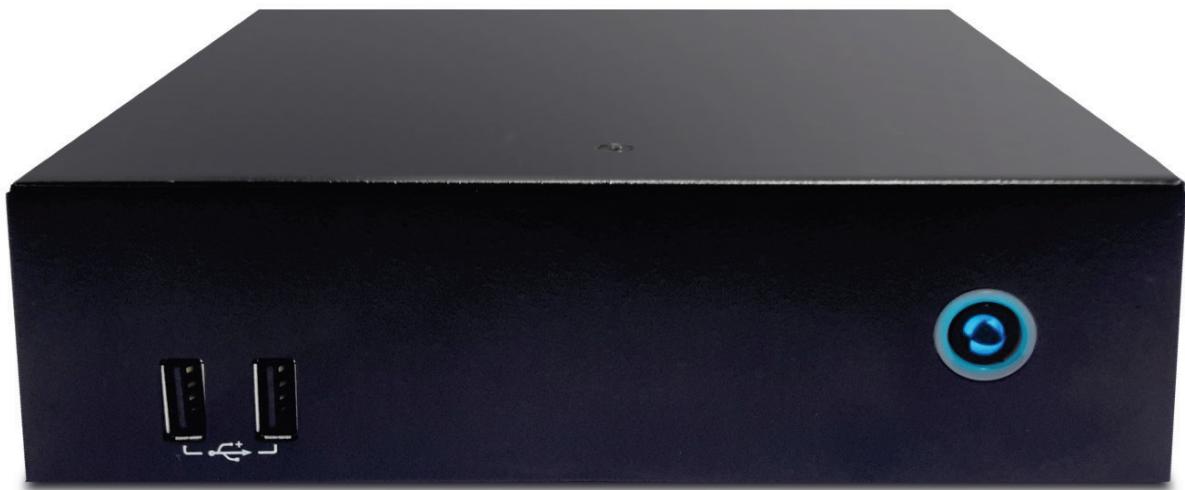

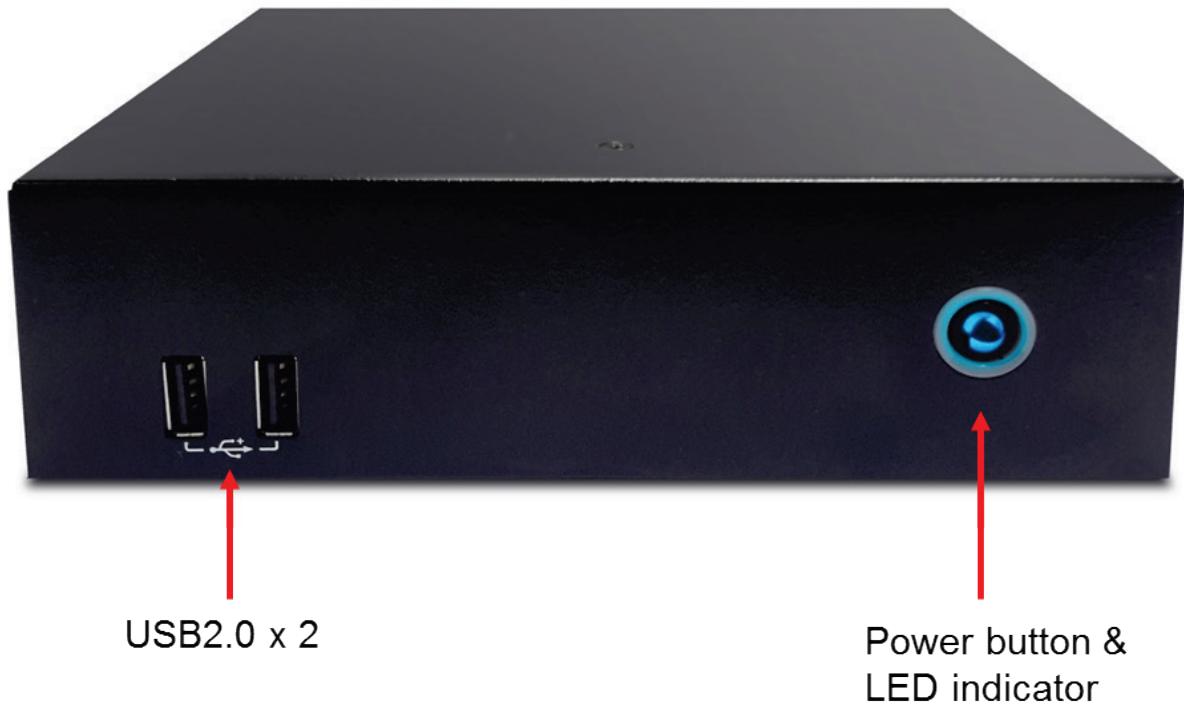

Front IO

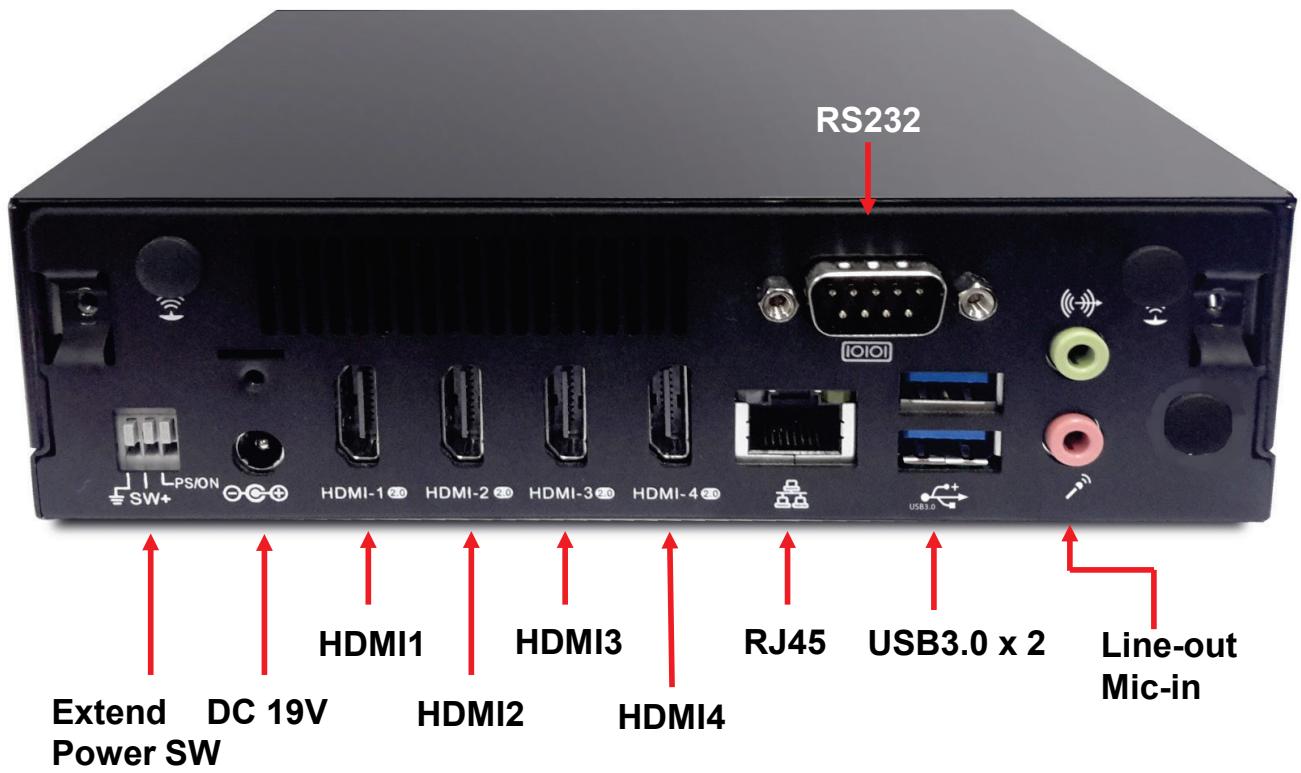

Rear IO

2. Product Specification

CPU	AMD Embedded V1000 APU V1807B, FP5 BGA type, Quad core TDP=45~54W
Chipset	NA
Memory	Dual Channel Mode, SO-DIMM DDR4 x 2, 3200MHz, Max memory size : 32GB
Graphics	AMD Vega/GFX9 Graphics Core
Expansion Slot	M.2 2230 x 1(key E for wifi), M.2 2242 x 1(key B for SSD) M.2 2242 x 1(key B for AiCU)
Audio	Realtek ALC269Q HD Audio CODEC on-Board.
LAN	Realtek 10/100/100bps LAN controller RTL8111H-CG
Front Panel IO	Power Button x 1 (with Power indicator (Blue)), HDD indicator (Blue) x 1, USB 2.0 Port x 2
Rear Panel IO	DC 19V Jack x 1, HDMI 2.0 Port x 4, RJ45 LAN Jack x 1, USB 3.0 Port x 2, RS232 Serial Port x 1, HD Audio ports (speaker out x 1, Mic in x 1), extend power S.W.
Adapter	90W (19V, 4.74A) AC Power Adapter
Input Voltage	AC 100 ~ 240V

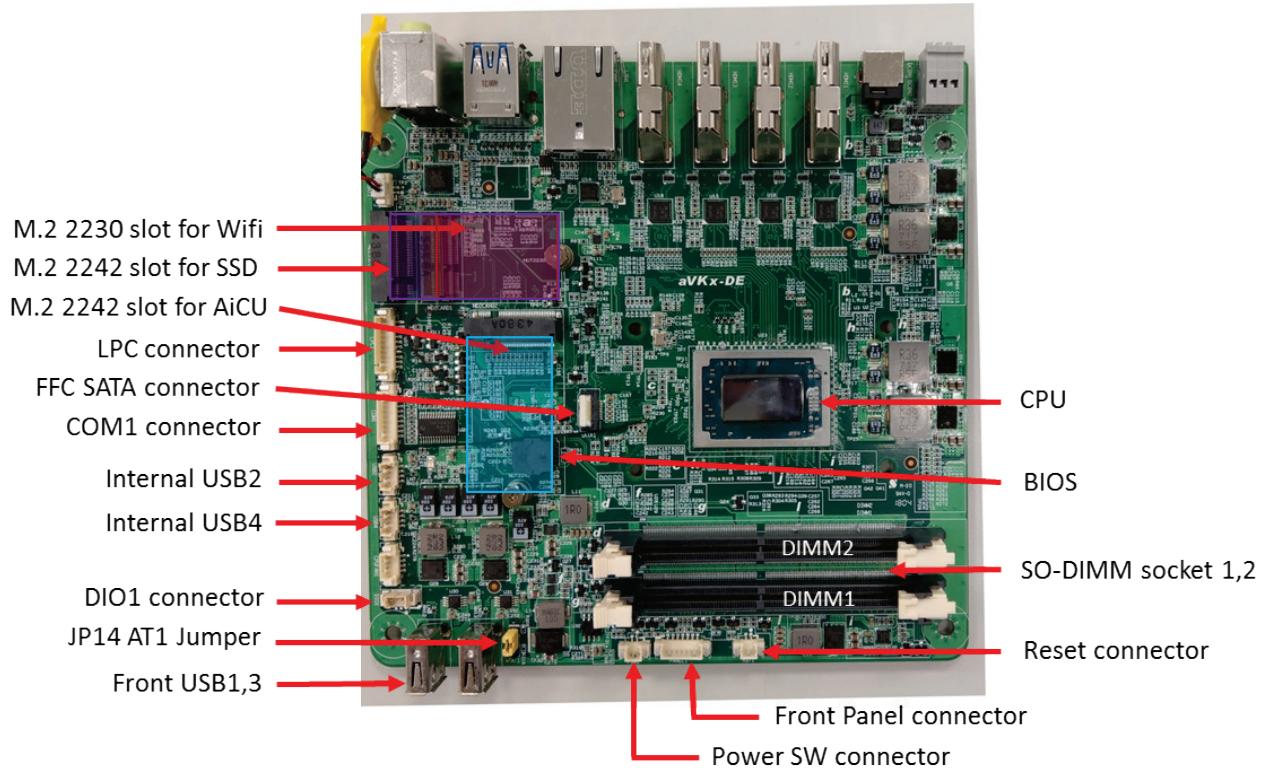

3. Internal Connectors

4. Function Introduction

4.1 Extend power switch

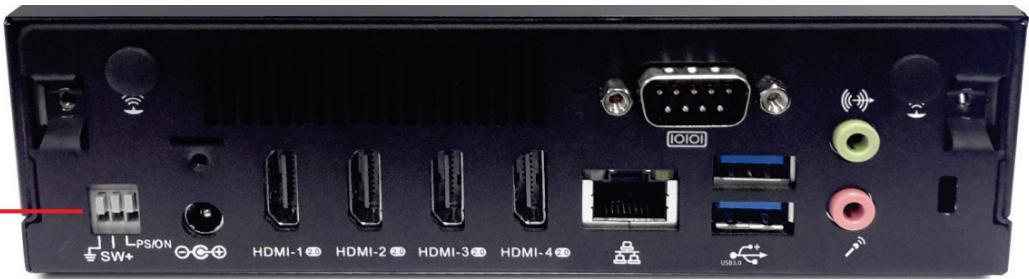

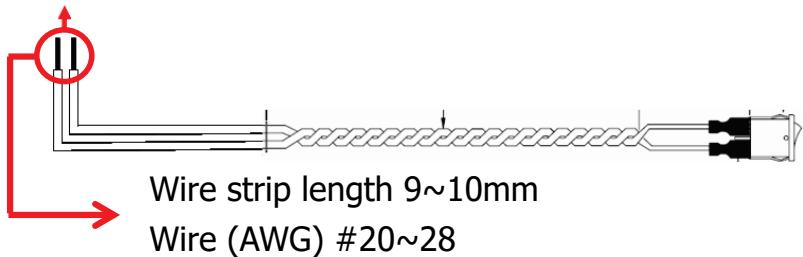

Extend power switch at rear IO of DE6340 can allow customer to extend the power switch by their demand, and customer can decide their own switch specification and cable length just follow the wire gauge and strip length.

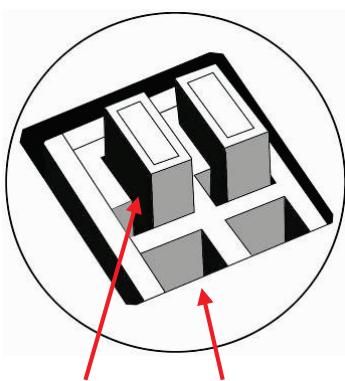

Button
hole

(The cable above is a illustration diagram only not a accessory)

Ground & SW+ are for connection to extend power switch, and PS_ON is a signal to present the system power on/off status, when PS_ON signal is low, then system is in power on status when PS_ON signal is high, then system is in power off status

This is a screwless type spring clamp pluggable terminal block, you can insert a wire by press the button on the terminal, please refer to the procedure below.

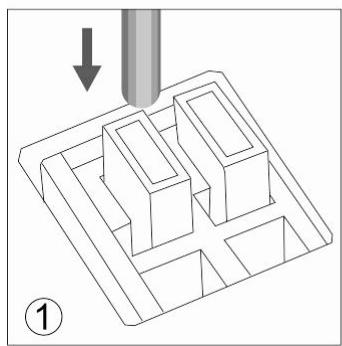

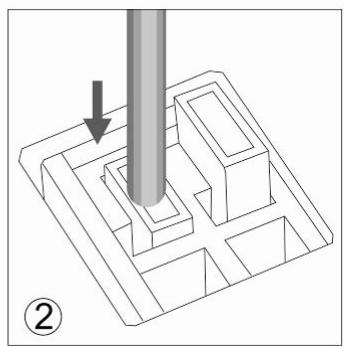

Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block. Step 2 push the button in the end and hold it

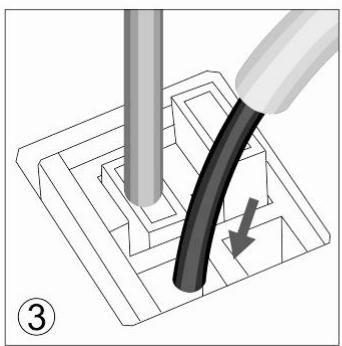

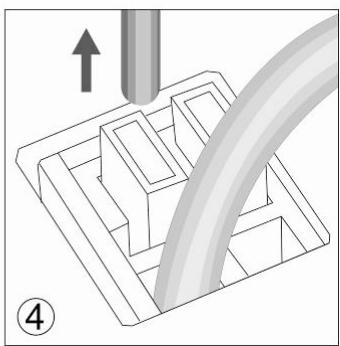

Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted. Step 4 release the pin or rod then the wire will clamp by the terminal block

step1

step2

step3

step4

5. Packing List

DE6340

1 x DE6340 system
1 x User Guide
1xDriverCD
1 x 90W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 - L4 screws
1x power holder

6. Chassis and Holder Dimension

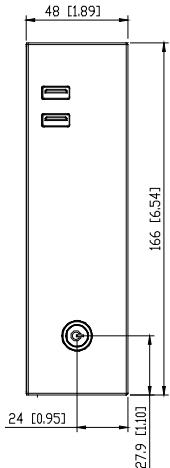

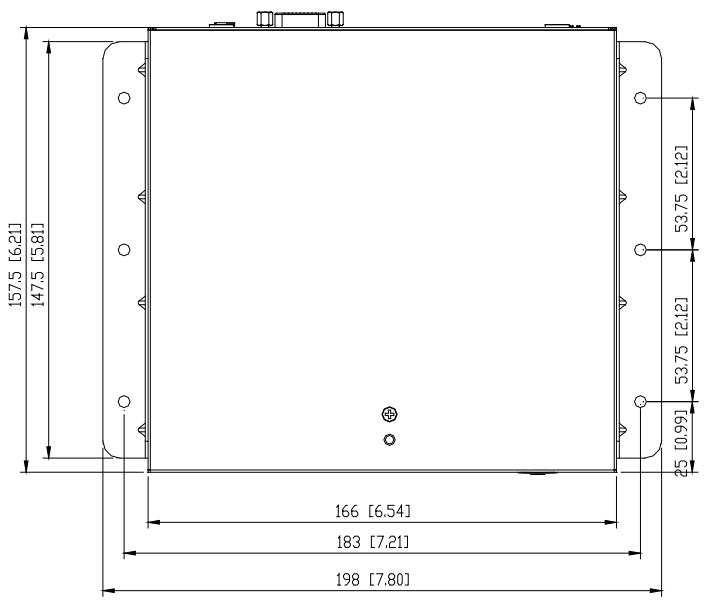

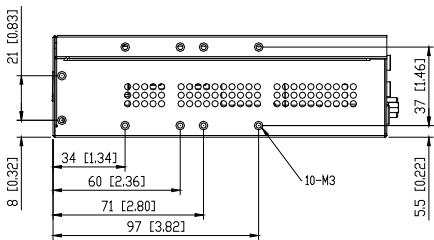

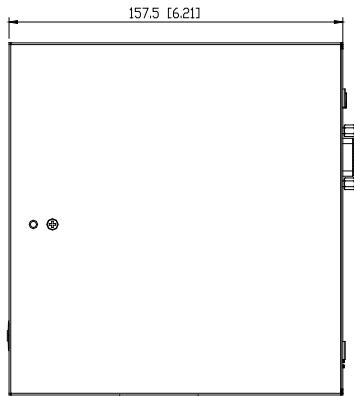

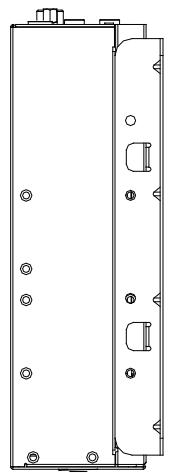

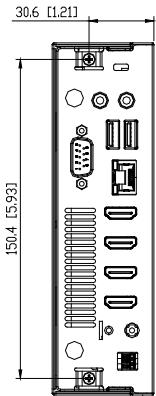

A. Dimension of DE6340 (unit: mm[inch])

B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws)

Dimension of L type Holder. (unit: mm)

(This L type Holder can only lock on horizontal desktop table)
