USER MANUAL SERIES 1000 S1060 PHILIPS

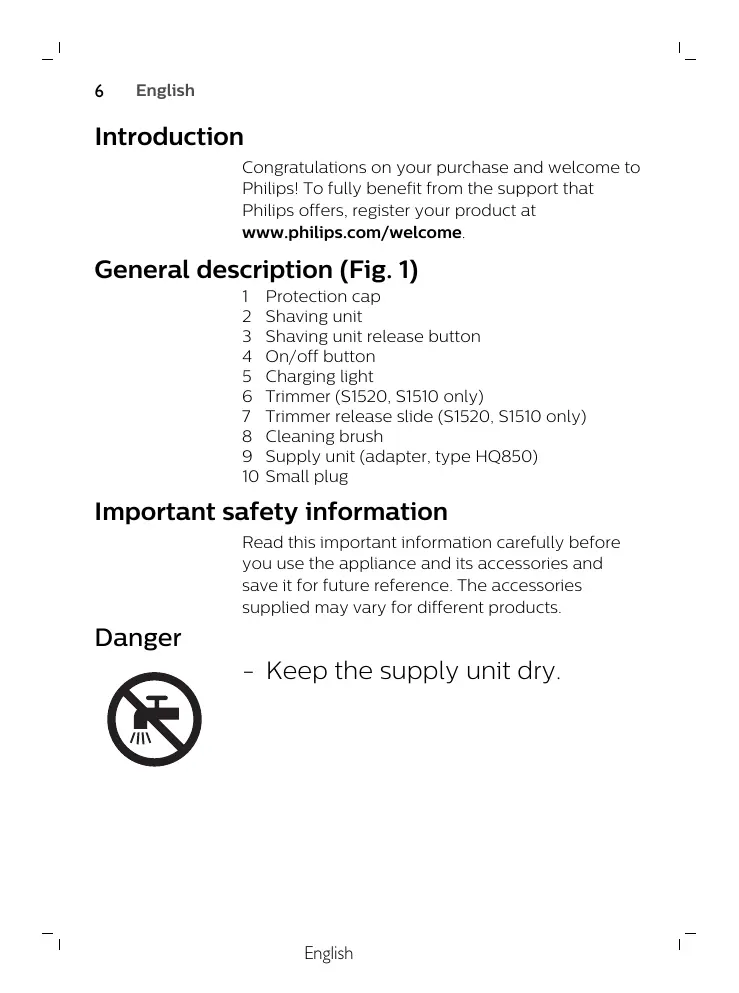

Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1) 1 2 3 4 5 6 7 8 9 10

Protection cap Shaving unit Shaving unit release button On/off button Charging light Trimmer (S1520, S1510 only) Trimmer release slide (S1520, S1510 only) Cleaning brush Supply unit (adapter, type HQ850) Small plug

Important safety information Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger - Keep the supply unit dry.

Warning - The appliance is a Class III construction. - To charge the battery, only use the detachable supply unit (type HQ850) provided with the appliance. - The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type. - Do not open the appliance to replace the rechargeable battery.

Caution - This appliance is not washable. Never immerse the appliance or the charging stand in water and do not rinse it under the tap. - Only use this appliance for its intended purpose as shown in the user manual. - For hygienic reasons, the appliance should only be used by one person. - Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. - Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit. Electromagnetic fields (EMF) - This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General - The appliance is suitable for mains voltages ranging from 100 to 240 volts. - The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging It takes approx. 8 hours to fully charge the appliance. When you charge the appliance for the first time or after a long period of disuse, let it charge until the charging light lights up continuously. A fully charged appliance provides up to 45 (S1520), 40 (S1510) or 35 (S1320, S1310) minutes of shaving time.The shaving time may be less than 45, 40 or 35 minutes as a result of your shaving behavior, your cleaning habits or your beard type.

Charging with the adapter 2

1 Put the small plug in the appliance. 2 Put the adapter in the wall socket. - The charging light shows the charging status of the appliance (see section ‘Charge indications’ in this chapter). 3 After charging, remove the adapter from the wall socket and pull the small plug out of the appliance.

Charge indications Battery low - When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange. - When the battery is completely empty, the charging light starts to flash orange quickly.

- When you switch off the appliance, the charging light continues to flash orange for a few seconds.

Charging - When the appliance is charging, the charging light flashes green.

Battery fully charged - When the battery is fully charged, the charging light lights up green continuously. Note: After approx. 30 minutes, the charging light goes out to save energy. Note: When you press the on/off button while the appliance is connected to the wall socket, the charging light lights up to remind you to unplug the appliance before use.

Using the appliance Note: This appliance can only be used without cord.

Shaving tips & tricks - Make circular movements during use. Circular movements provide better shaving results than straight movements. - Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

Switching the appliance on and off 1

To switch on the appliance, press the on/off button once. 2 To switch off the appliance, press the on/off button once.

Shaving 1 Switch on the appliance. 2 Move the shaving heads in circular movements over your skin. 3 After shaving, switch off the appliance. 4 Clean the appliance (see chapter 'Cleaning and maintenance').

Trimming (S1520, S1510 only) You can use the trimmer to groom your sideburns and moustache. 1 Push the trimmer slide downwards to open the trimmer. 2 Switch on the appliance.

- You can now start trimming. 3 After trimming, switch off the appliance. 4 Clean the trimmer (see chapter ‘Cleaning and maintenance’).

5 Close the trimmer (‘click’).

Cleaning and maintenance Danger: This appliance is not washable. Never immerse the appliance in water, nor rinse it under the tap. Caution: Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. - Clean the appliance after every shave for optimal shaving performance. - Regular cleaning guarantees better shaving performance. - For the best cleaning results, we advise you to use the Philips Cleaning spray (HQ110). - Never clean the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving heads and the coupling spindles.

Cleaning the shaving unit with the cleaning brush 1

Switch off the appliance and make sure it is disconnected from the wall socket. 2 Clean the outside of the shaving unit with the brush supplied.

English 3 Press the release button to open the shaving unit.

4 Clean the inside of the shaving unit and hair chamber with the brush supplied. 5 Close the shaving unit.

Thorough cleaning Clean the shaving heads thoroughly once a month for optimal performance. 1 Switch off the appliance and make sure it is disconnected from the wall socket. 2 Press the release button to open the shaving unit. Pull the shaving unit off the appliance.

3 Turn the lock anticlockwise and remove the retaining frame.

4 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard. Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong

shaving guard, it may take several weeks before optimal shaving performance is restored. - Remove the cutter from the shaving guard and clean it with the brush. - Clean the inside and outside of the shaving guard with the brush.

5 Put the cutter back into the guard.

6 Put the shaving heads back into the shaving unit. Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving head holder. 7 Put the retaining frame back into the shaving unit and turn the lock clockwise.

8 Insert the lug of the shaving unit into the slot in the top of the appliance. Then close the shaving unit ('click'). Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Cleaning the trimmer with the cleaning brush (S1520, S1510 only) Clean the trimmer every time you have used it. 1 Switch off the appliance and make sure it is disconnected from the wall socket. 2 Push the trimmer slide downwards to open the trimmer.

3 Clean the trimmer with the cleaning brush. Brush up and down along the trimmer teeth. 4 Close the trimmer (‘click’).

Tip: For optimal trimming performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage Put the protection cap on the shaver to prevent damage.

Replacement For maximum shaving performance, we advise you to replace the shaving heads every two years. Replace damaged shaving heads immediately. Always replace the shaving heads with original Philips shaving heads (see 'Ordering accessories'). 1 Switch off the appliance and make sure it is disconnected from the wall socket.

2 Press the release button to open the shaving unit. Pull the shaving unit off the appliance.

3 Turn the lock anticlockwise and remove the retaining frame.

4 Remove the shaving heads from the shaving unit and throw them away. 5 Place new shaving heads in the shaving unit. Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving head holder. 6 Put the retaining frame back into the shaving unit and turn the lock clockwise.

English 7 Insert the lug of the shaving unit into the slot in the top of the appliance. Then close the shaving unit ('click'). Note:If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Ordering accessories To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the worldwide guarantee leaflet for contact details). The following accessories and spare parts are available: - SH30 Philips Shaving Heads. - HQ110 Philips shaving head cleaning spray

Recycling - This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery.

- Follow your country’s rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Guarantee and support If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

The appliance The shaving heads does not shave as are damaged or well as it used to. worn. Long hairs obstruct the shaving heads.

Solution Replace the shaving heads. See chapter 'Replacement'. Clean the shaving heads one by one (see chapter 'Cleaning and maintenance').

The appliance does not work when I press the on/off button.

You have not inserted the shaving heads properly.

Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shavinghead holder (see chapter 'Cleaning and maintenance').

The appliance is connected to the wall socket.

This appliance can only be used without cord.

The rechargeable battery is empty.

Recharge the battery (see chapter 'Charging').

The temperature of the appliance is too high. In this case, the appliance does not work.

As soon as the temperature of the appliance has dropped sufficiently, you can switch on the appliance again.
