D96IKU1S0 - Kitchen hood NEFF - Free user manual and instructions

Brand	NEFF
Model	D96IKU1S0
Product type	Range hood
Installation	Integrated or under cabinet
Dimensions (W x D x H)	90 cm x 50 cm x 30 cm (estimated)
Air outlet diameter	150 mm
Power supply	220-240 V, 50/60 Hz
Maximum extraction power	650 m³/h (estimated)
Maximum noise level	65 dB (estimated)
Number of speeds	4 speeds + intensive
Lighting	LED, 2 x 3 W
Control type	Touch control with LED display
Connectivity	Wi-Fi, Home Connect
Filters	Washable metal grease filter, optional charcoal filter
Maintenance	Regular filter cleaning, wiping the surface
Safety	Delayed automatic shutdown possible
Spare parts	Filters, LED bulbs, remote control (optional)
Repairability	Repairability index 8.5/10 (estimated)
General information	Energy class A+ (estimated), use with mobile app

Frequently Asked Questions - D96IKU1S0 NEFF

How to connect the hood to the Home Connect app?

Download the Home Connect app, create an account, then follow the instructions. For WPS connection, press and hold symbols ① and ② until the displays flash, then tap +. Activate WPS on the router within 2 minutes.

What to do if Wi-Fi connection fails?

Check that the hood is within range of the router, the router is on, and the password is correct. Try manual connection (step 2.2) by holding down ① and ②, then tapping + twice.

How to clean the grease filters?

The metal grease filters are dishwasher-safe or can be hand washed with hot water and detergent. Let them dry before reinstalling.

When to replace the charcoal filter?

The charcoal filter should be replaced every 6 to 12 months depending on usage. It is not washable and clips under the hood.

How to adjust the extraction speed?

Use the touch controls: tap the + or - symbol to increase or decrease speed. Long press activates intensive mode.

The hood no longer turns on, what to do?

Check the power supply (fuse, socket). If the light does not work, the LED bulbs may be defective; contact customer service.

Can the hood be used in recirculation mode?

Yes, with an activated charcoal filter installed. The air is purified and returned to the room. The extraction mode requires an external air duct.

How to reset the hood to factory settings?

Press and hold symbols ① and P simultaneously for 5 seconds until the display flashes. The hood will restart in factory mode.

What does the flashing indicator on the control panel mean?

A flashing indicator usually means that the Wi-Fi connection is in progress or the filter needs cleaning. Refer to the manual for specific codes.

Where to find spare parts like bulbs?

Spare parts are available from NEFF customer service or on the official website. Use the model reference D96IKU1S0.

USER MANUAL D96IKU1S0 NEFF

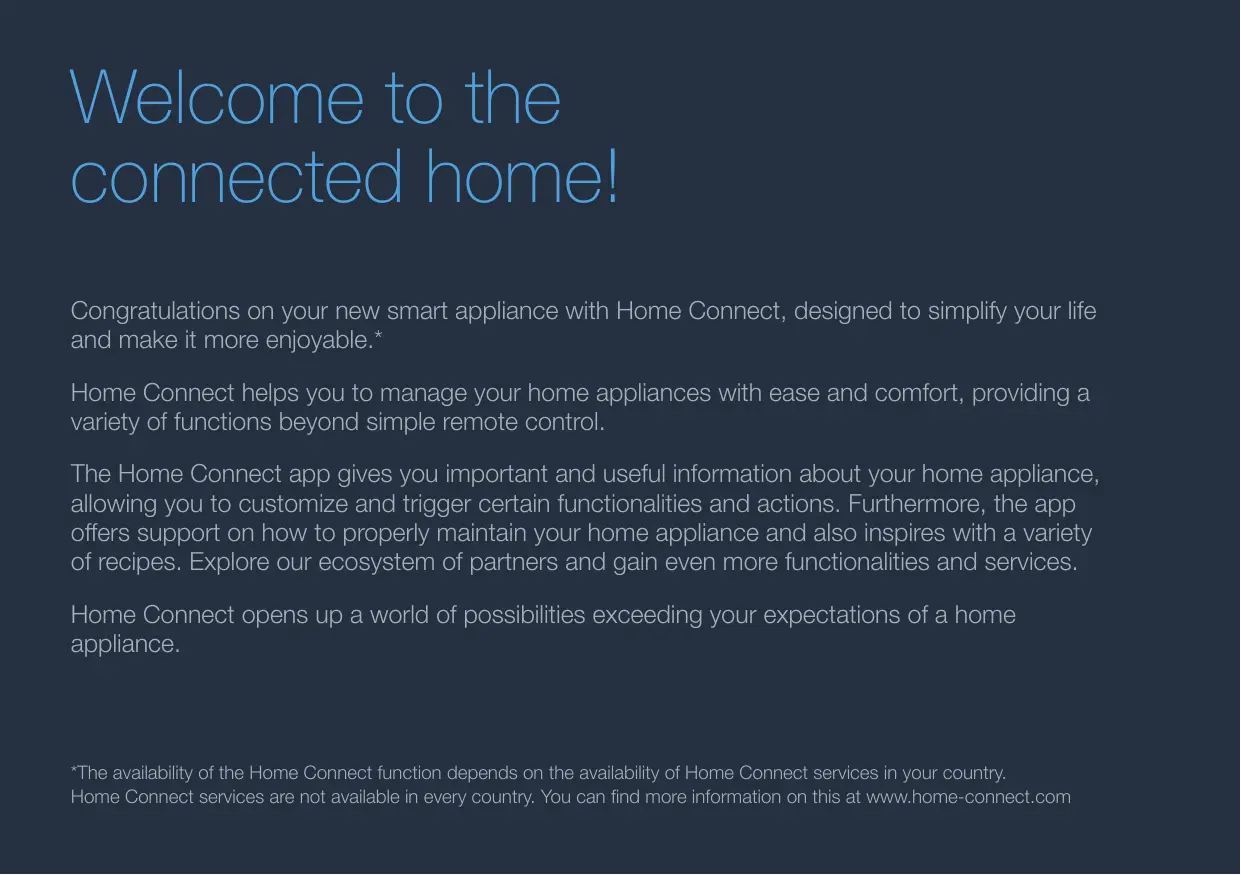

Welcome to the connected home!

Congratulations on your new smart appliance with Home Connect, designed to simplify your life and make it more enjoyable.*

Home Connect helps you to manage your home appliances with ease and comfort, providing a variety of functions beyond simple remote control.

The Home Connect app gives you important and useful information about your home appliance, allowing you to customize and trigger certain functionalities and actions. Furthermore, the app offers support on how to properly maintain your home appliance and also inspires with a variety of recipes. Explore our ecosystem of partners and gain even more functionalities and services.

Home Connect opens up a world of possibilities exceeding your expectations of a home appliance.

*The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on this at www.home-connect.com

Explore: With the Home Connect app you can...

Manage your appliance

In the app's appliance section you have an overview of your connected home appliances, offering a variety of functions beyond simple remote control. Monitor the home appliance's progress, change or pause programs, change settings, trigger actions, and receive notifications.

Be inspired

The recipe section provides a variety of inspiring recipes, tips and videos, that will make cooking and baking even more enjoyable.

Get support

The service section gives helpful information on how to maintain and operate your home appliance properly.

Discover even more benefits

We are constantly expanding our ecosystems of partners. Please refer to www.home-connect.com for an overview of all partners.

Let's get started:

What you need

1 | Your extractor hood must be installed properly and plugged in.
2 | A smartphone or tablet equipped with a current version of iOS or Android operating system.
3 | Your extractor hood within the Wi-Fi signal of your home network.
4 | The name of your Wi-Fi network (SSID) and its password (key).
5 | This installation guide.

Important Information:

Data security: Home Connect values customer data, ensuring the transfer of data is encrypted. Home Connect utilizes a variety of security measures, which are periodically reviewed. For further information visit www.home-connect.com.

Appliance safety: To ensure safe operation of your appliance with Home Connect functionality, please consult the safety information in the appliance instruction manual.

Step 1: Download the Home Connect app and create a user account

1 | Open the App Store (Apple devices) or Google Play Store (Android devices) on your smartphone or tablet.
2 | Search for "Home Connect" in the Store and install the app.

Home Connect app:

HO

connect

3 | Open the app and register yourself so that you can create a Home Connect user account.
4 | Make a note of your Home Connect access data (user account and password) – you will need this later.
- The app will take you through the necessary steps for linking your appliance with Home Connect. If necessary, the app will refer to these instructions.

Step 2: Connect your extractor hood to your home network

1 | Your extractor hood must be installed properly and plugged in.
2 | Open your Home Connect app to add your extractor hood.
3 | Please follow the directions in the app and refer to this guide only when prompted to by the app.

Information:

We are constantly working to improve the Home Connect app, which may lead to differences in the setup steps. Please rely on the instructions in the latest version of the Home Connect app to guide you through the setup process.

Step 2.1: Connect your extractor hood to your home network with WPS

Please enter step 2.1 only when prompted to by the app. The following steps describe operations at the home appliance itself.

Note:

To connect the extractor hood to your home network, the hood and the light must be switched off. You can cancel the process at any time by pressing ① .

1 | Press and hold the ① and symbols on your extractor hood at the same time until the ≅ and - indicators start to flash.

Control panel model 1

Control panel model 2

2 | Touch the +symbol to start automatic login to your home network.

and flash.

3 | Activate the WPS function on your home network router within the next 2 minutes.
If connection to the home network is successful, and flash.

• The app will get notified once your extractor hood has been successfully connected to your Wi-Fi network.
  4 | Follow the instructions in the app.

Information:

If the connection could not be established within 2 minutes, make sure your extractor hood is within the range of your Wi-Fi network.

For some appliances the WPS mode is also called "automatic mode".

Step 2.2: Connecting the extractor hood to your home network, step by step

Follow the instructions in Step 2.2 only if the app tells you to. The following steps set out how to perform this operation on the appliance itself.

Note:

To connect the extractor hood to your home network, the hood and the light must be switched off. You can cancel the process at any time by pressing ① .

1 | Press and hold the ① and P symbols on your extractor hood at the same time until the ≅ and - indicators start to flash.

Control panel model 1

Control panel model 2

2 | Touch the + symbol twice to start manual login to your home network.

and flash.
- The appliance will open a temporary Wi-Fi network, "Home Connect", for a few minutes with the password "HomeConnect".

Using this temporary Wi-Fi network, the app will transfer the name (SSID) and the password of your home network to the extractor hood, thereby enabling the extractor hood to connect to your home network.

If connection to the home network is successful, and 3 flash.

3 | Follow the instructions in the app.

Information:

For some appliances the step-by-step mode is also called "SAP mode" or "manual mode". If the step-by-step mode does not work please check:

• Your appliance is in the range of the Wi-Fi network.
• Your smartphone/tablet is connected to your home Wi-Fi network.
• Your smartphone/tablet and appliance are connected to the same home Wi-Fi network.

Step 3: Connecting the extractor hood to the Home Connect app

Follow the instructions in Step 3 only if the app tells you to. The following steps set out how to perform this operation on the appliance itself.

1 | Press and hold the ① and P symbols on your extractor hood at the same time until the ≈ and - indicators start to flash.

2 | Follow the instructions in the app.
stops flashing on the display's control panel. The login process is now complete.

Information:

If the connection could not be established make sure your smartphone/tablet is within range of your Wi-Fi network.

Home Connect opens up a world of possibilities, exceeding your expectations of a home appliance.

To learn more about smart home appliances with Home Connect and our partner ecosystem, visit www.home-connect.com

These installation instructions are available in additional languages on the website for your appliance brand.

If you have any questions or would like to contact the Home Connect service hotline, please visit us at www.home-connect.com

Home Connect is a service provided by Home Connect GmbH.

Apple App Store and iOS are trademarks of Apple Inc.

Google Play Store and Android are trademarks of Google Inc.

Wi-Fi is a trademark of the Wi-Fi Alliance.
