Product type	Kitchen extractor hood
Brand	BEKO
Model	HCF61620X
Use	External extraction or internal recirculation (with activated carbon filter)
Power supply	220-240 V ~ 50 Hz (check rating plate)
Extraction speeds	Multi-speed (minimum, maximum, intensive)
Minimum distance from hob	50 cm for electric cookers, 65 cm for gas or mixed
Lighting	Halogen lamps 12 V - 20 W max, type G4
Grease filter	Metallic, dishwasher safe or hand wash (monthly cleaning)
Activated carbon filter	Washable or non-washable depending on model (replace every 4 months max)
Exterior maintenance	Damp cloth with mild detergent; do not use alcohol
Electrical connection	On accessible wall socket or standard circuit breaker
Safety	Unplug before cleaning; do not use without grill; avoid flames
Weight	Approximately 10-15 kg (estimate)
Dimensions (W x D x H)	Not specified

Frequently Asked Questions - HCF61620X BEKO

What is the minimum distance between the hood and the cooker?

For electric cookers, the minimum distance is 50 cm. For gas or mixed cookers, it is 65 cm. If the cooking appliance instructions require a greater distance, follow it.

How to clean the grease filter?

The grease filter should be cleaned once a month with non-aggressive detergents, by hand or in the dishwasher at low temperature and short cycle. Dishwashing may discolor the filter but does not affect its performance.

When should the carbon filter be replaced?

The non-washable activated carbon filter must be replaced every four months at most. The washable filter can be cleaned every two months and must be replaced every three years or if damaged.

How to change the hood bulb?

First disconnect the appliance. Make sure the bulb is cool. Use a small flat-head screwdriver to remove the cover. Replace the bulb with a halogen 12 V - 20 W max, type G4. Do not touch the bulb with bare hands. Close the cover by snapping it back into place.

Can I use the hood without filters?

No, never use the hood without the grill properly installed. Grease and carbon filters are essential for safety and efficiency.

How to reduce the environmental impact of the hood?

Turn on the hood at minimum speed during cooking and let it run for a few minutes after. Increase speed only when there is a lot of steam. Clean or replace filters regularly to maintain efficiency.

The hood is noisy, is this normal?

Some noise is normal, especially at high speeds. Make sure the exhaust duct is properly installed and without unnecessary bends. If the noise is excessive, check that the filters are clean and correctly fitted.

What to do if the lighting does not work?

First check that the bulbs are correctly inserted in their sockets. If the problem persists, contact after-sales service. Make sure to use bulbs of type halogen 12 V 20 W max G4.

Can I install the hood myself?

Installation must be carried out by a qualified technician to ensure safety. Check that the wall can support the weight. Do not plug in the appliance until installation is complete. Respect the minimum safety distances.

What types of carbon filters are available?

There are two types: washable (clean every 2 months, replace every 3 years) and non-washable (replace every 4 months). Use the filter suitable for your model for recirculation version.

USER MANUAL HCF61620X BEKO

Illustration of a kitchen range hood with three control buttons (no text or symbols)

HCF 61620 X

HCF 91620 X

HCG 61620 X

HCG 91620 X

HCG 61320 X

HCG 71320 X

IT Istruzioni di montaggio e d'uso
EN Instruction on mounting and use
DE Montage- und Gebrauchsanweisung
FR Prescriptions de montage et mode d'emploi
NL Montagevoorschriften en gebruiksaanwijzingen
ES Montaje y modo de empleo
PT Instruções para montagem e utilização
EL ΟΔΗΓΙΕΣ ΣΥΝΑΡΜΟΛΟΓΗΣΗΣ ΚΑΙ ΧΡΗΣΗΣ
SV Monterings- och bruksanvisningar
FI Asennus- ja käyttöohjeet
NO Instrukser for montering og bruk
DA Bruger- og monteringsvejledning
PL Instrukcja monta żu i obs ługi
CS Návod na montáž a používání
SK Návod k montáži a užití
HU Felszerelési és használati utasítás
BG Инструкции за монтаж и употреба
RO INSTRUCTII DE MONTAJ SI FOLOSIRE
RU Инструкция по монтажу и эксплуатации
UK Інструкція з монтажу і експлуатації
ET Paigaldus- ja kasutusjuhend
LT montavimo ir naudojimosi instrukcija
LV ierīkošanas un izmantošanas instrukcija
SR Uputstva za montažu i upotrebu
SL Navodila za montažo in uporabo
HR Uputstva za montažu i za uporabu
TR Montaj ve kullanım talimatları
AR عمالطرق التركيب والاست

Technical illustration of a mechanical assembly with exploded view and component details (no text or symbols)

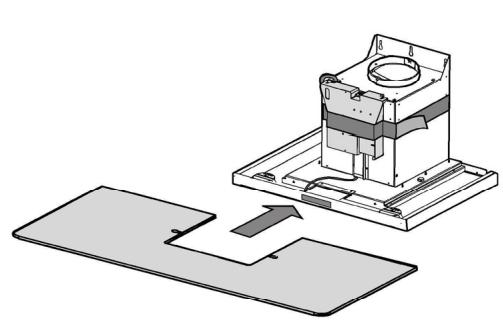

1a

Technical illustration of a mechanical assembly with a component and base plate (no text or symbols)

1b

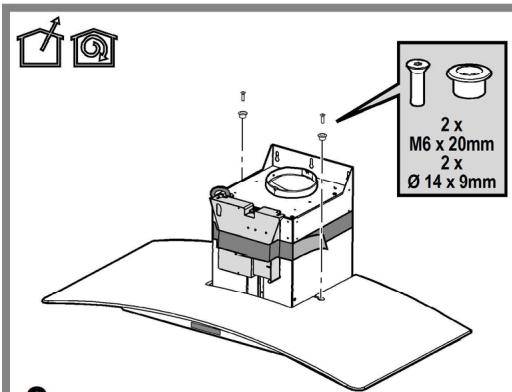

2 x M6 x 20mm 2 x Ø 14 x 9mm

2a

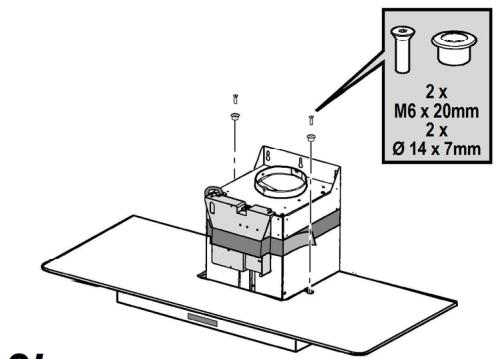

2 x M6 x 20mm 2 x Ø 14 x 7mm

2b

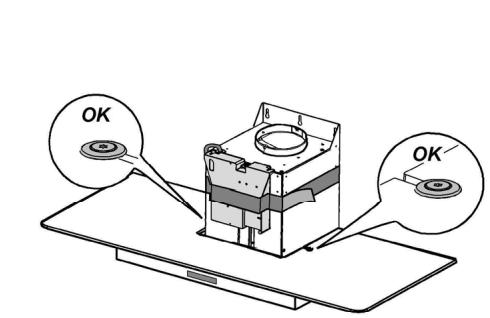

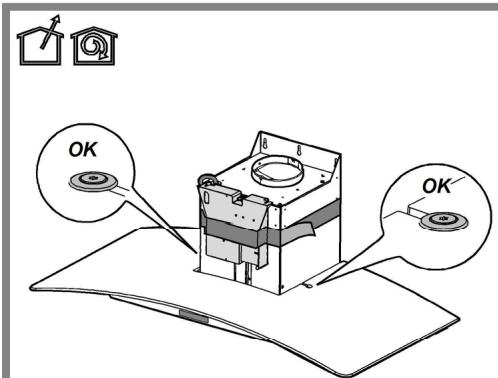

OK OK

3a

OK OK

3b

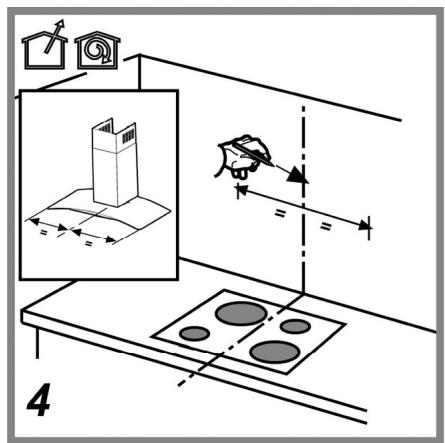

Diagram illustrating a 3D printing or casting process with labeled components and measurement indicators

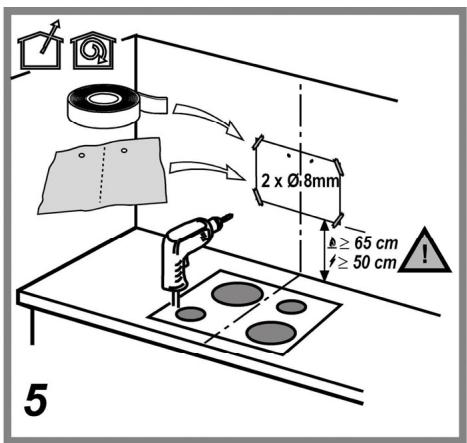

2 x Ø 8mm ≥ 65 cm ≥ 50 cm 5

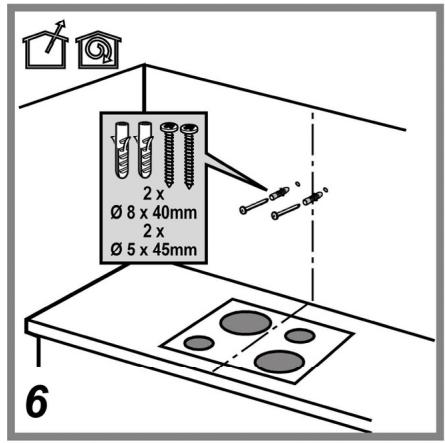

2 x Ø 8 x 40mm 2 x Ø 5 x 45mm 6

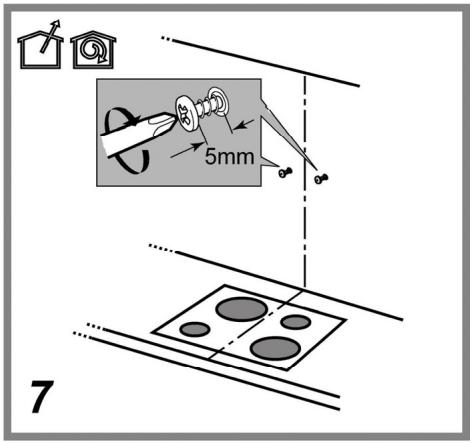

5mm 7

Diagram showing a crane lifting a structure above a window, with labeled components and structural details.

2 x Ø 8mm 2 x Ø 8 x 40mm 2 x Ø 5 x 45mm

9 > 1cm Ø 16cm > 5cm

9,5cm Ø 16cm 10

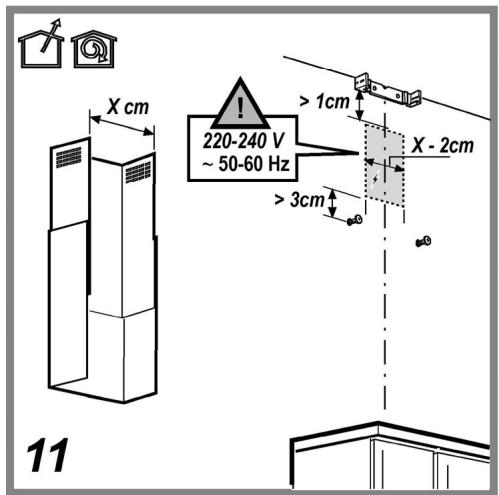

X cm 220-240 V ~ 50-60 Hz > 1cm > 3cm X - 2cm 11

Ø 3x9 12

13

14

15

16

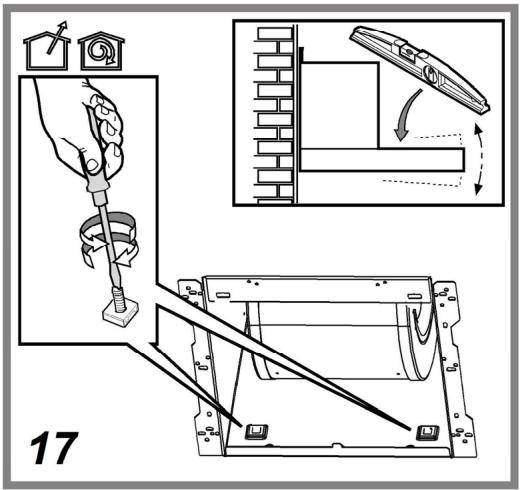

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

18

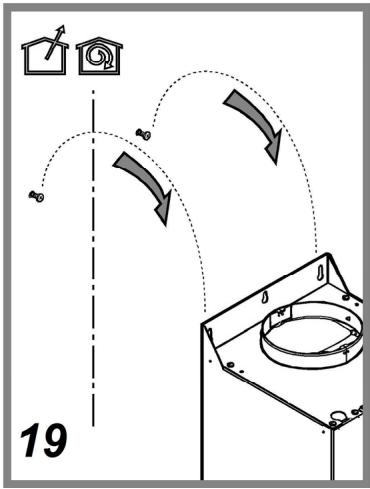

19

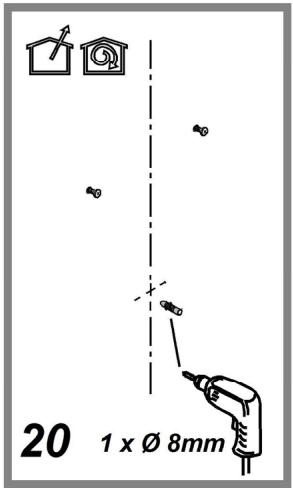

20 1 x Ø 8mm

21

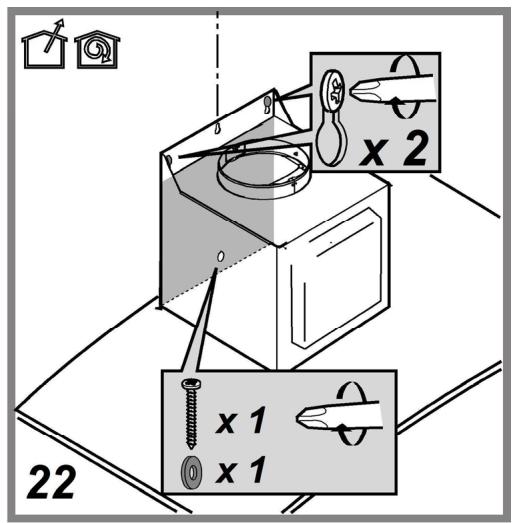

22 x 1 x 1 x 2

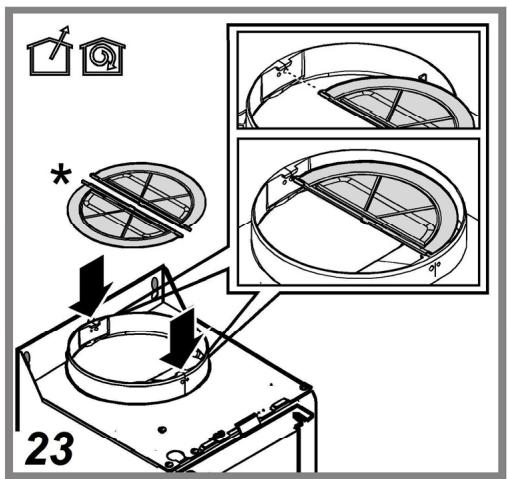

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including a magnified inset showing cross-sectional views.

1 24

Technical illustration of a mechanical device with rotating components and a base plate, shown in two views (no text or symbols)

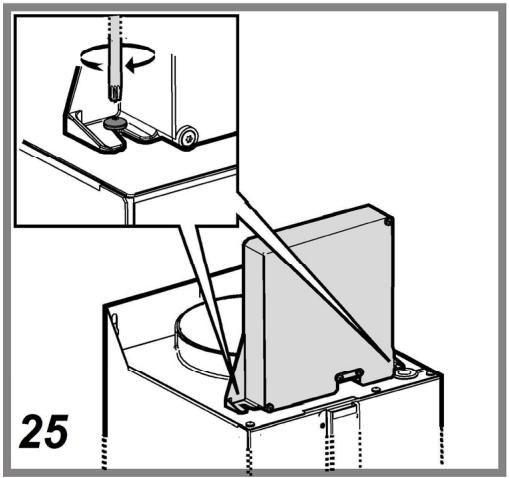

26

Technical diagram of a mechanical assembly with a plug, cable, and housing (no text or symbols)

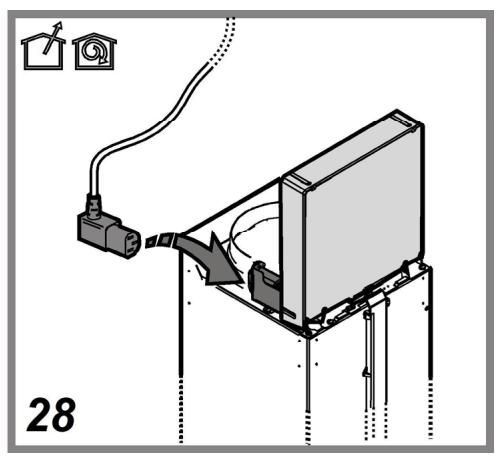

28

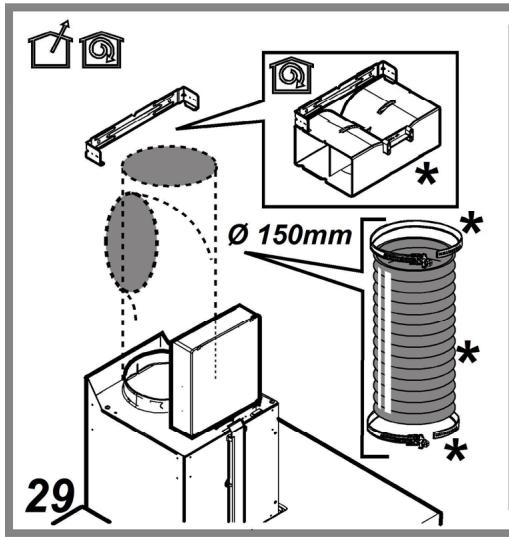

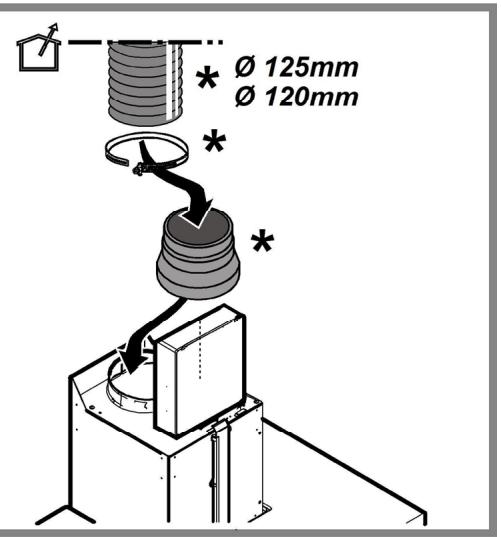

Ø 150mm 29

Ø 125mm Ø 120mm

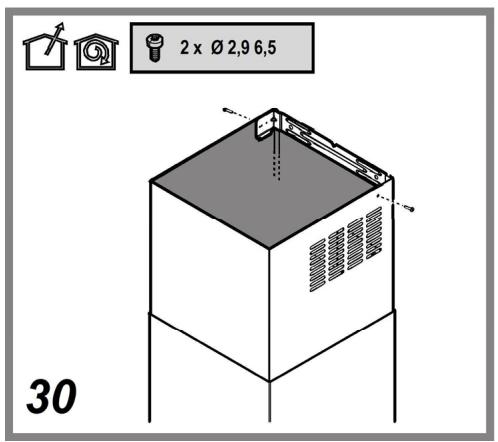

2 x Ø 2,9 6,5 30

Technical diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

31.1

Technical line drawing of a mechanical component with mounting holes and internal zigzag lines (no text or symbols)

31.2

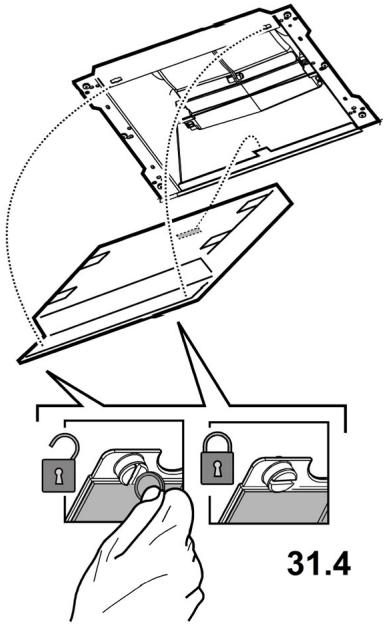

31.4

31
31.3

3D technical drawing of a mechanical housing or enclosure with mounting holes and internal cutouts (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

32

Illustration of a screwdriver holding two circular components (no text or symbols)

Abstract circular diagram with arrows pointing inward and a central line, no text or symbols present.

max 20W 12V (G4)

Illustration of a hand holding a small blue object, labeled with the number 33 (no text or symbols on the hand or background)

symbol	state
	on/off level 1
	level 2	[CBK8]
	level 3	[CGBX]
	lamp

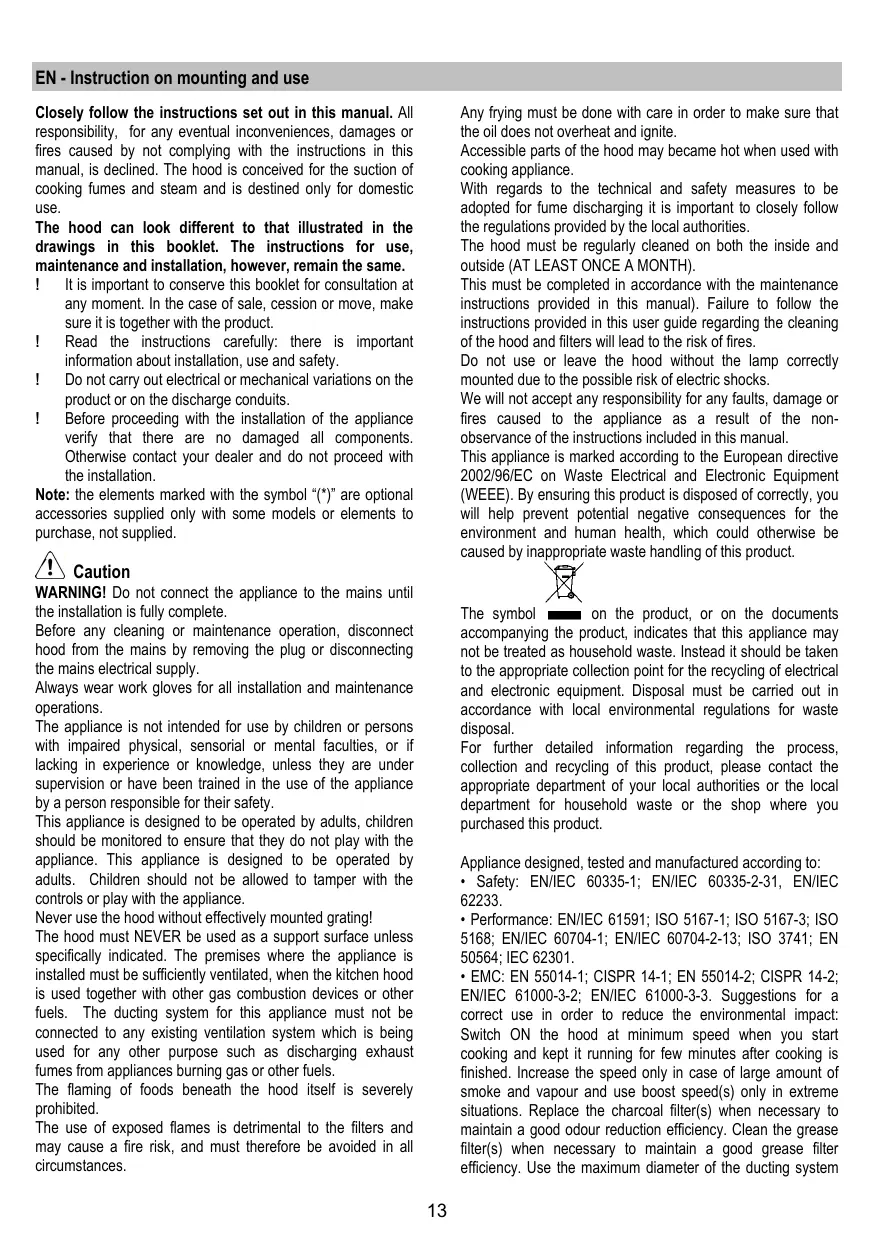

Manutenzione

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system

indicated in this manual to optimize efficiency and minimize noise.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct as smooth as possible inside.

! The duct must be made of certified material.

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.
• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).
• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

Display Symbols

symbol	state
	on/off level 1	[H462]
	level 2
	level 3	[XT23]
	lamp

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Fig. 14-32

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

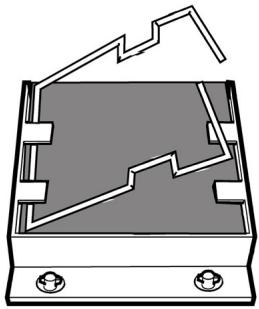

Fig. 31

It absorbs unpleasant odours caused by cooking.

The activated charcoal filter can be one of these types:

• Washable activated charcoal filter.
• NON-washable activated charcoal filter.

Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Assembly

Hook the charcoal filter at the back on the metal tongue of the hood first, then on the front with the two knobs.

Disassembly

Remove the charcoal filter by turning the knobs fixing it to the hood by 90°.

Replacing lamps

Fig. 33

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the old light bulb with the one of the same type as specified in the feature label or near the light lamp on the hood.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.

2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

symbol	state
	on/off level 1
	level 2
	level 3

Entretien

symbol	state
	on/off level 1
	level 2
	level 3
	lamp

Onderhoud

symbol	state
	on/off level 1
[W024]	level 2
	level 3	[KOWH]
	lamp

Mantenimiento

symbol	state
[4BYC]	level 3

Manutenção

symbol	state
	on/off level 1
	level 2	[YH80]
[X88C]	level 3
	lamp

Συντηρηση

symbol	state
	on/off level 1
[T3H6]	level 2
	level 3
	lamp

Underhåll

symbol	state
	on/off level 1	[DA60]
	level 2	[K25X]
	level 3

Huolto

symbol	state
	on/off level 1	[65YC]
	level 2	[64ZH]
	level 3

Vedlikehold

symbol	state
	on/off level 1
	level 2	[CSCH]
[382K]	level 3	[AAWS]
	lamp

Vedligeholdelse

symbol	state
	on/off level 1
[63CY]	level 2
	level 3
	lamp

Konserwacja

symbol	state
	on/off level 1
	level 2	[27Y8]
	level 3
	lamp

Údržba

NEPOUŽÍVEJTE ALKÓHOL!

symbol	state
	on/off level 1	[DSA4]
[ZZ50]	level 2
	level 3	[400H]
	lamp

Údržba

symbol	state
	on/off level 1
	level 2	[KH80]
	level 3

Karbantartás

- Waste Electrical and Electronic Equipment (WEEE).

symbol	state
	on/off level 1	[WKZW]
[THOW]	level 2	[WK6C]
[4Z48]	level 3	[4032]
	lamp

Поддръжка

symbol	state
	on/off level 1	[Y62Y]
	level 2	[DWWZ]
[D006]	level 3
	lamp

Întreținerea

symbol	state
	on/off level 1
[BCH2]	level 2	[506C]
	level 3
	lamp

Уход

symbol	state
		[ZZBW]
	level 2
	level 3	[GKB6]
	lamp

Догляд

symbol		state
		on/off level 1	[05H4]
[ZYHX]		level 2
		level 3
		lamp

Hooldus

symbol	state
	on/off level 1
[ST76]	level 2	[Z3HO]
[W6Y6]	level 3
	lamp

Priežiūra

symbol	state
[0WAH]	level 3

symbol	state
	on/off level 1
[W0Z3]	level 2	[GBW8]
[5YAB]	level 3

Održavanje

Upozorenje! Pre bilo kakve operacije čišćenja ili održavanje, iskopčajte kuhinjsku napu od napajanja strujom na način da izvadite utikač iz utičnice ili tako da isključite opšti prekidač kuće ili stana.

Čišćenje

Kuhinjska napa se mora često prati (barem toliko često koliko često održavate filter za uklanjanje masnoće), bilo iznutra bilo spolja. Za čišćenje koristite meku ovlaženu krpu i tečne neutralne deterdžente.

Izbegavajte upotrebu proizvoda koji grebu. NE UPOTREBLJAVAJTE ALKOHOL!

symbol	state
	on/off level 1
[8S46]	level 2	[TZDS]
	level 3
	lamp

Vzdrževanje

symbol	state
	on/off level 1
	level 2
	level 3
	lamp

Održavanje

symbol	state
	on/off level 1	[A07D]
[2476]	level 2
	level 3
	lamp

Bakım
