USER MANUAL 50D OXYGEN ARCHOS

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Downloaded from www.Manualslib.com manuals search engine

Check your product box for the following items: -----

Headset USB cable USB host cable

-- Quick start guide -- Warranty Legal & Safety notices

The items supplied with your device and available accessories may vary depending on your region or service provider.

The supplied items are designed only for your device and may not be compatible with other devices. Unapproved accessories may cause your device to malfunction.

Downloaded from www.Manualslib.com manuals search engine

EN Description of the phone

Downloaded from www.Manualslib.com manuals search engine

Description of the phone

*Charge your device with the USB cable. Connect external devices with the USB host cable.

Downloaded from www.Manualslib.com manuals search engine

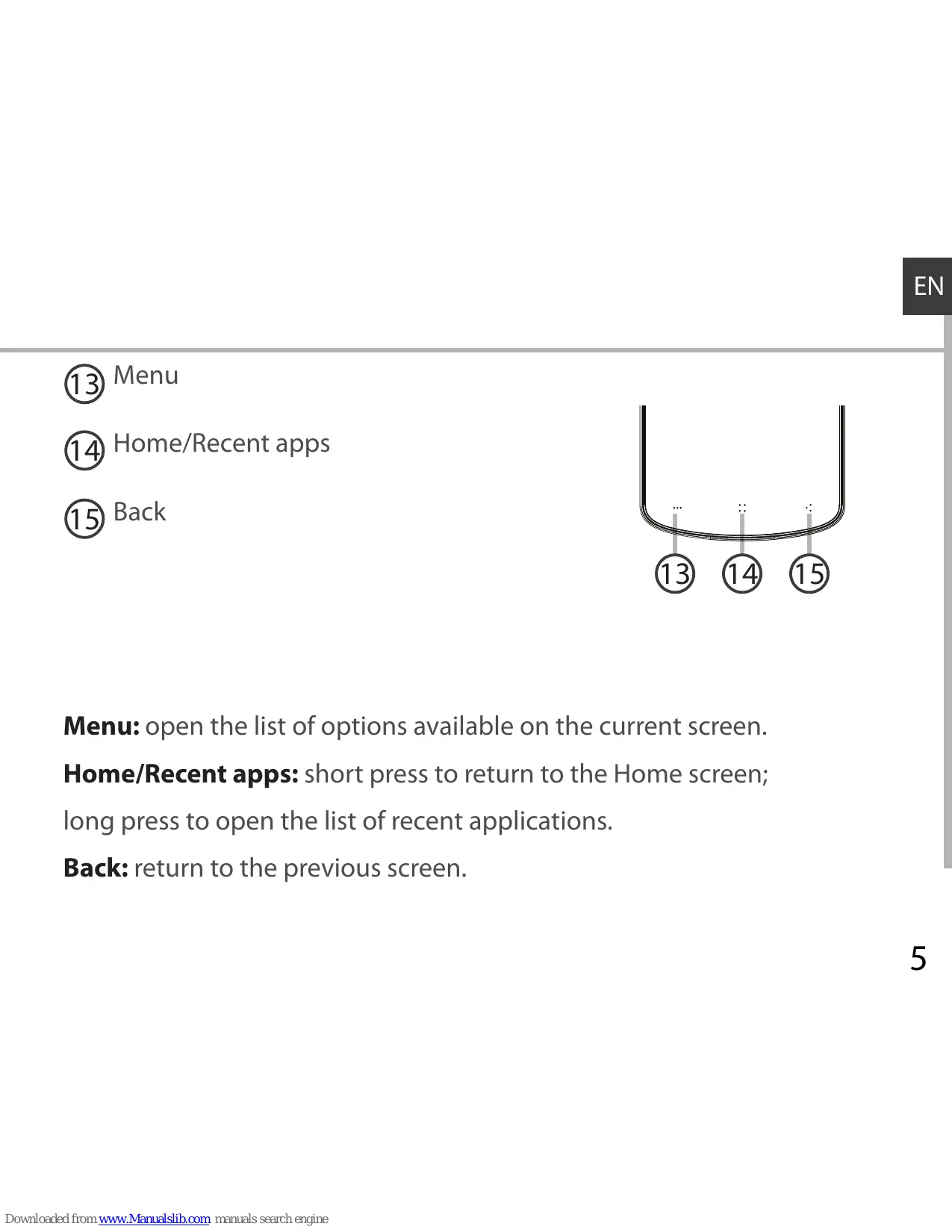

Menu: open the list of options available on the current screen.

Home/Recent apps: short press to return to the Home screen; long press to open the list of recent applications. Back: return to the previous screen.

Downloaded from www.Manualslib.com manuals search engine

Inserting the SIM card

1. Remove the cover by using the provided tool that you insert in the cover hole. 2. Lift up the cover to remove it completely. 3. Insert the micro-SIM according to the direction shown. 4. Use the provided tool to press it in. When the SIM card is well inserted, a click happens and the SIM card stays fixed. 5. Replace the cover. A magnetic system holds the cover into place.

Before using your device for the first time, charge completely its battery.

Downloaded from www.Manualslib.com manuals search engine

1. Press and hold the ON/OFF button to turn on the device.

When you turn on your device, a PIN code may be requested. 2. Type the PIN code supplied with your SIM card. Beware of typing a wrong PIN code. 3. Select ‘OK’.

Turn OFF To turn off your device, press and hold the ON/OFF button, and then select Power off > OK.

Sound & Notification profiles

1. When the device is turned on, press and hold the ON/OFF button. 2. Select an option.

Your device goes in standby mode when you do not use it for a specified period of time. To wake up your device, press the ON/OFF button. To set the duration, go to Settings > Display > Sleep.

Downloaded from www.Manualslib.com manuals search engine

EN Through the wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

-- Location consent -----

Google account Location service options Date & time

Touch screen actions:

Tap: touch once to select or launch a menu, option, or application.

Tap and hold: tap an item and hold it for more than 2 seconds. Drag: tap an item and move it to a new location. Double-tap: tap an item twice quickly. Flick: briskly scroll up, down, left, or right to move through lists or screens. Pinch: place two of your fingers far apart, and then pinch them together.

Downloaded from www.Manualslib.com manuals search engine

3G & WiFi connection

With your 3G micro-SIM card, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your 3G provider’s 3G or EDGE network. When connected to the 3G network, the 3G icon is displayed in the status bar.

Activating the mobile data To be able to access Internet, the mobile data icon must be activated. 1. Touch and hold the time & battery icons to reveal the status bar. 2. Pull the blue line down to display the status dashboard. 3. Touch the status dashboard icon . 4. Touch the mobile data icon to activate it. =>

When you encounter connection problem’s, see the FAQs on www. archos.com or contact your 3G network connection provider.

Downloaded from www.Manualslib.com manuals search engine

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

1. Touch and hold the time & battery icons to reveal the status bar. 2. Pull the blue line down to display the status dashboard. 3. Touch the status dashboard icon . 4. Touch the “Settings” icon to open the settings menu. 5. In the “Wireless & networks”section, if the WiFi is off, slide the WiFi switch to the “ON” position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range. 6. Touch “WiFi” to display available networks. 7. Touch the name of network you want to connect to. Private networks are shown with a lock icon and will require you to enter your password.

Downloaded from www.Manualslib.com manuals search engine

Adding a Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

> “Accounts” > “Add account”. 1. Go to “Settings” 2. Select the account type “Google” to add. 3. Follow the onscreen instructions to enter information about the account. Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Information must be sync to be saved. Your data are backed up on

Google servers. 1. Go to “Settings” > “Accounts” > “Google”. 2. Select your account. The list of information that can be sync are displayed. 3. Check all information in order to sync them. You can get them back in case of loss of your device or micro-SIM card. When your Google account is added to a new device, all your saved information are collected.

Downloaded from www.Manualslib.com manuals search engine

EN Saving your contacts

When your contacts are saved, they are always available on the web and can be synced to any Android phone that’s set up with your Google account.

1. Install the micro-SIM card with your contacts in your phone. 2. From a Home or All Apps screen, select the People app . 3. Touch the Menu button > “Import/Export”. 4. In Import/export contacts, select “Import from SIM card”. 5. Select your Google account. 6. Check contacts to be imported and validate. 7. Once the contacts are imported in the Google account, go to “Settings” > “Accounts” > “Google”. 8. Select you Google account. Make sure “Contacts” is checked. 9. Select the Menu button, then “Sync now”. Your contacts are saved to your Google account.

Downloaded from www.Manualslib.com manuals search engine

Hints & tips with AndroidTM The extended home screen:

Navigate between different home screen panels by swiping left and right. Home button Short press the Home button to go back to the main screen. Double press the Home button to display all the apps you have opened. Swipe any app left or right to close it. Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger. Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon. Uninstalling an item: From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

Downloaded from www.Manualslib.com manuals search engine

EN Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined. Widgets: Touch the “All Apps” icon on your home screen. Touch “Widgets” at the top of the screen. From the main Widget screen, you can move around widgets just as you do for app icons. Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list. Locking the touchscreen: From the quick settings dashboard in the status bar, touch “Settings”. In “Settings”, scroll down and touch “Security”. Touch “Screen lock”. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Downloaded from www.Manualslib.com manuals search engine

My phone is frozen or cannot switch on

Press the ON/OFF & Volume + buttons for 10 seconds. Charge your device for at least 10 minutes. My phone cannot connect to a network or “No service” is displayed Try connecting in another location. Verify the network coverage with your operator. Unable to make outgoing calls Make sure your phone is connected to a network, and the network is not overloaded or unavailable. Unable to receive incoming calls Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network). SIM card PIN locked Contact your network operator to obtain the PUK code (Personal Unblocking Key). To configure a new 3G network: On your device, tap Settings. Select Wireless & networks > More... > Mobile networks. Select Network settings. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters provided by your 3G provider.

Downloaded from www.Manualslib.com manuals search engine

FR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Sonneries & notifications

Downloaded from www.Manualslib.com manuals search engine

FR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

FR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Installationsassistent

Downloaded from www.Manualslib.com manuals search engine

WLAN Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

IT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Installazione guidata

Downloaded from www.Manualslib.com manuals search engine

NL Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

PT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

RU Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Сохранение контактов

Downloaded from www.Manualslib.com manuals search engine

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an “AS IS” basis to the maximum extent permitted by applicable law. For the open source files contained herein, please access “Open source license” section located at: Settings\ About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA. Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium. This offer is valid to anyone in receipt of this information.

Downloaded from www.Manualslib.com manuals search engine

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

General authorization required for outdoor use and public service

Outdoor use limited to 10 mW e.i.r.p. within the band 24542483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

If used outside of own premises, general authorization is required.

General authorization required for network and service supply (not for spectrum)

This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Downloaded from www.Manualslib.com manuals search engine

Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

SAR After the labortory measurement, this mobile phone SAR value is:

Head - 0.217W/kg Body - 0.561W/kg
