USER MANUAL BD259RAA HAIER
Chest Freezer User's Manual

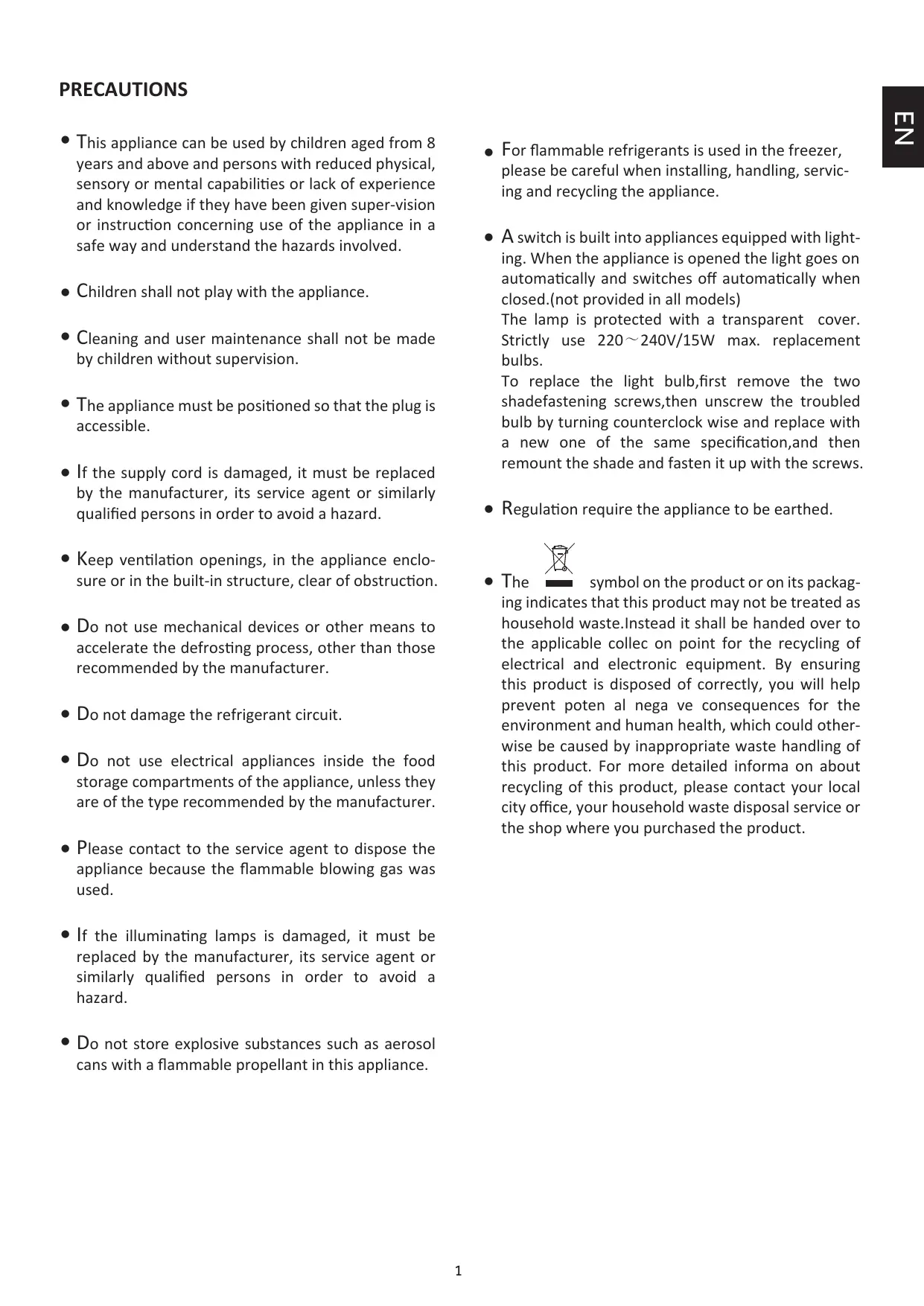

EN IT Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
For flammable refrigerants is used in the freezer, please be careful when installing, handling, servicing and recycling the appliance.
A switch is built into appliances equipped with lighting. When the appliance is opened the light goes on automatically and switches off automatically when closed.(not provided in all models) The lamp is protected with a transparent cover. Strictly use 220～240V/15W max. replacement bulbs. To replace the light bulb,first remove the two shadefastening screws,then unscrew the troubled bulb by turning counterclock wise and replace with a new one of the same specification,and then remount the shade and fasten it up with the screws.
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Regulation require the appliance to be earthed.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
Do not damage the refrigerant circuit.
accelerate the defrosting process, other than those recommended by the manufacturer.
not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Please contact to the service agent to dispose the appliance because the flammable blowing gas was used.
• If the illuminating lamps is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
symbol on the product or on its packaging indicates that this product may not be treated as household waste.Instead it shall be handed over to the applicable collec on point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent poten al nega ve consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed informa on about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super-vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
A Lid B Lid seal C Interior light (if available) D Cabinet E Storage compartment F Ven la on grille G Control panel H Basket I Compressor chamber J Compressor K Fan (if available) L Back condenser (if available)
Turn thermostat (1) to adjust the temperature between Min (warmer) and Max (colder ).
The storage temperature will decrease from Min.
Green = CONTROL (The appliance is running) Red = ALARM (Interior temperature too high) Yellow = Super Freeze indicator (if available)
SUPER FREEZE FUNCTION (If available)
Press the Super freeze bu on (4) to a vate the Super freeze func on. The yellow light (4) turns on. Press the bu on again to switch it off.
The Super freeze fun on will be switched off automa cally a er 56 hours to save energy.
Energy consump on will increase when this func on is on.
This appliance is intended strictly for household use, for storing food only.
If the appliance unpacked is damaged please contact your dealer. The mains electricity supply must conform to the ra ng plate of the appliance.
Insert the plug in the socket. The green light (2) goes on.
Allow one hour for the temperature inside the appliance to go down and then place food inside the appliance
TEMPERATURE SETTING Leave at least 10cm between the appliance and surrounding for ven la on and heat dissipa on.
The electricity supply must conform to as specified on the ra ng plate and follow local regula ons. It is recommended to wait at least two hours before plugging the appliance a er installa on. This helps the refrigerant circuit to stabilise.
Fully unpack the appliance. Please ensure that all packaging materials are removed and properly disposed prior to installa on and kept out of children’s reach.
The appliance should be installed in a dry, well ven lated room, and not exposed to direct sunlight and not placed near a heat source.
Wrap or seal food in aluminium foil, air tight containers or food storage bags prior to freezing.
Allow hot food to cool prior to placing it in the appliance. Smaller portion of food will be faster frozen. The recommended max portion weight is 2.5kg. Avoid placing warm food directly in contact with already frozen food. Frozen food could defrost and may not outlast the foreseen storage time. The capacity of the appliance, as shown on the rating plate, should not be exceeded. When filling the appliance with higher quantities of fresh food, it is recommended to turn on the
To prevent frozen food from defrosting, carry out the de defrosting procedure within a maximum of two hours to reduce significant rise in temperature of the frozen food that would shorten the storage life.
CLEANING AND MAINTENANCE Always ensure that the power supply is switched off prior to conducting any maintenance or cleaning of the appliance.
TROUBLESHOOTING If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.
1. No operation (appliance not running/getting cold)
• Is there a power failure? • Is the plug in good condition and properly plugged into the socket?
2. Appliance not working sufficiently/Red light on
• Is the lid of the appliance closed properly? • Is there heavy ice formation on the inner walls? • Is the appliance exposed to direct sunlight or heat source? • Have too much warm foods been put in the appliance? • The climatic class can be found on the rating lable in the back of the appliance. It specifies the ambient temperatures at which the appliance will operate correctly.
The appliance should be defrosted once the thickness of ice on the walls reaches 5-6 mm.
Do not use any electrical, sharp or mechanical objects to assistant in defrosting the ice removal process, unless supplied or approved by manufacturer or approved service centre. To remove ice from the inner walls, use a plastic or wood scraper without sharp edges. Never use a metal scraper. Proceed as follows: 1. 2.
____SN __ ____N ___ ____ST __
____T Make sure to unplug the appliance.
Dry your hands thoroughly to prevent skin damage by contact with ice (it is advised to use gloves). Remove all frozen food from the appliance, put it into a container, cool box, put the frozen cool blocks on top of the frozen food to help keep it very cold, and place the container or cool box in a cool, dry room. Pull out the water drain plug (if available) located at the bottom of the appliance. Otherwise you must wipe up the melt water at the bottom of the appliance compartment with a sponge or towel. Scrape the ice carefully from the inner of appliance and put it into your kitchen sink, for defrosting. Thoroughly clean the inside of the appliance compartment, rinse it with warm water and remove any spilt food or liquids. Wipe the appliance with an absorbent cloth or sponge thoroughly dry and allow to air for about 3 to 4 minutes. Replace the drain-plug (if available).
Ambient temperature__
+10 °C to 32 °C______ +16 °C to 32 °C______ +16 °C to 38 °C______ +16 °C to 43 °C______
3. The appliance makes noise.
This noise is produced when the motor in the compressor operates and also by refrigerant flowing in the cooling system circuit. These noises are normal. 4. Consensation build up on external walls Under certain atmospheric conditions, condensation can from on external walls of the appliance. This is normal and won’t affect the function of the appliance.
Close the appliance door, replace the plug in the socket and turn the appliance on.
10. Now re-fill the frozen food.
Super Freeze function (if available) 24 hours in advance.
The storage time for purchased deep-frozen products varies and depends on the type of product and its packaging. Therefore, strictly observe the producer/manufactures instructions on the packaging.
EN AFTER-SALE SERVICE DECLARATION OF CONFORMITY
1. Resolving faults by yourself
The manufacturer of the product/s described herein, to which this descrip on refers, declares on its sole responsibility that the product/s meet the relevant fundamental safety, health and protec on requirements of the relevant UK and EU requirements and that the corresponding test reports are available for examina on by the relevant authori es and can be requested from the seller of the appliance, especially with regard to CE Declara on of Conformity issued by the manufacturer or with the manufacturers approval.
If you suspect any fault, before conta ng the approved a er-sales service directly or via your dealer, make sure you have observed all instru ons and advice in this user manual.
Consult the enclosed warranty card for available a er-sales services.
In order to receive immediate help, make sure you have ready the following essen al data to iden fy your appliance:
Moreover, the manufacturer declares that the parts of the appliance described in this user manual, which come into contact with fresh food, do not contain any toxic substances.
Model Serial number The problem or reason Date of purchase Purchased from/supplier
