Product type	Microwave oven
Brand	ZANUSSI
Model	ZSG25224XA
Approximate dimensions (W x H x D)	560 x 380 x 500 mm
Power supply	230 V ~ 50 Hz
Microwave power	900 W (estimated)
Main functions	Microwave, Grill, Combination cooking, Defrost (weight/time), Auto cook (10 programs)
Auto programs	Pizza, Potatoes, Meat, Fish, Vegetables, Drinks, Pasta, Popcorn, Chicken, Reheat
Control type	Rotary knob and touch keys
Turntable	Yes (glass + roller support)
Rack included	Yes
Timer	Up to 95 minutes
Interior light	Yes
Child safety	Yes (key lock)
Installation	Built-in (requires ventilation)
Care and cleaning	Clean with a soft damp cloth and neutral detergent; avoid abrasive products
Safety instructions	Do not use metal utensils; do not operate empty; check the door integrity
Spare parts and repairability	Contact authorized after-sales service for part replacement
Included accessories	Glass tray, roller support, rack

Frequently Asked Questions - ZSG25224XA ZANUSSI

How to set the time on my ZANUSSI ZSG25224XA microwave oven?

Press the Clock/Timer button, then turn the adjustment knob to select hours and minutes. Confirm with the OK button.

How to use the defrost function?

Press the Defrost button once for weight defrost (100 g to 2000 g) or twice for time defrost. Set the weight or time with the adjustment knob, then press Start/+30s.

What utensils can I use in this microwave?

Use microwave-safe utensils: ovenproof glass, metal-free ceramic, plastic resistant to 200 °C (except for grill). Avoid metal, aluminum, and tightly sealed containers.

What to do if the appliance does not work?

Check that the appliance is plugged in and the door is properly closed. If the fuse trips, contact an electrician. Refer to the Troubleshooting chapter of the manual.

How to activate child lock?

Hold the Clock/Timer button for 3 seconds. A beep sounds and the time is displayed. To deactivate, repeat the operation.

How to clean the oven interior?

After each use, clean with a soft damp cloth and neutral detergent. For dry residues, boil a glass of water at full power for 2-3 minutes. Avoid abrasive products.

Can I cook food with the rack?

Yes, the rack is designed for grill and combination cooking. Place it on the turntable and select Grill or C-1/C-2 function.

How to use auto cook?

Turn the adjustment knob clockwise to select a menu (A-1 to A-10), confirm with OK, then set the weight with the knob and press Start/+30s.

What to do if sparks appear?

Immediately remove any metal utensil or aluminum foil. Ensure skewers do not touch the walls. If the problem persists, contact after-sales service.

How to install the microwave in a cabinet?

Respect the built-in dimensions (A=380+2 mm, B=560+8 mm, C=500 mm). Ensure adequate ventilation. Installation must be carried out by a qualified professional.

USER MANUAL ZSG25224XA ZANUSSI

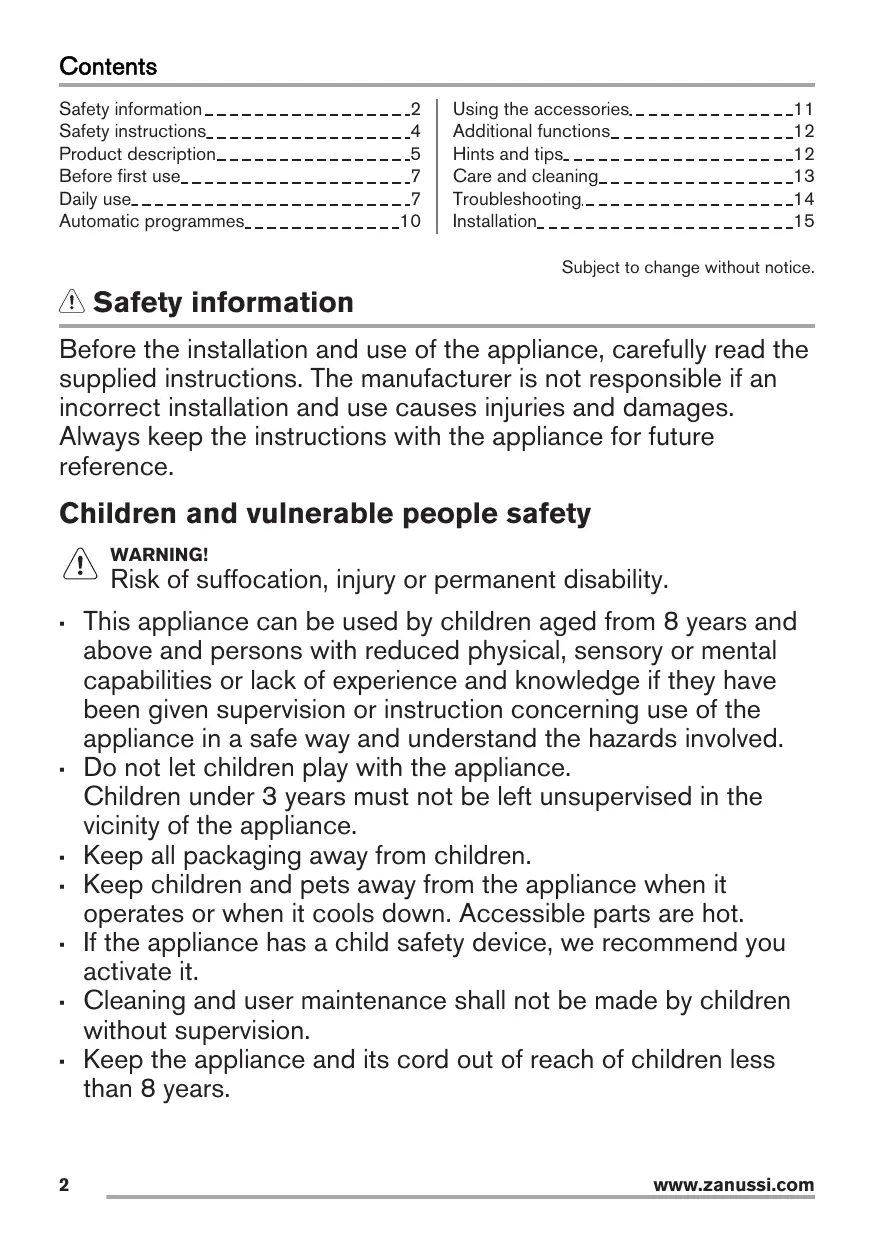

Safety instructions 4

Product description 5

Before first use 7

Daily use 7

Automatic programmes 10

Using the accessories 11

Additional functions 12

Hints and tips 12

Care and cleaning 13

Troubleshooting 14

Installation 15

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages.

Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.

Children under 3 years must not be left unsupervised in the vicinity of the appliance.

• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.

General Safety

• This appliance is intended to be used in household and similar applications such as:
• Farm houses; staff kitchen areas in shops, offices and other working environments;
• By clients in hotels, motels, bed and breakfast and other residential type environments
• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
• Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• Do not heat liquids and other foods in sealed containers. They are liable to explode.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.
• The appliance is intended for heating food and beverages.

Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any food deposits removed.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
• The rear surface of appliances shall be placed against a wall.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Pay attention to the minimum dimensions of the cabinet (if applicable). Refer to the installation chapter.
• The appliance must be operated with the decorative door open (if applicable).

Safety instructions

Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance. Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other appliances and units.
• Make sure that the appliance is installed below and adjacent safe structures.
• The sides of the appliance must stay adjacent to appliances or to units with the same height.

Electrical Connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician. The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• If the appliance is connected to the socket via an extension cord, make sure the cord is earthed.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING!

Risk of injury, burns and electrical shock or explosion.

• Do not change the specification of this appliance.
• Do not let the appliance stay unattended during operation.
• Do not apply pressure on the open door. Make sure that the ventilation openings are not blocked.
• Do not use the appliance as a work surface and do not use the cavity for storage purposes.

Care and Cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

Product description

General overview

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not allow food spills or cleaner residue to accumulate on door sealing surfaces.
• Remaining fat or food in the appliance can cause fire.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.

Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply. Cut off the mains cable and discard it.

1 Lamp 2 Safety interlock system 3 Display 4 Control panel 5 Door opener 6 Waveguide cover 7 Grill 8 Turntable shaft

	Symbol	Function	Description
1	-	Display	Shows the settings and current time.
2		Defrosting button	To defrost food by weight or time.
3		Function button	To choose the function.
4		Setting knob	To set the cooking time, weight or to activate the auto cooking pro-grammes.
5		Stop / Clear button	To deactivate the appliance or delete the cooking settings.
6		Clock / Kitchen Timer button	To set the clock.
7	OK	Start / +30 sec button	To start the appliance or increase the cooking time for 30 seconds at full power.

Accessories

Turntable set

Always use the turntable set to prepare food in the microwave.

Glass cooking tray and roller guide.

Grill Rack

Before first use

WARNING!

Refer to Safety chapters.

Initial Cleaning

CAUTION!

Refer to chapter "Care and Cleaning".

• Remove all the parts and additional packaging from the microwave. Clean the appliance before first use.

Setting the time

If the clock is not set, it does not operate when the microwave is in use.

Daily use

WARNING!

Refer to Safety chapters.

General information about using the appliance

After you deactivate the appliance, let the food stand for some minutes. - Remove the aluminium foil packaging, metal containers, etc. before you prepare the food.

Use for:

grilling food - combi cooking

When you connect the appliance to the electrical supply or after a power cut, the display shows 0:00 and an acoustic signal sounds.

You can set the time in a 24 hour clock system.

1. Press ^日 .
2. Turn the Setting knob to set the hours.
3. Press ^口 to confirm.
4. Turn the Time Setting knob to enter the amount of minutes.
5. Press ⁰ to confirm.

Cooking

If possible, cook food covered with material suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty. Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or catch fire in some places. Do not use the appliance to cook eggs or snails in their shells, because they can explode. With fried eggs, pierce the yolks first.

• Prick food with "skin" or "peel", such as potatoes, tomatoes, sausages, with a fork several times before cooking so that the food does not explode.
• For chilled or frozen food, set a longer cooking time.
• Dishes which contain sauce must be stirred from time to time. Vegetables that have a firm structure, such as carrots, peas or cauliflower, must be cooked in water.
• Turn larger pieces after half of the cooking time. If possible, cut vegetables into similar-sized pieces. Use flat, wide dishes.
• Do not use cookware made of porcelain, ceramic or earthenware with small holes, e.g. on handles or unglazed bottoms. Moisture going into the holes can cause the cookware to crack when it is heated.
• The glass cooking tray is a work space for heating food or liquids. It is necessary for the operation of the microwave.

Defrosting meat, poultry, fish

• Put the frozen, unwrapped food on a small upturned plate with a container below it so that the defrosting liquid collects in the container.
• Turn the food after half of the defrosting time. If possible, divide and then remove the pieces that started to defrost.

Defrosting butter, portions of gateau, quark

• Do not fully defrost the food in the appliance, but let it defrost at room temperature. This gives a more even result. Fully remove all metal or aluminium packaging before defrosting.

Defrosting fruit, vegetables

• Do not fully defrost fruit and vegetables that are to be further prepared while raw in the appliance. Let them defrost at room temperature.
• You can use a higher microwave power to cook fruit and vegetables without defrosting them first.

Ready meals

• You can prepare ready meals in the appliance only if their packaging is suitable for microwave use.
• You must follow the manufacturer's instructions printed on the packaging (e.g., remove the metal cover and pierce the plastic film).

Suitable cookware and materials

Cookware / Material	Microwave			Grilling
	Defrosting	Heating	Cooking
Ovenproof glass and porcelain (with no metal components, e. g. Pyrex, heat-proof glass)	X	X	X	X
Non-ovenproof glass and porcelain 1)	X	--	--	--
Glass and glass ceramic made of ovenproof/ frost-proof material (e. g. Arcoflam), grill shelf	X	X	X	X
Ceramic 2), earthenware 2)	X	X	X	--
Heat-resistant plastic up to 200 °C 3)	X	X	X	--
Cardboard, paper	X	--	--	--
Clingfilm	X	--	--	--
Roasting film with microwave safe closure 3)	X	X	X	--
Roasting dishes made of metal, e. g. enamel, cast iron	--	--	--	X
Baking tins, black lacquer or silicon-coated 3)	--	--	--	X
Baking tray	--	--	--	X
Browning cookware, e. g. Crisp pan or Crunch plate	--	X	X	--
Ready meals in packaging 3)	X	X	X	X

1) With no silver, gold, platinum, or metal plating / decorations 2) Without quartz or metal components, or glazes that contain metals 3) You must follow the manufacturer's instructions about the maximum temperatures.

X suitable

-- not suitable

Activating and deactivating the microwave

CAUTION!

Do not let the microwave operate if there is no food in it.

1. Press the Function button once.
2. Repeatedly press the Function button or turn the Setting knob to set the desired function.
3. Press the OK button to confirm.
4. Turn the Setting knob to set the time.
5. Press OK to confirm and activate the microwave.

To deactivate the microwave:

• Wait until the microwave deactivates automatically, when the time comes to an end.
• Open the door. The microwave stops automatically. Close the door and press OK to continue to cook. Use this option to inspect food.
• Press the Stop button.

When the microwave deactivates automatically, an acoustic signal sounds.

Power setting table

Press the Function but- ton	Power setting	Approximate Percentage of Power
1 time	P100	100 %
2 times	P 80	80 %
3 times	P 50	50 %
4 times	P 30	30 %
5 times	P 10	10 %
Grill
6 times	G - 1	Full Grill
Combi Cooking
7 times	C – 1	55 % Microwaves, 45 % Grill
8 times	C – 2	36 % Microwaves, 64 % Grill

Quick Start

The maximum cooking time is 95 minutes.

Press OK to activate the microwave for 30 seconds at full power.

The cooking time increases by 30 seconds with each additional press of the button.

• In standby mode, turn the Setting knob counterclockwise to set the cooking time, then press OK to activate the microwave at full power.

Defrosting

You can choose between 2 defrosting modes:

Weight defrosting, Time defrosting

Do not use weight defrosting on food that has been left out of the freezer for more than 20 minutes, or for frozen ready-made food.

To activate weight defrosting, you must use more than 100 g of food and less than 2000 g.

To defrost less than 200 g of food, place it on the edge of the turntable.

1. Press the button once to set weight defrosting or twice for time defrosting.
2. Turn the Setting knob to set the weight or the time. For weight defrosting, the time is set automatically.

Automatic programmes

1. Press OK to confirm and activate the microwave.

Multistage cooking

If one stage is defrosting, set it as the first stage.

You can cook food in a maximum of 2 stages.

Cook all frozen foods in 2 stages.

1. Press the button and set the defrosting mode.
2. Turn the Setting knob to set the defrosting time or weight.
3. Press to confirm.
4. Repeatedly press or turn the Setting knob to set the power level.
5. Press OK to confirm.
6. Turn the Setting knob to set the time.
7. Press OK to confirm and activate the microwave. After each step an acoustic signal sounds.

Grilling and Combi Cooking

1. Press
2. Turn the Setting knob to set the desired function
3. Press OK to confirm.
4. Turn the Setting knob to set the time.
5. Press OK to confirm and activate the microwave. You can change the power setting or time, while the Grilling or Combi cooking mode is active.

WARNING!

Refer to Safety chapters.

Auto cooking

Use this function to easily cook favourite food. The microwave automatically sets the optimum settings.

1. Turn the Setting knob clockwise to choose the desired menu.
2. Press OK to confirm.
3. Turn the Setting knob to set the weight of the menu.
4. Press OK to confirm and activate the microwave.

Menu	Amount
A - 1 Pizza	200 g400 g
A - 2 Potato	200 g400 g600 g
A - 3 Meat	250 g350 g450 g
A - 4 Fish	250 g350 g450 g
A - 5 Vegetable	200 g300 g400 g
A - 6 Beverage	1 cup (120 ml)2 cups (240 ml)3 cups (360 ml)
A - 7 Pasta	50 g (add 450 ml of water)100 g (add 800 ml of water)
A - 8 Popcorn	50 g100 g
A - 9 Chicken	400 g800 g1200 g
A - 10 Reheat	200 g400 g600 g

Using the accessories

WARNING!

Refer to Safety chapters.

Inserting the turntable set

CAUTION!

Do not cook food without the turntable set. Use only the turntable set provided with the microwave.

Never cook food directly on the glass cooking tray.

1. Place the roller guide around the turntable shaft.
2. Place the glass cooking tray on the roller guide.

Additional functions

Child Safety Lock

The Child Safety Lock prevents accidental operation of the microwave.

Press and hold the button for 3 seconds.

An acoustic signal sounds.

When the Child Safety Lock is active, the display shows the current time.

Kitchen Timer

You can set a maximum of 95 minutes.

Hints and tips

WARNING!

Refer to Safety chapters.

Tips for the microwave

Problem	Remedy
You cannot find details for the amount of food prepared.	Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Dou-ble the amount = almost double the time, Half the amount = half the time

Inserting the grill rack

Place the grill rack on the turntable set.

1. Press ① twice.
2. Turn the Setting knob to set the time.
3. Press OK to confirm.

The Timer still works when you open the door or pause the microwave. Press 7 to cancel.

When the set time is reached, an acoustic signal sounds.

Problem	Remedy
The food got too dry.	Set shorter cooking time or select lower microwave pow-er.
The food is not defrosted, hot or cooked af-ter the time came to an end.	Set longer cooking time or set higher power. Note that large dishes need longer time.
After the cooking time comes to an end, the food is overheated at the edge but is still not ready in the middle.	Next time set a lower power and a longer time. Stir liquids halfway through, e.g. soup.

To get better results for rice use a flat, wide dish.

Defrosting

Always defrost roast with the fat side down.

Do not defrost covered meat because this may cause cooking instead of defrosting.

Always defrost whole poultry breast side down.

Cooking

Always remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking.

Let the meat, poultry, fish and vegetables stay covered after cooking.

Brush a little oil or melted butter over the fish.

All vegetables should be cooked at full microwave power.

Add 30-45 ml of cold water for every 250 g of vegetables.

Cut the fresh vegetables into even-size pieces before cooking. Cook all vegetables with a cover on the container.

Care and cleaning

WARNING!

Refer to Safety chapters.

Notes and tips on cleaning

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual cleaning agent.
• Clean the appliance interior after each use. Then you can remove dirt more easily and it does not burn on.

Reheating

When you reheat packed ready meals always follow the instruction written on the packaging.

Grilling

Grill flat food items in the middle of the grill rack.

Turn the food over halfway through the set time and continue grilling.

Combi Cooking

Use the Combi Cooking to keep the crispness of certain foods.

At the half of the cooking time, turn over the foods then continue.

There are 2 modes for Combi Cooking. Each mode combines the microwave and the grill functions at different time periods and power levels.

WARNING!

Refer to Safety chapters.

What to do if...

Problem	Possible cause	Remedy
The appliance does not operate.	The appliance is deactivated.	Activate the appliance.
The appliance does not operate.	The appliance is not plugged in.	Plug in the appliance.
The appliance does not operate.	The fuse in the fuse box is blown.	Check the fuse. If the fuse blows more than one time, contact a qualified electrician.
The appliance does not operate.	The door is not closed properly.	Make sure that nothing blocks the door.
The lamp does not operate.	The lamp is defective.	The lamp has to be replace.
There is sparking in the cavity.	There are metal dishes or dishes with metal trim.	Remove the dish from the appliance.
There is sparking in the cavity.	There are metal skewers or aluminium foil that touches the interior walls.	Make sure that the skewers and foil does not touch the interior walls.
The turntable set makes scratching or grinding noise.	There is an object or dirt below the glass cooking tray.	Clean the area below the glass cooking tray.
The appliance stop to operate without a clear reason.	There is a malfunction.	If this situation repeats call the Authorised Service Center.

Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the appliance. Do not remove the rating plate from the appliance.

We recommend that you write the data here:
Model (MOD.)	..............................
Product number (PNC)	..............................
Serial number (S.N.)	..............................

WARNING!

Refer to Safety chapters.

General Information

CAUTION!

Do not block the air vents. If you do that, the appliance can overheat.

CAUTION!

Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire.

CAUTION!

The minimum installation height is 85 cm.

• The microwave is for built-in use only. It must be placed on a stable and flat surface.
• The cabinet cannot have a back wall in the place where the microwave is located.
• Put the microwave far away from steam, hot air and water splashes. If the microwave is too close to the TV and radio it may cause interference in the received signal.
• If you transport the microwave in cold weather, do not activate it immediately after the installation. Let it stand in the room temperature and absorb the heat.

Electrical installation

WARNING!

Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information".

This microwave is supplied with a main cable and main plug.

The cable has an earth wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock.

Installing the microwave

1. Check if the dimensions of the furniture meet the installation distances.

Installation distances

Dimension	mm
A	380 + 2
B	560 + 8
C	500
D	20

1. If the cabinet depth is over 300 mm, put the template on the bottom of the cabinet and check if it fits. If yes, mark the spots for screws. Remove the template and fix the bracket with the screws in the marked spots.

Skip this step if the cabinet depth is 300 mm.

3. Install the microwave. If you fixed the bracket, make sure it locks the back of the appliance.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances

1. Open the door and fix the microwave to the cabinet with screw.

marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
