COFFEE MAKER Instructions for use. Keep these instructions

Visit www.delonghi.com for a list of service centers near you. ELECTRIC CHARACTERISTICS

120 V~ 60 Hz 1450 W When using electrical machines, basic safety precautions should always be followed, including the following:

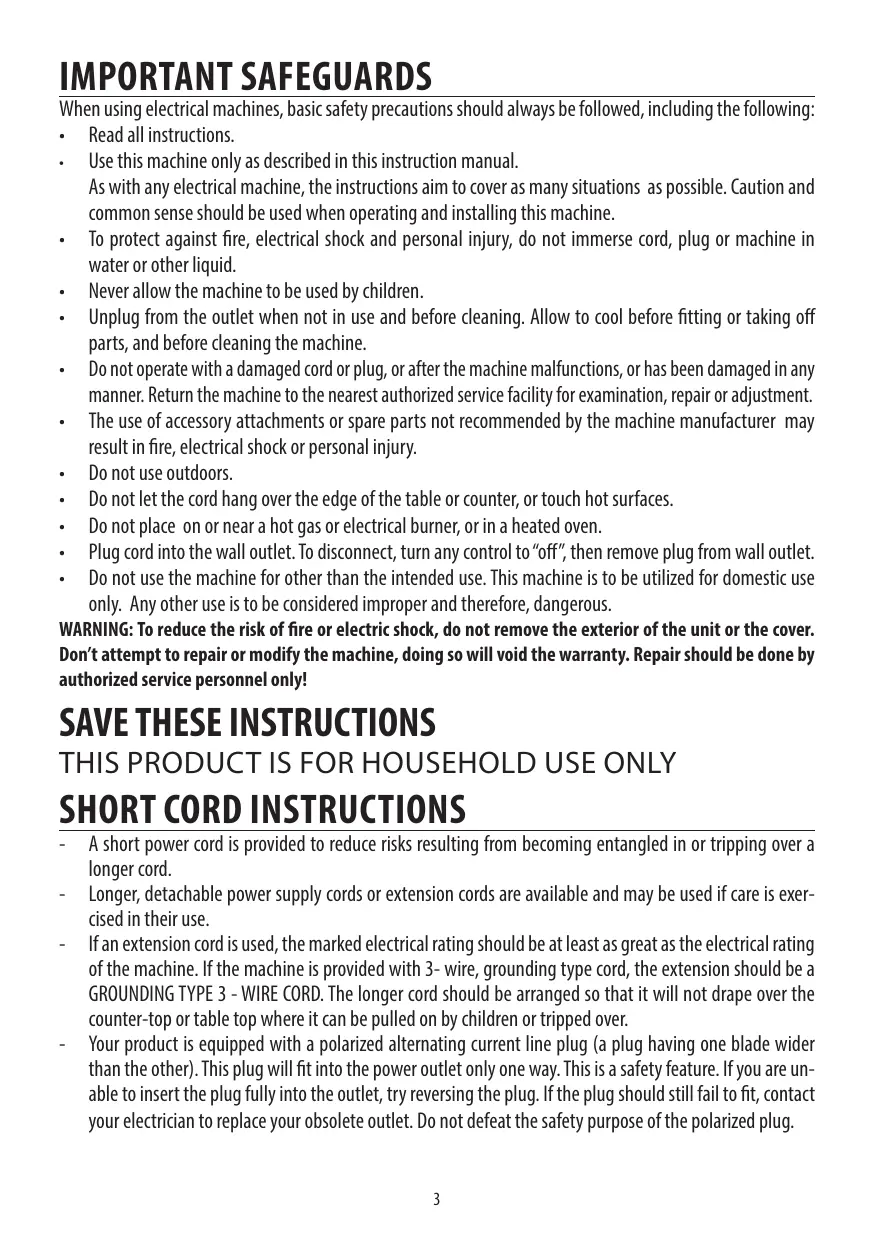

• Read all instructions. • Use this machine only as described in this instruction manual. As with any electrical machine, the instructions aim to cover as many situations as possible. Caution and common sense should be used when operating and installing this machine. • To protect against fire, electrical shock and personal injury, do not immerse cord, plug or machine in water or other liquid. • Never allow the machine to be used by children. • Unplug from the outlet when not in use and before cleaning. Allow to cool before fitting or taking off parts, and before cleaning the machine. • Do not operate with a damaged cord or plug, or after the machine malfunctions, or has been damaged in any manner. Return the machine to the nearest authorized service facility for examination, repair or adjustment. • The use of accessory attachments or spare parts not recommended by the machine manufacturer may result in fire, electrical shock or personal injury. • Do not use outdoors. • Do not let the cord hang over the edge of the table or counter, or touch hot surfaces. • Do not place on or near a hot gas or electrical burner, or in a heated oven. • Plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet. • Do not use the machine for other than the intended use. This machine is to be utilized for domestic use only. Any other use is to be considered improper and therefore, dangerous. WARNING: To reduce the risk of fire or electric shock, do not remove the exterior of the unit or the cover. Don’t attempt to repair or modify the machine, doing so will void the warranty. Repair should be done by authorized service personnel only!

SAVE THESE INSTRUCTIONS THIS PRODUCT IS FOR HOUSEHOLD USE ONLY SHORT CORD INSTRUCTIONS

A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

Longer, detachable power supply cords or extension cords are available and may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating should be at least as great as the electrical rating of the machine. If the machine is provided with 3- wire, grounding type cord, the extension should be a GROUNDING TYPE 3 - WIRE CORD. The longer cord should be arranged so that it will not drape over the counter-top or table top where it can be pulled on by children or tripped over. Your product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 3

Description of appliance - A A1. Water tank lid

A2. Tank extraction handle A3. Water tank A4. Cup warmer A5. Brewing unit A6. ON/OFF switch A7. Cup tray A8. Drip tray full indicator A9. Drip tray A10. Mugs or glasses tray A11. Steam wand A12. Steam dial

Description of accessories - C Portafilter symbol under filter)

1 cup filter ( 2 cup filter ( symbol under filter) symbol under filter) Pod filter ( Measuring scoop/presser Tamper Cleaning needle Water hardness test Descaler

Recommended optional accessories

Visit Delonghi.com for more information.

Water hardness filter EAN: 8004399327252

Description of control panel - B One cup button

ON light on button (white) Two cups button ON light on button (white) Steam button ON light on button (white) Descale light (orange)

2. PREPARING YOUR MACHINE FOR FIRST USE

1. Wash and dry all accesso- 2. Extract the tank by pullries (including water tank ing it upwards.

(A3)) with warm water and mild detergent.

3. Open the lid and fill the 4. Put the tank back in the tank with fresh clean machine, pressing lightly water, taking care not to to open the valves locatexceed the MAX level. ed on the bottom of the tank.

PREPARING YOUR MACHINE FOR FIRST USE

5. Turn the machine on 6. The machine performs by pressing the ON/OFF a self-diagnosis cycle, switch (A6). indicated by sequential flashing of the three buttons.

8. lights flash to indicate the machine is heating up. When the lights stop flashing and remain on steadily, the machine is ready for rinse.

10 9. Place a container with a 10. Press the button. minimum capacity of 500 Repeat this operation 5 ml (17 fl oz) under the times. brewing unit (A5) and steam wand (A11).

11. Turn the hot water/ steam dial to the position and deliver to empty the water tank; then turn the knob to the 0 position. This is to purge the steam circuit before frothing or steaming your milk.

• Never operate the machine without water in the tank or without the tank. • It is normal for there to be water in the space under the tank. This should therefore be dried regularly with a clean sponge.

Attach the portafilter to the machine aligning the portafilter handle with “INSERT”, then turning the handle to the right until it is aligned in the “CLOSE” position.

1. Place the coffee filter (C2) 2. Fill the coffee filter with for single espresso or (C3) ground coffee. Make for double espresso in the sure that you are using portafilter (C1). a fine grind, specific for espresso.

3. Distribute the pre- 4. Remove any excess coffee ground coffee evenly from the rim of the portaand press with the tamfilter and attach the porper (C6). Make sure the tafilter to the machine. coffee is at the recommended dose level after tamping. You may need to add some coffee.

7. The machine proceeds 8. To remove the portafilto make the coffee and ter, turn the handle from delivery is interrupted right to left. automatically.

5. Place the cup or cups 6. Make sure the lights under the portafilter corresponding to the spouts. coffee buttons are on, then press the or coffee button.

• Before filling the coffee filter with pre-ground coffee, make sure there are no coffee residues left in the filter from the last time you made coffee. • While the machine is making coffee, delivery can be interrupted at any moment by pressing the coffee button pressed previously. • At the end of delivery (within 3 seconds), to increase the amount of coffee in the cup, press and hold the coffee button pressed previously. Delivery is automatically interrupted after a few seconds. • To avoid splashes, never remove the portafilter while the machine is delivering coffee. Always wait for a few seconds after delivery.

Correct pressing of the pre-ground coffee is essential to obtain a correctly extracted espresso.

• If you press too lightly or unevenly, the coffee will be delivered quickly and will be weak and under-extracted

Tips for a hotter coffee

You are recommended to warm the cups before making coffee by rinsing them with a little hot water. Attach the portafilter (C1) to the machine with the filter (C2) or (C3)in place but without adding coffee. Using the same cup as will later be used to make the coffee, press the 1 cup button and deliver hot water into the cup to heat it. Raise the infusion temperature in the settings menu (see section “9. Menù settings”). Rest the cups you will be using on the cup warmer (A4) which becomes hot during operation.

4. HOW TO MAKE ESPRESSO COFFEE USING PODS

1. Place the filter for cof- 2. Insert the pod, centring 3. Attach the portafilter to 4. Place the cup under the fee pods (C4) in the it as far as possible on the the machine. portafilter spouts. portafilter. filter. Always follow the instructions on the pod pack to position the pod on the filter correctly.

5. Make sure the lights cor- 6. The machine proceeds 7. To remove the portafilter, responding to the coffee to make the coffee and turn the handle from right buttons are on, then press delivery is interrupted to left. automatically. the coffee button.

Use pods conforming to the ESE standard, indicated on the pack by the corresponding symbol.

The ESE standard is a system accepted by leading pod producers and enables espresso coffee to be prepared simply and cleanly. Please note: • When using pods, you can brew 1 cup of coffee only. • While the machine is making coffee, delivery can be interrupted at any moment by pressing the coffee button pressed previously.

At the end of delivery (within 3 seconds), to increase the amount of coffee in the cup, press and hold the coffee button pressed previously. Delivery is automatically interrupted after a few seconds.

To avoid splashes, never remove the portafilter while the machine is delivering coffee. Always wait for a few seconds after delivery. See section “3.2 Tips for a hotter coffee”.

5. PROGRAMMING THE QUANTITIES OF COFFEE IN THE CUP The machine is set by default to automatically deliver standard quantities. To change these quantities, proceed as follows:

Place one or two cups under the portafilter spouts.

3. The coffee maker starts 4. Once the required quantity delivering coffee and of coffee has been delivthe other coffee button ered into the cup, release flashes to indicate that the button. Delivery stops the machine is in proand the light flashes to gramming mode. indicate that the quantity has been saved correctly.

2. Press and hold the button you want to programme (

Programmable quantity

(from ≃0.51 to ≃3.04 fl oz)

(from ≃1.01 to ≃6.09 fl oz)

1. To use tall glasses, remove the drip tray (A9) and stand the glasses on the glasses tray (A10)

2. Prepare the espresso cof- 3. Fill a milk pitcher with button.

4. Press the fees as described in the fresh cold milk. Milk will The light flashes. When previous sections, using up to triple in volume. the light comes steady, the sufficiently large cups. appliance is ready to deliver steam.

Tips for best results:

• Recommended milk quantity for cappuccino: 100 ml/ 3.5 fl oz. • For a denser more even froth, you must use milk at refrigerator temperature (about 5°C/41°F). • When steam is ready, before frothing milk, position an empty container under the frother and open the dial for a few seconds to eliminate any air left in the circuit. Close the dial again and proceed. 8

5. Place the milk pitcher under the steam wand (A11): immerse the frother and turn the dial position. to the

6. To make the froth, put 7. Keep the steam nozzle just 8. Insert the steam nozzle the nozzle on the surface on the surface, careful not just under the milk: this of the milk and air will to make big bubbles by create a vortex. catch by the mixing of letting too much air in. milk and steam.

• To prepare more than one cappuccino, first make all the coffees then at the end prepare the frothed milk for all the cappuccinos.

9. Once the desired temperature is reached, turn the steam knob off and wait till steam stops completely before removing the milk pitcher

10. Pour the frothed milk into the cups containing the espresso coffee prepared previously. The cappuccino is ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder.

To exit the steam function, press any button. The and lights flash to indicate that the Cooling Cycle is required.

• You should not deliver steam for more than 60 seconds.

Cleaning the steam wand 1. After every use, remove with a soft damp cloth any milk residues from the steam wand. For perfect cleaning, we recommend Eco MultiClean: it ensures hygiene by removing milk proteins and fats and can be used to clean the whole machine. 2. Use the steam for a deeper cleaning. 3. Wait that the steam wand cool down and open the hole of the nozzle with the cleaning needle (C7).

After having used the steam wand and exited the steam funcand on the front of the mation, the two lights chine will flash simultaneously indicating that the boiler needs to be cooled off in order to reach the precise espresso brewing temperature. Simply proceed as follows:

• place a container under the cappuccino maker; 1. open the steam dial to deliver steam and hot water:

1. when both lights ( and

) flash the boiler is cool: close the steam dial. (when the boiler is cool, the pump stops operating and no more water is delivered). The coffee maker is now ready for use.

7. MAKING HOT WATER You should not deliver hot water for more than 60 seconds.

1 1. Place a container under the steam wand.

2. Wait for the coffee lights 3. Turn the dial to the position. Hot water is to come on steadily. delivered from the steam wand.

4. To stop hot water delivery, close the dial.

8. MEASURING WATER HARDNESS The descaling alarm is displayed after a period of time established according to water hardness. The machine can also be programmed according to the hardness of the water supply in the various regions. Softer water requires less frequent descaling.

1. Remove the indicator paper from its packaging. 2. Immerse the paper completely in a glass of water for about one second.

See instructions in section “9. Menù settings” to set the machine.

3. Remove the strip from the water and shake lightly. After about a minute, 1, 2, 3, or 4 red squares appear, depending on the hardness of the water. Each square corresponds to one level.

10 seconds button for 10 seconds until

Press and hold the the three buttons flash in sequence:

Infusion temperature Press

for Medium temperature

This temperature refers to the water inside the thermoblock. This differs from the temperature of the beverage in the cup or the temperature measured when the beverage Press comes out from the portafilter spouts.

for High temperature

Exit the settings menu by waiting for 15 seconds. Please note: • The setting is automatically confirmed and it is highlighted by a quick flashing of the light relative to the selection. • If no selections are made for 15 seconds, the machine automatically exits programming and is ready for use again.

11. DEFAULT VALUES (RESET)

This resets all menu settings and programmed quantities back to the default values. To reset the default values, proceed as follows: 1. Position the steam spout over the drip tray; 2. Enter the settings menu; 3. Turn the steam dial to the position;

button. The three lights flash simultaneou4. Press the sly to confirm that the original settings have been restored.

1. Remove the drip tray (A9) (fig. 2).

2. Remove the cup tray (A7), empty the water and clean the drip tray with a cloth, then reassemble the drip tray. Extract the mugs or glasses tray (A10), clean with water, dry and put back in the machine; 3. Put the drip tray back in place.

5. The and lights flash to indicate that the steam dial must be closed again (○symbol).

When the steam dial has been closed, the machine is ready for use.

12. CLEANING THE MACHINE The following parts of the machine must be hand cleaned regularly:

• the drip tray (A9) • the coffee filters (C2), (C3) and (C4); • the brewing unit (A5); • the water tank (A3); • the steam wand (A11) as described in section ““Cleaning the steam wand”; Important! • None of the components or accessories is dishwasher safe. • Do not use solvents, abrasive detergents or alcohol to clean the coffee machine. • Do not use metal objects to remove encrustations or coffee deposits as they could scratch metal or plastic surfaces. • If the machine is not used for more than one week, before using it again, we strongly recommend you perform a rinse cycle as described in section “2. Preparing your machine for first use”. Danger! • While cleaning, never immerse the coffee maker in water. It is an electrical machine. • Before cleaning the outside of the machine, turn it off, unplug from the main socket and allow to cool.

12.2 Cleaning the coffee filters

The coffee filters are designed to obtain the best possible coffee crema. For best results, the filters must always be clean and free from all coffee residues. After using the appliance, always rinse the filters under abundant running water (fig. 3), pushing the perforated filter to make sure it is always correctly inserted in its housing (fig.4);

make sure the hole underneath (shown in fig. 5) is free from all residues.

12.1 Cleaning the drip tray

Important! The drip tray is fitted with a level indicator (red) showing the level of water it contains. Before the indicator protrudes from the cup tray (fig. 1), the drip tray must be emptied and cleaned otherwise the water may overflow the edge and damage the machine, the surface it rests on or the surrounding area.

If still dirty, and in any case always at least once a month, clean the coffee filters thoroughly: 1. Extract the perforated filter by pulling the tab (fig. 6).

2. Rinse the filters under running water (fig. 7).

3. Make sure the holes are not clogged. If necessary, clean with a pin (fig. 5-7). 4. Dry all the components with a cloth. 5. Put the perforated filter back in the housing and press as far as it will go (fig. 4). Pod filter Rinse under running water. Make sure the holes are not clogged. If necessary, clean with a pin (figs. 8 - 9).

12.3 Cleaning the brewing unit

After every 200 coffees, rinse the brewing unit by delivering about 0.5 l of water from the brewing unit (press the coffee button without using ground coffee).

12.4 Other cleaning operations

1. Do not use solvents or abrasive detergents to clean the coffee maker. Use a soft damp cloth only. 2. Clean the portafilter cup.

12.5 Cleaning the water tank

1. Clean the water tank regularly (about once a month) and whenever you replace the water softener filter (if present) with a damp cloth and a little mild washing up liquid; 2. Remove the filter (if present) and rinse with running water; 3. Put the filter (if provided) back in the machine, fill the tank with fresh water and replace the tank; 4. (If water filter is present)) Deliver about 100 ml of water.

Before use, read the instructions and the labelling on the descaler pack.

It is important to use De’Longhi descaler only. Using unsuitable descaler and/or performing descaling incorrectly may result in faults not covered by the manufacturer’s guarantee. Descaler could damage delicate surfaces. If the product is accidentally spilt, dry immediately. IF PRESENT, REMOVE THE WATER SOFTENER FILTER.

2. Fill the tank with the des3. Press and hold the caler solution, obtained button for 10 seconds by diluting the descaler until the three buttons provided with water (fill flash in sequence. the water tank up to the

Descale the machine when the 1. Make sure the portafilter is not attached and pobutorange light on the sition a container under ton flashes. the hot water spout and

Setting the water hardness (see Section 8) will increase (harder water) or decrebrewing unit ase (softer water) the frequency of the need to descale the machine.

6. The descale programme starts and the descaler liquid comes out of the steam wand and brewing unit. The descale program removes limescale deposits from inside the appliance by automatically performing a series of rinses and pauses until the tank is empty.

During descaling, to clean the brewing unit, close the steam dial from time to time to deliver small quantities of descaler from the brewing unit.

4. Turn the steam dial to the 5. Press the start descaling position.

light continues to flash,

Delivery stops and the orange indicating that descaling is still underway. This indicates that it is necessary to proceed with rinsing: see next steps. 14

DESCALING Fill up to

7. Empty the container used 8. The machine is now ready 9. Make sure the steam dial 10. Make a second rinse from is in the position, to collect the descaler for rinsing through with step 7 to 9 inserting the solution and replace it clean water. Extract the water filter hardness (if then press the empty. water tank, empty, rinse previously installed). button to start rinsing. under running water, fill

During rinsing, to clean the with fresh water up to the brewing unit, close the steam dial from time MAX level and put back in to time to deliver small the machine. quantities of water from the brewing unit.

11. When the water tank is empty, the orange light goes out and descaling is complete. The and lights flash.

12. Close the steam dial turning it to 0 position. 13. Fill the water tank with fresh water. Now the appliance is ready to use. Please note

Explanation of lights

The ON/OFF button is turned on

The machine performs a self-diagnosis cycle, indicated by sequential flashing of the lights

When the machine is turned on

Flashing lights: the machine is heating up to make coffee

Lights on steadily: the machine is ready to make coffee

Flashing lights: close the steam dial

Cleaning & Cooling Cycle required

Activate the Cleaning & Cooling Cycle as described in section “6.1 Cooling Cycle”.

Explanation of lights

The tank is empty or the machine will not The lights flash rapidly. See the section make coffee

“2. Preparing your machine for first use”

The steam function is required

Flashing light: the machine is heating up to deliver steam

Light on steadily: the machine is ready to deliver steam

The machine needs descaling

Descale the machine, the operation is complete when the off.

15. TROUBLESHOOTING Problem

No espresso coffee is delivered

No water in the tank

The holes in the portafilter are clogged

Clean the portafilter spout holes

The filter is clogged of the perforated Clean as described in section “12.2 Cleaning the filter is missing coffee filters”

The tank has been inserted incorrectly Press the tank down lightly to open the valves on and the valves on the bottom are not the bottom open Limescale in the water circuit The espresso coffee drips from The portafilter has been inserted incorthe edges of the portafilter rectly or is dirty rather than the holes The espresso boiler gasket has lost elasticity or is dirty

Descale as described in section “13. Descaling”

Attach the portafilter correctly and rotate firmly as far as it will go Have the espresso boiler gasket replaced by Customer Services

The holes in the portafilter spouts are Clean the portafilter spout holes blocked

The filter is clogged or the perforated Clean as described in section “12.2 Cleaning the filter is missing coffee filters” The portafilter cannot be at- Too much coffee has been placed in the Use the measure supplied and make sure you are tached to the machine filter using the correct filter for the type of preparation

The coffee crema is too light The pre-ground coffee is not pressed Press the pre-ground coffee more firmly

(delivered from the spout too down firmly enough fast) There is not enough pre-ground coffee Increase the quantity of pre-ground coffee The pre-ground coffee is too coarse

Use only pre-ground coffee for espresso coffee makers

The wrong type of pre-ground coffee is Change the type of pre-ground coffee being used

The coffee crema is too dark There is not enough pre-ground coffee (delivered from the spout too The espresso coffee outlet is blocked slowly)

Reduce the quantity of pre-ground coffee

Clean as described in section “12.3 Cleaning the brewing unit”

The filter is blocked

Clean as described in section “12.2 Cleaning the coffee filters”

The pre-ground coffee is too fine

Use only pre-ground coffee for espresso coffee makers

The pre-ground coffee is too fine or damp Use pre-ground coffee for espresso coffee makers only and make sure it is not too damp

Limescale in the water circuit After delivering coffee, the filter remains attached to the brewing unit

Descale as described in section “13. Descaling”

Insert the portafilter again, deliver coffee, then remove the portafilter

The machine will not make any No water in the tank

Fill the tank with water drink and all the lights flash for The tank has been inserted incorrectly Press the tank down lightly to open the valves on a few seconds and the valves on the bottom are not the bottom open The brewing unit is clogged

Clean as described in section “12.3 Cleaning the brewing unit”

The filter is clogged

Clean as described in section “12.2 Cleaning the coffee filters”

Limescale in the water circuit

Descale as described in section “13. Descaling”

The machine does not function and all the lights flash

Disconnect the machine immediately and contact authorised Customer Services.

No milk froth is formed when Milk not cold enough making cappuccino

Always use milk at refrigerator temperature

Clean as described in section “Cleaning the steam wand”

Limescale in the water circuit

Descale as described in section “13. Descaling”
