USER MANUAL VC9190DT - VC9190DT LG

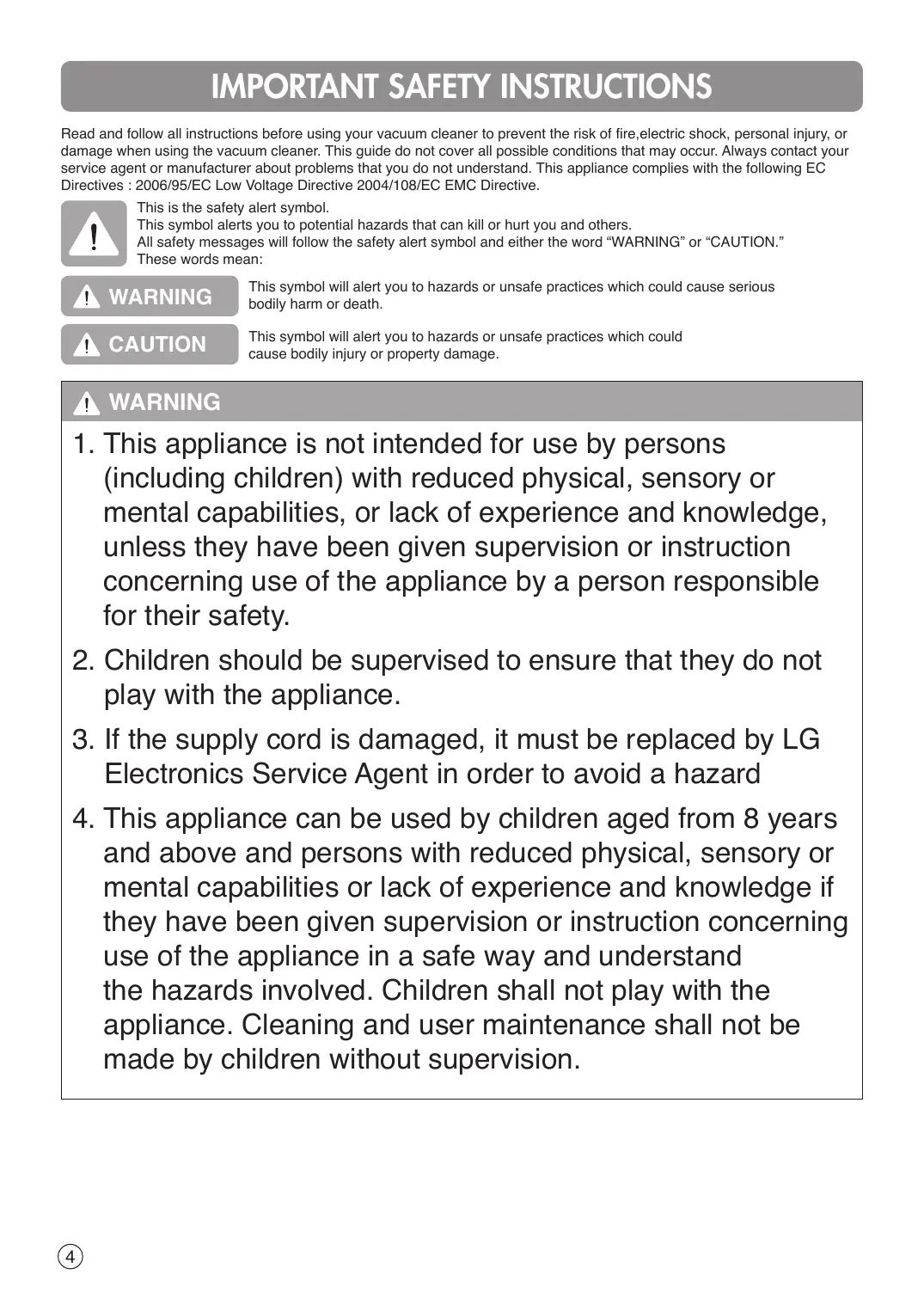

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 4, 5, 6 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire,electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives : 2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.” These words mean: WARNING This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death. CAUTION This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage. WARNING

1. This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they do not

play with the appliance.

3. If the supply cord is damaged, it must be replaced by LG

Electronics Service Agent in order to avoid a hazard

4. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not plug in if control knob is not in OFF position. Personal injury or product damage could result.

• Keep children away and beware of obstructions when rewinding the cord to prevent personal injury The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use. Failure to do so could result in electrical shock or personal injury.

• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes. Doing so could result in death, fire or electrical shock.

• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases). The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.
• Do not handle plug or vacuum cleaner with wet hands. Doing so could result in death or electrical shock.

• Do not unplug by pulling on cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts. Failure to do so could result in electrical shock or personal injury.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces. Failure to do so could result in electrical shock or personal injury or fire or product damage.
• The hose contains electrical wires. Do not use it if it is damaged, cut or punctured. Failure to do so could result in death,or electrical shock.
• Do not allow to be used as toy. Close attention is necessary when used by or near children. Personal injury or product damage could result.

o not use the vacuum cleaner if the power cord or plug is damaged or faulty. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard. o not use vacuum cleaner if it has been under water. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard. o not continue to vacuum if any parts appear missing or damaged. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

• Do not use an extension cord with this vacuum cleaner. Fire hazard or product damage could result.

sing proper voltage. Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner. urn off all controls before unplugging. Failure to do so could result in electrical shock or personal injury.

o not change the plug in any way. Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Repairs to electrical appliances may only be performed by qualified service engineers. Improper repairs may lead to serious hazards for the user.
• Do not put fingers near the gear. Failure to do so could result in personal injury. gear

• Do not put any objects into openings. Failure to do so could result in product damage.

• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow. Failure to do so could result in product damage.
• Do not use vacuum cleaner without dust tank and/ or filters in place. Failure to do so could result in product damage.

• Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust. These products clog the filters,reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the cleaner or dust bin.

• Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping over it.
• The vacuum cleaner is not intended to use by young children or infirm people without supervision. Failure to do so could result in personal injury or product damage.

• Only use parts produced or recommended by LG Electronics Service Agents. Failure to do so could result in product damage.
• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories. Failure to do so could result in personal injury or product damage.

se accessory nozzles in sofa mode. Failure to do so could result in product damage.

on ’t grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner’s body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 20) ake sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine. Failure to do so could result in product damage. o not dry the filter in an oven or microwave. Failure to do so could result in fire hazard. o not dry the filter in a clothes dryer. Failure to do so could result in fire hazard. o not dry near an open flame. Failure to do so could result in fire hazard.

• Do not use filters that is not dried.

• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.

his appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs. Failure to do so could result in personal injury or product damage. Thermal protector : This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a qualified electrician.

(depend on model) (selon le modèle) (depend on model) (selon le modèle) ➋ Telescopic pipe Tube télescopique

• Push the hose handle firmly into the telescopic pipe.
• Grasp the spring latch to expand.
• Pull out the pipe to desired length.
• Insérez fermement le tube télescopique dans la poignée.

How to use Operating vacuum cleaner Comment utiliser Utiliser l’aspirateur Plug, Prise Cord reel button Bouton de rembobinage du câble Control knob Variateur poignée MAX Line Niveau MAX ➊ How to operate mptying the dust tank ➌ Park mode Comment faire fonctionner Vider le réservoir à poussière Position parking

• Pull out the power cord to the desired length and plug into the socket.
• Place the control knob of the hose handle to the required position.
• To turn off, slide control knob to OFF position.
• Press the cord reel button to rewind the power cord after use.
• Tirez le câble d’alimentation à la longueur désirée puis branchez dans la prise murale.

• Always empty the dust tank when the dust tank level reaches the MAX line.
• Toujours vider le réservoir de poussière lorsque le niveau du réservoir à poussière atteint le niveau MAX.

• To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle. lide the hook on the nozzle into the slot on the side of vacuum cleaner.
• Pour immobiliser l’appareil pendant l’utilisation, par exemple pour déplacer un meuble ou un tapis, utilisez la position parking pour soutenir le flexible et la tête d’aspiration. aites glisser le crochet de la brosse dans son emplacement situé sur le côté de l’aspirateur. ➍ Storage Rangement
• When you have switched off and unplugged the vacuum cleaner, press the cord reel button to automatically rewind the cord.
• You can store your vacuum cleaner in a vertical position by sliding the hook on the nozzle into the slot on the underside of the vacuum cleaner.
• Une fois que vous avez éteint et débranché votre aspirateur, appuyez sur le bouton de rembobinage pour rembobiner automatiquement le câble.
• Vous pouvez ranger votre aspirateur en position verticale en faisant glisser le crochet dans la position parking située au dos de l’aspirateur. How to use Using carpet and floor nozzle Comment utiliser Utiliser la brosse sols durs et moquettes et la brosse parquet Carpet Tapis Pedal Pédale Floor Sol ➊ Carpet and floor nozzle (depend on model) Brosse sols durs et moquettes (selon le modèle) ➋ Hard floor nozzle (depend on model) Brosse parquet (selon le modèle)

• The 2 position nozzle This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.
• Carpet or rug position ) to lower brush. press the pedal (
• Hard floor position (tiles, parquets floor) Both pedal position are suitable.

• Efficient cleaning of hard floors (wood, linoleum, etc)

• Clean the hole and brush of the nozzle.

How to use Using all floor nozzle and mini turbine nozzle Comment utiliser Utiliser la brosse Turbo-combi et la brosse mini turbine Carpet Tapis Pedal Pédale Floor Sol ➌ All floor nozzle (depend on model) La brosse Turbo-combi (selon le modèle)

• The 2 position nozzle This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.
• Carpet or rug position ), then brush is will rotate Press the pedal (
• Hard floor position ) , then brush will stop rotating Press the pedal (
• La brosse Turbo-combi est munie d’une pédale qui vous permet de modifier sa position en fonction du type de sols.
• Position tapis ou moquette ), pour mettre en marche la turbine. Appuyez sur la pédale (
• Cleaning all floor nozzle
• Nettoyer la brosse Turbo-combi
• Open the cover by pulling the hook.
• Ouvrir le couvercle en tirant sur le crochet.

• Clean the hole and brush of the nozzle.

➍ Mini turbine nozzle (depend on model) La brosse mini turbine (selon le modèle)

• Mini turbine is used for stairs and other hard to reach places.
• To clean the mini turbine nozzle, remove the nozzle cover : Remove 2 screws on the bottom and take mini turbine nozzle cover off as shown.
• Frequently clean and remove hair, string, and lint build-up in the brush area. Failure to do so could damage to mini turbine nozzle.
• La mini turbine est utilisée pour les escaliers ainsi que pour toutes les surfaces difficilement accessibles.

• Accessory nozzles included in the "BOX" with owner's manual.
• Les accessoires sont inclus dans le "BOÎTE" avec le manuel de l’utilisateur.

• Crevice tool included in the vacuum cleaner body.

How to use Emptying dust tank Comment utiliser Vider le bac à poussière Pull out Retirez MAX line Niveau MAX Tank separation lever Levier de séparation du réservoir Tank handle Poignée du réservoir Dust tank cap Couvercle du bac à poussière The dust tank needs emptying when the dust tank level reaches the MAX line.

• Turn off the vacuum cleaner and unplug it.
• Grasp the handle of the tank and then press the tank separation button.
• Pull out the dust tank.
• Empty the tank and then assemble the dust tank as shown. Le réservoir à poussière doit être vidé lorsque le niveau du réservoir à poussière atteint le niveau MAX.

• If suction power decreases after empting dust tank, clean dust tank next page

• Press tank separation button and pull out dust tank.
• Raise dust tank cap.
• Empty the dust tank and wash it.
• Dry fully in shade so that moisture is entirely removed.

• Open the Vacuum cleaner cover by pushing the button. Grasp the handle of the dust separator and take it out. Open the guide cover by pulling the guide cover lever and remove dust. Open the pre filter cover by pulling the pre filter cover lever and take out pre filter assembly.

• Wash air filter and motor safety filter with water.
• Do not wash filters with hot water.
• Dry fully in shade so that moisture is entirely removed.
• Air filter and motor safety filter should be cleaned in the above case.
• Do not use filters that is not dried.

• Insert the motor protection filter to the filter case.
• Close the filter cover.
• Close the dust separator cover.
• Hold the handle of the dust separator to firmly assemble it by pressing it down.
• Close the cleaner cover.

• The exhaust filter is a reuseable.
• To clean the exhaust filter, remove the Exhaust filter cover on the body by pulling out it.
• Separate the exhaust filter.
• Dust off filter.(Do not wash filter with water.)
• The exhaust filter should be cleaned at least a year. Exhaust filter cover assembling
• Fit exhaust filter cover lugs to the grooves of vacuum cleaner body.

• Stage 1 : Check whether the suction control button is set to “High”

What to do if your vacuum cleaner does not work Que faire si votre aspirateur ne fonctionne pas Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working. Vérifiez que votre aspirateur soit correctement branché et que la prise murale fonctionne. What to do when suction performance decreases Que faire lorsque la puissance d’aspiration diminue

• Turn off the vacuum cleaner and unplug it.
• Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
• Check that the dust tank is not full. Empty if necessary.
• Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
• Check that the air filter is not clogged. Clean the air filter if necessary.

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European

Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal
