Installation Instructions Over The Range Microwave Oven BEFORE YOU BEGIN (Read these instructions completely and carefully.)

IMPORTANT Save these instructions for local inspector’s use.

IMPORTANT Observe all governing codes and ordinances.

- Be sure to leave these instructions with the Consumer.

- Keep these instructions for future reference.

- Installation of this appliance requires basic mechanical and electrical skills.

• Proper installation is the responsibility of the installer. • Product failure due to improper installation is not covered under the Warranty.

READ CAREFULLY. KEEP THESE INSTRUCTIONS.

This manual is made with 100% recycled paper.

SMH1816_XAC_DE68-03943B-01_EN_120725.indd 1

1. Placement of the mounting plate . . . . 8

Electrical requirements . . . . . . . . . . . 3

A. Removing the microwave oven from the carton/Removing the mounting plate . . 8

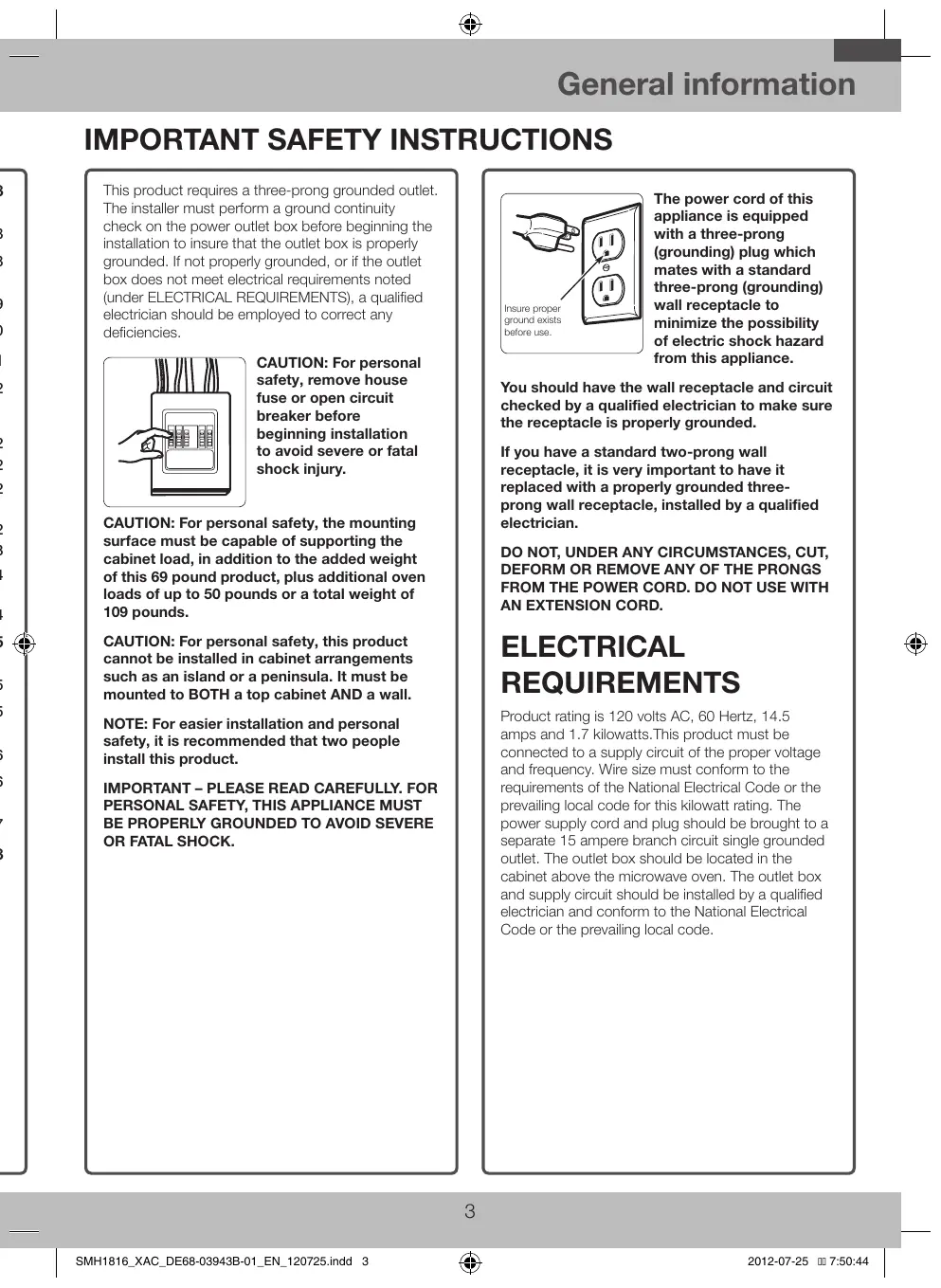

General information Important safety instructions This product requires a three-prong grounded outlet. The installer must perform a ground continuity check on the power outlet box before beginning the installation to insure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.

Insure proper Insure proper ground exists ground exists before use. before use

CAUTION: For personal safety, remove house fuse or open circuit breaker before beginning installation to avoid severe or fatal shock injury.

You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded. If you have a standard two-prong wall receptacle, it is very important to have it replaced with a properly grounded threeprong wall receptacle, installed by a qualified electrician.

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.

CAUTION: For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of this 69 pound product, plus additional oven loads of up to 50 pounds or a total weight of 109 pounds.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

CAUTION: For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH a top cabinet AND a wall.

Electrical requirements

NOTE: For easier installation and personal Insure proper safety, it is recommended that two people ground exists install this product. before use

Product rating is 120 volts AC, 60 Hertz, 14.5 amps and 1.7 kilowatts.This product must be connected to a supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate 15 ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the microwave oven. The outlet box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

IMPORTANT – PLEASE READ CAREFULLY. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.

3 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 3

General information Hood exhaust NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 11.

O R OUTSIDE TOP EXHAUST (EXAMPLE ONLY) The following chart contains an example of one possible ductwork installation.

E Th st 12 Ft. Straight Duct (6˝ Round)

Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY) The following chart contains an example of one possible ductwork installation. EQUIVALENT LENGTH

DUCT PIECES Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.

NOTE: For back exhaust, care should be taken to align the exhaust with the space between studs, or the wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

4 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 4

2012-07-25 �� 7:50:44

General information For satisfactory air movement, the total duct length of 3 ¼˝ x 10˝ rectangular or 6˝ diameter round duct should not exceed 140 equivalent feet.

Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.

Elbows, transitions, wall and roof caps, etc., present additional resistance to airflow

NOTE: It is important that venting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the equivalent length in feet of some typical ducts.

Exhaust connection: The hood exhaust has been designed to mate with a standard 3 ¼˝ x 10˝ rectangular duct. If a round duct is required, a rectangular-to-round transition adaptor must be used. Do not use less than a 6˝ diameter duct.

Rectangular-to-Round Transition Adaptor*

Straight Duct 6˝ Round or 3 ¼˝ x 10˝ Rectangular

Maximum duct length:

NOTE: If you need to install ducts, note that the total duct length of 3 ¼˝ x 10˝ rectangular or 6˝ diameter round duct should not exceed 140 equivalent feet.

NUMBER USED Total Ductwork *

IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using tin snips, in order to allow free movement of the damper.

EQUIVALENT LENGTH Equivalent lengths of duct pieces are based on actual tests and reflect the requirements for good venting performance with any vent hood.

5 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 5

2012-07-25 �� 7:50:44

General information Damage - Shipment/Installation

If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.

If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.

If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between the customer and installer.

Toggle Bolts (and wing nuts) (3/16˝ x 3˝)

PART TOP CABINET TEMPLATE TOP CABINET TEMPLATE ION LLAT S INSTA UCTION STRWALL TEMPLATE REAR IN REAR WALL TEMPLATE You will find the installation hardware contained in a packet with late the unit. Check to make sure you have all Temp plate m plate theseTTeem parts.

Installation Instructions

Separately Packed Grease Filter

NOTE: Some extra parts are included. ION LLAT NS ION INSTA UAT CTIO TRLL IONNS INSSTA IN CTIONS UAT TARLL IN INSSTRUCTIO INST

2012-07-25 �� 7:50:45

General information Tools you will need

# 1 and #2 Phillips screwdriver

Ruler or tape measure and straight edge

Carpenter square (optional)

Tin snips (for cutting damper, if required)

Scissors (to cut template, if necessary)

Electric drill with 3/16˝, ½˝ and ⅝˝ drill bits

Filler blocks or scrap wood pieces, if needed for top cabinet spacing (used on recessed bottom cabinet installations only)

Duct and masking tape

Bottom edge of the cabinet needs to be 30˝ or more from the cooking surface. Backsplash

The space between the cabinets must be 30˝ wide and free of obstructions.

This microwave oven is for installation over ranges up to 36˝ wide.

If you are going to vent your microwave oven to the outside, see the Hood Exhaust Section for exhaust duct preparation.

If installing the microwave oven beneath smooth flat cabinets, be careful to follow the instructions on the top cabinet template for power cord clearance.

Maximum cabinet depth above and beside the unit is 12˝.

The dimensions provided are the minimum required for mounting the microwave oven. Local codes and the practical use of the range will likely require you to provide more than the 13.5˝ shown between the range and the bottom of the microwave.

7 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 7

2012-07-25 �� 7:50:46

Step-by-step installation guide 1. Placement of the mounting plate A. Removing the microwave oven from the carton/Removing the mounting plate

C B. Finding the wall studs

Wall WallStuds Studs

1. Remove the installation instructions, Exhaust adaptor, filters, glass tray, and the small hardware bag. Do not remove the Styrofoam protecting the front of the oven.

2. Fold back all 4 carton flaps fully against carton sides. Then carefully roll the oven and carton over onto the top side. The oven should be resting in the Styrofoam.

1. Find the studs using one of the following methods: A. Stud finder–a magnetic device which locates nails.

OR B. Use a hammer to tap lightly across the mounting surface to find a solid sound. This will indicate a stud location.

2. After locating the stud(s), find the stud’s center by probing the wall with a small nail to find the edges of the stud. Then, place a mark halfway between the edges. The center of any adjacent studs should be 16˝ or 24˝ from this mark.

3. Pull the carton up and off the oven. 4. Remove and properly discard plastic bags. Screws Screws

3. Draw a line down the center of the studs.

Mounting Plate Mounting Plate

THE MICROWAVE MUST BE CONNECTED TO AT LEAST ONE WALL STUD.

5. Remove the 2 screws from the mounting plate. This plate will be used as the rear wall template and for mounting. NOTE: You will have to reuse two screws in original loction of outcase after removing mounting plate.

Draw a vertical line on the wall at the center of the 30˝ wide space. Tape the Rear Wall Template onto the wall so that the top of the template touches the bottom of the cabinet and the centerline on the template lines up with the line you drew on the wall.

CL Draw a vertical line on the wall at the center of the 30˝ wide space. Tape the Rear Wall Template onto the wall so that the top of the template touches the bottom of the cabinet frame and the centerline on the template lines up with the line you drew on the wall.

Your cabinets may have decorative trim that interferes with the microwave installation. Remove the decorative trim to install the microwave properly and to make it level.

Plate position – beneath recessed bottom cabinet with front overhang.

THE MICROWAVE MUST BE LEVEL.

Draw a horizontal line to mark how far the inside of the front overhang descends below the cabinet.

Use a level to make sure the cabinet bottom is level. Draw a vertical line on the wall at the center of the 30˝ wide space. Draw a second, horizontal line on the wall below the cabinet to mark how far the inside of the front overhang descends below the cabinet. Tape the Rear Wall Template onto the wall so that the top of the template touches the bottom of the horizontal line and the centerline on the template lines up with the vertical line.

Draw a Horizontal line the wall Drawon a Vertical Linealong on Wall from Center the bottom of “Rear of Top Cabinet Wall Template”.

S CAUTION: Wear gloves to avoid cutting fingersWear on sharp edges. CAUTION: gloves to avoid cutting fingers

Draw a Horizontal line on the wall at the bottom of the “Rear Wall Template”.

Drill ⅝˝ holes for toggle bolts in 3 locations (Hole A, Hole B, Hole C) as shown in the illustration above. If the location of a hole lines up with a stud, drill a 3/16˝ hole for a wood screw. You cannot use a toggle bolt to attach the wall plate to a stud.

Holes A, B and C are inside area E. If none of these holes line up with a stud, find a stud in area E that lines up with a hole circle in Area E, and then drill a 3/16˝ hole into it for a wood screw. You must have at least one wood screw mounted firmly into a stud to support the weight of the microwave. Set the mounting plate aside.

10 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 10

2012-07-25 �� 7:50:49

Step-by-step installation guide 2. Ventilation types (choose a, b or c) NOTE: This microwave is shipped assembled for Outside Top Exhaust (except for non-vented models). An exhaust adaptor is shipped assembled and attached to the filler-upper. Select the type of ventilation required for your installation and proceed to that section.

This microwave oven is compatible with the following three types of ventilation: A. Outside Top Exhaust (Vertical Duct) B. Recirculating (Non-Vented Ductless) C. Outside Back Exhaust (Horizontal Duct)

A. Outside top exhaust (vertical duct)

B. Recirculating (nonvented ductless)

Adaptor AdaptorininPlace Place for Outside Top for Outside Exhaust

See page 12 A Charcoal Filter Accessory Kit is required for the nonvented exhaust. (See your Owner’s Manual for the kit number.)

C. Outside back exhaust (horizontal duct)

NOTE: You must attach the house duct to the exhaust adaptor after installation is complete.

House Duct House Duct

A1. Installation procedure for exhaust adaptor and proper damper operation check

The exhaust Adaptor and Damper are shipped assembled and attached to the filler-upper.

B. Recirculating (non-vented ductless)

1. Slide the exhaust adaptor as shown in the diagram above. 2. Make sure tape securing the damper is removed and damper pivots easily before you mount the microwave.

B1. Adapting the microwave blower for recirculation

CAUTION: You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed.

1. Remove and save the screws that hold the blower plate to the microwave.

A2. Adjust the exhaust adaptor After you have installed the microwave, you will need to open the top cabinet and adjust the exhaust adaptor so that you can connect it to the house duct. Blower Plate Blower Plate

Backof of Back Microwave Microwave

2. Lift up the blower plate.

NOTE: The exhaust adaptor with the damper is not needed for recirculating models. You may want to save them for possible future use.

For ForFront-to-Back Front-to-Back or Side-to-Side Adjustment, Adjustment, Slide the Slide theAdaptor Exhaust as Needed Exhaust Adaptor as Needed

12 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 12

Remove the screw that holds the blower motor and carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

Place the blower unit back into the opening.

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched. 6.

CAUTION: To avoid breaking or cracking the blower blade, do not touch the blade. Hold the outer case of the blower when you pull it out or put it back in place. 4.

Secure the blower unit to the microwave with the screw.

B2. Installing the charcoal filter

Roll the blower unit 90 ° so that the fan blade openings are facing toward the front of the microwave. Before Roll

Remove the screws on the top of the grill using a #1 Phillips screwdriver.

Push the grill left, and then pull the grill straight off. Charcoal filter

Install the charocal filter. When properly installed, the wire mesh of the filter should be visible from the front.

Reinstall the grille and the screws.

C. Outside back exhaust (horizontal duct) C1. Adapting the microwave blower for outside back exhaust

1. Remove and save the screws that hold the Blower Plate to the microwave. Screw

6. Place the blower unit back into the opening.

3. Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

BEFORE: Fan Blade Openings Facing Forward

End B CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched. NOTE: The blower unit exhaust openings should match exhaust openings on the rear of microwave oven.

End A CAUTION: To avoid breaking or cracking the blower blade, do not touch the blade. Hold the outer case of the blower when you pull it out or put it back in place.

7. Close the Blower Plate and attach the exhaust adaptor to the rear of the oven by sliding it into the guides at the back top center of the oven. Push in securely until it is in the lower locking tabs. Take care to ensure that the damper hinge is installed so that it is at the top and that the damper swings freely.

4. Remove Parts “A” with tin snips or pliers.

Back of Microwave Parts “A”

Guide Locking Tabs Guide

From Blower motor screw (after attached the exhaust adaptor)

2012-07-25 �� 7:50:51

Step-by-step installation guide 3. Installation INSTALLATION OVERVIEW A. Prepare Rear Wall (horizontal duct only) B. Attach Mounting Plate to Wall C. Prepare Top Cabinet D. Mount the Microwave Oven E. Connecting Ductwork (vertical duct only)

A. Preparing the rear wall for outside back exhaust

B. Attach the mounting plate to the wall

You need to cut an opening in the rear wall for outside exhaust.

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud. 1. Remove the toggle wings from the bolts.

2. Insert the bolts into the mounting plate through the holes designated to go into drywall, and then reattach the toggle wings so that ¾˝ of the bolt protrudes beyond the wing.

Read the instructions for outside back exhaust on the REAR WALL TEMPLATE.

Tape the REAR WALL TEMPLATE to the rear wall.

Cut the opening, following the instructions on the REAR WALL TEMPLATE.

CAUTION: Do not cut an opening in the rear wall if you are installing the microwave with vertical duct or non-vented ductless ventilation.

15 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 15

2012-07-25 �� 7:50:51

Step-by-step installation guide D. Mount the microwave oven

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

IMPORTANT: Do not grip or use handle during installation.

NOTE: Before tightening the toggle bolts and wood screw, make sure the bottom of the Mounting plate runs along the bottom Horizontal line of the “Rear wall Template” and the Mounting plate is properly centered under the cabinet.

NOTE: If your cabinet is metal, use the nylon grommet in the power cord hole to prevent the cord from being cut. NOTE: Filler blocks are required when mounting this unit under any cabinet with a recessed bottom or front overhang. (See page 9.)

CAUTION: Be careful to avoid pinching your fingers between the back of the mounting plate and the wall. 4.

Tighten all bolts. Pull the plate away from the wall to help tighten the bolts. Tighten the screw.

IMPORTANT: The case damage that will occur from over tightening screws if you do not use filler blocks is not covered under warranty.

C. Use the top cabinet template to prepare the top cabinet

NOTE: When mounting the microwave oven, thread the power cord through hole in the bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch the cord or lift the oven by pulling cord.

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Lift the microwave, tilt it forward, and hook the slots at the back bottom edge onto the four lower tabs of the mounting plate.

Read the instructions on the TOP CABINET TEMPLATE.

Tape it underneath the top cabinet.

Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

Rotate the front of the oven up against the cabinet bottom.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

16 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 16

2012-07-25 �� 7:50:52

Step-by-step installation guide 3.

E. Connecting ductwork for outside top exhaust

Insert a self-aligning screw through the top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep the power cord tight. Be careful not to pinch the cord, especially when mounting flush to the bottom of cabinet.

House Duct House Duct

CabinetFront Front Cabinet Cabinet Bottom Shelf Cabinet Bottom Shelf Filler Block Filler Block

Equivalent Equivalentto Depth of of to Depth Cabinet CabinetRecess Recess

Self-Aligning Screw Self-Aligning Screw MicrowaveOven Oven Top Top Microwave

Attach the microwave oven to the top cabinet.

Insert the 2 self-aligning screws through the cabinet bottom shelf and filler block into the outer top cabinet of the unit. Continue to support the unit until both screws are inserted and engaged at least two full turns, then fully tighten both screws until the unit is secure.

Install the grease filters. See the Owner’s Manual packed with the microwave for instructions.

Extend the house duct down to connect to the exhaust adaptor.

Seal exhaust duct joints using duct tape.

17 SMH1816_XAC_DE68-03943B-01_EN_120725.indd 17

2012-07-25 �� 7:50:52

Before You Use Your Microwave 4. Before you use your microwave 1.

Make sure the microwave oven has been installed according to instructions.

Remove all packing material from the microwave oven.

Install the turntable and ring in cavity.

Replace the house fuse or turn the breaker back on.

Plug the power cord into a dedicated 15 amp electrical outlet.

Insureproper proper Insure ground groundexists exists before use. before use

CAUTION: Wear gloves to avoid cutting fingers on sharp edges.
