USER MANUAL GMF202SI GLEM

GB INSTRUCTION MANUAL MODEL: GMF202SI GMF202WH Read these instructions carefully before using your microwave oven ,and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

GB PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this canresult in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model:

GMF202SI/GMF202WH Rated Voltage:

Rated Input Power(Microwave):

1270W Rated Output Power(Microwave):

800W Rated Input Power(Grill):

1000W Oven Capacity:

GB IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to personsor exposure to excessive microwave oven energy whenusing your appliance, follow basic precautions, including he following: 1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode. 2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. 3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision or instruction concerning useof the appliance in a safe way andunderstand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shallnot be made by children unless they are older than 8 and supervised. 4. Keep the appliance and its cord out of reach of children less than 8 years. 5. Only use utensils suitable for use in microwave ovens. 6. The oven should be cleaned regularly and any food deposits should be removed. 7. Read and follow the specific:"PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY". 8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. 3

9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. 10. Do not overcook food. 11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven. 12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. 13. Install or locate this oven only in accordance with the installation instructions provided. 14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. 15.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments. 16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 17. Do not store or use this appliance outdoors. 18. Do not use this oven near water, in a wet basement or near a swimming pool. 19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use.Keep cord away from heated surface, and do not cover any vents on the oven. 4

20. Do not let cord hang over edge of table or counter. 21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 22.The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. 23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 25.Children should be supervised to ensure that they do not play with the appliance. 26.The appliances are not intended to be operated by means of an external timer or separate remote-control system. 27.Accessible parts may become hot during use. Young children should be kept away. 28.Steam cleaner is not to be used. 29.During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. 30.Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) 5

31. WARNING: The appliance and its accessible parts become hot during use.Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. 32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.) 33.The rear surface of appliance shall be placed against a wall. 34.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

GB To Reduce the Risk of Injury to Persons Grounding Installation

DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death.Do not disassemble this appliance.

WARNING Electric Shock HazardImproper use of the grounding can result inelectric shock. Do not plug into an outlet untilappliance is properly installed and grounded. This appliance must be grounded. In theevent of an electrical short circuit, grounding reduces the risk of electricshock by providing an escape wire forthe electric current. This appliance isequipped with a cord having a groundingwire with a grounding plug. The plug mustbe plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician orserviceman if the grounding instructio nsare not completely understood or if doubtexists as to whether the appliance isproperly grounded. If it is necessary touse an extension cord , use only a 3-wire 1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord isused: 1)The marked electrical rating of the cordset or extension cord should be at least asgreat as the electrical rating of the appliance. 2)The extension cord must be a grounding-type 3-wire cord. 3)The long cord should be arranged so thatit will not drape over the counter top ortabletop where it can be pulled on bychildren or tripped over unintentionally.

GB CLEANING Be sure to unplug the appliance from thepower supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. 4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. 5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection asgainst exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil T est: 1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question. 2. Cook on maximum power for 1 minute. 3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. 4. Do not exceed 1 minute cooking time.

GB Materials you can use in microwave oven Utensils

Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming.

Browning dish Dinnerware Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic

Plastic wrap Thermometers Wax paper

Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Microwave-safe only (meat and candy thermometers). Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven Utensils Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils Metal twist ties Paper bags Plastic foam Wood

Remarks May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack.

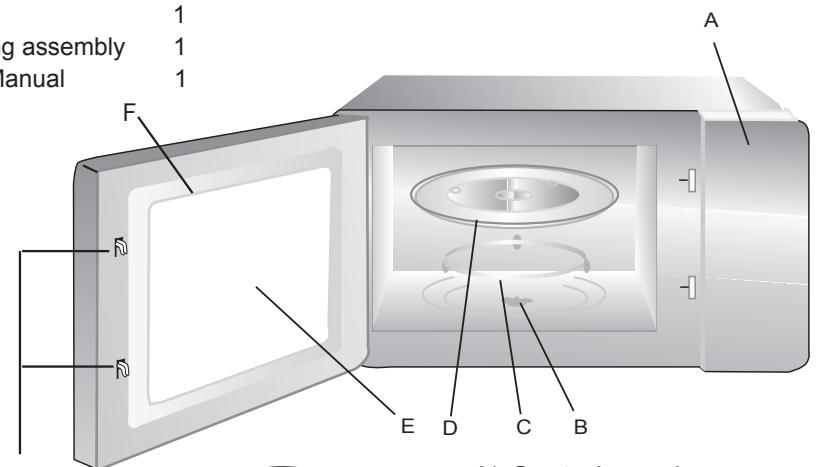

GB SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

F E G Grill Rack( Only for Grill series )

D C A B A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Turntable Installation Hub (underside)

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must

always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or

breaks, contact your nearest authorized service center. Turntable ring assembly

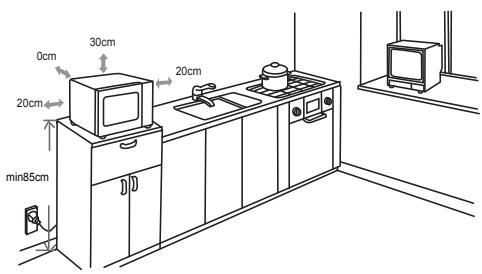

GB Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

1.Select a level surface that provideenough open space for the intakeand/or outlet vents. 0cm

(4) Blocking the intake and/ or outlet openings can damage the oven. (5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception. 2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

(1) The minimum installation height is 85cm. (2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. (3) Do not remove the legs from the bottom of the oven.

WARNING: Do not install oven over arange cooktop or other heat-producing appliance. If installed near or over a heatsource, the oven could be damaged and the warranty would be void. The accessible surfacemay be hot during operation. 11

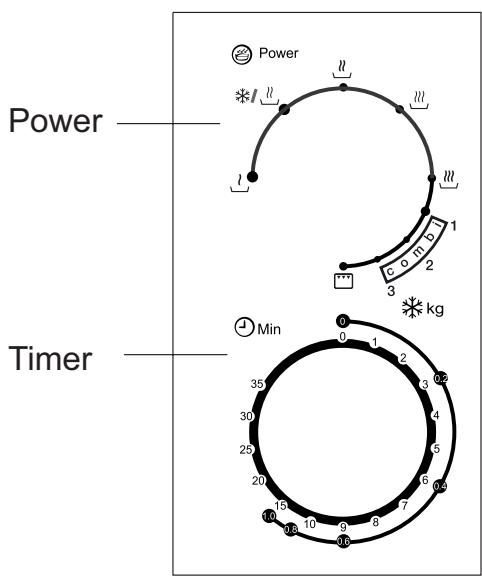

GB OPERATION Control Panel and Features 1.To set cooking power by turning the power knob to desired level.

2.To set the time of cooking by turning the timer knob to desired time per your food cooking guide. 3.The microwave oven will automatically start cooking after

Power level and time is set. 4.After the cooking time is up ,the unit will "Ding " to stop. 5.If the unit is not in use, always set time to "0 " .

Keep food temperature, soften ice cream

Cook cream cake, braise food

rice, fish and shell-fish, cookies, meat

Reheat, boil water, cook fresh vegetable, chickens ducks, heat non-milk drink

80% grill + 20% micro

Western steak, pork chop, meat, poultry, etc.

70% grill + 30% micro

Chinese steak, meat, pork chop, etc.

60% grill + 40% micro

Chickens, ducks, meat, make food crispy and tasty Spit-roasting, smoked fish fillets, potato chips

GB If something does trouble shooting; before seeking assistanace carry out the following checks first.

It is forbidden to run the unit without any food inside. It is very dangerous.

CUSTOMER ASSISTANCE SERVICE If you cannot identify the cause of the operating anomaly: switch off the appliance (do not subject it to rought treatment) and contact the Assistance Service. PRODUCT SERIAL NUMBER. Where can I find it? It is important that you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance. It will help to avoid wasted journerys to technicians, thereby (and most significantly) saving the corresponding callout charges.

GB This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
